Custom Precision Round Parts for Shafts, Pins & Spacer Rings

Custom Precision Round Parts for Shafts, Pins & Spacer Rings

Precision Round Parts are the quiet workhorses at the heart of rotating and sliding assemblies, keeping mechanisms aligned, supported and free-moving over millions of cycles. In applications where vibration, misalignment or premature wear cannot be tolerated, high-accuracy cylindrical components such as shafts, dowel pins, bushings, collars and spacer rings become mission critical.

This product line focuses on custom-manufactured round components engineered for use as shaft elements, locating pins and precision spacer rings in mechanical assemblies. Whether you are designing an industrial gearbox, a linear slide, a packaging machine or a test fixture, these parts can be tailored to match your drawings and functional requirements.

Using modern CNC turning, Swiss-type machining and grinding processes, we help you achieve consistent dimensional control and surface integrity so your assemblies go together smoothly and stay in tolerance throughout their service life.

What These Precision Round Parts Are

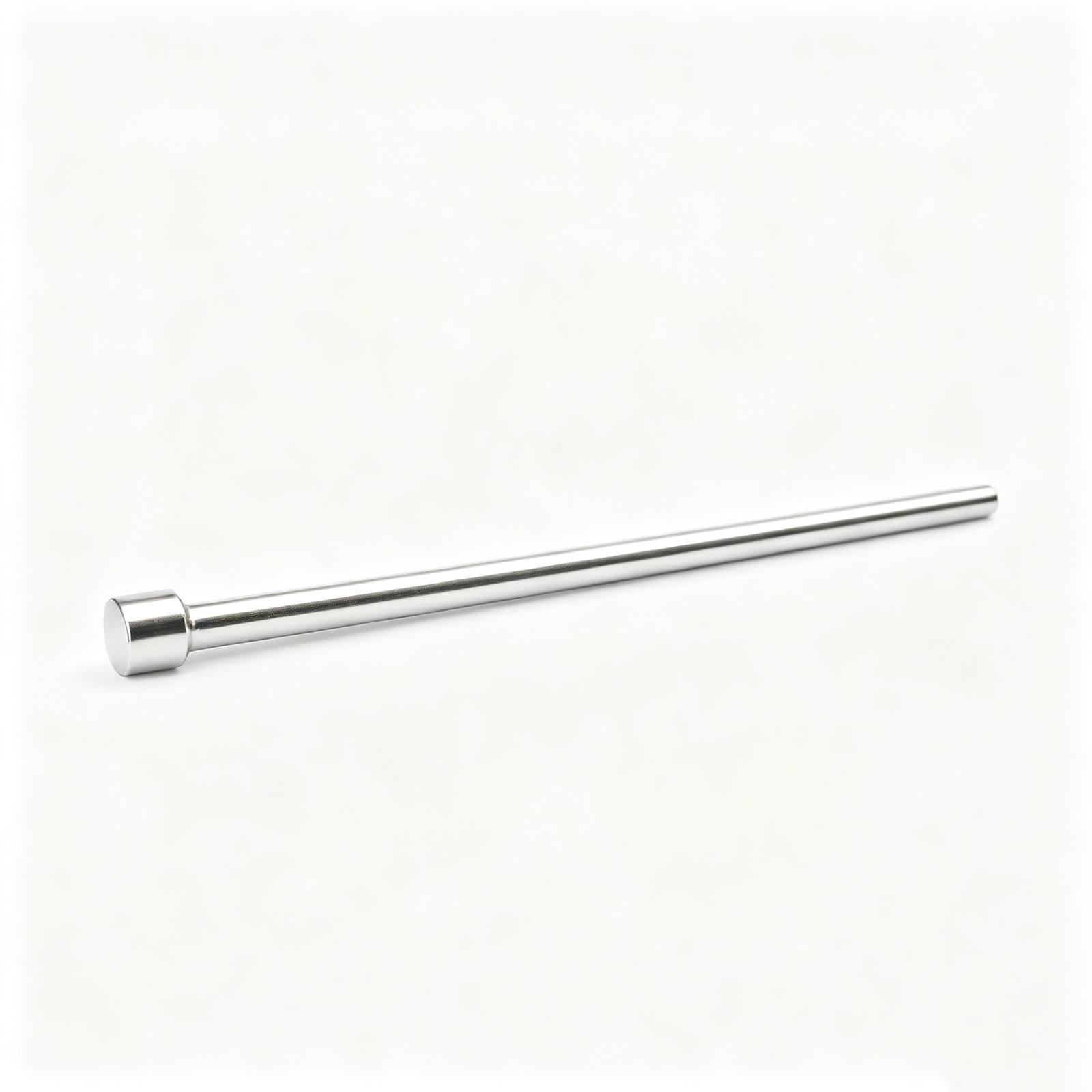

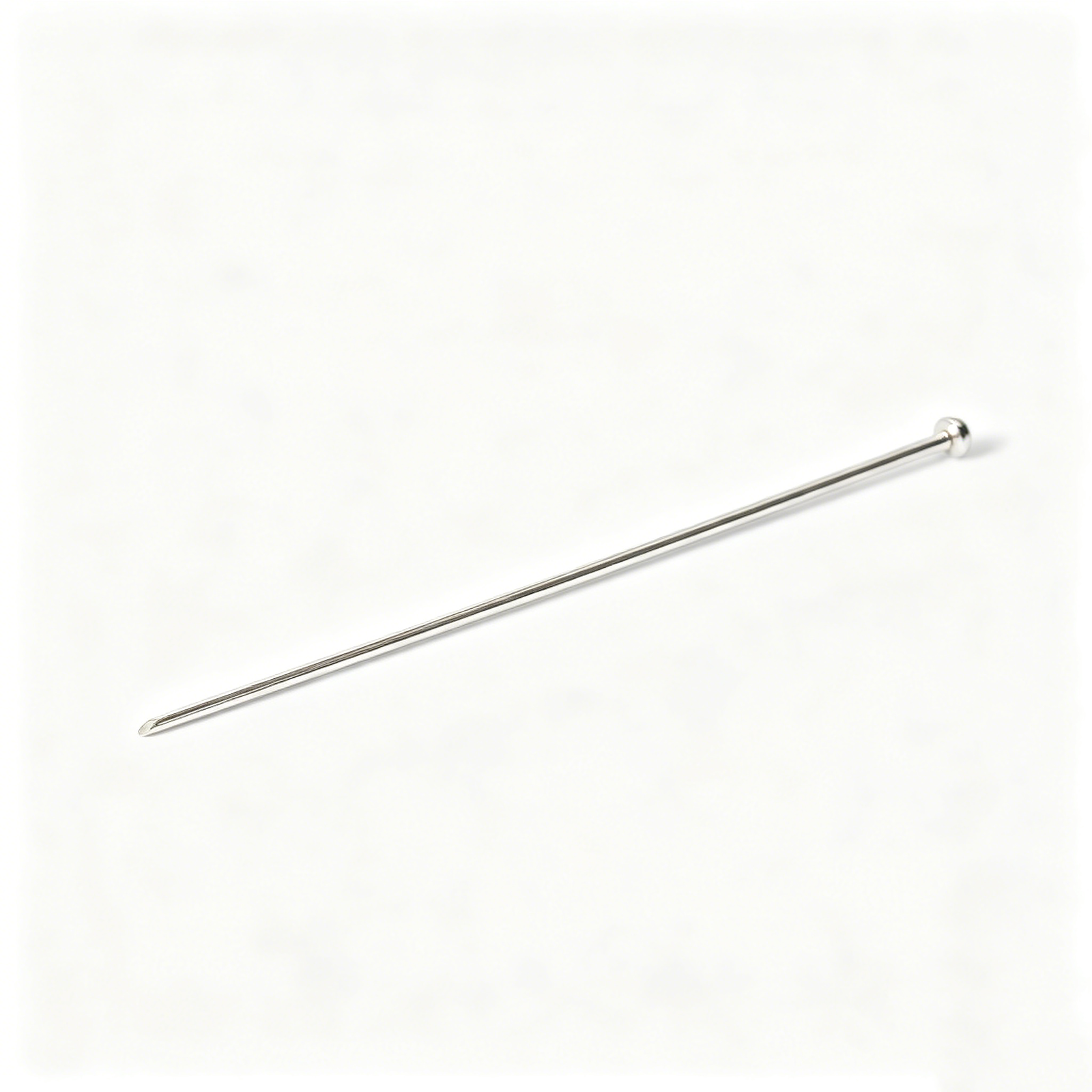

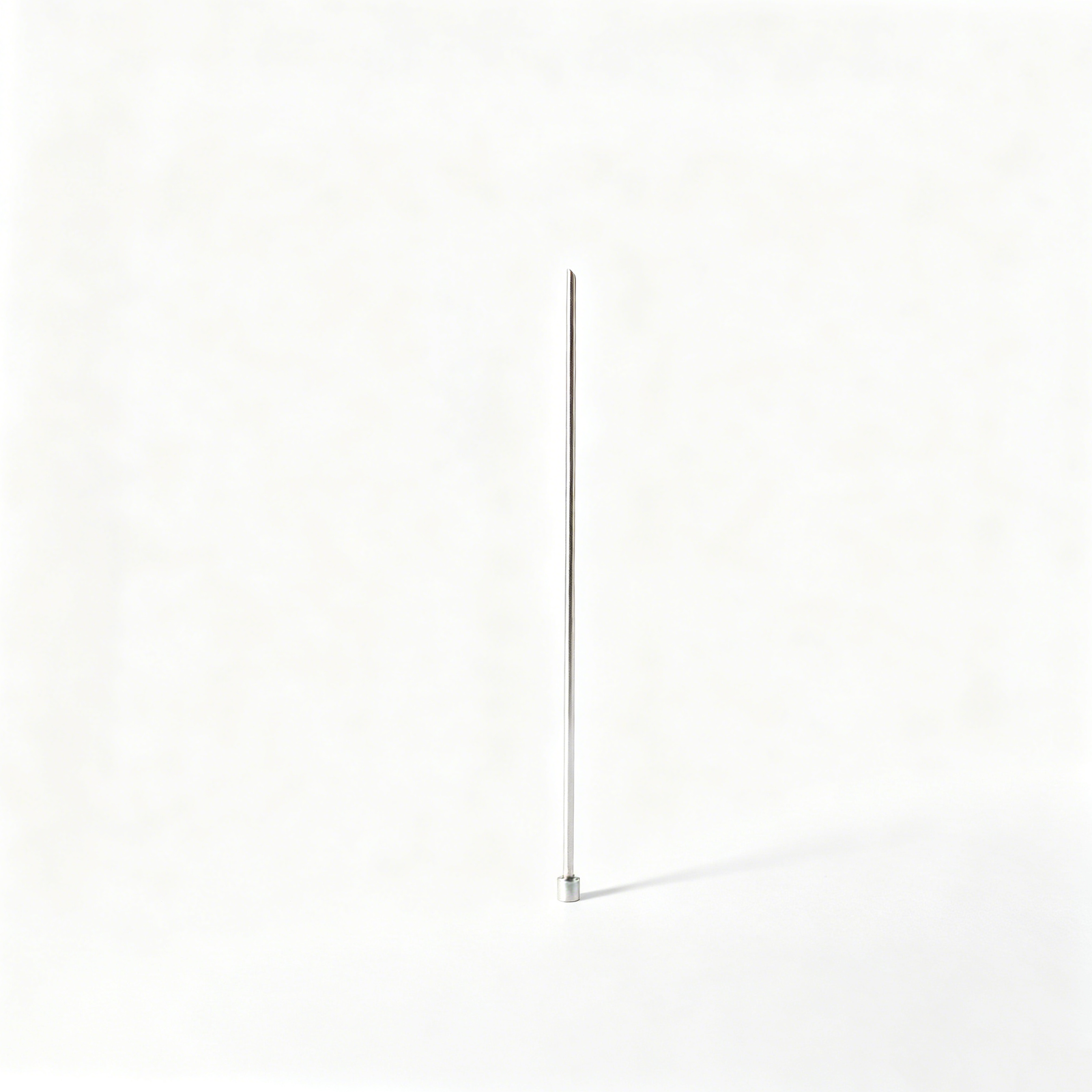

These Precision Round Parts are custom-produced cylindrical components designed to connect, support or accurately space other elements within your build. Typical formats include:

• Shafts and axles for bearings, pulleys, couplings and rollers.
• Dowel and locating pins for repeatable fixture alignment or component registration.
• Spacer rings and precision washers to set exact distances between critical surfaces.
• Round bushings and sleeves used as wear surfaces or alignment guides.
• Collars and stop rings to locate assemblies along a shaft or rail.

Every part is machined from bar or tube stock and can be finished with secondary processes such as grinding, deburring, surface treatments and basic marking where required. The result is a family of components that plug directly into your mechanical design with confidence that they will fit, align and perform as intended.

Key Features & Benefits

Choosing custom Precision Round Parts for your shafts, pins and spacer rings delivers a range of benefits beyond what off-the-shelf hardware can offer.

• Application-specific geometry
  Configure diameters, lengths, chamfers, grooves, shoulders and cross-holes exactly as your assembly demands, eliminating design compromises forced by standard catalog parts.
• Improved alignment and repeatability
  Consistent outer and inner diameters, controlled circularity and straightness help ensure proper bearing fits, accurate runout and predictable assembly behavior.
• Optimized material selection
  Choose from carbon steel, alloy steel, stainless steel, aluminum or engineering metals suited for strength, corrosion resistance or weight reduction, depending on your operating environment.
• Enhanced surface quality
  Specify turned, ground or polished surfaces where needed to support low friction, reduced wear and a professional visual finish in exposed assemblies.
• Streamlined assembly processes
  When shafts and pins are made to drawing rather than adapted from standard pieces, installers spend less time shimming, reworking or adjusting, saving labor and reducing scrap.
• Scalable from prototypes to production
  Support early design validation with short runs, then ramp to higher volumes when your project moves to full-scale manufacturing.

Specifications & Options

Because these components are produced to order, most characteristics are defined by your drawings, models or print notes. The table below summarizes common attributes you can specify to ensure the parts meet your performance goals.

Use Cases & Who These Parts Are For

These custom Precision Round Parts are ideal for engineers, buyers and builders who need dependable, repeatable hardware in demanding assemblies. Common usage scenarios include:

• Power transmission assemblies
  Shafts and spacer rings used between bearings, gears and couplings to maintain proper axial spacing and alignment.
• Automation and motion systems
  Dowel pins and sleeves that ensure linear guides, end-effectors and sensor mounts always return to the same position after maintenance or changeovers.
• Test fixtures and jigs
  Locating pins and precision sleeves for repeatable clamping of parts during inspection, machining or measurement operations.
• Packaging, printing and converting machinery
  Round parts that support rollers, mandrels and idlers where consistent parallelism and smooth rotation are essential.
• Custom equipment and OEM assemblies
  Engineers who want to standardize their internal hardware around tailored shafts, collars and spacers to simplify both design and maintenance.

If you are tired of adapting your design to fit off-the-shelf hardware, moving to custom round components can unlock better ergonomics, simpler assembly and longer service life for your machines.

Care, Handling & Buying Guidance

Although metal Precision Round Parts are robust, proper care ensures they reach your assembly in the same condition they left production and continue to perform reliably.

• Storage
  Keep parts in their original packaging or organized trays to prevent nicks, dents or corrosion from contact with other components or humidity.
• Handling
  Avoid dropping or sliding parts against hard surfaces, especially ground or polished shafts and pins where surface damage can affect fit.
• Cleaning
  Use compatible solvents or cleaners to remove oils or debris before installation, following any material-specific guidelines.
• Installation
  Use proper tools such as arbor presses, soft jaws or alignment fixtures when pressing in dowels or bearings to avoid bending or scarring the parts.
• Inspection
  Verify critical dimensions and fit on first-article parts, then establish a consistent receiving inspection routine matched to your quality standards.

When requesting a quote, it helps to provide engineering drawings or models that clearly show diameters, lengths, critical tolerances, keyways or grooves and any surface treatment requirements. The more detail you can include up front, the easier it is to optimize manufacturability and cost without sacrificing performance.
