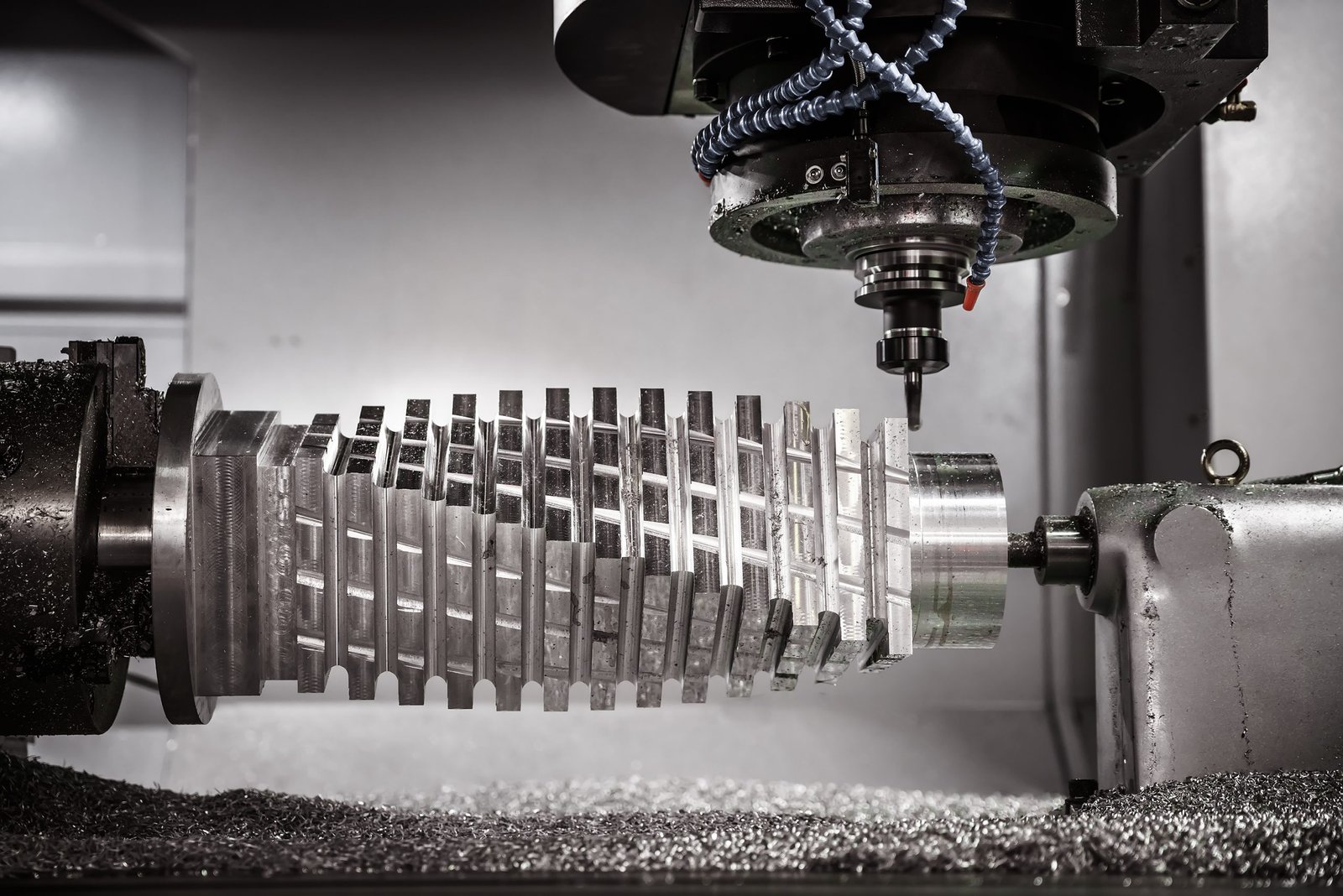

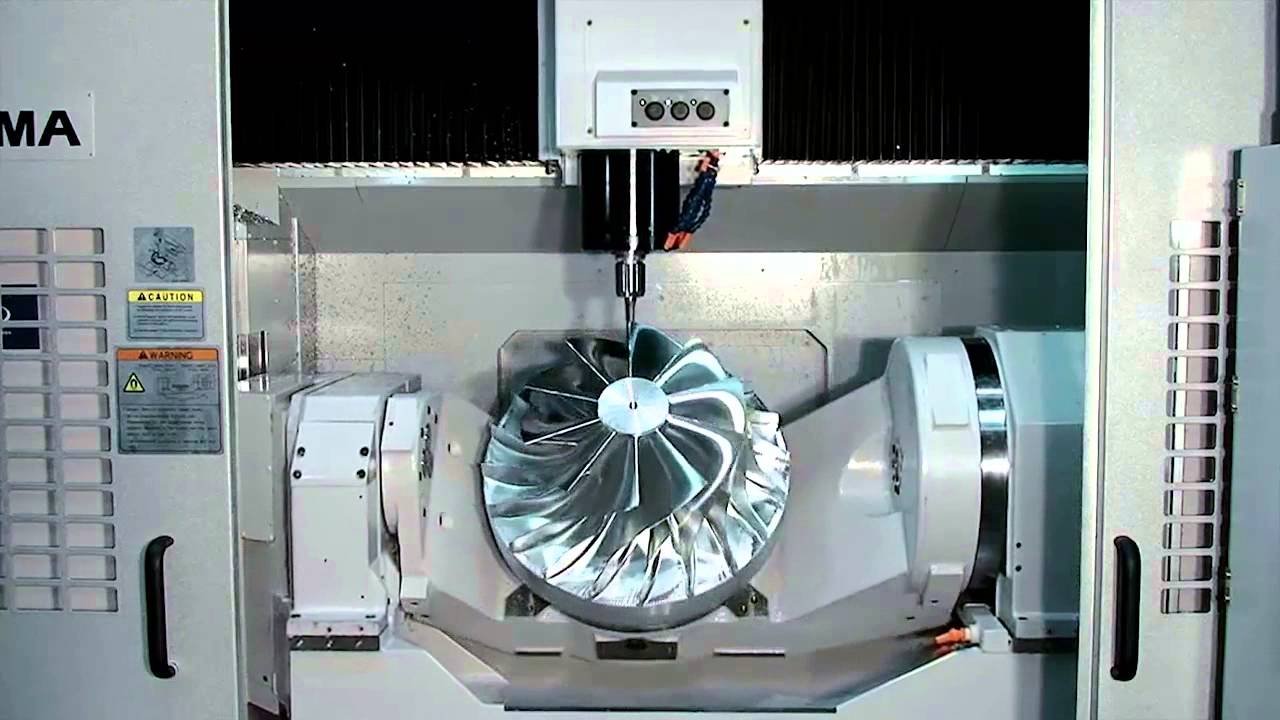

Multi-Axis Milling

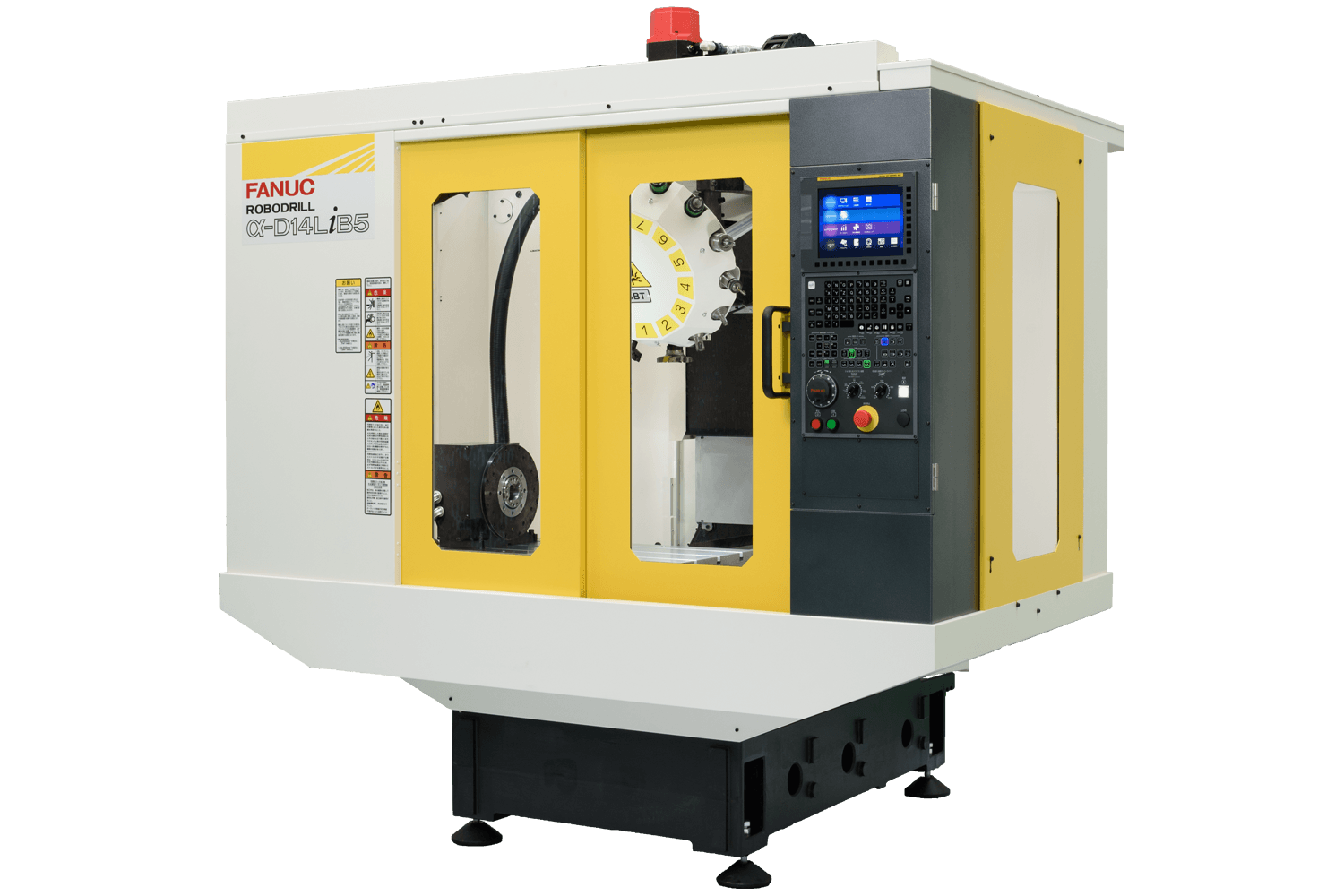

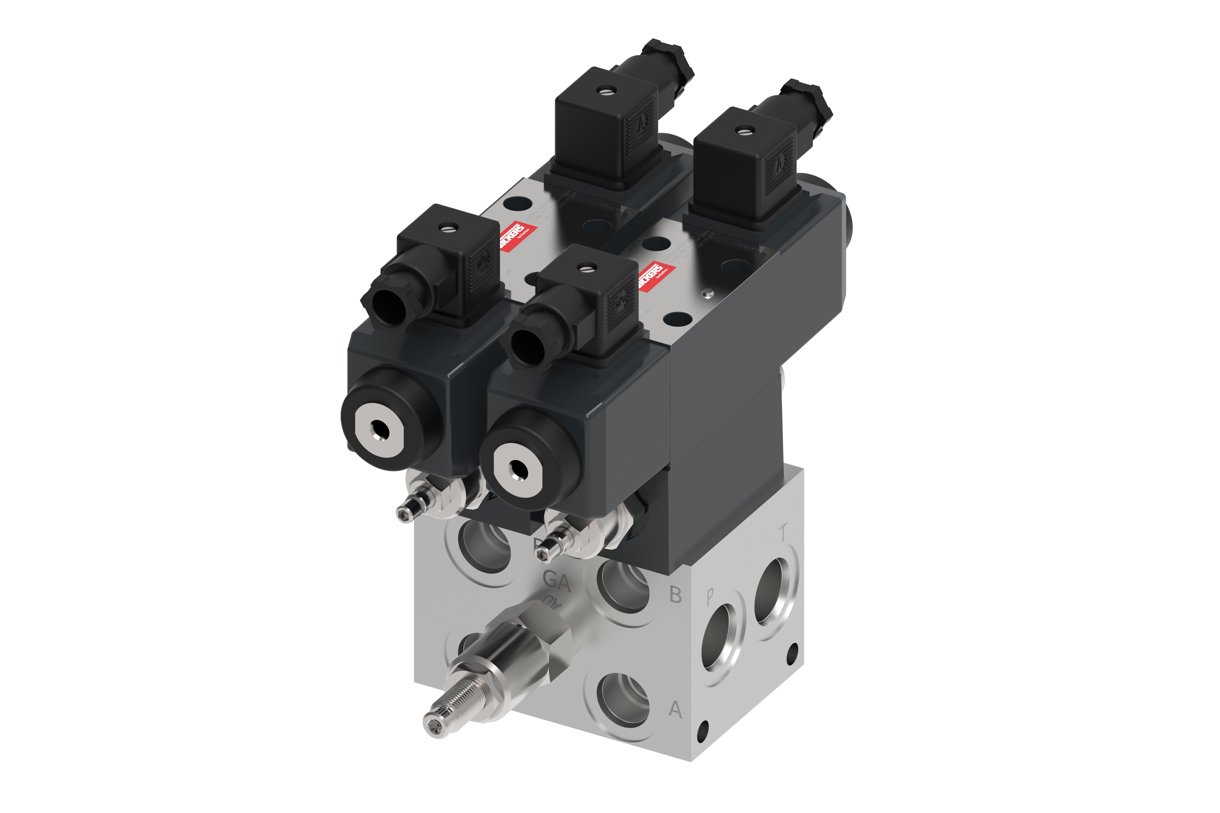

Multi-axis CNC milling machines complex three-dimensional geometries in a single setup, typical for manifold blocks, valve bodies and sensor housings. XUXIANG’s Fanuc-class machining centers hold +/-0.002 mm positional accuracy across five axes, eliminating manual re-fixturing and cumulative error. Specify multi-axis when part features include compound angles, undercuts or integrated cooling channels.

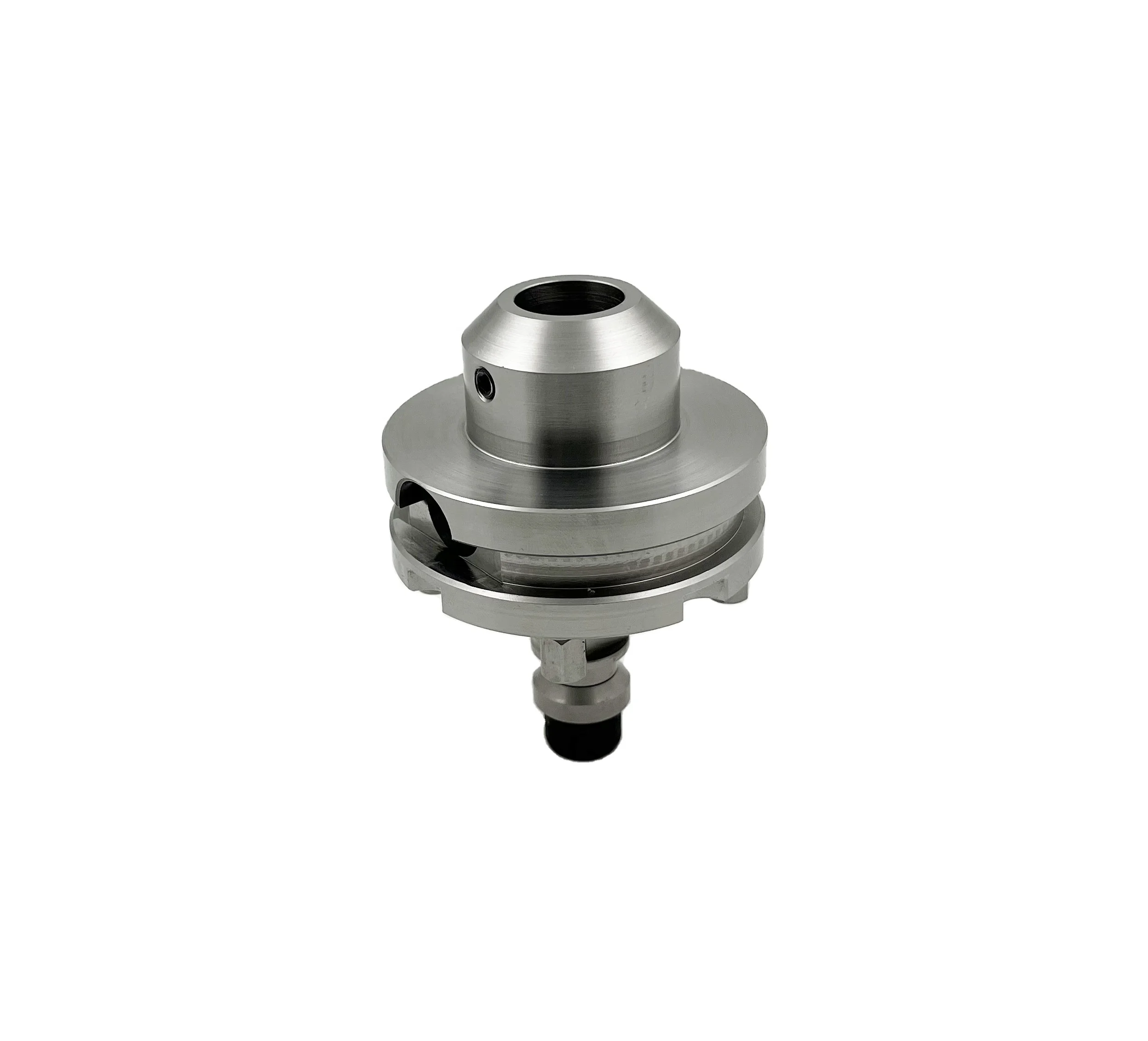

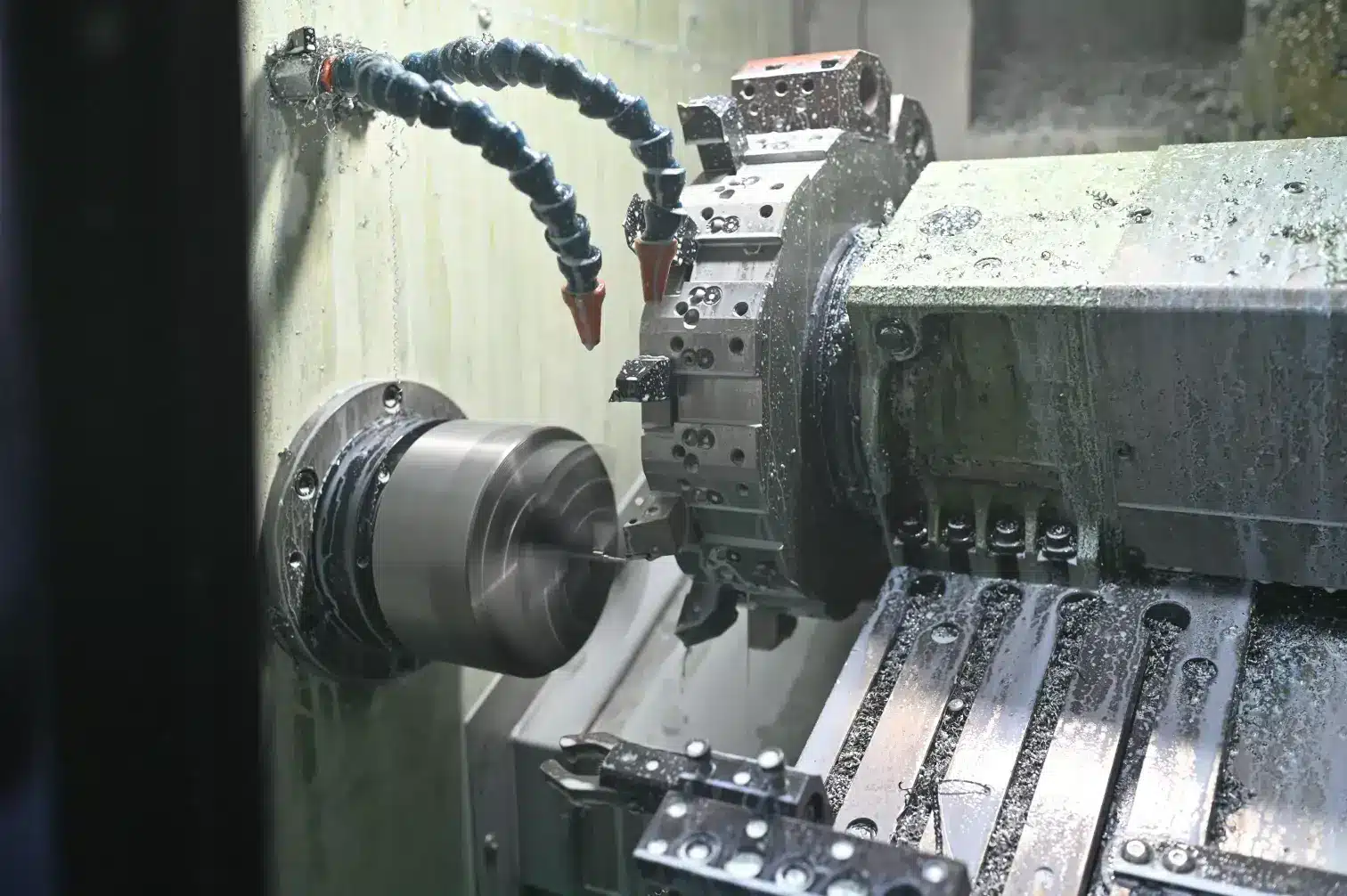

Precision Turning

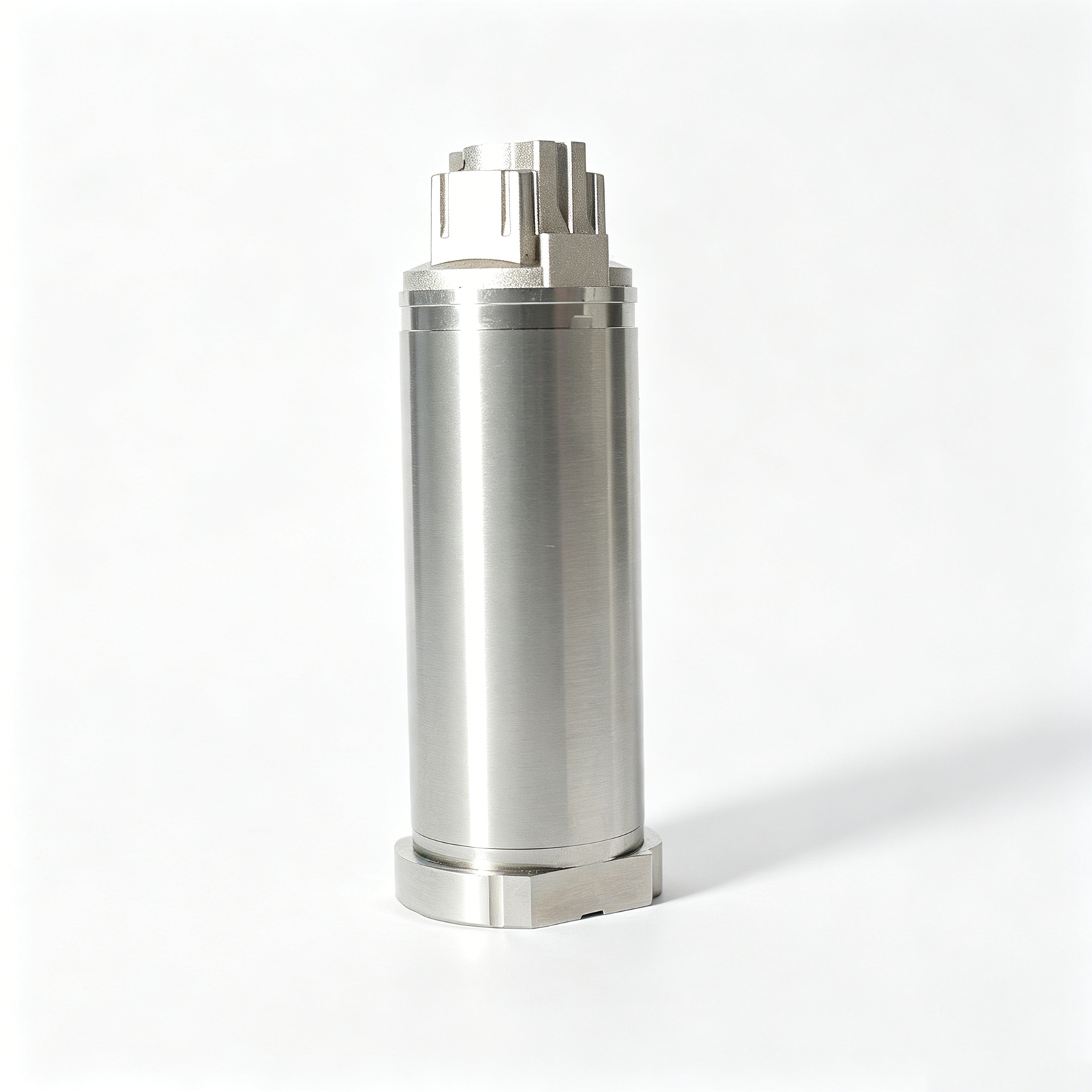

CNC turning produces cylindrical components — shafts, bushings, actuator pins — with tight concentricity and surface finish down to Ra 0.8 μm. Typical tolerance bands range +/-0.005 to +/-0.01 mm for agricultural actuator bushings. This process suits high-volume runs of rotational parts where diameter and runout are critical.

Swiss-Type Machining

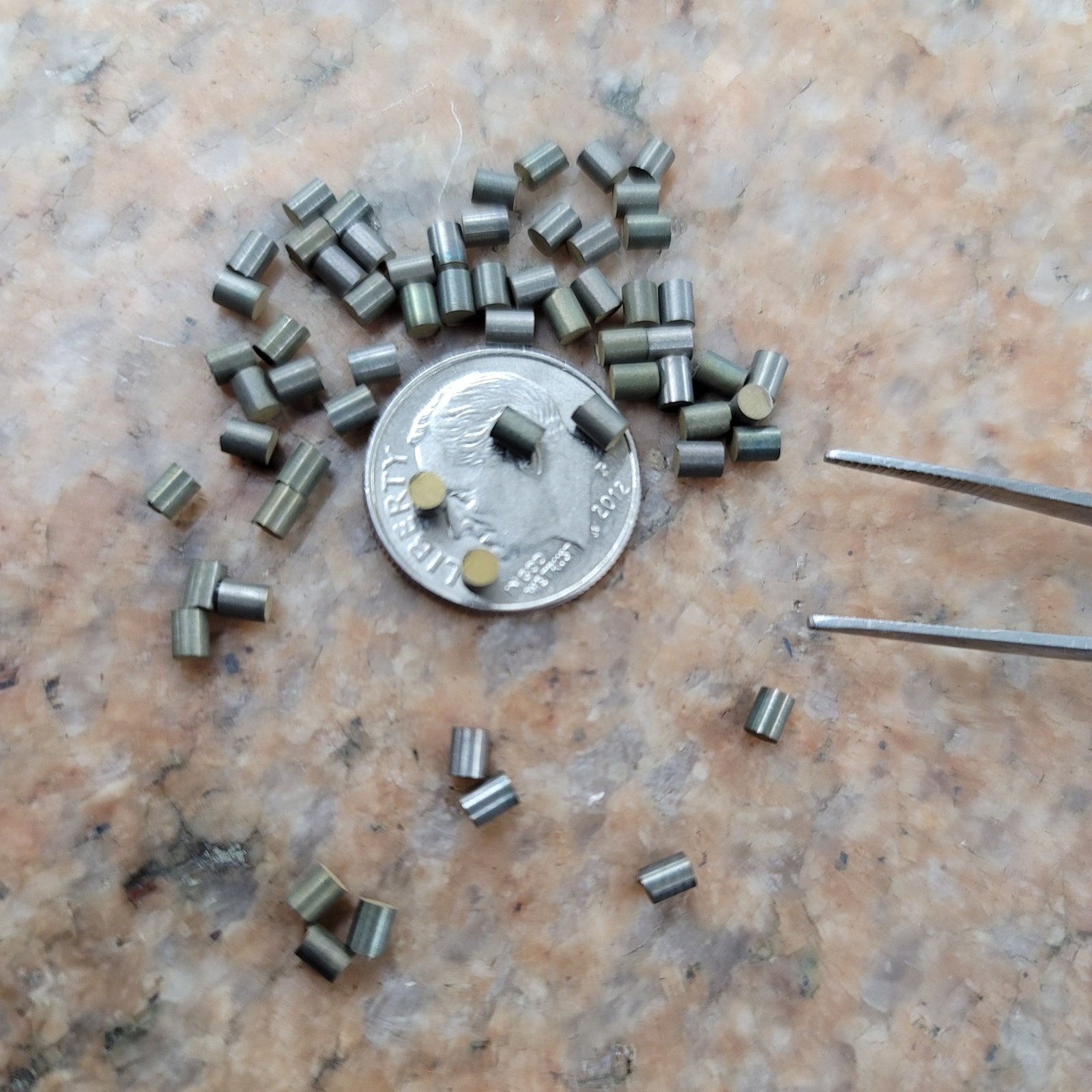

Swiss-type lathes excel at micro-diameter components under 12 mm — sensor pins, micro shafts and terminal contacts — holding length-to-diameter ratios beyond 10:1. Guide-bushing support minimizes deflection, enabling +/-0.003 mm on slender geometries. Specify Swiss machining for high-aspect-ratio sensor hardware in precision agriculture systems.

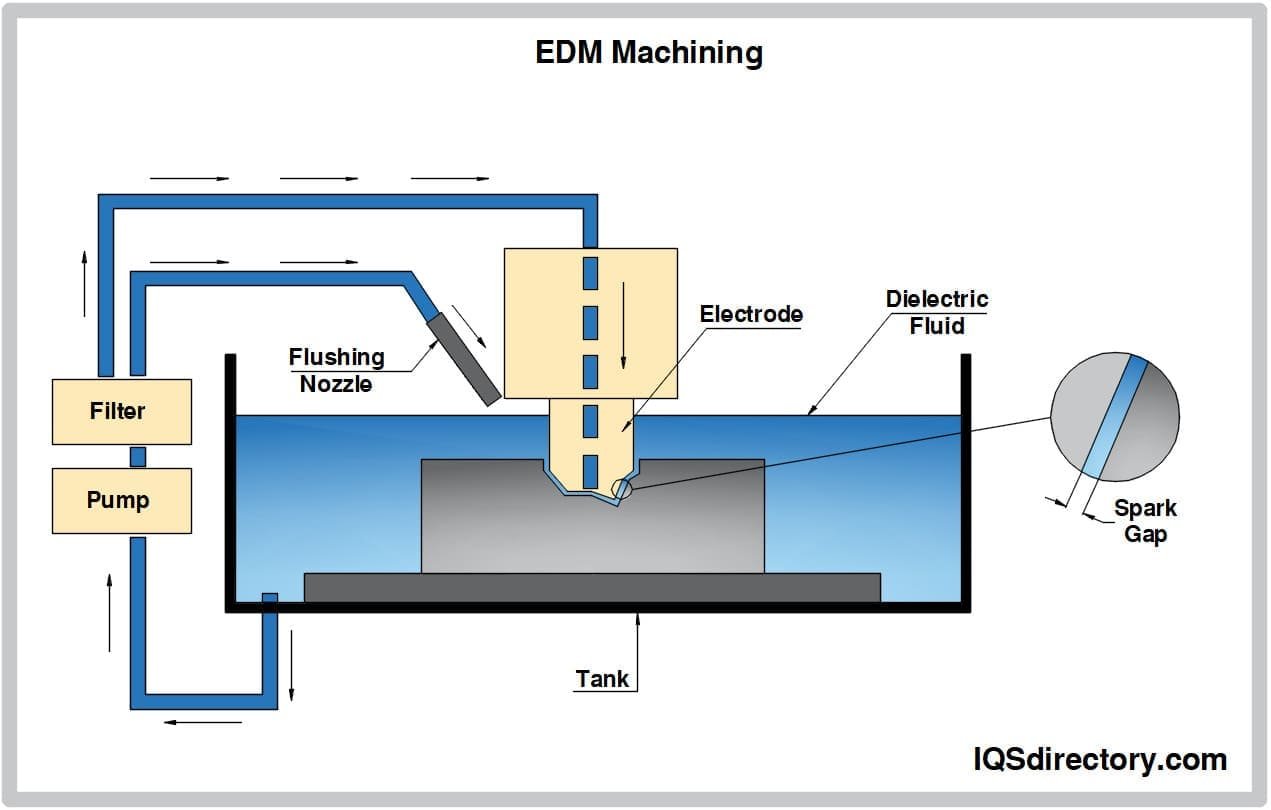

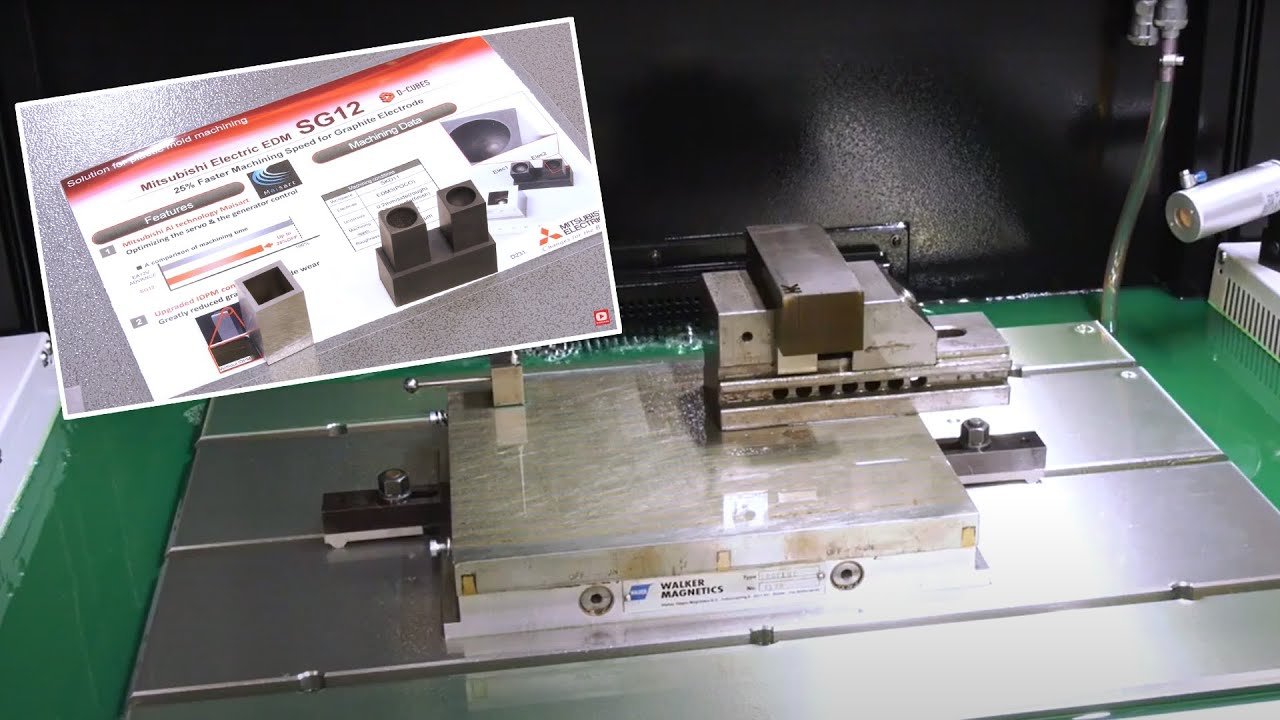

EDM for Hardened Components

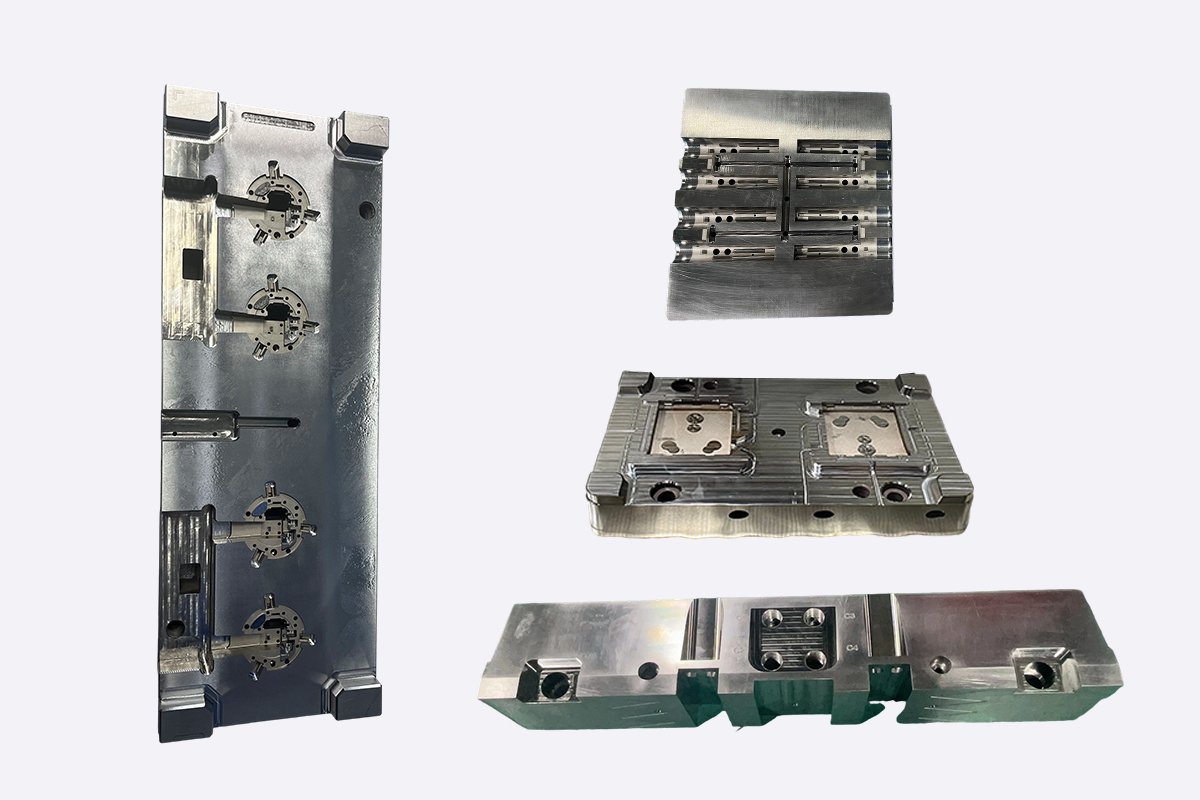

Electrical discharge machining removes material from hardened steels (HRC 50+) without mechanical stress, ideal for seed-drill wear plates and injection-mold inserts. XUXIANG’s Sodick and Charmilles sinker EDM achieve +/-0.003 mm on hardened tool steels with mirror finishes to Ra 0.1 μm. Choose EDM when post-heat-treatment machining is required.

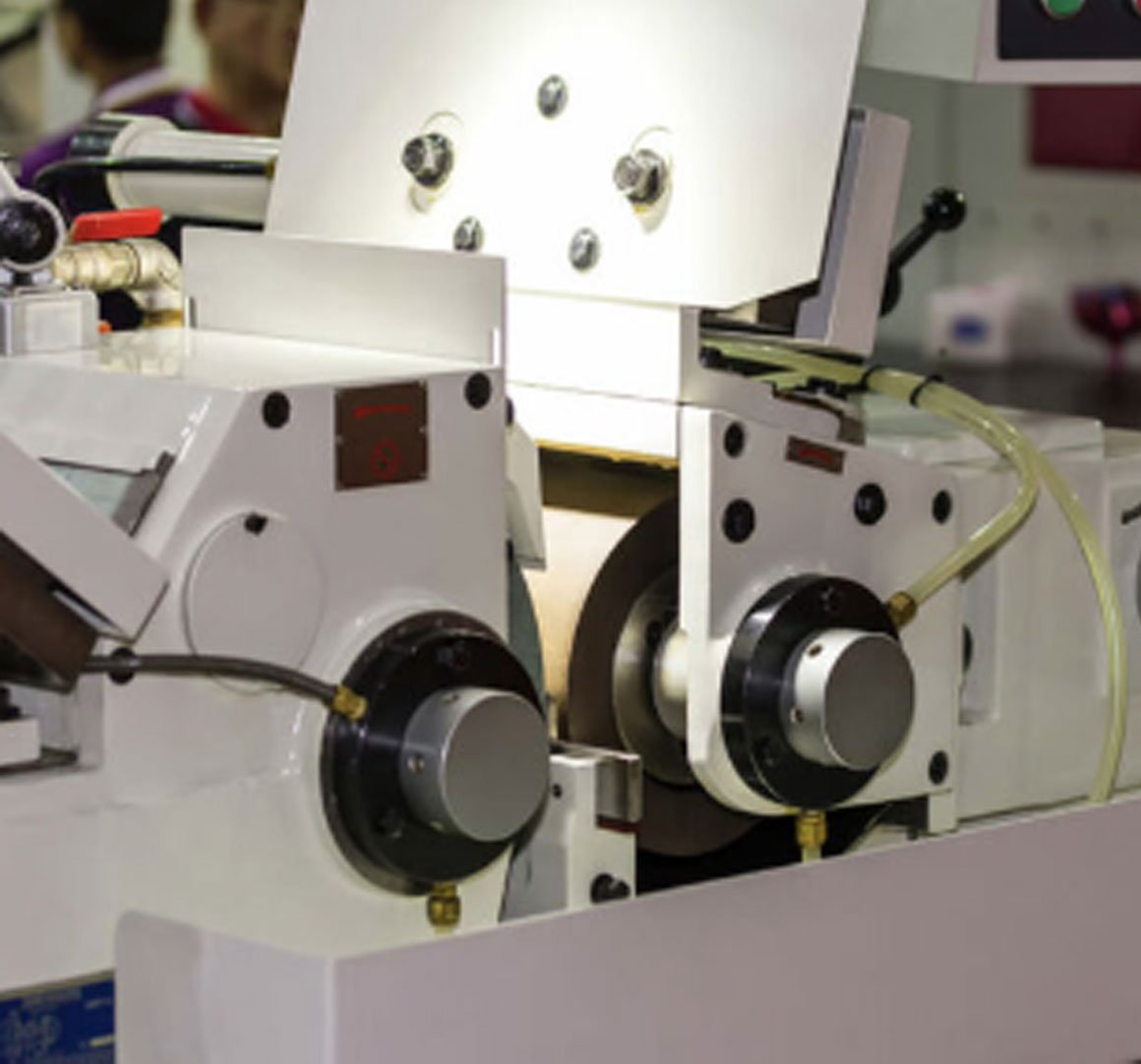

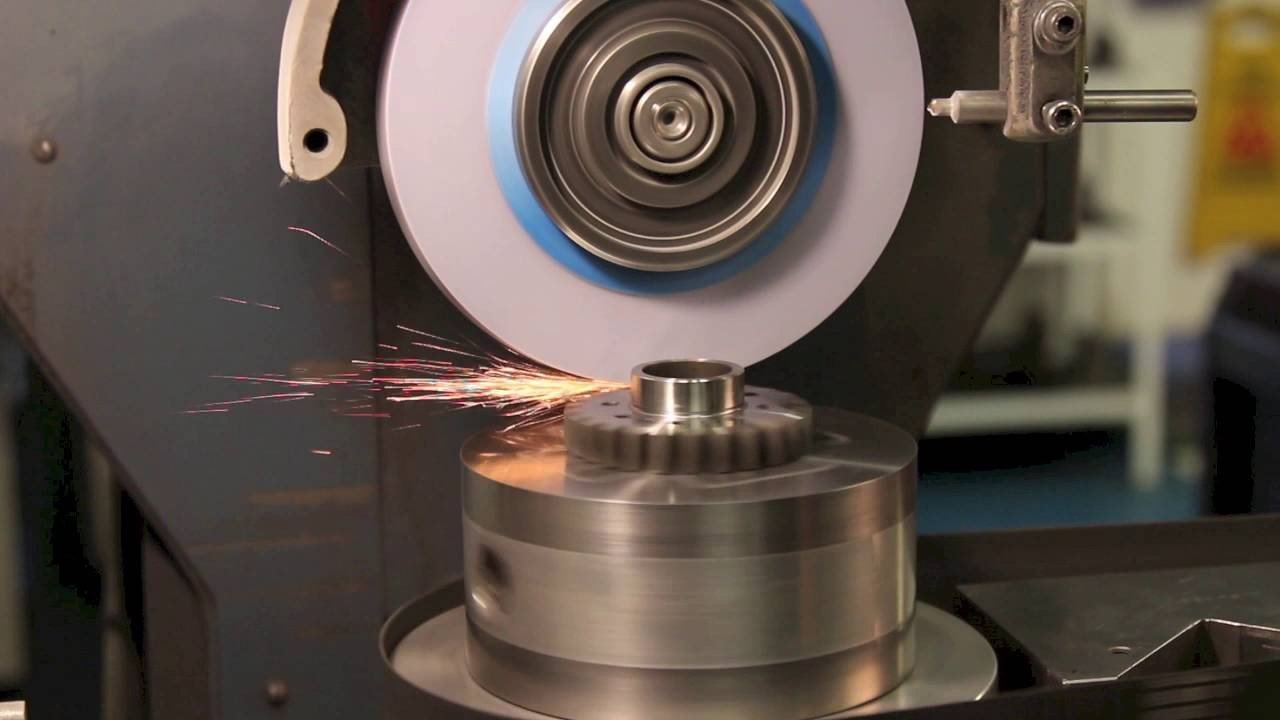

Surface Grinding

Precision grinding delivers flatness under 0.005 mm and parallelism to +/-0.002 mm, essential for mounting plates, linear-guide rails and calibration fixtures. Dawn grinding centers process hardened and soft materials alike, ensuring stable datum surfaces for assembly. Specify grinding when flatness, not geometry, drives function.

Anodizing and Hard-Coat Plating

Type II anodizing (12–25 µm) protects aluminum sensor housings and valve bodies from corrosive fertilizer salts, while Type III hard-coat anodizing (≥50 µm) adds abrasion resistance for moving parts in spreader mechanisms. Both processes seal porous surfaces and improve UV stability.

XUXIANG’s post-machining anodize partners maintain +/-0.005 mm tolerance on critical fits, preventing dimensional creep that compromises seal integrity in high-pressure sprayer modules.

Passivation and Chemical Resistance

Stainless 316L valve bodies and pump components undergo citric-acid passivation per ASTM A967 to remove free iron and form a chromium-oxide layer, extending service life in contact with liquid fertilizers and herbicides by 3–5× versus untreated stock.

Laser Engraving and Assembly Services

Fiber-laser engraving embeds serial numbers, QR codes and part identifiers at 0.1 mm depth for lifetime traceability without labels that degrade outdoors. XUXIANG offers sub-assembly of sprayer modules—mounting brackets, sensor housings and connector blocks—reducing your inbound SKU count and inspection overhead.

Typical lead-time impact: anodizing adds 3–5 days, passivation 2–3 days, laser marking same-day when in-house.

CMM Inspection and Metrology

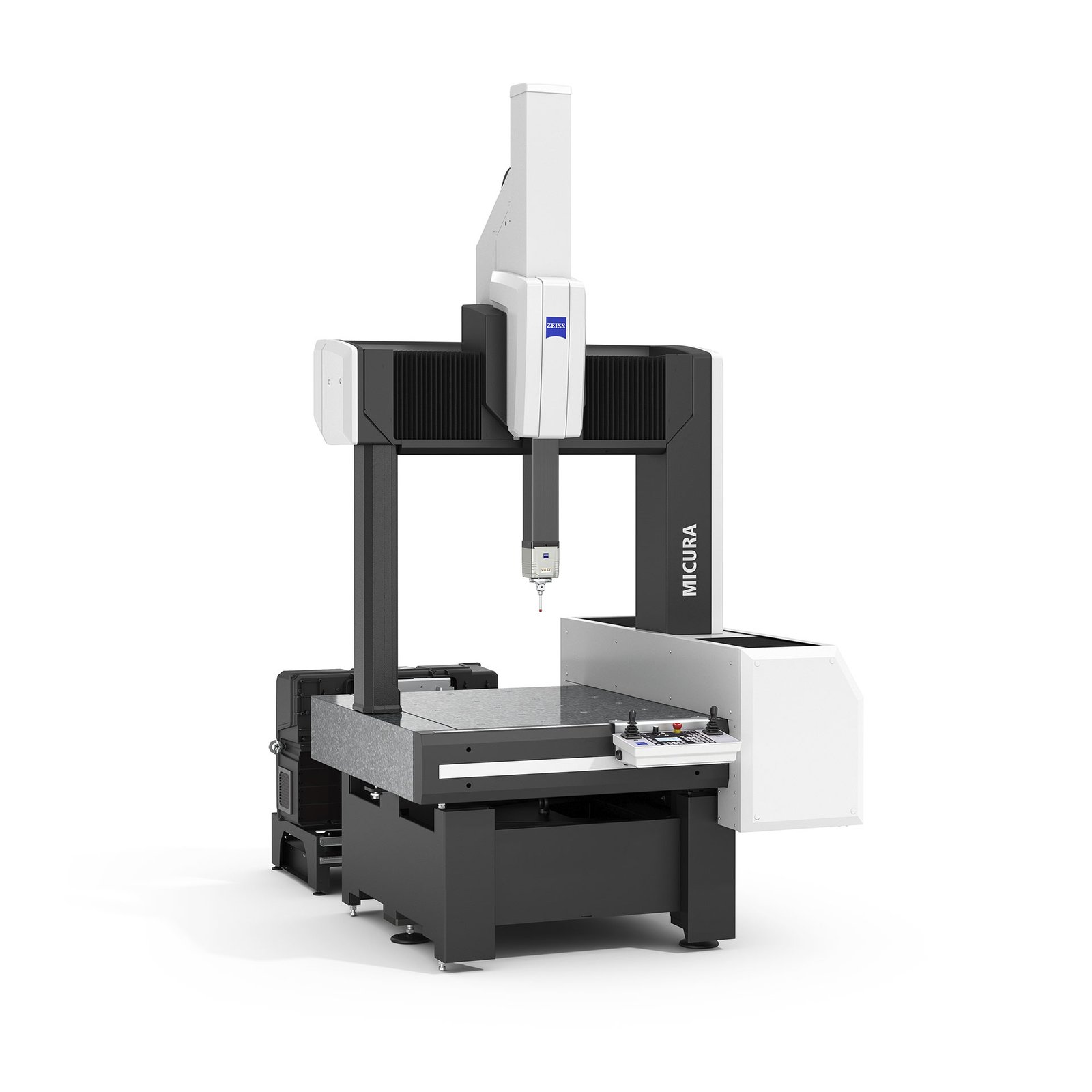

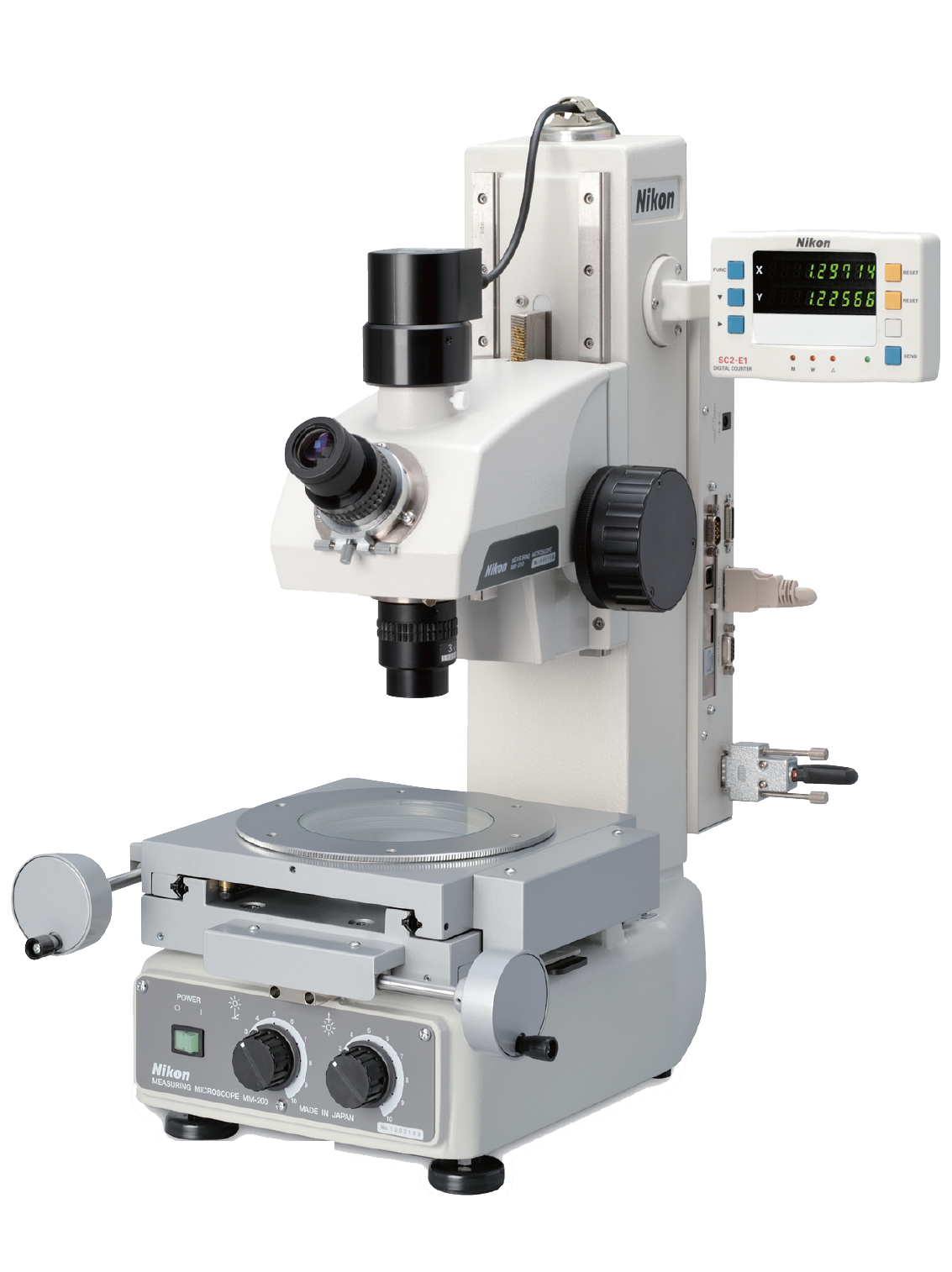

ZEISS, Mitutoyo or equivalent coordinate measuring machines verify dimensional accuracy to +/-0.001 mm or tighter, ensuring that agriculture precision CNC machining services meet drawing tolerances. XUXIANG deploys a ZEISS MICURA CMM with 0.7 µm resolution and Nikon toolmaker’s microscopes (V-12B / MM-400 class) for critical features.

Every batch receives a CMM report correlating measured points to CAD geometry, flagging deviations before shipment. This traceability is non-negotiable for tier-one agriculture OEMs auditing supplier capability.

ISO 9001 and Material Traceability

ISO 9001:2015 governs process control, corrective action and document retention across agriculture precision CNC machining services. Material traceability — spectral analysis reports and mill certificates — links each lot to its heat number, confirming alloy chemistry and mechanical properties.

XUXIANG’s five-step QC flow includes incoming material spectral analysis, ensuring that 17-4PH stainless or 7075 aluminum meets aerospace-grade chemistry before the first cut.

First-Article Inspection and In-Process SPC

First-article inspection (FAI) per AS9102 or equivalent validates every feature on the first production piece, generating a dimensional layout, material cert and surface-finish report. In-process statistical process control (SPC) monitors critical dimensions at setup and mid-run, preventing drift.

For safety-critical agriculture components, batch documentation — FAI, process sheets, CMM data — accompanies every shipment, satisfying OEM audit trails and liability insurance requirements.

General and Agriculture-Specific Tolerances

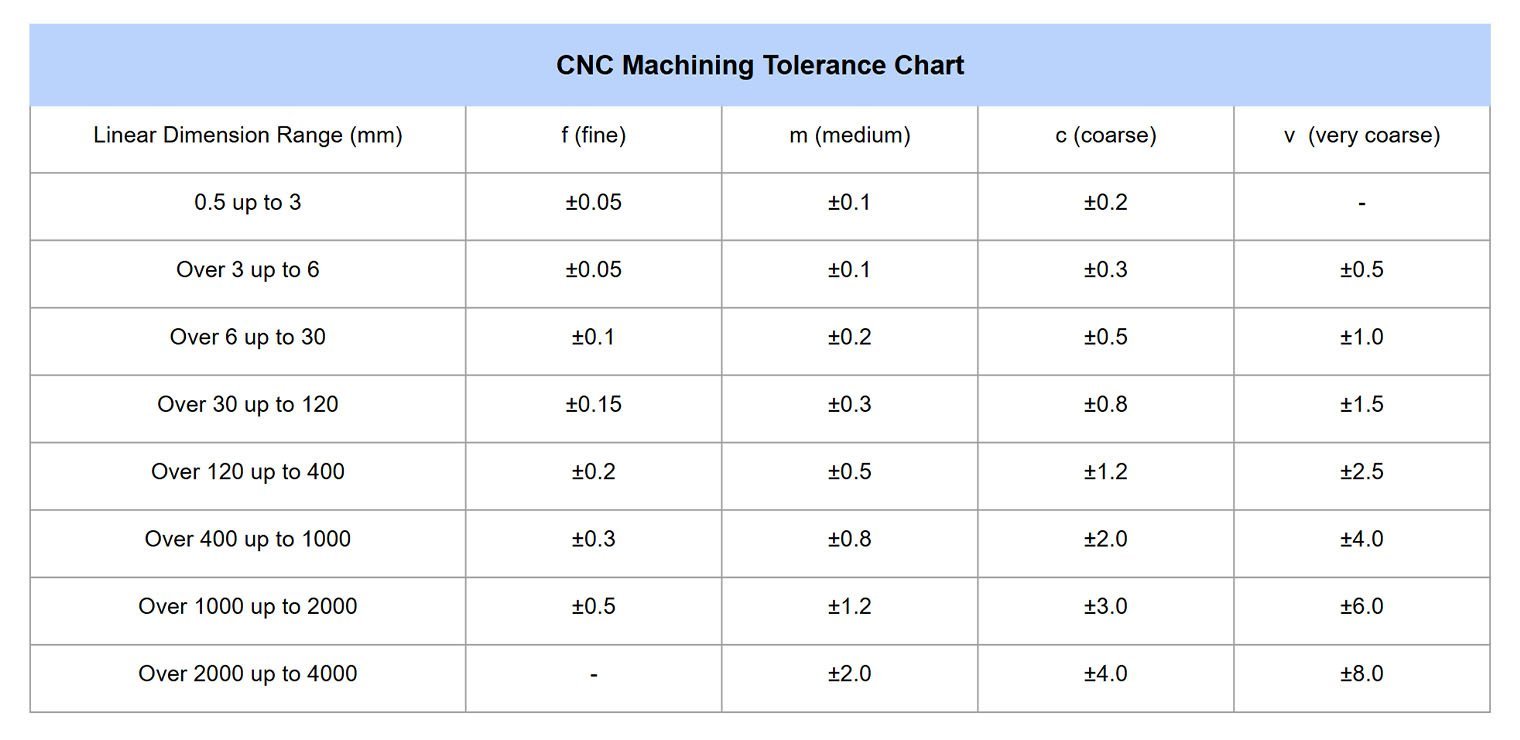

ISO 2768-mK (medium / fine) defines default tolerances when drawings lack explicit callouts; agriculture precision CNC machining services typically work to ISO 2768-fH or tighter for mating surfaces. Hydraulic interfaces and sensor mounts often invoke ISO 286 hole/shaft fits (H7/g6, H7/k6) to ensure assembly clearance.

While agriculture lacks a unified machining standard, OEMs reference ISO 1101 for geometric dimensioning and tolerancing (GD&T), ISO 4287 for surface finish (Ra, Rz) and ASABE (American Society of Agricultural and Biological Engineers) specs for implement attachments and PTO interfaces.

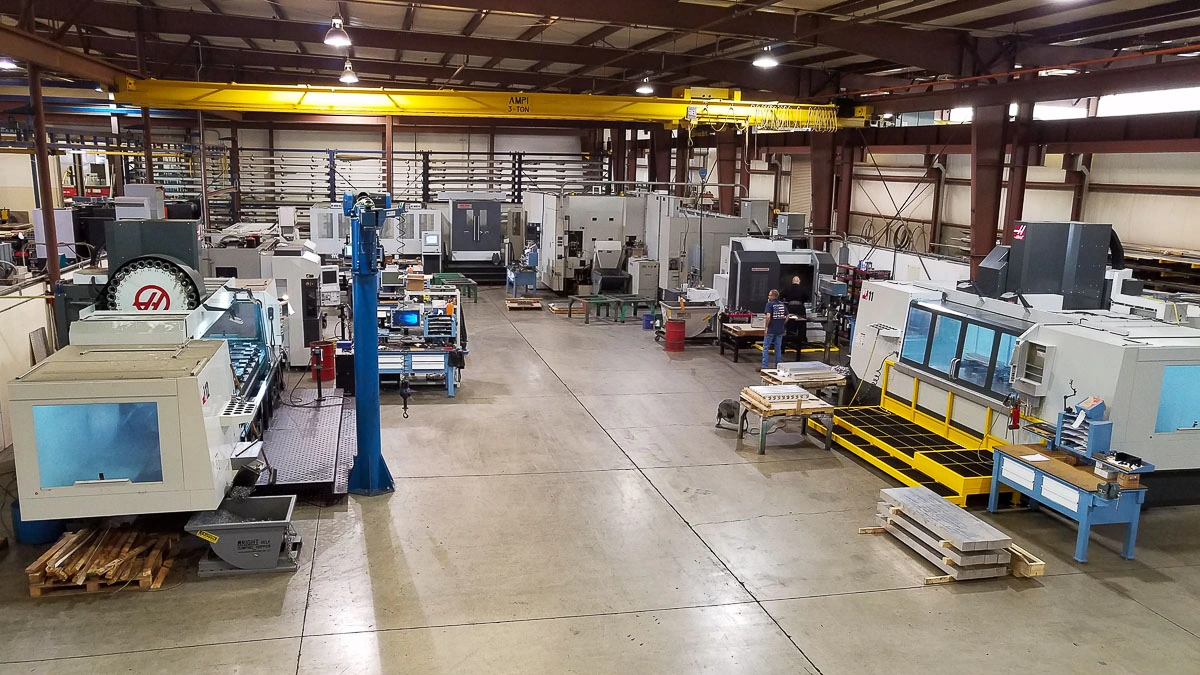

Machine Park and Metrology Infrastructure

Verify the provider operates 5-axis CNC mills, precision grinding centers and CMM inspection systems. XUXIANG maintains Fanuc-class CNC, Dawn grinding and a ZEISS MICURA CMM (0.7 µm resolution) to hold +/-0.001 mm accuracy.

Ask for equipment lists with model numbers and year of installation. Lack of named metrology tools is a red flag for unverified tolerances.

Agriculture or Outdoor Equipment Portfolio

Review case studies in agricultural machinery, irrigation components or outdoor power equipment. A proven track record in harsh-environment parts demonstrates material selection, corrosion resistance and durability engineering.

Providers without agriculture examples may lack DFM insights for vibration, dust ingress or UV exposure — common failure modes in field equipment.

Lead Time, MOQ Flexibility and Material Sourcing

Confirm typical lead times (XUXIANG averages ~30% faster than industry norms) and minimum order quantities that match your prototype-to-production roadmap. Validate material sourcing through certified suppliers with spectral-analysis reports and mill certificates to ensure alloy traceability and compliance with agricultural safety standards.

Engineering Support and Quality Documentation

Require DFM feedback before production and five-step QC flows: material verification, in-process monitoring, CMM validation, surface integrity and FAI documentation. XUXIANG’s 10+ engineering experts provide pre-production design reviews.

Red flags include missing inspection reports, unclear revision control and no formal change-order process — all indicators of quality-system gaps.

Specifying Tighter Tolerances Than Necessary

Calling for +/-0.005 mm when +/-0.02 mm suffices can double machining time and triple cost. Agricultural sensors and actuator housings rarely need sub-0.01 mm fits across every feature.

Work with your provider’s DFM team to assign tolerances feature-by-feature. XUXIANG’s engineering experts flag over-specification during pre-production reviews, saving 15–30 percent on typical projects.

Ignoring Environmental Testing Requirements

Field-deployed components face UV, fertilizer salts, temperature swings and wash-down chemicals. Choosing alloys or coatings without corrosion or weathering data leads to premature failure.

Specify ASTM B117 salt-spray hours, IP ratings and operating temperature ranges in your RFQ. Validate surface treatments — anodize, passivate or zinc-nickel plate — against your harshest service conditions before mass production.

Choosing Suppliers on Price Alone

The lowest quote often hides absent CMM validation, uncertified materials or incomplete process control. A 20 percent saving evaporates when scrap rates exceed 5 percent.

Audit metrology capability (ZEISS or equivalent), ISO 9001:2015 certification and material traceability. Request FAI reports and dimensional data from recent agriculture projects to confirm real-world precision.

Neglecting DFM Reviews

Skipping design-for-manufacturability feedback before tooling locks in geometry causes costly mid-cycle redesigns. Thin ribs, sharp internal corners and inaccessible pockets inflate EDM time or render features unmeasurable.

Share STEP files early. A 30-minute DFM session with 10-plus engineering experts at XUXIANG identifies tolerance conflicts, tool-access issues and moldability risks — preventing weeks of rework downstream.

Underestimating Prototype-to-Production Lead Time

Buyers often assume prototype approval means immediate scale-up. Tooling validation, process qualification and first-article inspection add 3–6 weeks before serial shipments begin.

Build that ramp into your project timeline. Providers with dual-factory capacity and staged QC flows — like XUXIANG’s Chang’an and Quanzhou sites — compress transitions by roughly 30 percent versus single-site shops.

Define Specifications and Tolerances

Document every critical dimension, surface finish (Ra values), material grade and functional requirement before requesting quotes. XUXIANG’s DFM team reviews CAD files and STEP models to flag manufacturability risks — corner radii below R 0.015 mm, wall thicknesses incompatible with EDM electrode access or tolerance stacks that exceed +/-0.001 mm capability.

Include environmental exposure (UV, moisture, chemical) and mechanical loads (cyclic stress, vibration) so the supplier can recommend heat treatment, coatings or material substitutions early.

Request Quotes with Detailed Drawings

Submit native CAD (STEP, IGES) alongside 2D PDFs annotated with GD&T callouts, critical-to-quality features and inspection frequencies. Specify whether tooling NRE is amortized across pilot and production runs or billed separately.

XUXIANG’s quotation includes material certificates, estimated cycle time, CMM inspection points and lead-time breakdowns — enabling apples-to-apples comparison with alternate suppliers for dual-sourcing risk mitigation.

Evaluate Samples and Inspection Reports

Request first-article inspection (FAI) reports with ZEISS CMM data, material spectral analysis and surface-integrity measurements before approving pilot runs. Compare measured values against print tolerances at every GD&T feature.

Negotiate AQL levels (typically 0.65–1.5 for precision agriculture components) and sampling frequency (100% inline for critical dimensions, statistical sampling for secondary features) in a formal quality agreement before production release.
