Single-Spindle vs. Multi-Spindle Swiss Machines

Single-spindle Swiss lathes excel in prototyping and mid-volume runs (100–10,000 pieces), offering fast setup changes and complex live-tooling operations. Multi-spindle configurations produce identical parts simultaneously across four to eight spindles, cutting per-piece cycle time by 60–75% for high-volume orders above 50,000 units.

XUXIANG deploys single-spindle assets for micro-connector tooling and automotive sensor housings where design iteration is frequent, reserving multi-spindle capacity for stable, high-volume industrial-automation components.

Sliding-Headstock vs. Fixed-Headstock Configurations

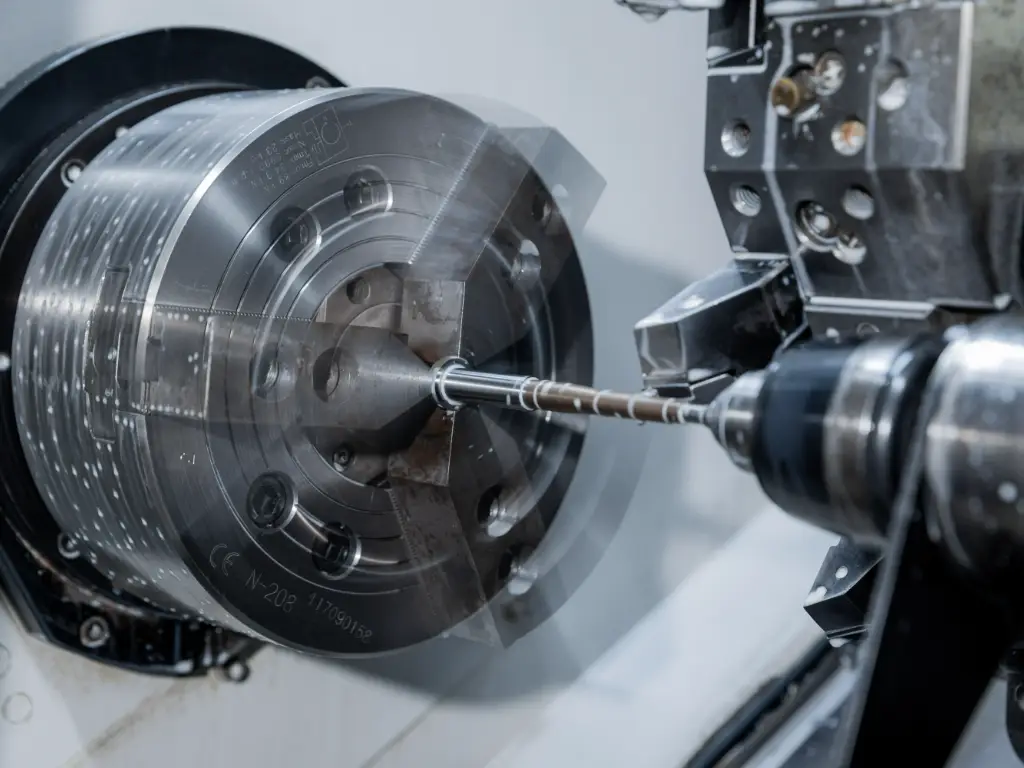

Sliding-headstock Swiss machines guide bar stock through a stationary guide bushing, enabling length-to-diameter ratios exceeding 20:1 with minimal deflection — critical for micro-pins under 1 mm diameter. Fixed-headstock lathes handle larger diameters (up to 80 mm) and shorter parts, trading slenderness capability for rigidity on heavier components.

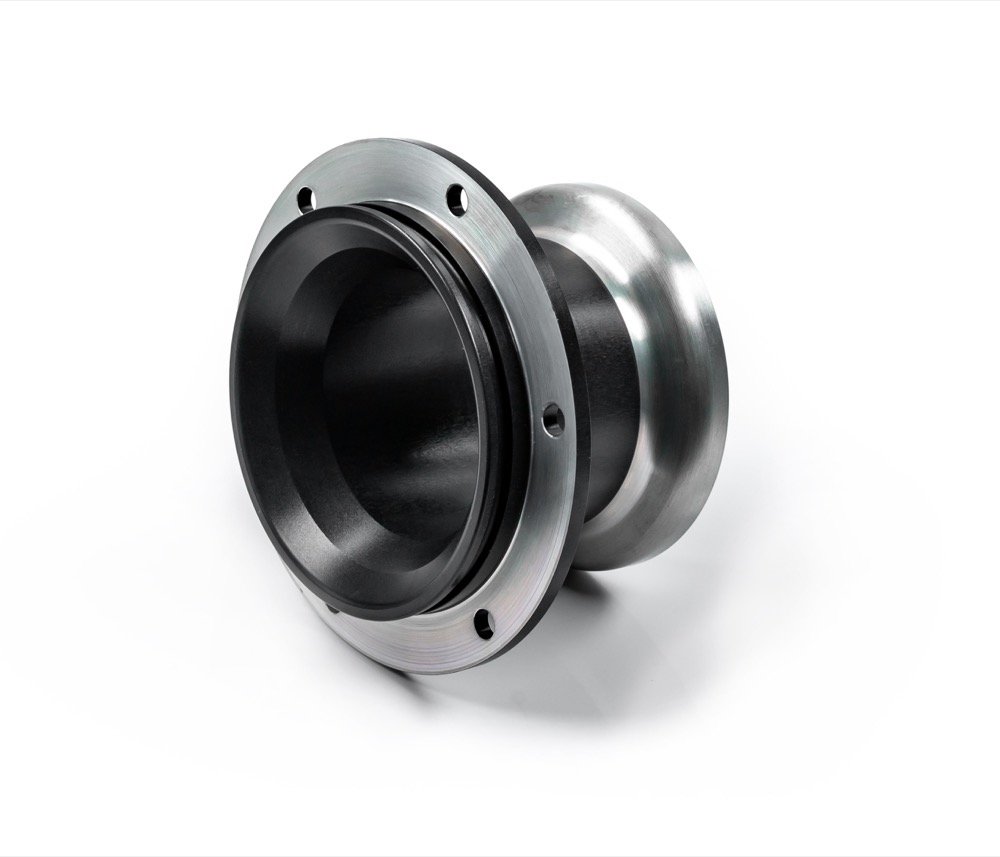

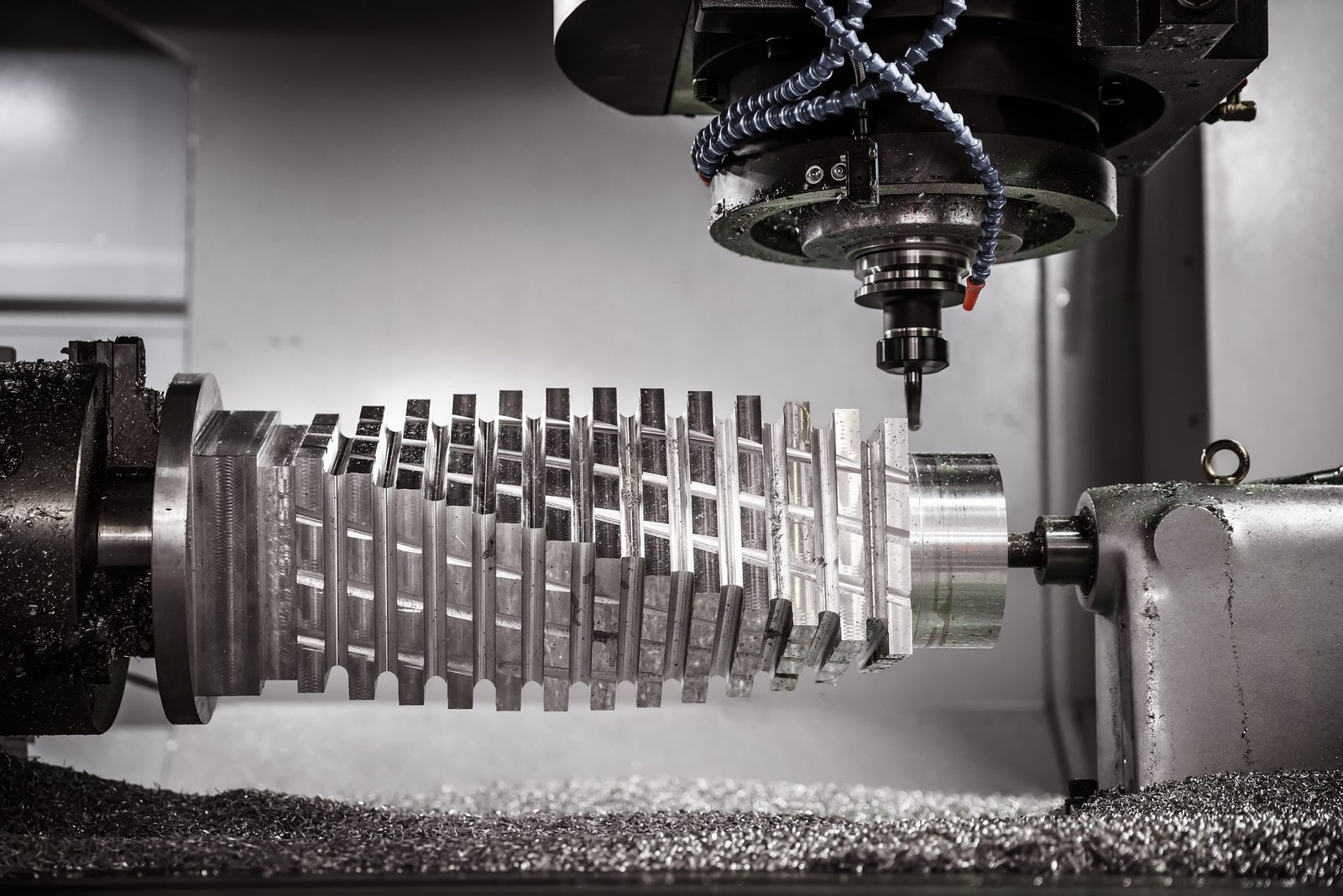

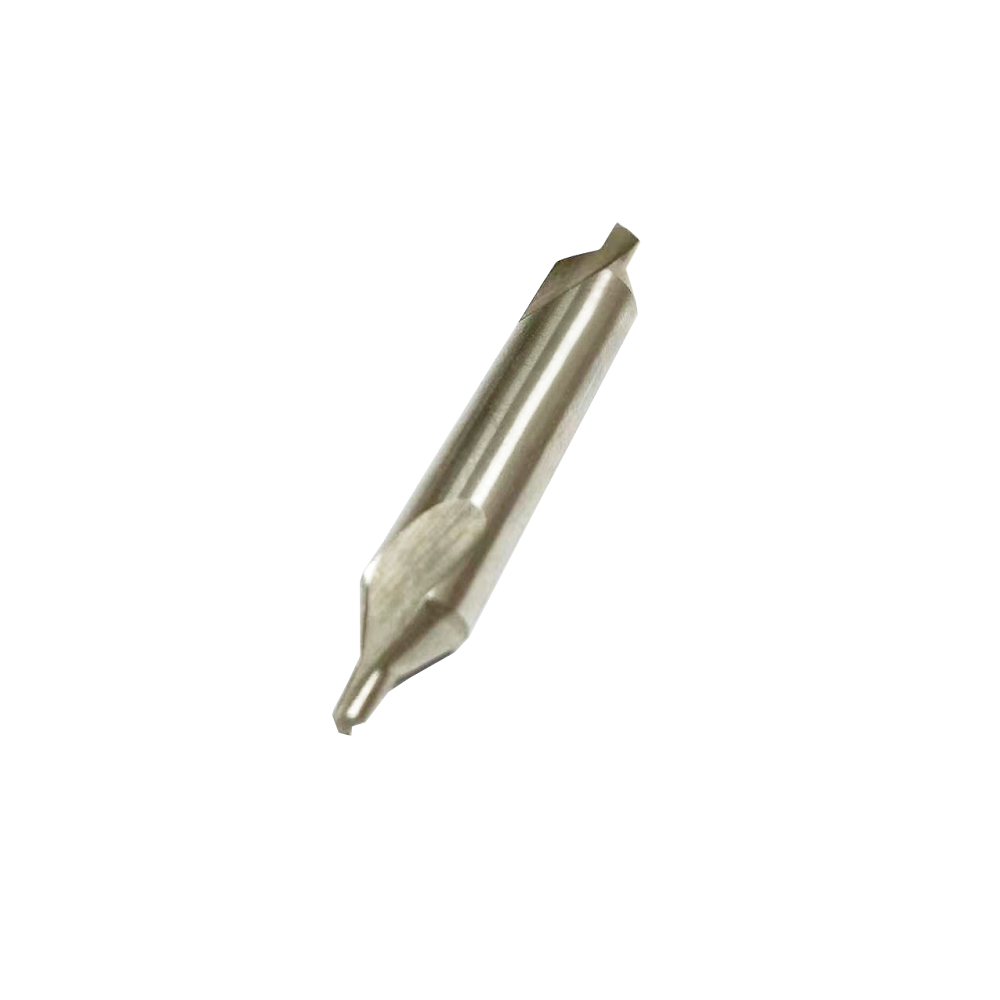

Live-Tooling and Sub-Spindle Options

Live-tooling stations mount rotating end mills, drills and taps perpendicular to the main spindle, completing cross-holes, flats and slots in one setup. Sub-spindles catch off-cut parts for backside operations — threading, chamfering or secondary drilling — eliminating manual re-chucking and holding +/-0.002 mm positional tolerances across both ends.

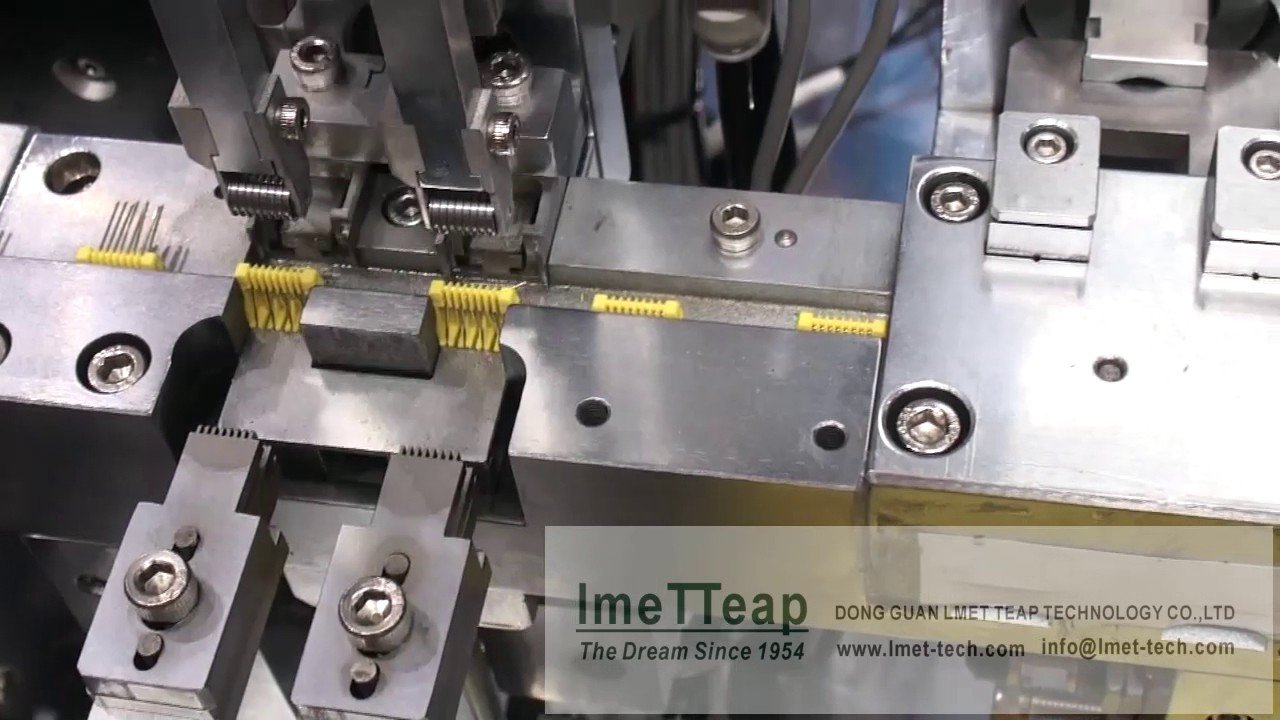

Micro-Swiss Machining for Diameters Under 1 mm

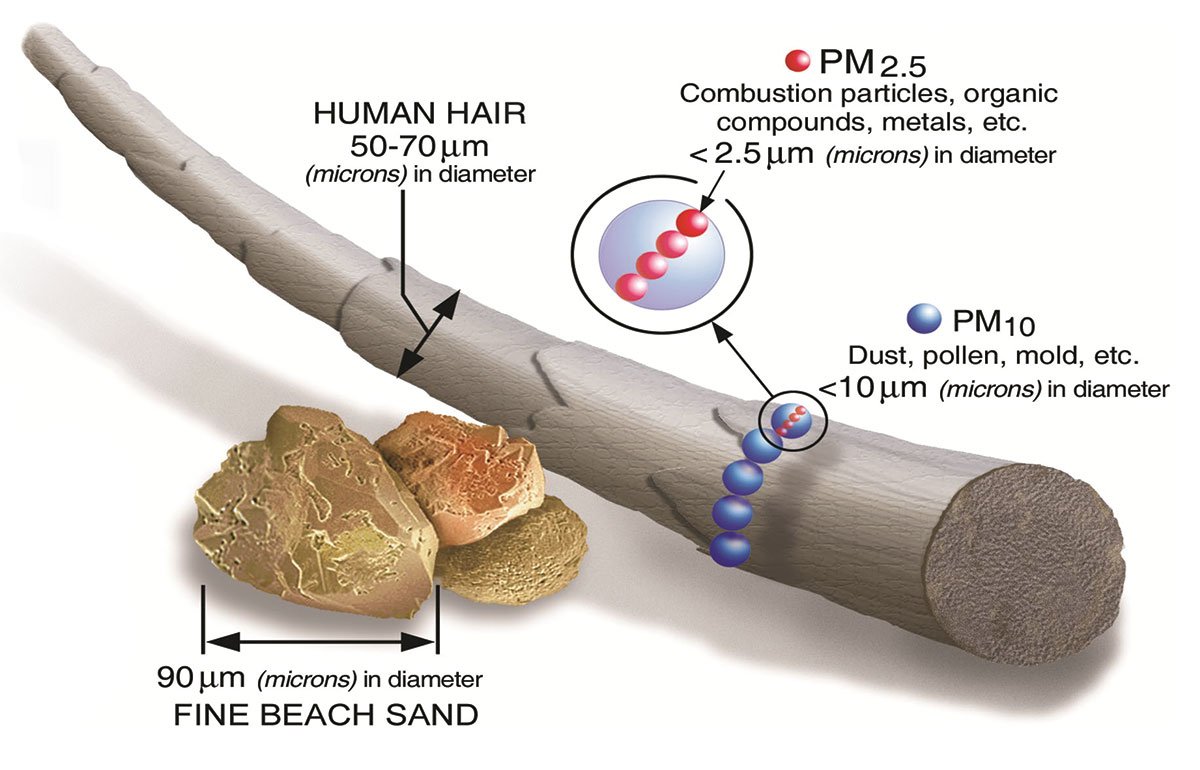

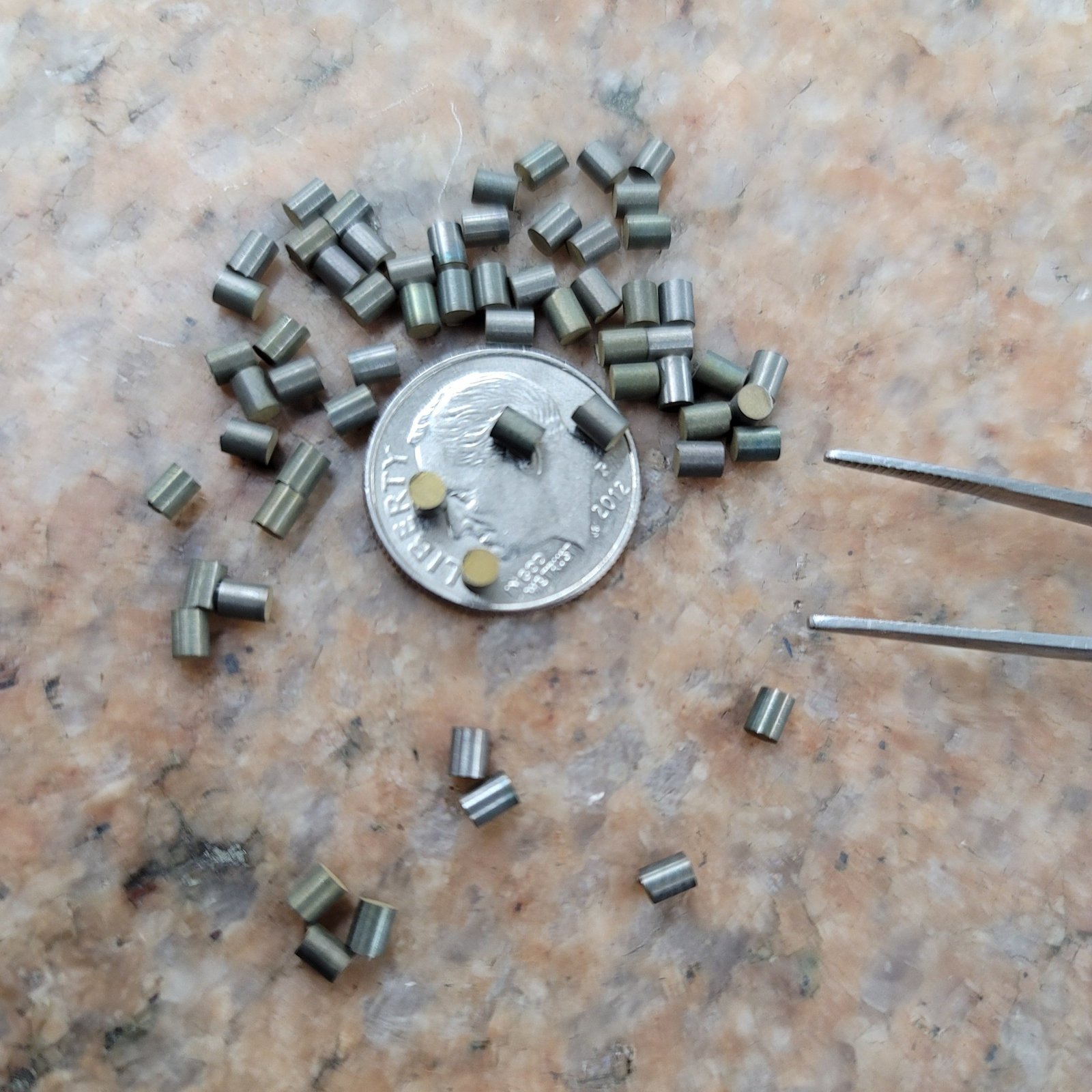

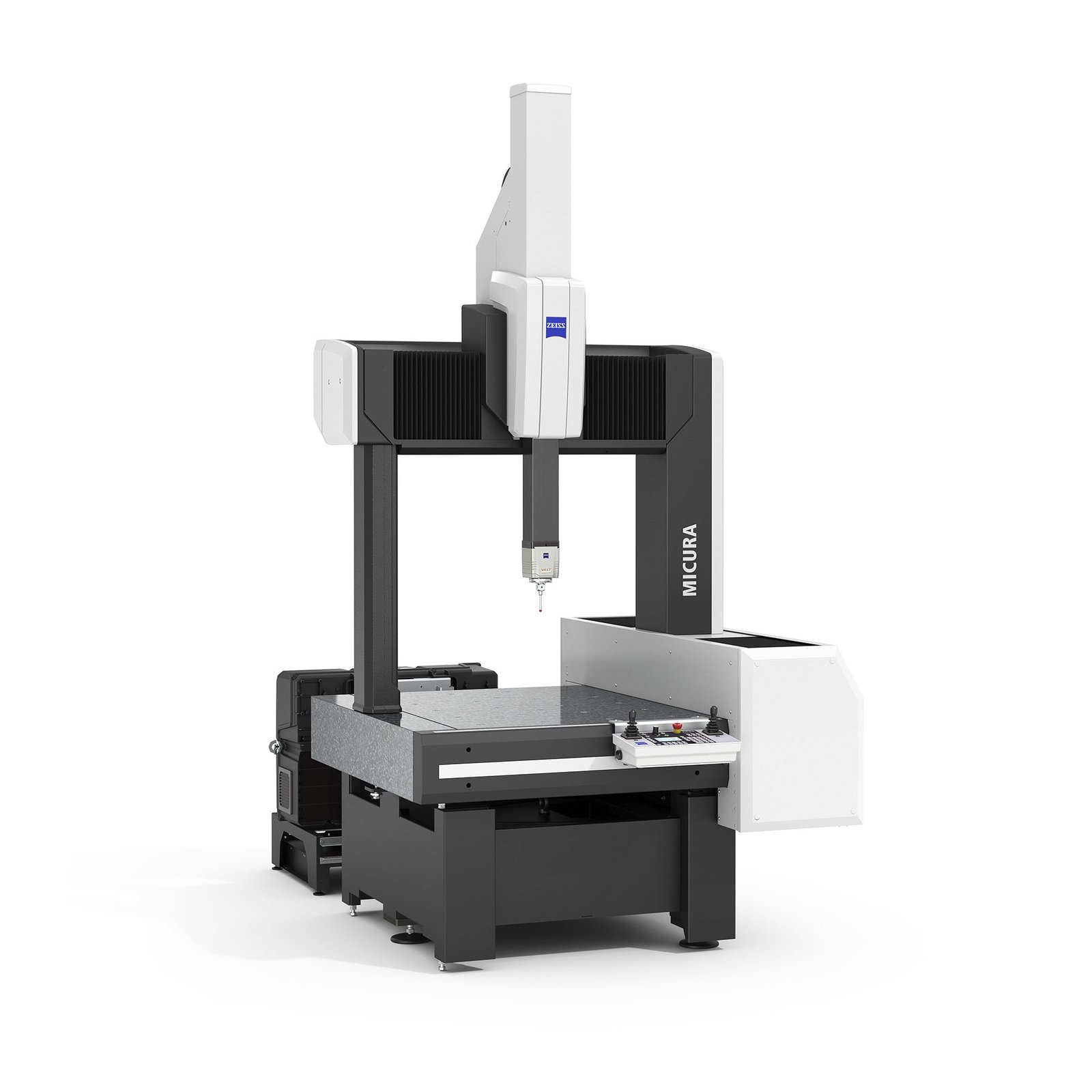

Micro-Swiss platforms machine bar stock from 0.3 mm to 1.0 mm diameter, producing ultra-fine connector pins, medical-device needles and fiber-optic ferrules. XUXIANG’s ZEISS MICURA CMM validates 0.7um measurement repeatability on micro-features, ensuring dimensional stability across 5G thin-wall micro-pin production and high-density terminal tooling.

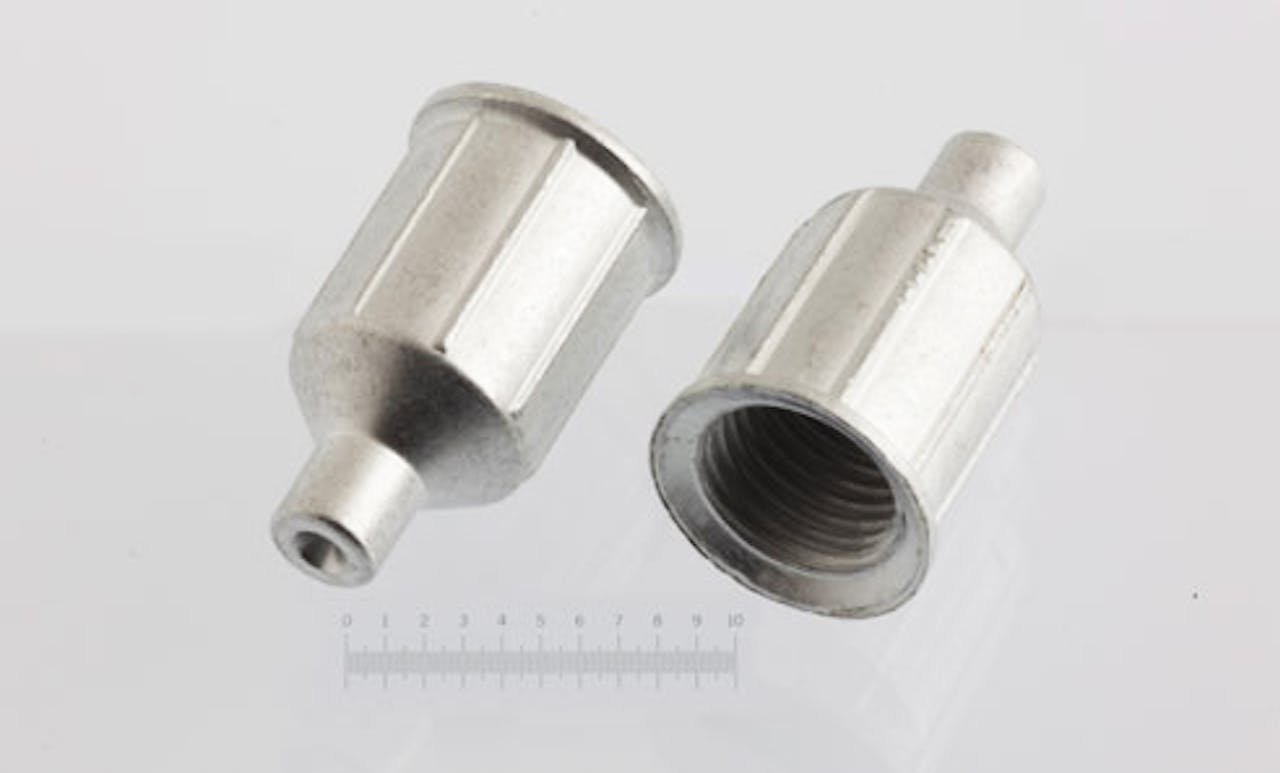

Thread Rolling and Tapping

Thread rolling forms M0.5 through M6 threads by cold displacement, increasing fatigue strength by up to 30% over cut threads. CNC tapping handles blind and through holes to ISO 2768-fH tolerance. Both processes integrate directly after turning, preserving micron-level concentricity on medical and connector pins.

Knurling and Broaching

Straight and diamond knurling add grip surfaces with 0.5–1.2 mm pitch for manual assembly or press-fit retention. Broaching machines cut precise keyways and splines in one pass, maintaining +/-0.01 mm profile accuracy for automotive sensor shafts and robotics couplings.

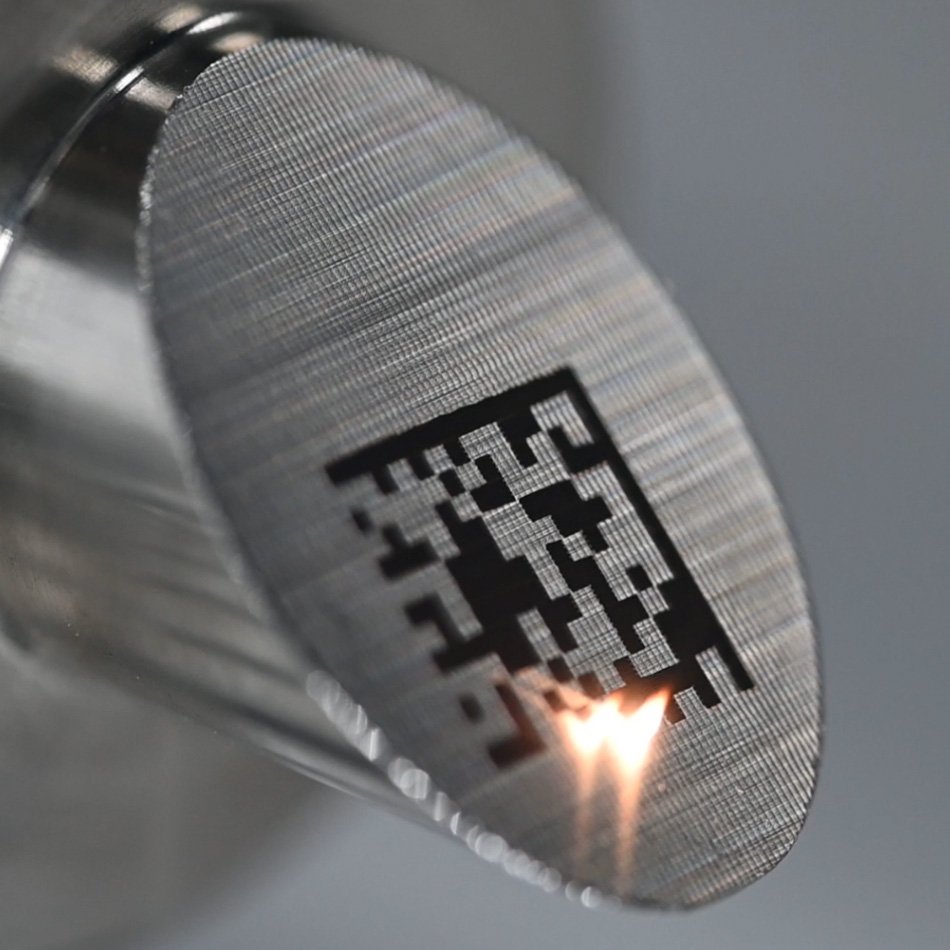

Laser Marking and Serialization

Fiber-laser systems etch 2D DataMatrix codes, serial numbers and logos at 0.1 mm character height without affecting dimensional tolerance. Permanent traceability supports medical-device UDI mandates and automotive PPAP documentation, with cycle times under 5 seconds per part.

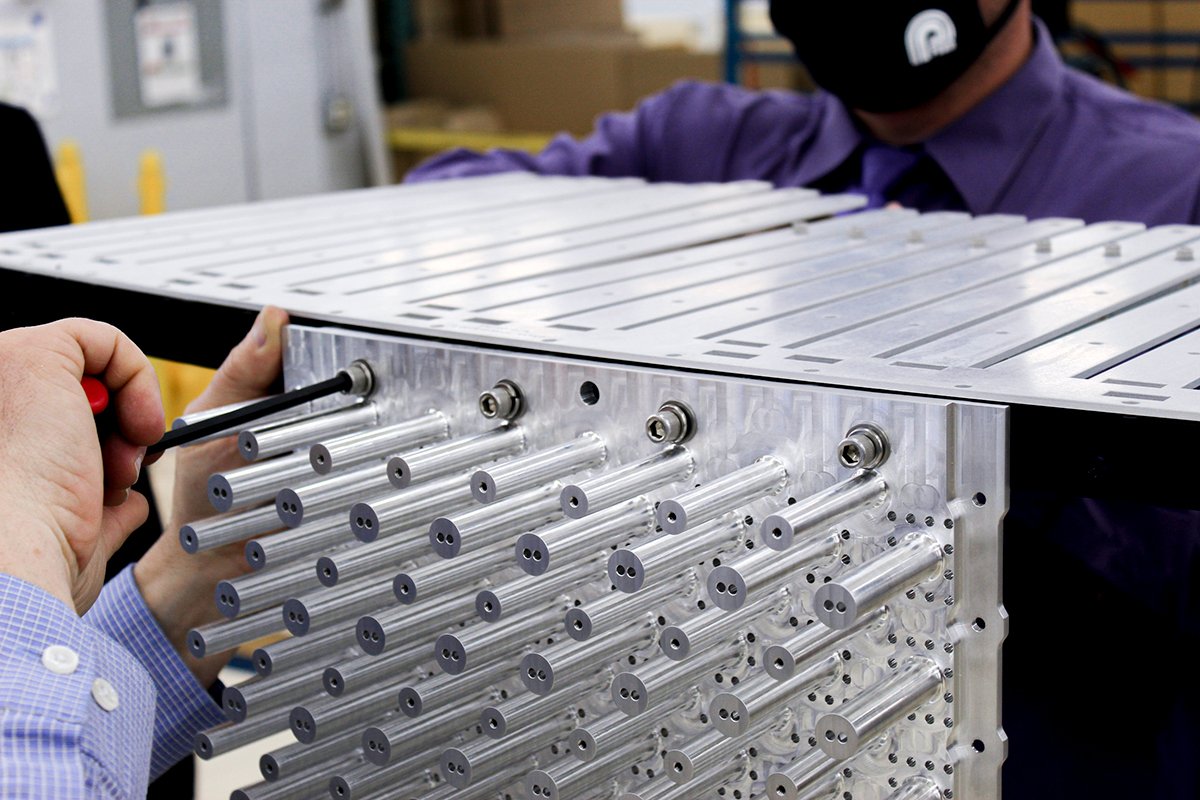

Passivation, Electropolishing and Assembly

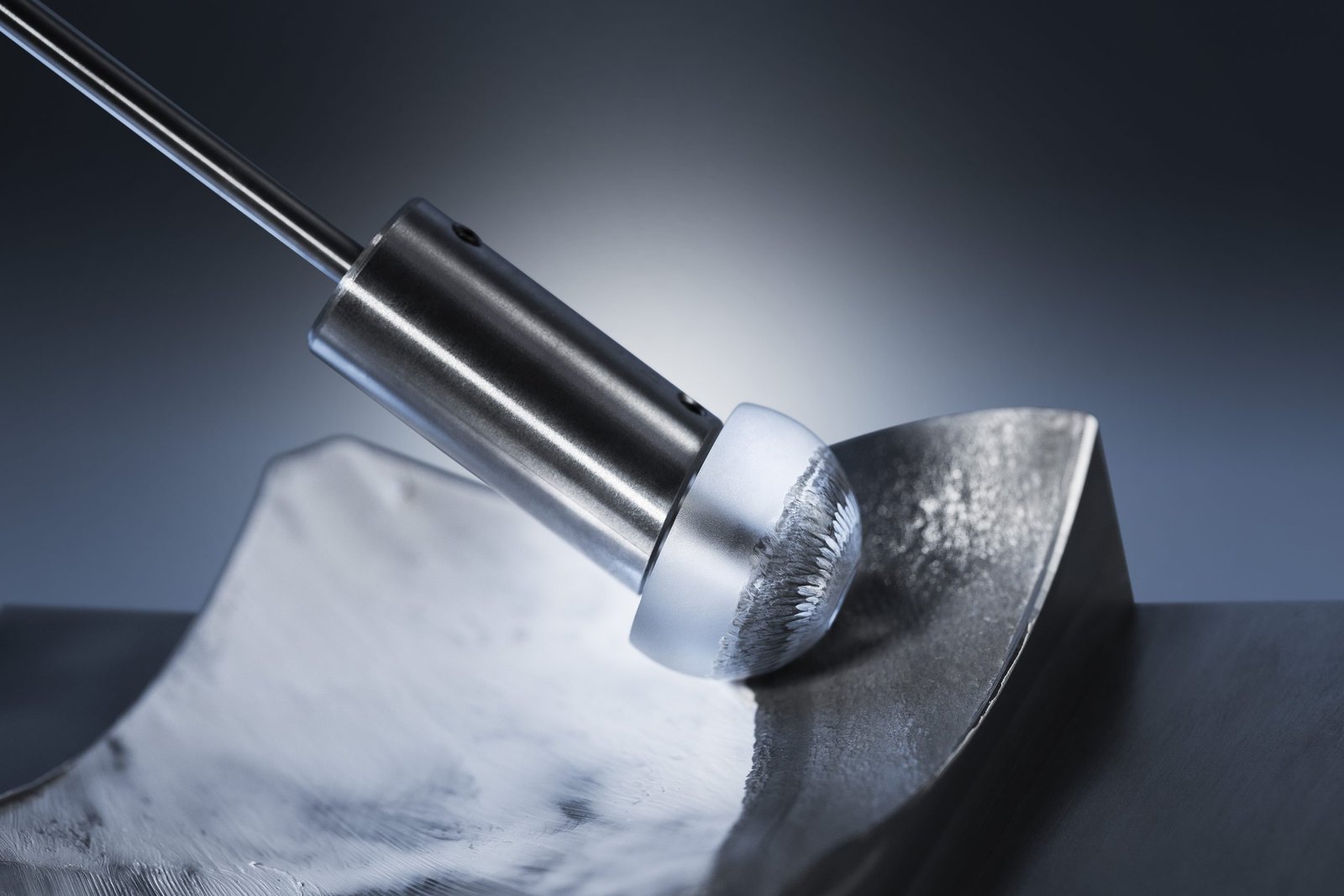

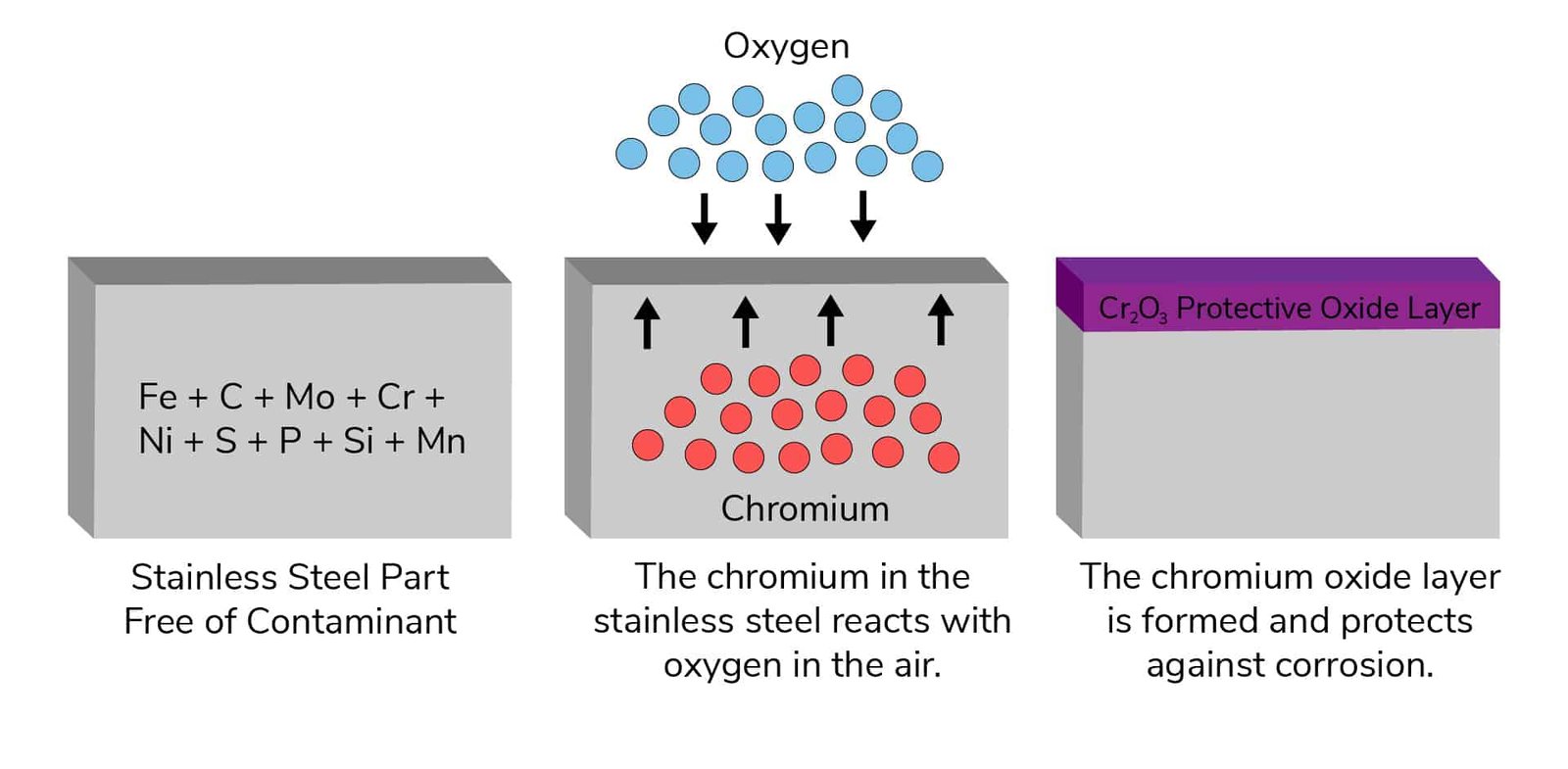

Passivation per ASTM A967 removes free iron from stainless surfaces; electropolishing reduces Ra to 0.2 µm for biocompatibility in implantable components. Press-fitting pins, O-ring installation and subassembly kitting complete turnkey delivery, eliminating downstream handling and reducing total procurement cycle by one to two weeks.

Positional Tolerance and GD&T Compliance

GD&T defines feature location, orientation, and form independently of size. Swiss machining routinely achieves positional tolerances of ±0.01 mm on standard work and ±0.005 mm on precision projects.

XUXIANG’s ZEISS MICURA CMM measures positional accuracy to 0.7 µm, verifying true position, perpendicularity, and parallelism against datums. In-process probing on CNC machines corrects tool wear in real time, maintaining GD&T compliance across production runs.

Concentricity and Runout Limits

Concentricity measures how closely a feature’s axis aligns with a datum axis; runout measures surface wobble during rotation. Swiss sliding-headstock design inherently minimizes runout, with precision shops holding total runout ≤ 0.005 mm.

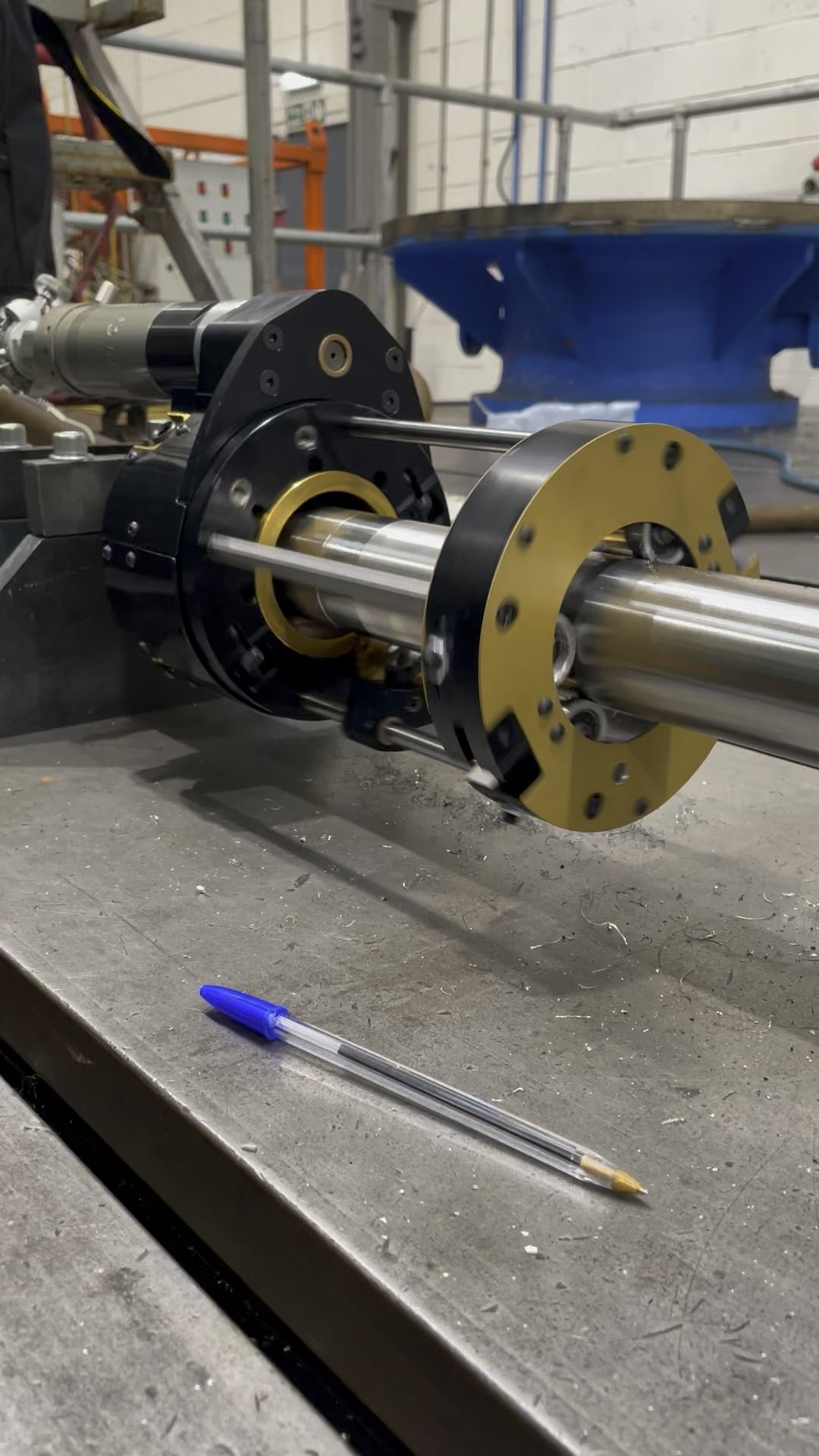

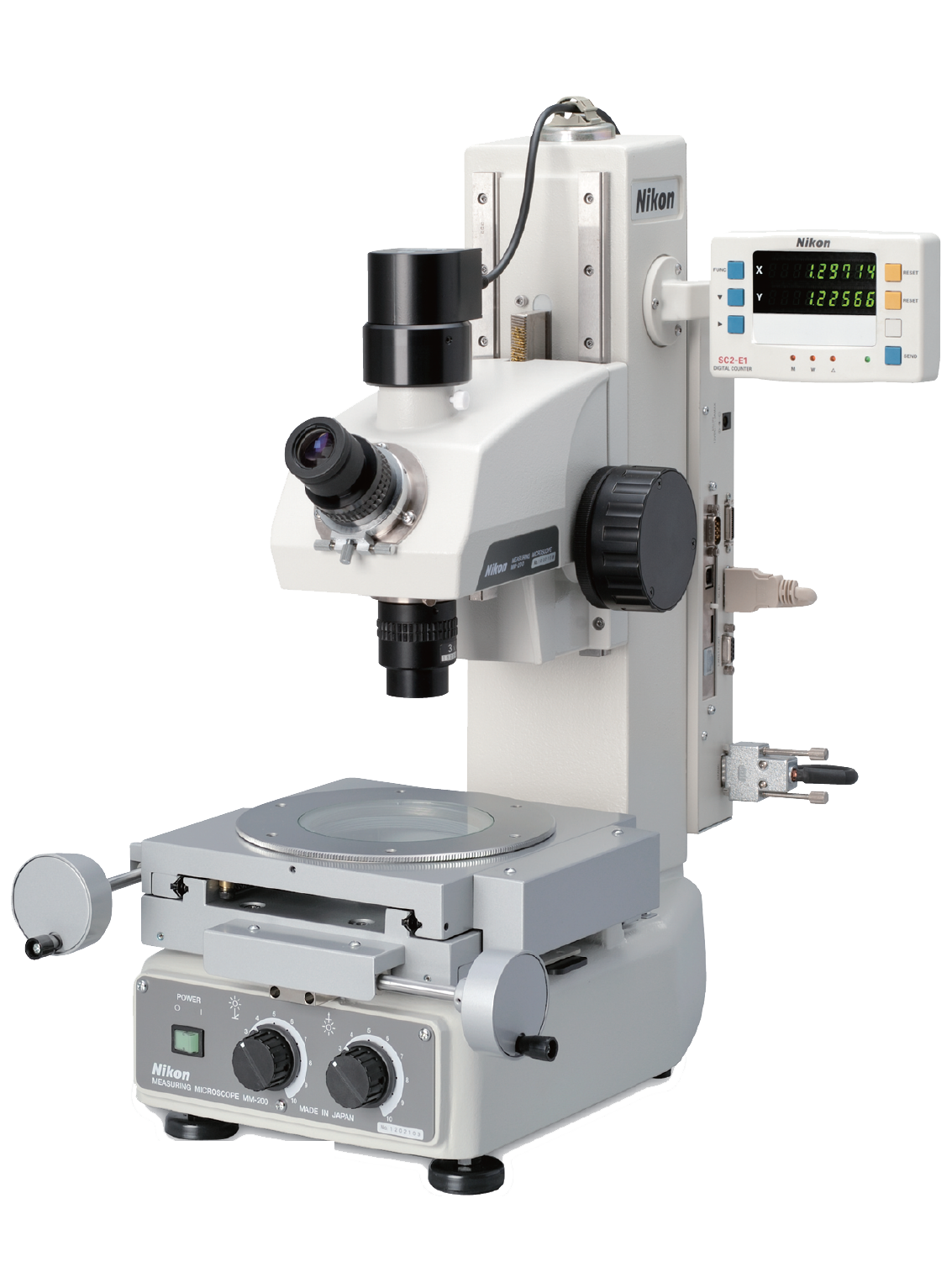

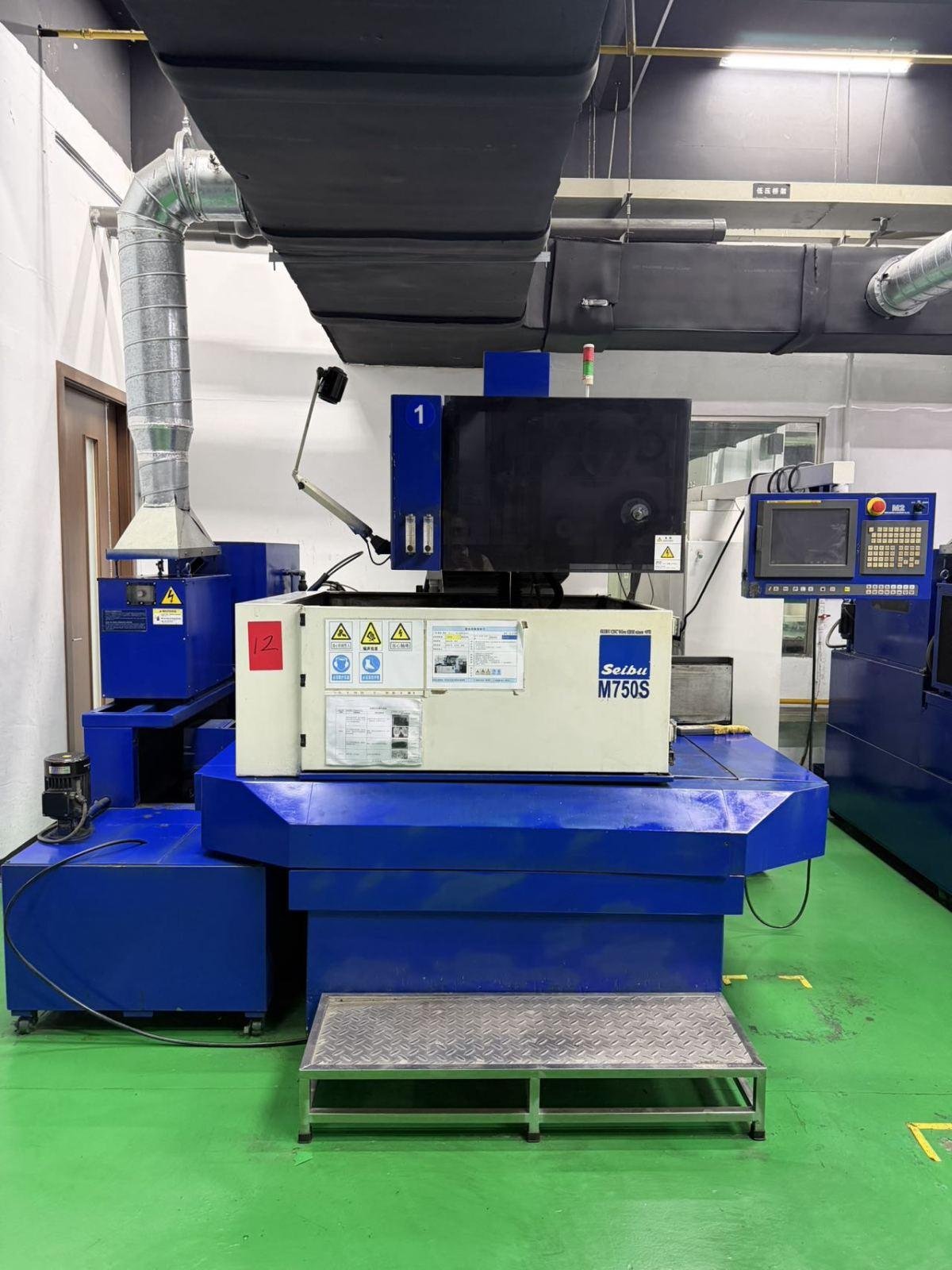

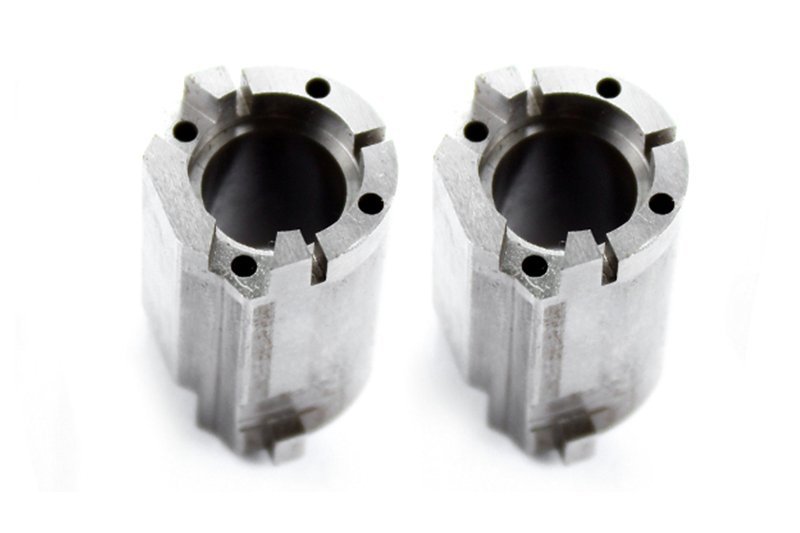

Optical comparators and Nikon toolmaker’s microscopes (V-12B / MM-400 class) verify concentricity on micro-pins and shafts. XUXIANG’s +/-0.002 mm slow-wire EDM capability ensures core inserts and connector tooling meet sub-5-micron runout specifications for high-density assemblies.

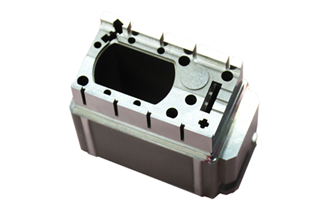

Surface Roughness Standards

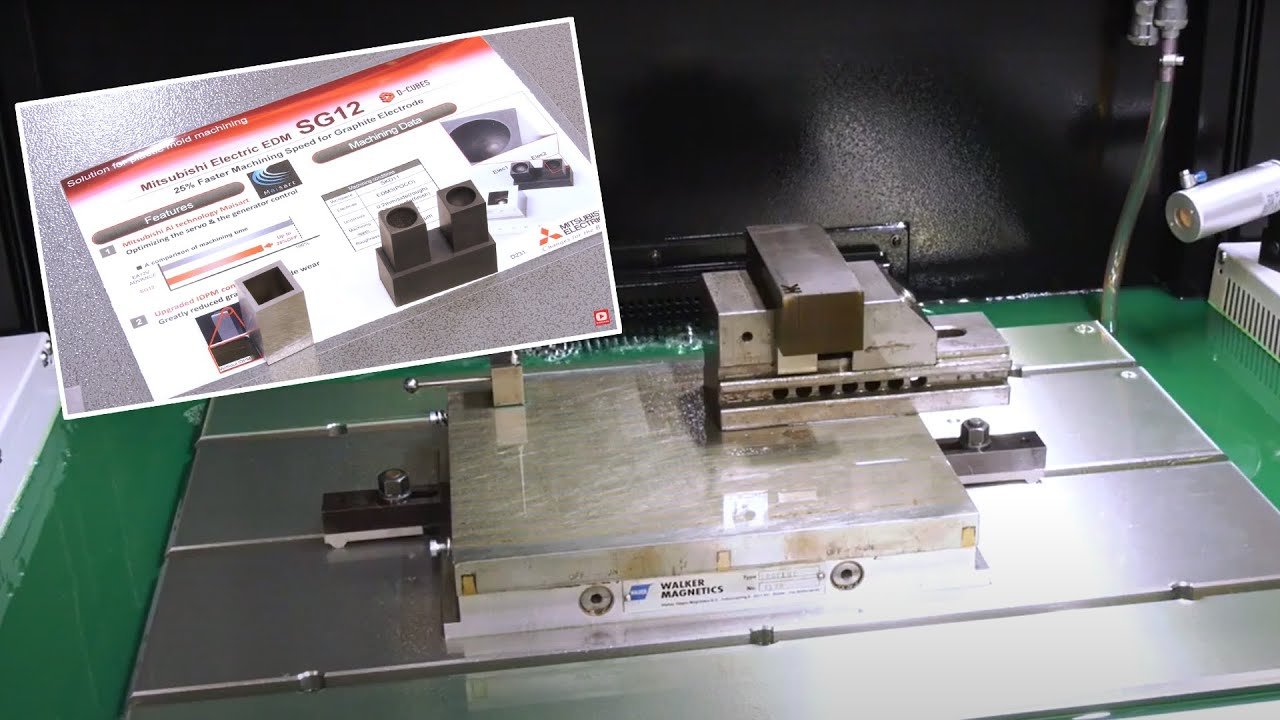

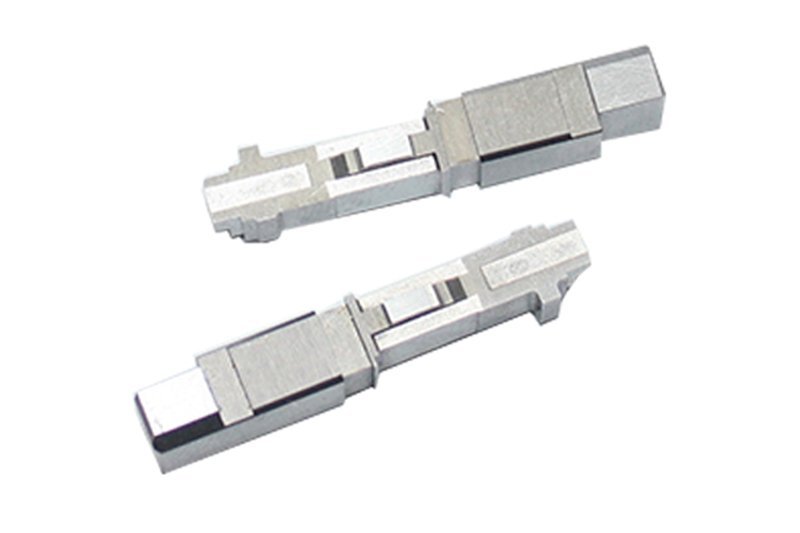

Surface roughness (Ra) affects friction, wear, and sealing performance. Swiss machining achieves Ra 0.4 µm as-machined; mirror-grade EDM finishes reach Ra 0.1 µm.

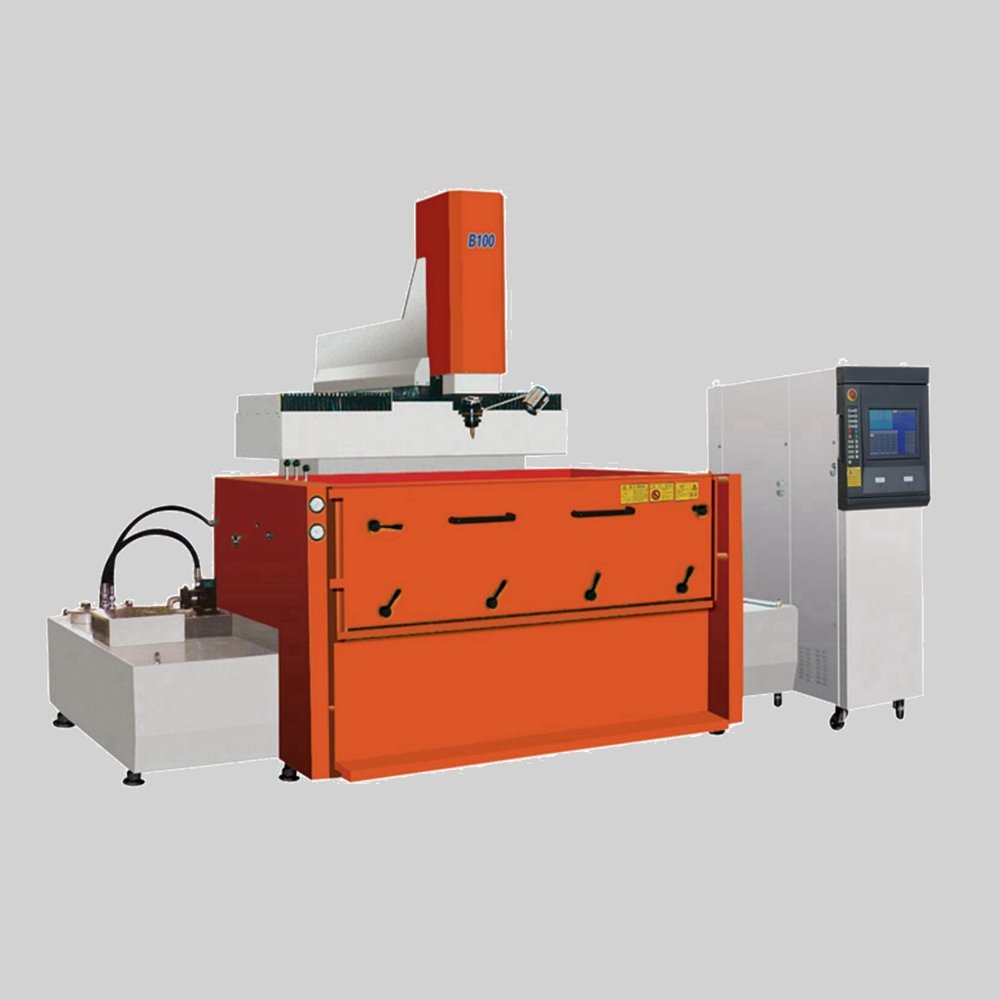

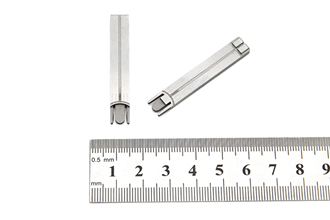

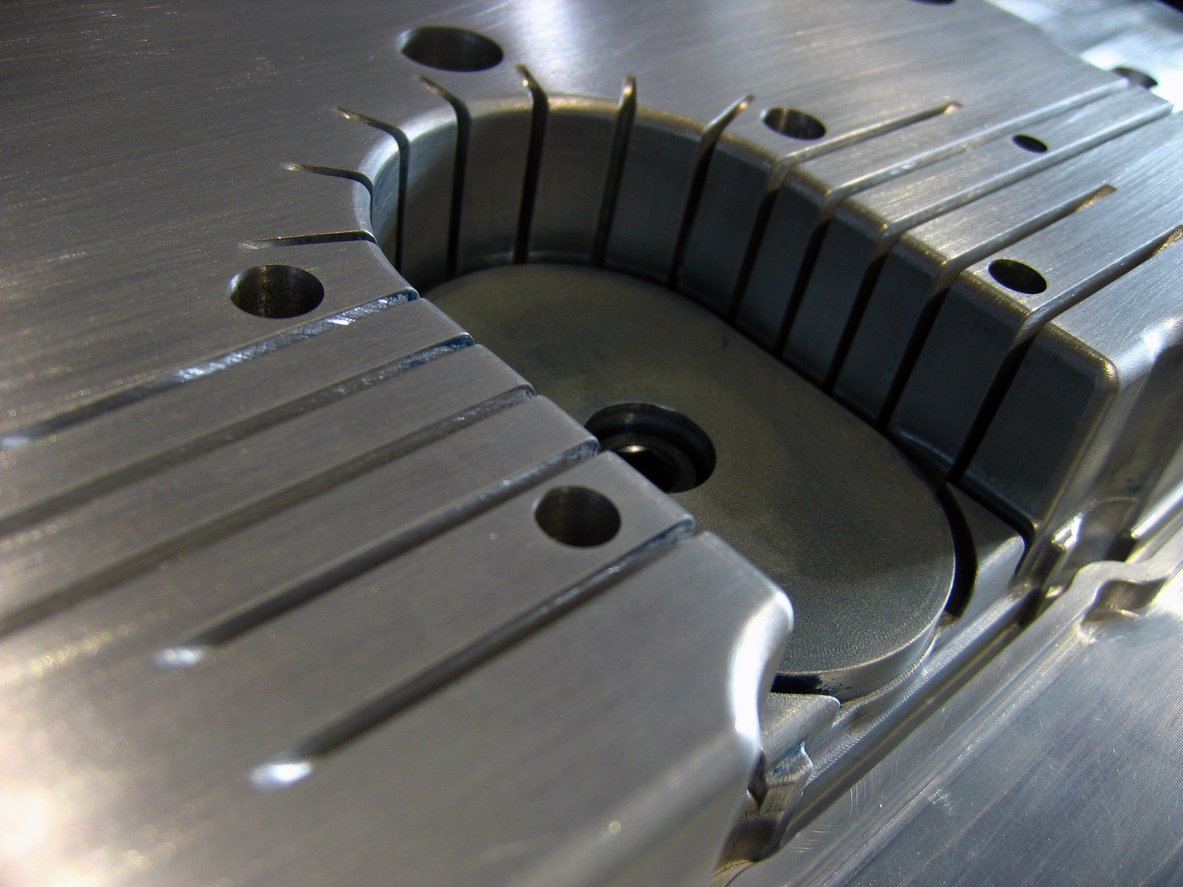

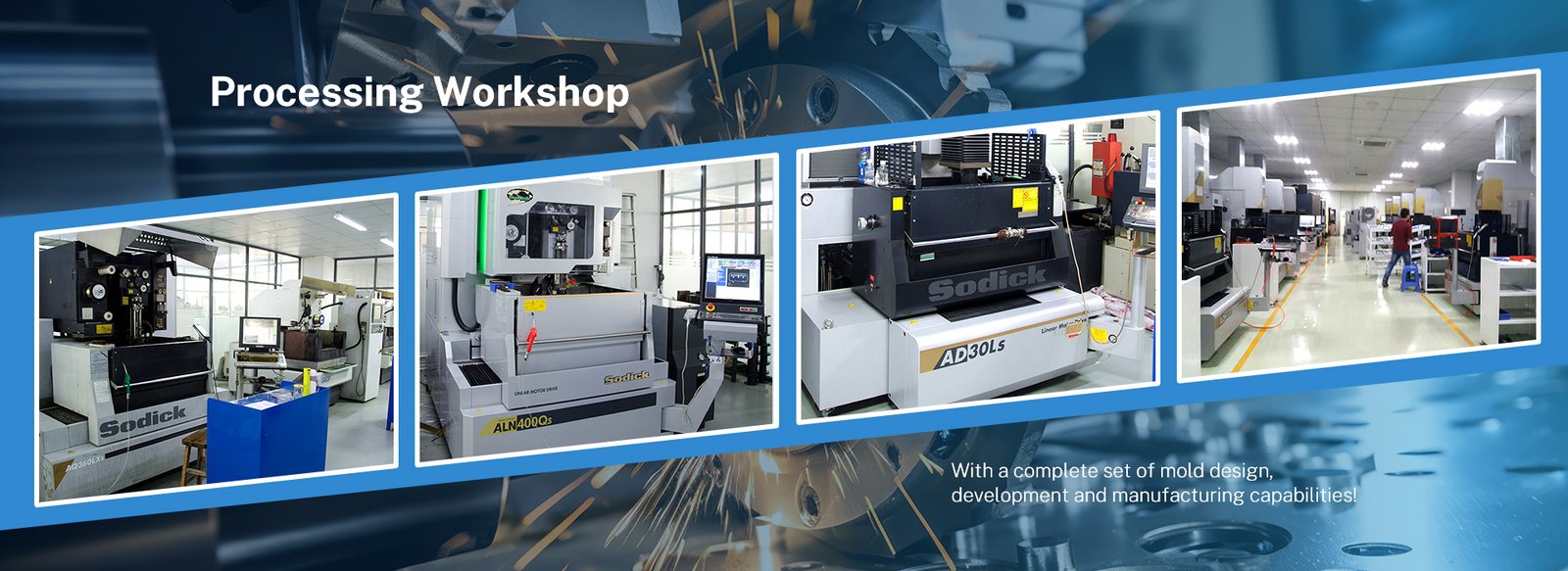

XUXIANG’s Sodick and Charmilles sinker EDM, paired with precision grinding centers, deliver Ra ≤ 0.1 µm on mold cores and micro-connector cavities. Surface-integrity checks during the five-step QC flow confirm finish consistency before shipment.

Diameter Tolerance Zones

Diameter tolerance defines the permissible size variation on turned features. Standard Swiss work holds ±0.005 mm; precision applications demand ±0.002 mm or tighter.

XUXIANG maintains +/-0.001 mm maximum machining accuracy through Beijing Jingdiao high-precision CNC and Dawn grinding centers. CMM verification and in-process monitoring ensure every diameter stays within specification, critical for press-fit pins and bearing journals.

Statistical Process Control and Cpk

Cpk quantifies process capability: a Cpk ≥ 1.33 indicates the process consistently produces parts within tolerance, with minimal defect risk. Leading Swiss shops target Cpk ≥ 1.67 for critical features.

XUXIANG’s ISO 9001:2015 system tracks Cpk across production batches, using material spectral analysis, in-process tolerance monitoring, and final FAI documentation. Real-time SPC charts flag drift before parts fall out of spec, ensuring dependable mass production at micron-stable precision.

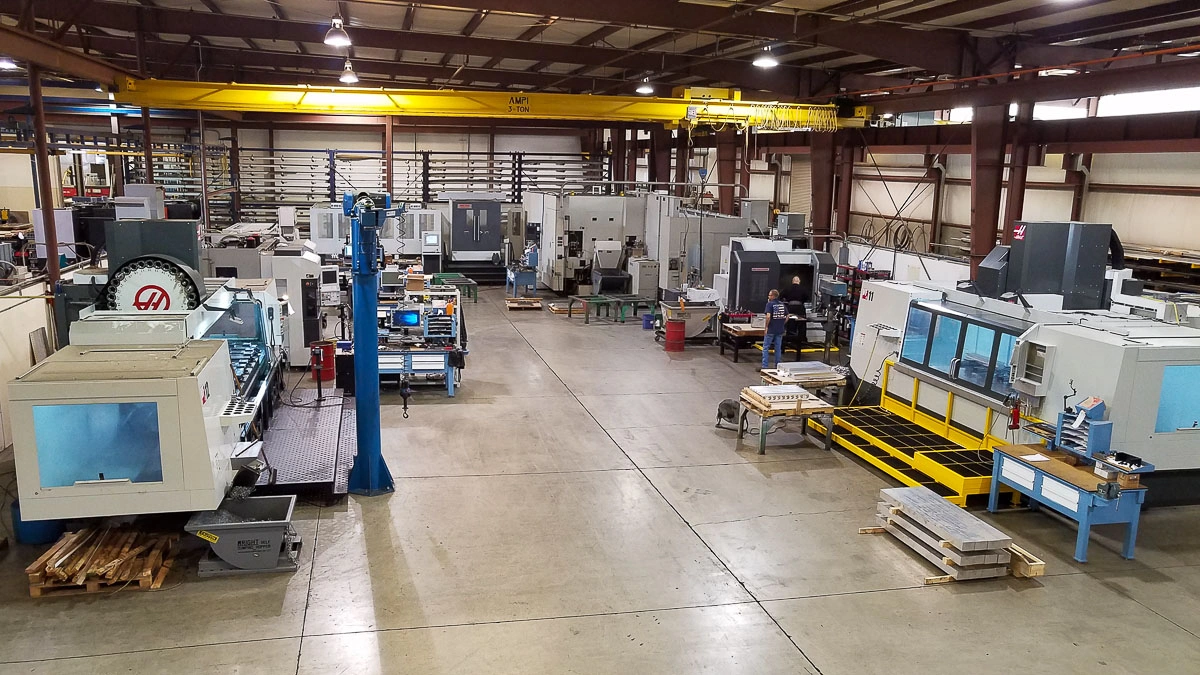

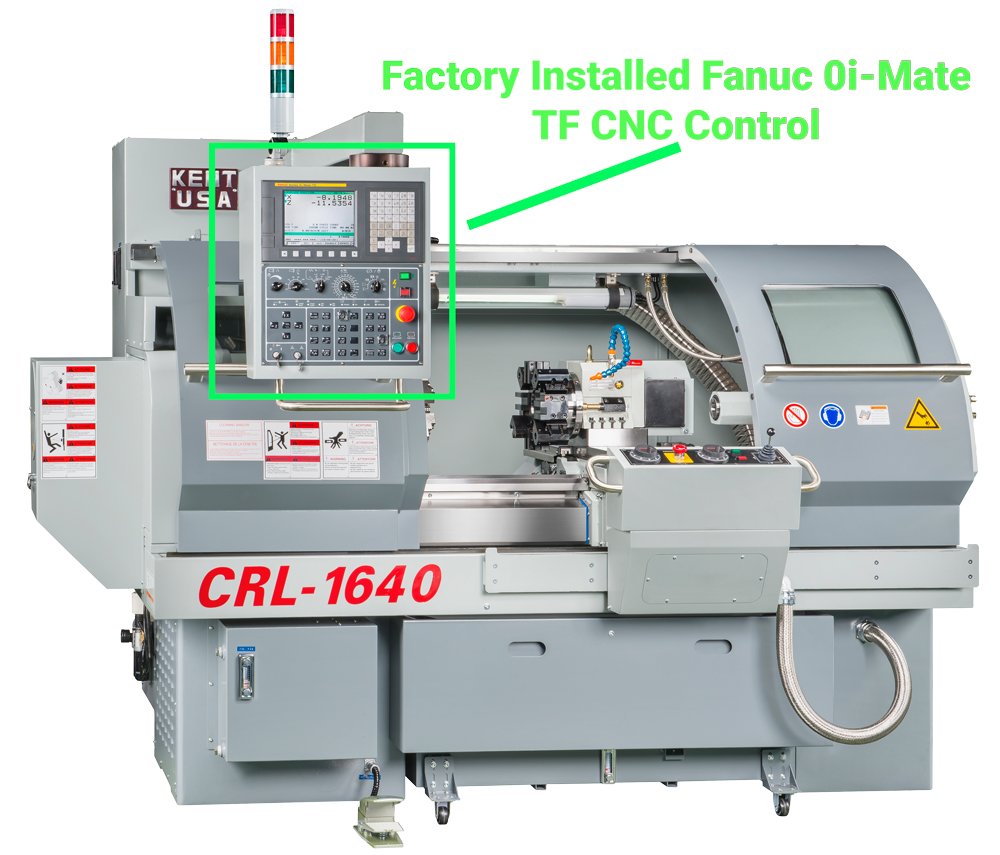

Machine Park and Axis Configuration

Ask for a detailed equipment list: number of Swiss-type lathes, axis count (5-axis minimum for complex geometries), spindle speed and bar capacity. Shops with 10+ machines and mixed brands (Citizen, Tsugami, Star) offer better scheduling flexibility and technology redundancy than single-machine operators.

Certifications and Industry Compliance

ISO 9001:2015 is baseline. Medical-device suppliers need ISO 13485; automotive tier suppliers require IATF 16949. Verify current certificates and audit dates to confirm active compliance, not expired documentation.

Metrology Lab and Inspection Capability

Tour the inspection area or request a capability statement. Look for CMM equipment (ZEISS or equivalent), optical comparators and surface-finish testers. Shops measuring to 1 µm or finer deliver tighter process control than those relying on manual gauges.

Material Traceability and Mill Certificates

Confirm the supplier provides full material traceability with mill-test certificates for every lot. This is non-negotiable for aerospace, medical and automotive applications where material pedigree must be auditable.

Prototype-to-Production Scalability

Evaluate whether the shop can handle both 50-piece prototype runs and 50,000-piece production orders without outsourcing. Dual-factory or expanded capacity (like XUXIANG’s 2025 Quanzhou facility) signals readiness for volume growth.

Lead-Time Commitments and Engineering Support

Request typical lead times for prototypes and production, plus DFM turnaround. Providers offering engineering feedback within 24–48 hours and delivery 30% faster than industry norms reduce time-to-market risk and accelerate program launches.

Over-Specifying Tolerances Beyond Functional Need

Calling out ±0.005 mm when ±0.02 mm suffices can double machining time and scrap rates. XUXIANG engineers flag non-critical features during DFM review, recommending ISO 2768-m for general dimensions and tighter bands only where mating surfaces or sealing planes demand it.

Ignoring Bar-Stock Diameter and Grain Direction

Swiss lathes feed bar stock through the guide bushing; diameters above 32 mm or below 0.5 mm require specialized collets and longer setup. Material grain perpendicular to load paths invites fatigue cracks. Share your assembly orientation early so the shop can align grain and select optimal bar sizes.

Underestimating Setup Costs on Low-Volume Orders

Tooling, cam programming and first-article inspection often exceed per-piece machining time for runs under 500 units. XUXIANG quotes setup as a line item; consolidating multiple part numbers into a single PO spreads fixed costs and shortens lead time by 20–30 %.

Incomplete GD&T Drawings Leading to Rework

Missing datum references, unspecified surface finishes or ambiguous concentricity callouts force machinists to guess, triggering rejection at final inspection. Provide ISO 1101 or ASME Y14.5 compliant drawings with material hardness, surface-roughness limits and critical dimensions clearly marked.

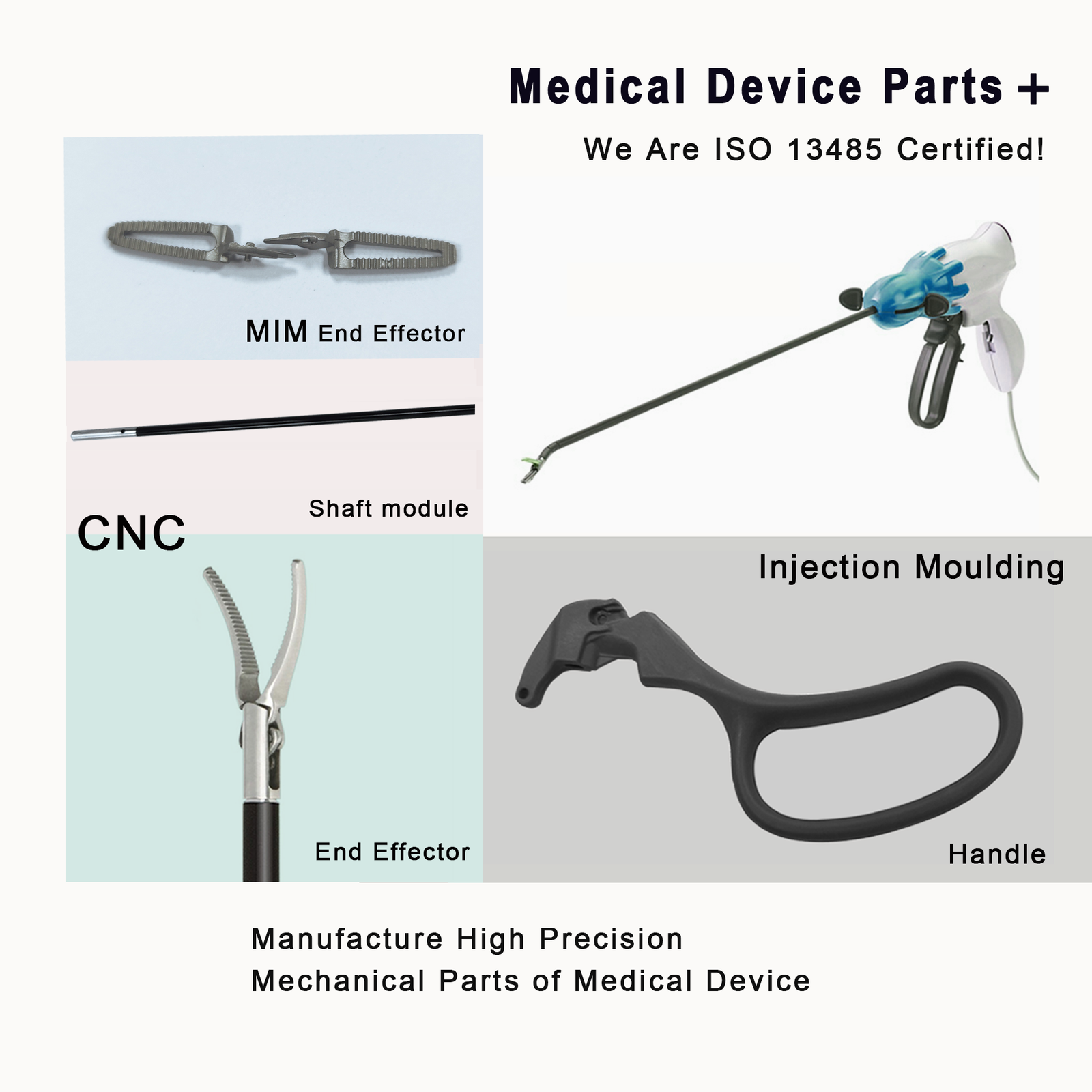

Selecting Uncertified Suppliers for Regulated Industries

Medical-device and automotive OEMs require ISO 13485 or IATF 16949 traceability; generic ISO 9001 is insufficient. XUXIANG maintains full material certificates, CMM FAI reports and process FMEA documentation to satisfy FDA and tier-one audits without last-minute scrambles.

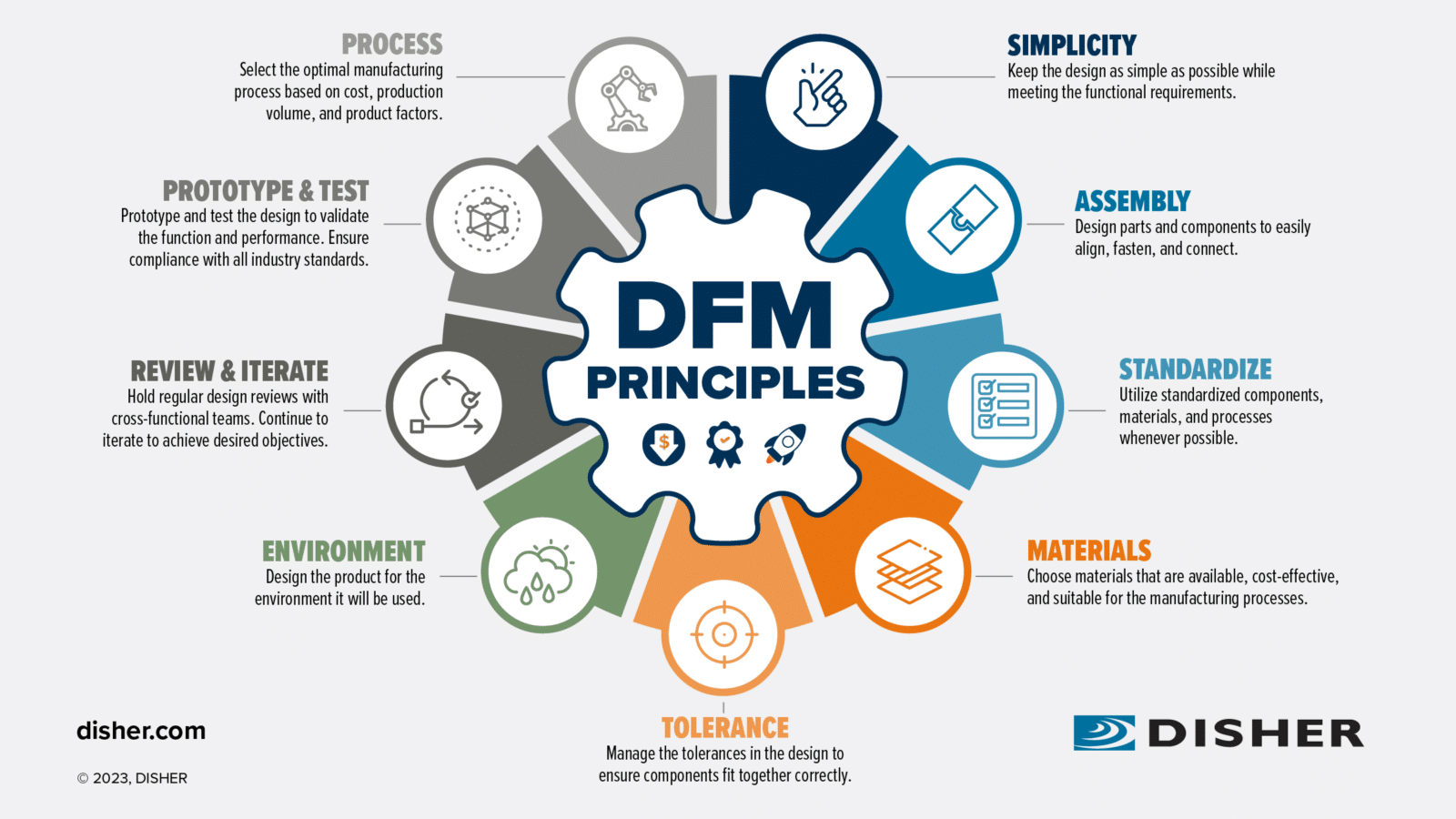

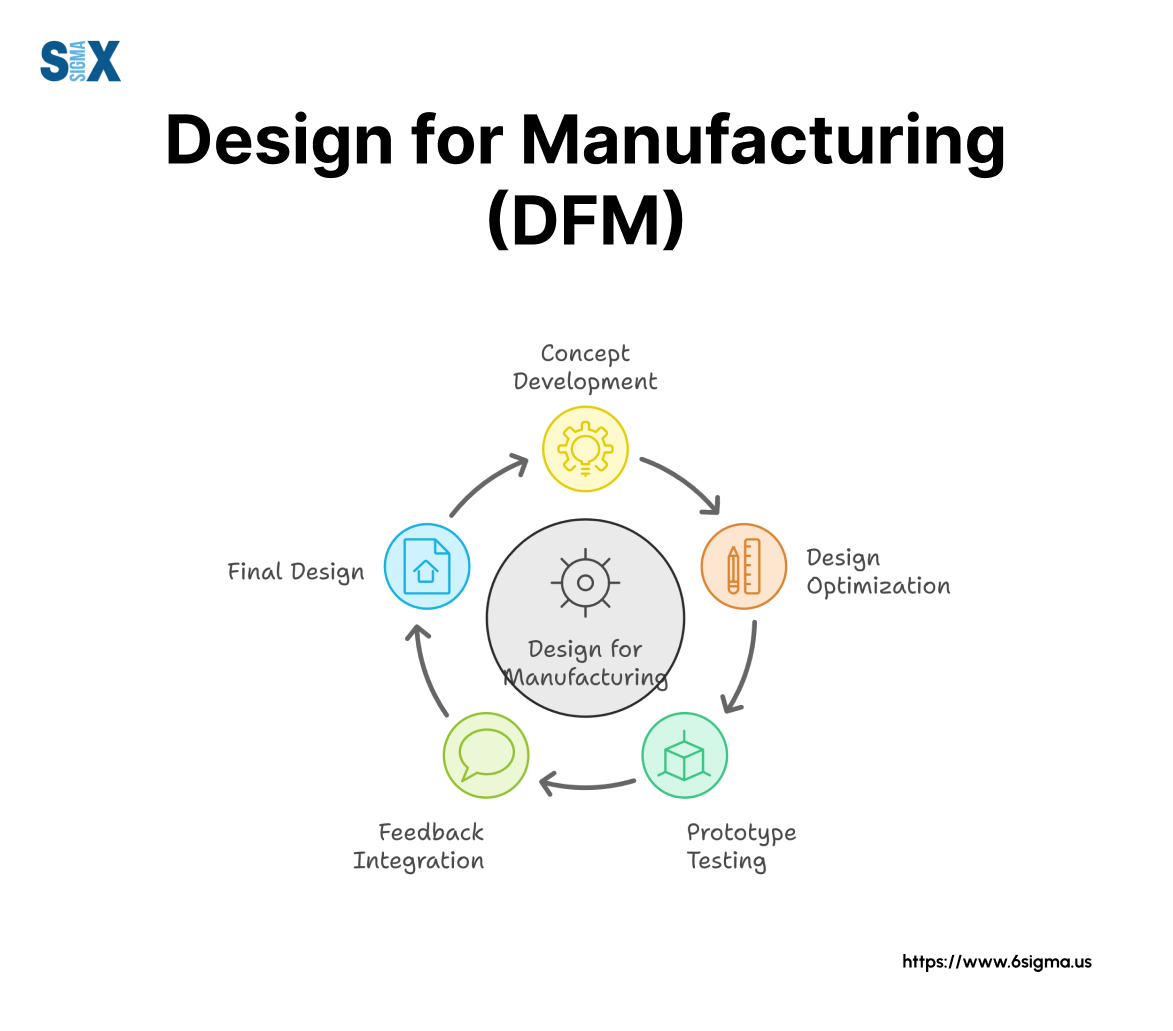

Initial Design Review and DFM Feedback

Share CAD files, tolerance call-outs and application context with your machining partner within 48 hours of design freeze. XUXIANG’s 10+ engineering experts analyze feasibility, flag tight tolerances that drive cost and recommend feature modifications — chamfer radii, wall thickness, tool access — to improve machinability without compromising function.

DFM feedback typically returns in 24–48 hours and can reduce unit cost by 15–25% through smarter feature geometry and material utilization.

Material Selection and Cost Estimation

Specify material grade, hardness and surface finish; the supplier validates availability, proposes alternates if lead time or cost is prohibitive, and issues a formal quotation with unit price, tooling amortization and lead time.

XUXIANG provides material certificates and spectral analysis reports to confirm chemistry before machining begins, ensuring traceability for automotive, medical and aerospace applications.

Prototype Run and First-Article Inspection

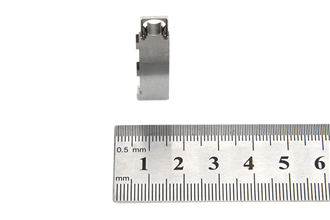

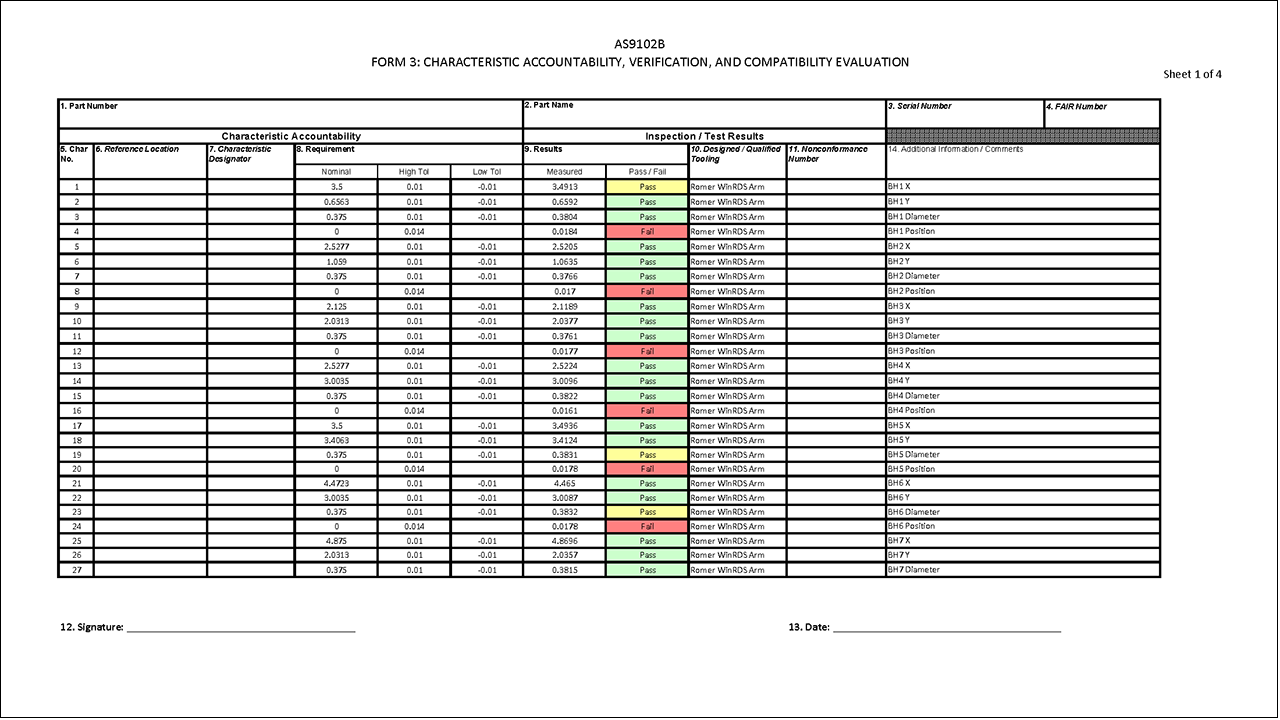

Order 5–20 prototype parts to validate dimensional accuracy, surface finish and fit. The supplier machines samples, measures critical features on CMM equipment — XUXIANG uses ZEISS MICURA with 0.7 µm resolution — and delivers a full FAI report with dimensional data, material certs and photos.

Prototype approval gates production tooling and locks process parameters, preventing costly mid-run adjustments.

Process Validation and Cpk Study

Before full production, run a capability study on 25–50 parts to calculate Cpk for critical dimensions. Target Cpk ≥ 1.33 for general tolerances, ≥ 1.67 for safety-critical features.

XUXIANG’s in-process monitoring and statistical sampling ensure sustained capability across batch runs, with documentation archived for audit and traceability.

Production Ramp-Up and Batch Inspection

Scale to full volume with agreed sampling plans: first-piece inspection, in-process checks every 50–100 parts, and final random sampling per AQL standards. XUXIANG’s five-step QC flow — material verification, in-process monitoring, CMM validation, surface integrity and final FAI — ensures every shipment meets print.

Production lead time averages 30% faster than industry norms, supported by dual-factory capacity and the 2025 Quanzhou expansion.

Ongoing Quality Audits and Continuous Improvement

Schedule quarterly reviews to analyze defect trends, cycle-time data and cost-reduction opportunities. ISO 9001:2015 frameworks and ZEISS/Nikon metrology enable root-cause analysis and corrective action, locking in long-term performance gains.

Partnership-minded suppliers share process improvements — tool-path optimization, fixture redesign, material substitution — that benefit both parties without renegotiating price.
