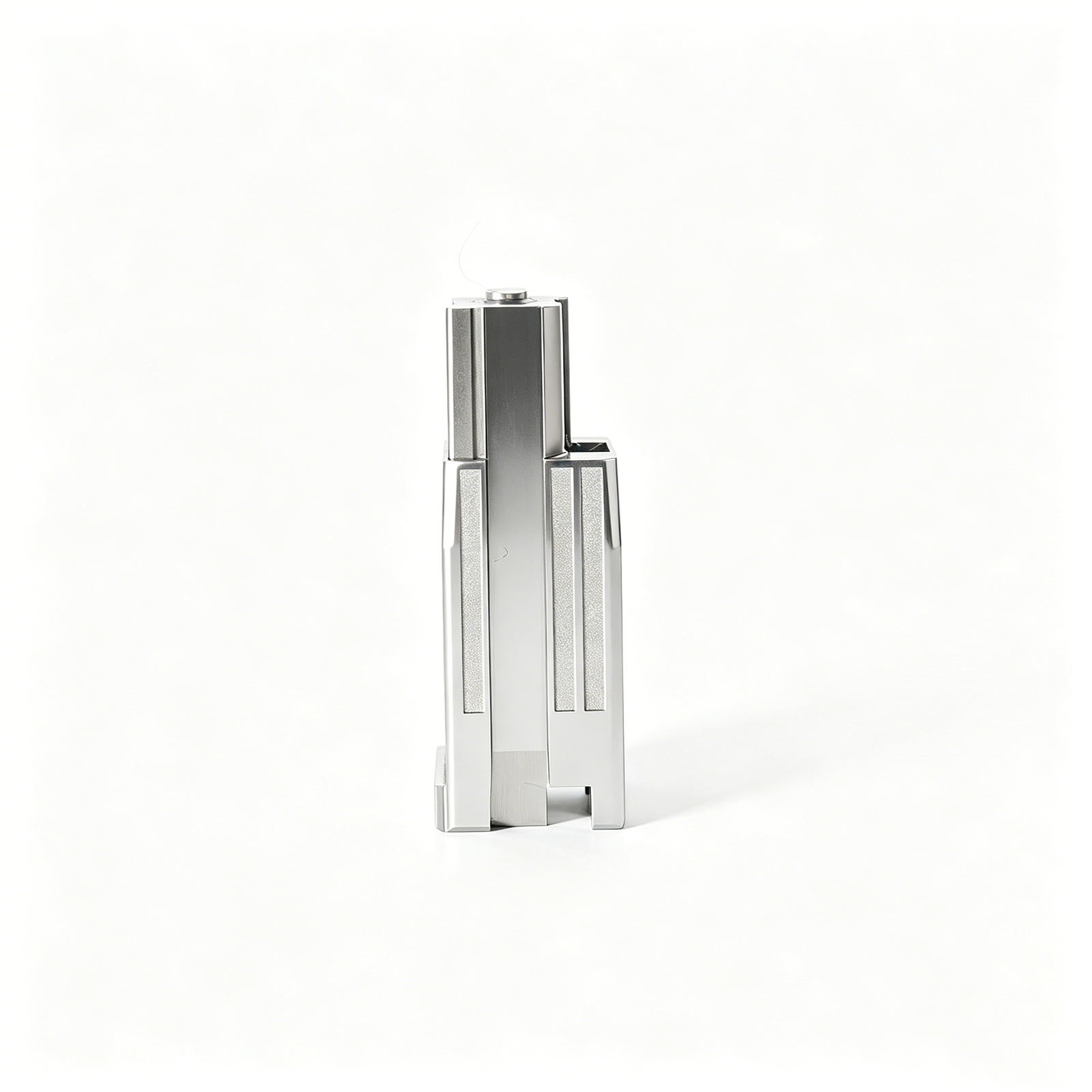

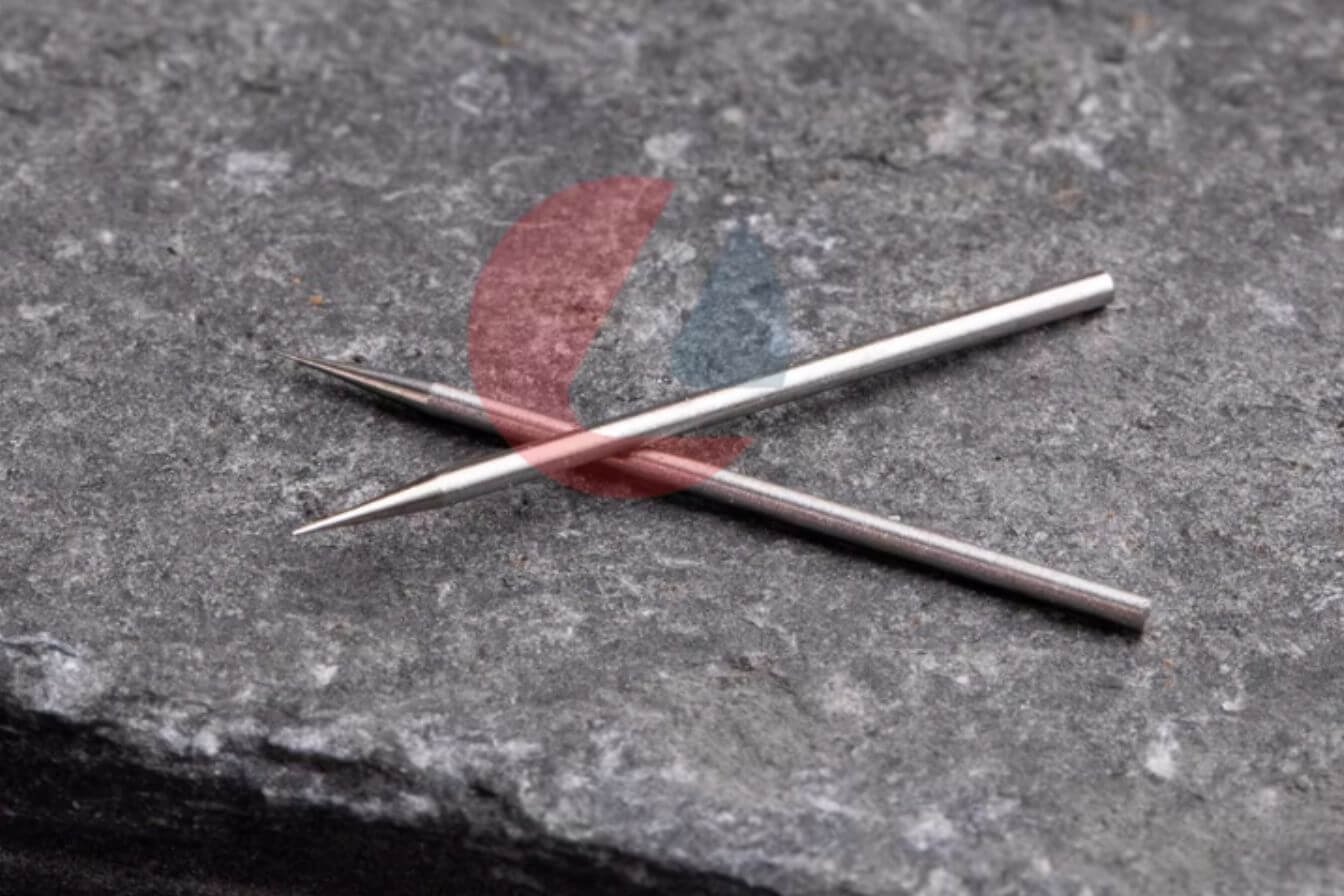

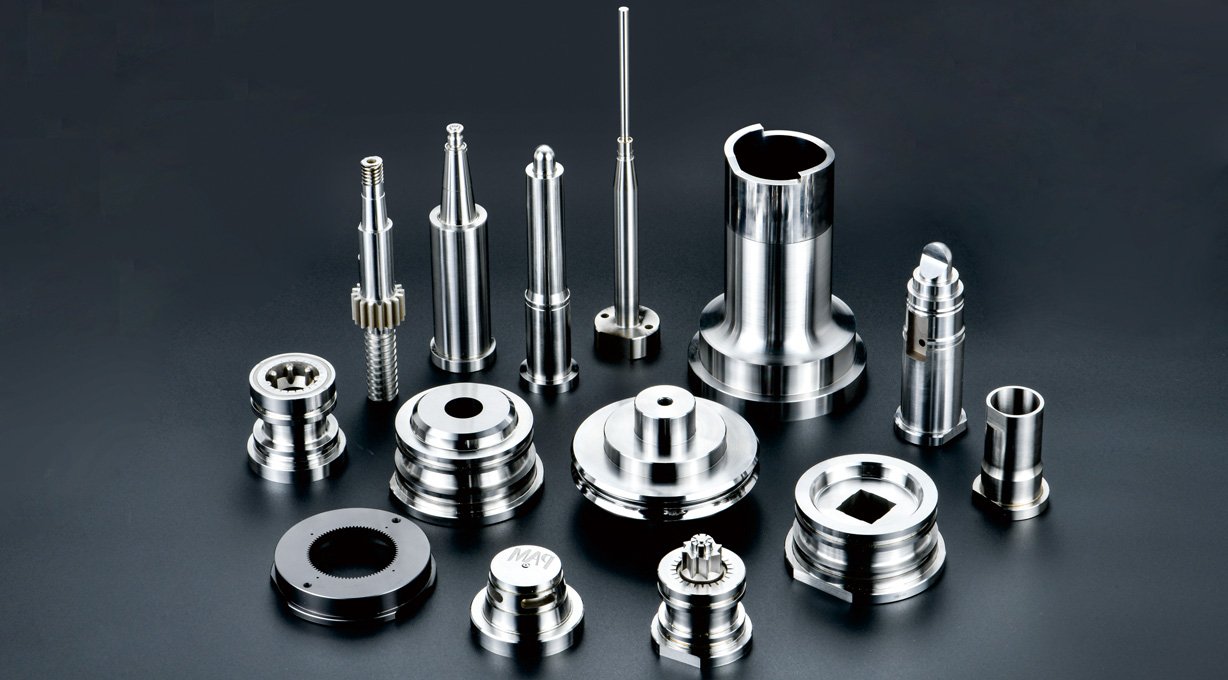

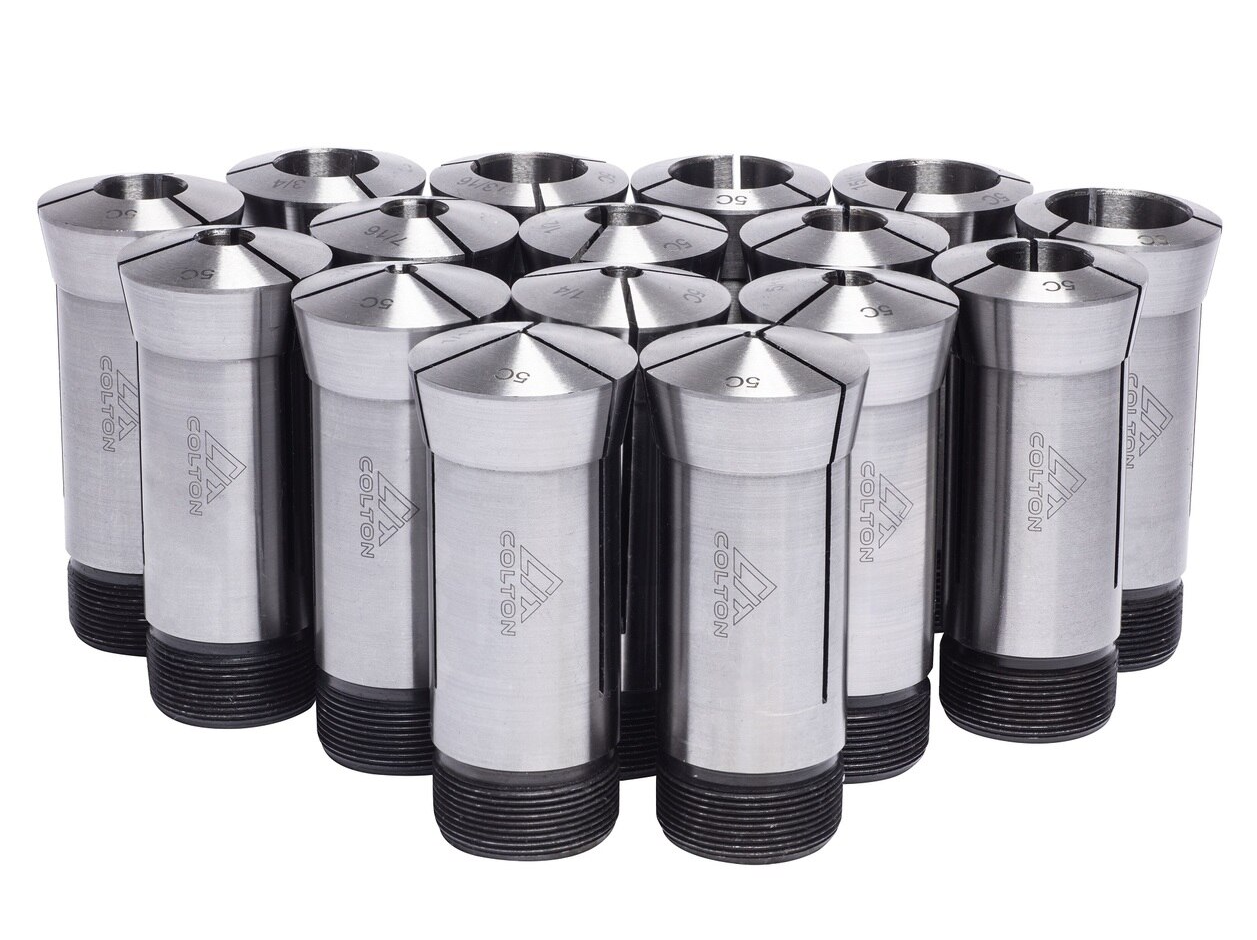

Ejector Pin Sleeves

Cylindrical sleeves with inner diameters from 1.5–6 mm, holding +/-0.002 mm concentricity. Electronics and micro-connector tooling rely on these for repeatable ejection cycles exceeding 500,000 shots.

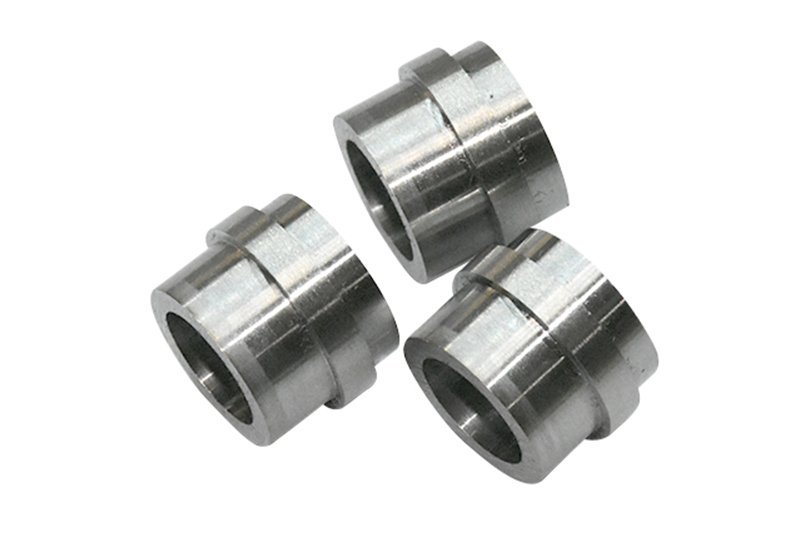

Guide Bushings

Precision bushings maintain +/-0.003 mm bore tolerance and Ra ≤ 0.4 μm surface finish. Automotive sensor molds and 5G terminal tooling demand these for alignment stability under thermal cycling.

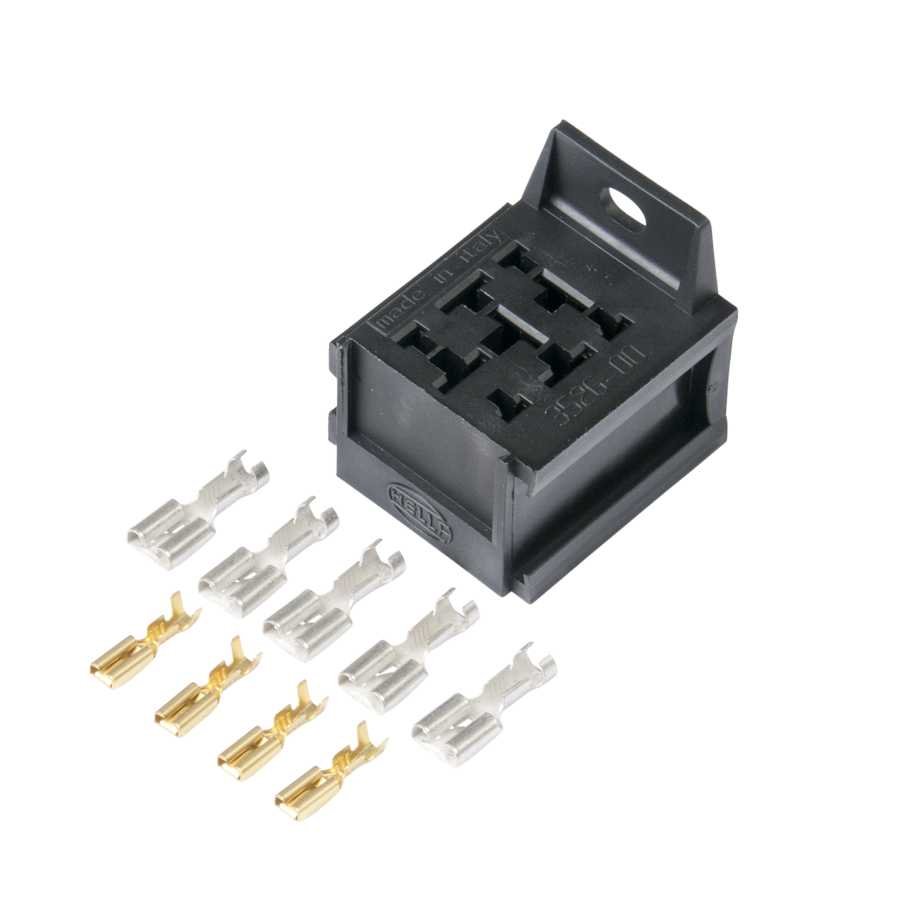

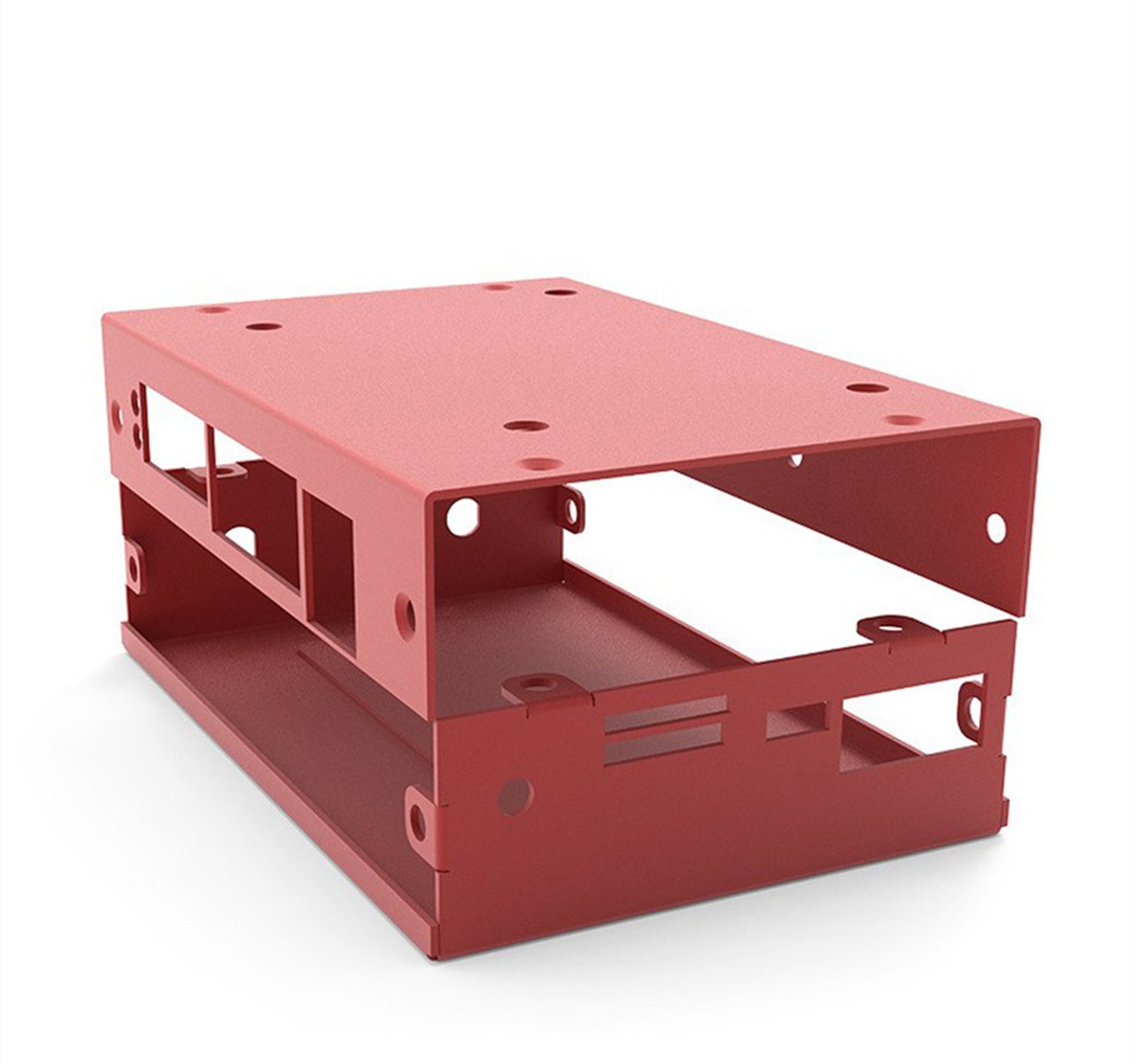

Micro-Connector Shells

Thin-wall shells (0.15–0.3 mm) with +/-0.005 mm flatness serve board-to-board, FPC and RF connectors in telecom and medical devices.

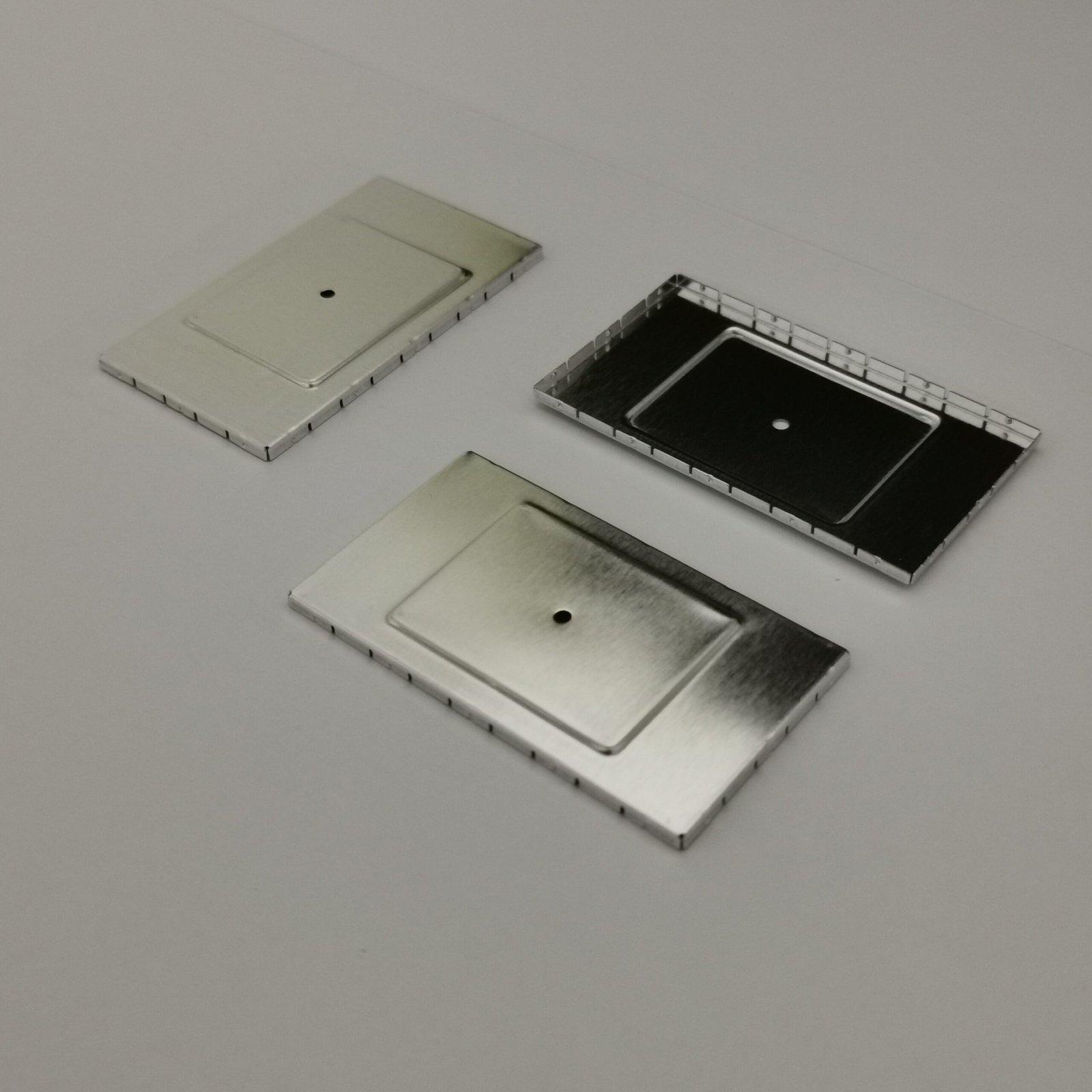

Shielding Cans

EMI/RFI shields for 5G modules and ADAS sensors, typically 0.2–0.5 mm thick, holding +/-0.01 mm profile tolerance across automotive and industrial automation.

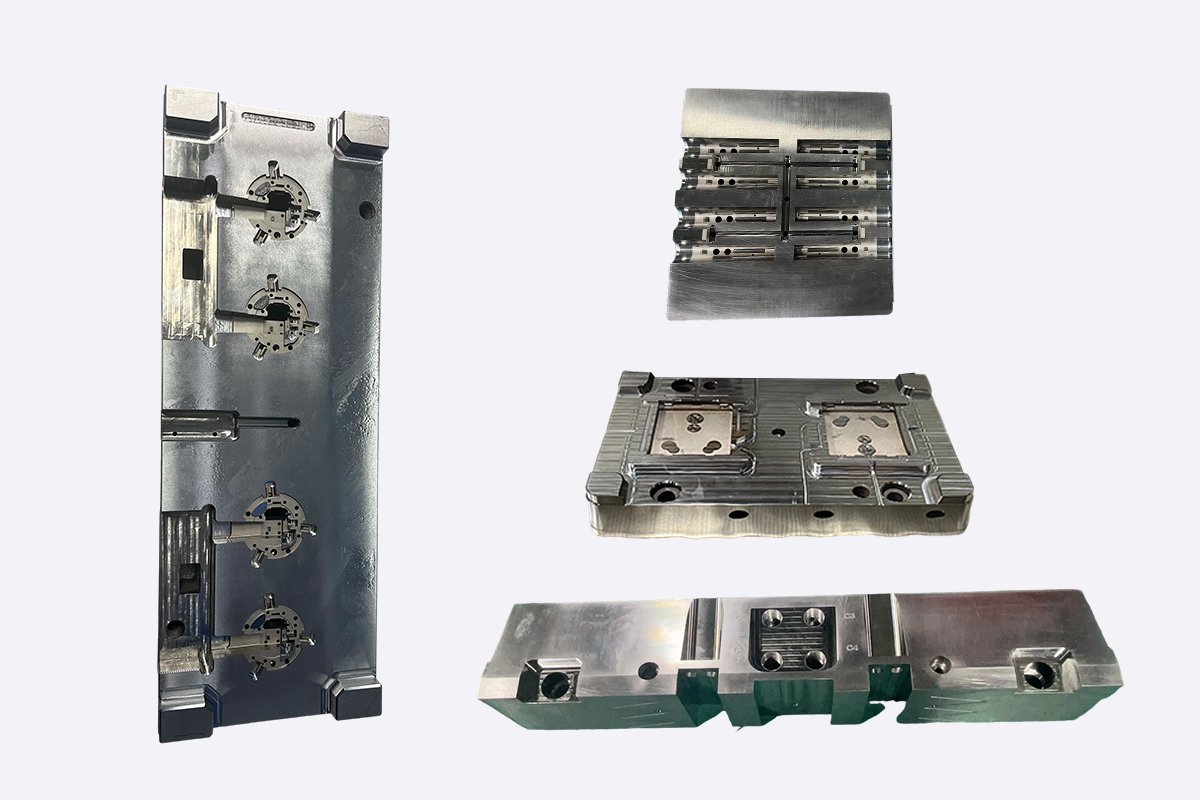

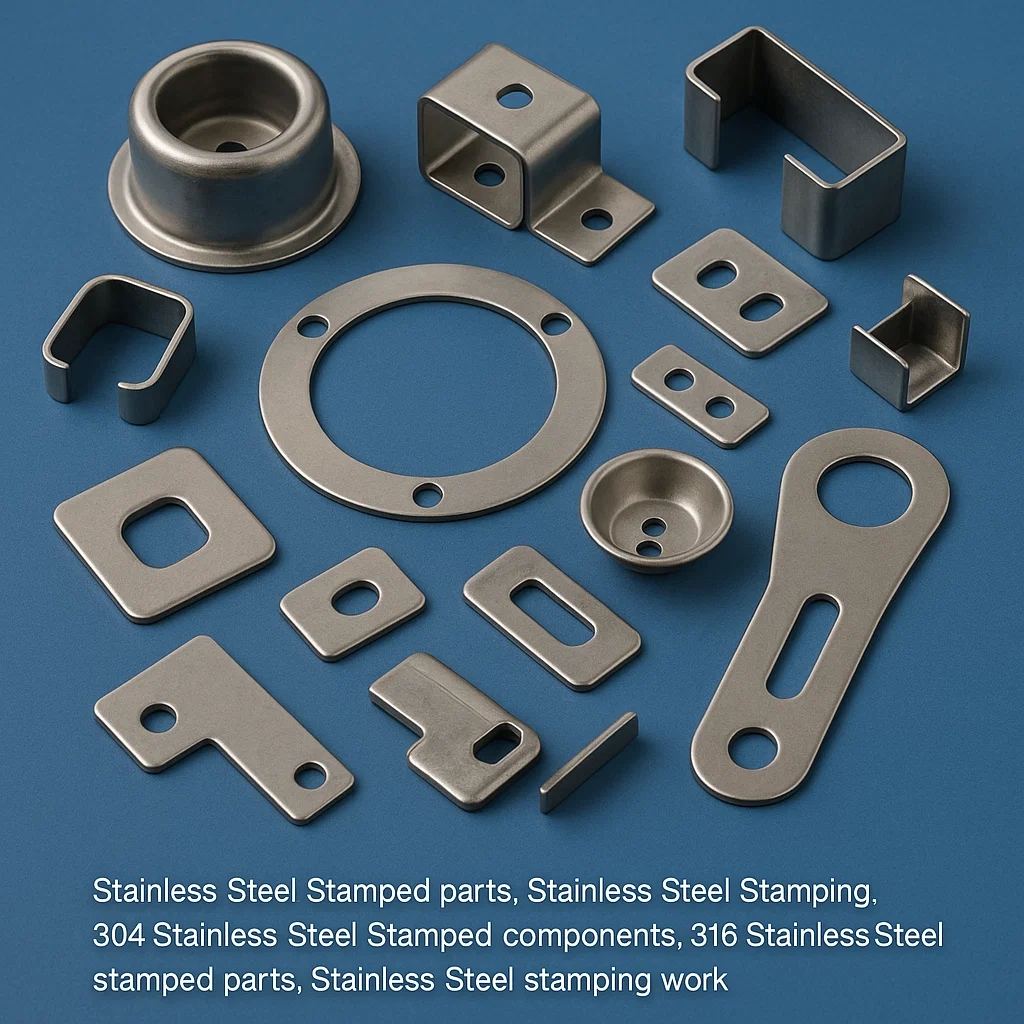

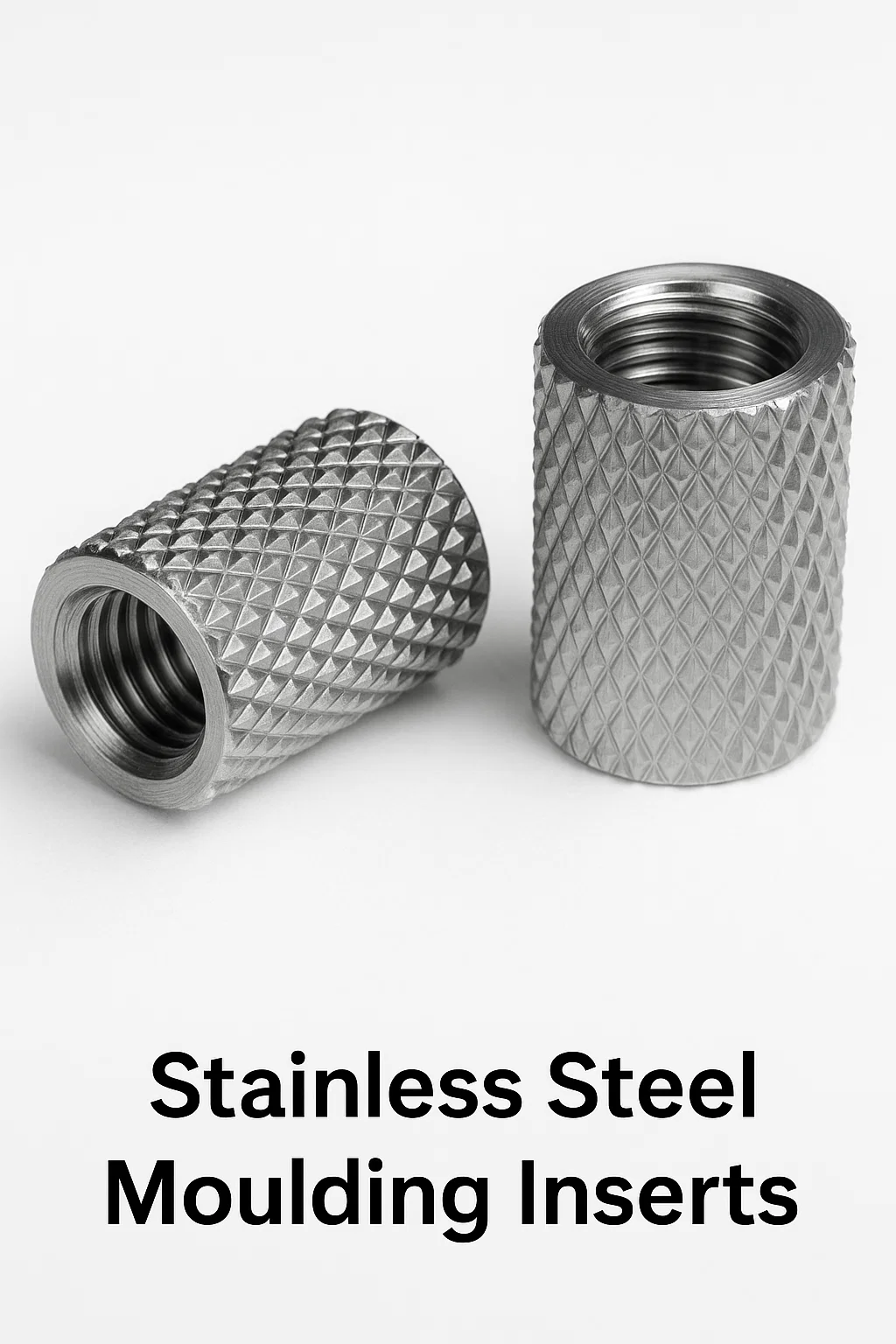

Martensitic Grades for High-Wear Mold Inserts

420 and 440C are heat-treatable martensitic stainless steels. After quench-and-temper, 420 reaches 50–54 HRC, suitable for ejector pins and slide cores subject to repeated impact. 440C peaks at 58–60 HRC, the hardest stainless grade, preferred for thin-wall micro-connector tooling and precision stamping dies where abrasive wear is severe. Both machine best in the annealed state, then harden post-EDM or CNC to final tolerance.

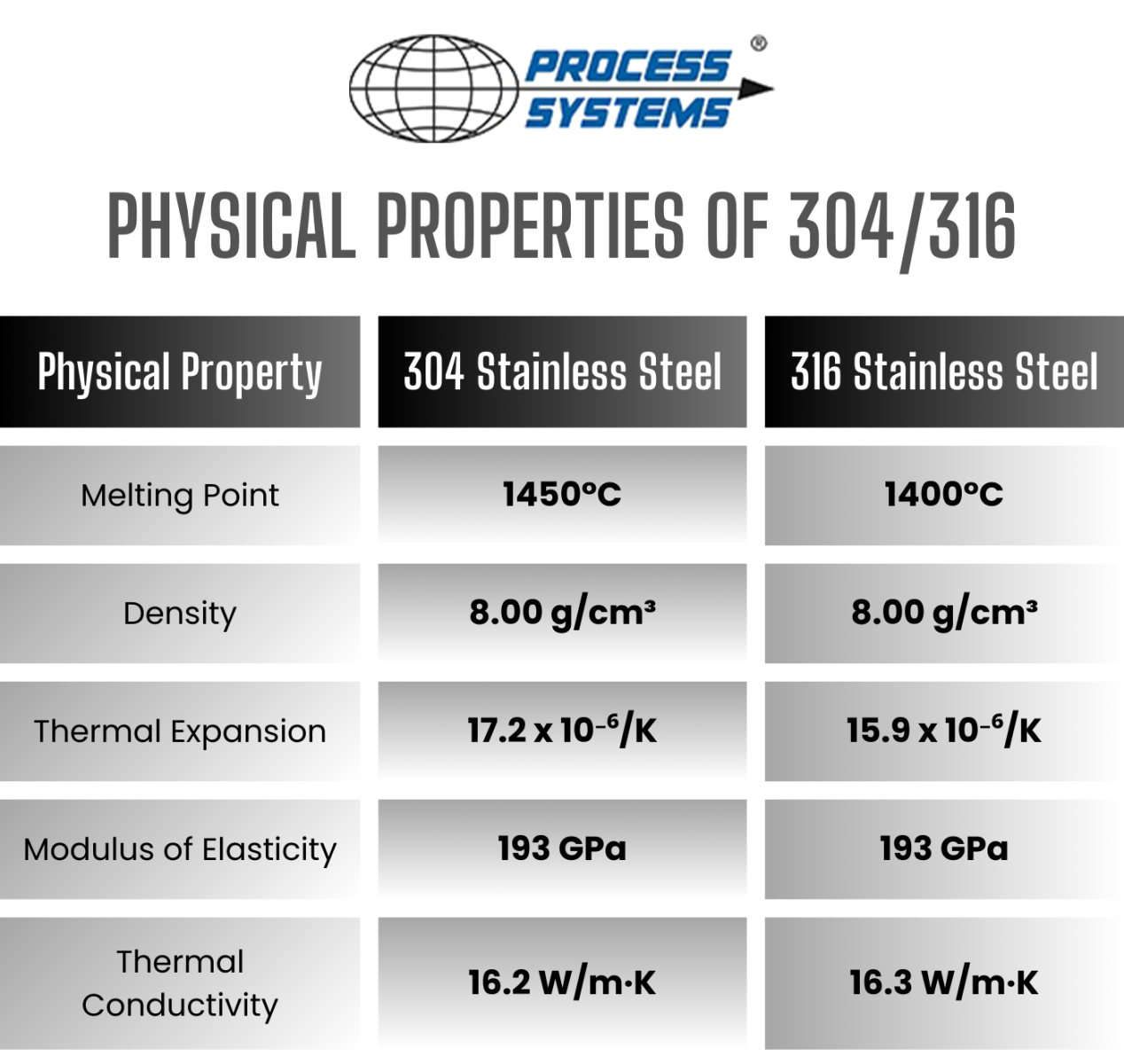

Austenitic 316L for Medical and Marine Environments

316L remains soft (~95 HRB) but offers superior corrosion resistance thanks to 2–3% molybdenum. Medical-device housings, pharmaceutical tooling and marine sensor brackets specify 316L to meet biocompatibility (ISO 10993) and salt-fog standards. XUXIANG validates 316L chemistry via spectral analysis before machining, ensuring molybdenum content meets ASTM A240 requirements for precision metal mold stainless steel shell stamping parts customized.

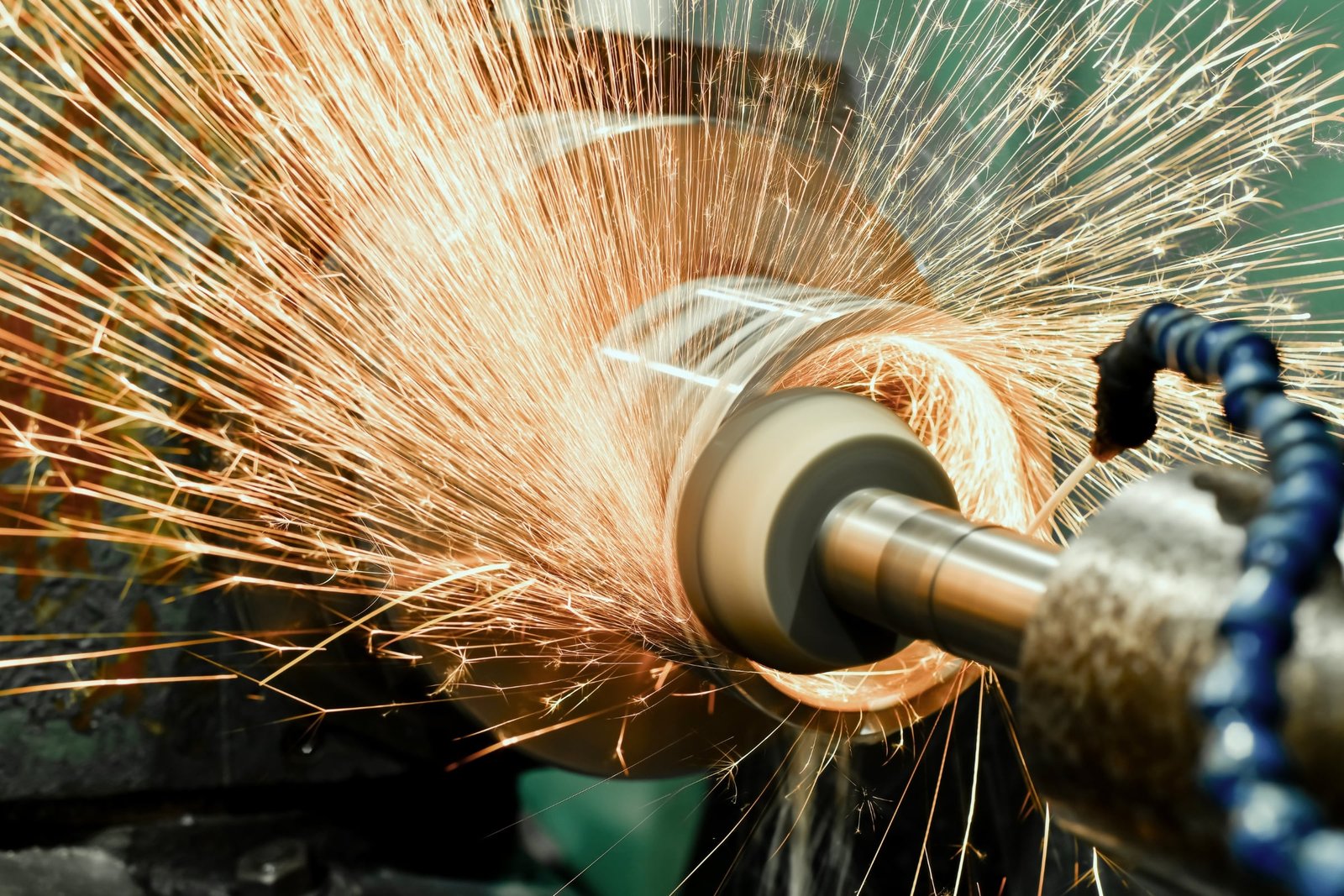

Surface Finishes and Their Impact

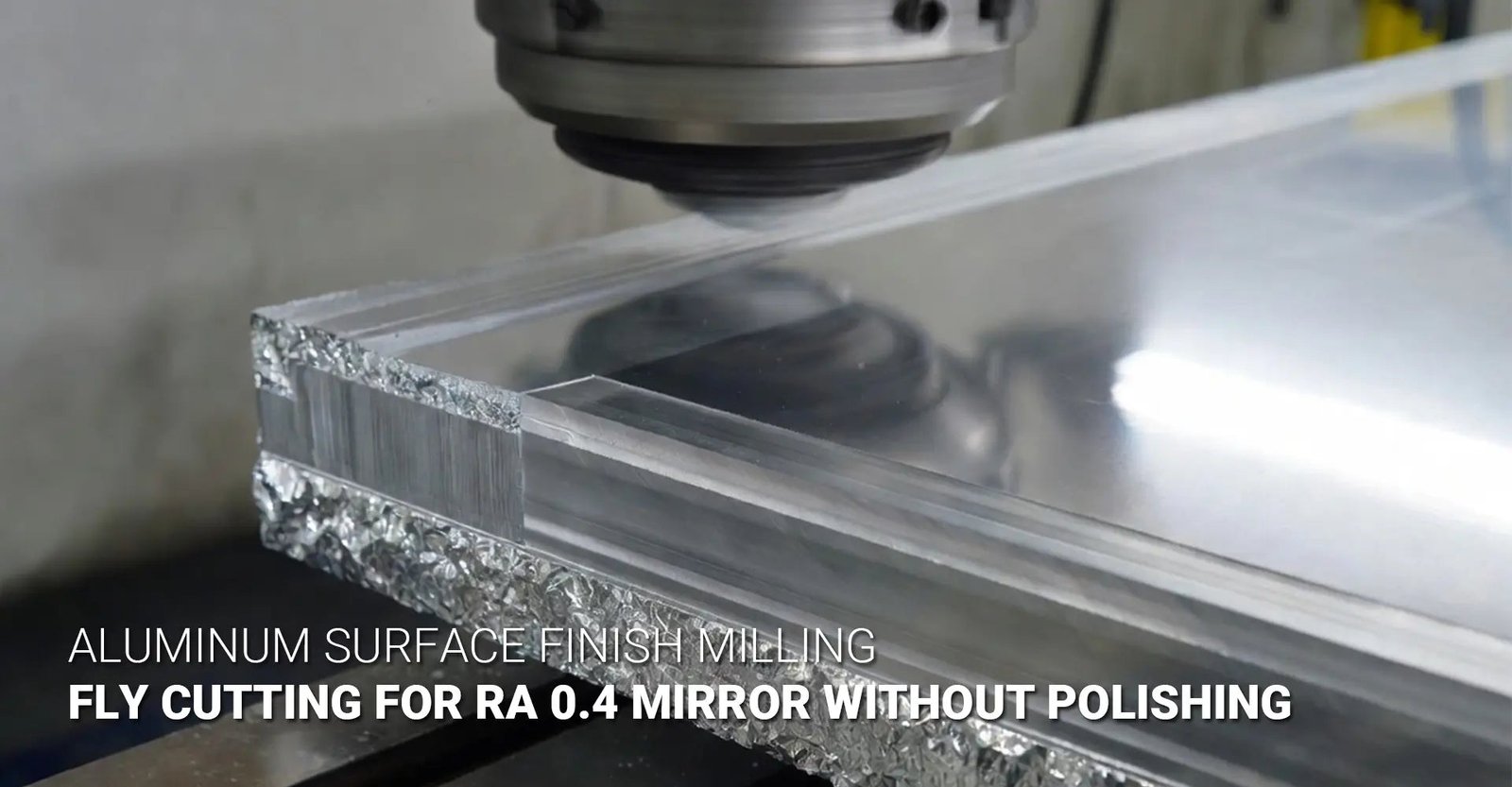

Mirror polish (Ra ≤ 0.1 µm) is achieved through multi-stage lapping and is essential for ejector pins and sliding cores, adding 2–3 days and 15–25% cost. Bead-blasting (Ra 0.8–1.6 µm) improves adhesion for subsequent coatings and costs ~5% extra. Passivation removes free iron, extends corrosion resistance and adds negligible lead time when batched.

Secondary CNC and Marking Operations

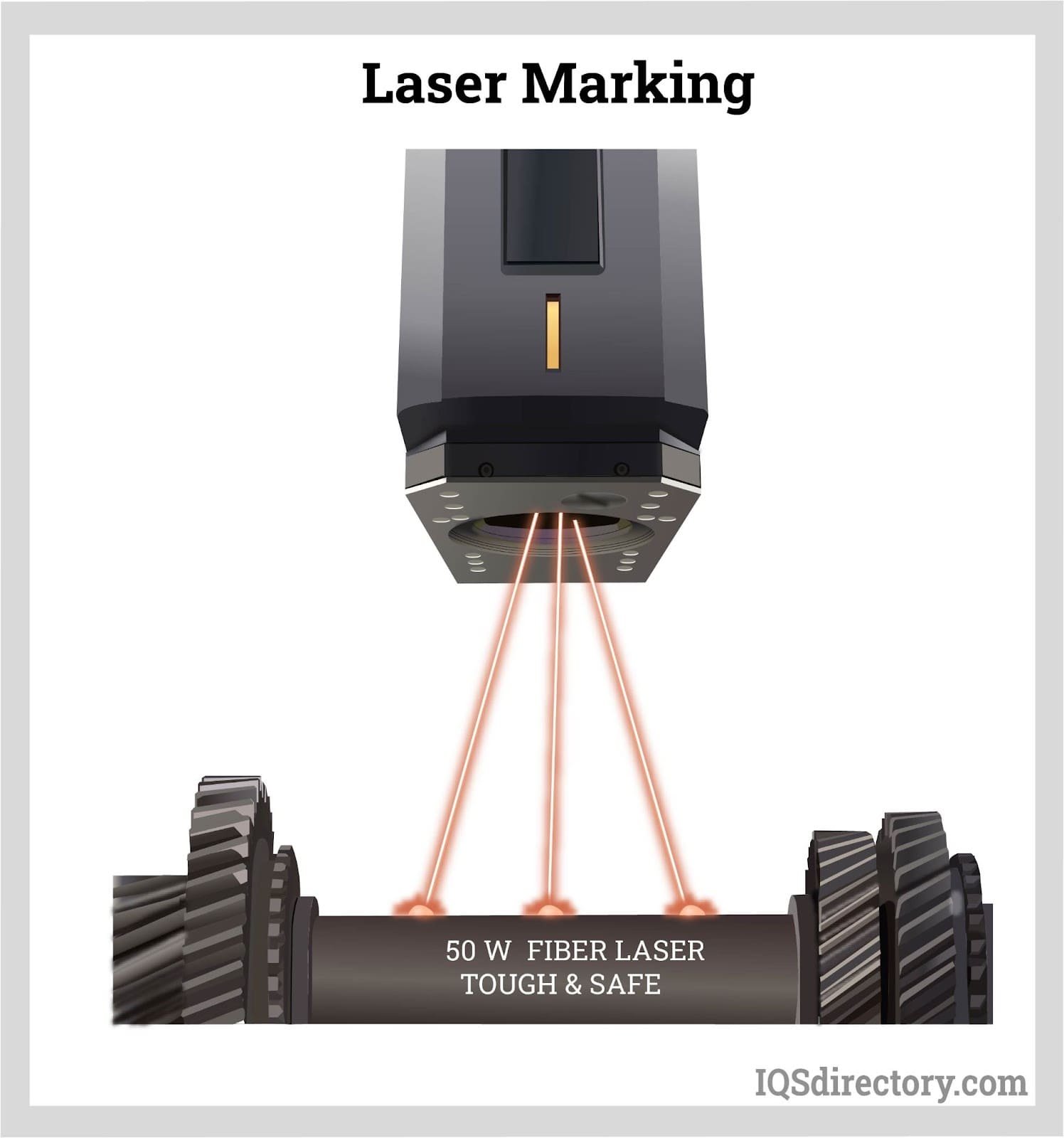

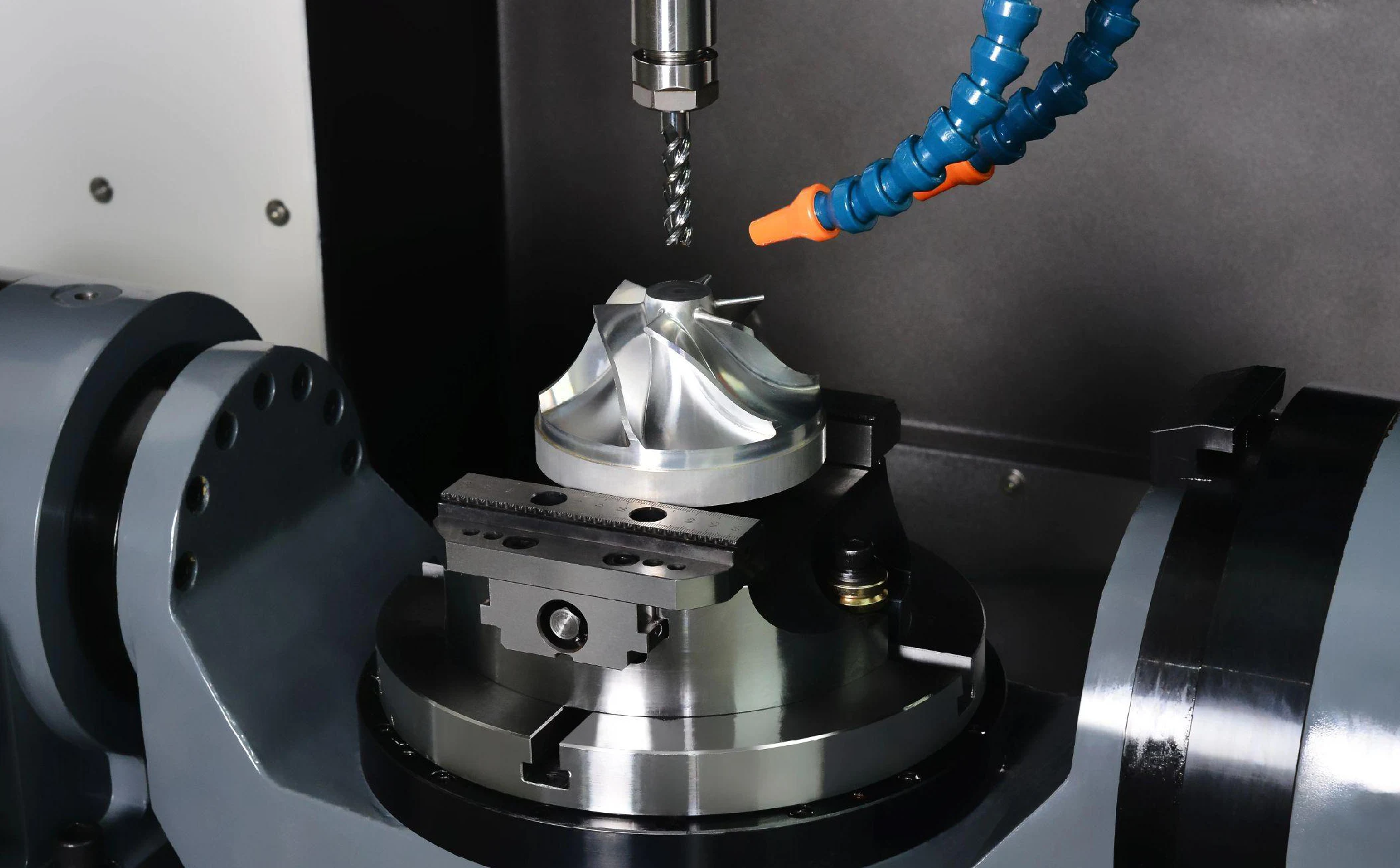

CNC micro-machining adds features like micro-holes (Ø ≥ 0.3 mm), threads and complex contours post-stamping, typically extending lead time by 3–5 days. Laser marking for traceability (serial numbers, QR codes) is completed in-house with no tooling cost and minimal cycle-time impact.

Protective Coatings for Wear and Corrosion

TiN (titanium nitride) coatings deliver hardness up to HV 2,300 and cost 20–30% more; DLC (diamond-like carbon) reduces friction for high-cycle tooling at 30–40% premium. Chrome plating offers corrosion resistance at lower cost but requires longer lead times for third-party processing.

Dimensional Tolerance Verification

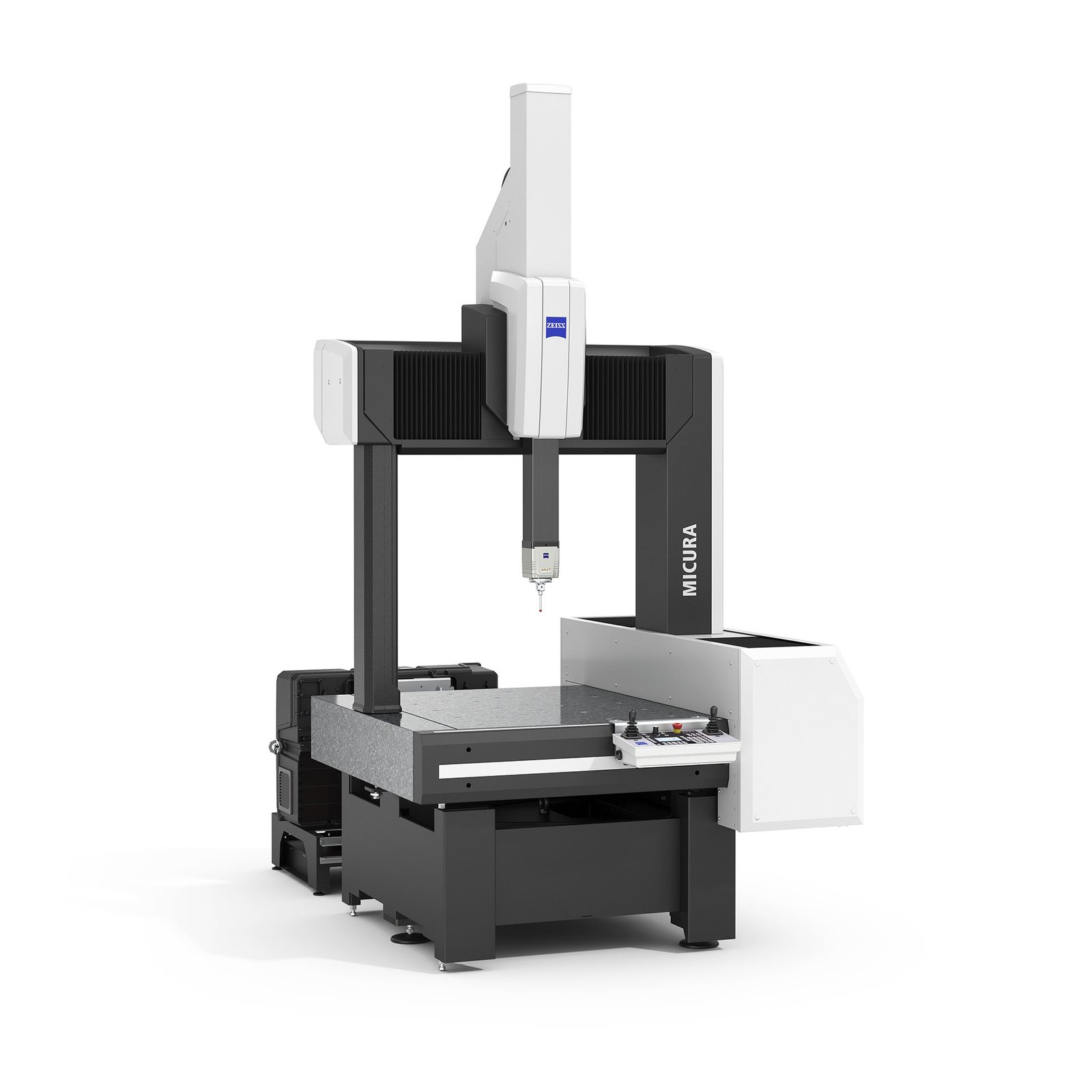

Demand CMM inspection reports for every critical dimension. XUXIANG validates all precision metal mold stainless steel shell stamping parts customized on a ZEISS MICURA CMM with 0.7um resolution, ensuring +/-0.001mm machining accuracy on mating features and hole locations.

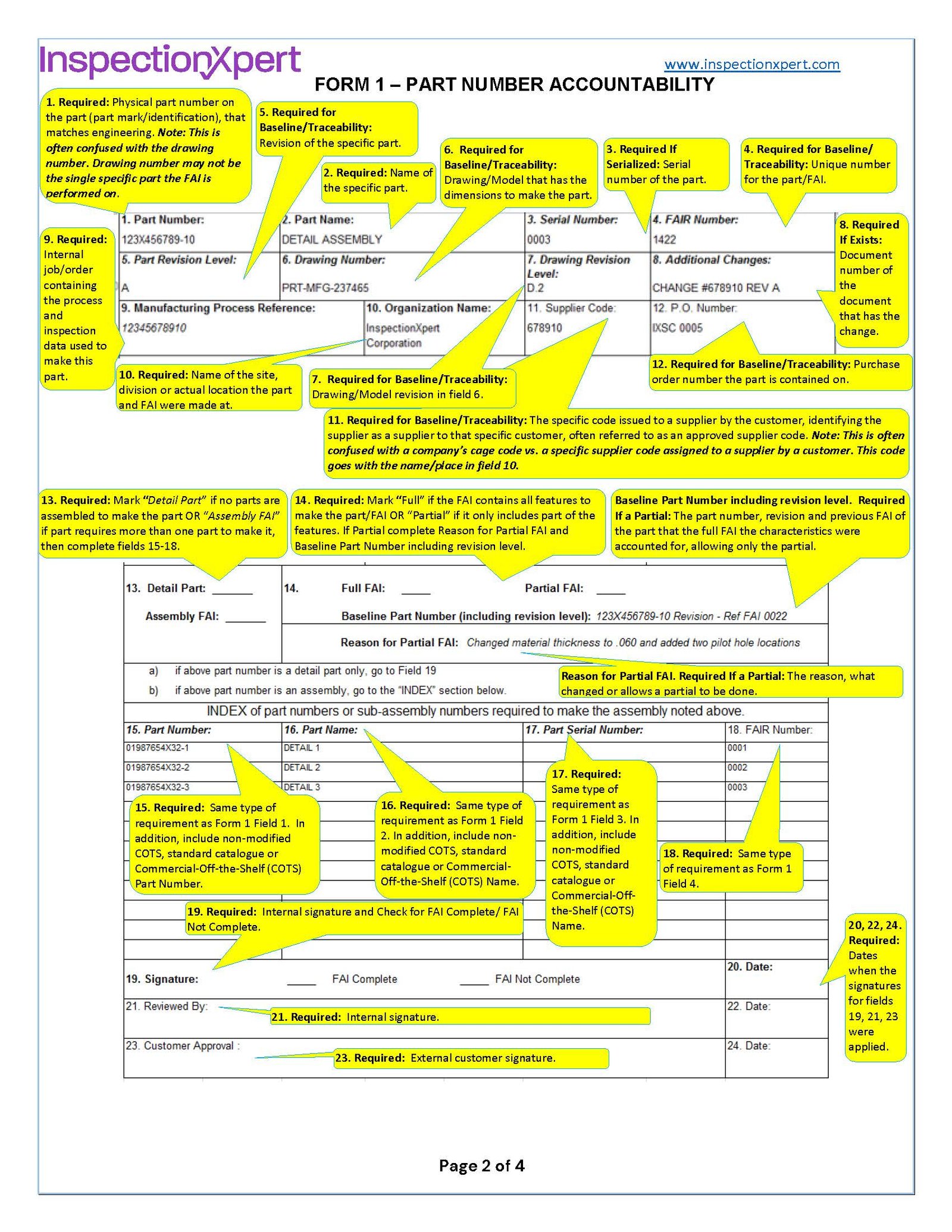

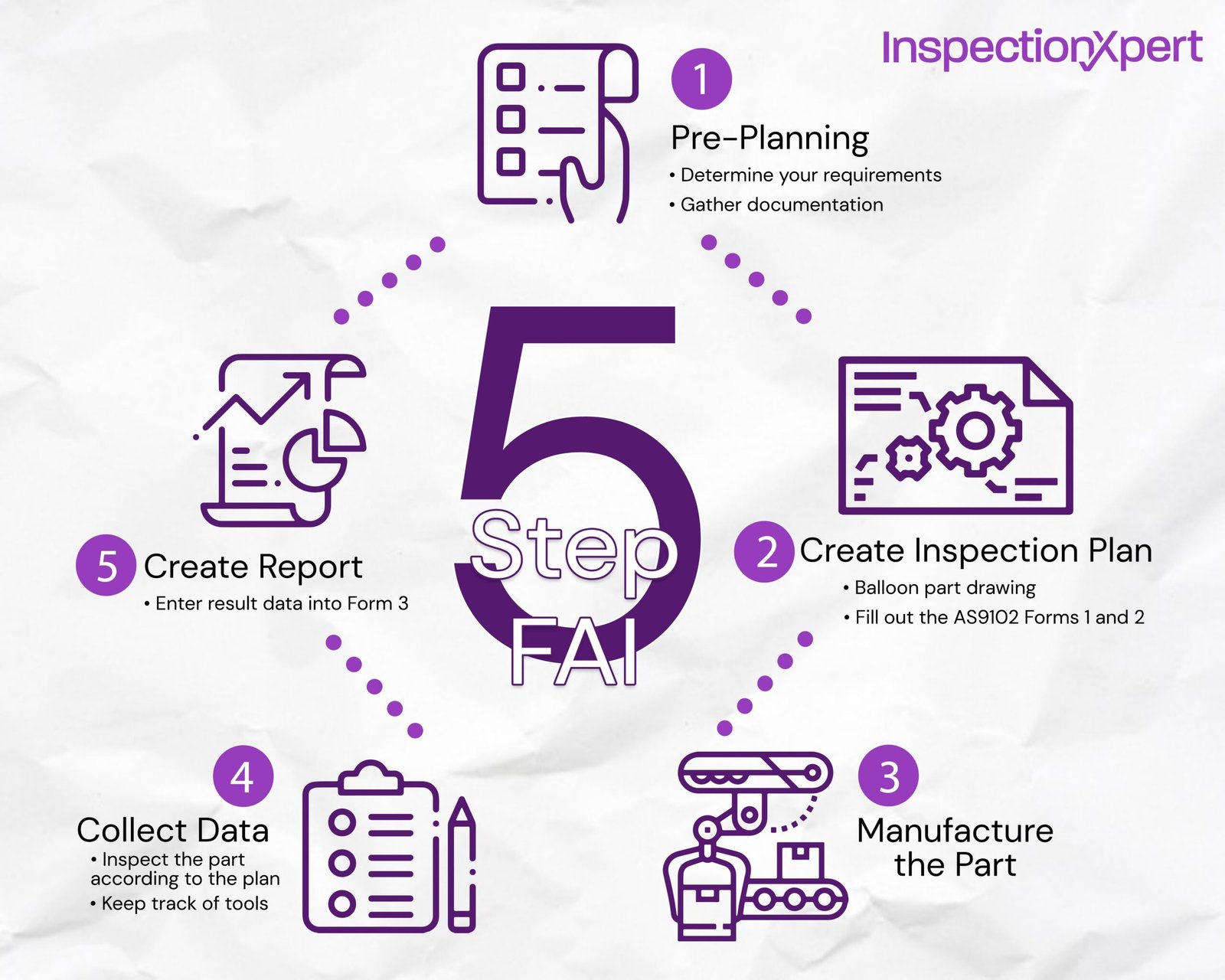

Require full-dimension FAI (First Article Inspection) reports with as-measured data, not pass/fail checkmarks.

Burr Control and Edge Finish

Burr height must stay below 0.02mm on functional edges; mating surfaces require complete deburring. Inspect corner radii: precision shells for micro-connectors often need R ≤ 0.015mm without micro-fractures.

Request edge-finish photomicrographs at 50× magnification for high-density terminal tooling.

Surface Roughness and Flatness

Specify Ra values: mirror-grade EDM cores require Ra ≤ 0.1um; functional housings tolerate Ra 0.4–0.8um. Flatness and parallelism on mating surfaces should hold within 0.005mm over 100mm span.

XUXIANG measures both with Nikon toolmaker’s microscopes (V-12B / MM-400 class) and calibrated surface profilometers.

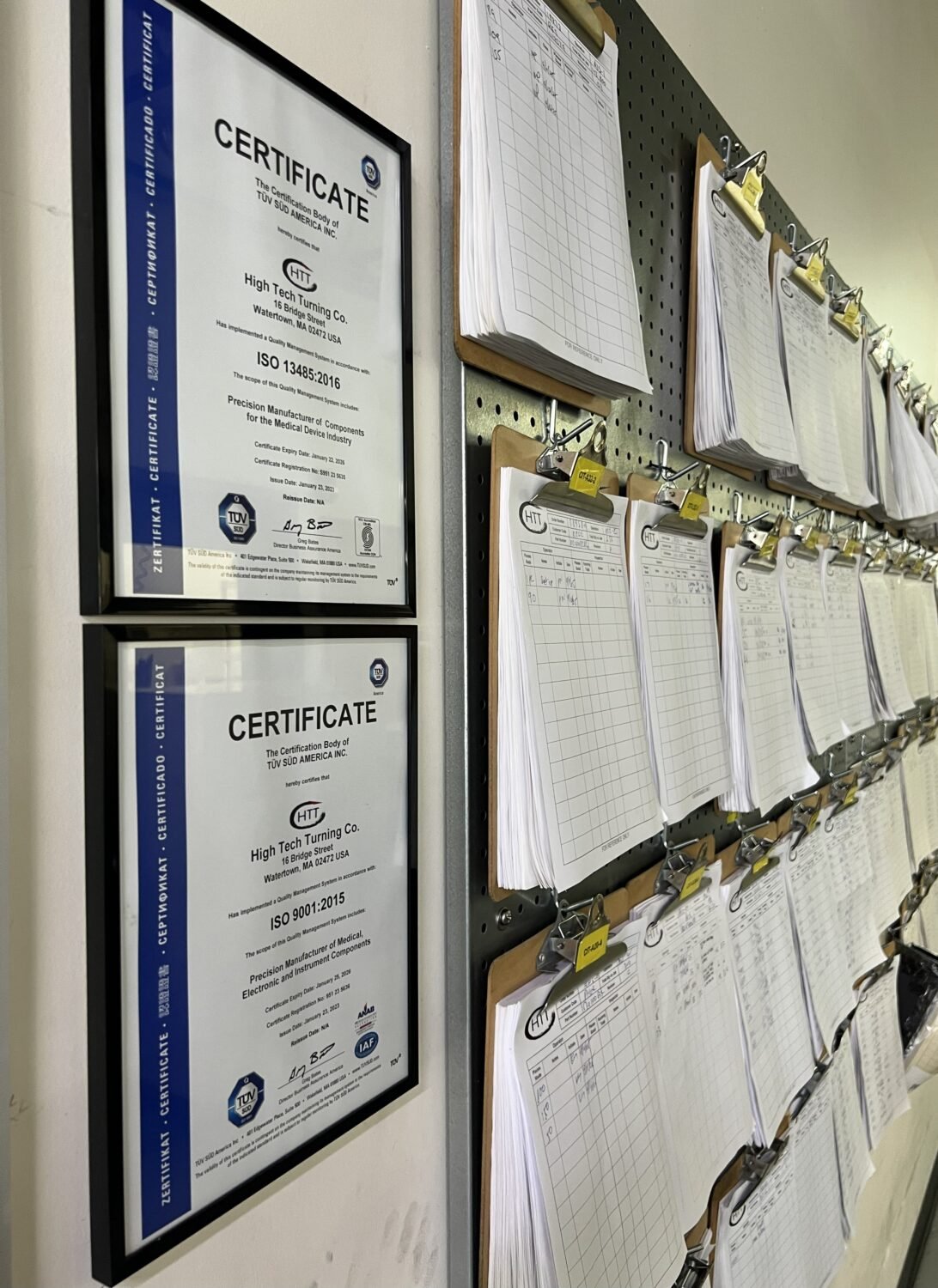

Material Traceability Documentation

Insist on mill certificates (EN 10204 3.1 or equivalent) for every stainless steel lot, listing chemistry, heat number and mechanical properties. Spectral analysis at incoming inspection confirms grade compliance before machining begins.

Retain traceability through batch codes laser-marked on each part or traveler.

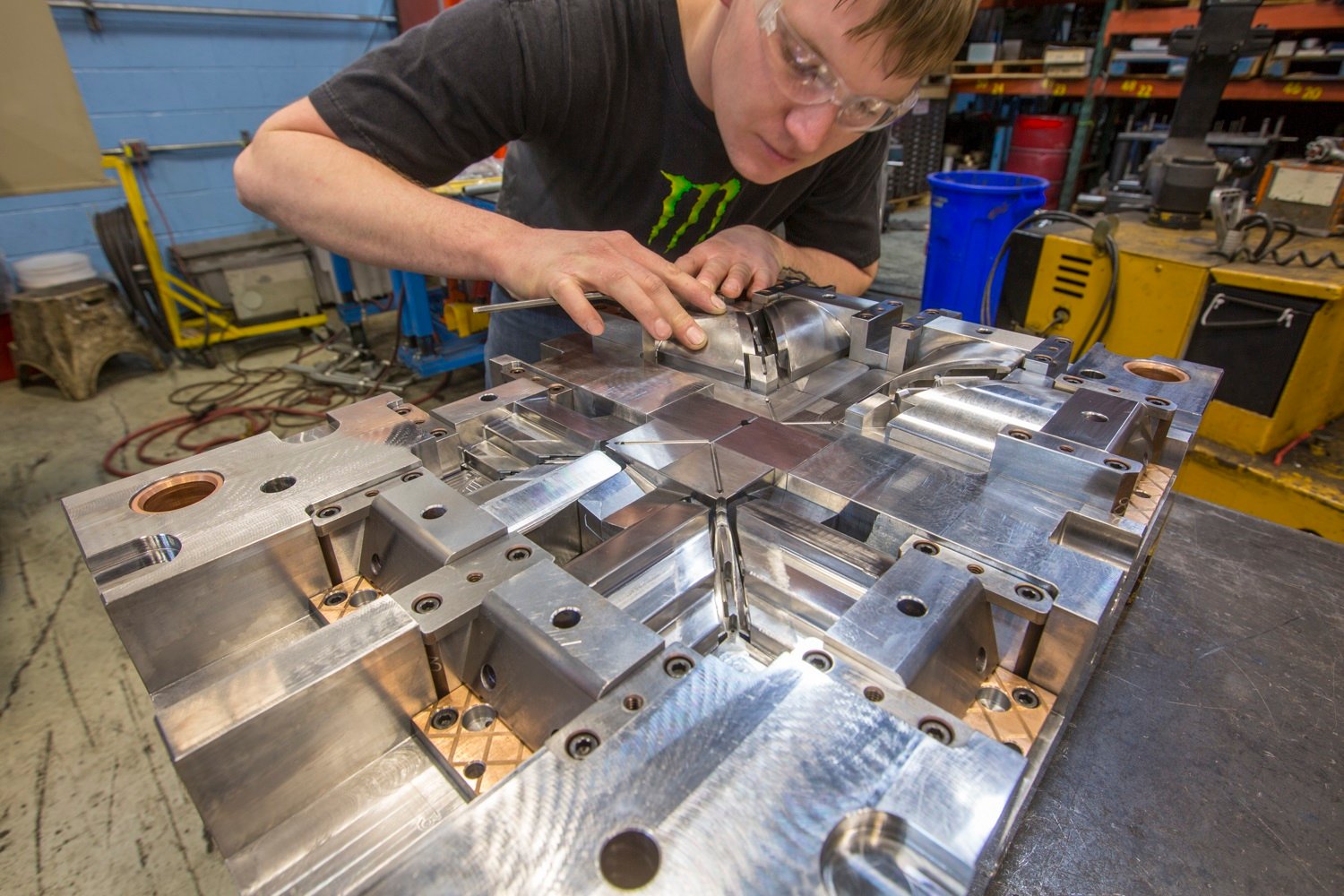

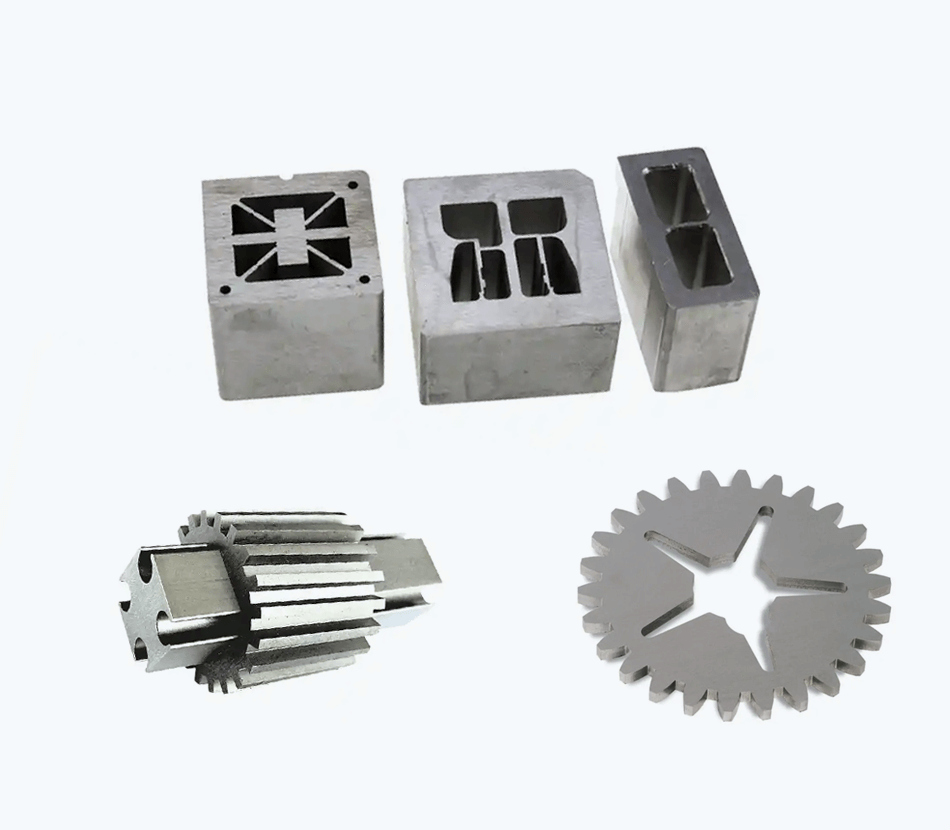

Equipment Capability and Tooling Design

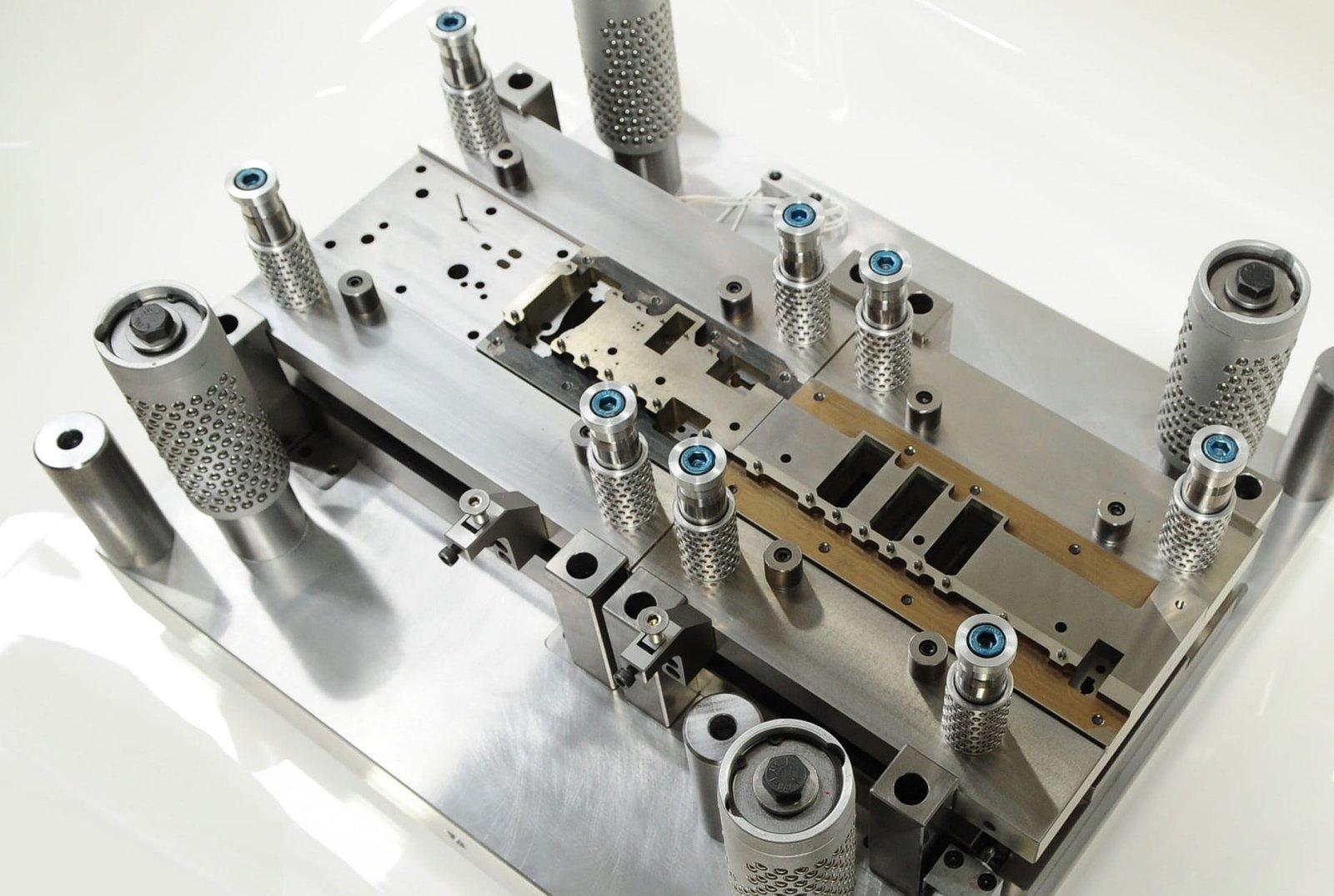

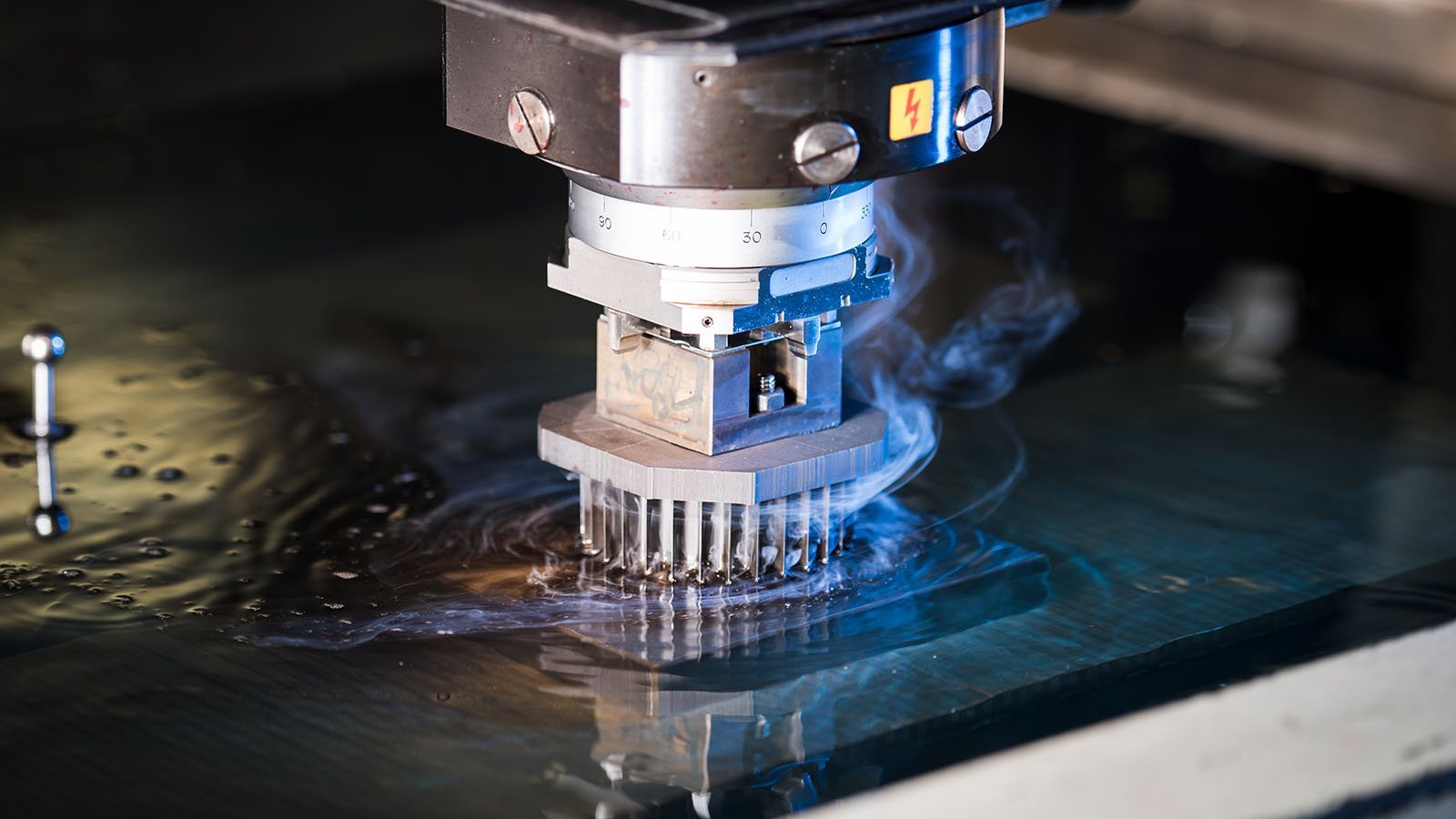

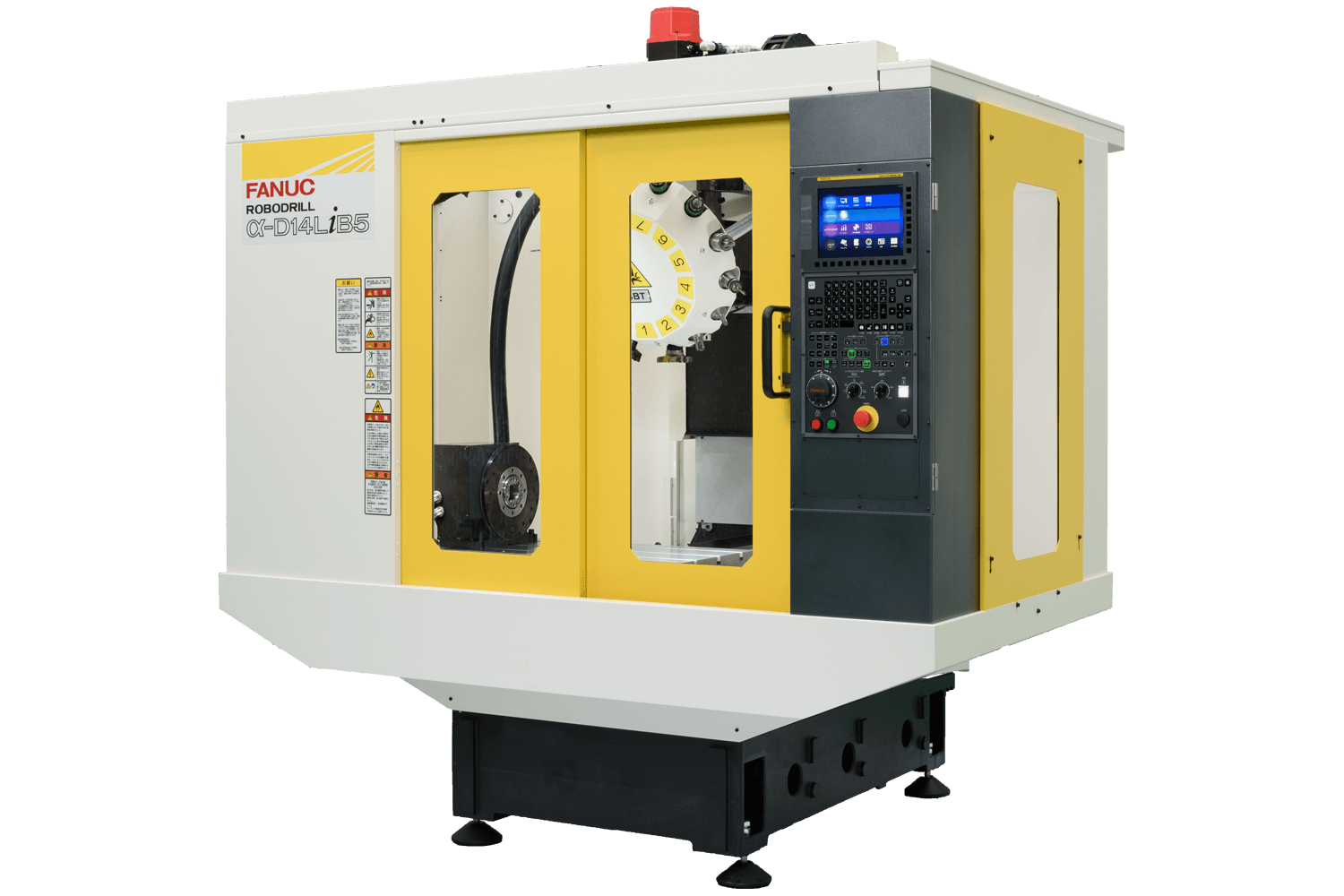

Confirm servo press tonnage matches your part geometry — 60–250 tons for typical shell work — and ask for die-change times; sub-10-minute SMED indicates lean operations. In-house die design and build (CAD/CAM, wire EDM, CNC) prevents outsourcing delays and IP leakage. XUXIANG maintains Sodick wire EDM and Fanuc CNC for complete tooling programs.

Inspection Infrastructure and Certifications

Require CMM capability with ≤1 µm resolution (ZEISS, Mitutoyo) and optical profilers for surface finish. ISO 9001:2015 is baseline; IATF 16949 signals automotive-grade process control. Request sample CMM reports and material certificates from recent lots to verify traceability.

Red Flags and Support Commitments

Walk away if the vendor cannot produce process FMEA documentation, live SPC charts or clear MOQ thresholds. Vague lead times and no post-delivery rework SLA indicate weak quality systems. Prototyping in ≤7 days and dedicated engineering contact signal buyer-focused operations.

Specifying Unrealistic Tolerances Without ROI Analysis

Calling out +/-0.001 mm when +/-0.01 mm suffices doubles tooling and inspection cost. XUXIANG’s DFM reviews identify functional tolerance zones before quoting, ensuring you pay only for precision that drives performance.

Neglecting Tooling Amortization in Unit Price

Buyers compare per-piece quotes without factoring die life or volume tiers. A stamping die rated for 500,000 cycles spreads NRE across production runs; ignoring amortization inflates apparent unit cost by 15–40 percent.

Ignoring Material Certification Requirements

Medical and automotive assemblies demand spectral analysis and mill certificates. XUXIANG includes material traceability in every FAI package, preventing costly rework when compliance audits arrive downstream.

Underestimating First-Article Inspection Lead Time

CMM validation on ZEISS MICURA systems requires 2–3 days after first-off. Rush requests that skip FAI risk batch rejection; XUXIANG’s five-step QC locks in dimensional integrity before mass release.

Failing to Lock in Change-Order Protocols

Mid-project design revisions trigger die rework and re-validation. Establish ECN approval gates and cost-sharing terms in the PO; XUXIANG’s engineering team documents all change impacts before execution.

RFQ Preparation and Capability Audit

Submit 2D drawings with GD&T callouts, 3D STEP or IGES CAD models, material specifications (grade, hardness, surface finish) and a 12-month volume forecast. Require an NDA before sharing proprietary geometries.

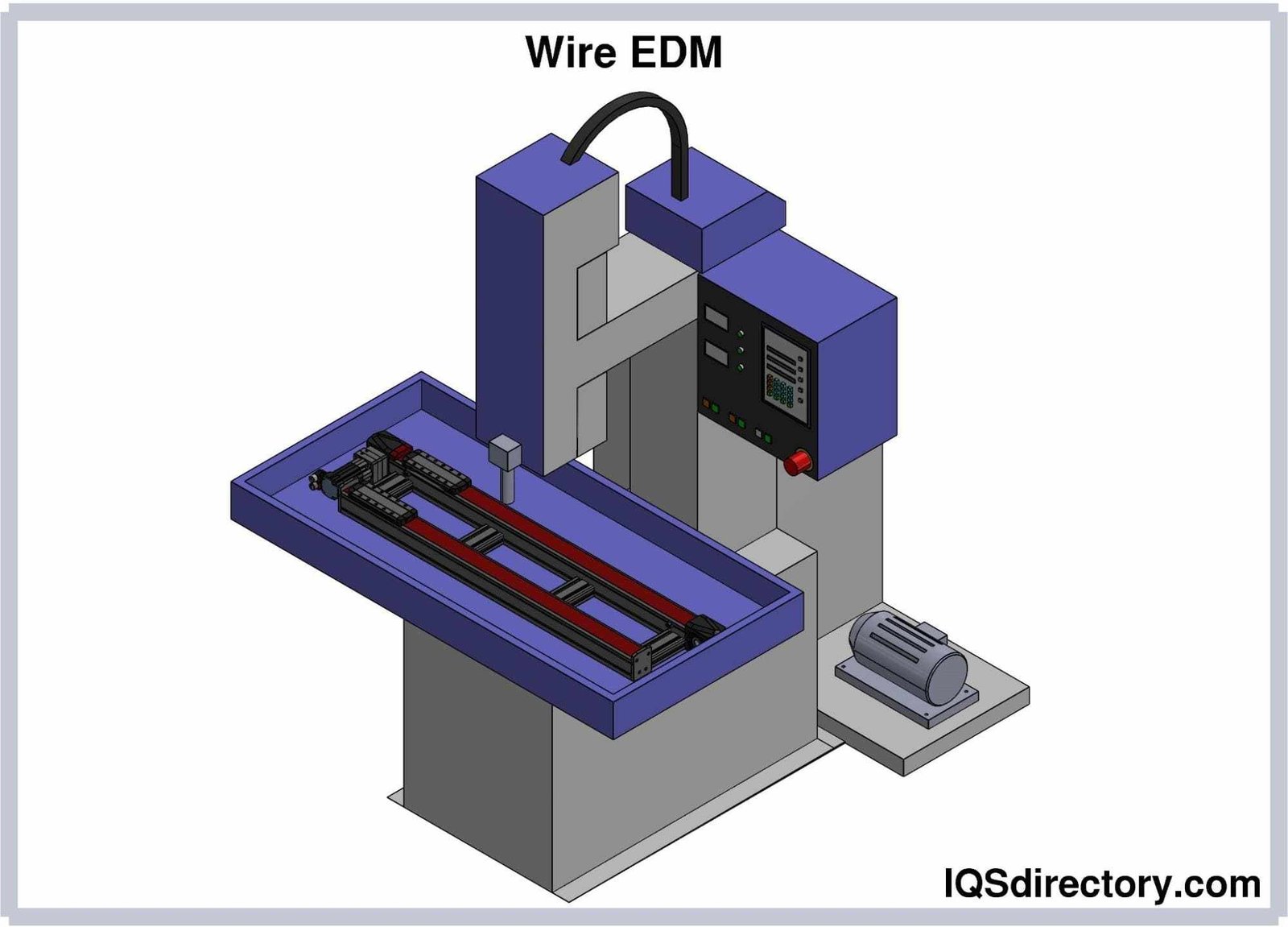

Audit the supplier’s machining park — XUXIANG’s Sodick EDM, Seibu slow-wire and ZEISS MICURA CMM confirm +/-0.001 mm capability. Request ISO 9001:2015 certificates and recent FAI reports for similar precision metal mold stainless steel shell stamping parts customized.

DFM Review and Tooling Design Sign-Off

Expect written DFM feedback within 3–5 business days, flagging draft angles, corner radii below R 0.015 mm and potential die-wear zones. XUXIANG’s 10+ engineering experts provide CAD-marked redlines and cost-impact estimates.

Approve the tooling design drawing and material-flow simulation before die fabrication begins. This gate freezes geometry and prevents mid-project scope changes that delay delivery by 20–40%.

T1 Sample Approval and Dimensional Report

Receive first-article samples with a full CMM inspection report — XUXIANG’s ZEISS system measures to 0.7 um resolution. Compare actual dimensions against GD&T tolerances and sign off in writing.

Request material certificates (spectral analysis, hardness test) and surface-roughness data (Ra values). This documentation becomes the quality baseline for pilot and serial runs.

Pilot Run and Transition to Serial Production

Order a pilot batch of 50–200 pieces to validate process stability and cycle time. Monitor dimensional drift across the run and confirm that Cpk ≥ 1.33 for critical features.

Once pilot data pass, issue a purchase order for serial volumes. Lock lead times, packaging specs and incoming-inspection criteria in a supplier quality agreement to ensure every shipment matches T1 standards.
