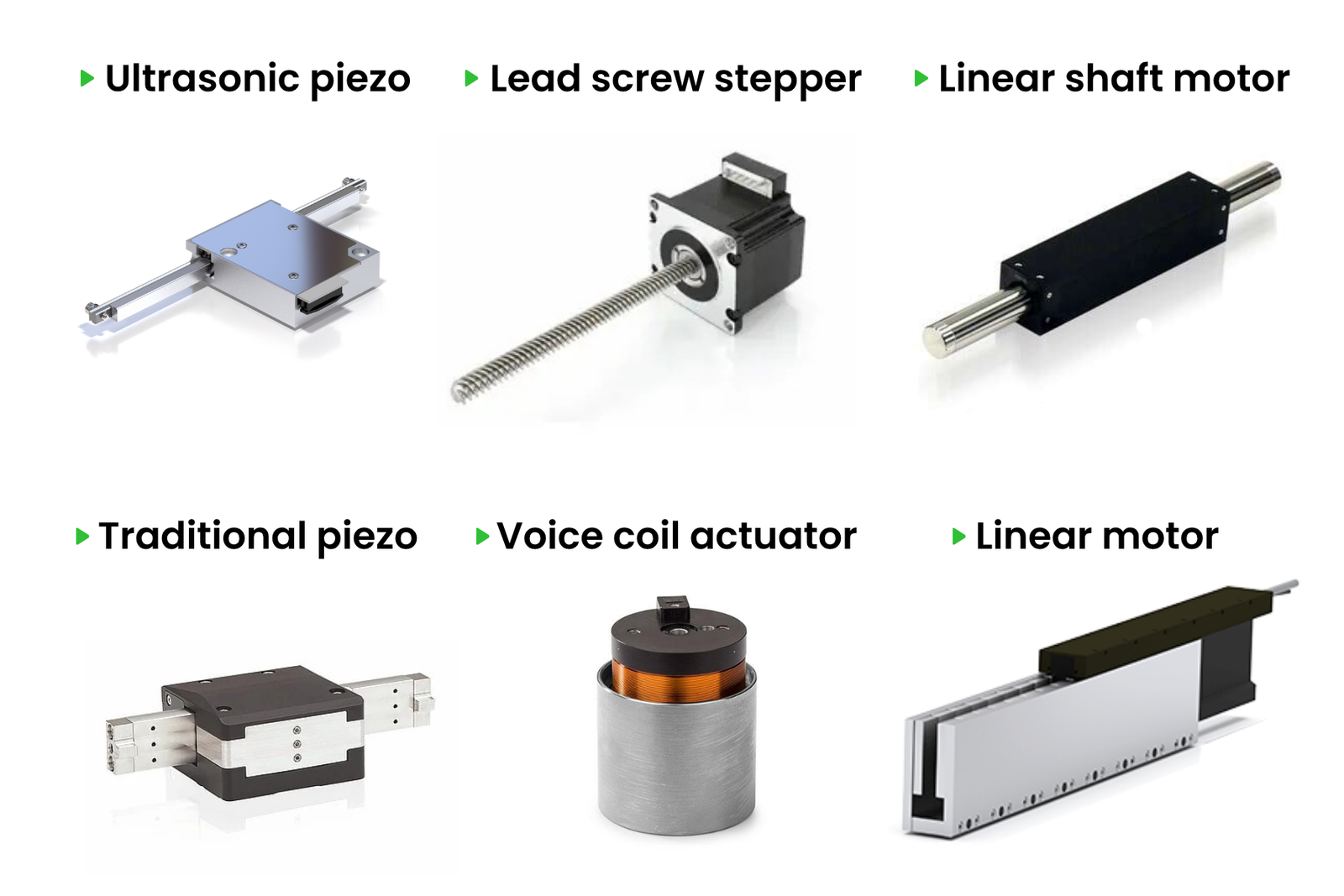

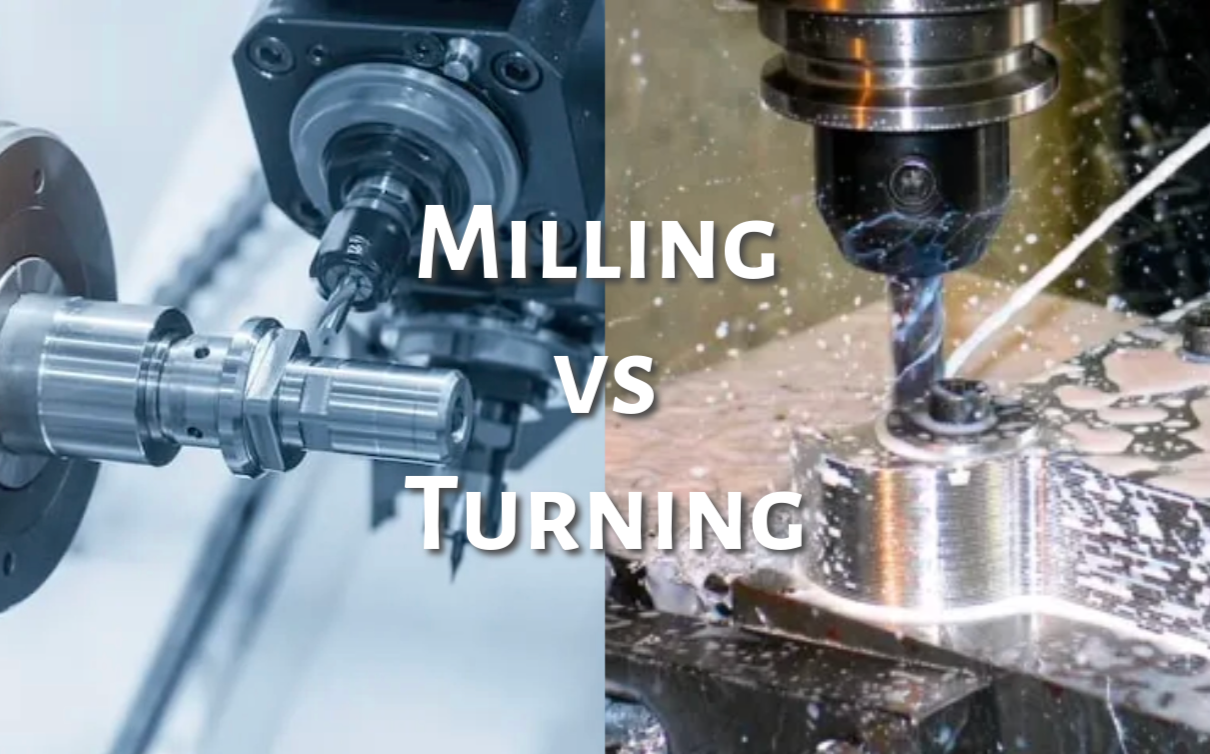

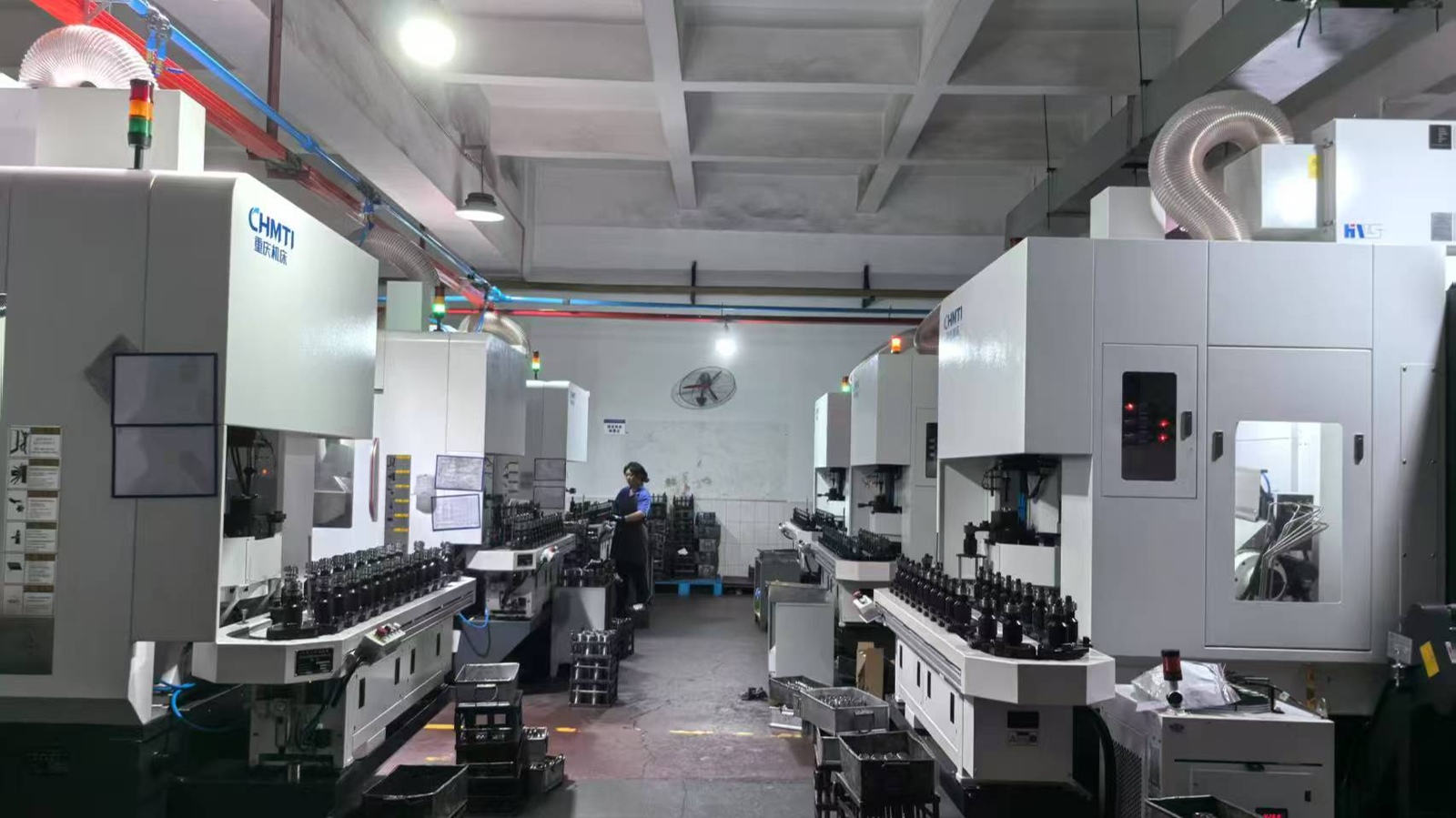

CNC Turning: Standard and Swiss-Type

Standard CNC turning handles diameters from 3 mm to 300 mm at +/-0.01 mm repeatability, ideal for mid-volume runs (50–5,000 pieces). Swiss-type lathes excel at slender shafts (L/D > 10:1) with live tooling, holding +/-0.005 mm on diameters under 32 mm and supporting complex features in a single setup.

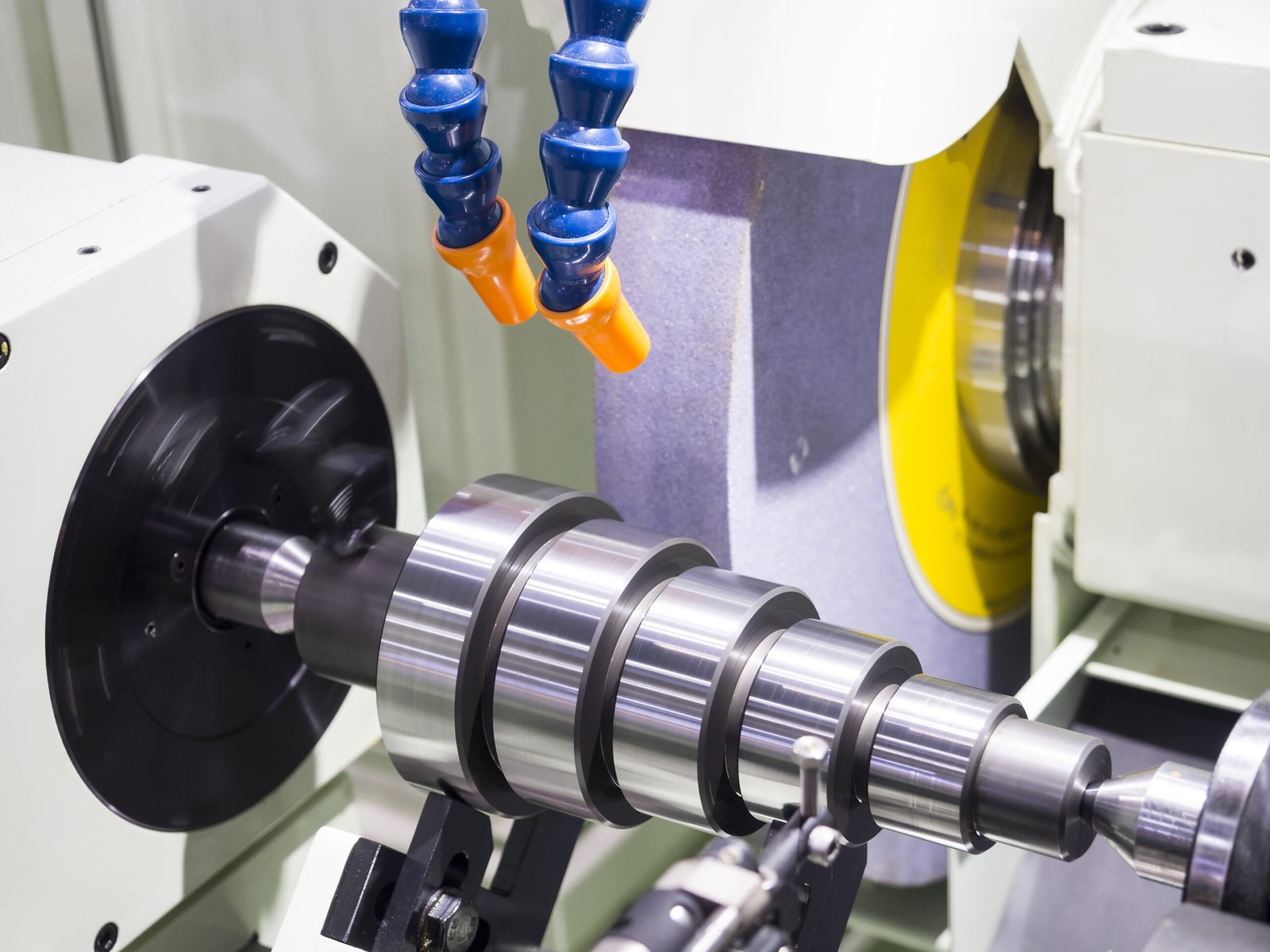

Cylindrical Grinding: OD and ID

OD cylindrical grinding achieves +/-0.002 mm on hardened shafts up to HRC 62, with surface finishes to Ra 0.1 µm. ID grinding suits bearing bores and splined holes, typically +/-0.003 mm, and pairs well with post-heat-treat correction for automotive and medical spindles.

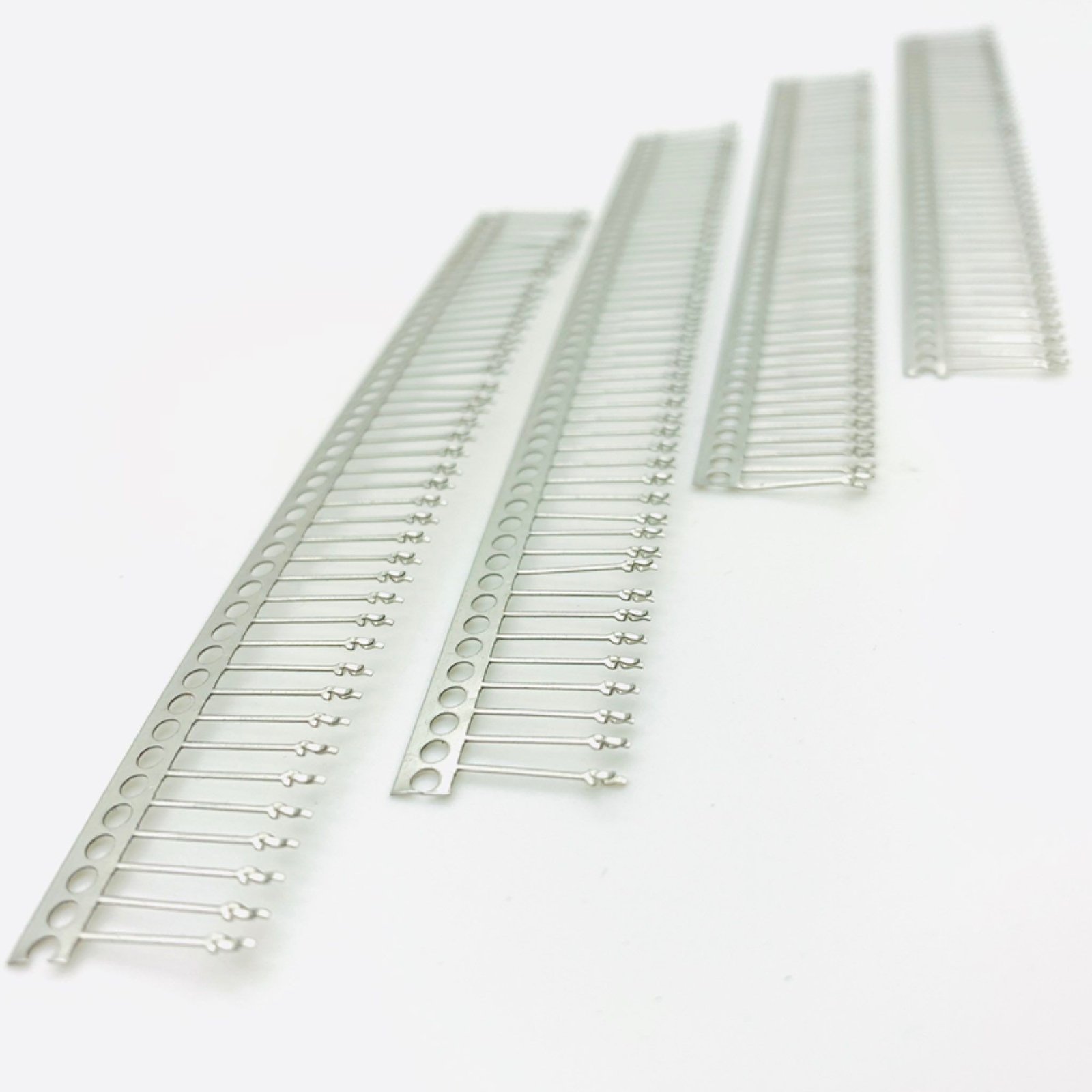

Centerless Grinding

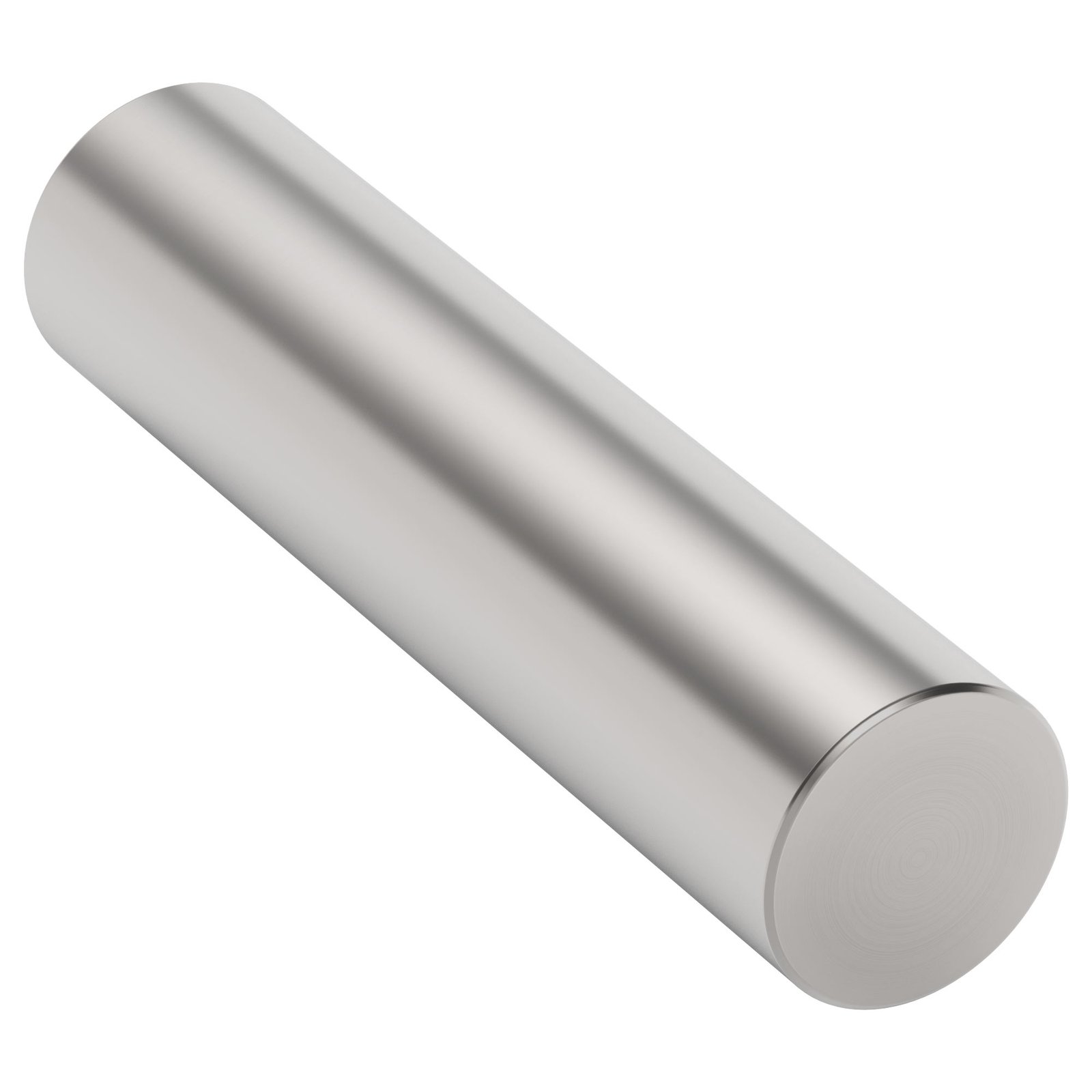

Centerless grinding removes the need for chucks or centers, enabling high-volume production (>10,000 pieces) at +/-0.005 mm with consistent roundness. Best for simple cylindrical shafts, pins and rollers where setup time must stay minimal and throughput is critical.

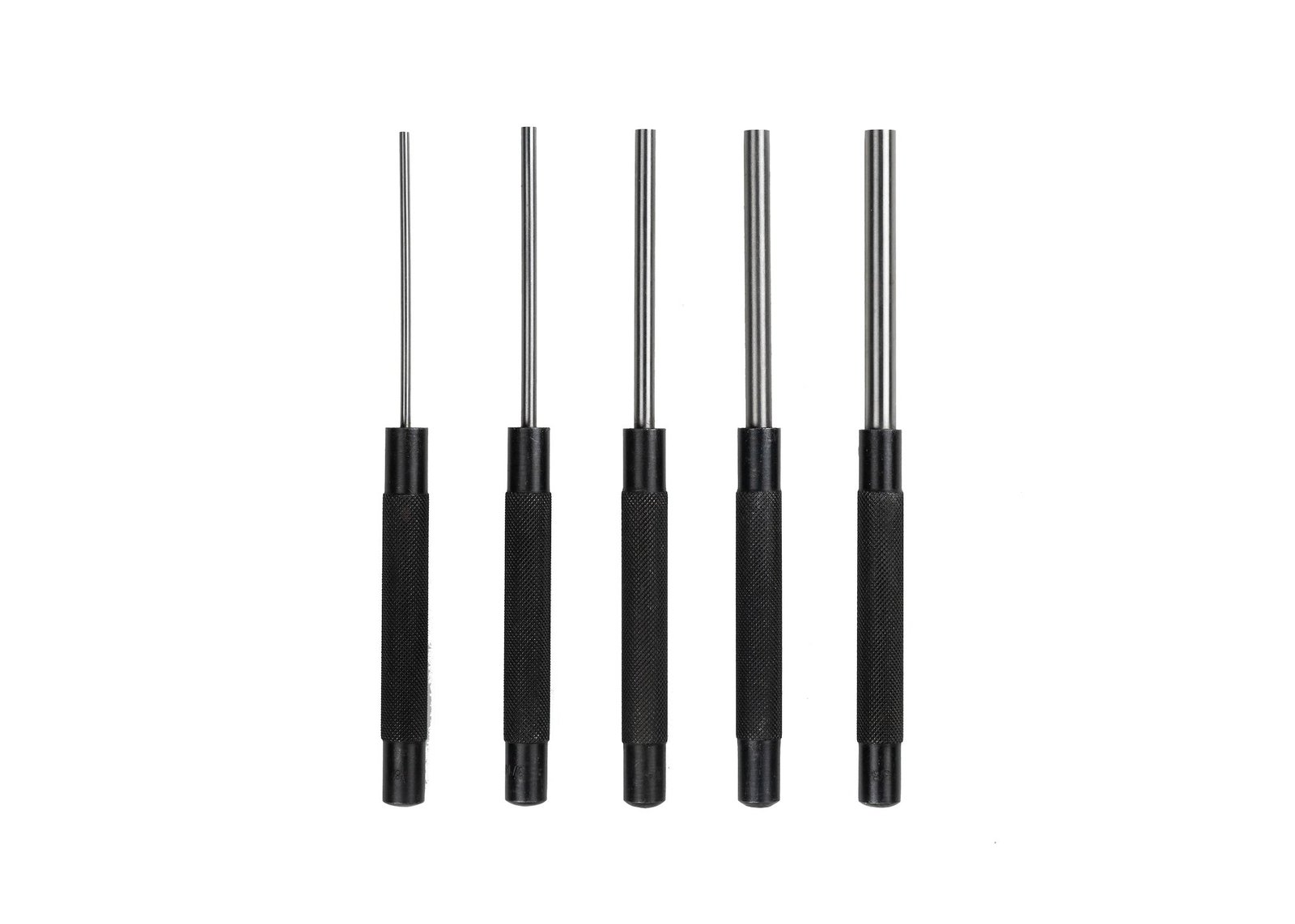

Hard Turning for Heat-Treated Shafts

Hard turning machines hardened alloys (HRC 45–65) directly, replacing or supplementing grinding at +/-0.01 mm tolerance. It cuts cycle time by 40–60% on complex contours and is the preferred route for automotive ADAS sensor shafts and robotic joint pins requiring both hardness and intricate profiles.

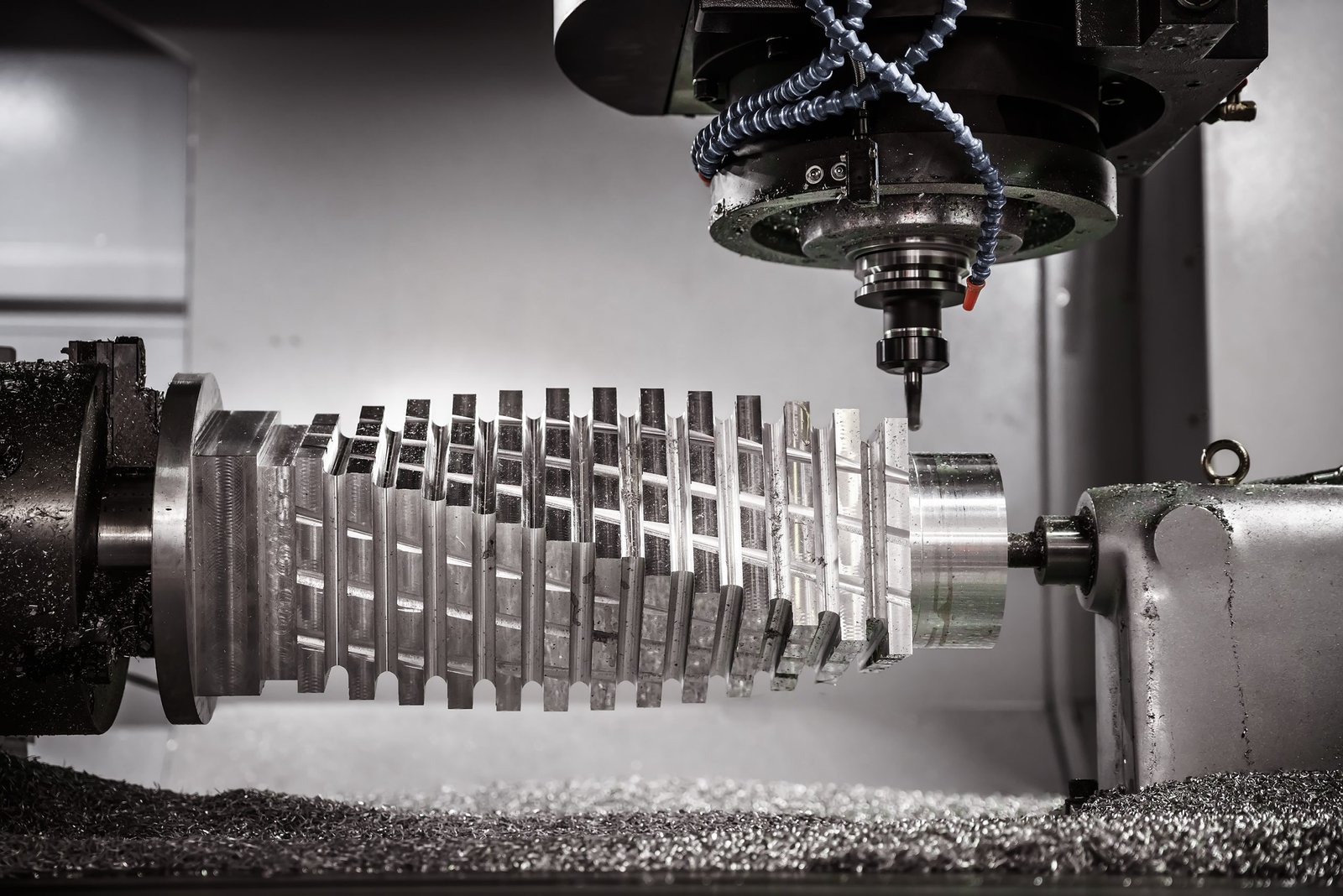

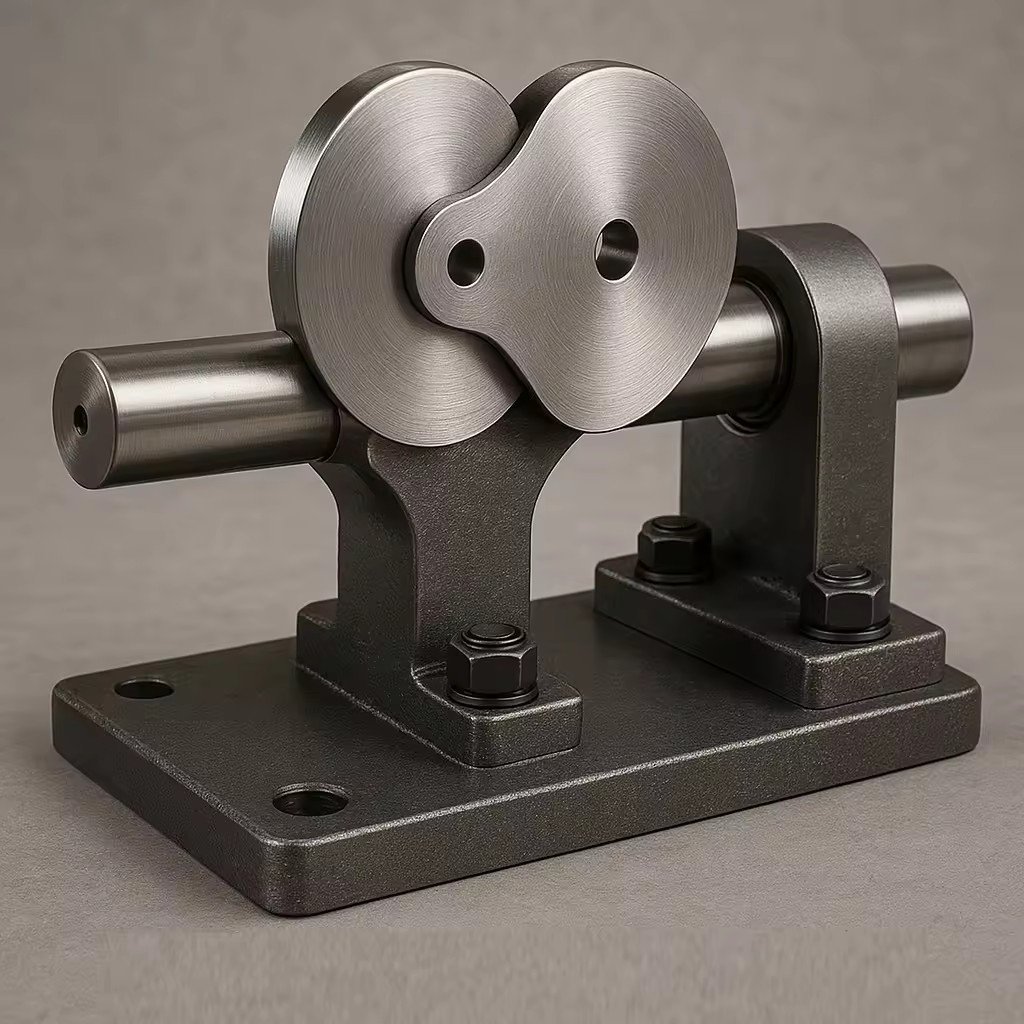

Multi-Axis Mill-Turn Operations

Mill-turn centers combine rotary and linear axes to machine flats, cross-holes, keyways and eccentric features in one setup, holding +/-0.005 mm positional tolerance. XUXIANG’s Fanuc-class mill-turn cells support shafts up to 200 mm diameter with live tooling, reducing handling errors and lead time by approximately 30%.

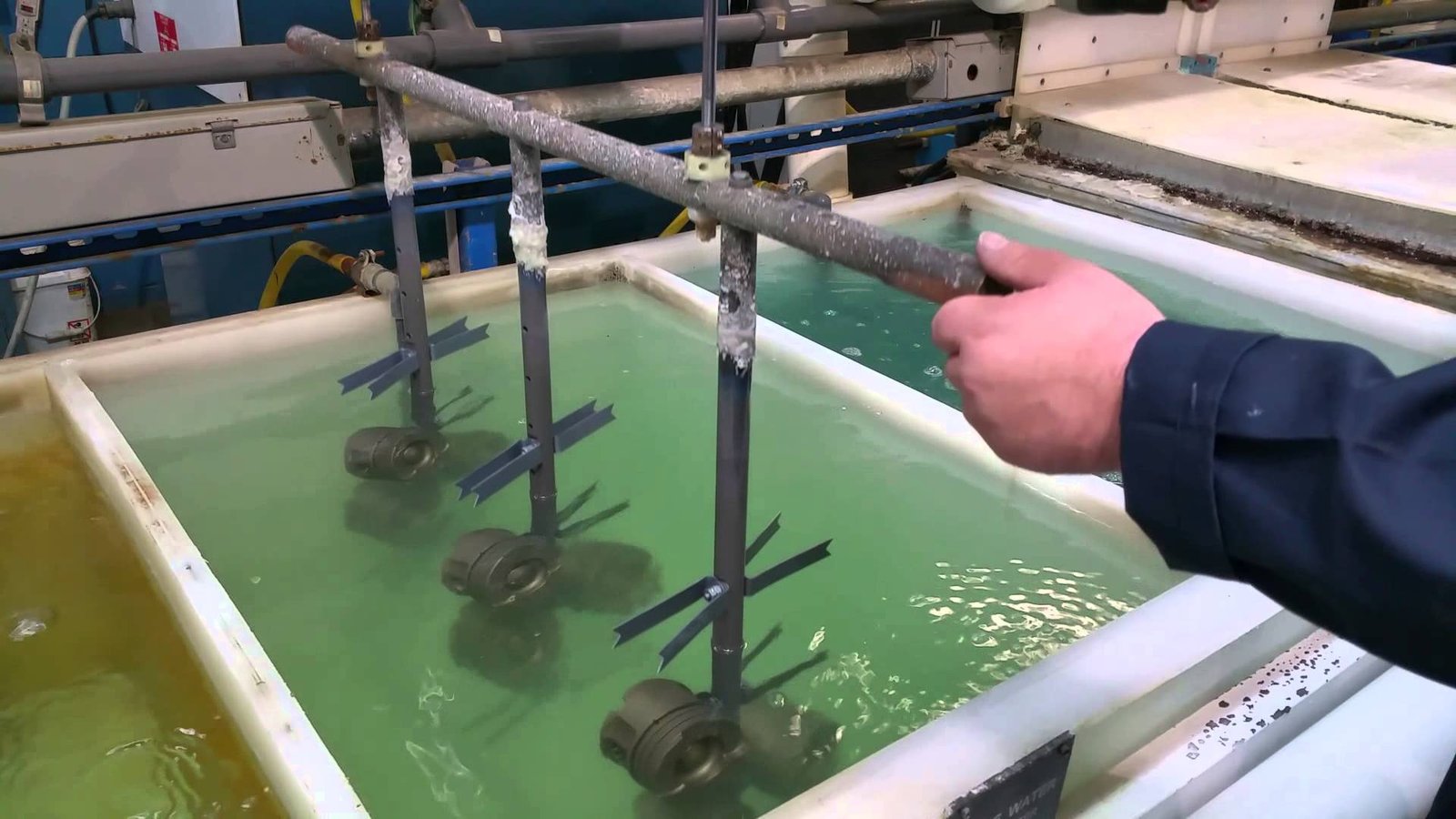

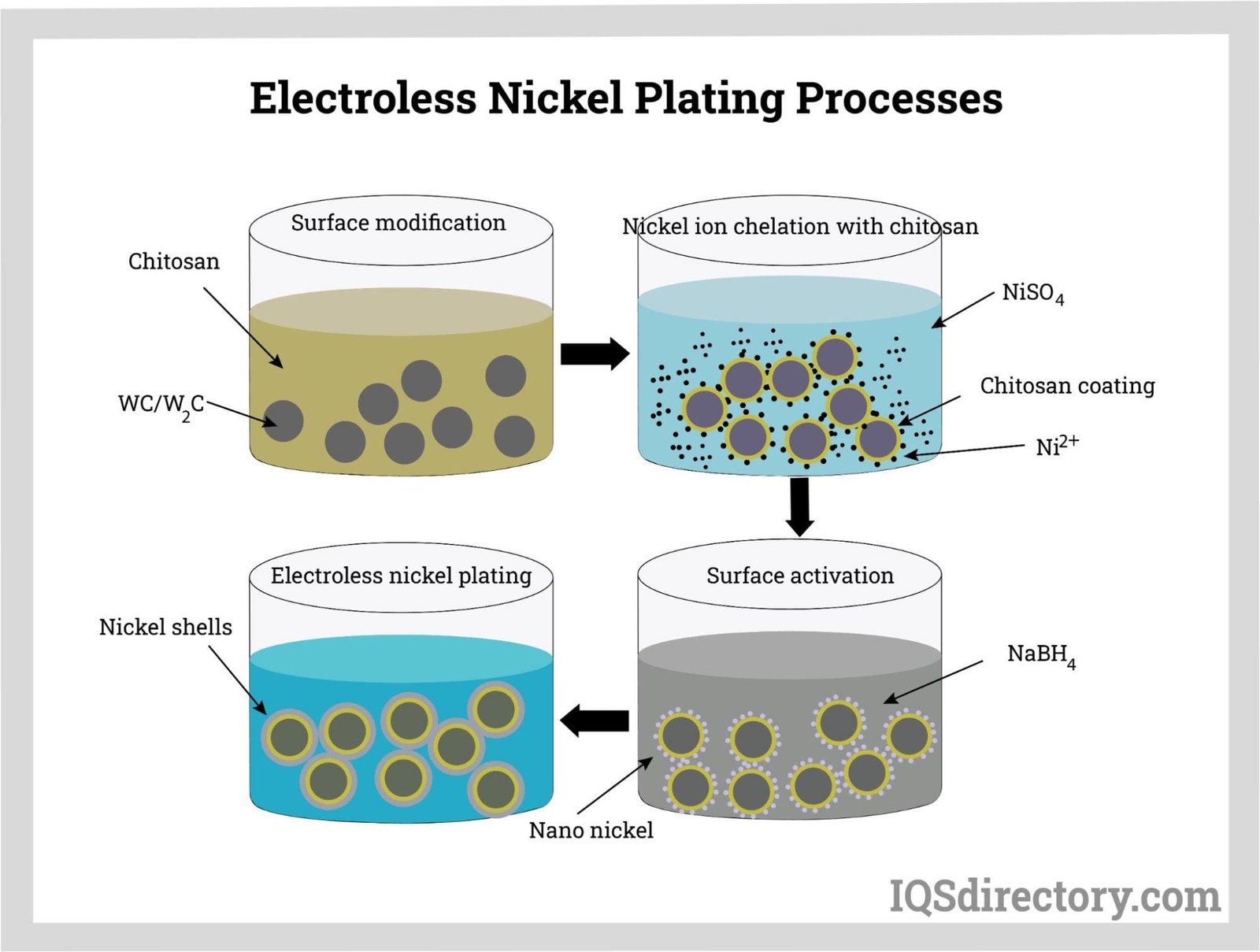

Hard Anodizing and Electroless Nickel Plating

Hard anodizing builds a 25–100 µm aluminum-oxide layer with HV 350–500 surface hardness, ideal for automotive ADAS housings and high-cycle linear guides. Electroless nickel plating deposits 5–25 µm of Ni-P alloy uniformly over complex geometries, reaching HV 500–700 and offering superior corrosion protection in humid or saline environments.

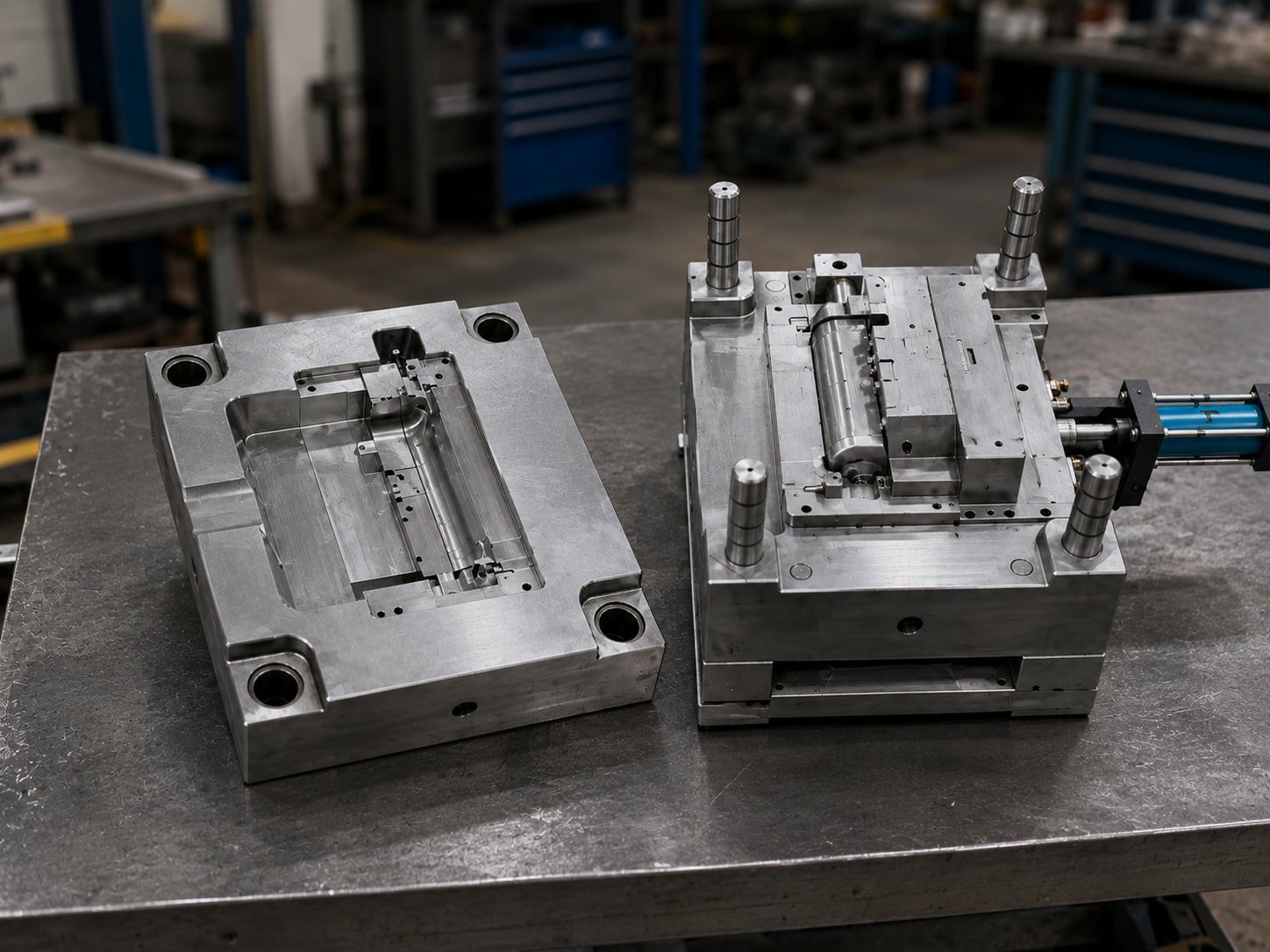

Black Oxide and Nitride Hardening

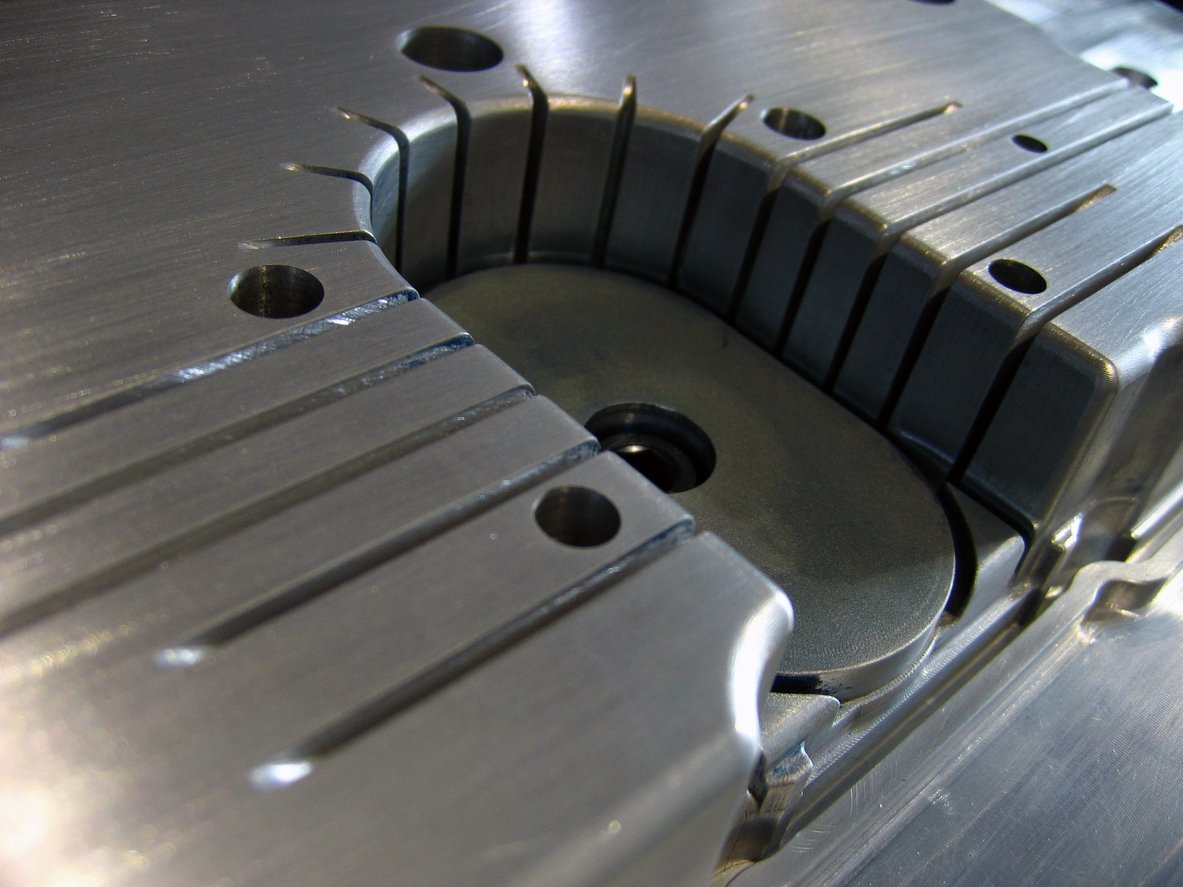

Black oxide forms a 1–2 µm magnetite conversion coating that improves aesthetics and provides mild rust resistance without dimensional change. Nitride hardening diffuses nitrogen 10–30 µm into ferrous substrates, achieving HV 800–1200 case hardness for mold cores, ejector pins and high-load shafts in injection-molding tooling.

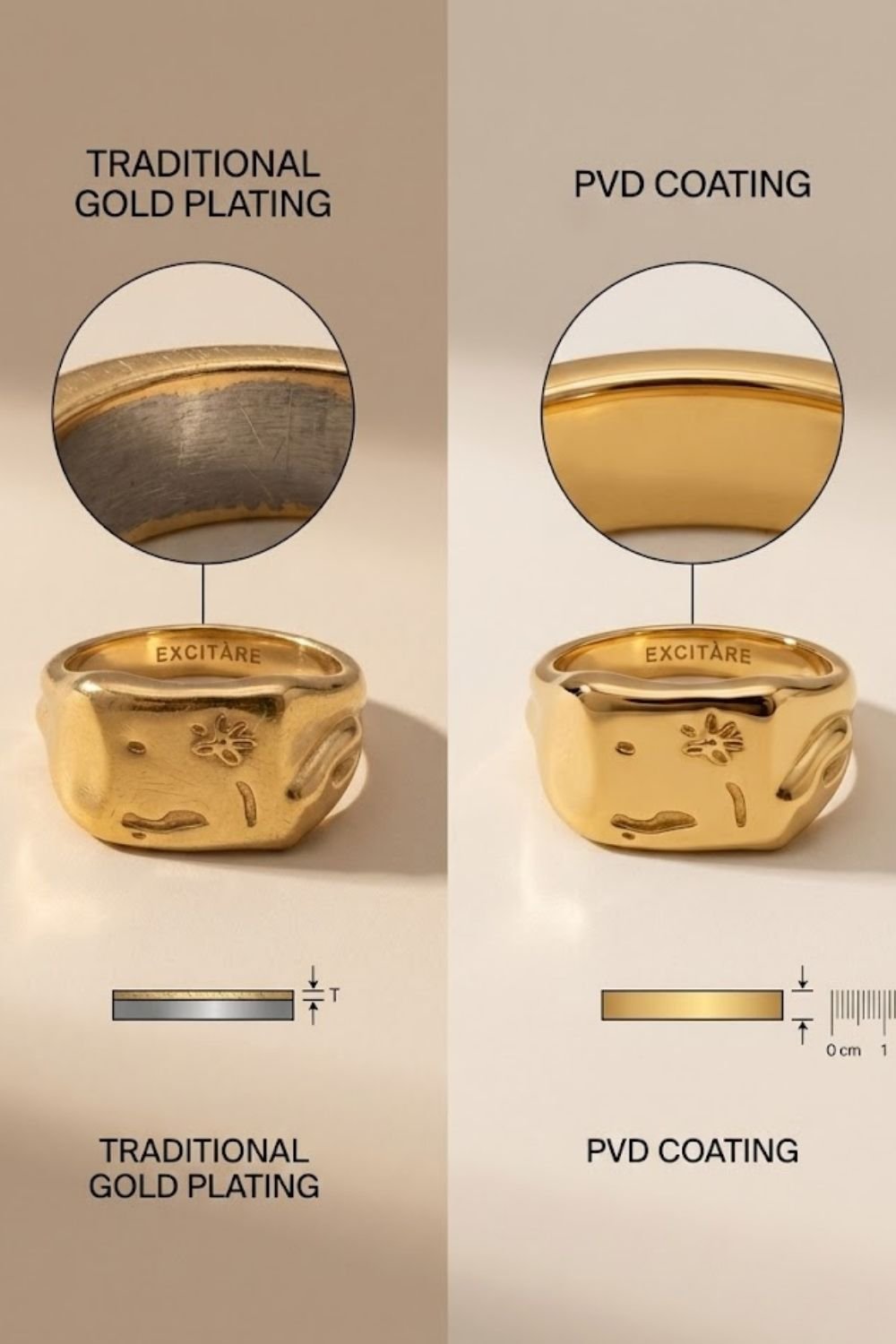

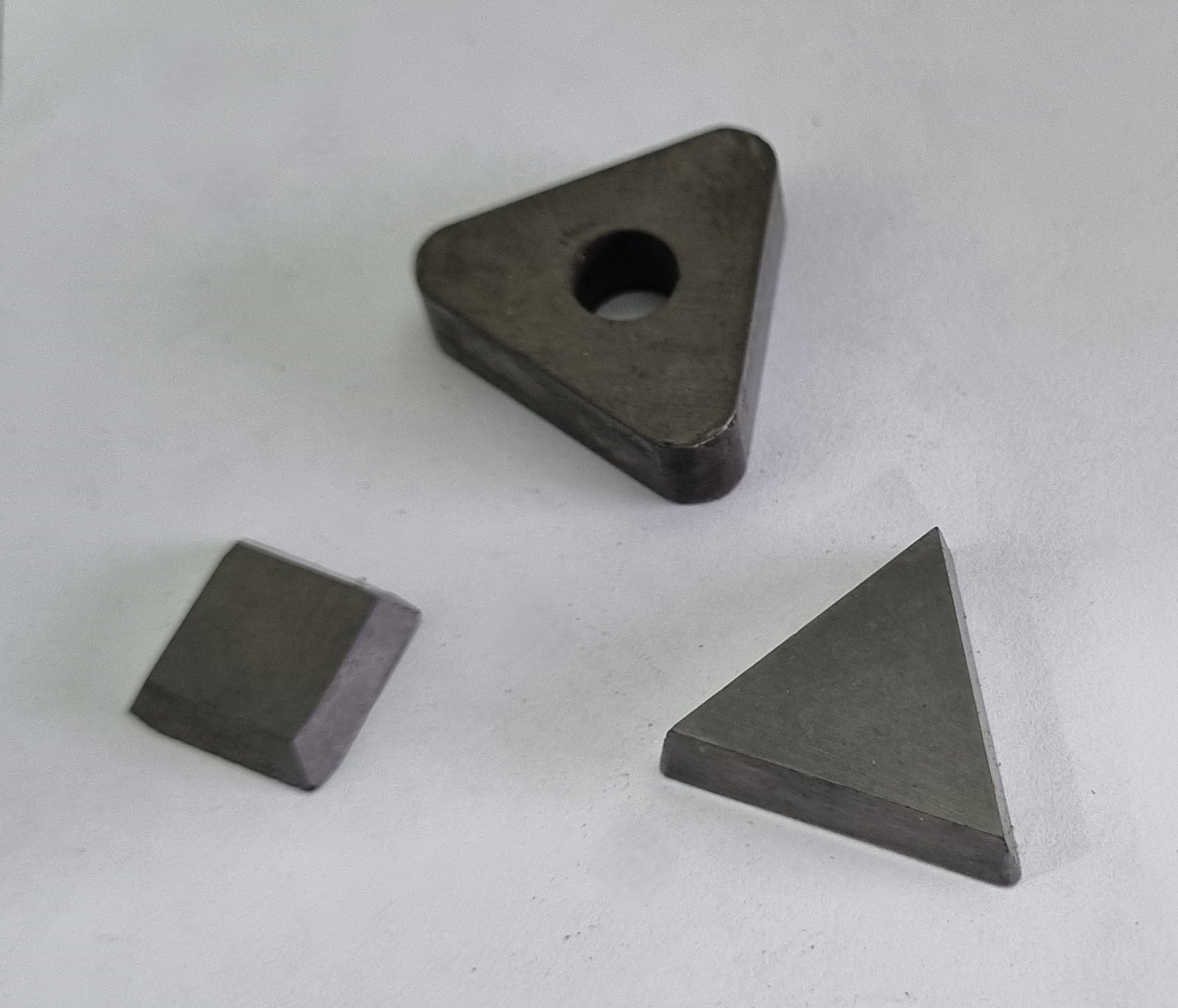

PVD/CVD Coatings and Passivation

Physical and chemical vapor deposition apply 2–5 µm ceramic layers (TiN, TiAlN, CrN) with hardness up to HV 3000, extending tool life in micro-connector and precision-mold applications. Passivation removes free iron from stainless-steel surfaces with a sub-micron chromium-oxide film, mandatory for medical-device shafts and cleanroom-compatible hardware.

Dimensional Tolerance Verification

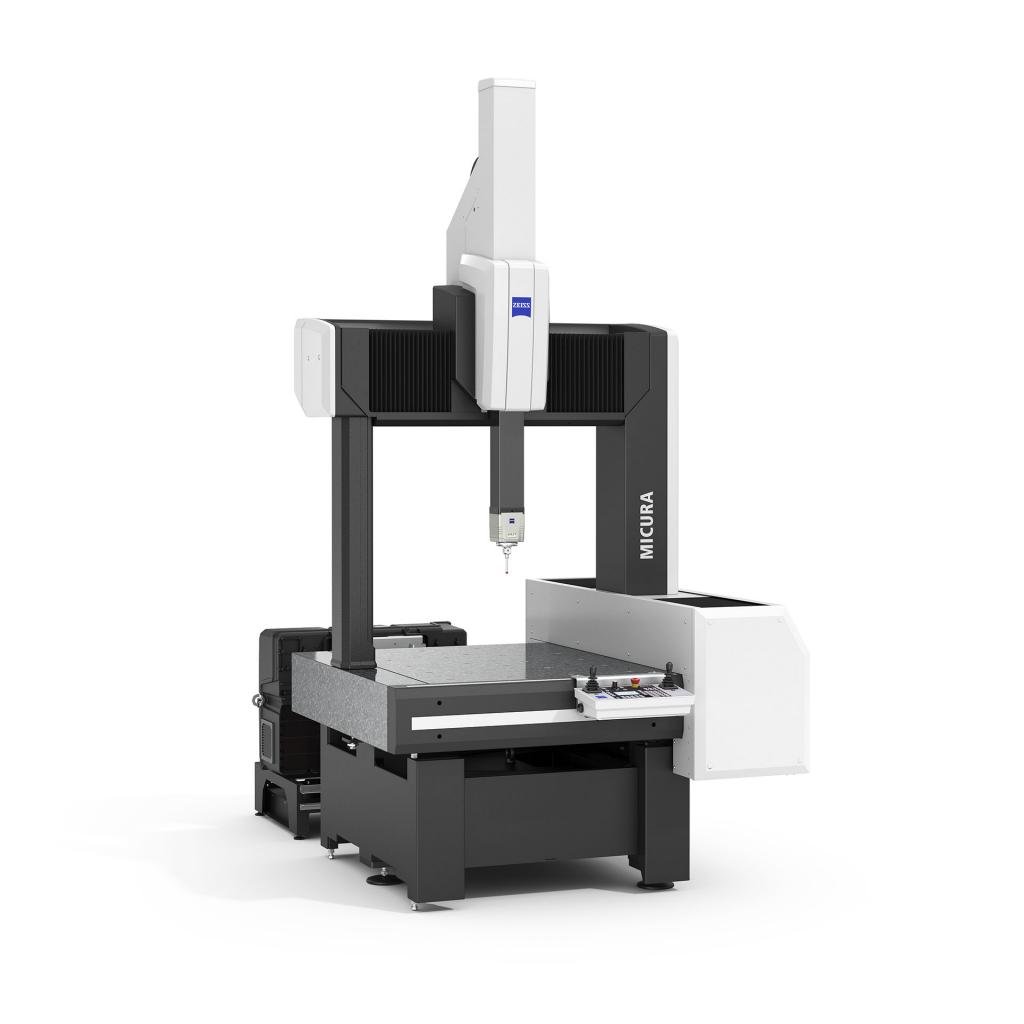

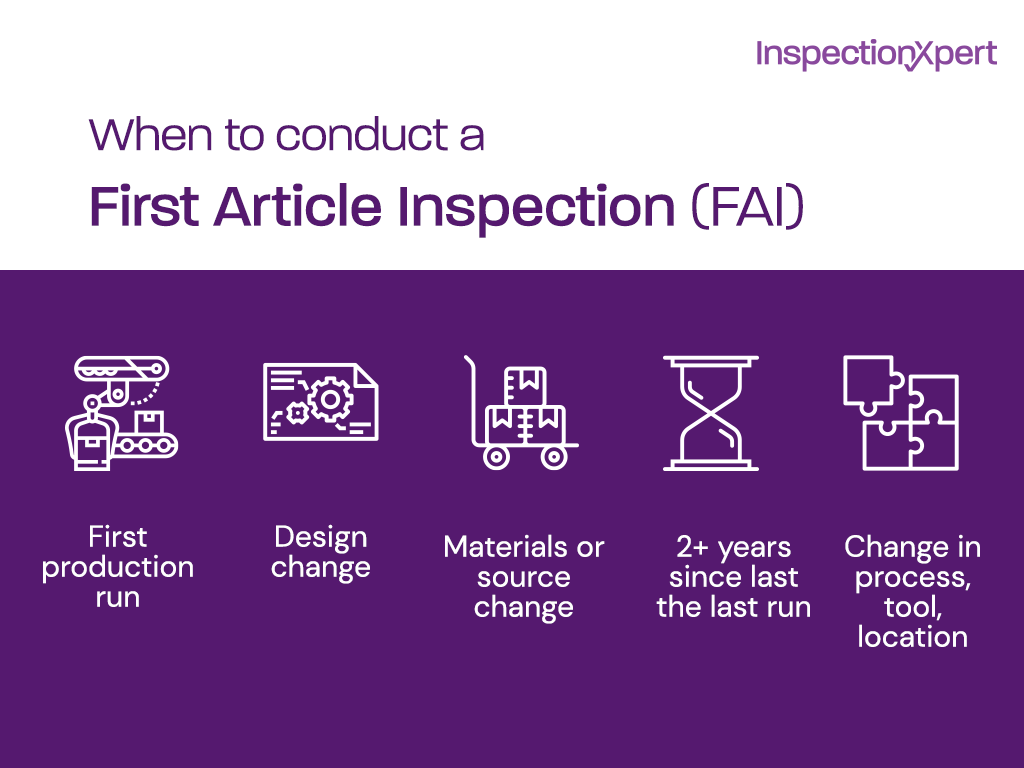

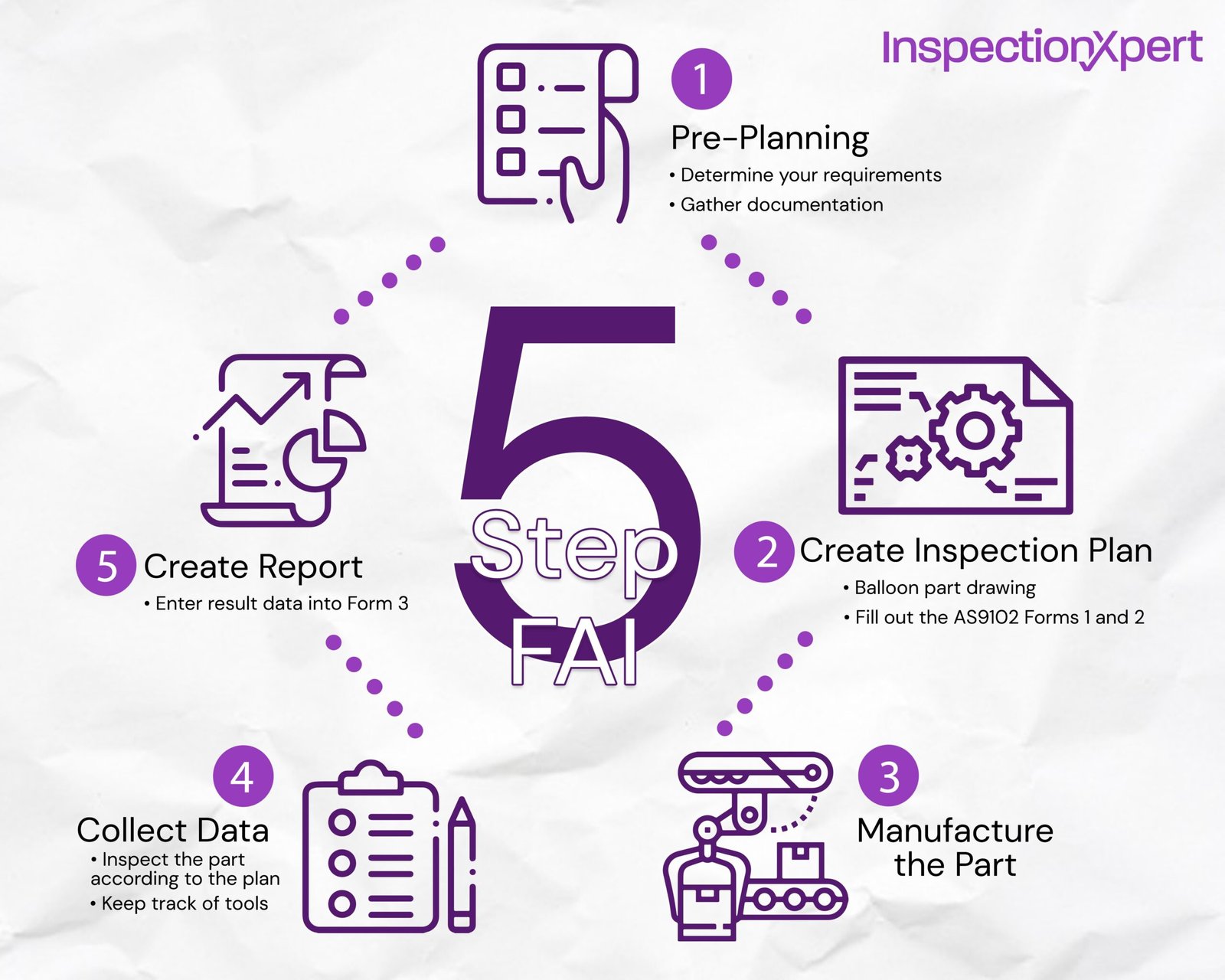

CMM systems such as ZEISS MICURA (0.7 µm resolution) and optical comparators verify shaft diameters, lengths and feature positions against CAD datums. First-article inspection (FAI) captures every critical dimension; in-process checks catch drift before scrap accumulates.

XUXIANG’s five-step QC flow integrates spectral material analysis, real-time tolerance monitoring, ZEISS/Nikon CMM verification, surface-integrity checks and final FAI documentation with material certificates, ensuring +/-0.001 mm class accuracy from prototype through production.

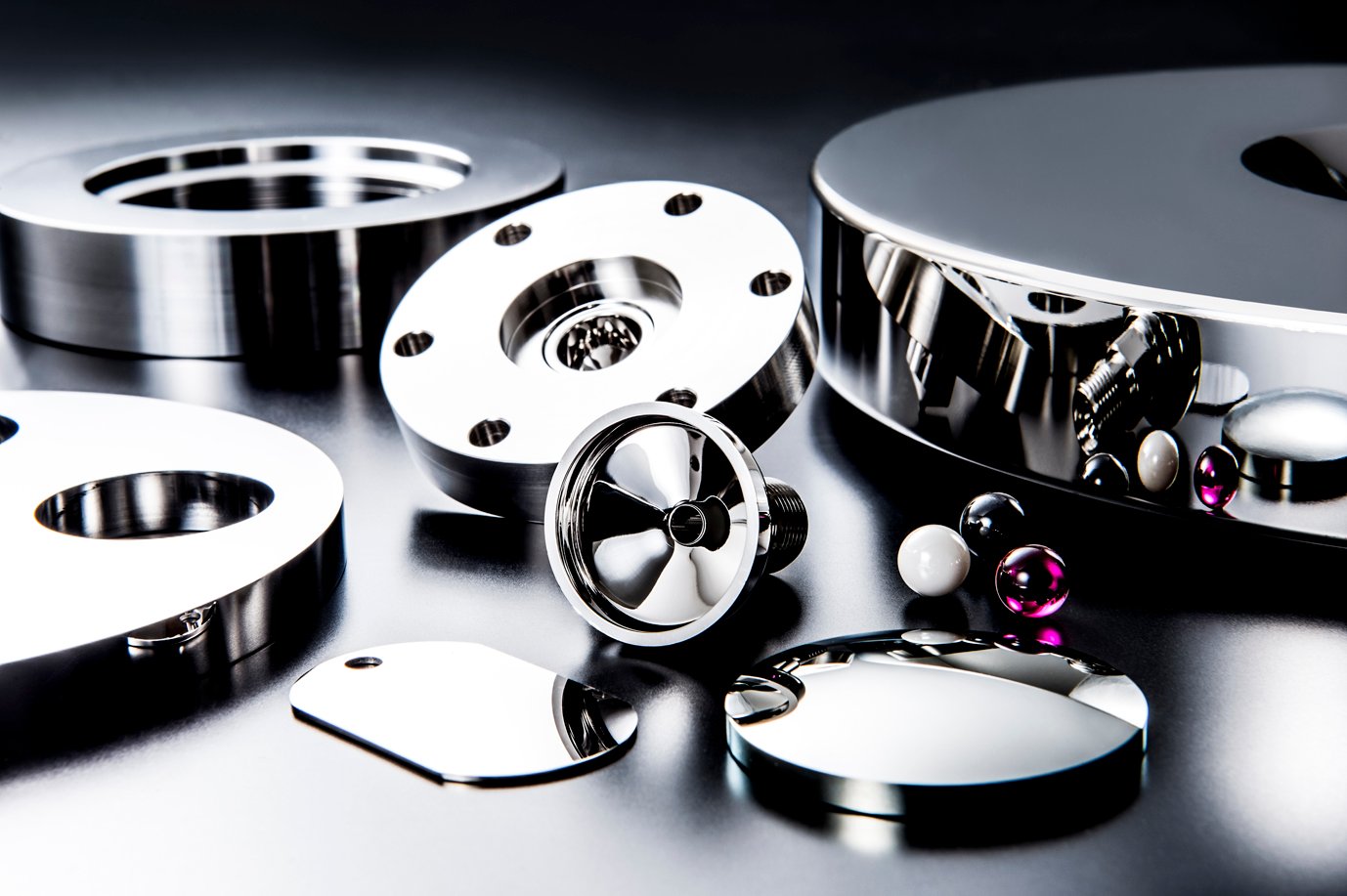

Concentricity, Runout and Surface Roughness

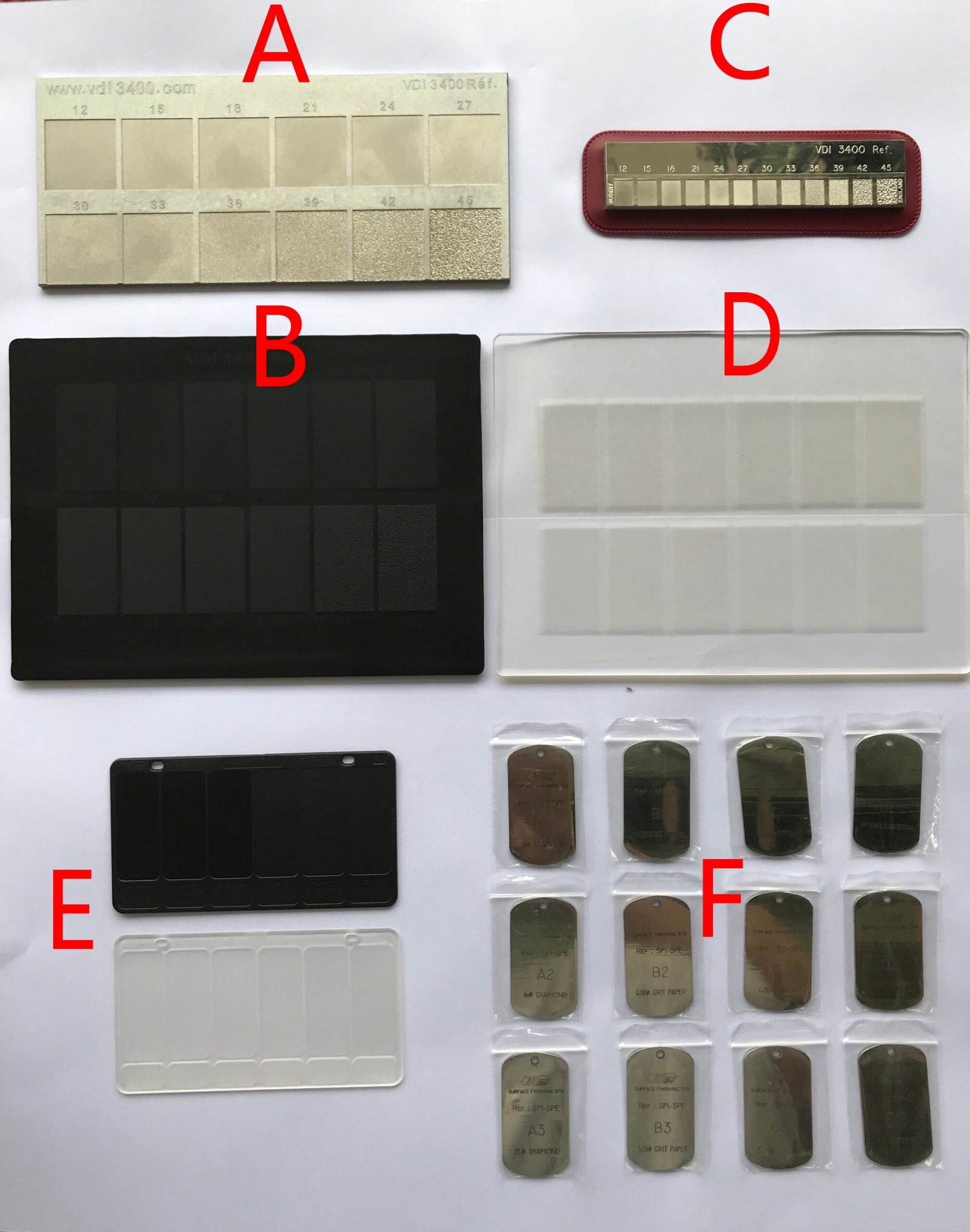

Dial indicators and electronic runout gauges measure total indicated runout (TIR) to 0.002 mm; profilometers quantify surface finish down to Ra 0.1 µm for mirror-grade EDM or ground shafts. Hardness testers (Rockwell, Vickers) confirm heat-treat results against material specifications.

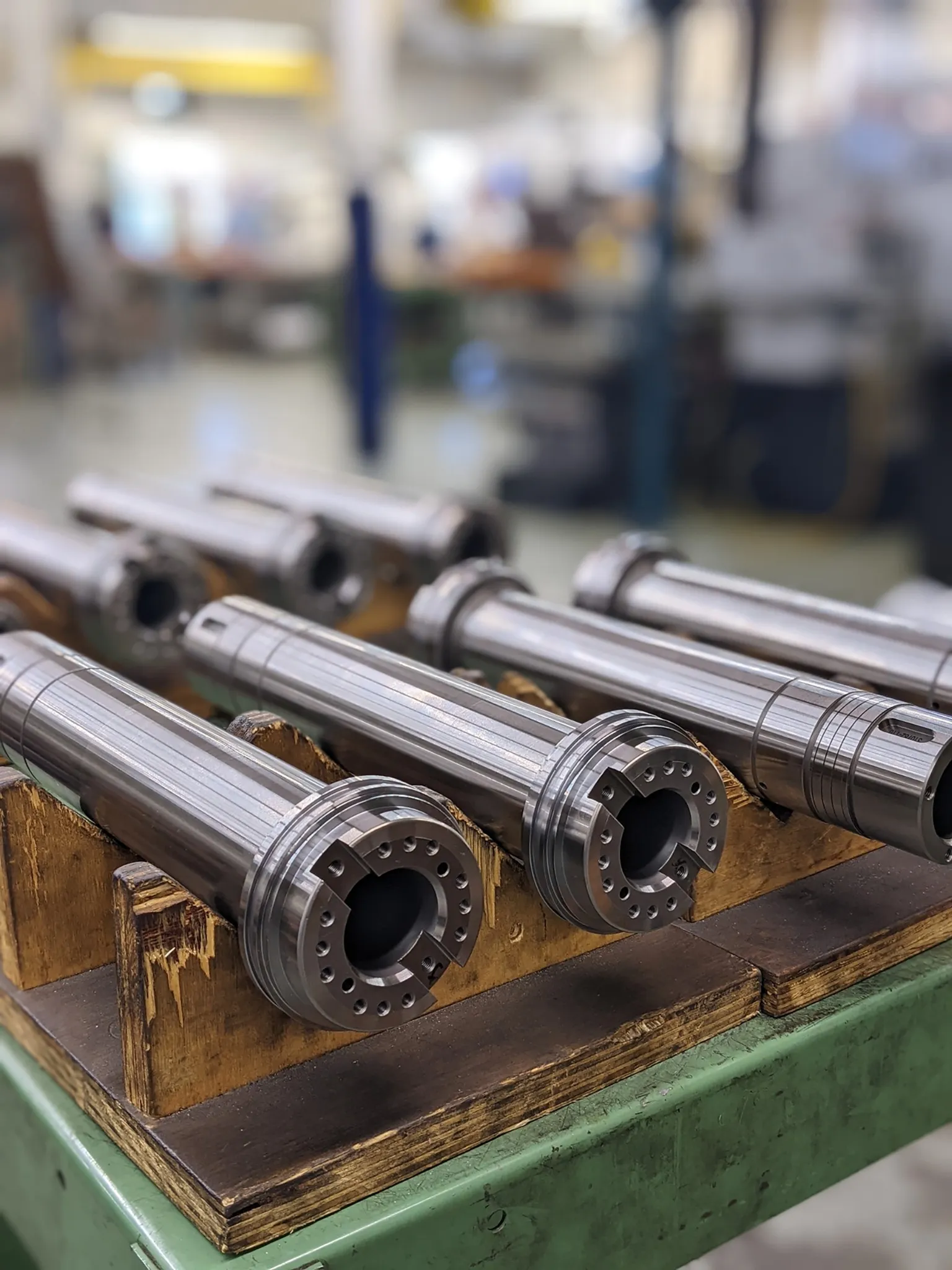

These parameters directly govern bearing life, seal integrity and assembly yield in high-speed spindles, medical implants and NEV powertrain sensors.

Material Traceability and Certification Compliance

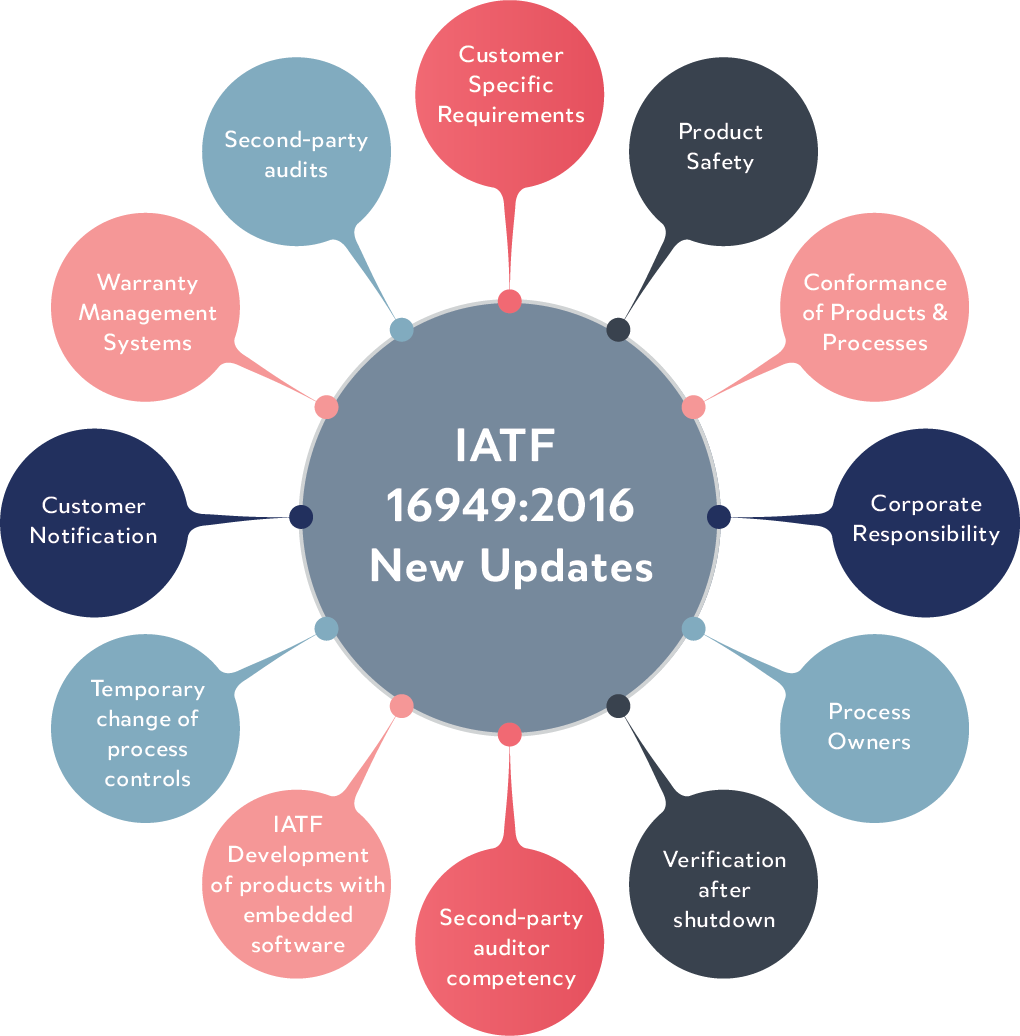

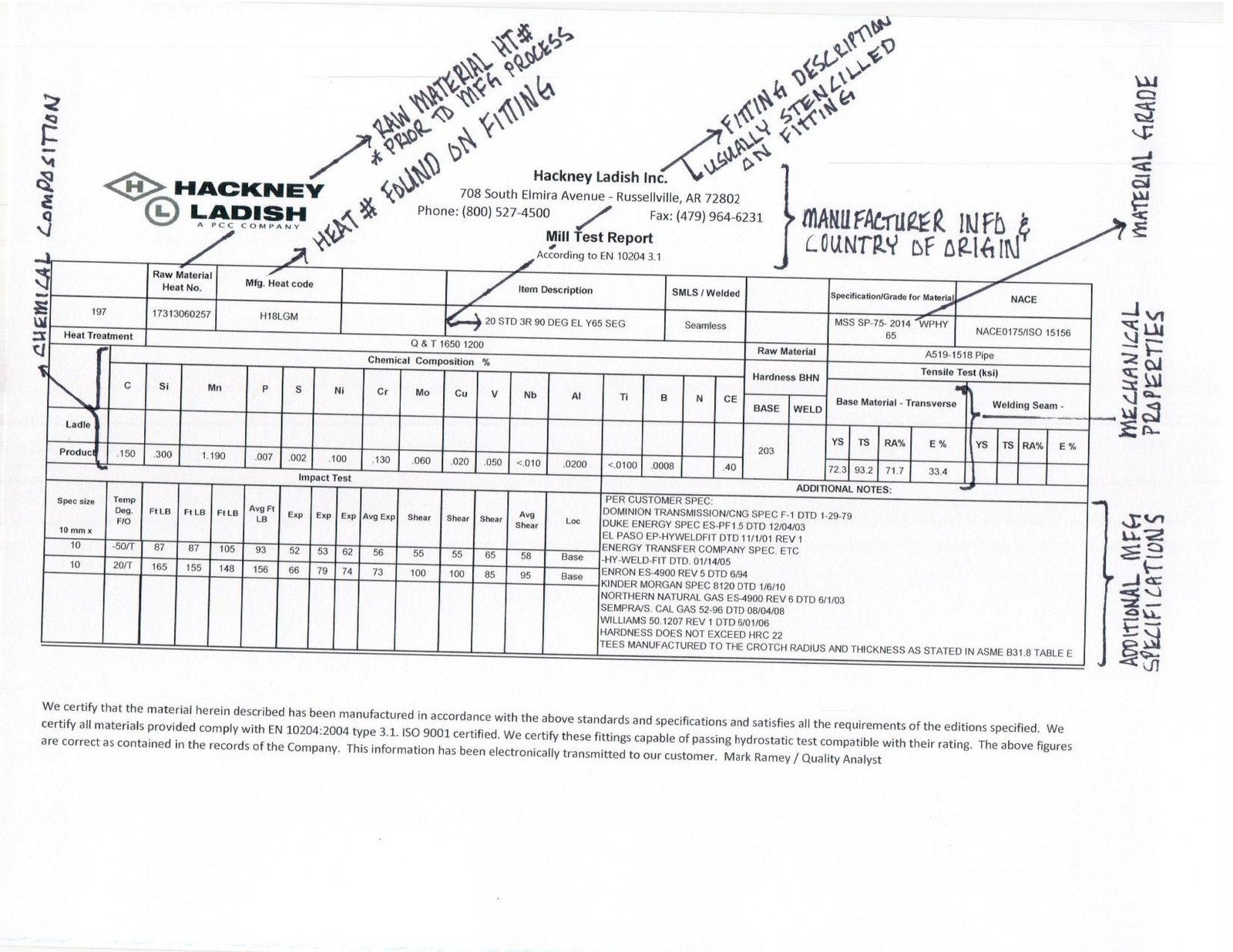

Mill certificates trace alloy chemistry and heat lot; ISO 9001:2015 mandates document control for every batch. IATF 16949 adds automotive-specific PPAP and control plans; ISO 13485 enforces risk-based design controls for medical devices.

Buyers in regulated sectors require these certifications to satisfy OEM audits and liability insurance. XUXIANG’s ISO 9001:2015 governance and transparent FAI packages meet tier-one supplier expectations without added paperwork cycles.

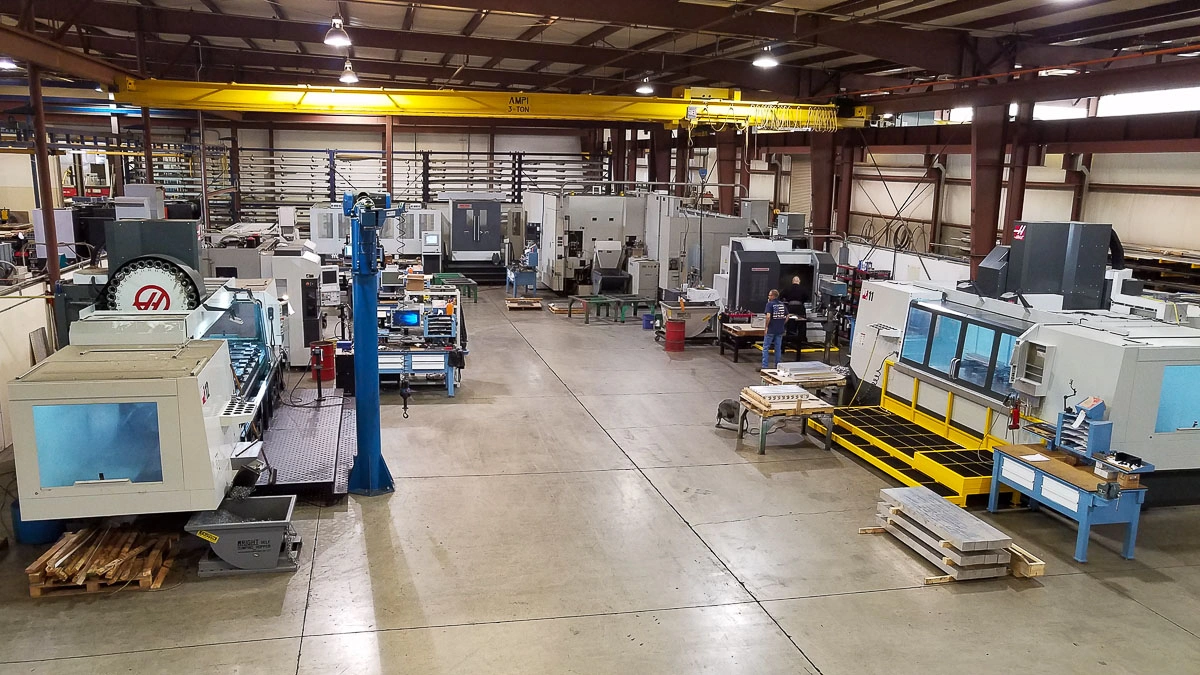

Assess Machine-Park Capability

Ask whether the shop operates Swiss-type CNC or standard turning centers; Swiss machines excel at shafts below Ø32 mm and lengths exceeding 10× diameter. Verify grinding capacity — centerless, cylindrical or surface — since final roundness below 0.003 mm and Ra ≤ 0.2 µm typically require post-turning grinding.

Review Tolerance Track Record and Process Capability

Request Cpk data for dimensional and geometric tolerances; a Cpk ≥ 1.33 indicates stable control. Ask for FAI reports showing actual measured values against blueprint callouts, ideally from projects matching your material and tolerance class.

Verify In-House Inspection Equipment

Confirm CMM brand (ZEISS, Mitutoyo, Hexagon), measurement uncertainty (≤ 1 µm for +/-0.005 mm shafts) and environmental control (20 ± 1 °C). Shops relying solely on handheld micrometers cannot validate sub-5-µm tolerances or complex geometric dimensioning and tolerancing.

Check Lead-Time Flexibility and Engineering Support

Inquire about prototype turnaround (3–5 days is competitive) and DFM review timing. Providers offering pre-production tolerance analysis and alternative material recommendations reduce costly redesign cycles and accelerate time-to-market by 20–30 percent.

Over-Specifying Tolerances That Inflate Cost

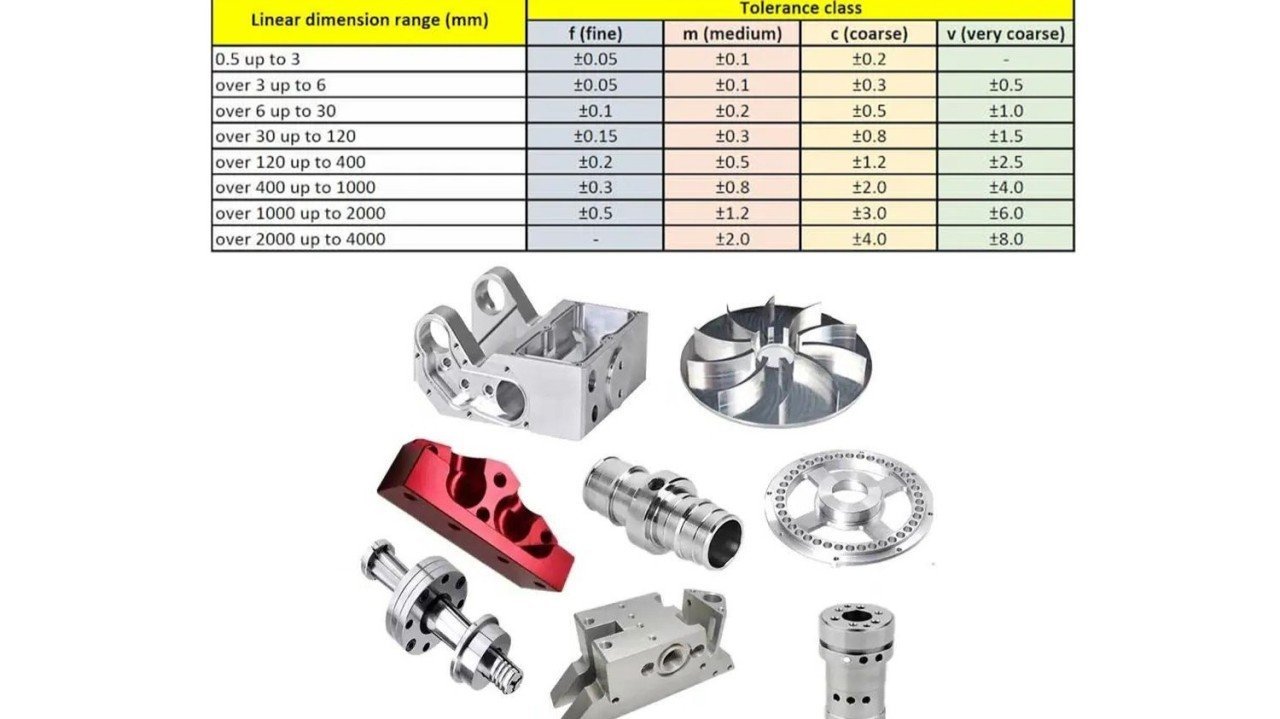

Calling out +/-0.001 mm on every dimension when +/-0.01 mm would meet functional requirements can double machining time and scrap rates. Reserve micron-class tolerances for critical fits — bearing seats, spline roots, seal lands — and relax non-functional zones to IT7 or IT8.

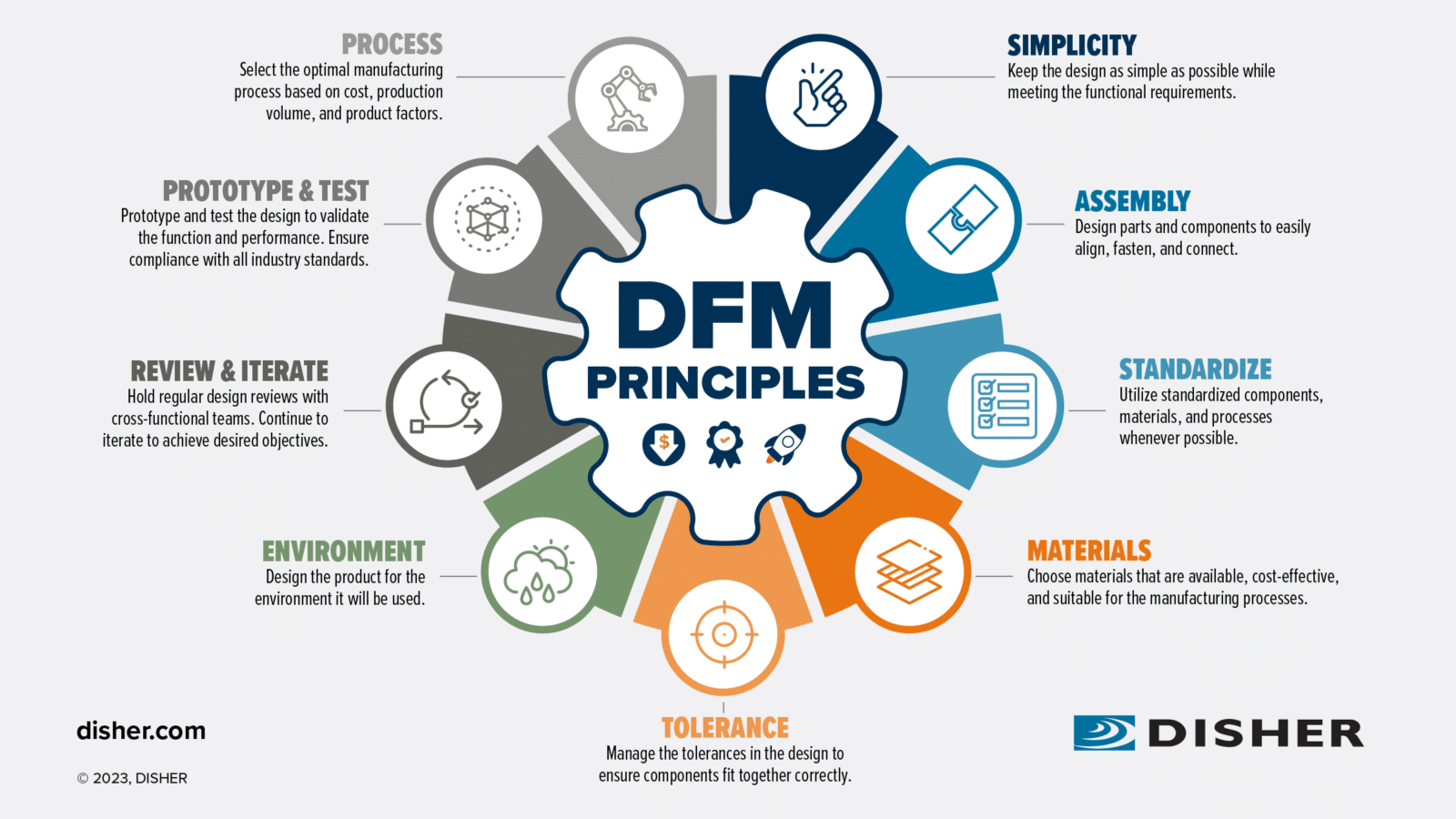

XUXIANG’s DFM team reviews every print to identify where standard tolerances suffice, cutting cycle time by 20–30 % without compromising performance.

Ignoring Heat-Treatment and Surface-Finish Callouts

Shafts specified without hardness ranges or Ra values often fail in assembly or wear testing. Heat treatment (carburizing, nitriding, induction hardening) and finish (grinding to Ra 0.4 or better) must appear on the drawing with acceptance criteria.

XUXIANG’s five-step QC includes spectral material verification and surface-integrity checks, ensuring every shaft meets documented metallurgical and finish requirements before shipment.

Skipping Climate Control and Prototype Validation

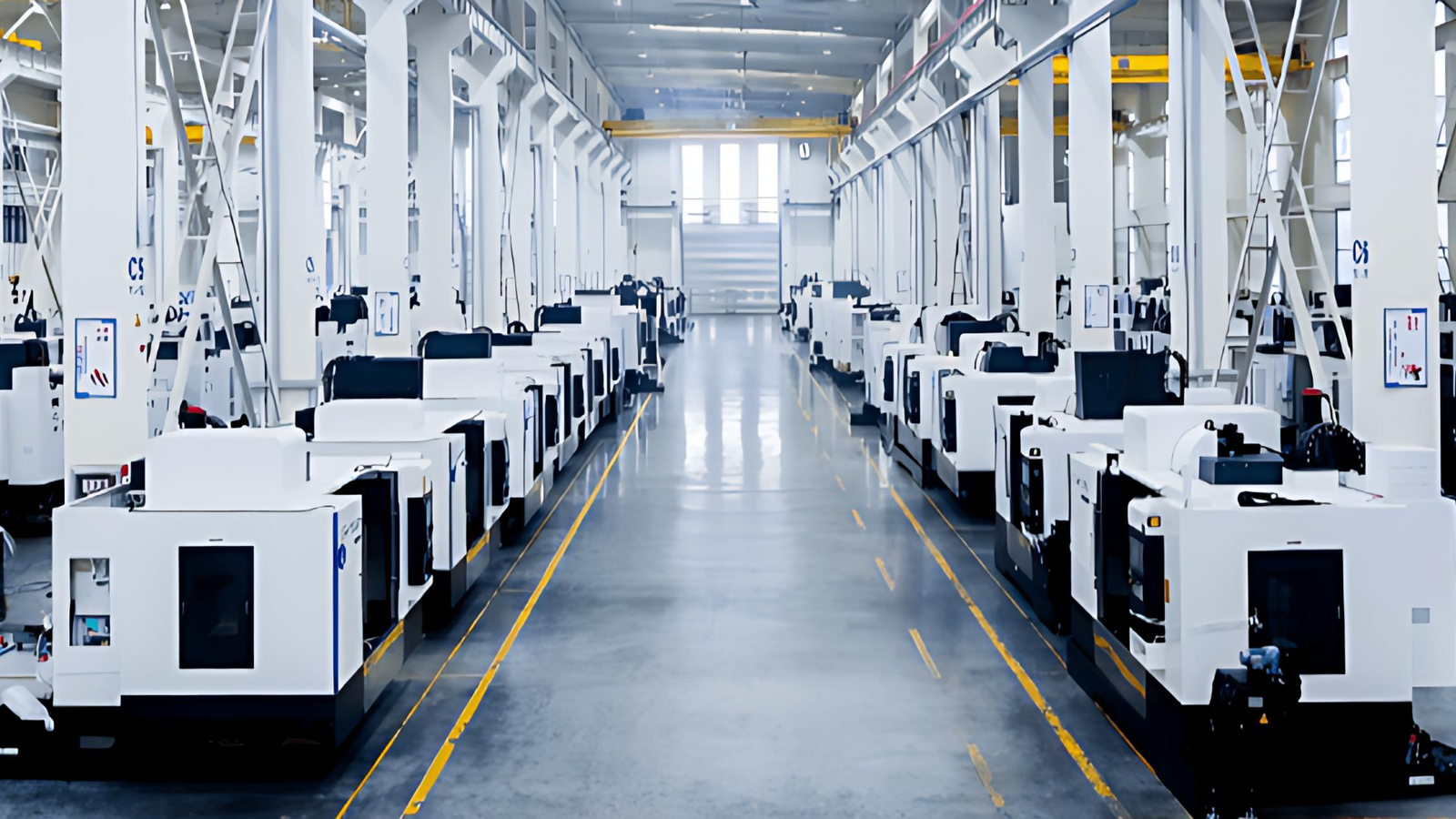

Thermal drift in non-climate-controlled shops can shift dimensions by several microns during multi-hour machining cycles. Always confirm that your supplier maintains stable ambient temperature — XUXIANG’s metrology lab and CNC bays operate under controlled conditions to preserve +/-0.001 mm accuracy.

Prototype runs catch tolerance stack-ups and assembly interferences before volume orders; skipping them risks costly rework or tooling changes mid-production.

Define Geometry and Tolerance Stack-Up

Specify shaft diameter, length, concentricity, straightness and surface finish with GD&T annotations. Include critical dimensions — bearing seats, keyways, thread zones — and tolerance stack-up analysis to avoid interference at assembly. XUXIANG engineering reviews every drawing for manufacturability before quoting.

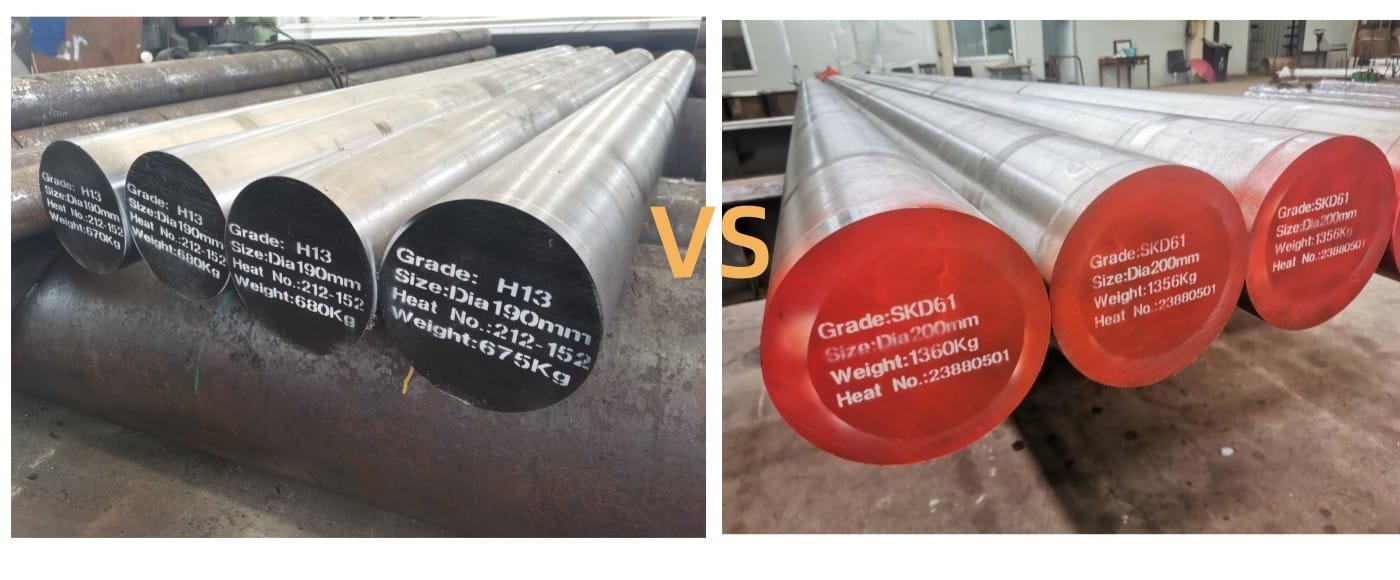

Select Material and Surface Treatment

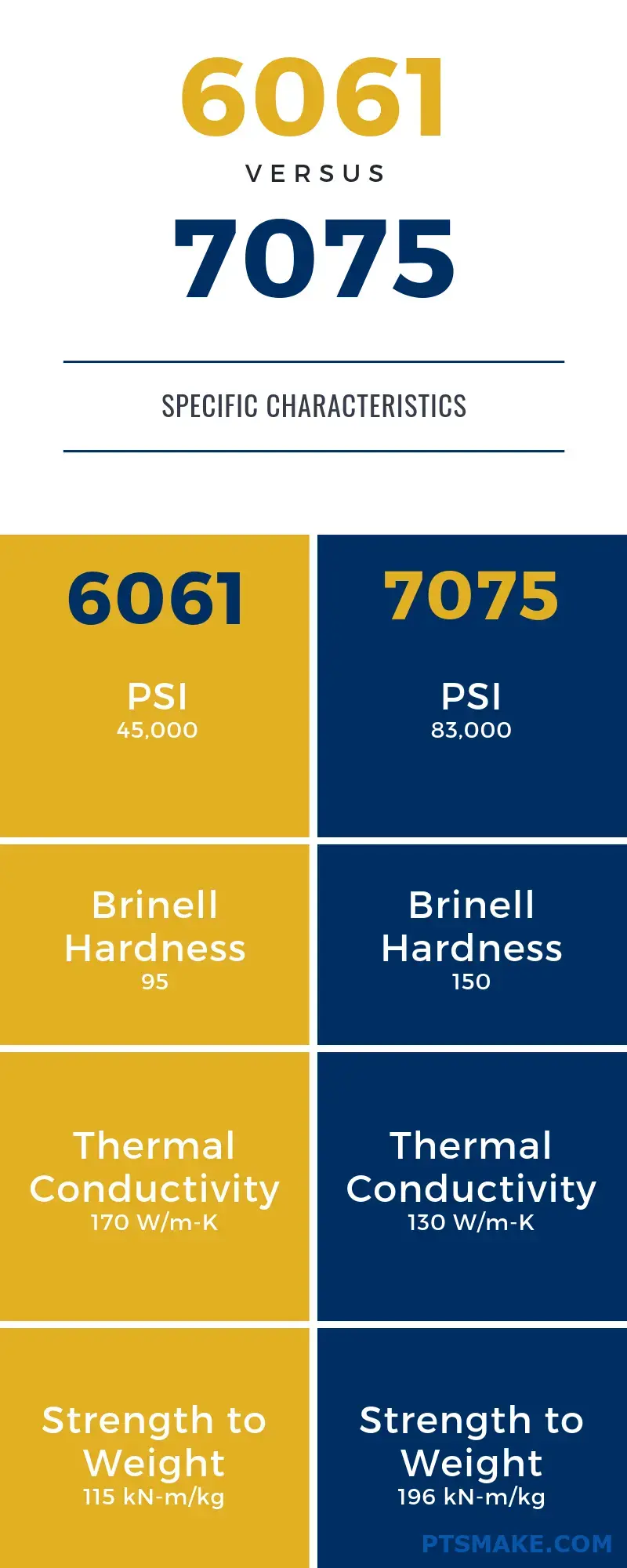

Choose alloy (e.g. 42CrMo, SUS303, 6061-T6) based on load, environment and hardness requirements. Pair with surface treatment — nitriding for wear, hard-chrome for corrosion, precision grinding for Ra ≤ 0.2 µm — to meet functional and cosmetic targets.

Request Quotes with Detailed Drawings

Submit 2D prints (PDF) and 3D STEP files with material call-outs, finish specs and annual volume. Suppliers return DFM feedback highlighting cost drivers — tight radii, deep bores, multi-axis setups — and suggest value-engineering alternatives within 24–48 hours.

Approve FAI and Establish Sampling Plans

Review first-article inspection reports with CMM data (ZEISS MICURA class), material certificates and surface-integrity checks. Agree batch sampling frequency (e.g. five-piece per 500) and set kanban or JIT delivery schedules to balance inventory and lead time.
