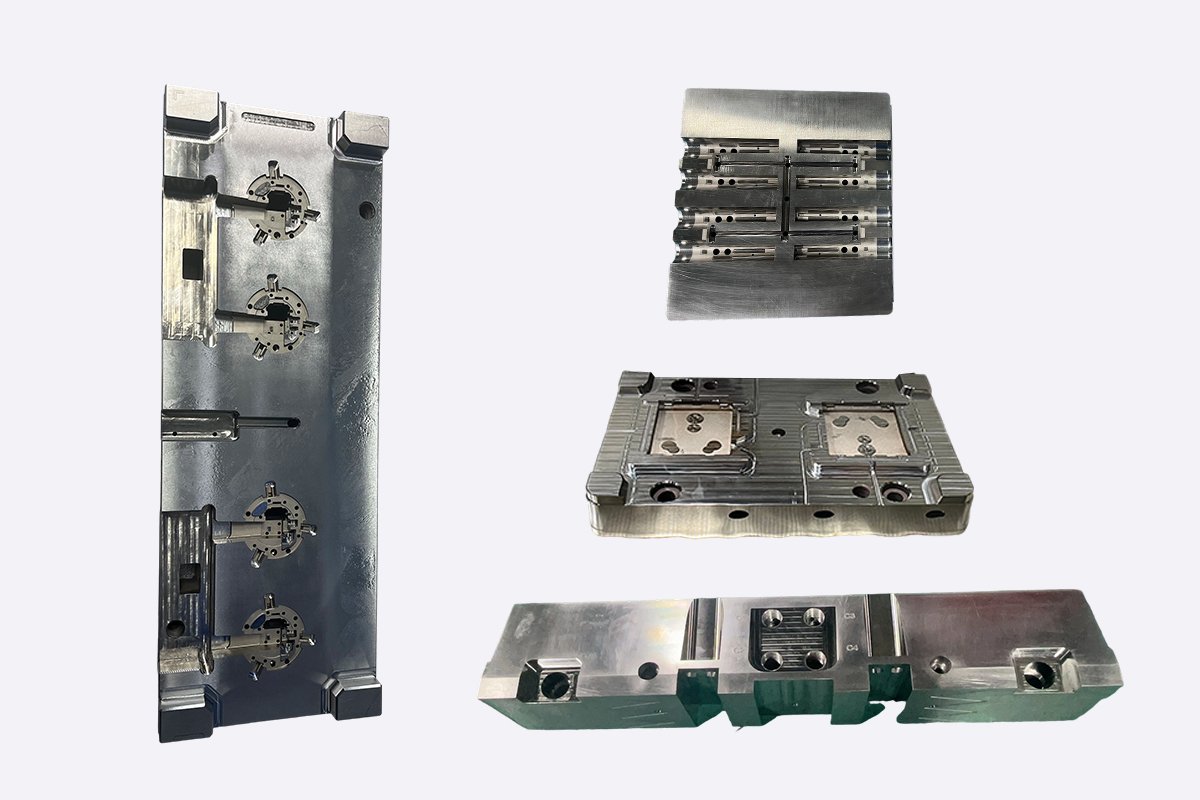

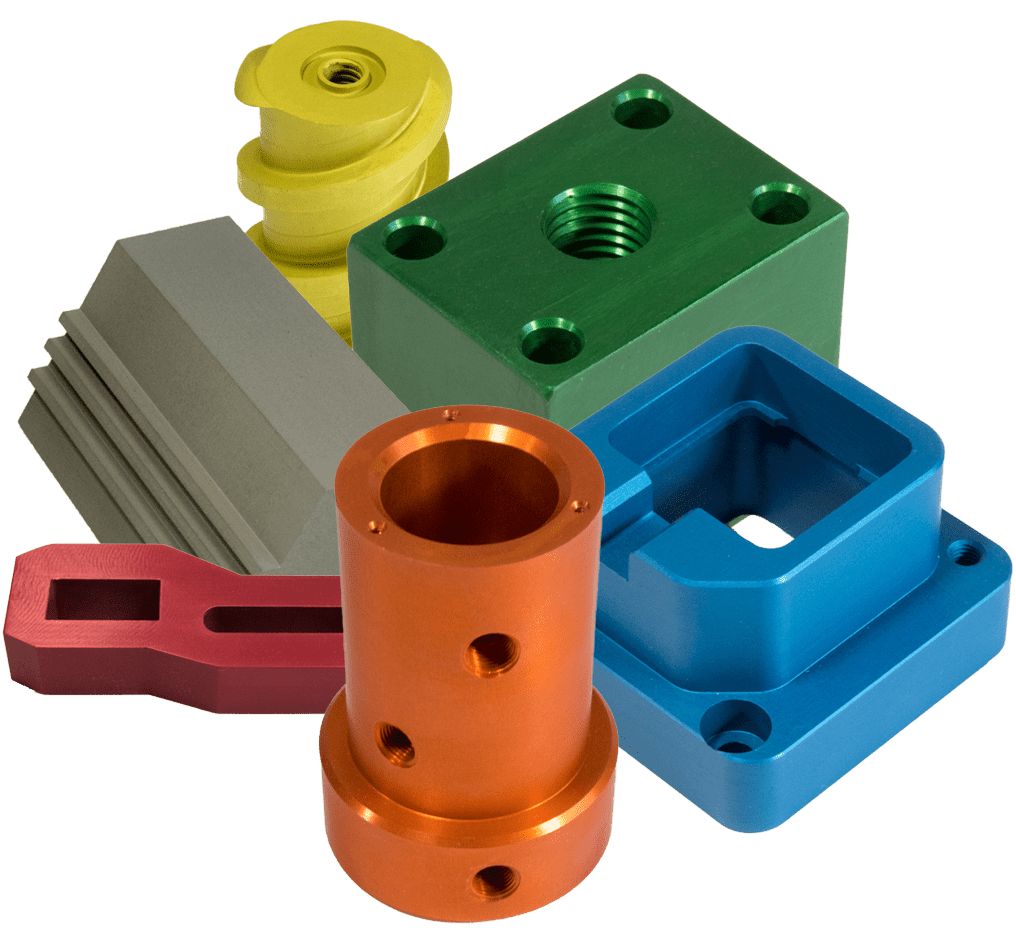

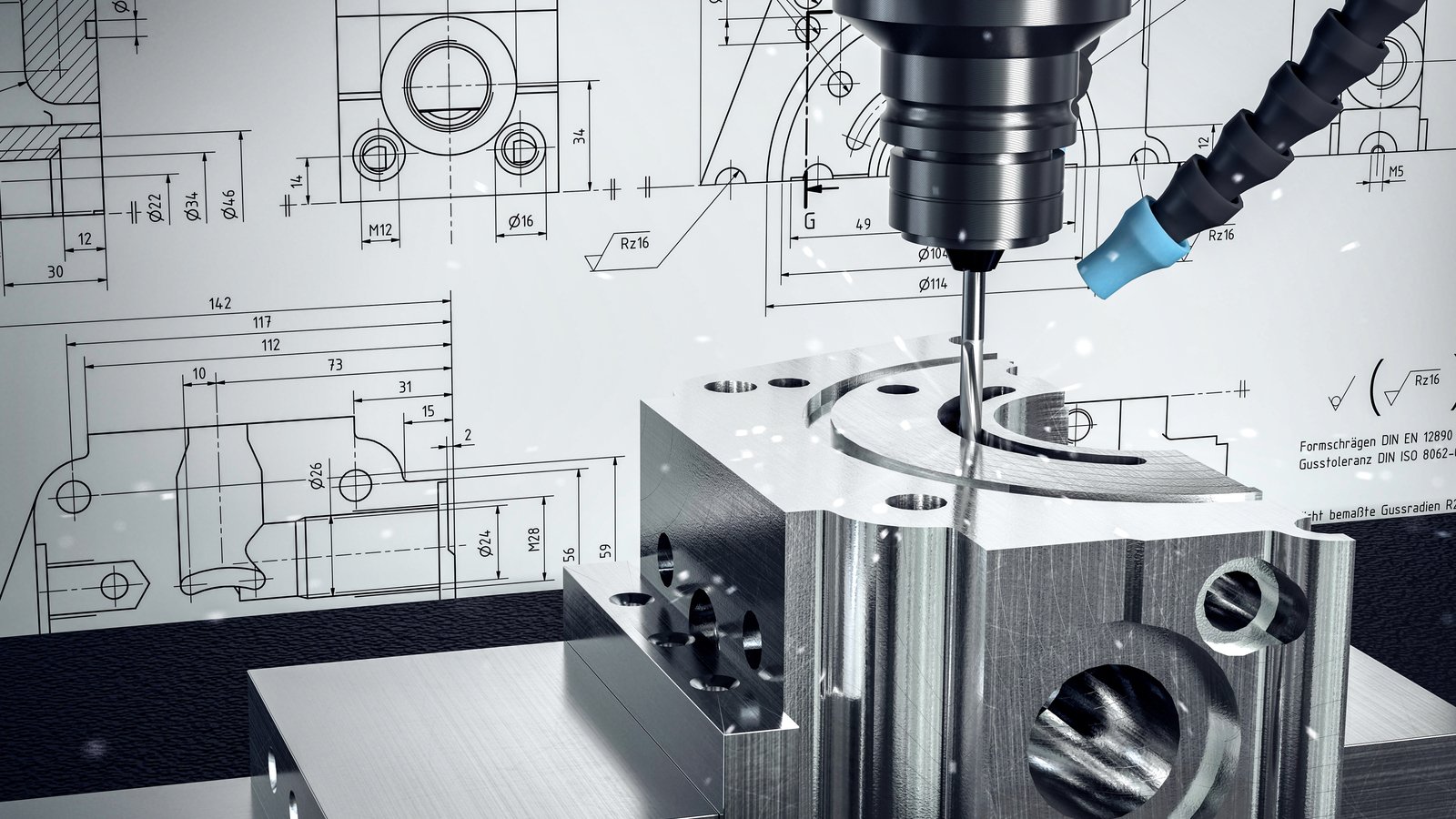

3-Axis Milling and 4/5-Axis Simultaneous Machining

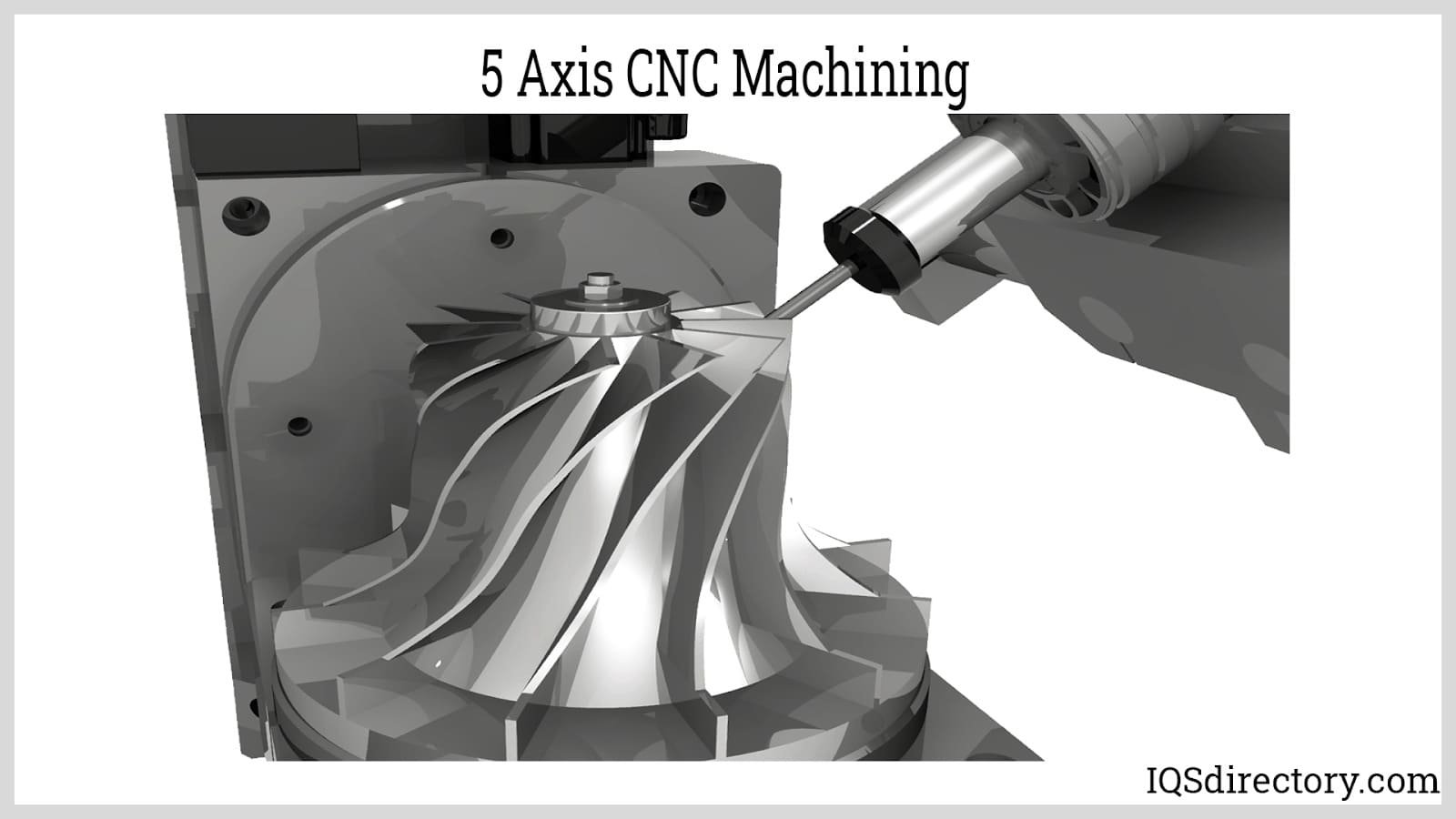

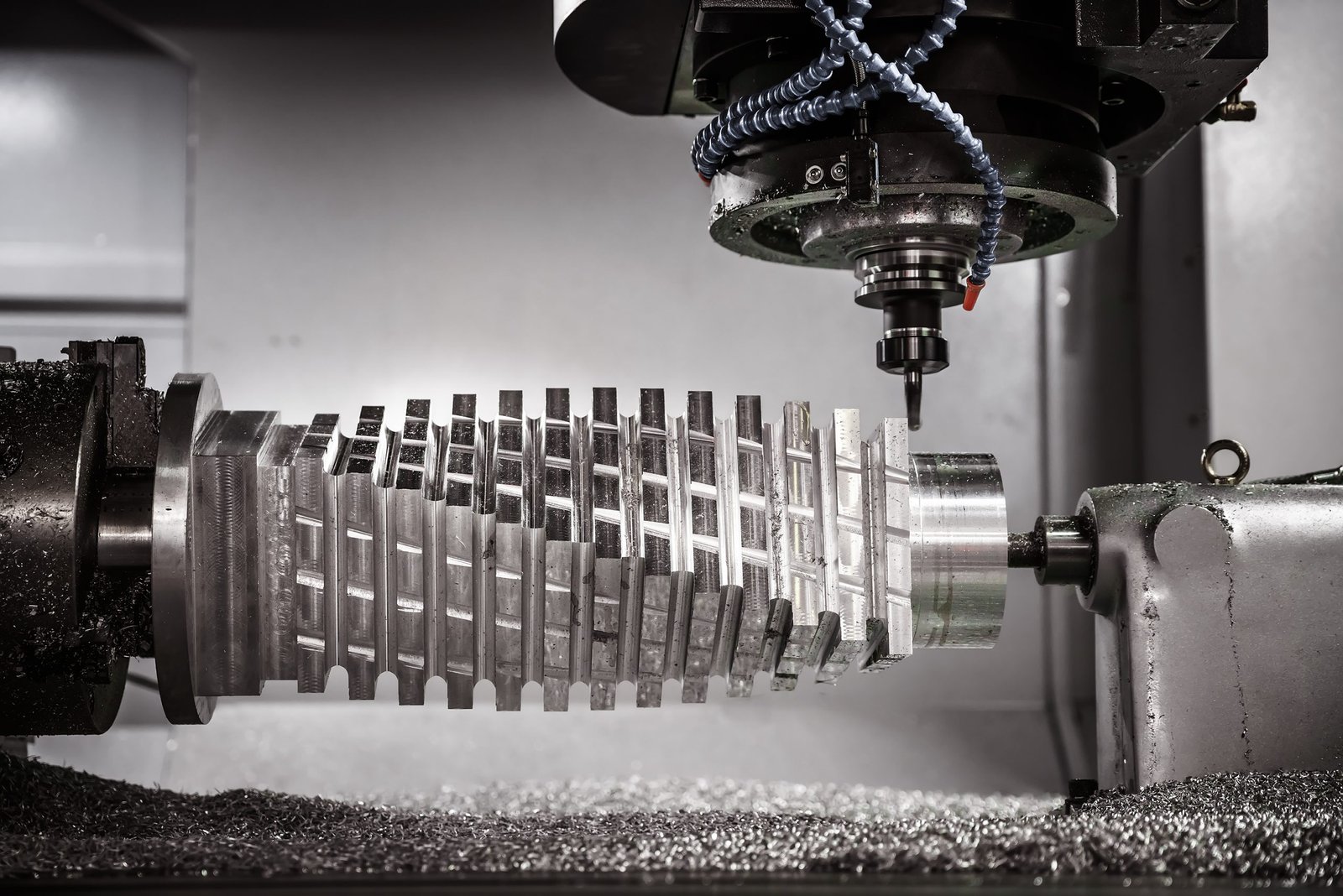

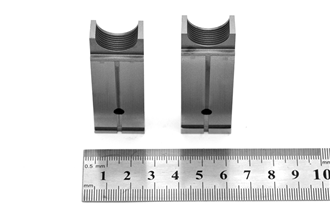

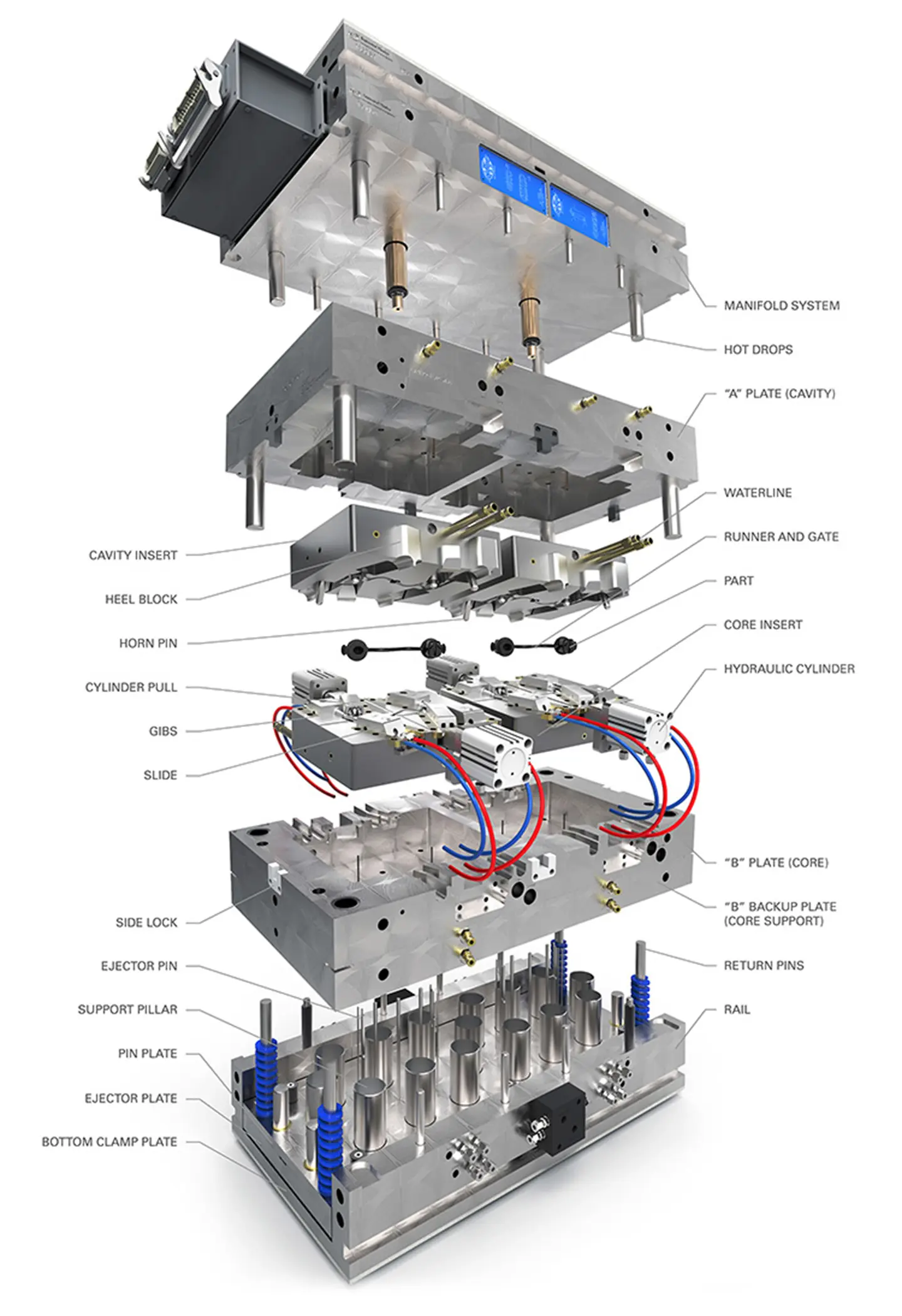

3-axis milling achieves +/-0.01 mm on flat features and pockets; typical applications include mold bases and simple inserts. 4- and 5-axis simultaneous work reaches +/-0.005 mm on complex curves, critical for conformal cooling channels and automotive sensor housings.

ISO 9001 control mandates fixture-setup logs, tool-life tracking and first-article inspection (FAI) for every program revision, ensuring repeatability across batches.

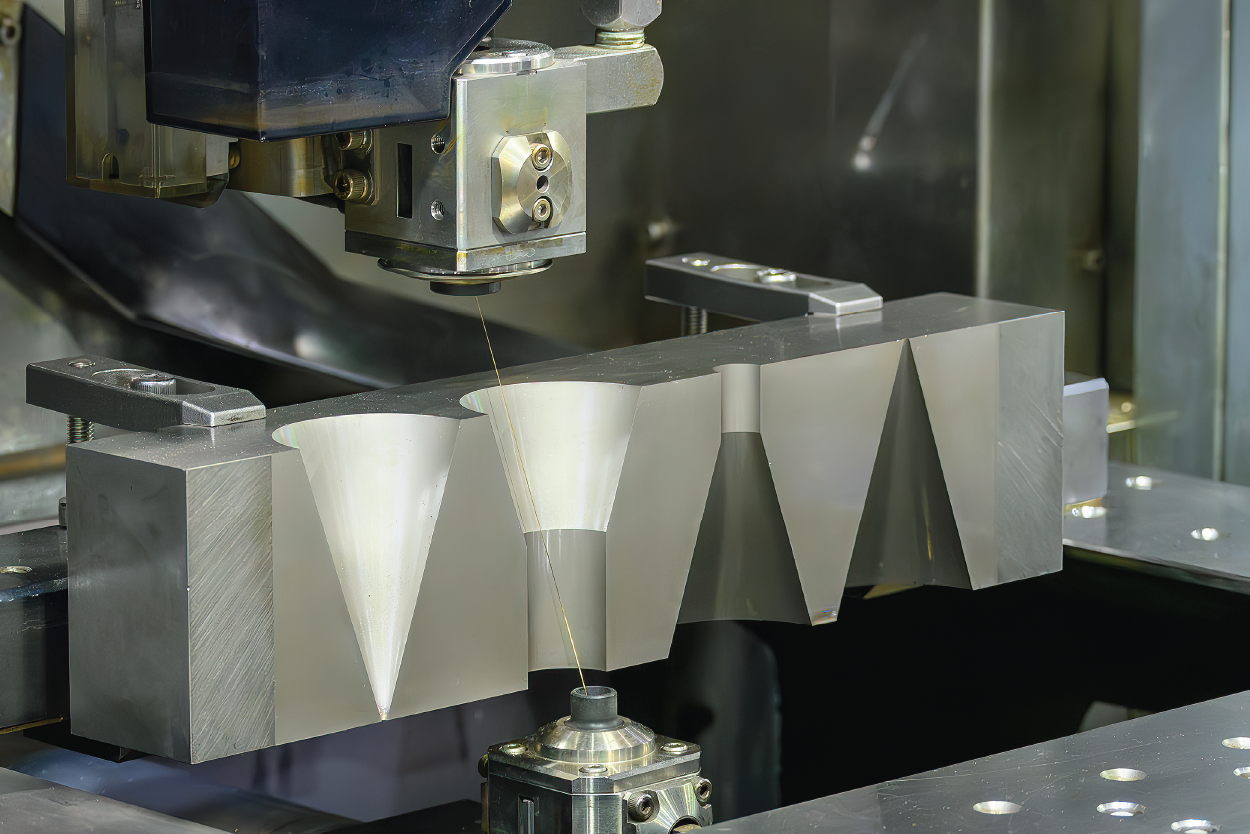

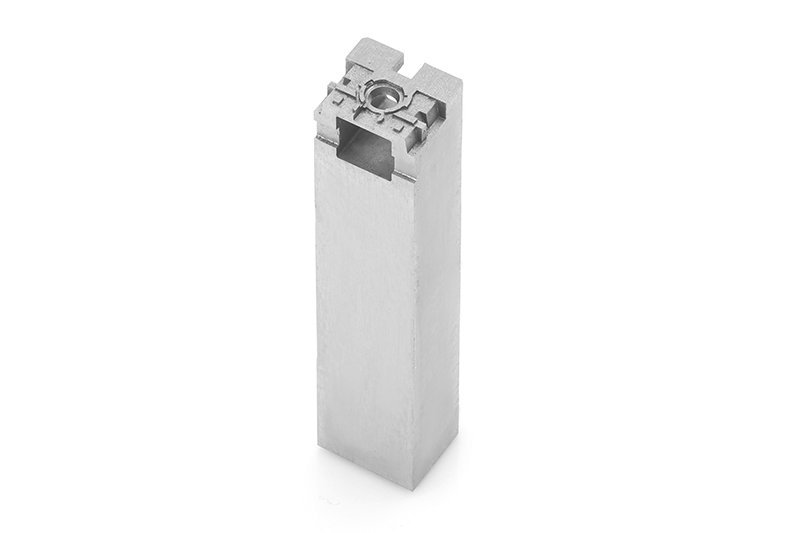

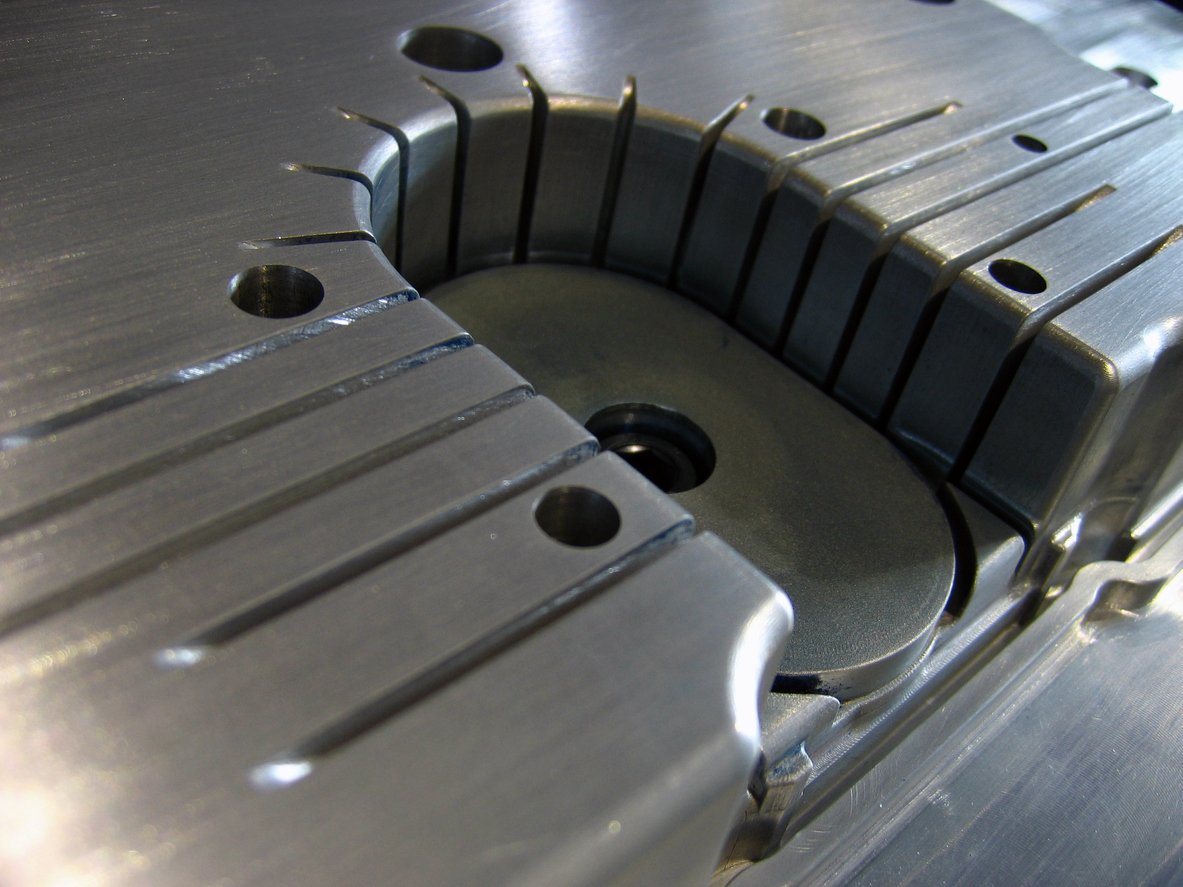

Wire and Sinker EDM

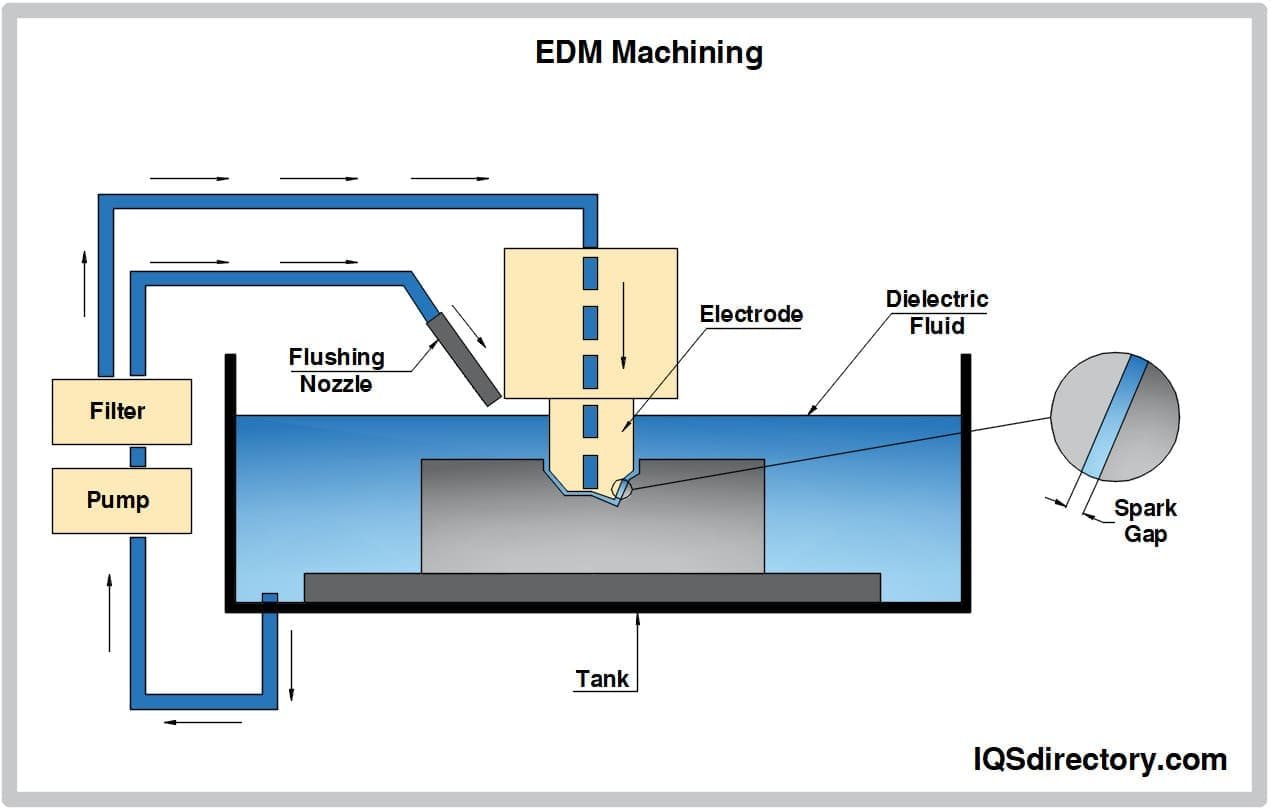

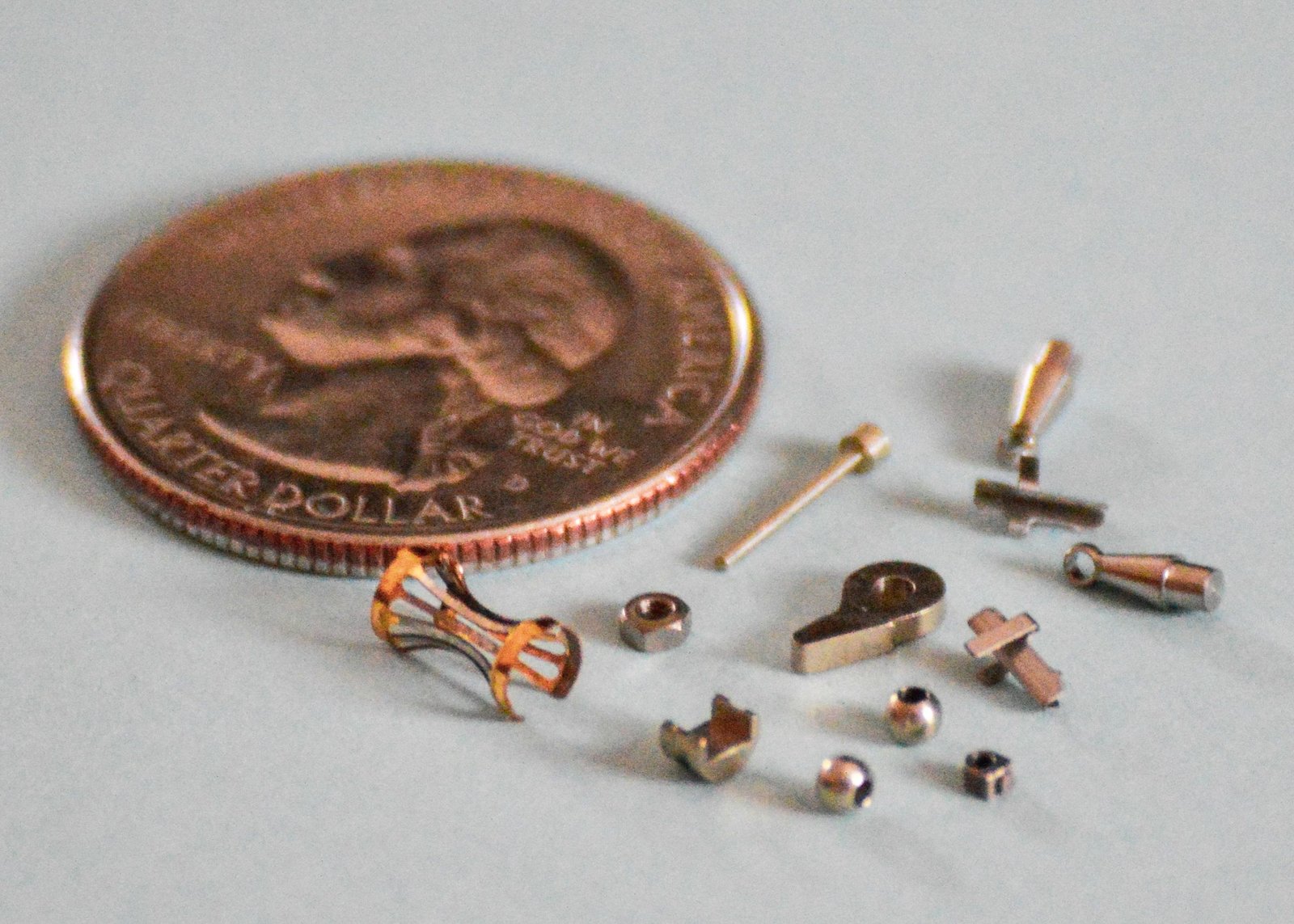

Slow-wire EDM holds +/-0.002 mm positioning and corner radii down to R 0.015 mm, ideal for micro-connector tooling and thin-wall ejector pins. Sinker EDM delivers mirror finishes to Ra 0.1 µm on deep ribs and complex cavities.

Certified shops document electrode specifications, dielectric conditions and multi-cut strategies in controlled work instructions, preventing tolerance drift during production runs.

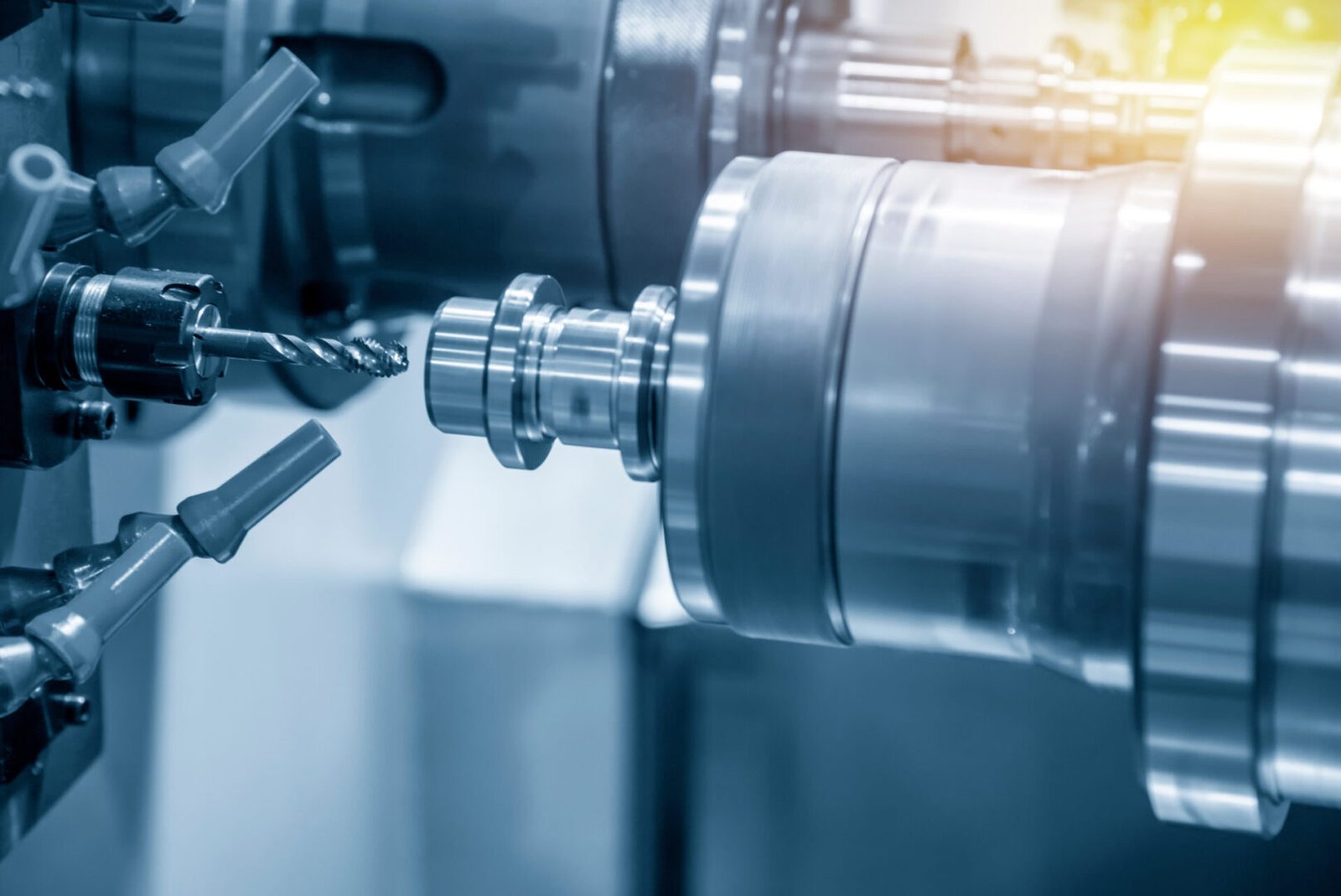

Precision Turning and Grinding

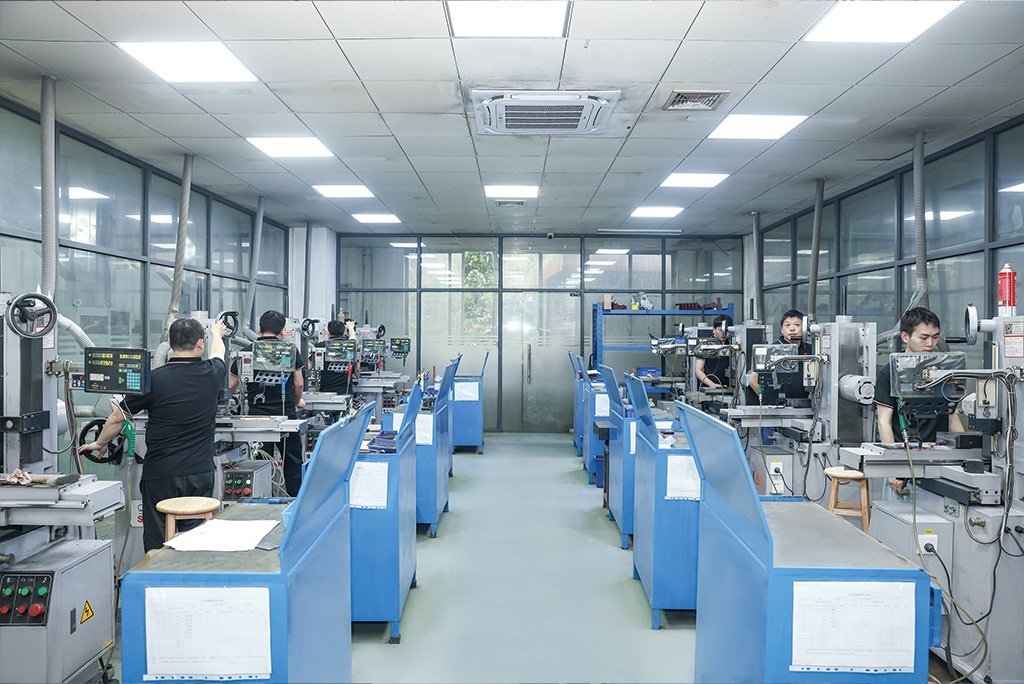

Swiss-type lathes produce shafts and pins to +/-0.005 mm with diameter consistency below 0.003 mm. Surface, cylindrical and jig grinding refine hardened components to +/-0.002 mm, essential for lifters, sliders and high-cycle tooling.

ISO 9001 process control captures wheel-dressing intervals, coolant concentration and in-process gauge data, ensuring micron-stable repeatability over thousands of parts.

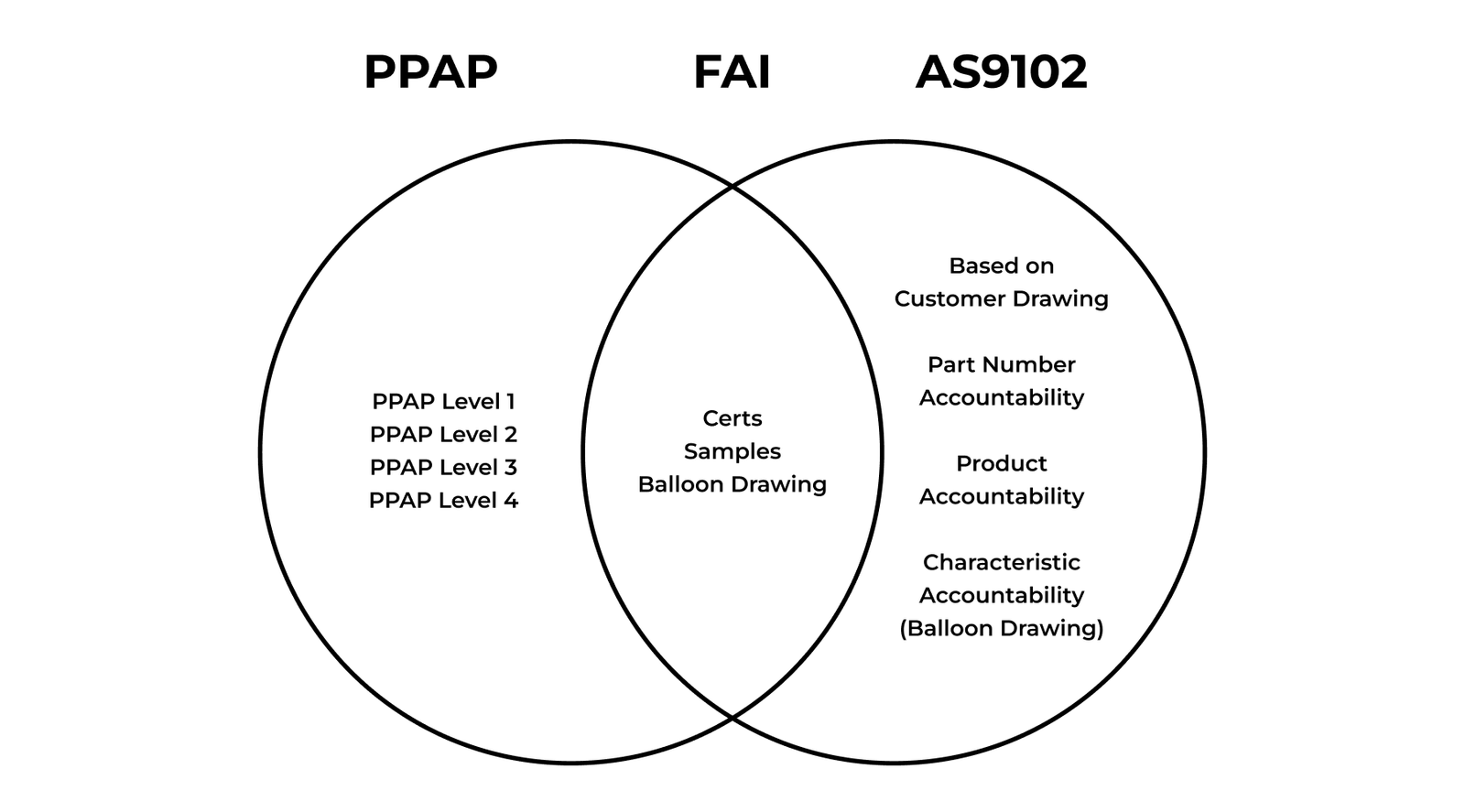

First-Article Inspection and Documentation

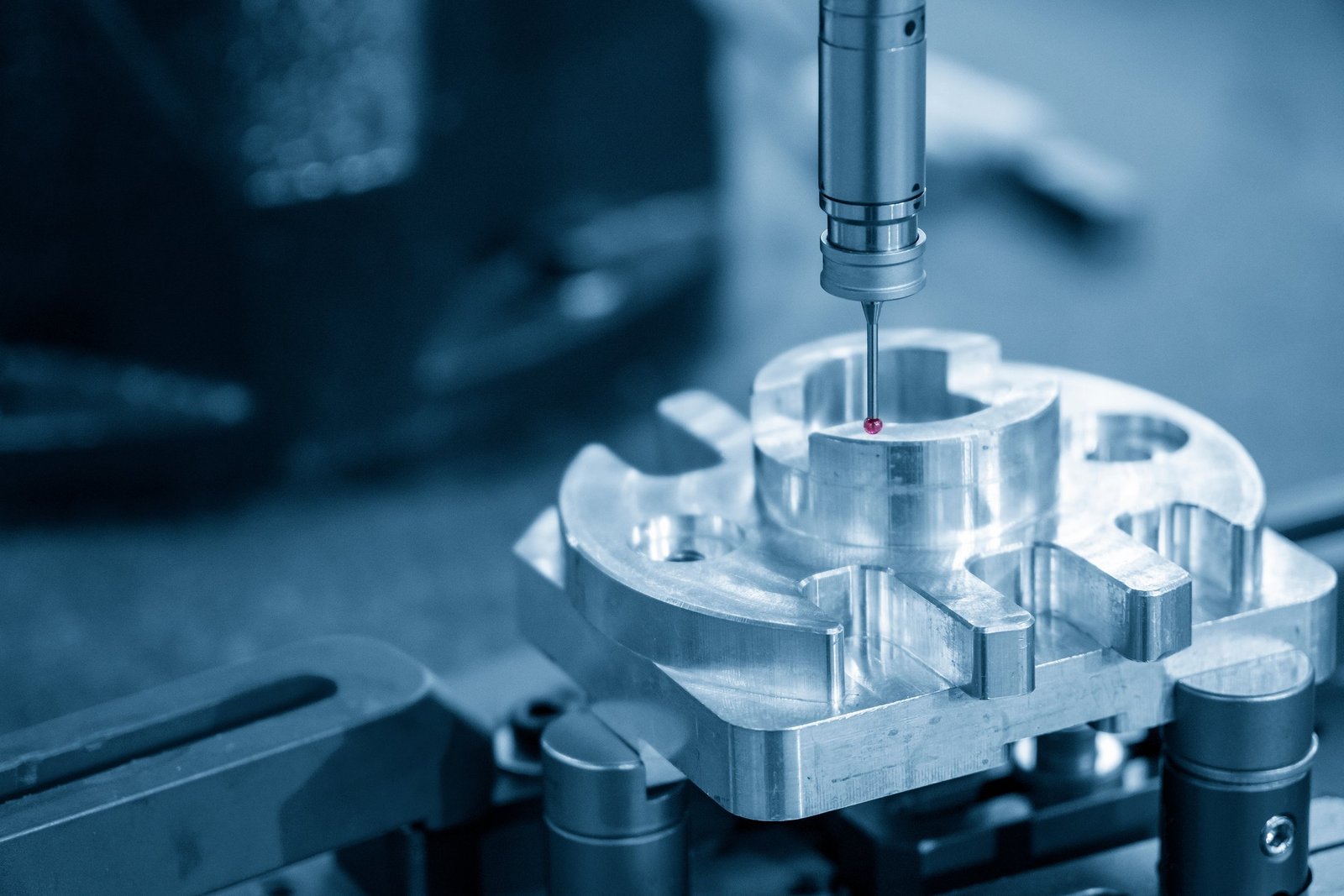

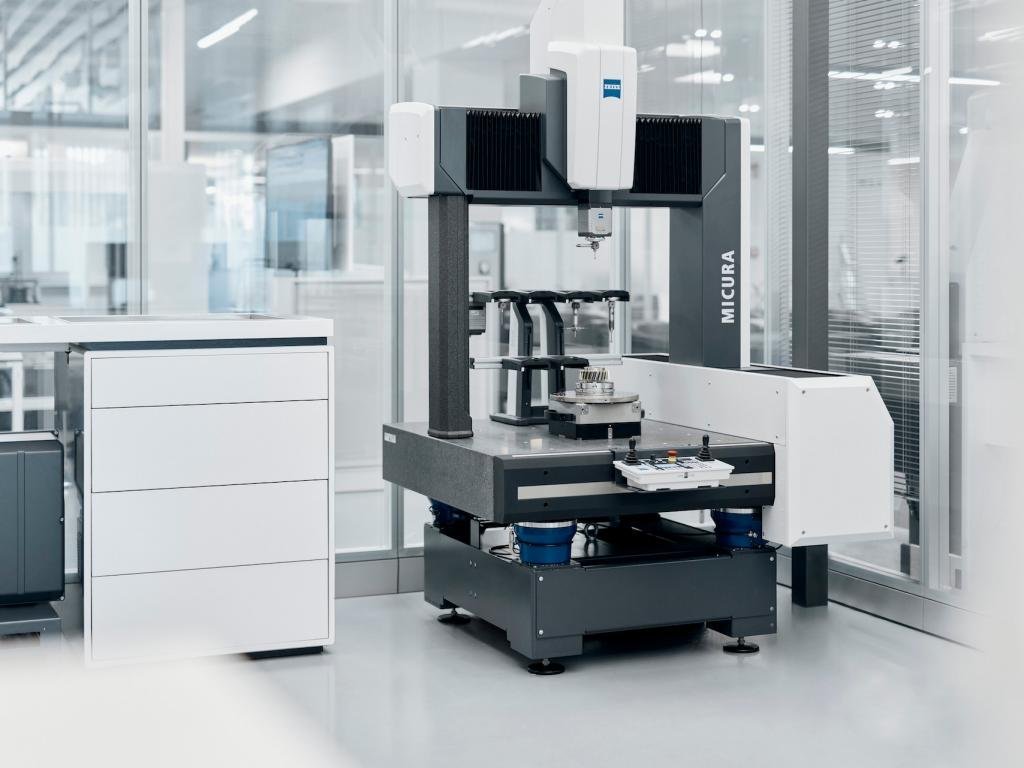

First-article inspection reports (FAIR) or AS9102 forms validate that the first production part meets every drawing dimension before serial manufacturing begins. XUXIANG’s five-step QC includes material spectral analysis, in-process tolerance monitoring and ZEISS MICURA CMM verification to 0.7 µm, delivering full FAI documentation with material certificates and dimensional data for every critical feature.

In-Process Statistical Process Control

Statistical process control (SPC) charts track real-time machining drift across multi-cavity runs, flagging deviations before they breach tolerance windows. Operators log critical dimensions every hour on Sodick and Charmilles EDM cycles, ensuring +/-0.002 mm slow-wire positioning and +/-0.003 mm sinker accuracy remain stable over hundreds of parts.

Non-Conformance and Corrective Action

ISO 9001 Clause 10.2 requires documented corrective and preventive action (CAPA) and 8D problem-solving for any non-conformance. XUXIANG’s engineering team conducts root-cause analysis when tolerance failures occur, updating work instructions and tool offsets to prevent recurrence, closing the loop with verified evidence before resuming shipment.

Verify ISO 9001 Certificate and Scope

Request a current ISO 9001:2015 certificate and confirm the scope covers CNC machining, EDM and your target materials. Certificates older than three years or with vague scope statements signal audit lapses.

XUXIANG’s ISO 9001:2015 registration governs all mold-component and metal-part workflows, backed by spectral analysis and ZEISS CMM validation in every project.

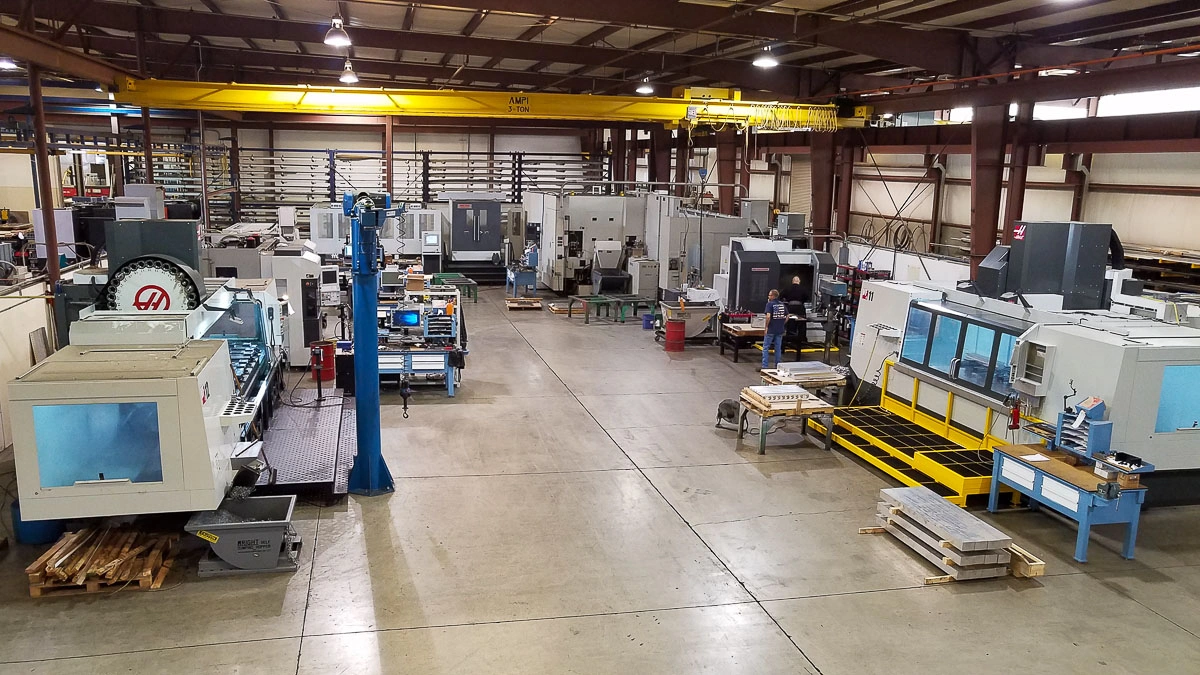

Audit Equipment List and Capability

Ask for a detailed machine roster: brand, model, year of installation and spindle/positioning accuracy. Machines over ten years old or lacking sub-micron repeatability cannot reliably hold +/-0.001 mm.

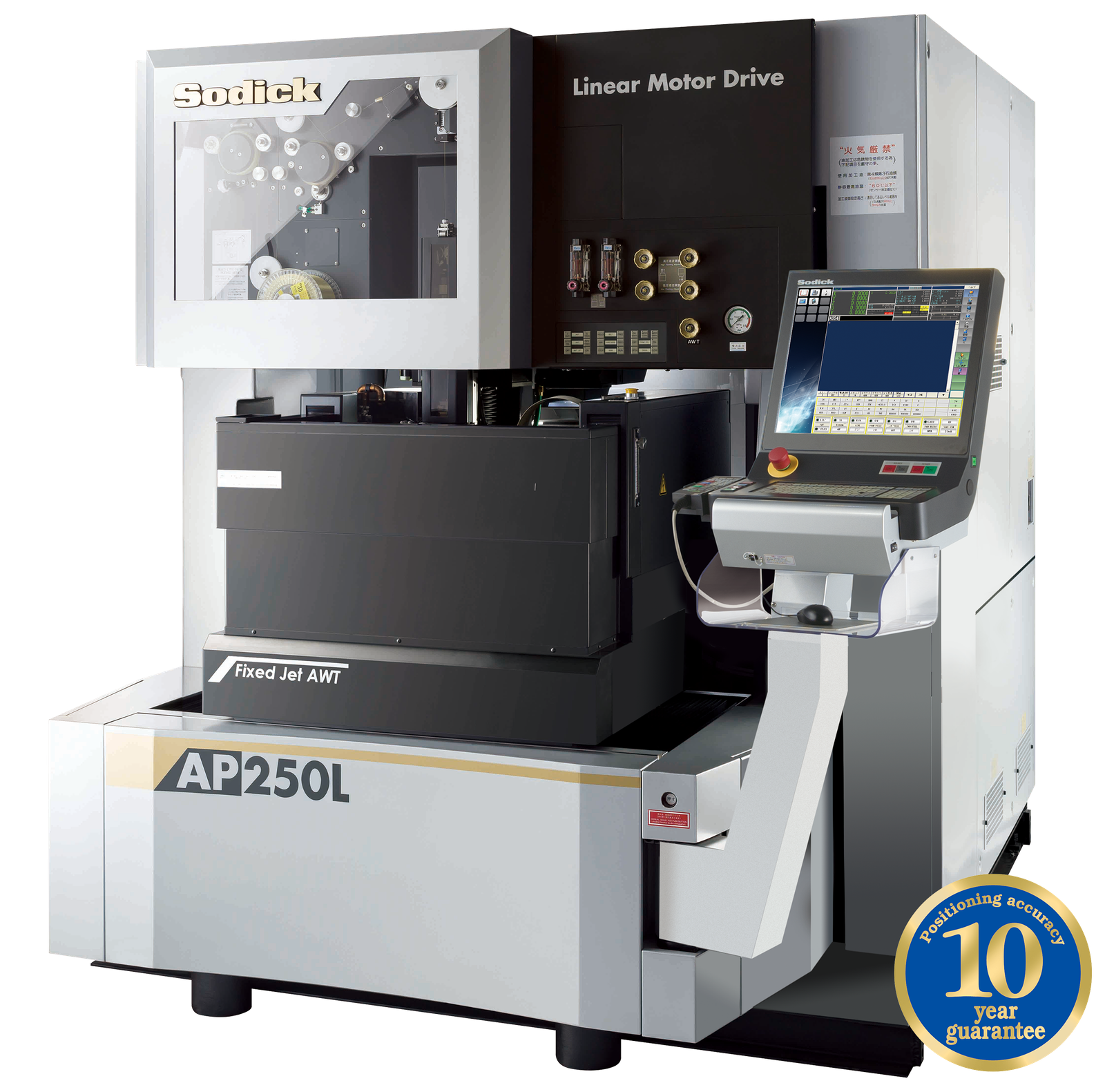

XUXIANG operates Sodick and Charmilles sinker EDM, Sodick/Seibu slow-wire EDM and Beijing Jingdiao high-precision CNC — over CNY 8 million in Japanese, Swiss and German assets delivering +/-0.002 mm slow-wire positioning.

Review Inspection Reports and Process FMEA

Request sample CMM reports, process FMEA documents and FAI packages. Missing or generic reports indicate weak quality systems and higher defect risk.

Every XUXIANG project includes DFM feedback from 10+ engineers, five-step QC (material spectral analysis, in-process monitoring, ZEISS/Nikon CMM, surface checks, FAI) and full material certificates.

Assess Lead Time, Capacity and Communication

Confirm shift coverage, machine hours per month and engineering-support availability. Providers without dedicated DFM teams delay design validation and increase rework cycles.

XUXIANG’s 2025 Quanzhou expansion adds ~1,400 m² and targets 200% output growth, delivering roughly 30% faster than industry average with responsive engineering support and NDA-protected sample runs.

Assuming All ISO 9001 Certificates Are Equal

ISO 9001:2015 certificates vary widely in scope and rigor. A certificate issued by a non-accredited body or one that excludes ‘design’ or ‘inspection equipment calibration’ offers little assurance for precision machining.

XUXIANG’s ISO 9001:2015 certification covers design, machining, EDM, grinding and metrology — validated by third-party audit. Always request the certificate scope statement and confirm the accreditation body (e.g., CNAS, UKAS, ANAB) before awarding a PO.

Neglecting Tolerance Stack-Up Analysis

Specifying +/-0.01 mm on every feature without stack-up analysis can result in assemblies that meet print but fail to function. A connector housing with six chained dimensions may accumulate 0.06 mm total variation, blocking pin insertion.

XUXIANG’s DFM team flags stack-up risks during pre-production review, recommending datum shifts or GD&T callouts to keep critical interfaces within functional limits and avoid costly rework cycles.

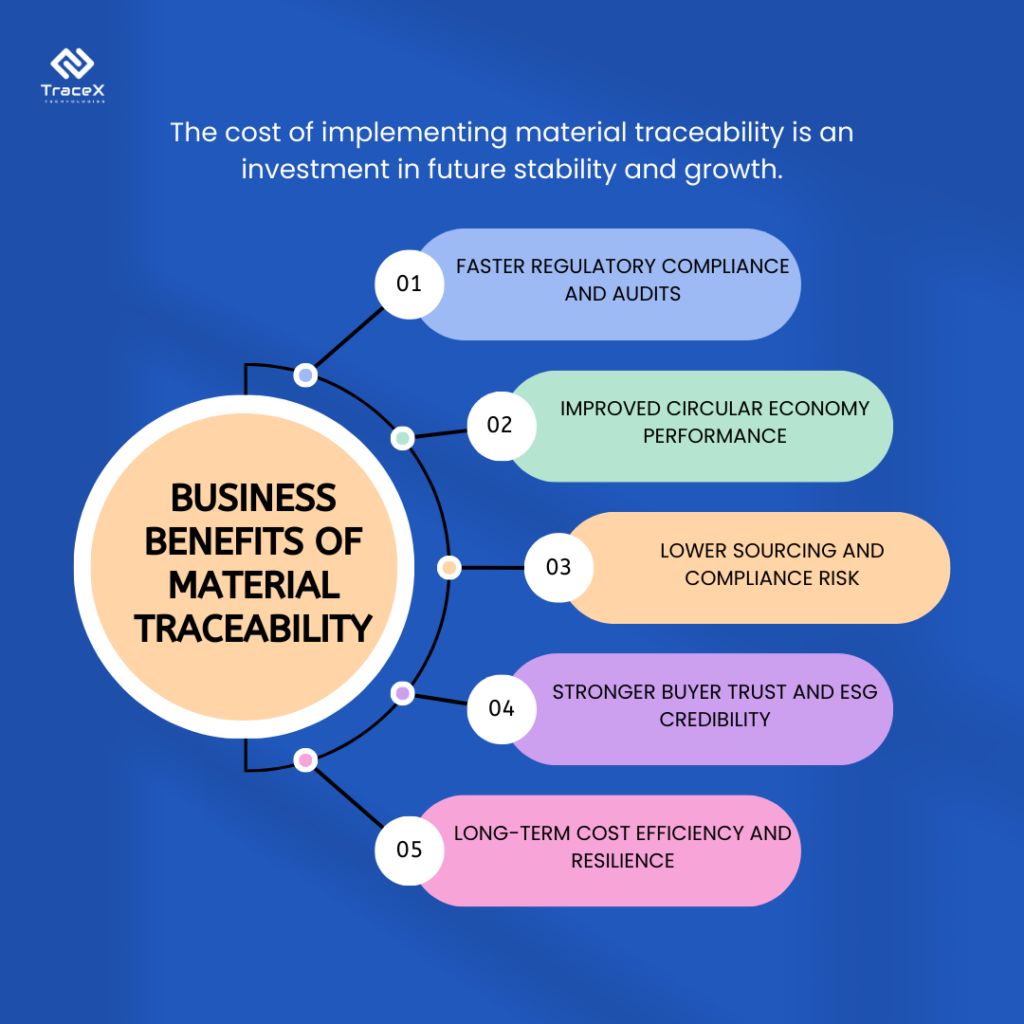

Ignoring Material Traceability Requirements

Medical, automotive and aerospace applications demand full material traceability — mill certificates, heat-lot numbers and spectral analysis reports. Omitting traceability clauses from the PO can halt shipment at incoming inspection or trigger regulatory non-conformance.

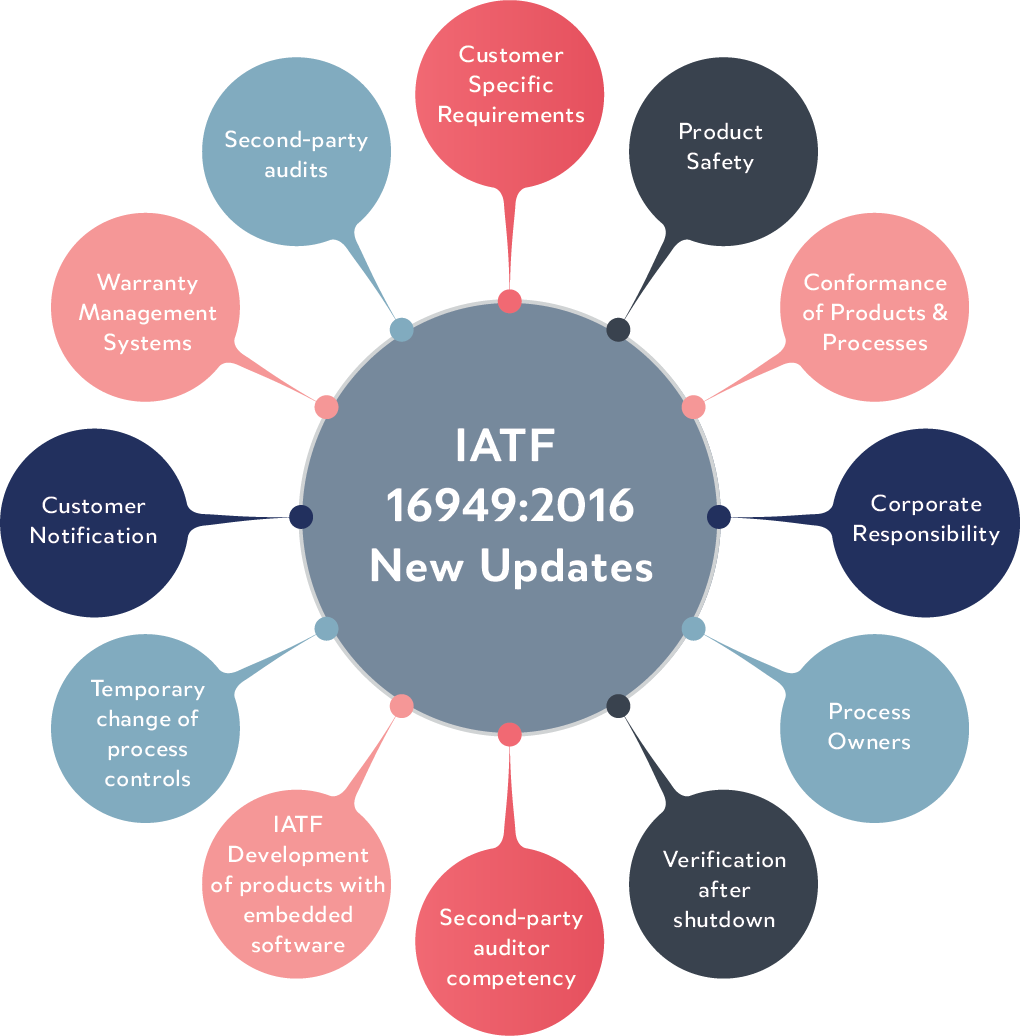

XUXIANG performs spectral analysis on every heat lot and archives material certificates for seven years, ensuring compliance with ISO 13485, IATF 16949 and customer-specific traceability protocols without post-award negotiation.

Underestimating First-Article Approval Lead Time

First-article inspection (FAI) with full CMM reporting, material certs and surface-finish data typically adds 3–5 business days beyond machining. Buyers who assume same-day approval face production delays when engineering review uncovers dimensional or documentation gaps.

XUXIANG’s five-step QC flow — including ZEISS MICURA CMM verification to 0.7 µm and complete FAI documentation — is built into the quoted lead time, eliminating surprise delays and enabling on-time ramp to volume.

Choosing Price Over Process Capability

A 20 percent cost saving evaporates when a low-bid supplier lacks calibrated metrology or sinker-EDM capacity, delivering parts that drift out of tolerance by lot three. One automotive tier-1 customer faced $180,000 in line downtime after a budget vendor’s mirror-finish cores failed Ra 0.2 µm spec.

XUXIANG invests over CNY 8 million in Sodick EDM, ZEISS CMM and Nikon microscopy to hold +/-0.001 mm repeatably across production runs — proving that process capability, not unit price, determines true cost of ownership.

Prepare CAD Files and GD&T Drawings

Supply 3D CAD in STEP or IGES format alongside 2D drawings annotated with GD&T callouts for critical dimensions, surface finishes (Ra values) and material specifications. XUXIANG’s engineering team reviews every file against machining constraints — corner radii, wall thickness, undercut accessibility — before quoting, ensuring manufacturability at +/-0.001 mm tolerance.

Conduct Design-for-Manufacturability Review

A DFM session with 10+ engineering experts identifies cost drivers, tolerance trade-offs and tooling risks. XUXIANG provides alternative geometries, material substitutions or process recommendations to optimize cycle time and yield, often reducing unit cost by 15–25 percent without compromising function.

Approve First-Article Inspection Report

The supplier machines a sample batch and delivers a full FAI package: ZEISS CMM dimensional data to 0.7 µm resolution, material certificates and surface-integrity checks. Sign off on the report to freeze the process parameters and establish the quality baseline for production.

Establish Quality Agreement and Control Plan

Document batch sizes, delivery cadence, incoming-inspection criteria and periodic audit schedules in a formal quality agreement. XUXIANG’s ISO 9001:2015 control plan defines in-process checkpoints, traceability requirements and non-conformance protocols, ensuring every shipment meets the approved first-article standard.
