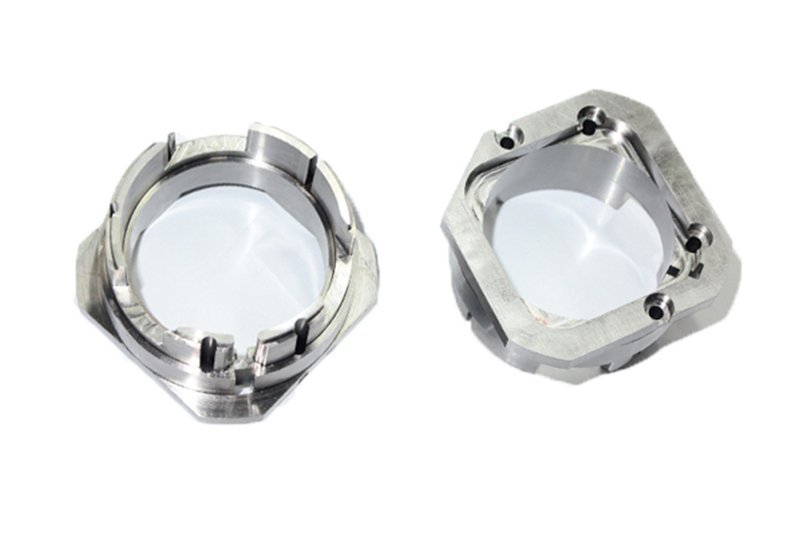

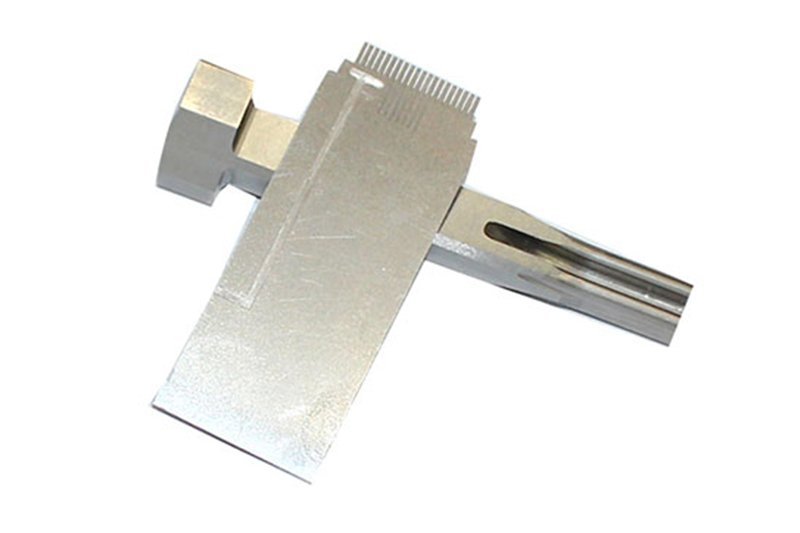

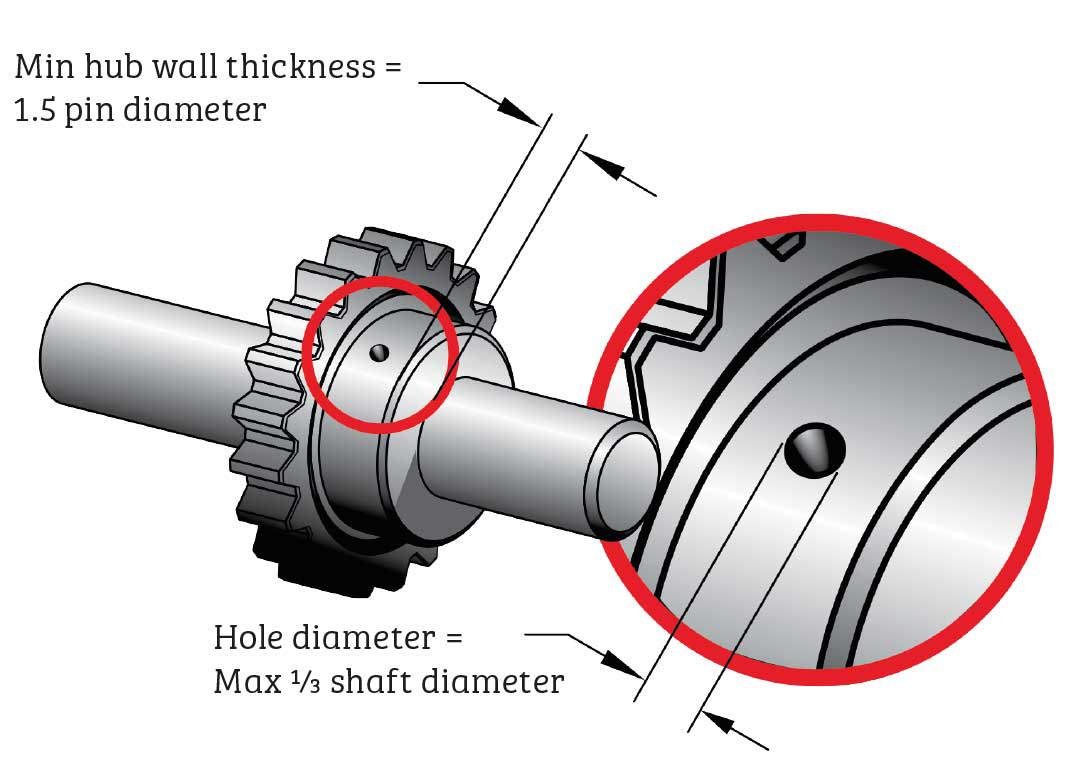

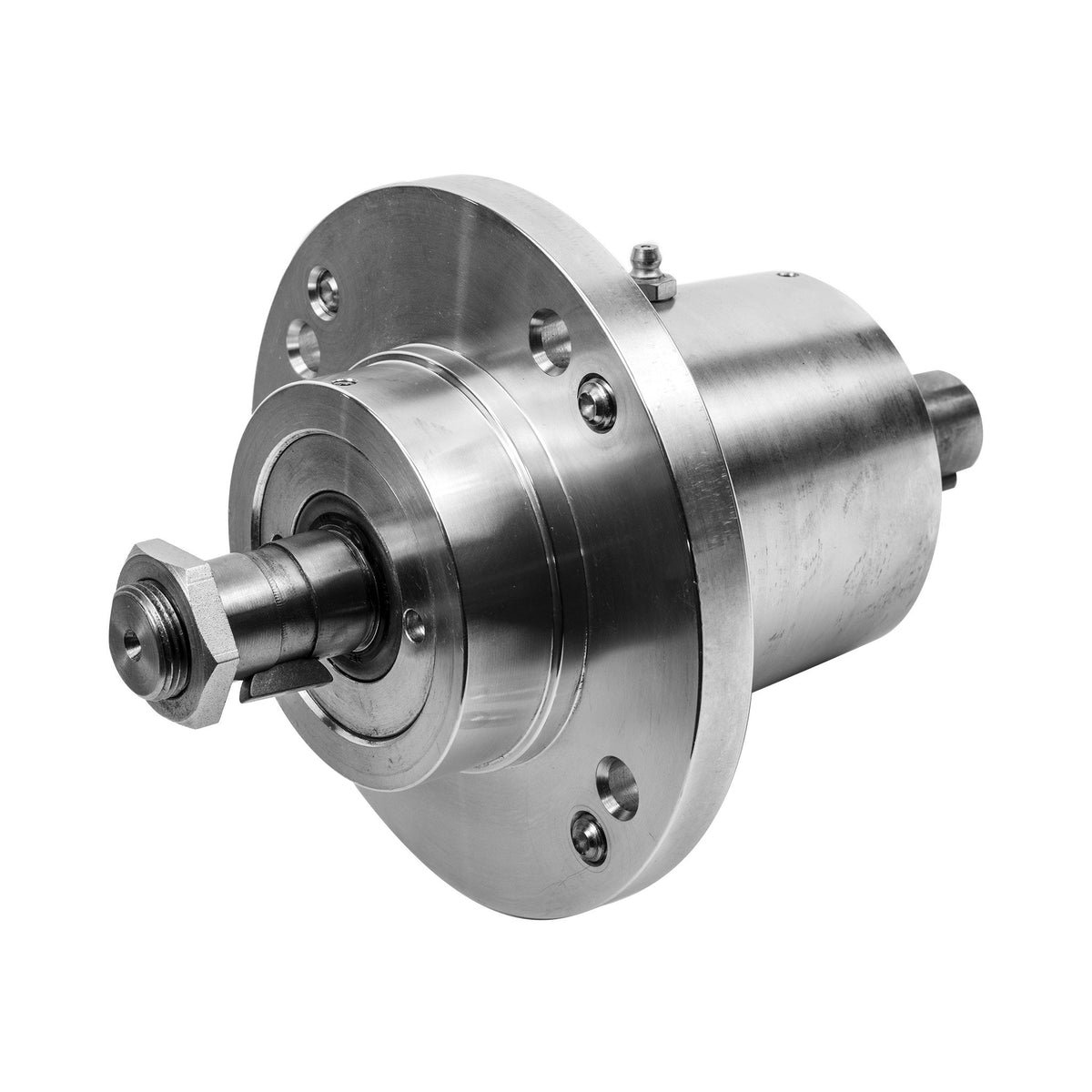

Rotating Components

Shafts and spindles operate at +/-0.005–0.015 mm positional tolerance, with Ra 0.4–0.8 µm finishes to minimize friction and wear. Typical materials include 42CrMo4 and 34CrNiMo6 alloy steels, heat-treated to 28–32 HRC.

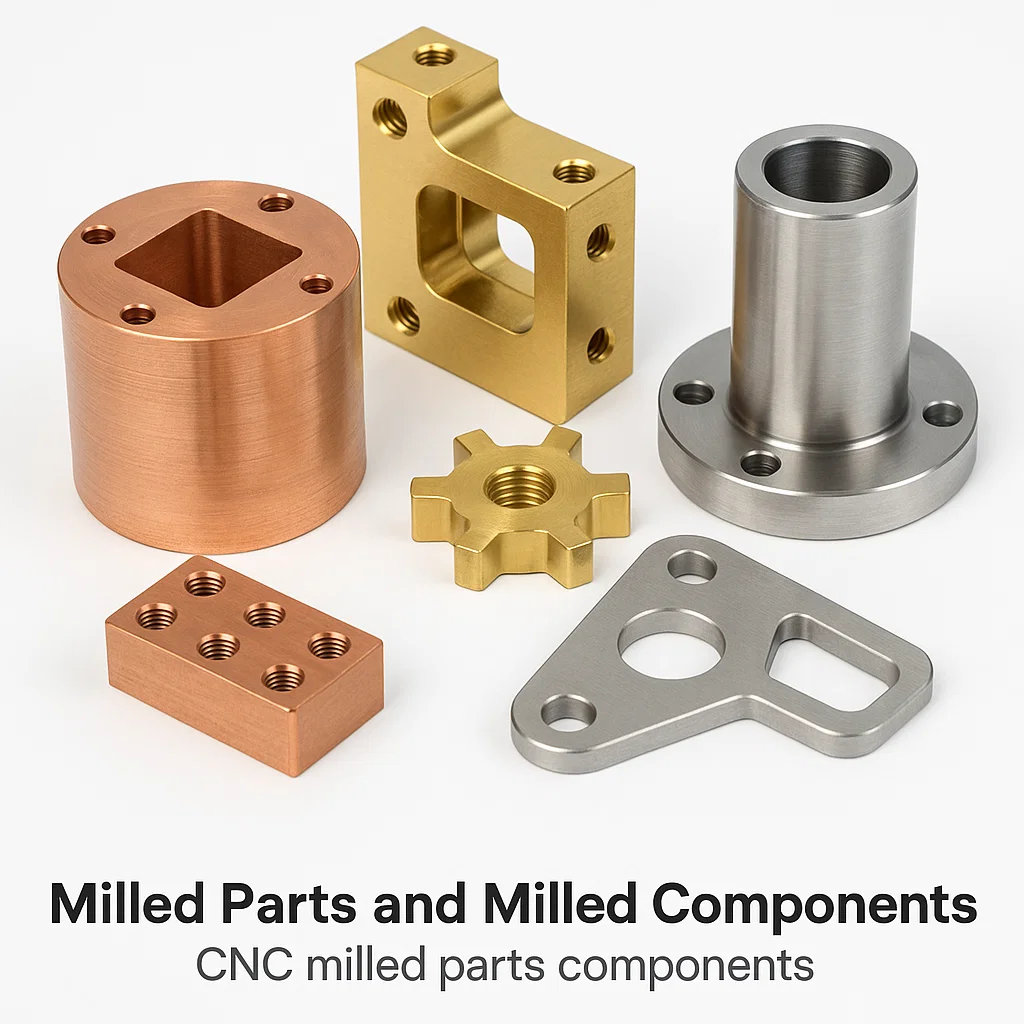

Structural Brackets and Mounts

Mounting interfaces require +/-0.05–0.1 mm hole-position accuracy and Ra 1.6 µm or better on mating faces. Cast iron (GG-25), structural steel (S355) and aluminum alloys (6061-T6) dominate, chosen for stiffness-to-weight ratio.

Hydraulic Cylinder Components

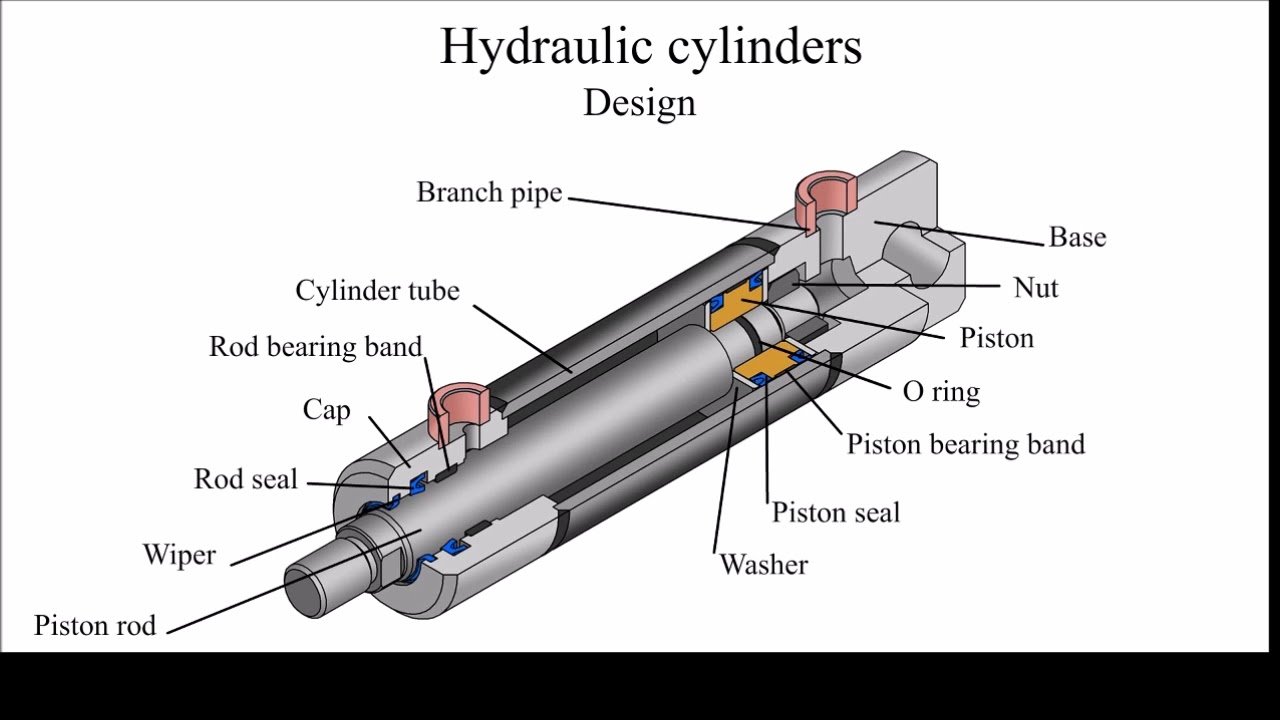

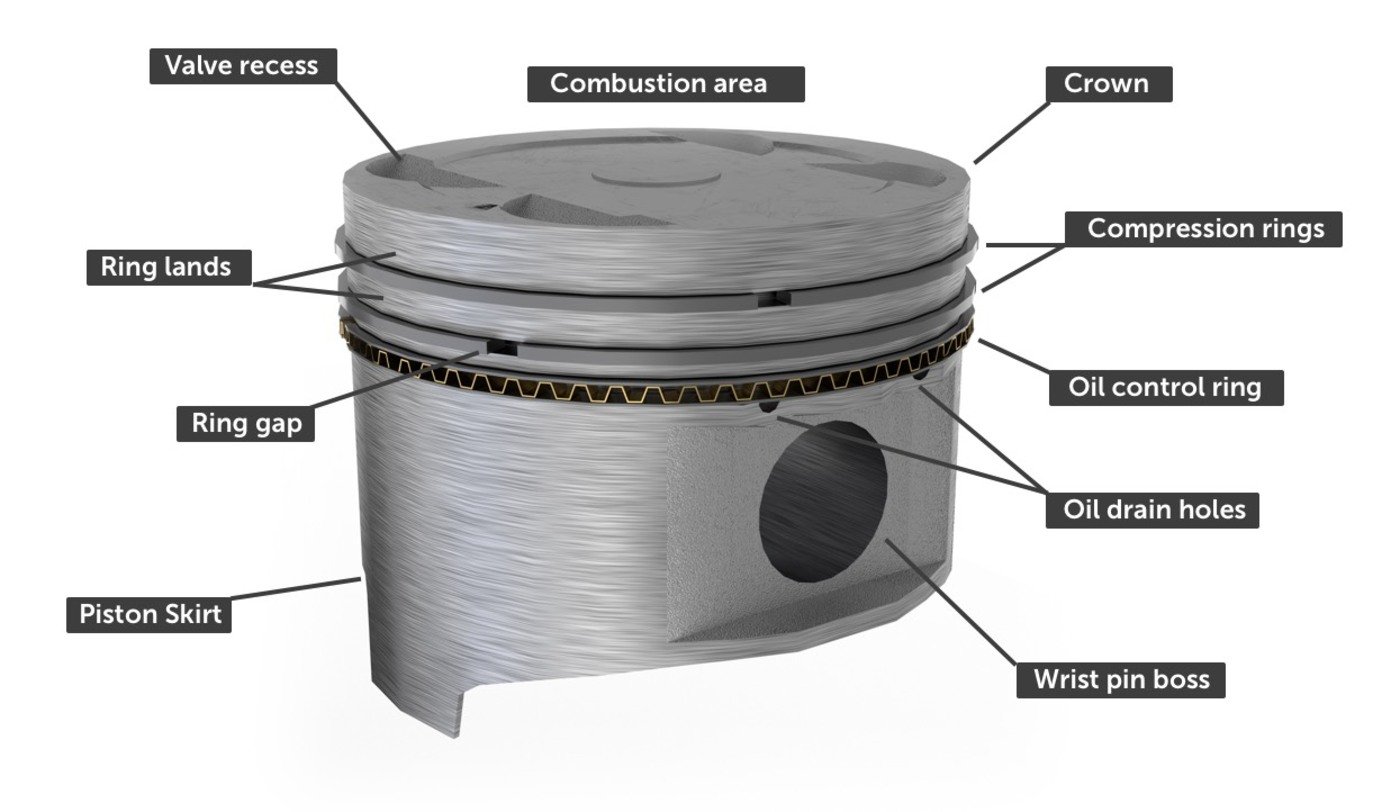

Piston rods and cylinder bores hold +/-0.01–0.02 mm diameter tolerance with Ra 0.4–0.6 µm honed surfaces to seal reliably under 200+ bar pressure. Chrome-plated C45 and nitrided 42CrMo4 resist corrosion and galling.

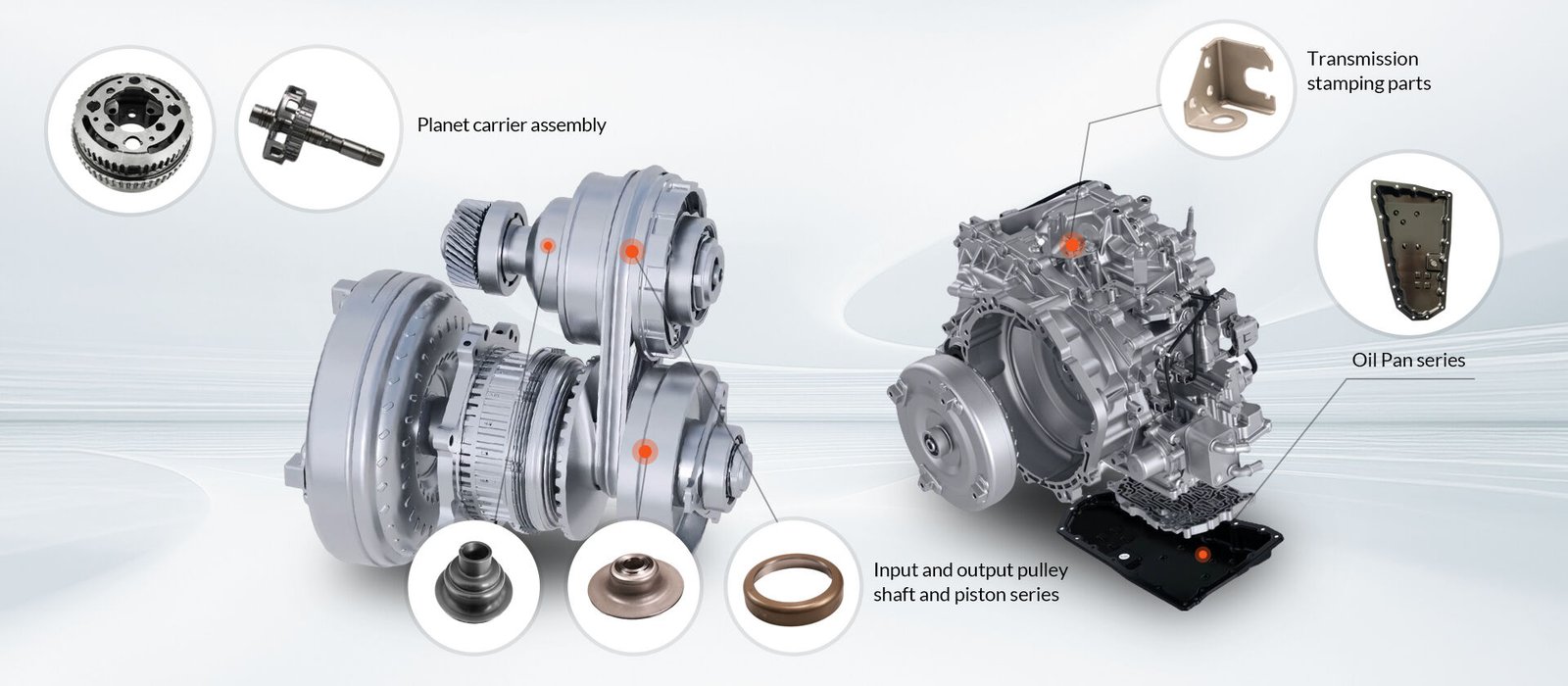

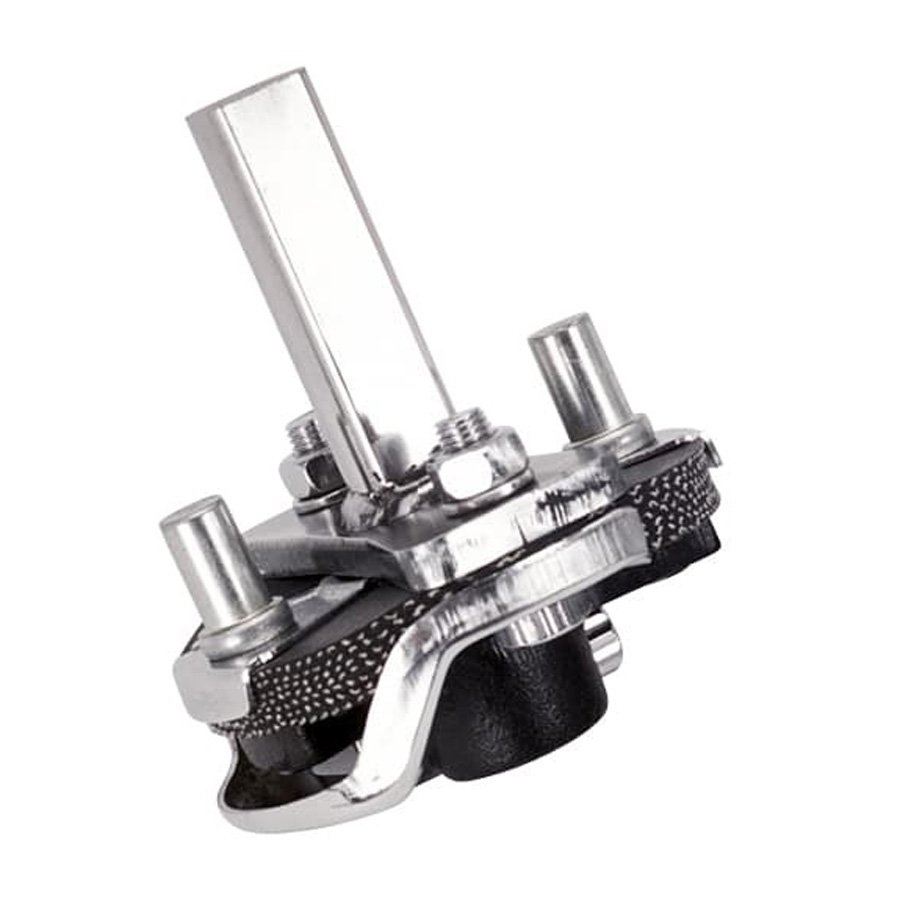

Gear and Transmission Parts

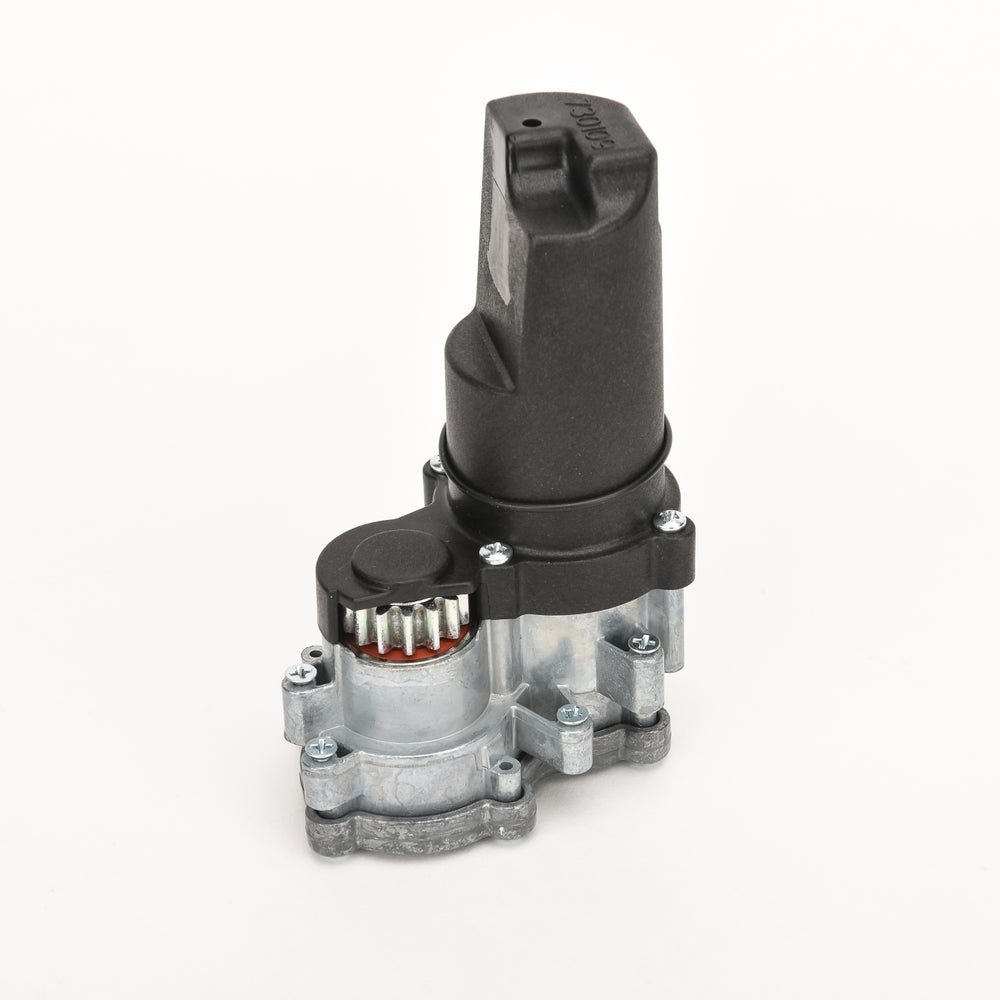

Precision gears demand DIN 5–7 quality grades, translating to +/-0.008–0.02 mm pitch tolerance and Ra 0.8–1.6 µm tooth-flank finish. Case-hardened 20CrMnTi and 18CrNiMo7-6 steels deliver 58–62 HRC surface hardness after carburizing.

Alloy and Tool Steels

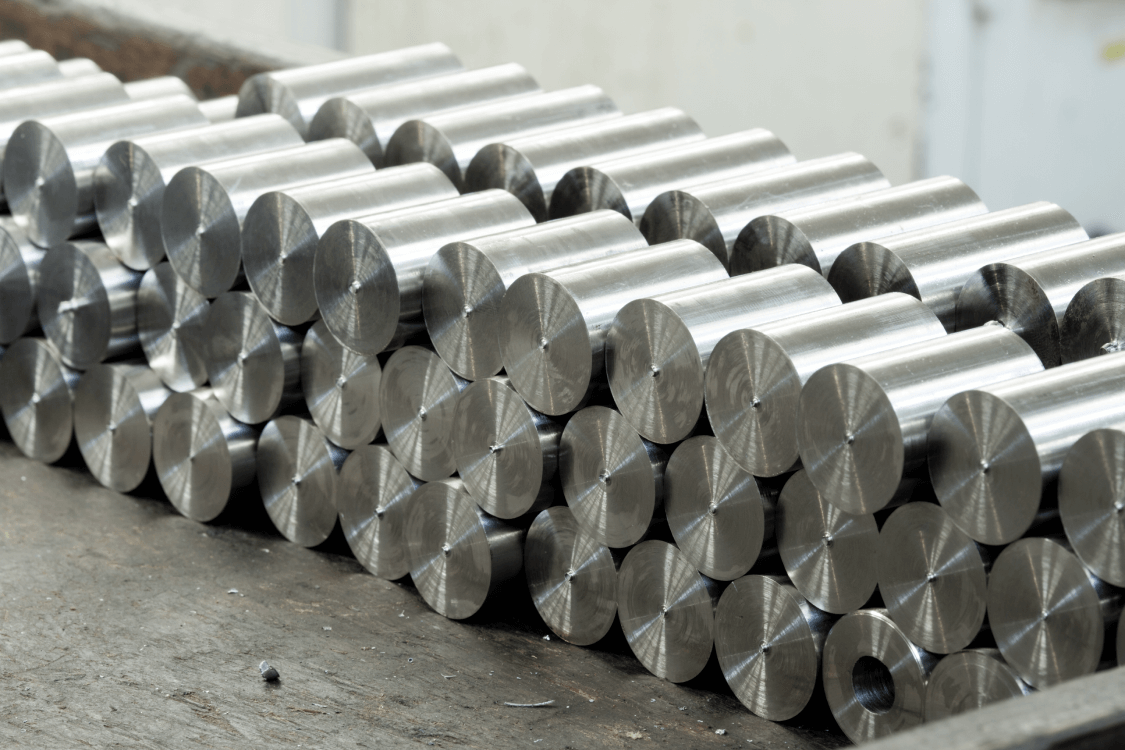

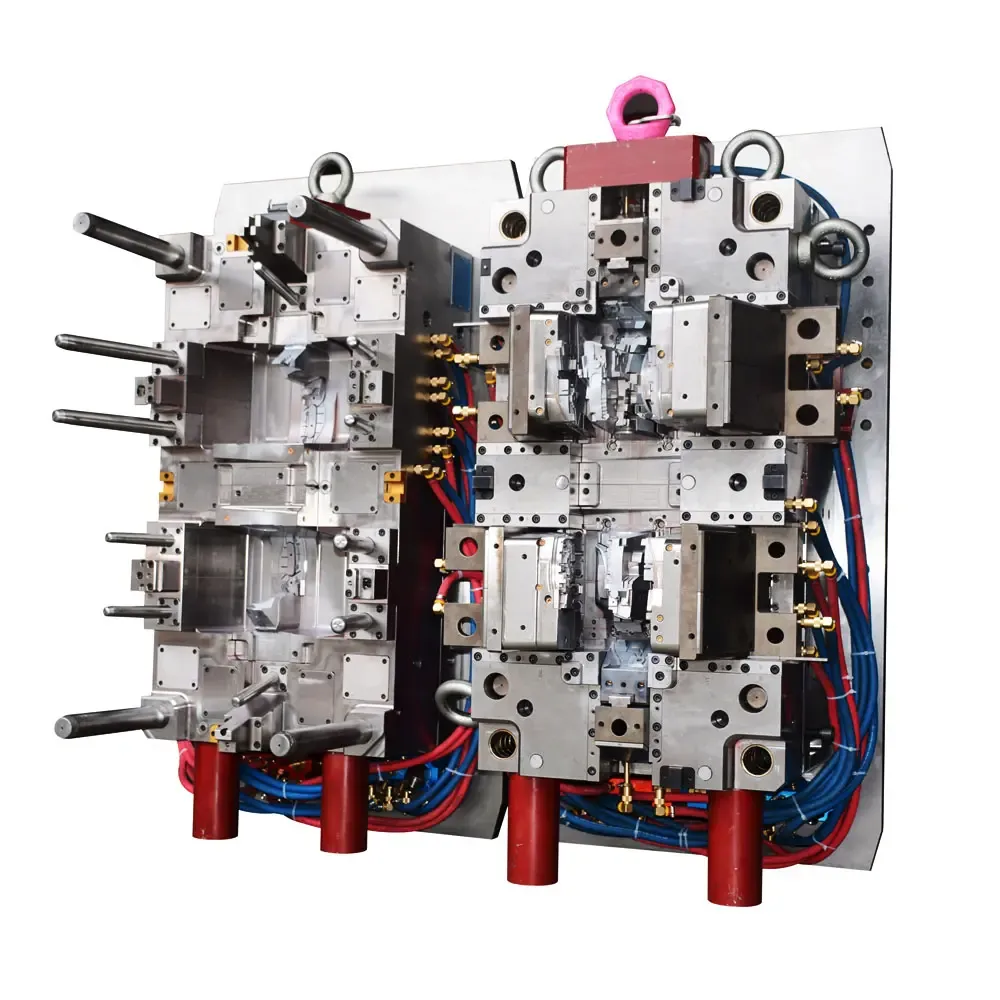

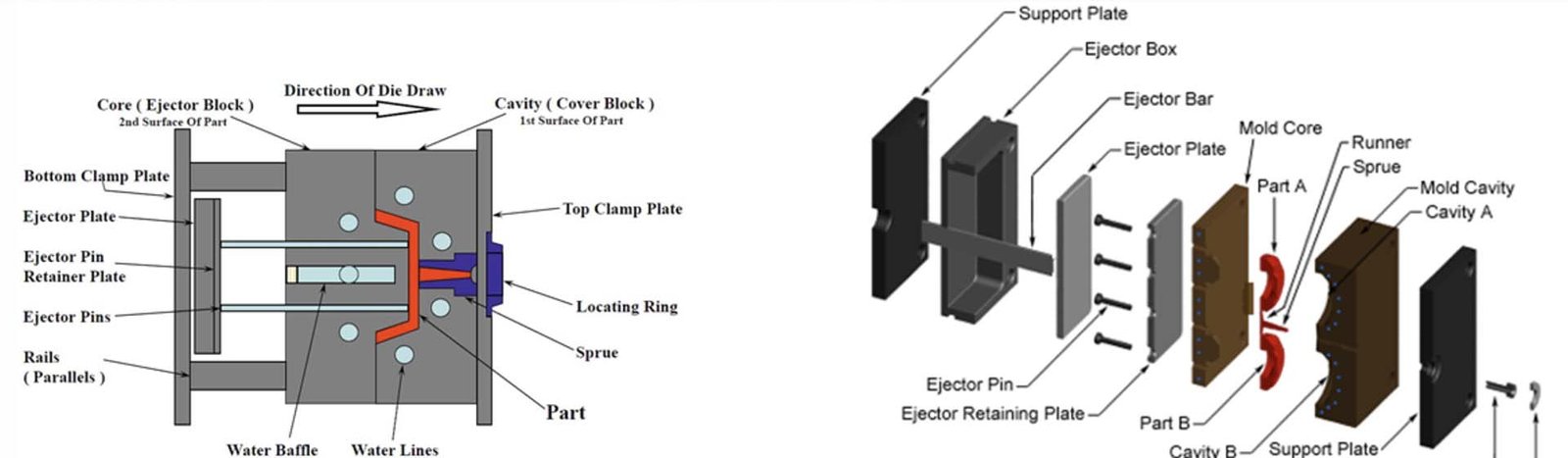

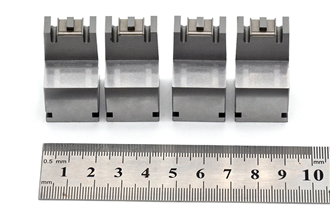

AISI 4140 and 4340 provide tensile strengths of 655–1,000 MPa and respond well to quenching and tempering for shafts, gears and structural frames. H13 and D2 tool steels reach 1,900+ MPa after heat treatment, ideal for high-wear die inserts and punches. Case hardening adds a 0.5–1.5 mm wear-resistant skin while preserving a tough core.

Stainless and Corrosion-Resistant Grades

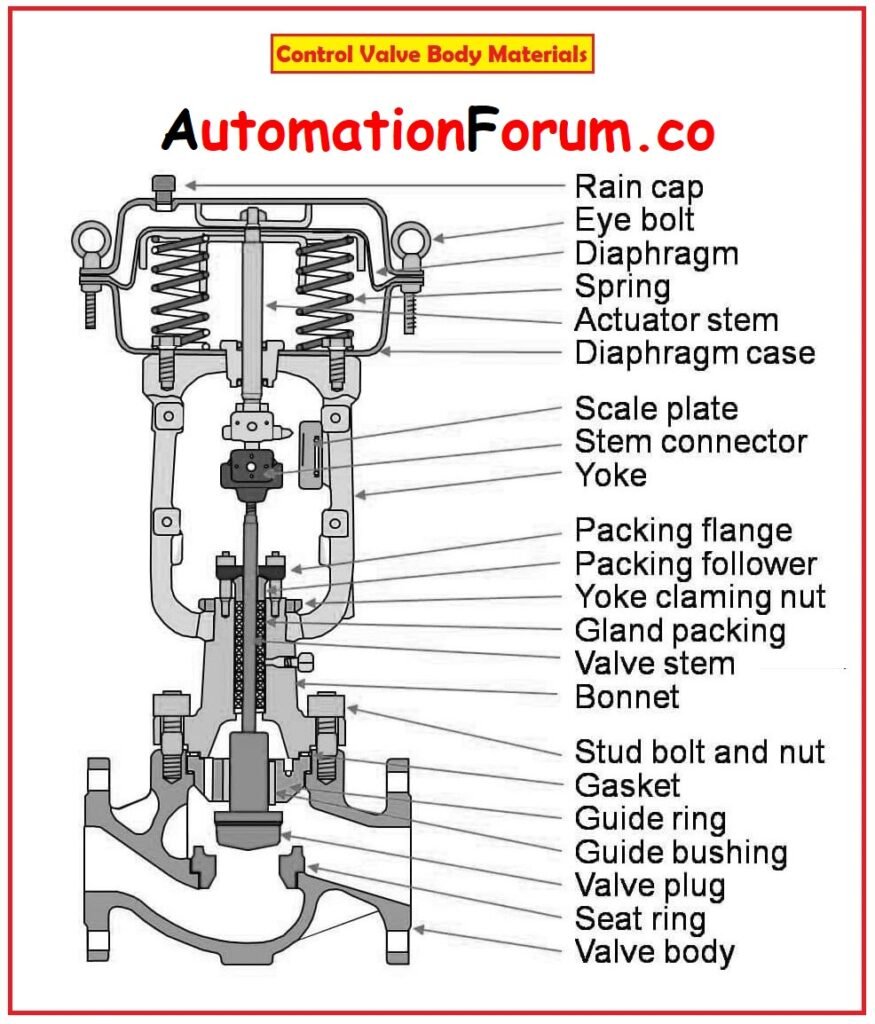

17-4 PH precipitation-hardening stainless delivers 1,100 MPa tensile strength and moderate machinability for hydraulic valve bodies and marine components. Type 316 stainless offers superior corrosion resistance at 515 MPa, suited to chemical processing equipment and offshore environments where rust prevention outweighs peak strength.

Aluminum Alloys and Bearing Materials

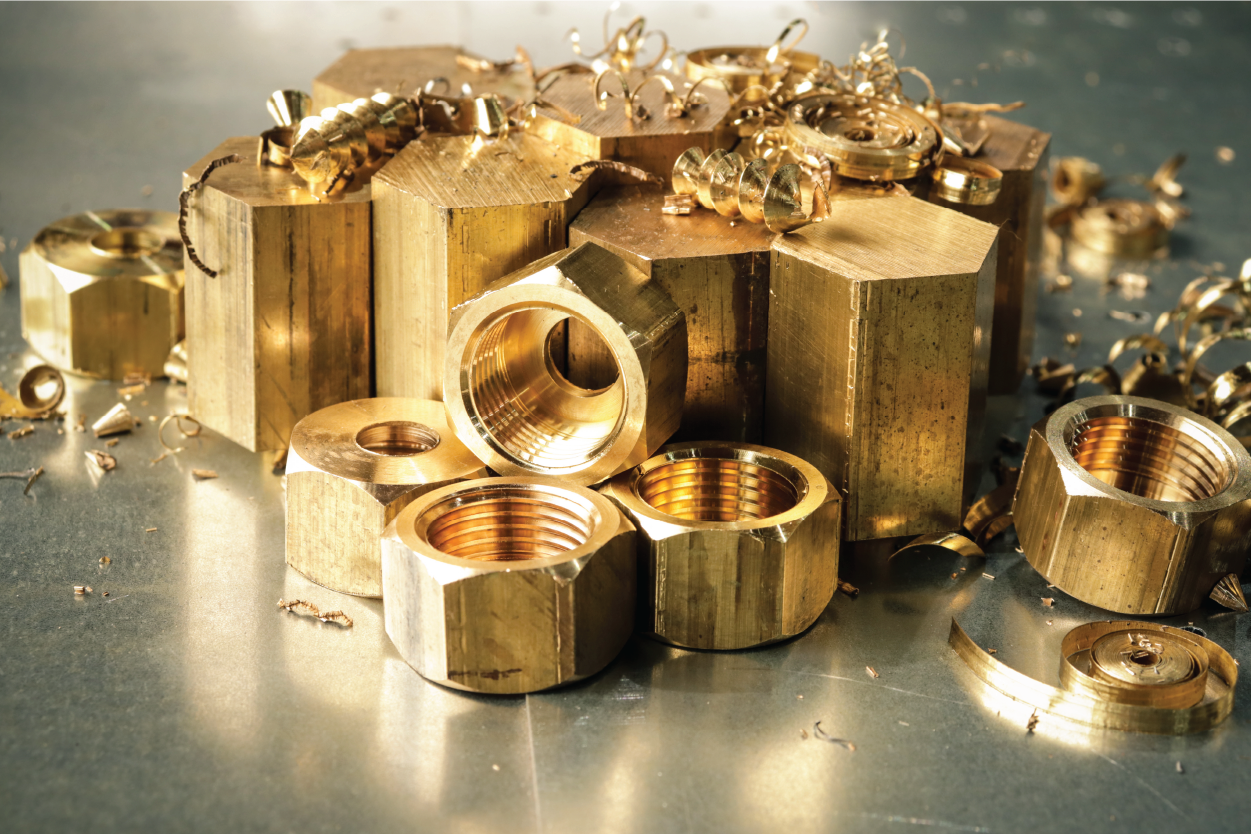

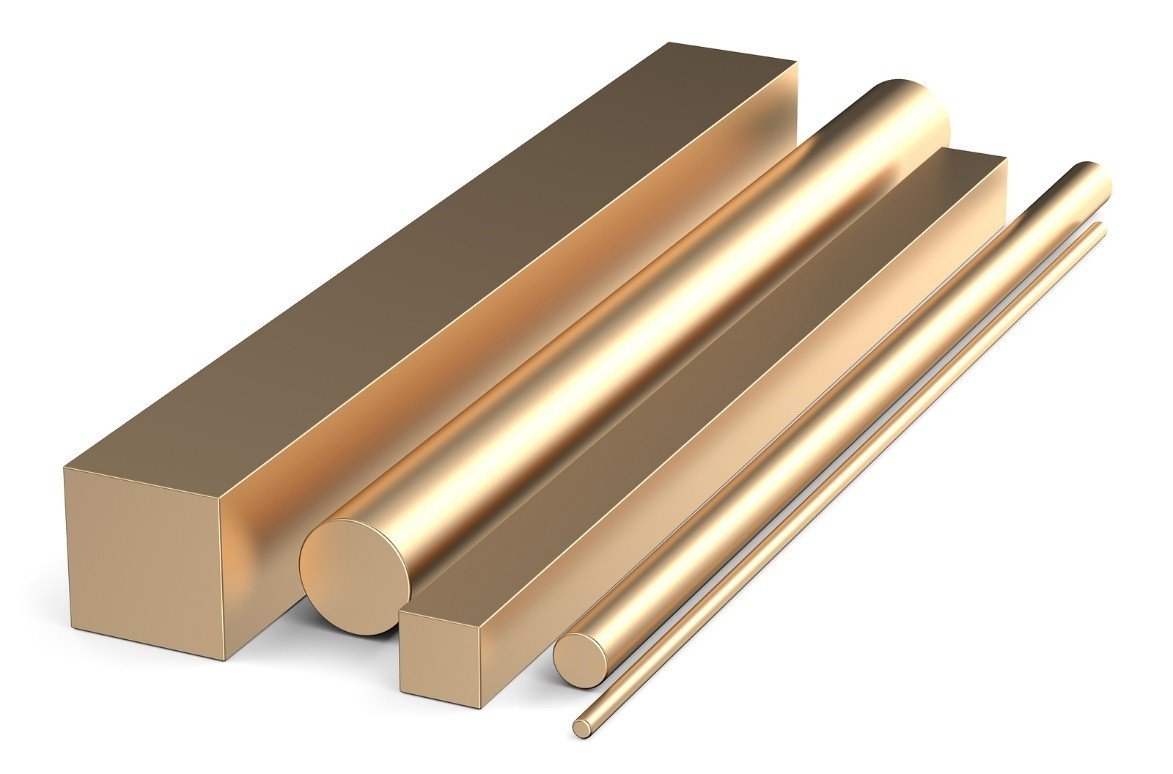

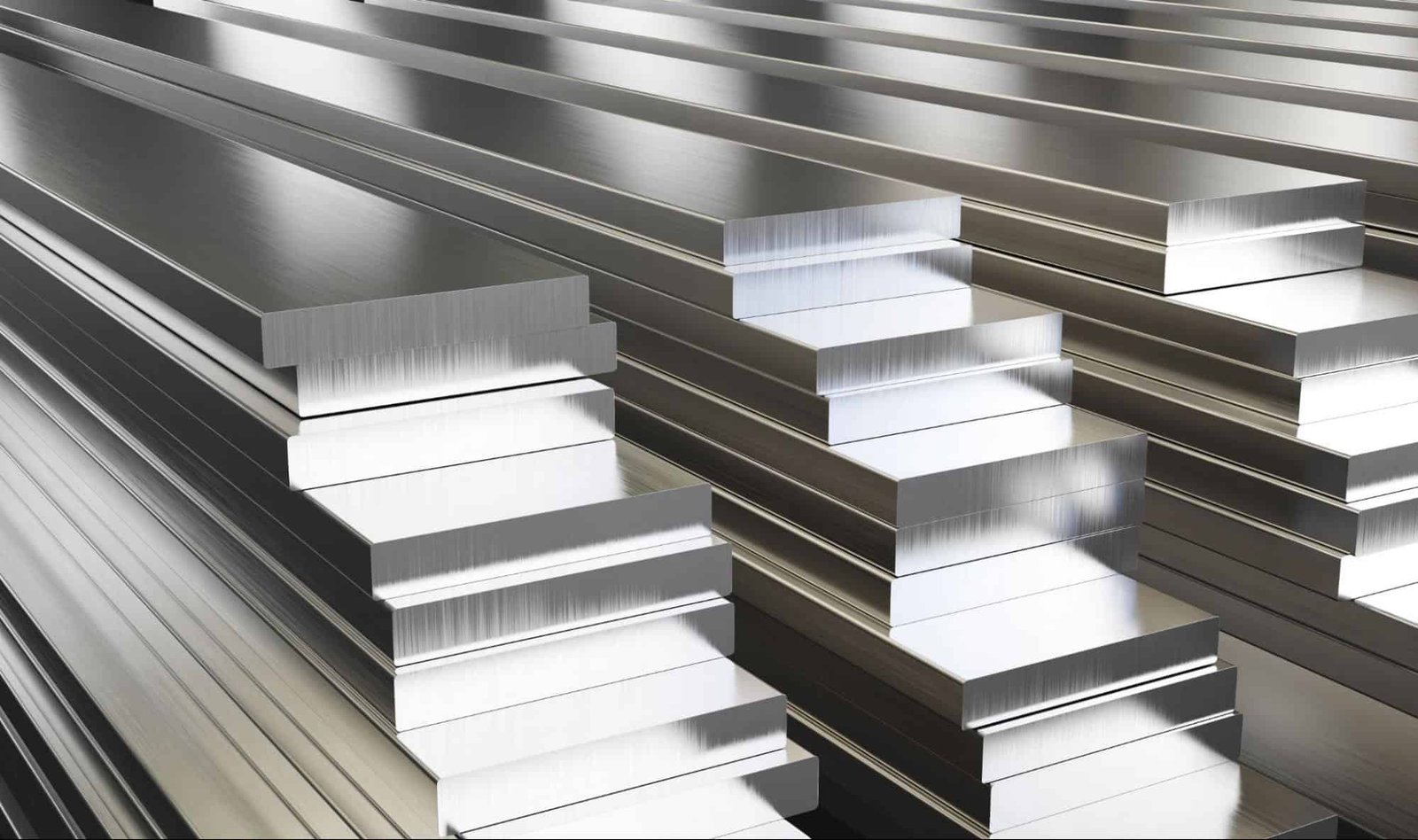

7075-T6 aluminum achieves 570 MPa with excellent machinability for lightweight actuator housings and robotic end effectors. 6061-T6 (310 MPa) balances cost and weldability for brackets and enclosures. Bronze and brass alloys serve as self-lubricating bushings and wear plates, reducing friction in pivot joints and sliding mechanisms.

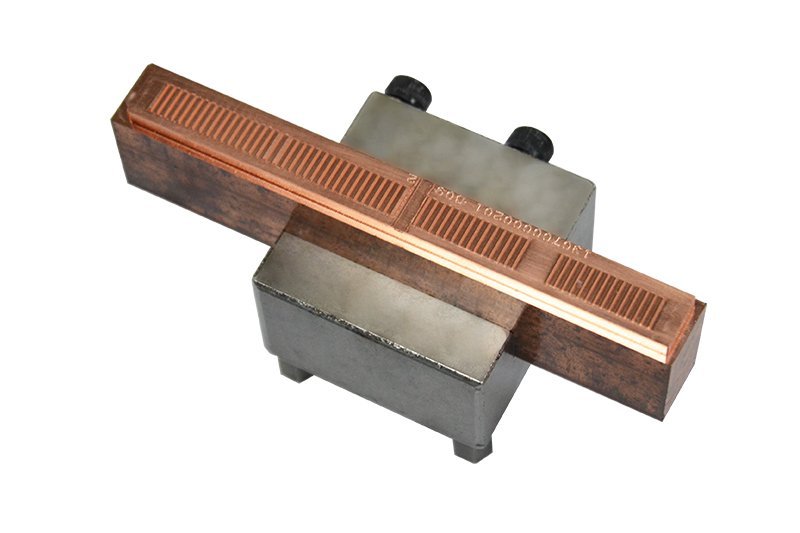

Dimensional Accuracy and GD&T Compliance

GD&T callouts govern positional tolerances, perpendicularity and true position — critical for mating surfaces in hydraulic manifolds and gearbox housings. XUXIANG validates every feature against drawing datums using ZEISS MICURA CMM (0.7 µm resolution), ensuring +/-0.001 mm machining accuracy on CNC-turned shafts and EDM-cut profiles.

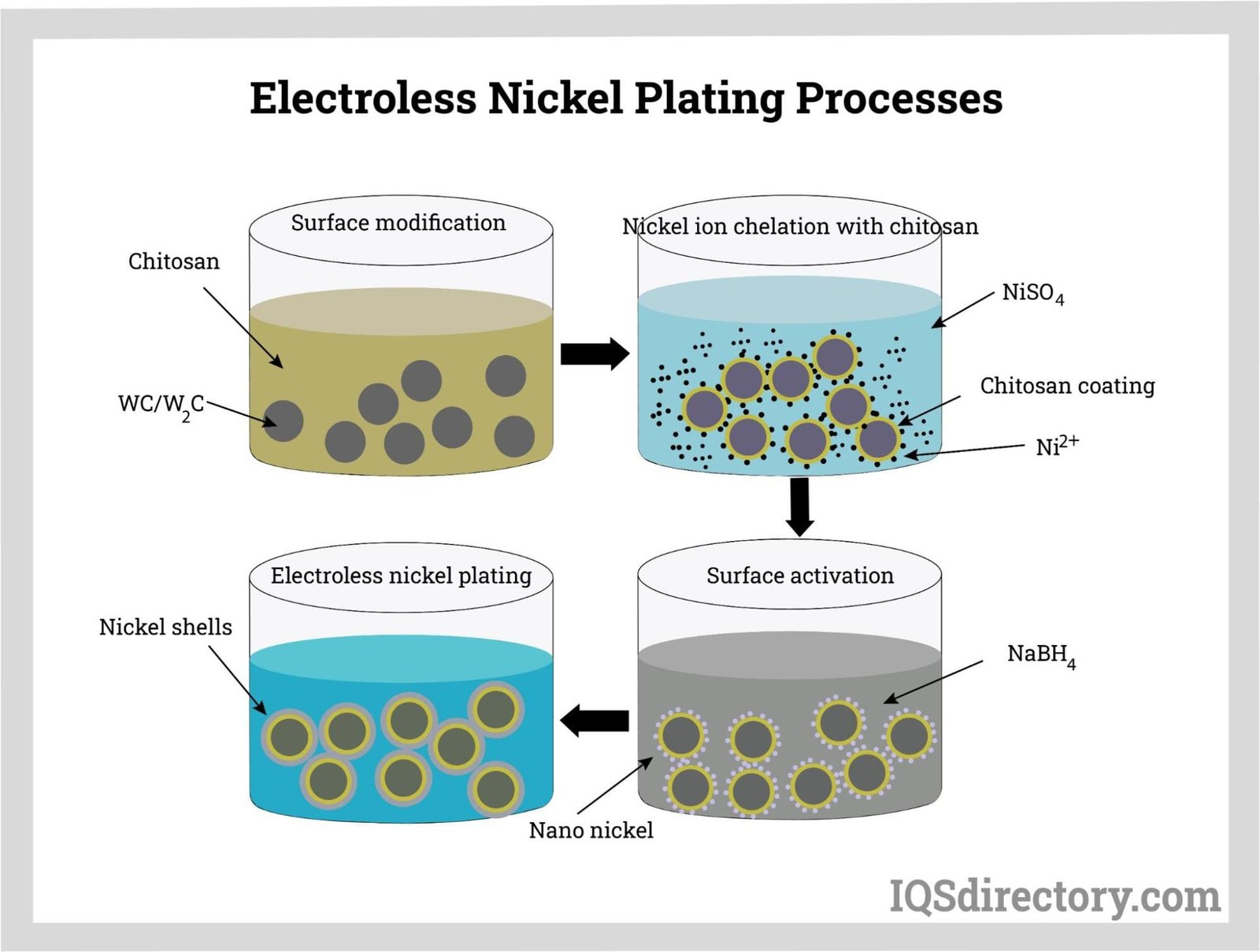

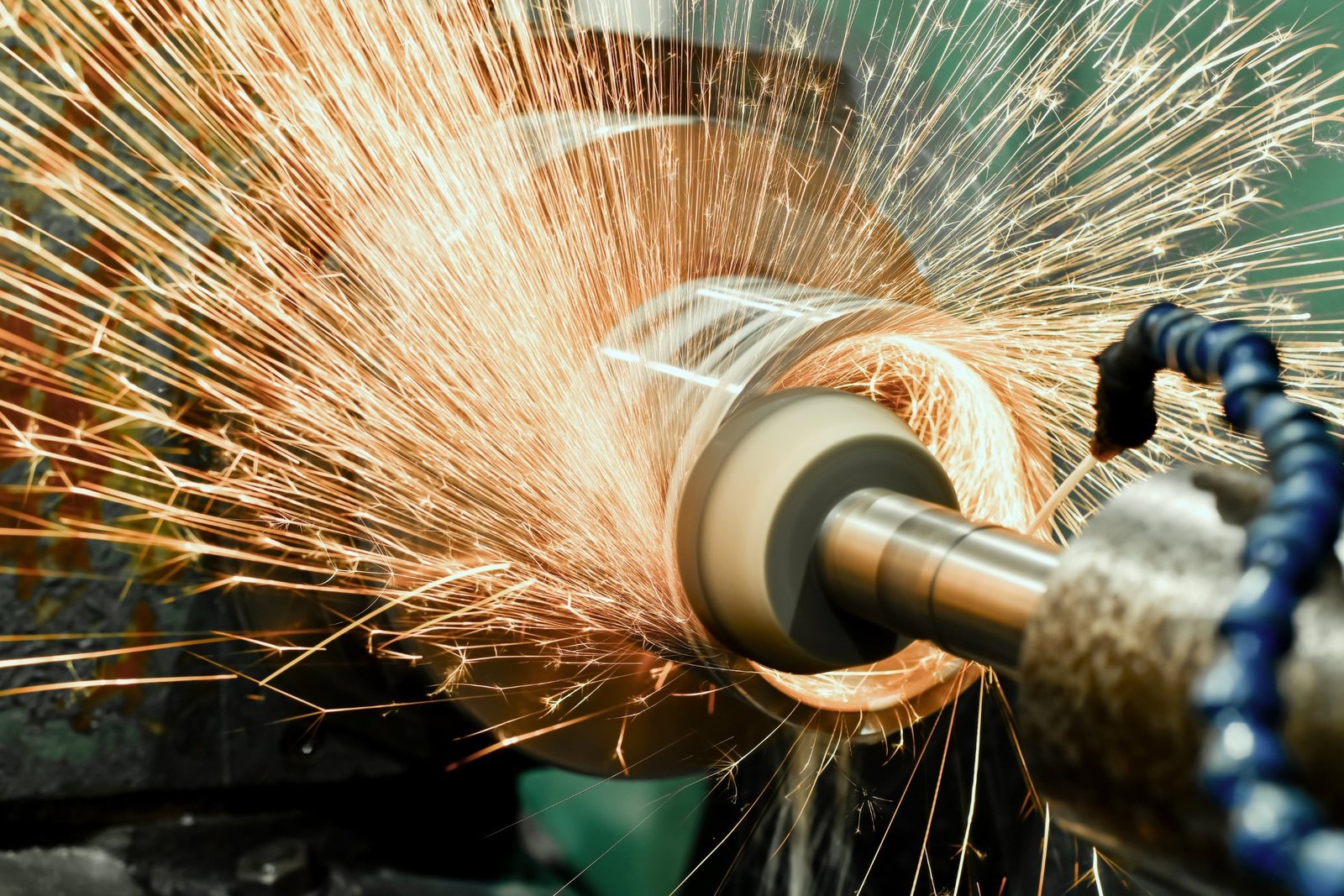

Surface Finish and Tool-Mark Control

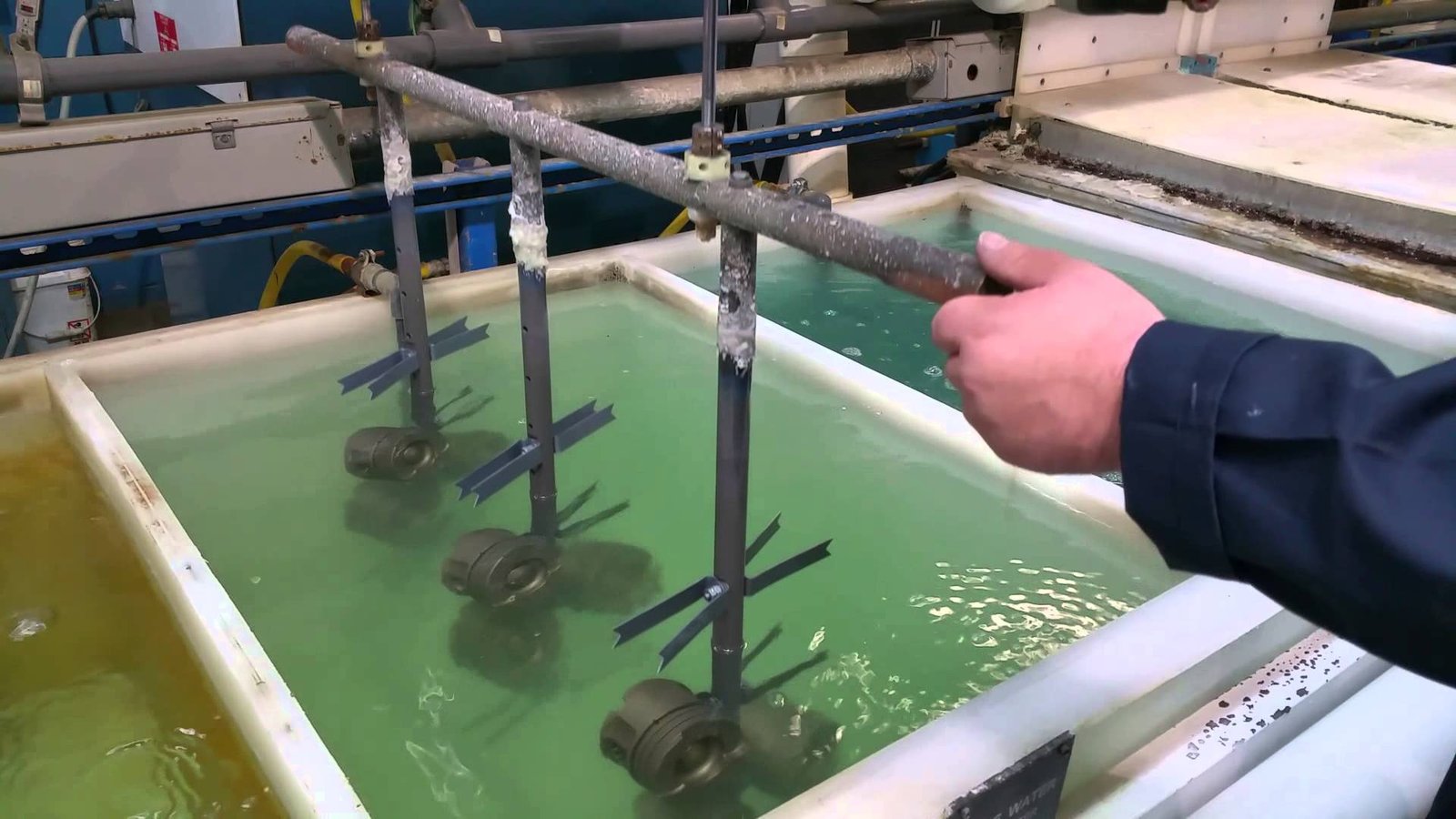

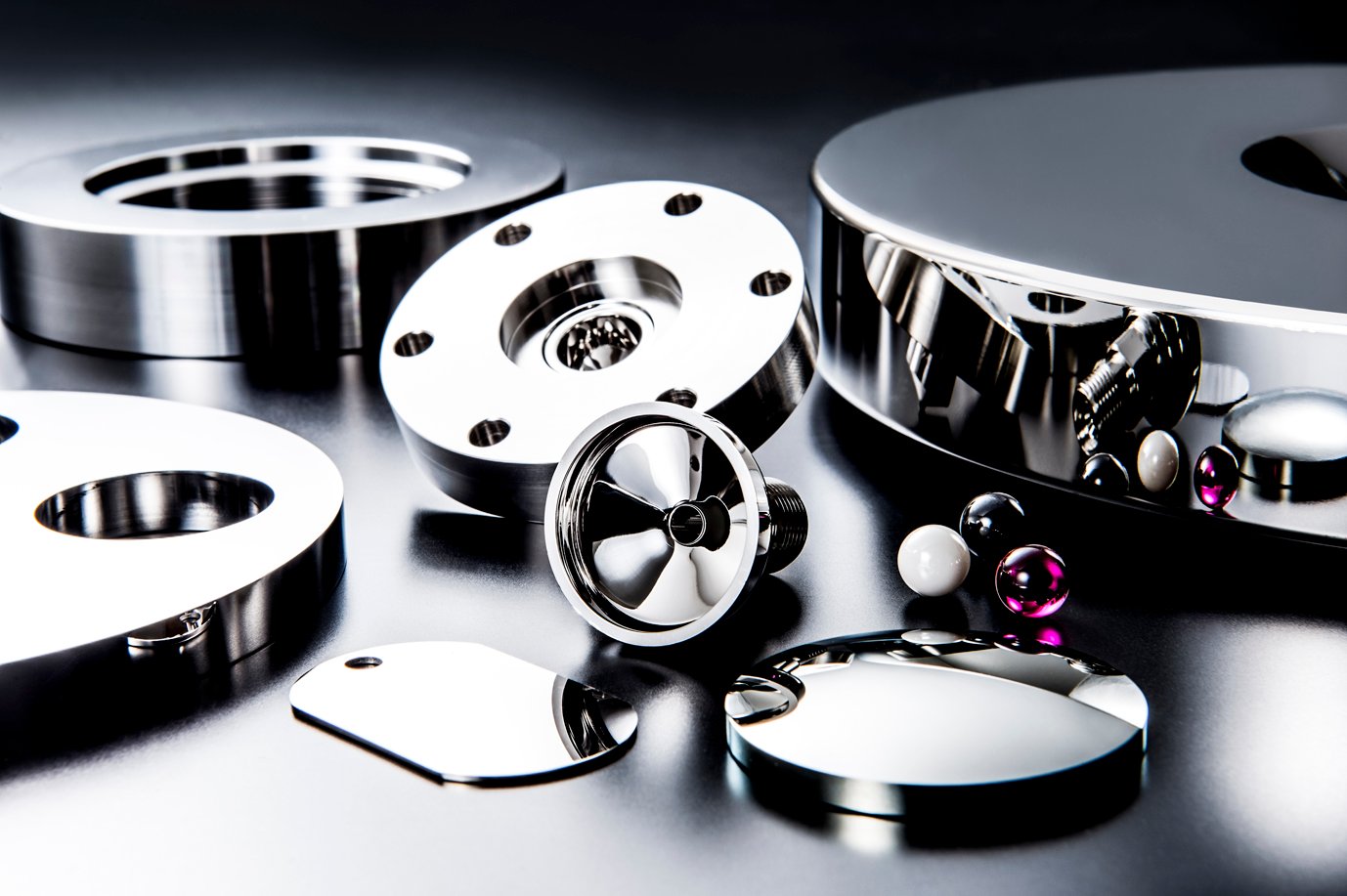

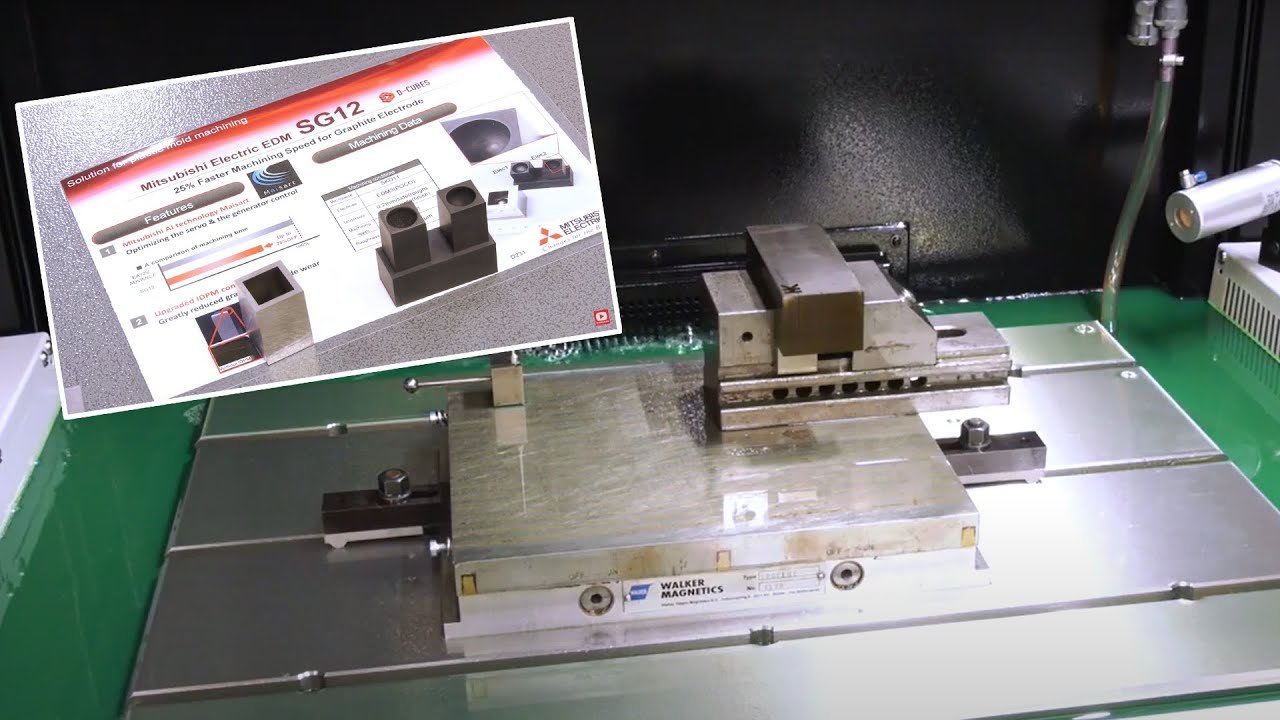

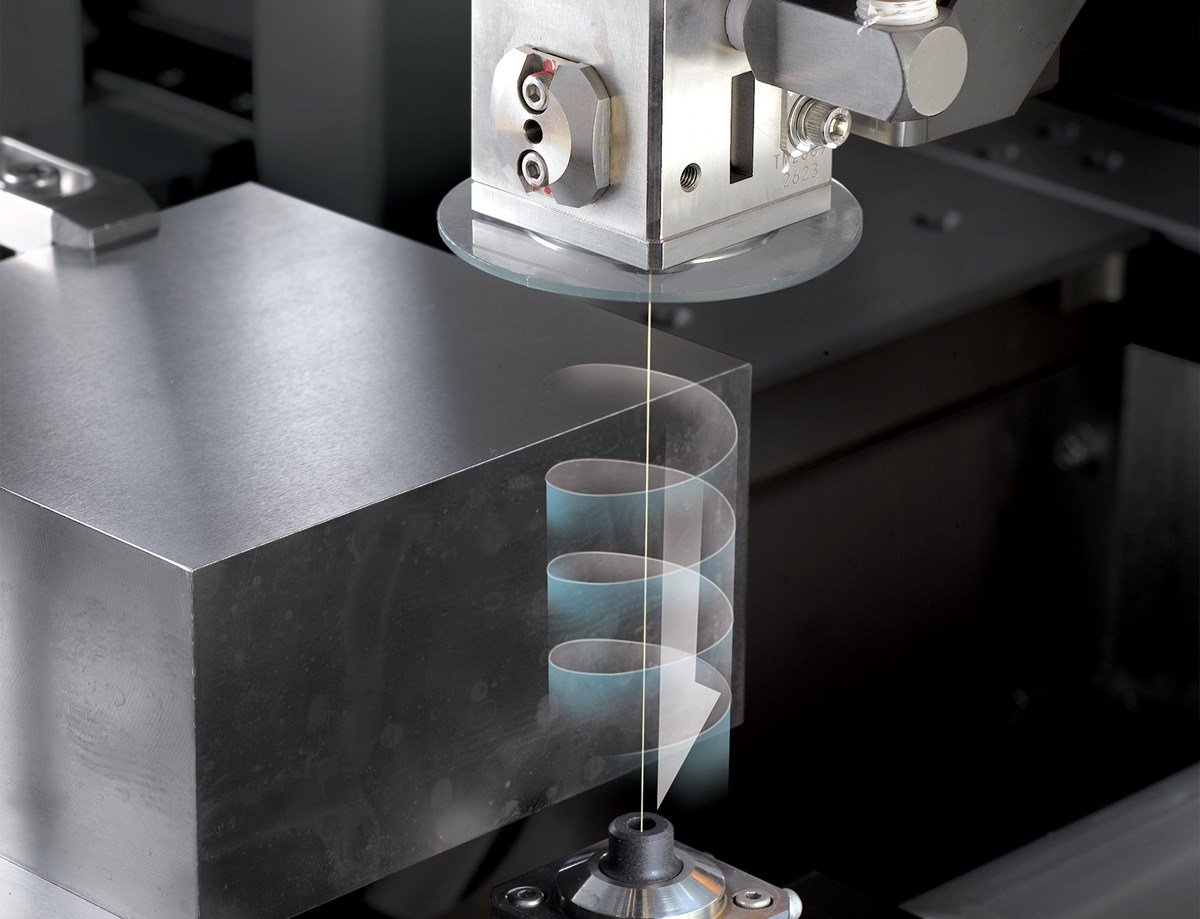

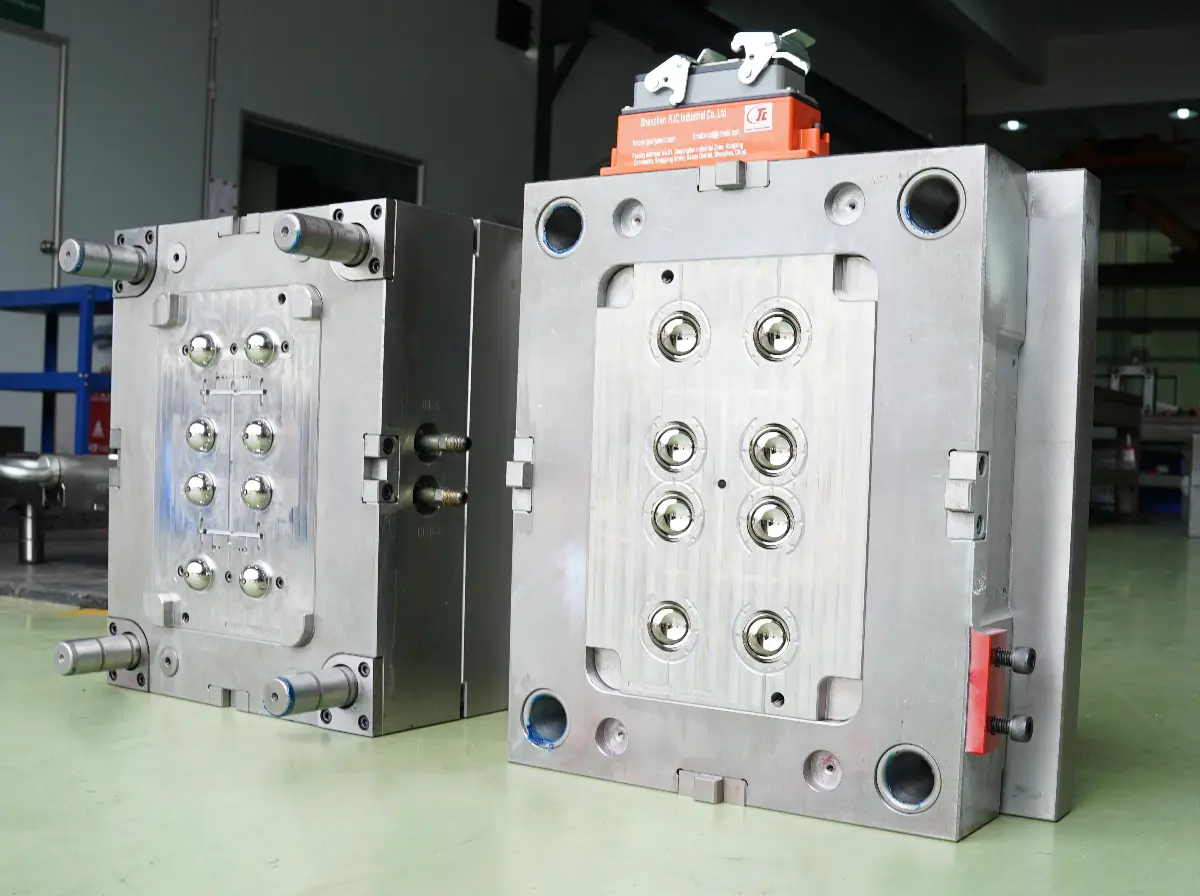

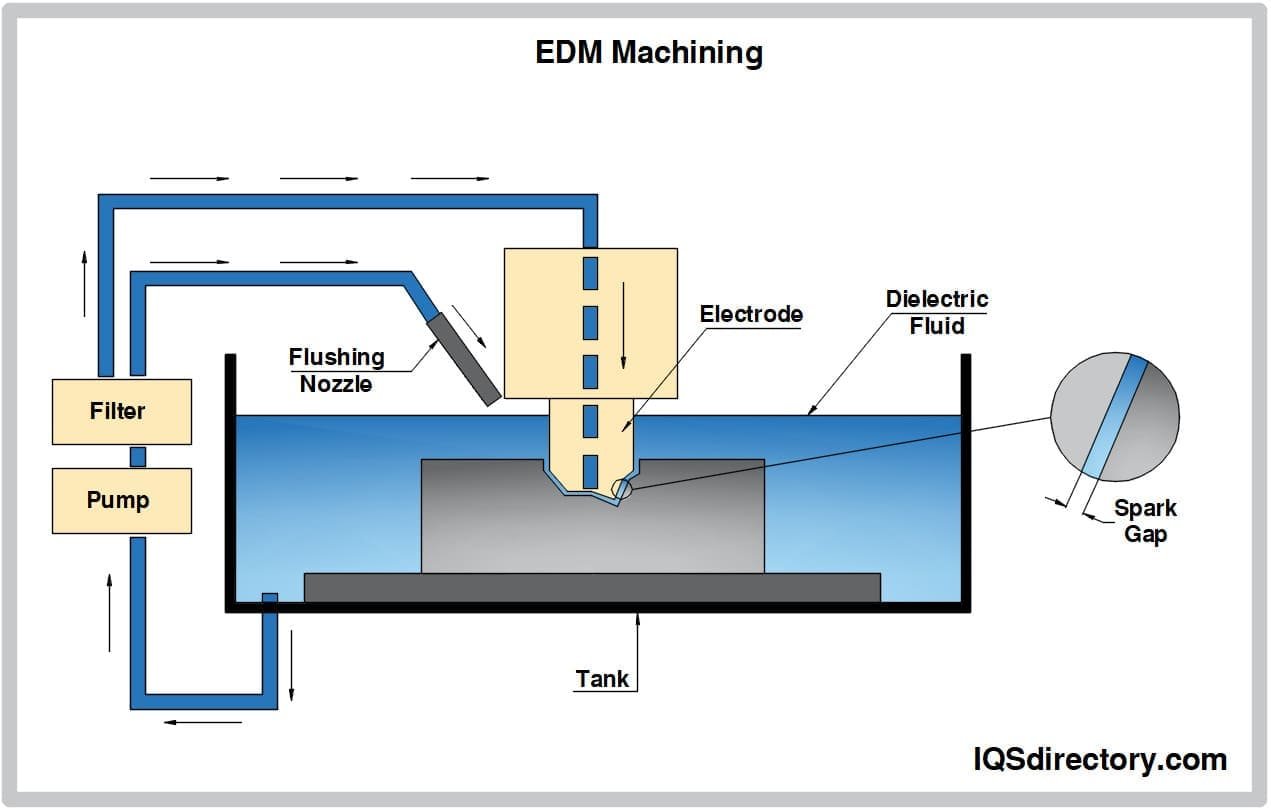

Ra values below 0.8 µm reduce friction and seal-seat leakage in hydraulic cylinders. Mirror-grade EDM (Ra 0.1 µm) and precision grinding eliminate tool chatter marks that nucleate fatigue cracks under cyclic load.

Material Traceability and Mill Certifications

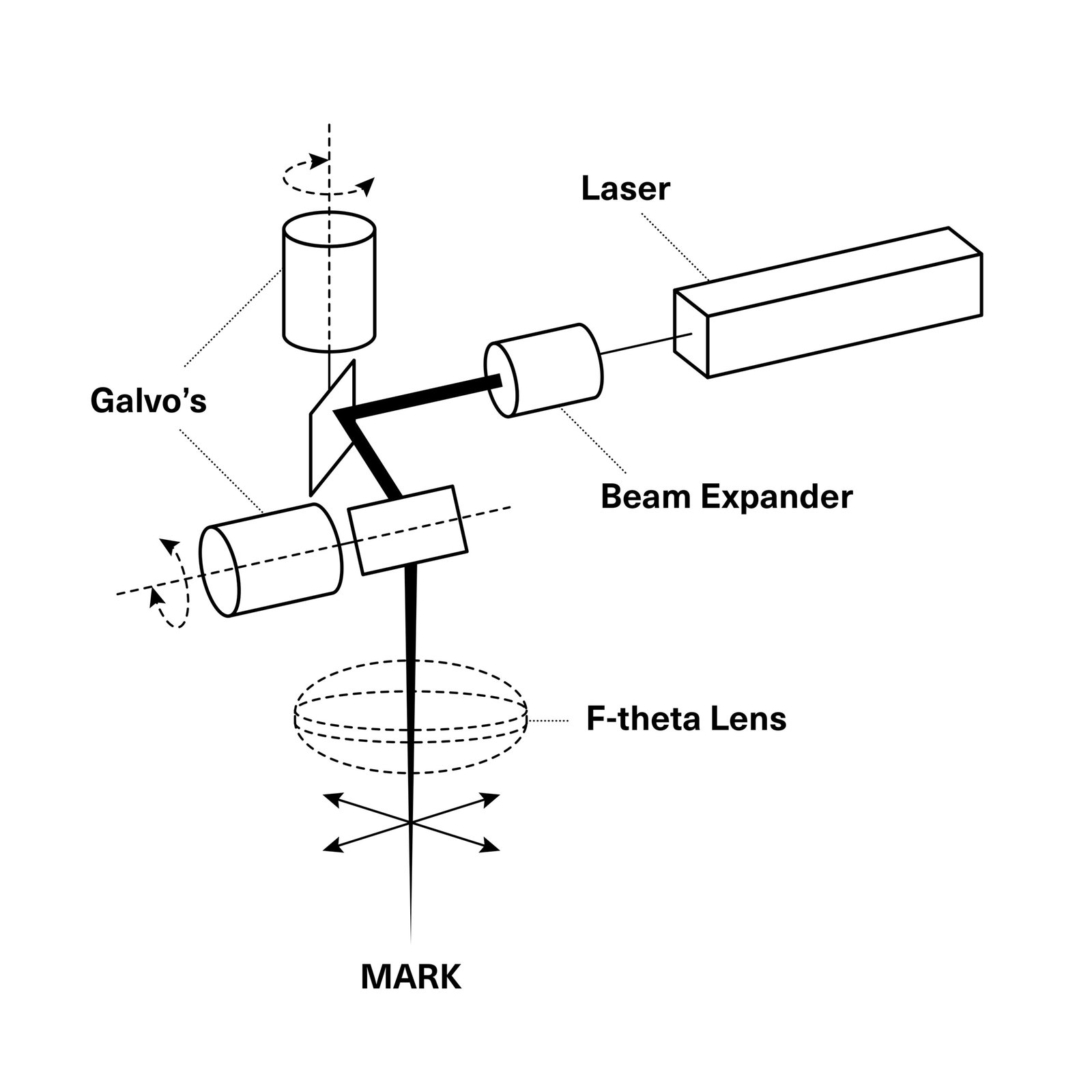

Mill certificates tie heat-lot numbers to chemical composition and mechanical properties. Spectral analysis at incoming inspection confirms alloy grades, preventing counterfeit steel from entering tier-1 supply chains.

Heat-Treatment Verification and Hardness Testing

Rockwell or Vickers hardness testing validates case depth and core hardness post-carburizing or nitriding. Out-of-spec hardness leads to premature wear in gear teeth and bearing races.

Non-Destructive Testing Methods

Ultrasonic and magnetic-particle inspection detect subsurface voids, inclusions and micro-cracks invisible to CMM. Critical for high-stress components like crankshafts and connecting rods where hidden defects trigger catastrophic failure.

First-Article Inspection Reports

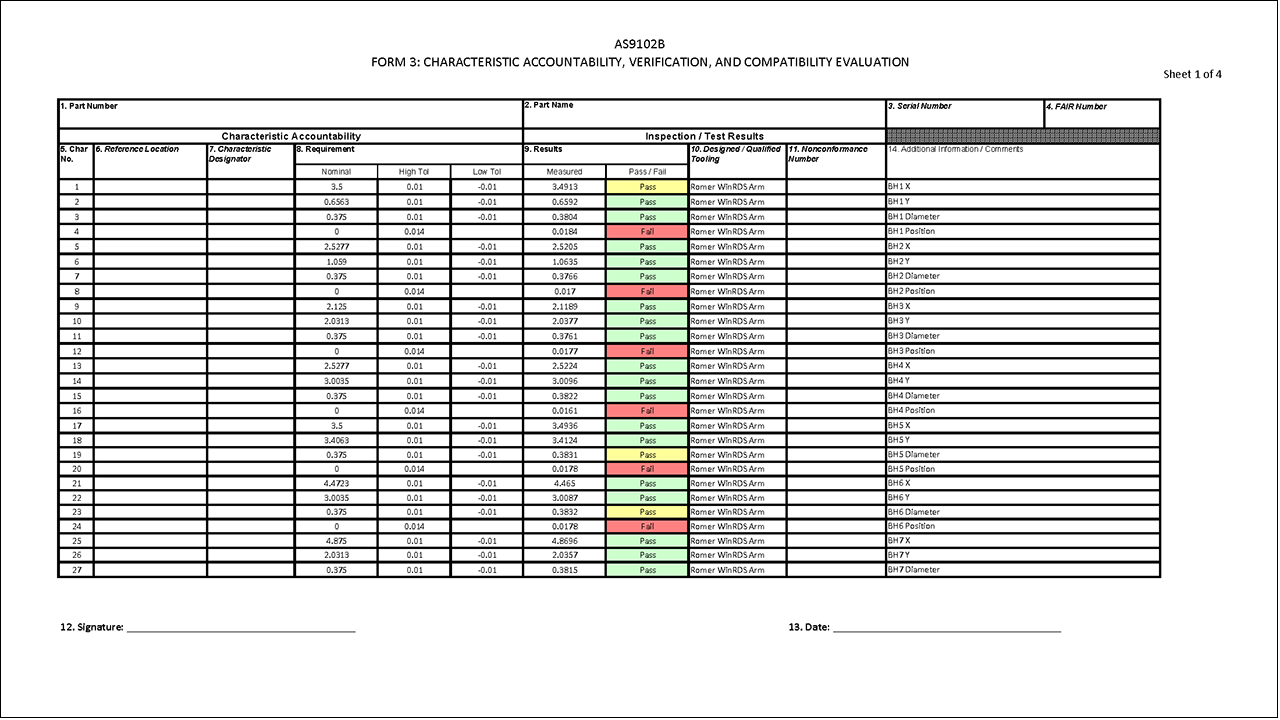

FAI packages document every dimension, material certificate and process parameter before series production. OEMs rely on ISO-compliant FAI to qualify suppliers and satisfy traceability audits.

Verify CNC and Metrology Infrastructure

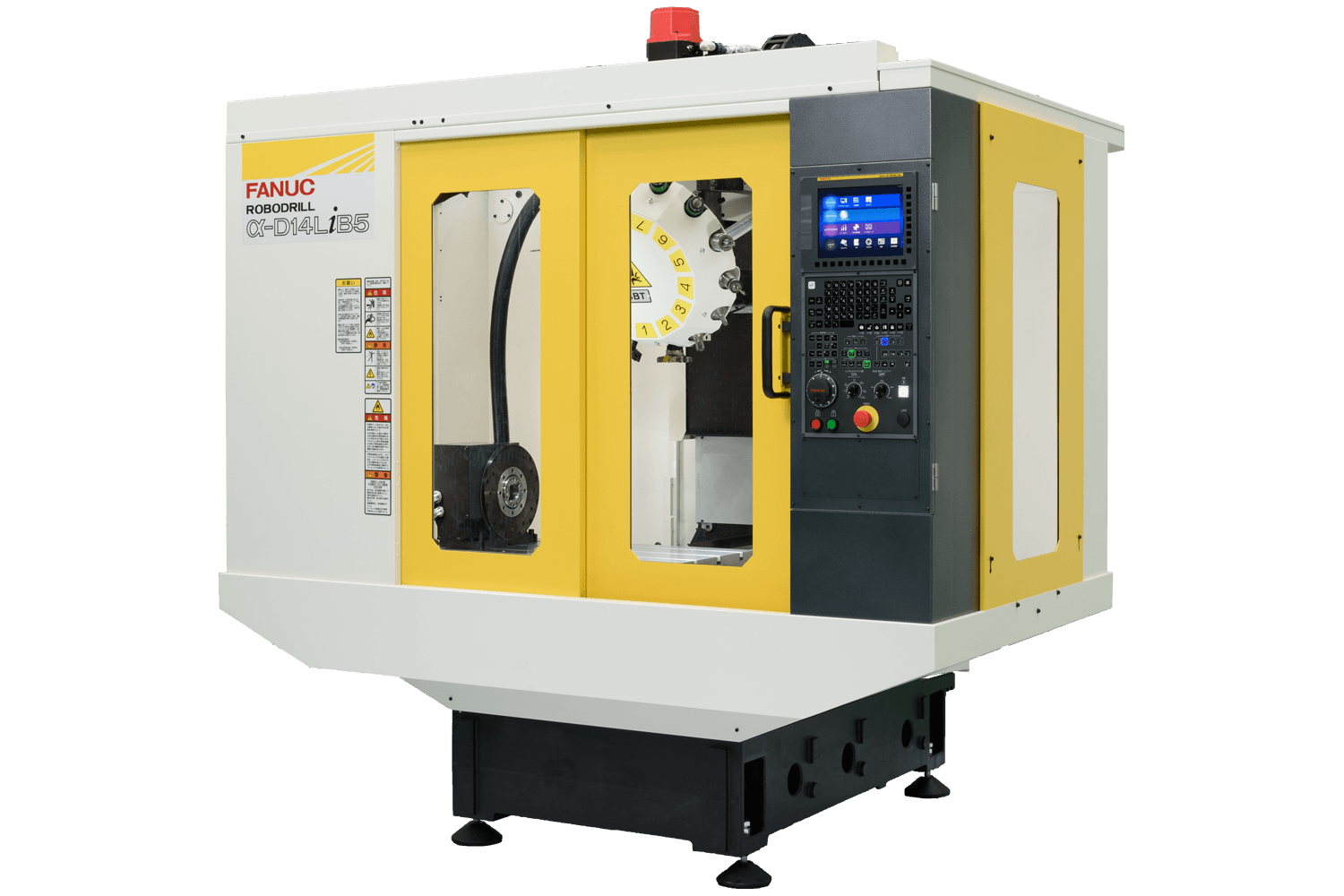

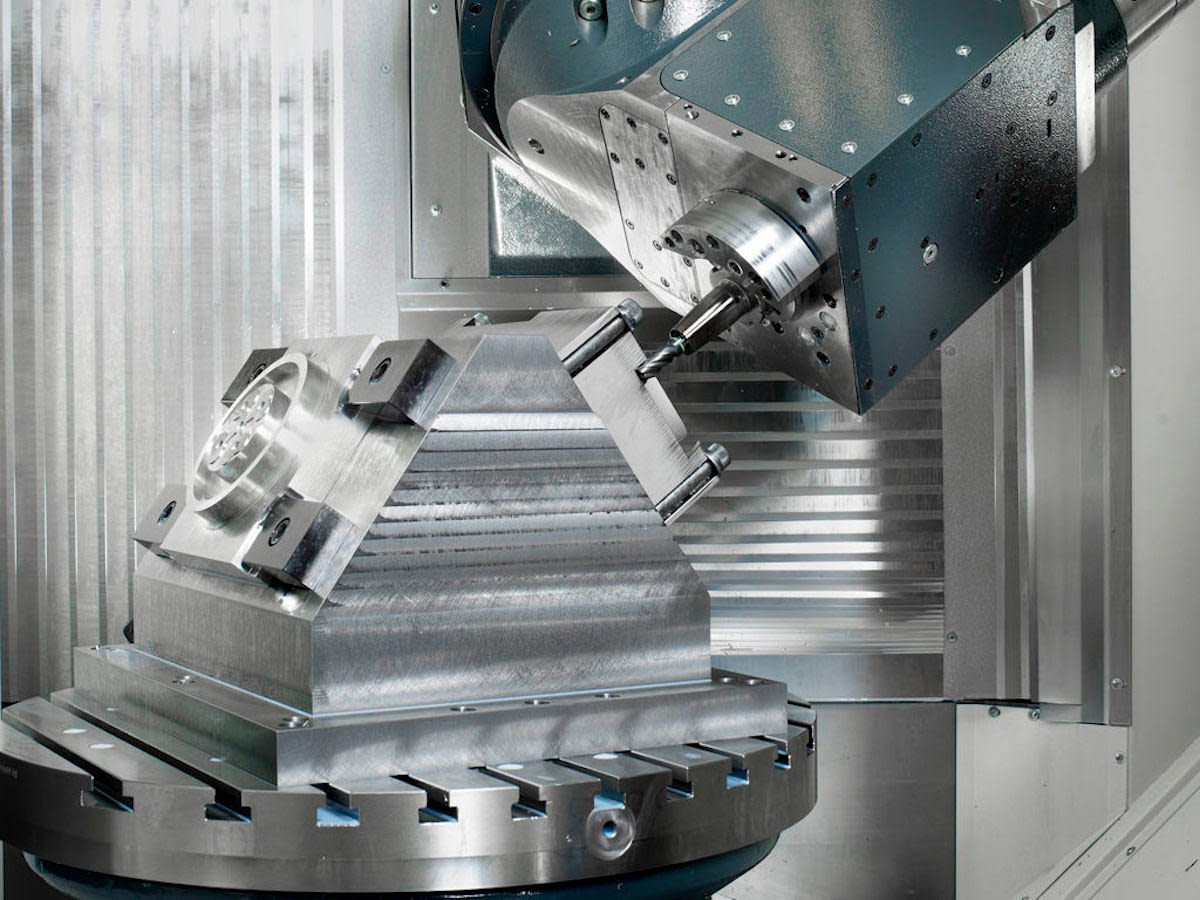

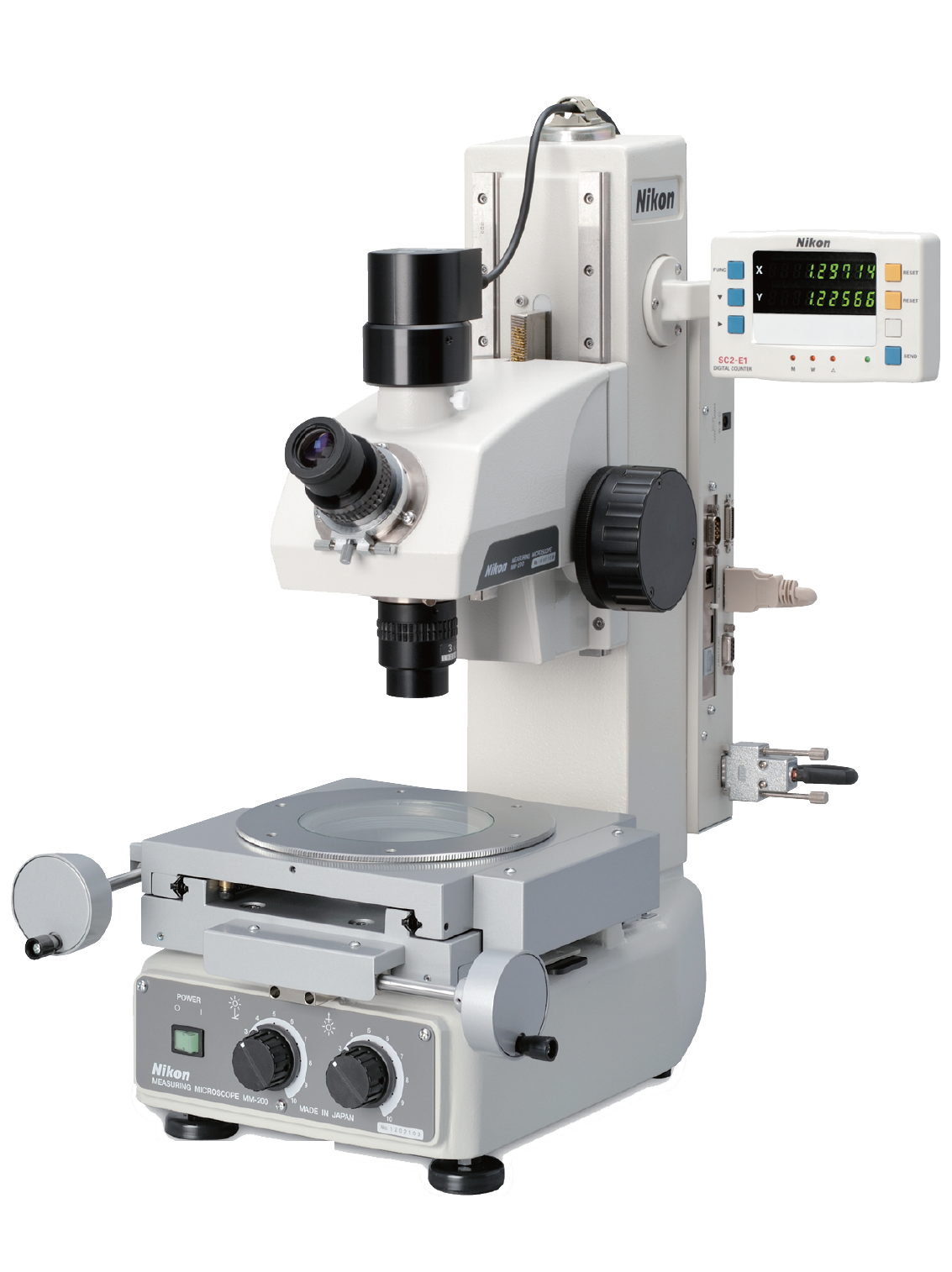

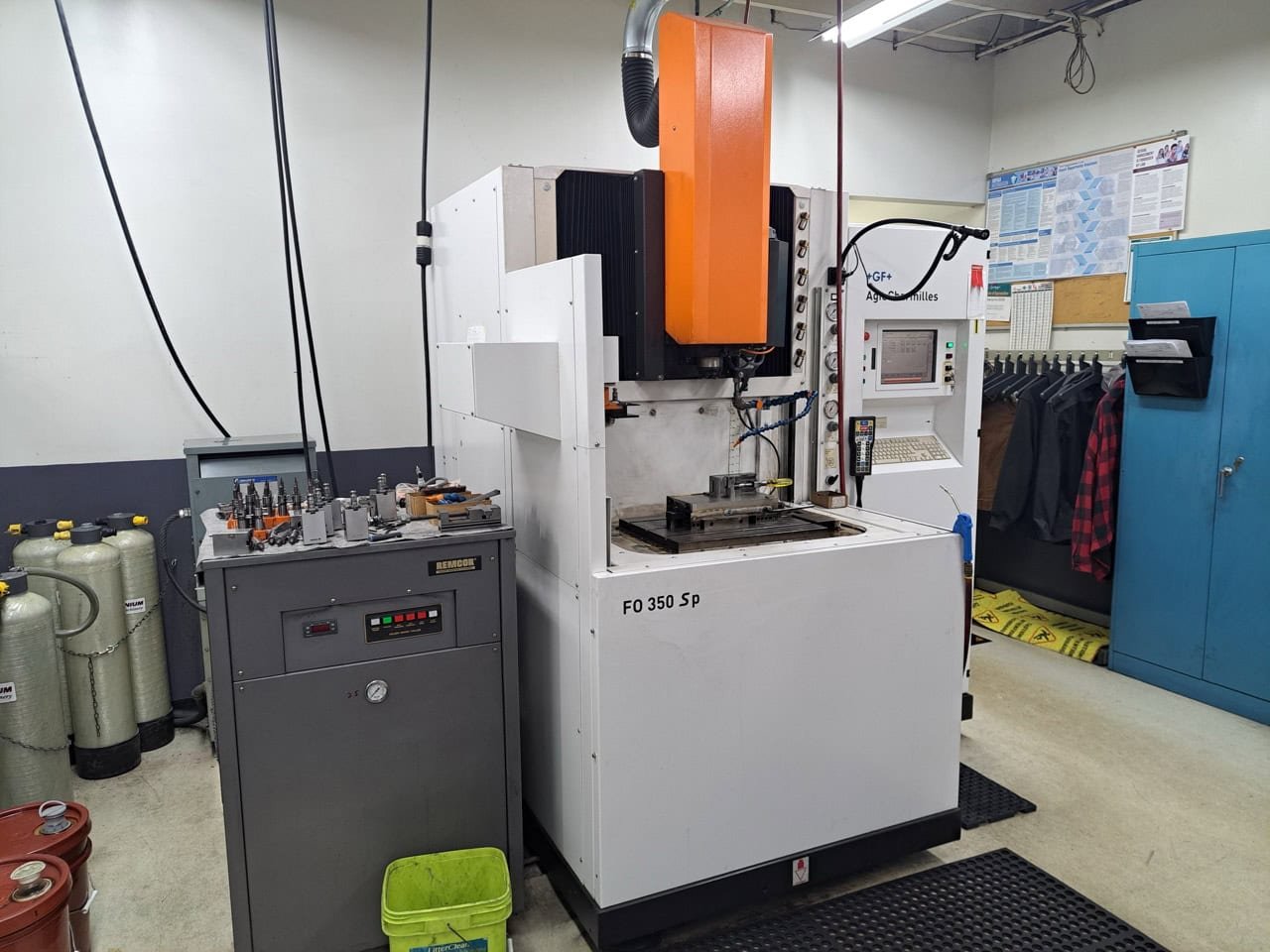

Confirm the shop operates 5-axis machining centers and turning centers with ≥500 mm swing capacity for large-diameter shafts and housings. Request a metrology-lab tour: CMM systems (ZEISS or equivalent), optical comparators and GD&T-capable inspection protocols are non-negotiable. XUXIANG’s ZEISS MICURA CMM measures to 0.7 µm, backed by Nikon toolmaker’s microscopes, ensuring +/-0.001 mm accuracy on heavy-duty components.

Review Certifications and Sector Experience

ISO 9001:2015 is baseline; AS9100 signals aerospace-grade traceability if your application overlaps. Request case studies or drawings from heavy-equipment, mining or industrial-automation projects. Missing GD&T expertise or vague references are immediate red flags.

Assess Lead-Time, MOQ and Material Traceability

Clarify standard lead times, MOQ thresholds and material-sourcing documentation (mill certificates, spectral analysis). In-house heat treatment and surface-finishing capabilities reduce subcontractor risk. Lack of traceability protocols or outsourced thermal processing often indicates quality gaps.

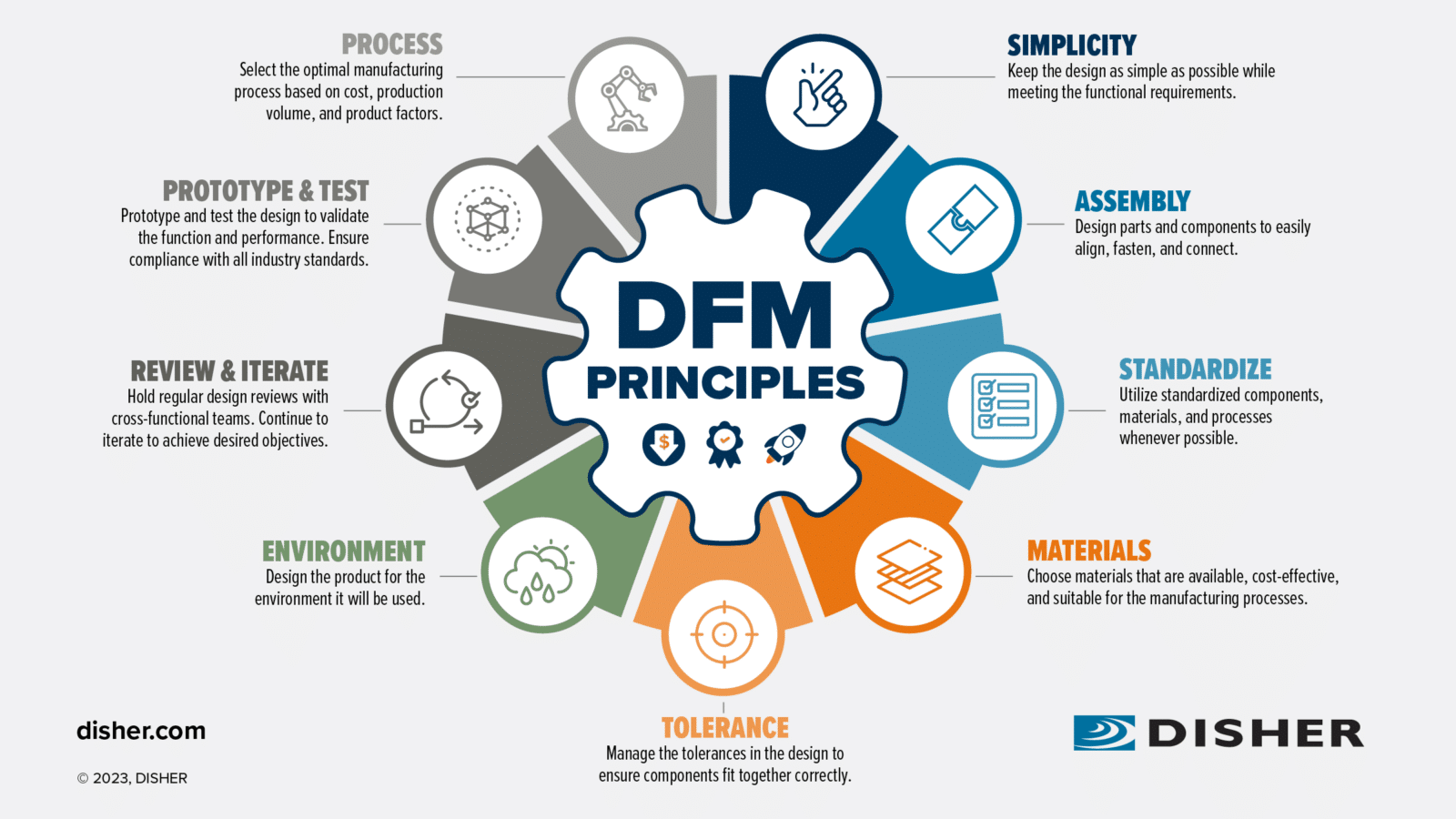

Over-Specifying Tolerances

Calling out +/-0.005 mm on every feature when +/-0.02 mm suffices can triple machining time and double cost. Tighter tolerances require slow-wire EDM, multiple grinding passes and extended CMM verification cycles.

Limit precision callouts to functional surfaces — bearing seats, mating faces, alignment bores. Non-critical bosses and clearance holes tolerate standard machine limits, cutting lead time by 20–30 percent without sacrificing assembly fit.

Ignoring Heat-Treatment State

Specifying alloy steel without defining hardness (e.g., HRC 50–55 post-quench) invites dimensional creep and premature wear. Heat treatment induces 0.1–0.3 percent size change; machining before tempering guarantees scrap.

Require material certificates with hardness test reports. XUXIANG performs spectral analysis and validates heat-treat state before first-cut, preventing costly rework on high-value forgings.

Omitting GD&T Callouts

Drawings without geometric dimensioning and tolerancing leave perpendicularity, flatness and position open to interpretation. Assembly issues surface only after hundreds of parts ship, triggering field returns.

Add GD&T symbols per ASME Y14.5 for every critical interface. Suppliers with ZEISS CMM capability — measuring to 0.7 µm — can verify true position and form, ensuring stack-up compliance before production release.

Define Functional Requirements and Load Conditions

Document operating loads, duty cycles, environmental exposure and fatigue limits before drawing a single line. GD&T callouts for form, position and profile must reflect actual assembly constraints, not default CAD tolerances.

Create 3D CAD Models with GD&T Annotations

Export STEP or IGES files annotated with ASME Y14.5 geometric dimensioning. Specify datum structure, surface finish (Ra/Rz) and critical-to-function features so suppliers understand inspection priorities.

Issue RFQs with Material and Finish Specifications

Include material grade (e.g., AISI 4340, 17-4PH), heat-treat state, hardness range and surface treatment (nitriding, hard-chrome). Request capability statements, equipment lists and ISO 9001 certificates alongside pricing.

Review Supplier Audits and Sample Parts

Audit metrology (CMM brand, resolution), machining centers and process controls. XUXIANG’s ZEISS MICURA CMM at 0.7 µm resolution and +/-0.001 mm machining tolerance exemplify the capability floor for precision machined parts for heavy machinery.

Conduct First-Article Inspection and Dimensional Reports

Require full-dimensional FAI per AS9102 or equivalent, material certificates and surface-integrity reports. Cross-functional sign-off by design, quality and procurement locks the baseline before serial release.

Transition to Serial Production with SPC Monitoring

Establish control plans, Cpk targets ≥1.33 for critical dimensions and periodic process audits. Ongoing SPC charting detects tool wear and process drift, protecting long-term dimensional stability.
