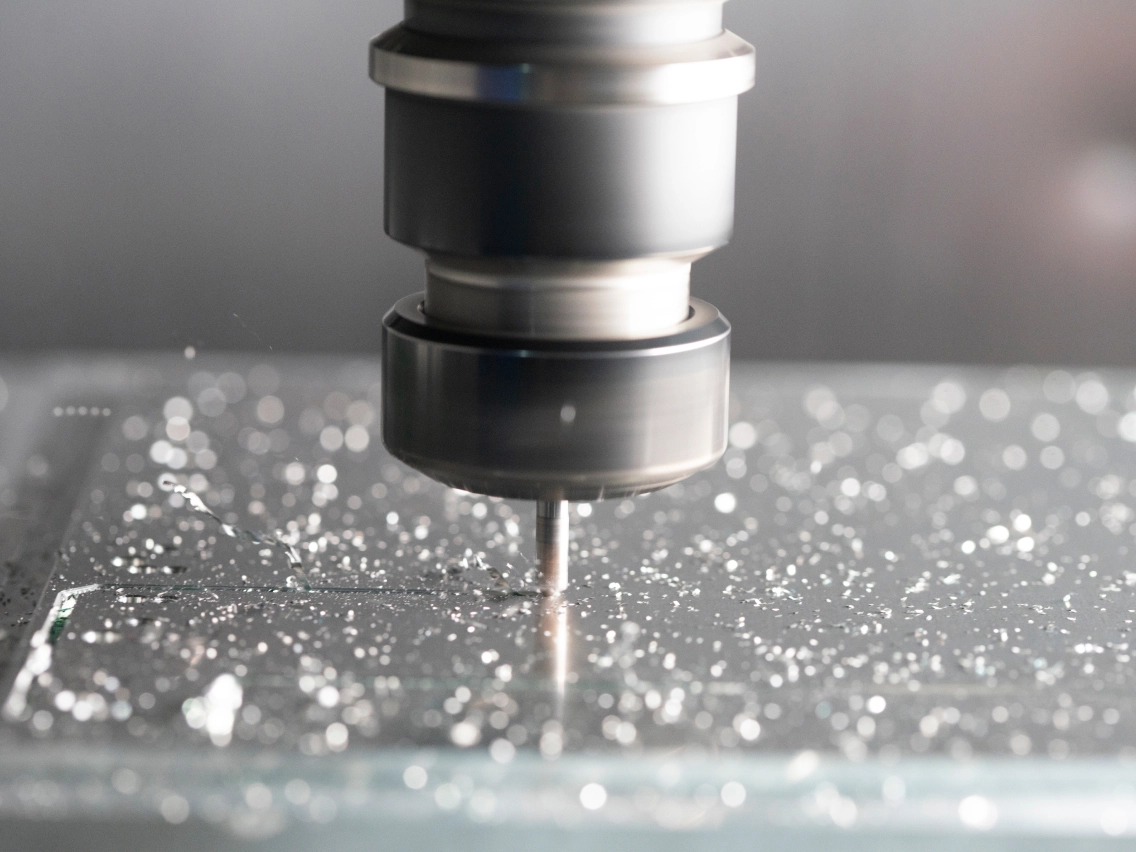

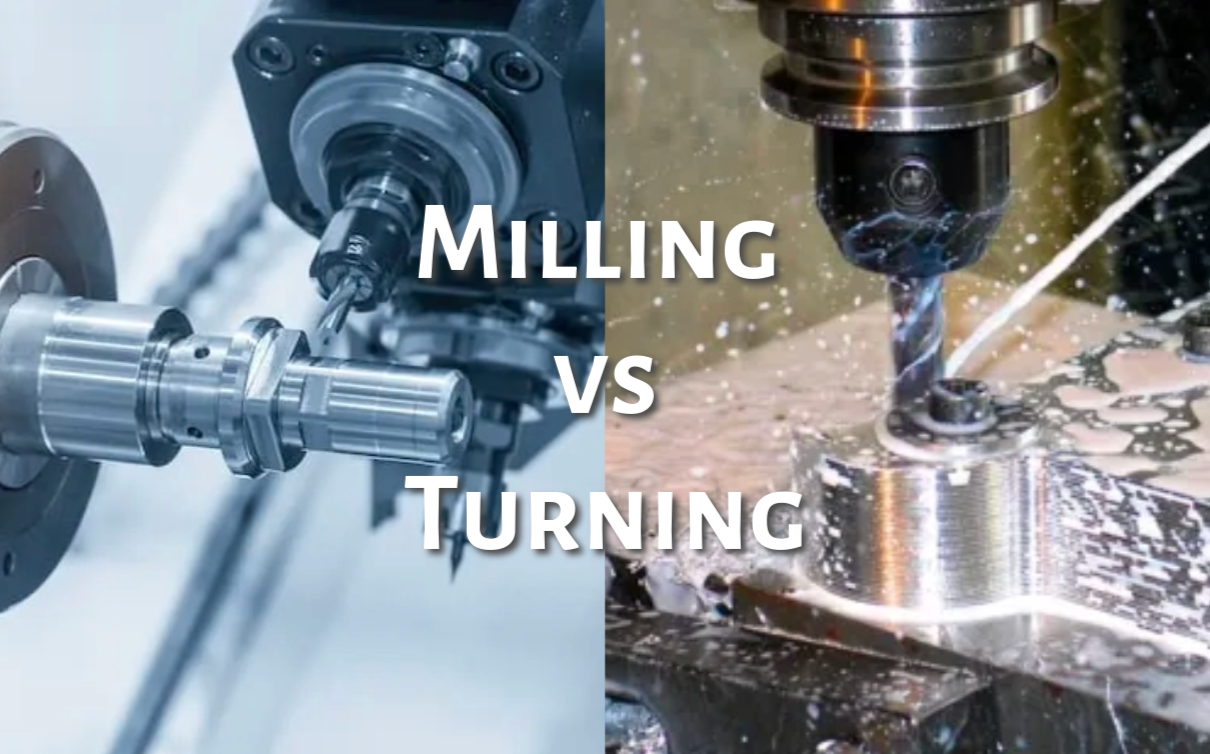

3-Axis Milling for Simple Geometries

3-axis vertical machining centers handle prismatic parts with flat, stepped or pocketed features. Typical position tolerance: ±0.01–0.02 mm. Ideal for mold bases, fixture plates and housings without undercuts.

5-Axis Simultaneous Machining

Simultaneous 5-axis centers machine complex contours, deep ribs and angled features in one setup. Achievable tolerance: ±0.005 mm. Best for ADAS sensor housings, turbine blades and conformal-cooled mold cores.

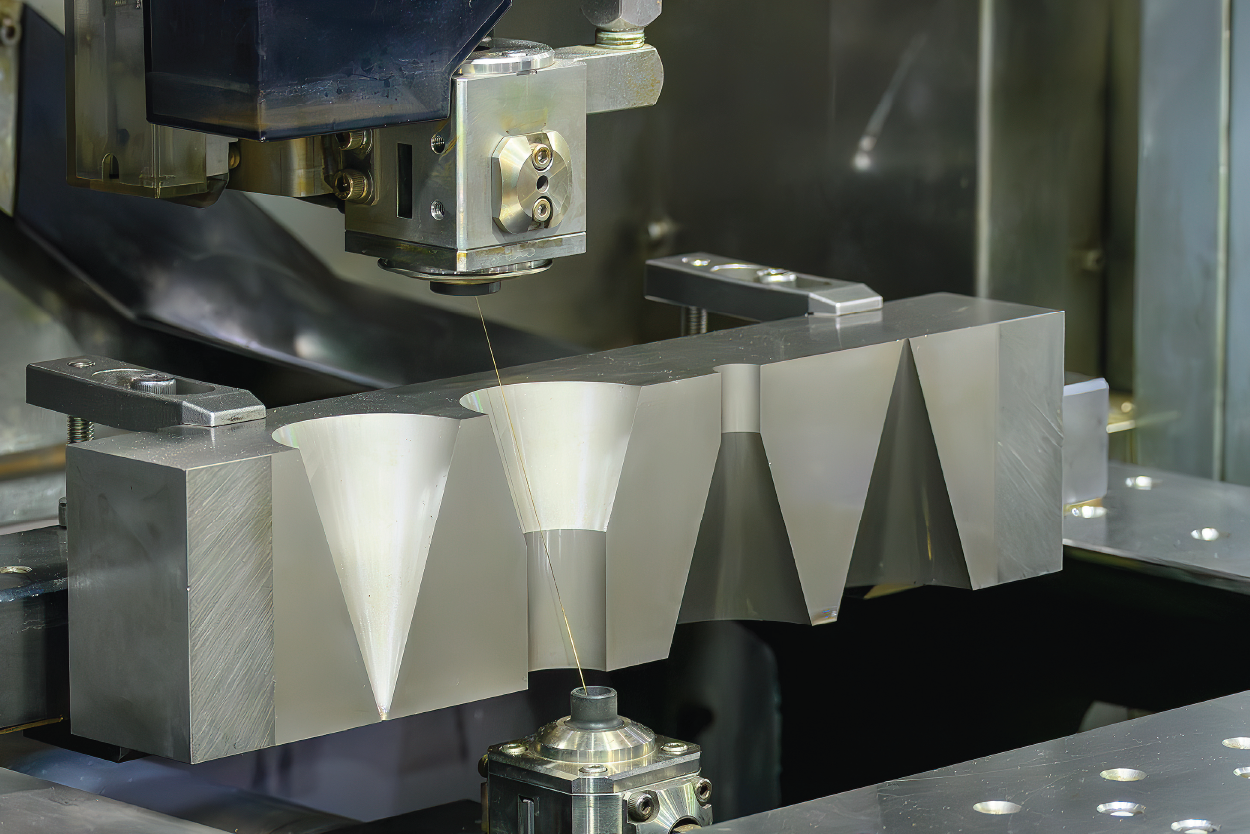

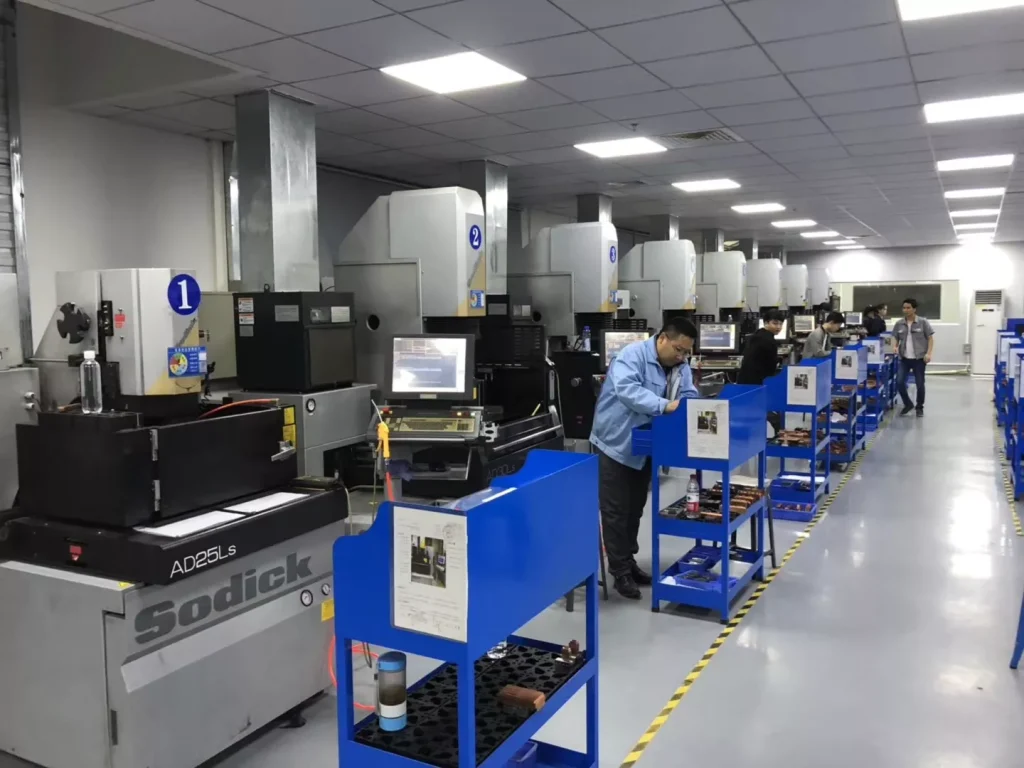

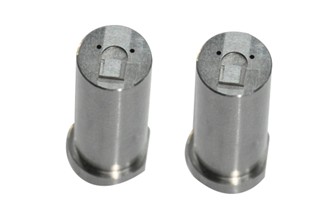

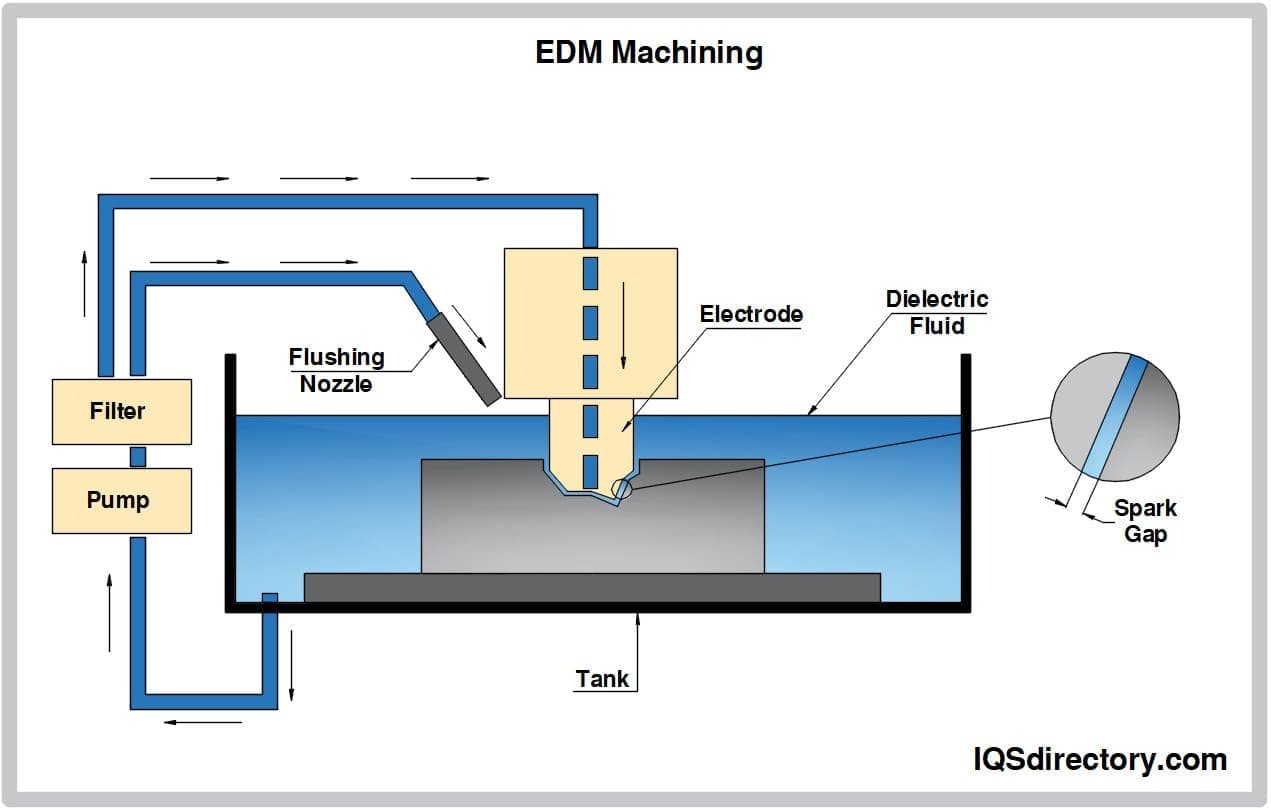

Wire EDM for Ultra-Thin Walls

Slow-wire EDM (Sodick, Seibu) cuts hardened steel down to 0.02 mm wall thickness with ±0.002 mm positioning. Corner radii ≤ R0.015 mm. Essential for micro-connector cavities and high-aspect-ratio slots.

Micro-Machining for Sub-Millimeter Features

High-speed spindles (Beijing Jingdiao class) and micro-tooling produce features below 0.5 mm diameter. Tolerance: ±0.003 mm. Used for micro-pin electrodes, medical-device micro-channels and miniature ejector pins.

Heat-Treatment and Hardening Pathways

PM grades (ASP23, ASP30, ASP60) undergo vacuum hardening at 1,150–1,200°C followed by triple tempering to achieve through-hardness with minimal distortion; conventional M2 and M42 require salt-bath or atmosphere quenching at 1,180–1,220°C. Through-hardening delivers uniform core hardness for high-load punches, while case-hardening (nitriding) extends surface wear life in sliding applications without sacrificing core toughness.

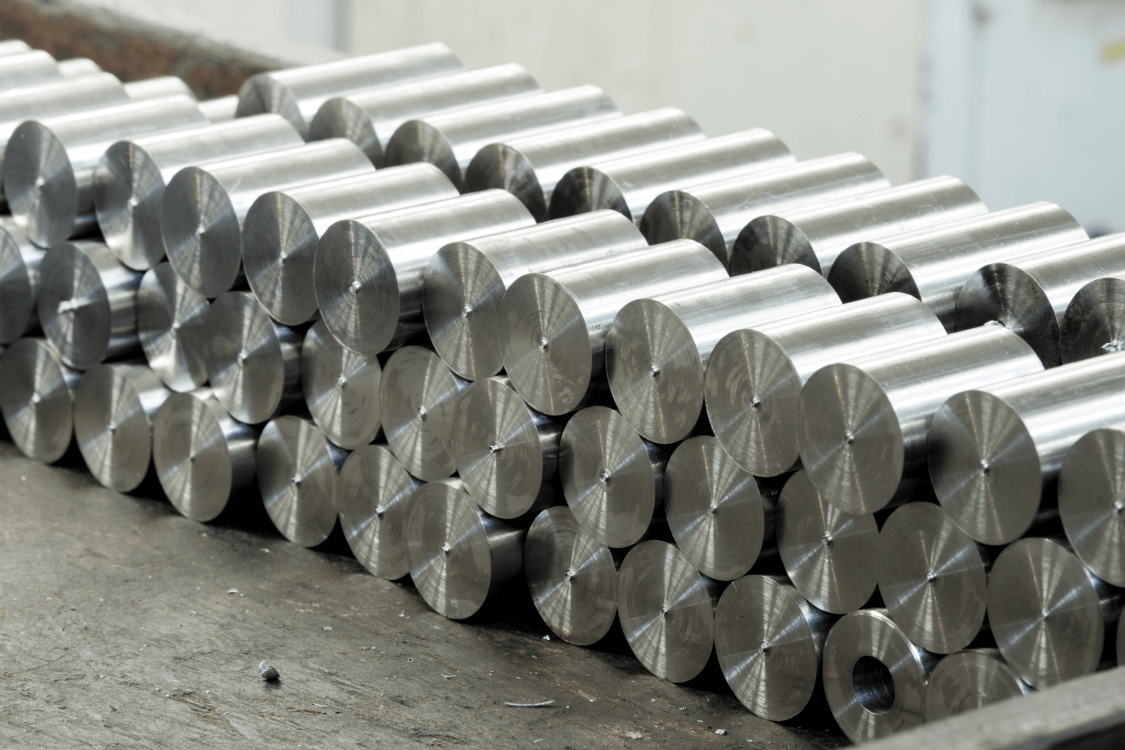

Material Choice Impact on Tool Life

ASP60’s carbide volume fraction exceeds 30%, delivering 3–5× longer punch life than M2 in abrasive composites, but requires EDM or carbide tooling for secondary operations. M2 remains the workhorse for general-purpose tooling where machinability and cost matter more than extreme wear resistance. XUXIANG’s metrology lab validates hardness gradients and microstructure integrity post-heat-treatment, ensuring dimensional stability within +/-0.002 mm over the part’s service life.

Material Certification and Spectral Analysis

Every heat lot requires a mill certificate and incoming spectral verification. XUXIANG conducts spectral analysis on all Easteel stock to confirm alloy composition before machining, ensuring hardness and machinability match design assumptions.

Demand material test reports (MTRs) traceable to the steel mill, plus the supplier’s own incoming-inspection spectrograph data.

In-Process and Final Dimensional Verification

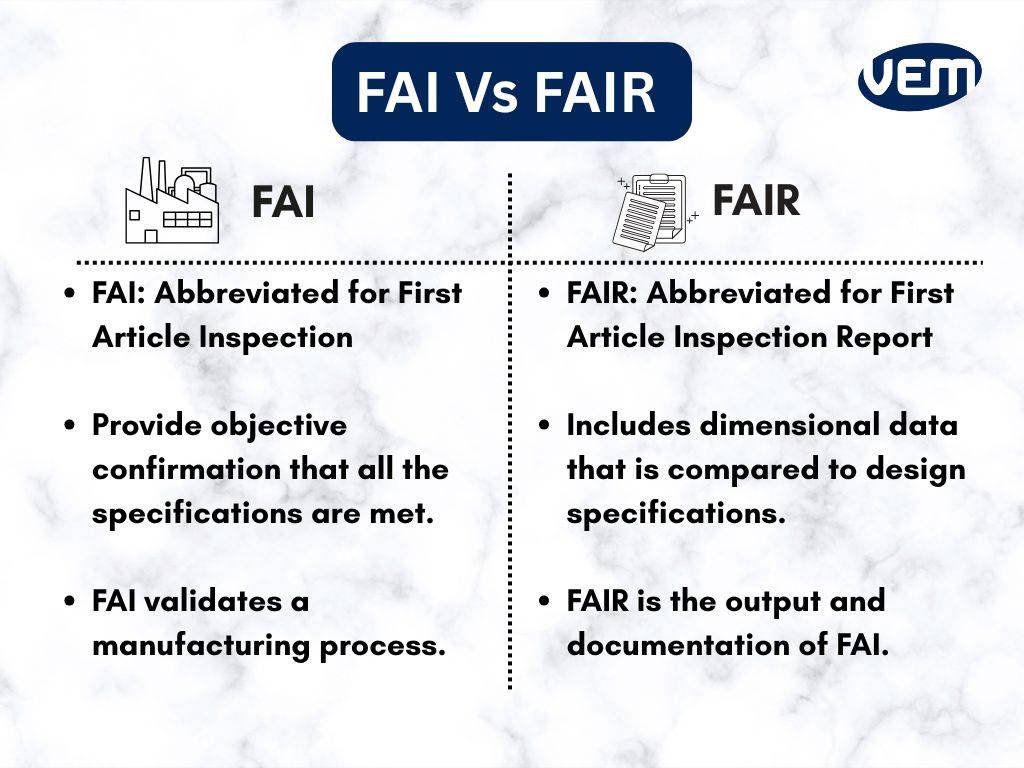

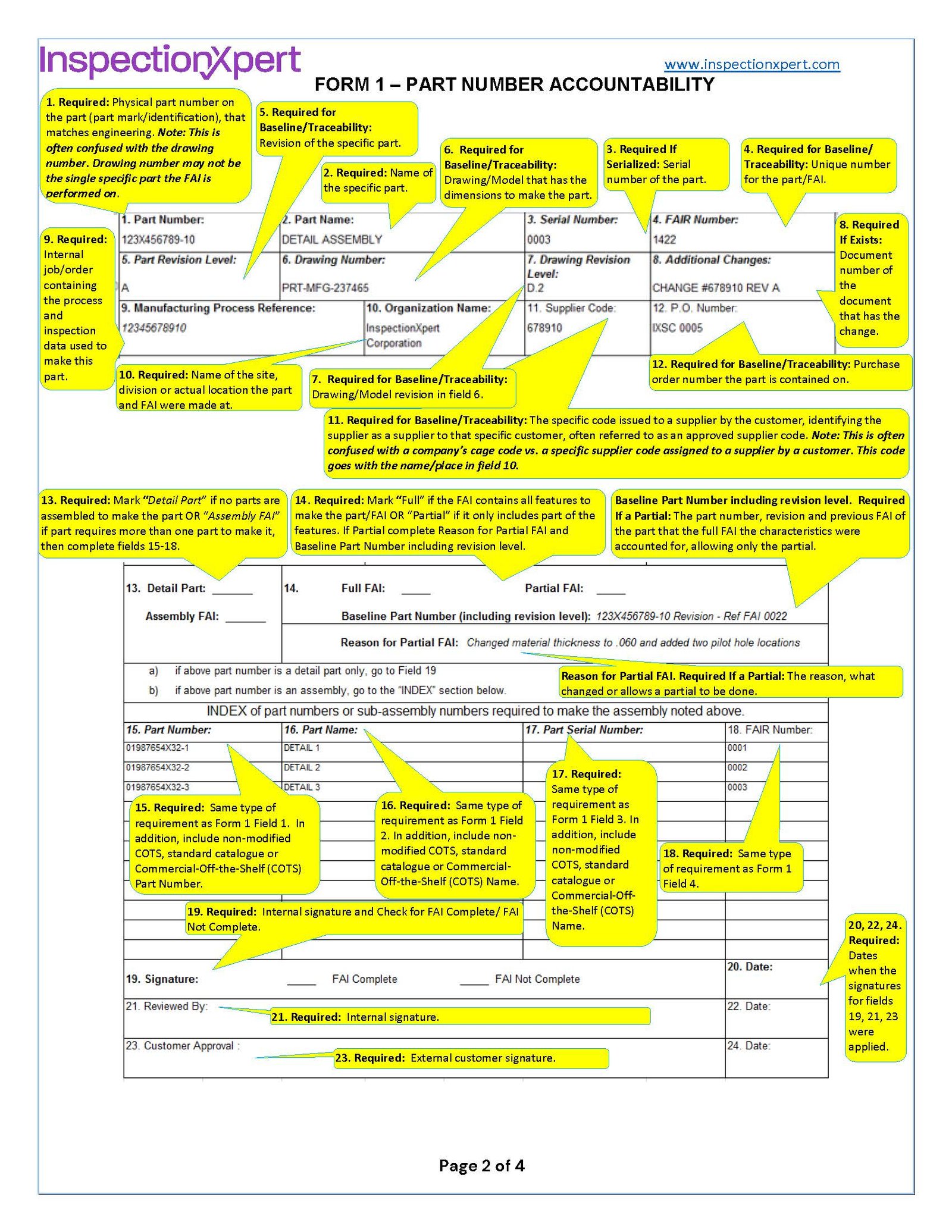

In-process CMM checks catch drift before scrap accumulates; XUXIANG uses ZEISS MICURA (0.7 µm resolution) in a climate-controlled room. Final FAI or PPAP reports must include actual measurements for every critical dimension, not sampling summaries.

Insist on capability studies showing Cpk ≥1.33 for tolerance-critical features.

Red Flags and Documentation Standards

Missing material certificates, refusal to share process data or measurement performed in uncontrolled environments signal weak quality systems. Legitimate china easteel cnc precision machining service providers maintain full traceability, time-stamped inspection logs and calibration records for every gauge.

Verify Machine-Park Capabilities

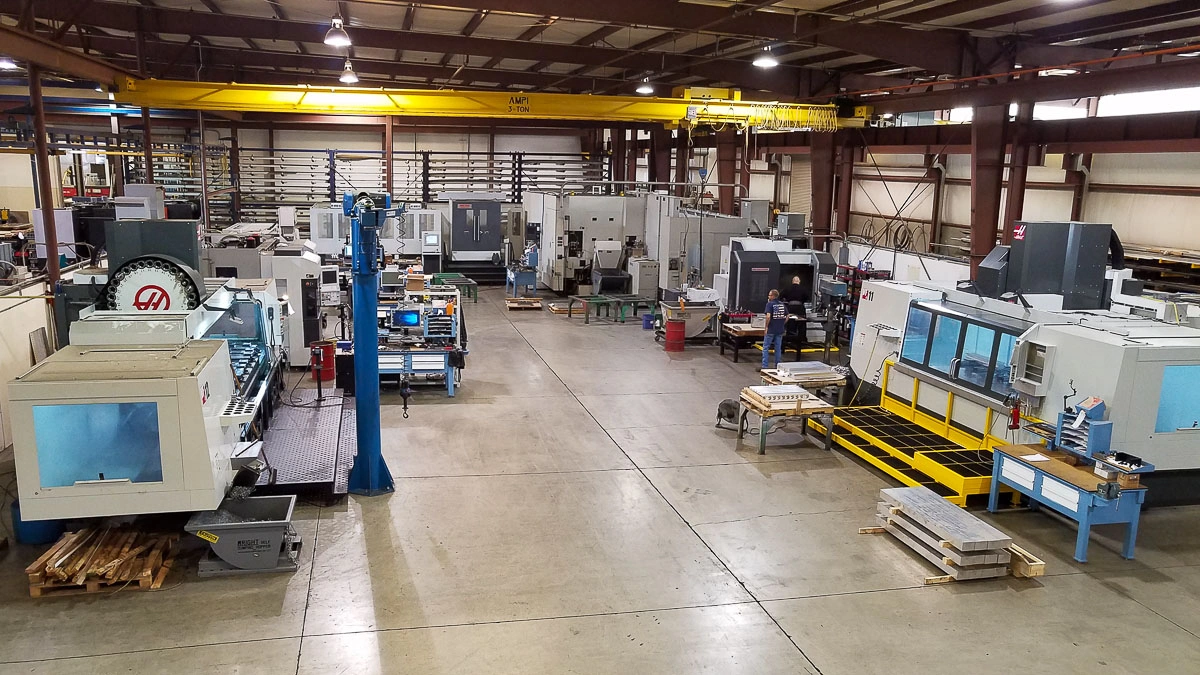

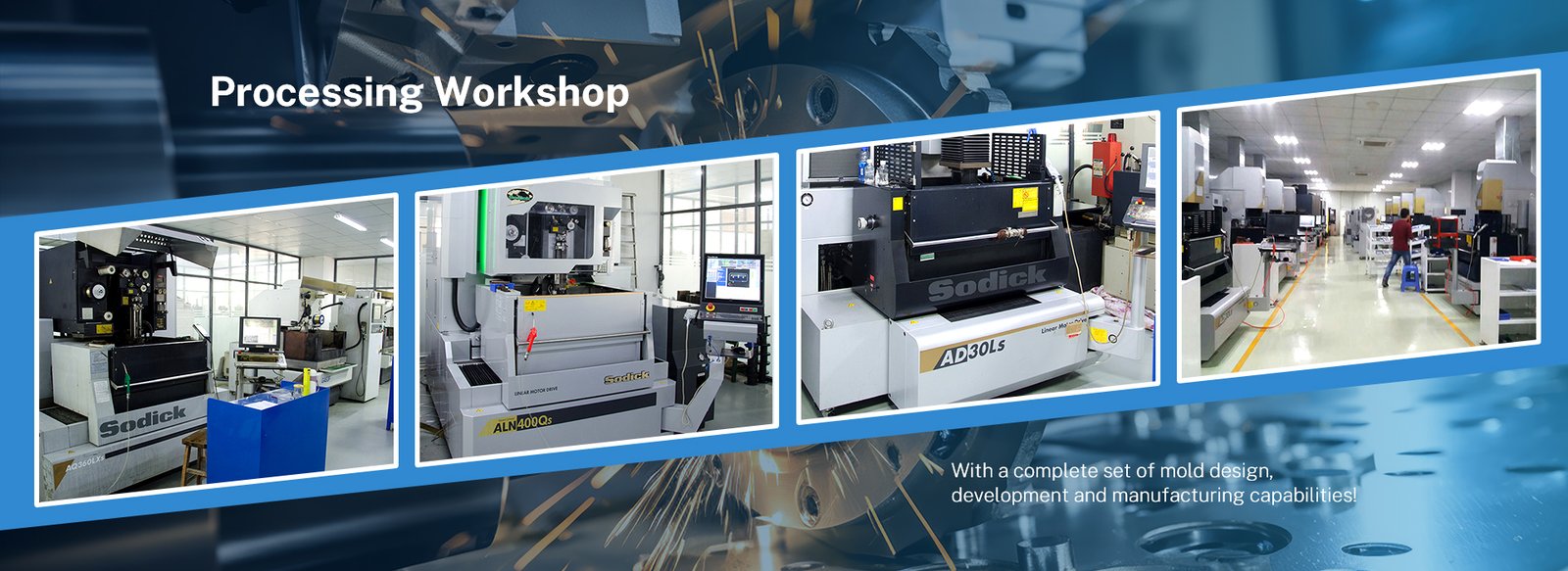

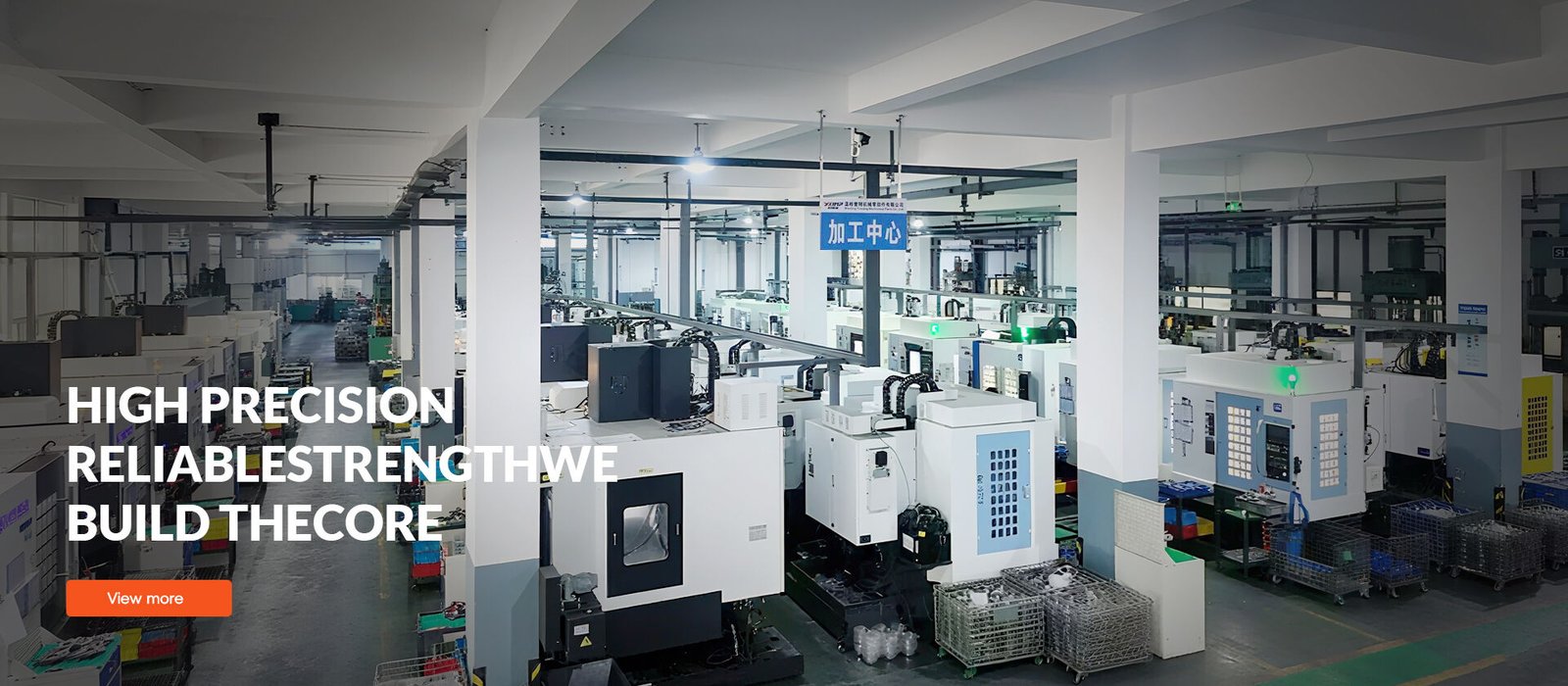

Document the provider’s CNC asset list: spindle precision (±0.001 mm class or better), axis count (4-axis, 5-axis simultaneous), and brand names — Sodick, Fanuc, Charmilles and Beijing Jingdiao signal investment in stability. Request photos or video of the shop floor to confirm claimed capacity.

Audit Quality Certifications

ISO 9001:2015 is baseline; IATF 16949 is mandatory for automotive NEV programs, AS9100 for aerospace. Ask for certificate numbers and scope statements. XUXIANG’s ISO 9001 certification governs every process from material spectral analysis through final FAI documentation.

Review Industry Case Studies and Request Samples

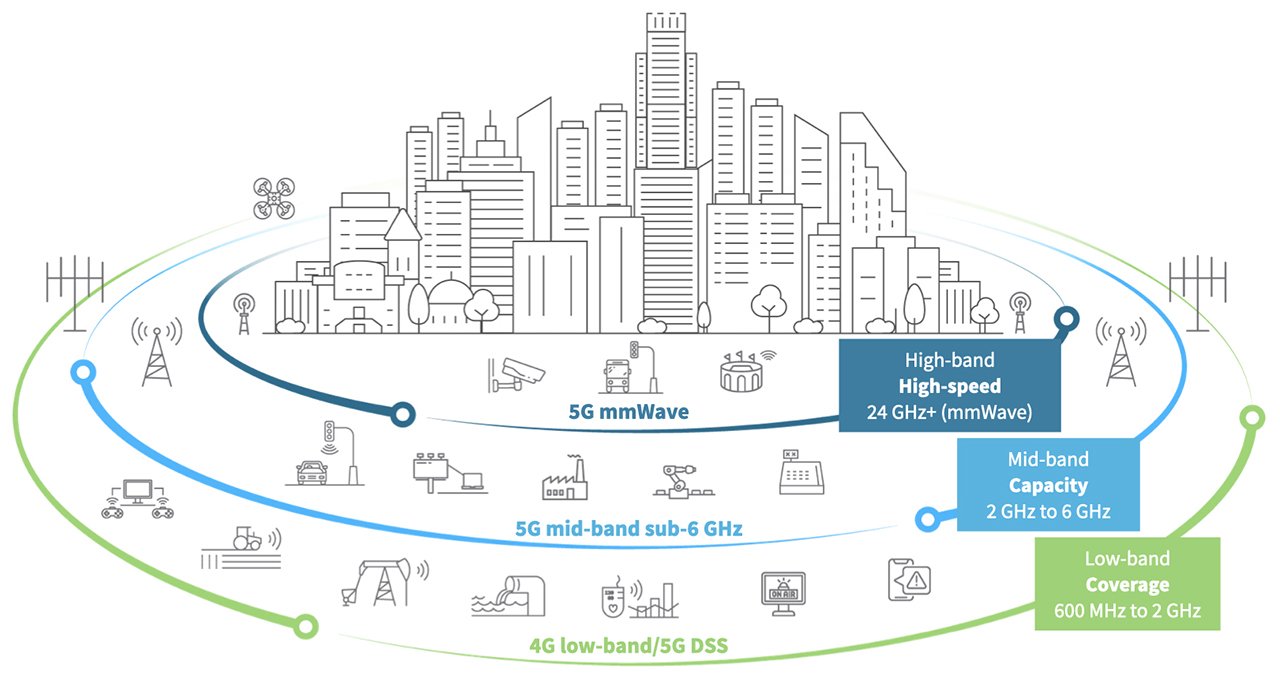

Demand case studies in your sector — 5G micro-connectors, ADAS sensor housings or medical-device jigs — plus sample parts with CMM reports (ZEISS or equivalent, ≤1 µm resolution). Physical samples reveal surface integrity and corner-radius execution that drawings cannot.

Assess Engineering Support and Lead-Time Consistency

Confirm DFM feedback turnaround (XUXIANG provides input from 10+ engineers before production) and historical on-time delivery rates. For high-stakes projects, schedule an on-site audit or retain third-party inspection to validate metrology equipment and process control.

Over-Specifying Tolerances Without Functional Need

Calling out ±0.001 mm on every dimension when ±0.01 mm suffices drives machining time and cost up 40–60% without performance gain. Reserve micron-class tolerances for mating surfaces, pin locations and sealing faces; apply general tolerances elsewhere to keep quotes competitive.

Ignoring Heat-Treatment Distortion Allowances

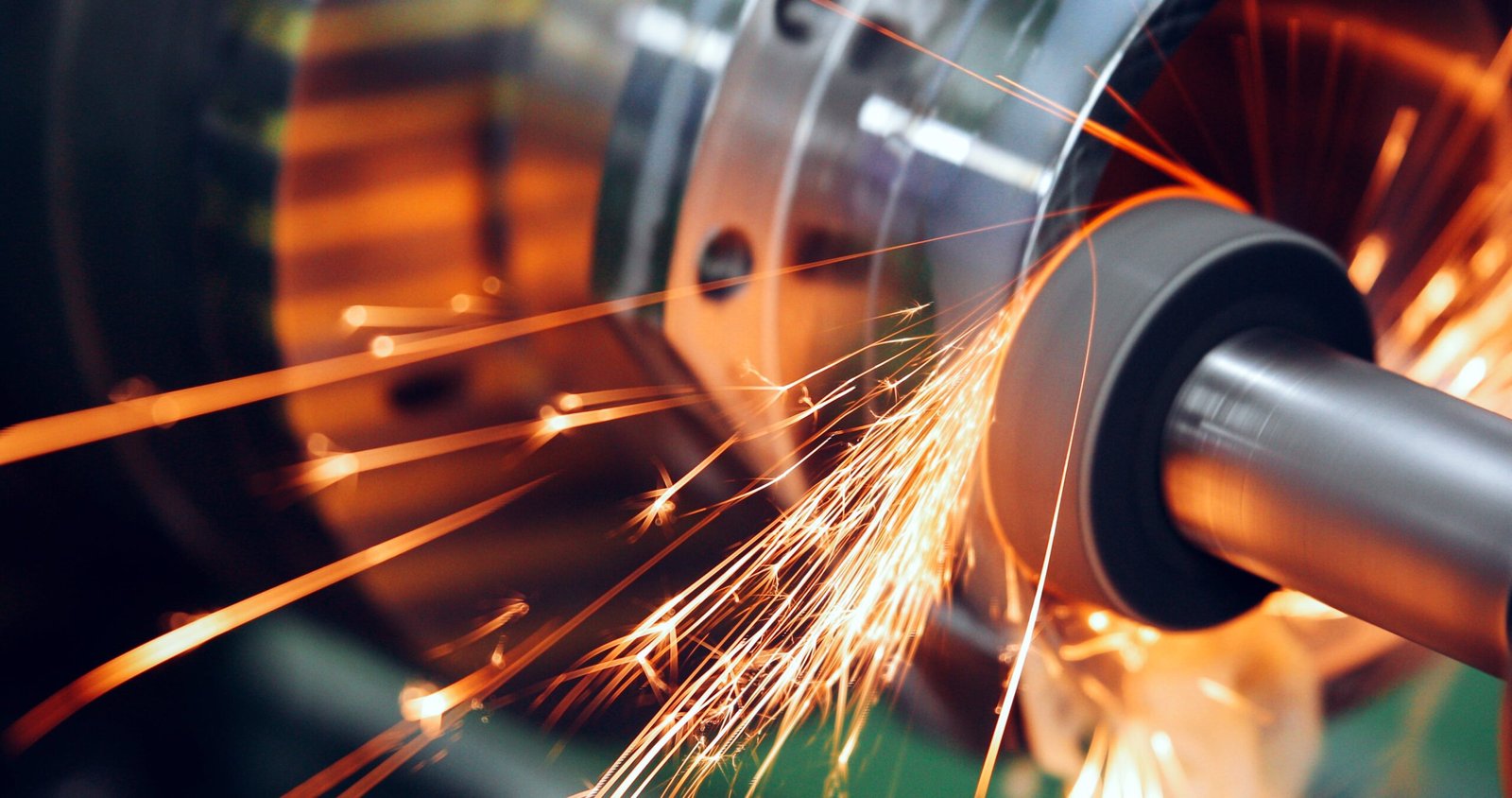

Steel parts hardened to HRC 50+ can shift 0.02–0.05 mm during quenching. Omitting post-heat-treat grinding or EDM budgets leads to rejection at final inspection. Specify finish-machining steps after thermal treatment and allocate stock for stress relief.

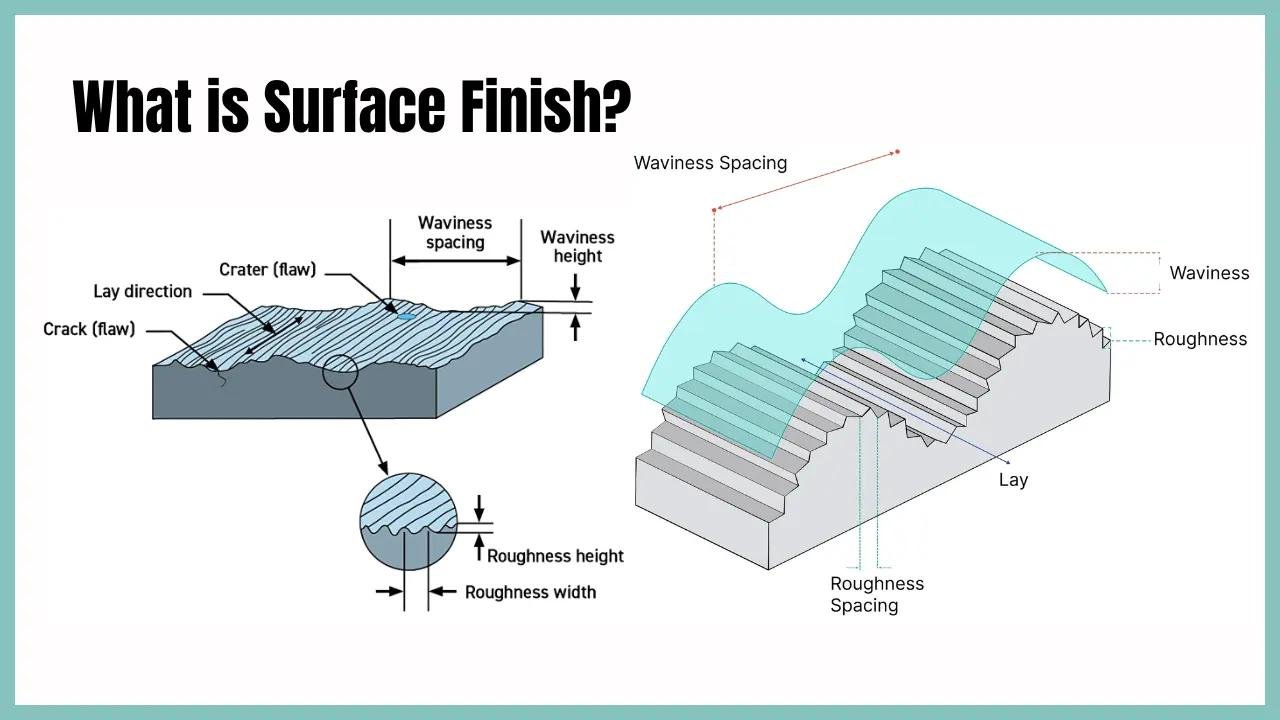

Undefined Surface-Finish Requirements

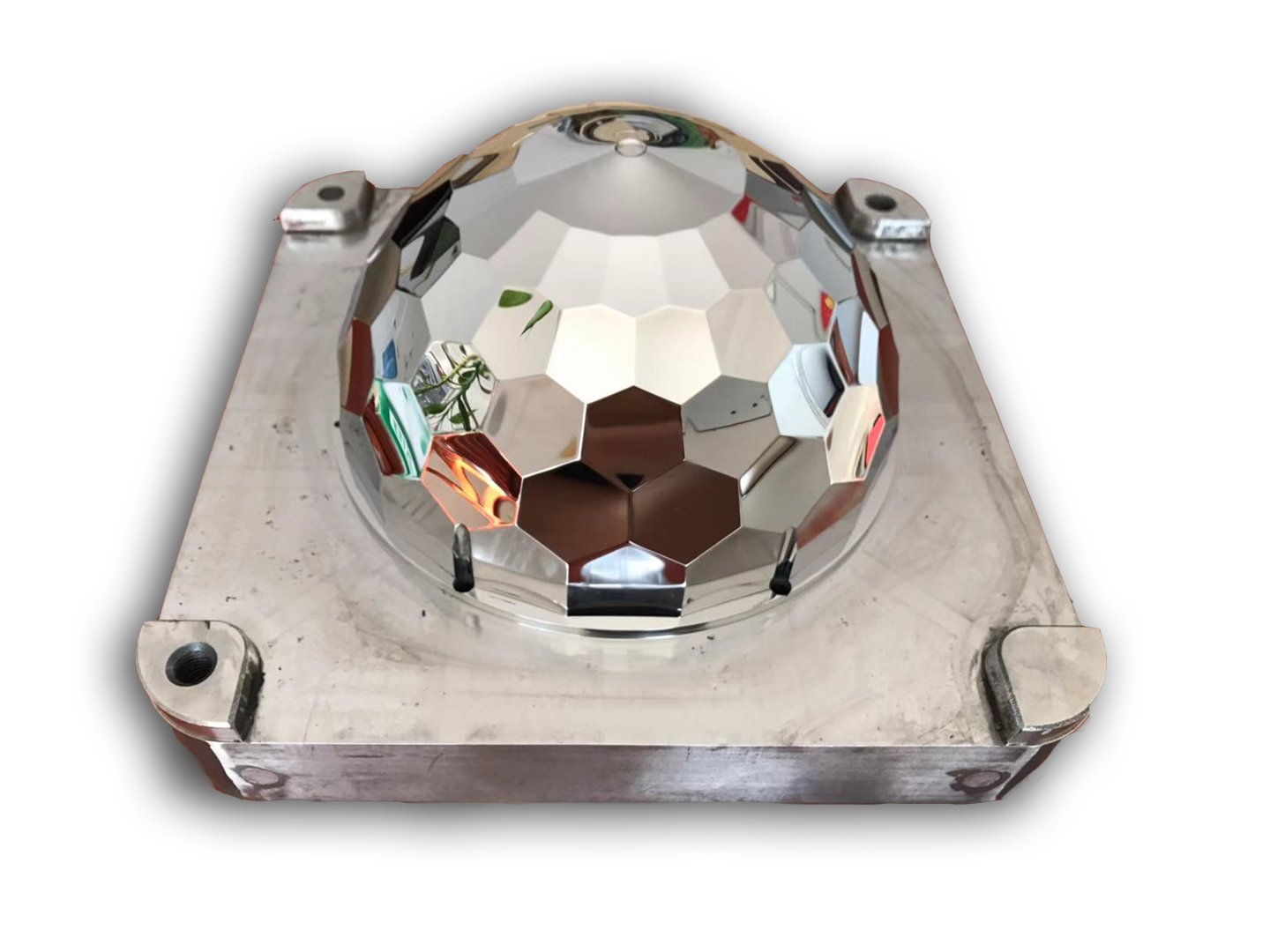

Vague ‘smooth finish’ language results in Ra 1.6 µm when your assembly needs Ra 0.4 µm or mirror EDM. Define Ra, Rz or VDI values on drawings. XUXIANG’s ZEISS CMM and Nikon microscopes verify surface integrity to Ra 0.1 µm when specified upfront.

Price-Only Supplier Selection

Choosing the lowest bid without validating Sodick/Charmilles EDM, ZEISS metrology or ISO 9001 certification risks rework cycles and missed launches. Audit equipment lists, request CMM reports and verify calibration certificates before awarding orders.

Neglecting IP Protection and NDA Enforcement

Sharing CAD files without signed non-disclosure agreements exposes proprietary designs. Require NDAs before RFQ, watermark drawings and limit file distribution. Reputable shops like XUXIANG honor IP confidentiality as standard practice under ISO governance.

Finalize 3D CAD Models and GD&T Callouts

Complete STEP or IGES files with full GD&T annotations — position, profile, perpendicularity and surface-finish callouts — before requesting quotes. XUXIANG’s DFM team flags tolerance conflicts within 24 hours when drawings include ISO 1101 or ASME Y14.5 symbols.

Missing or ambiguous tolerances trigger back-and-forth that delays prototyping by 3–5 days on average.

Request Quotes from 3–5 Pre-Qualified Suppliers

Issue RFQs to vendors holding ISO 9001:2015 and ZEISS or Mitutoyo CMM capabilities. Compare lead time, material certifications and inspection protocols — not unit price alone.

XUXIANG returns itemized quotes within 24 hours, detailing machining method, inspection plan and tooling amortization for orders above 500 pieces.

Conduct Design-for-Manufacturability Review

Schedule a DFM call before ordering prototypes. XUXIANG’s 10+ engineering experts review wall thickness, draft angles, corner radii and electrode accessibility, proposing cost-neutral design tweaks that improve yield.

DFM feedback typically reduces first-article rework by 40–60 percent and shortens production lead time by one to two weeks.

Order Prototype or First-Article Samples

Request 3–5 first articles with full dimensional reports, material certificates and surface-roughness data. XUXIANG ships prototypes in 5–7 days for standard easteel grades, accompanied by ZEISS MICURA CMM reports accurate to 0.7 µm.

Validate fit, function and cosmetic finish before committing to tooling or production volumes.

Validate with In-House or Third-Party Inspection

Perform incoming inspection using calibrated CMM or optical comparators. Cross-check critical dimensions against the supplier’s FAI report to confirm traceability.

XUXIANG encourages third-party audits and provides raw measurement data in Excel or PDF format for statistical process control.

Approve PPAP and Place Production Order

Issue PPAP approval only after dimensional, material and surface-finish criteria pass. Lock the part revision, tooling parameters and inspection frequency in a formal production-part approval document.

XUXIANG archives PPAP packages for three years, enabling fast reorders without re-validation cycles.

Establish Ongoing Quality Audits and Performance KPIs

Define monthly or quarterly KPIs: on-time delivery rate, Cpk for critical dimensions and non-conformance frequency. Schedule remote or on-site audits every six months.

XUXIANG shares real-time production dashboards and CMM trend charts, supporting continuous improvement and long-term partnership stability.
