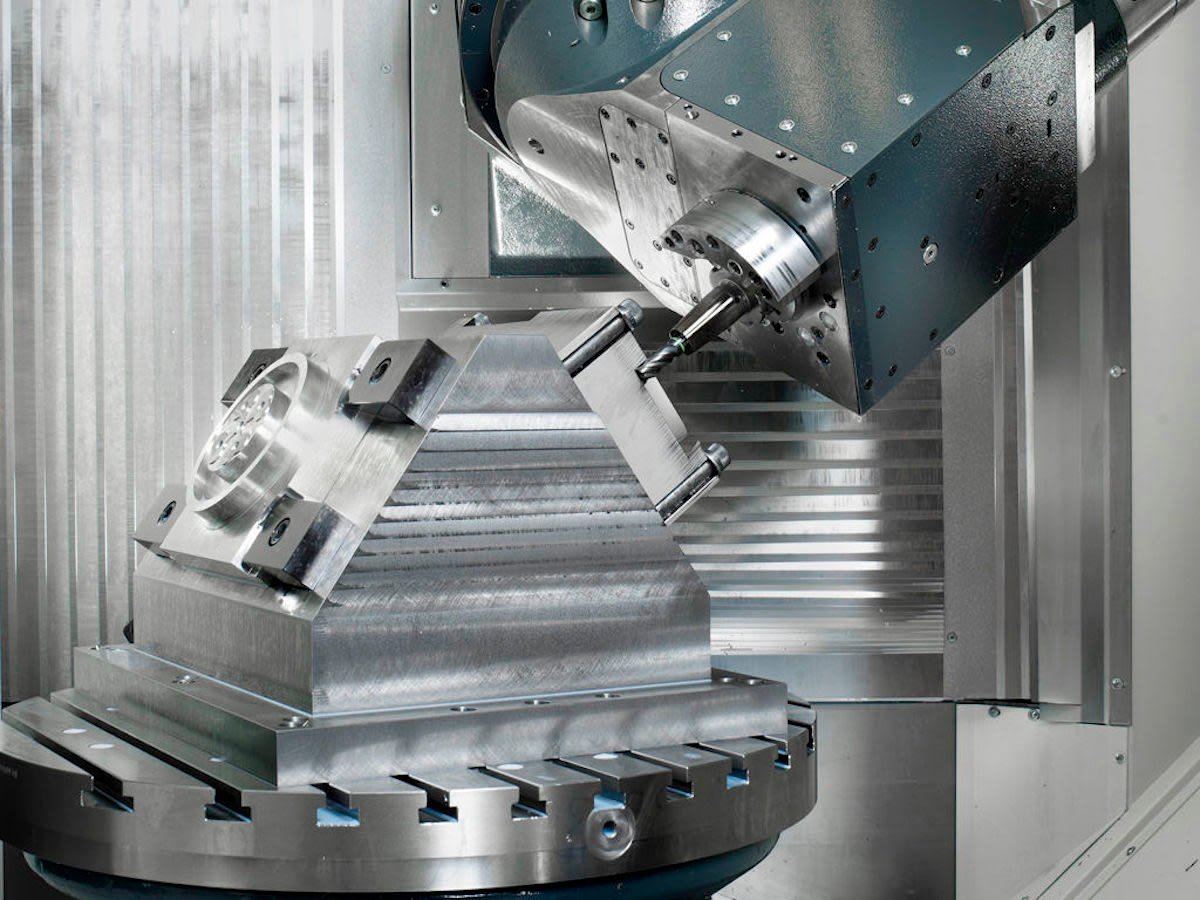

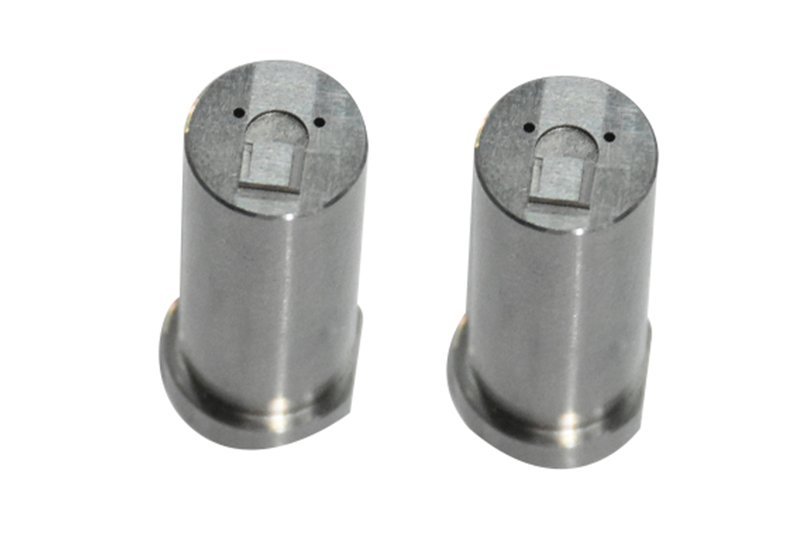

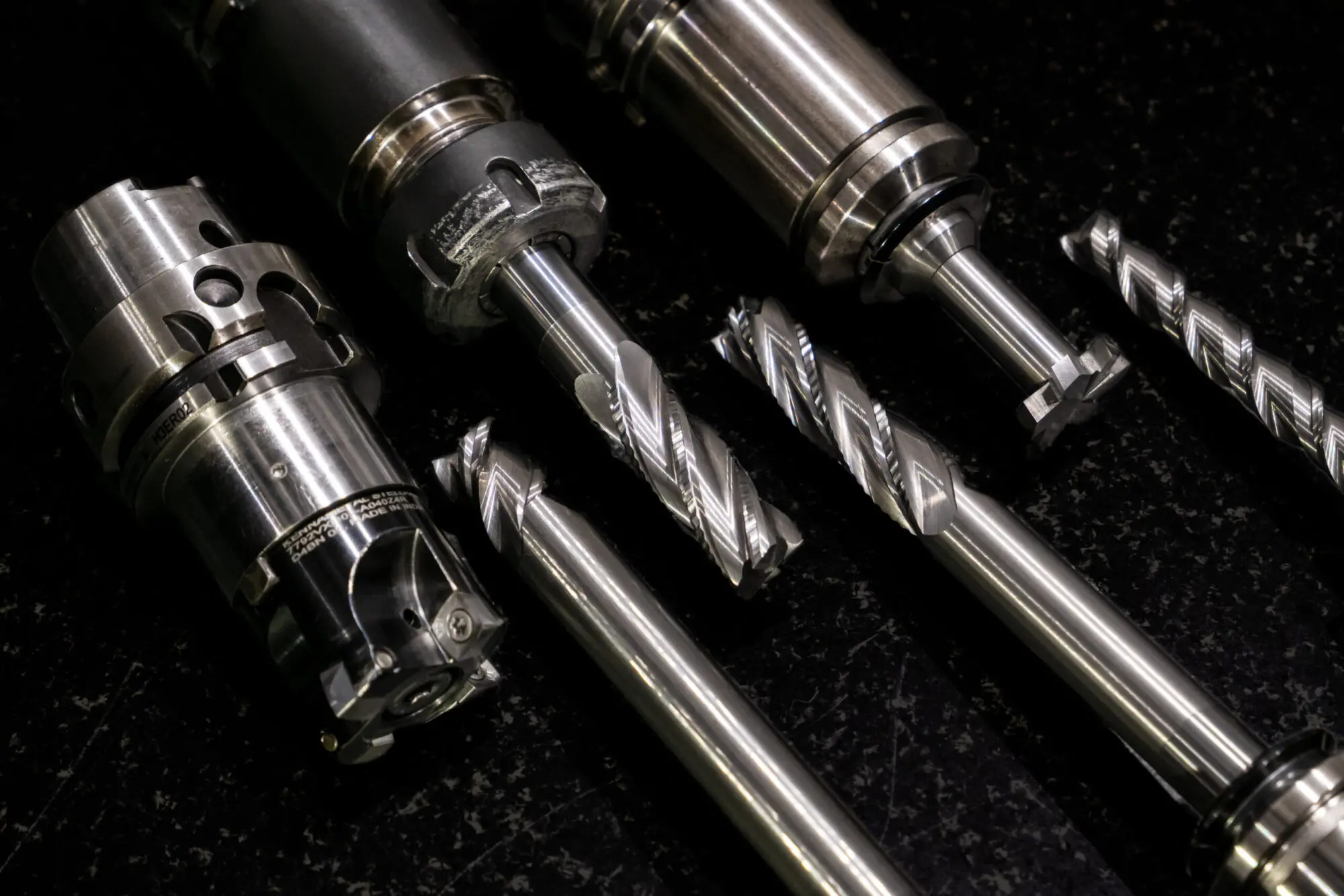

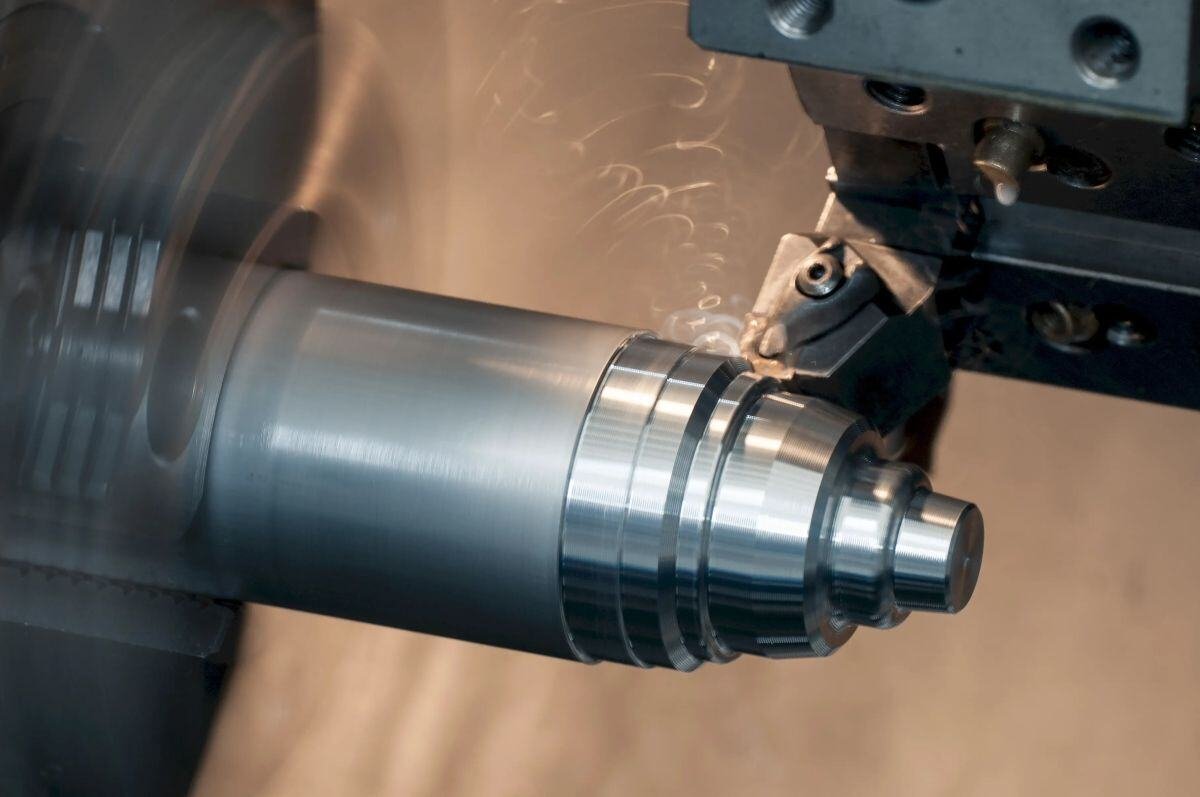

CNC Milling: 3-, 4- and 5-Axis

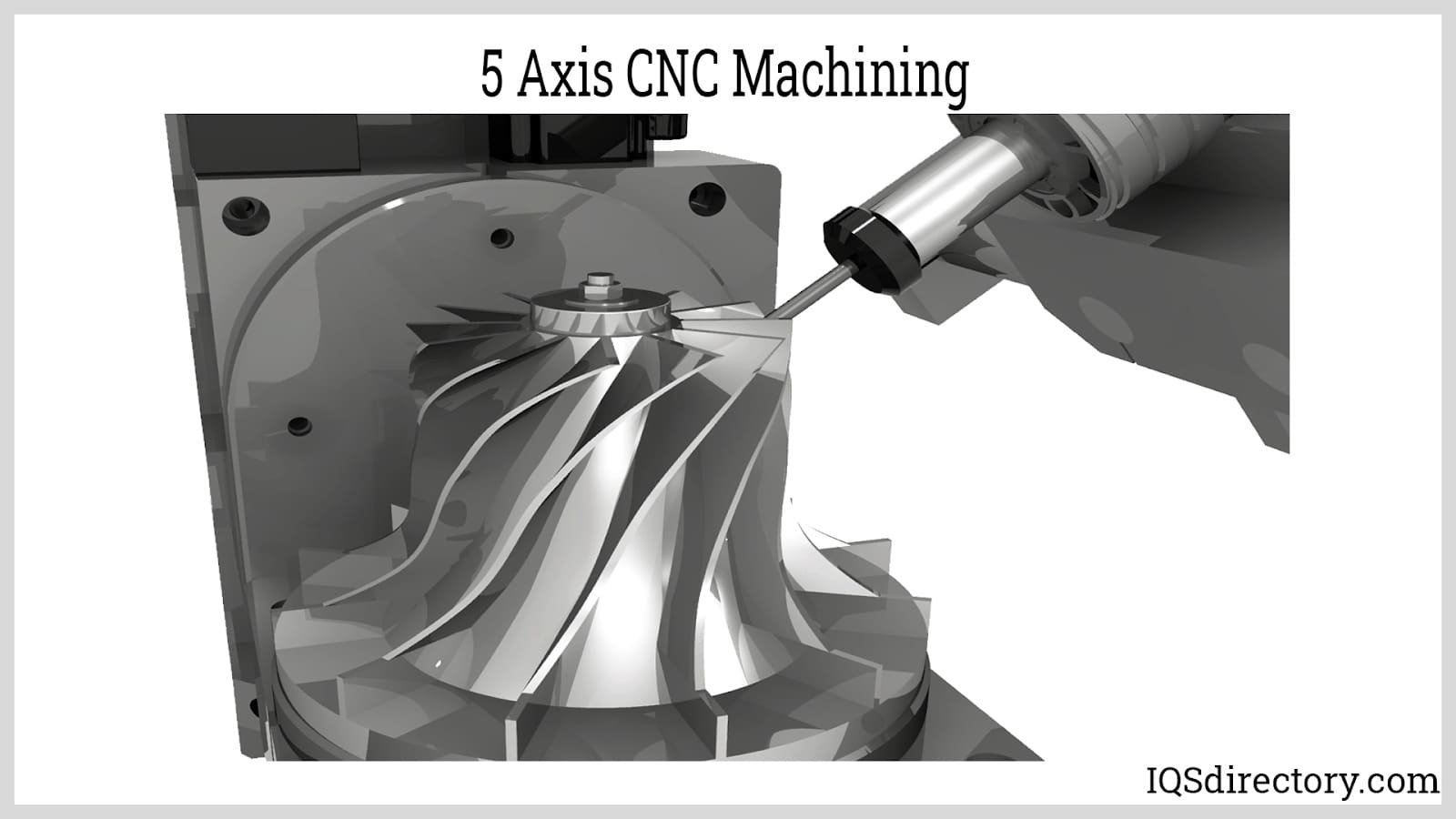

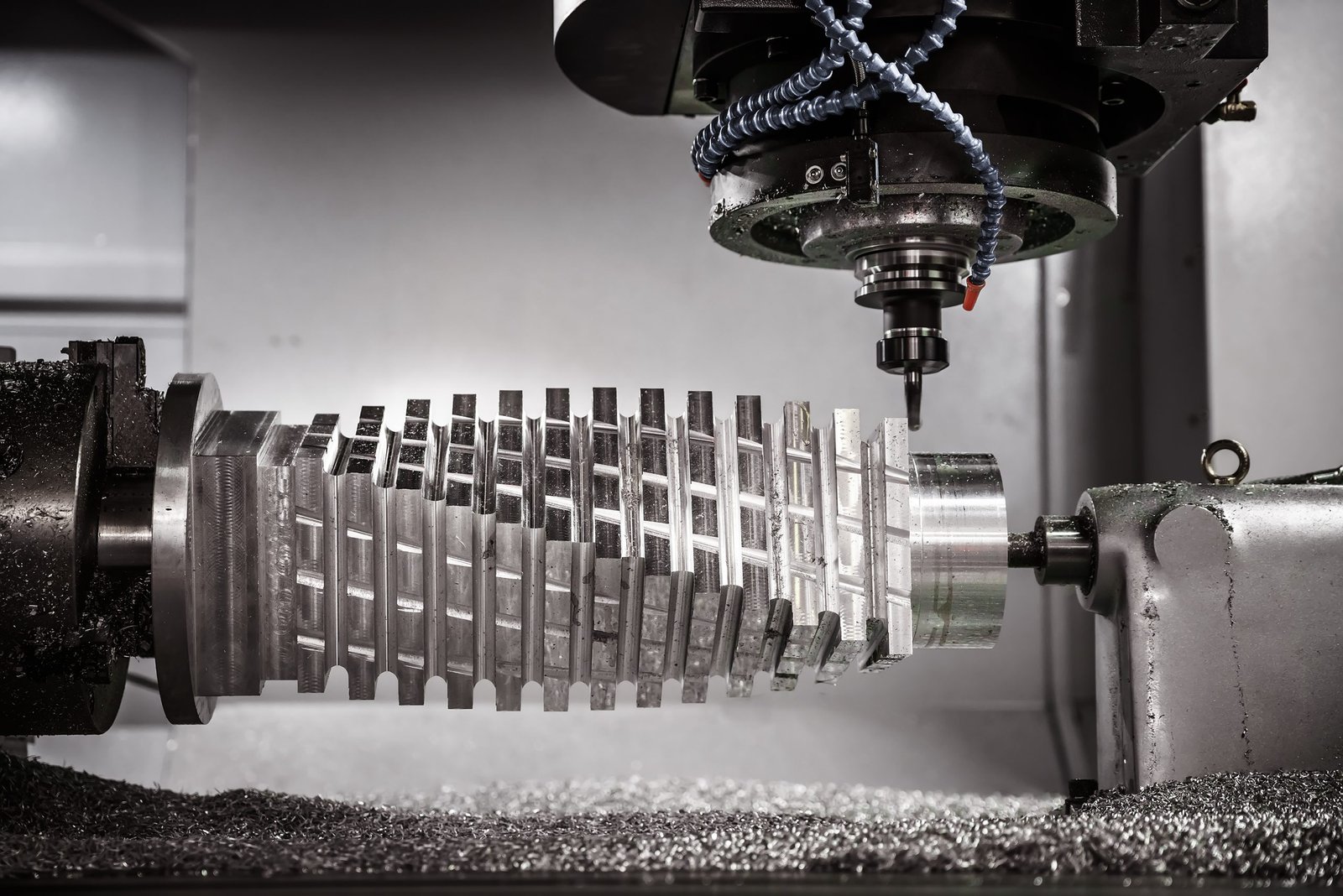

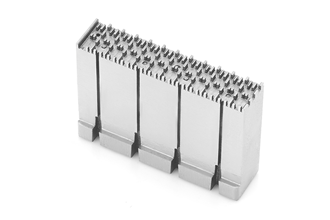

3-axis mills handle prismatic parts to +/-0.005 mm; 4-axis adds rotary indexing for cylindrical features; 5-axis machines complex curves and undercuts in one setup, holding +/-0.002 mm on aerospace and medical housings. XUXIANG deploys Fanuc-class machining centers for connector housings and ADAS sensor brackets.

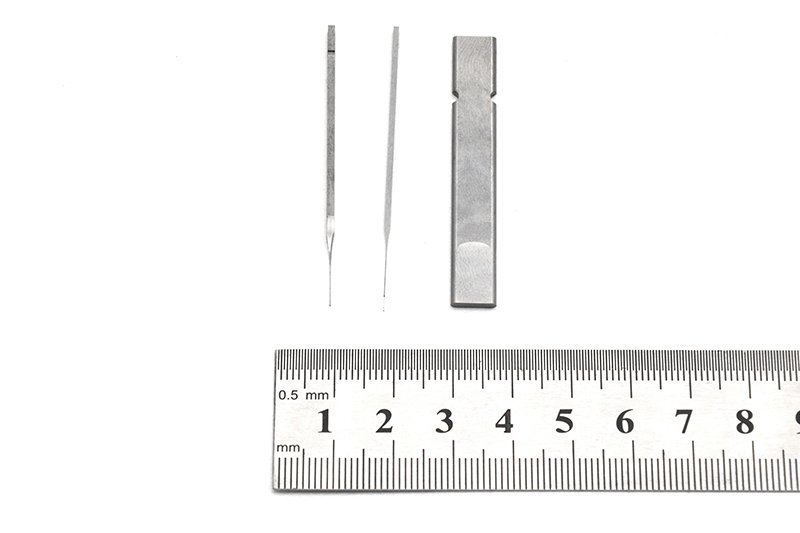

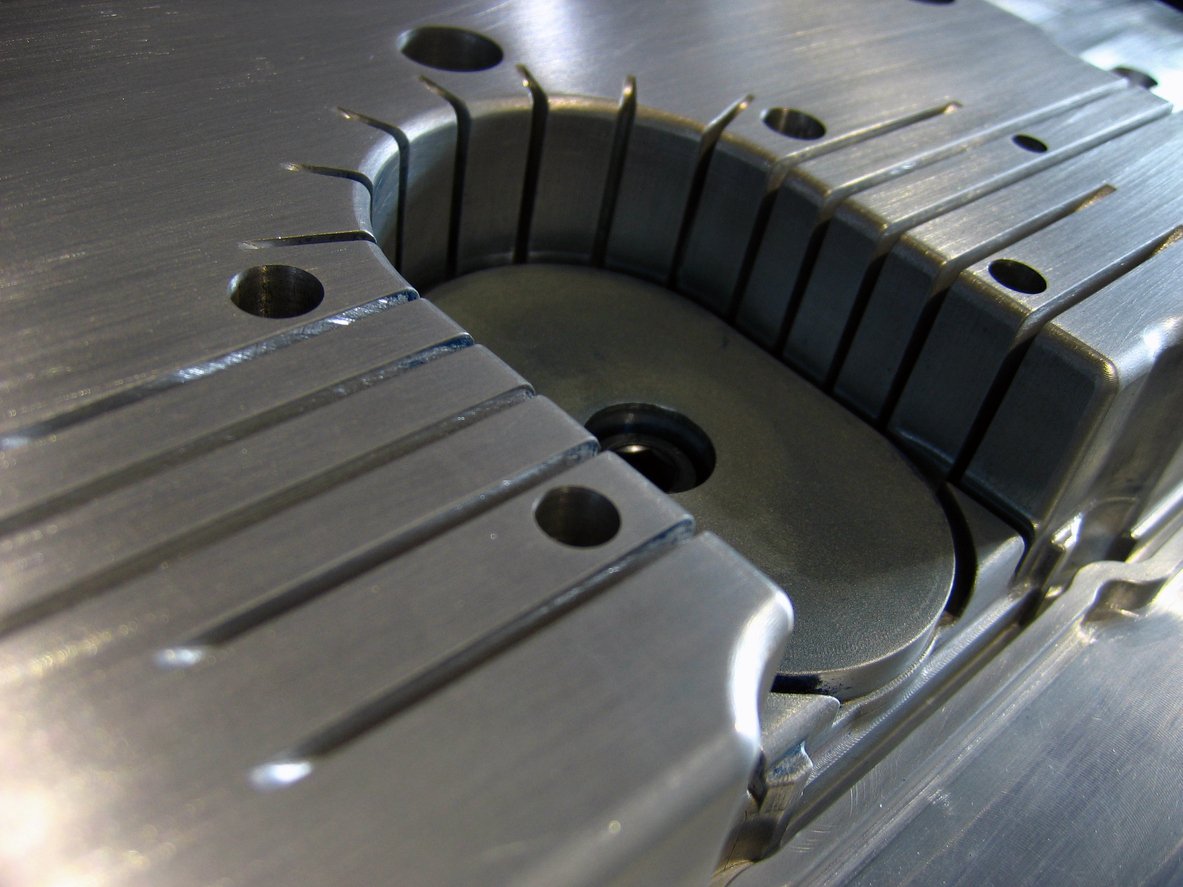

Wire and Sinker EDM

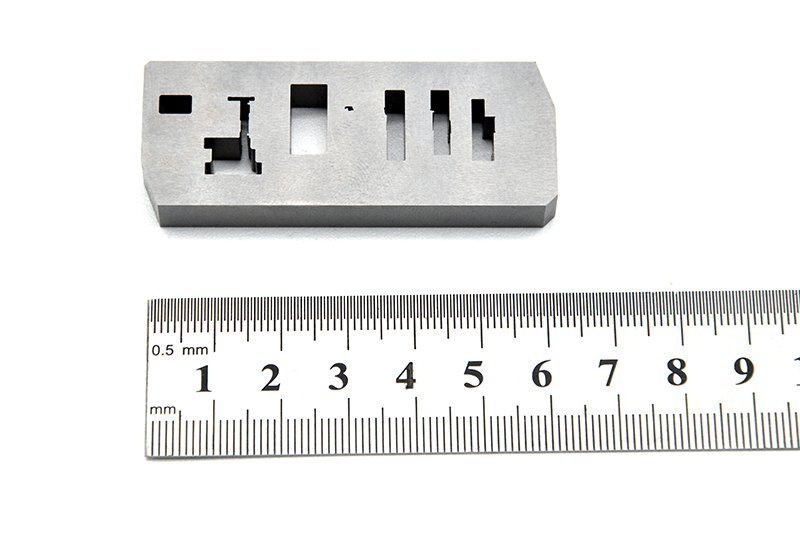

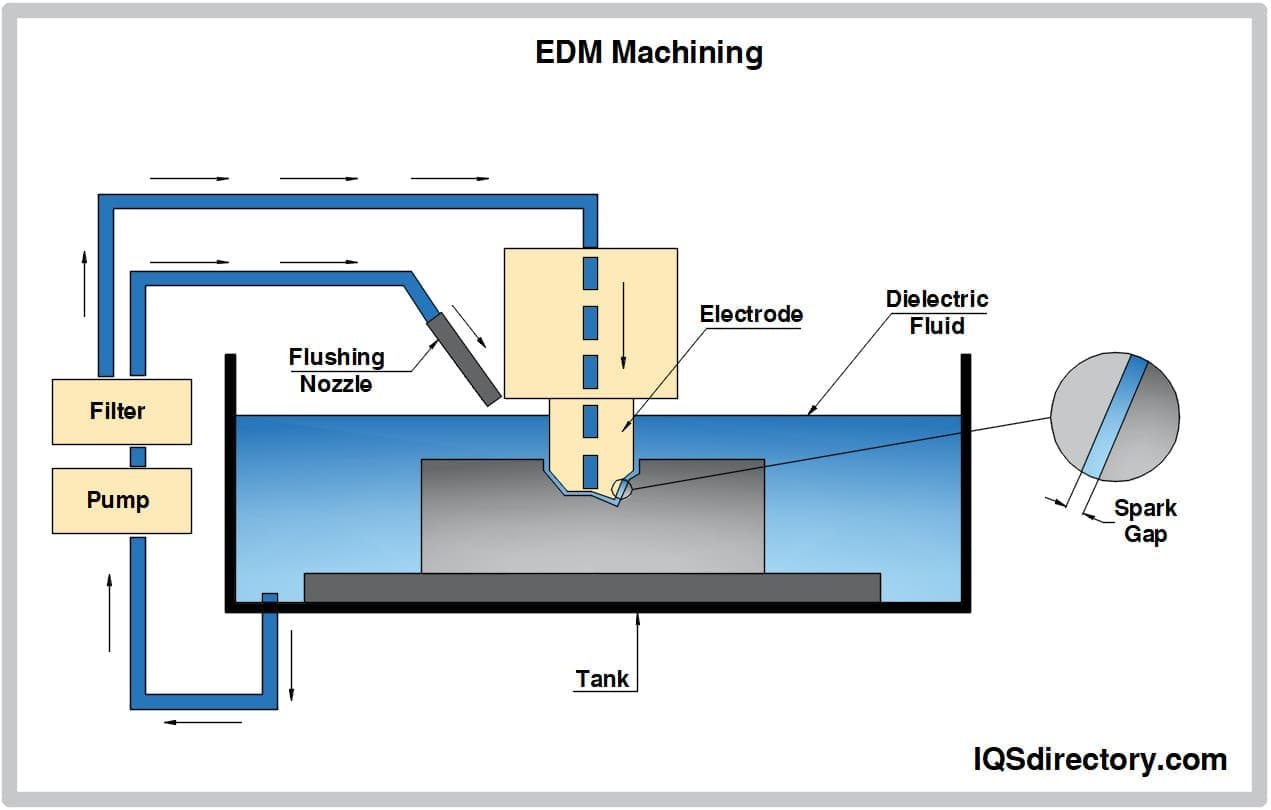

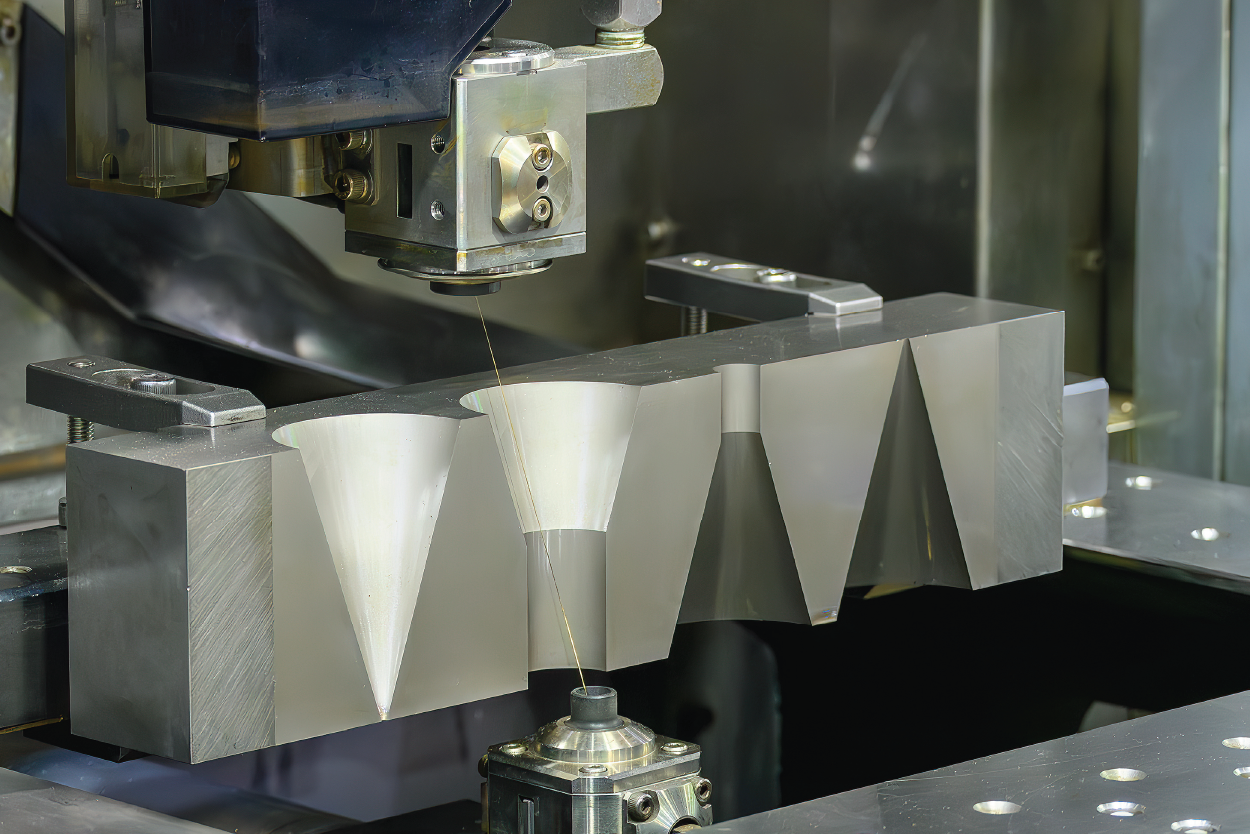

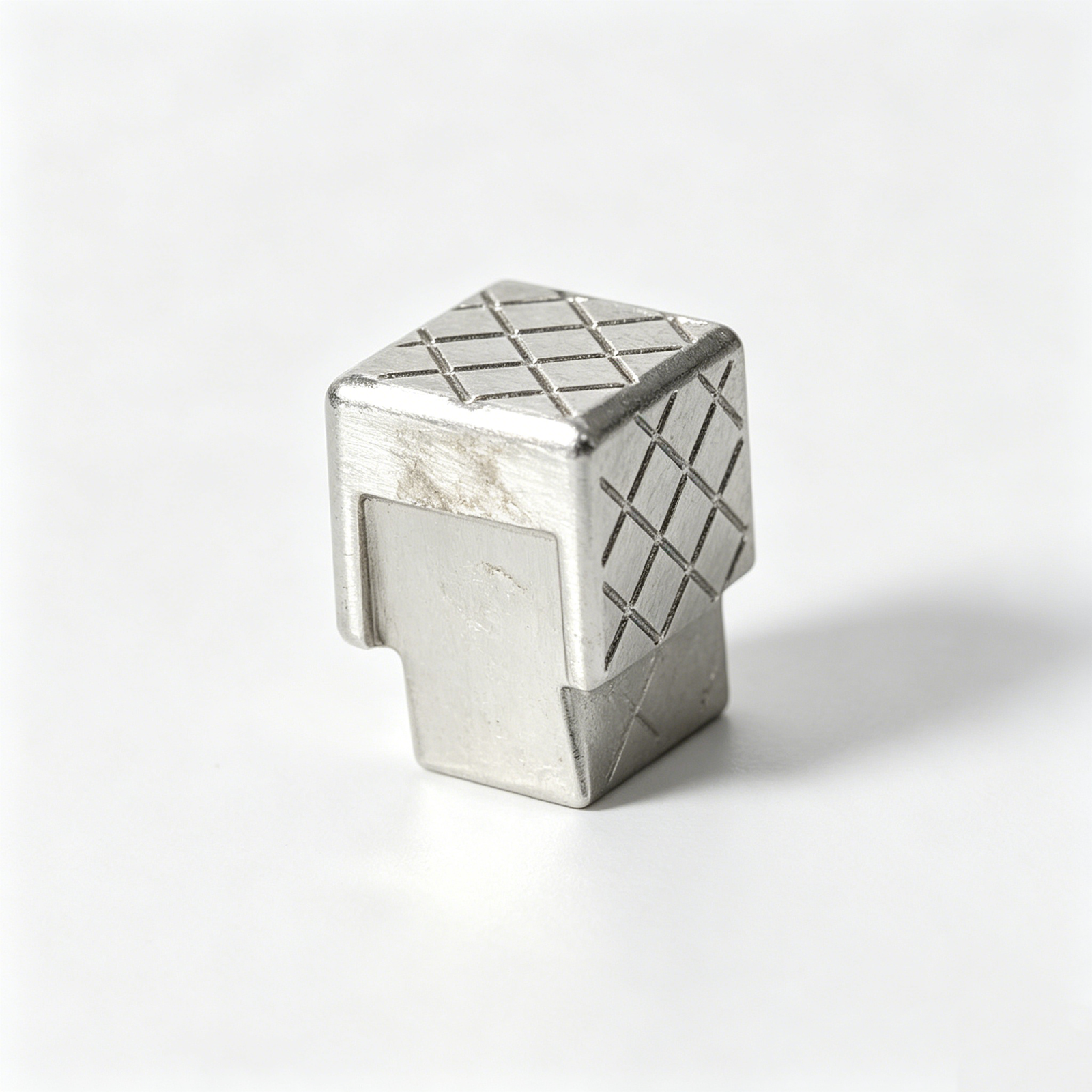

Slow-wire EDM cuts hardened steel to +/-0.002 mm with corner radii down to R0.015 mm, ideal for micro-connector terminals and thin-wall cores. Sinker EDM produces mirror-grade cavities to Ra 0.1 µm for high-density mold inserts. XUXIANG operates Sodick and Charmilles platforms.

Precision Grinding

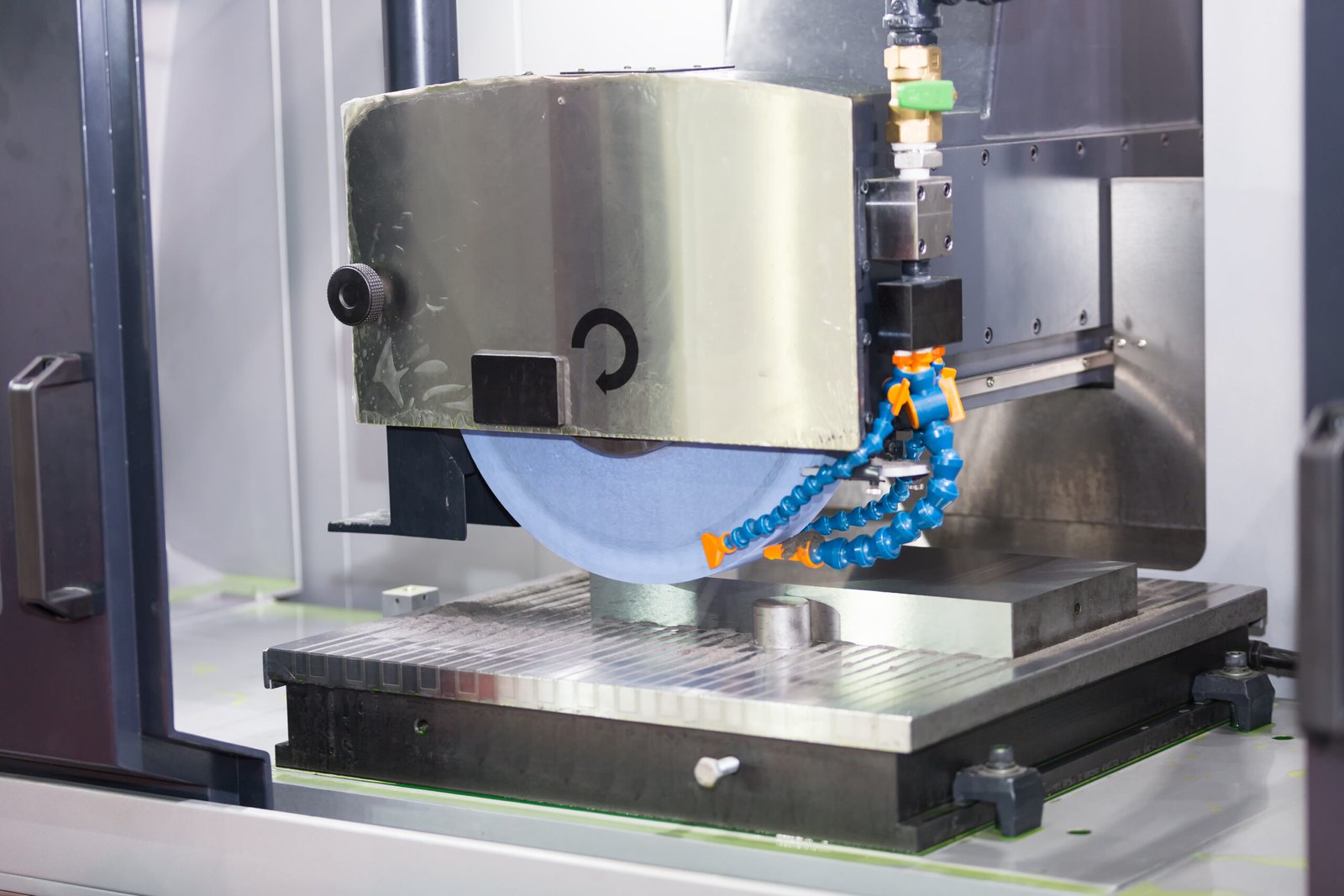

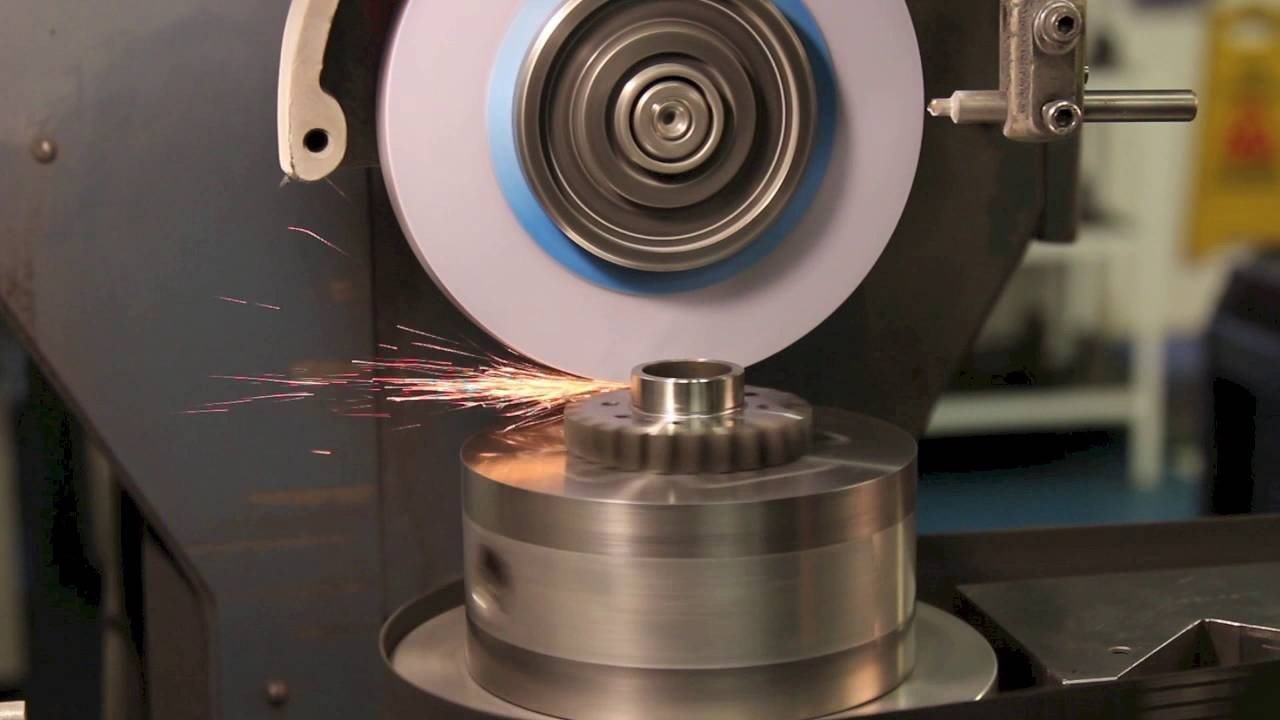

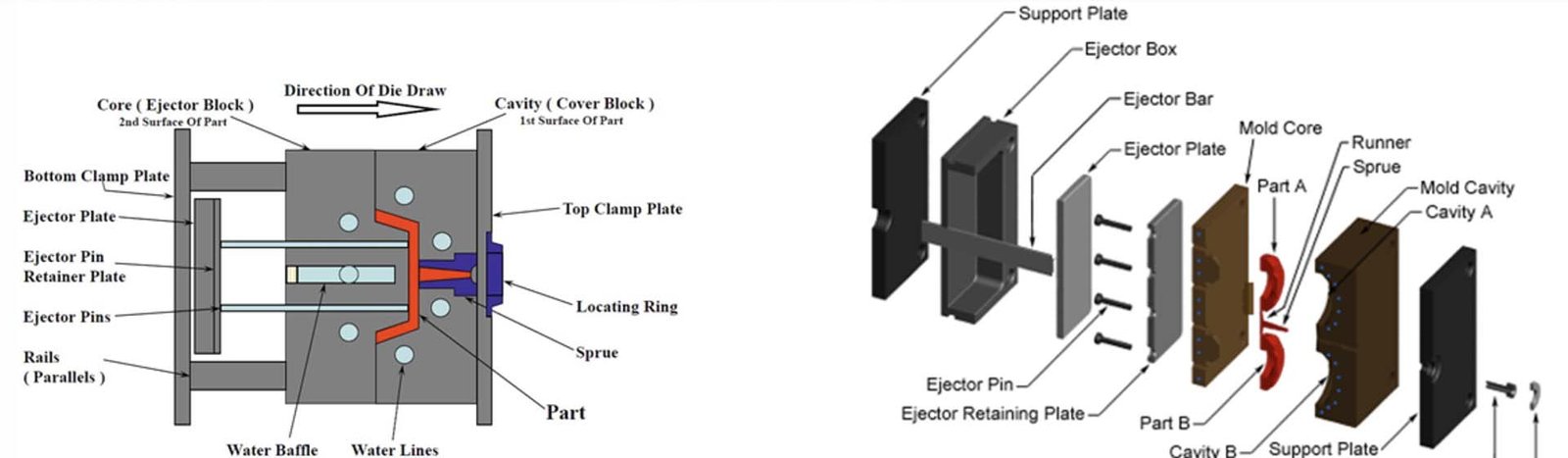

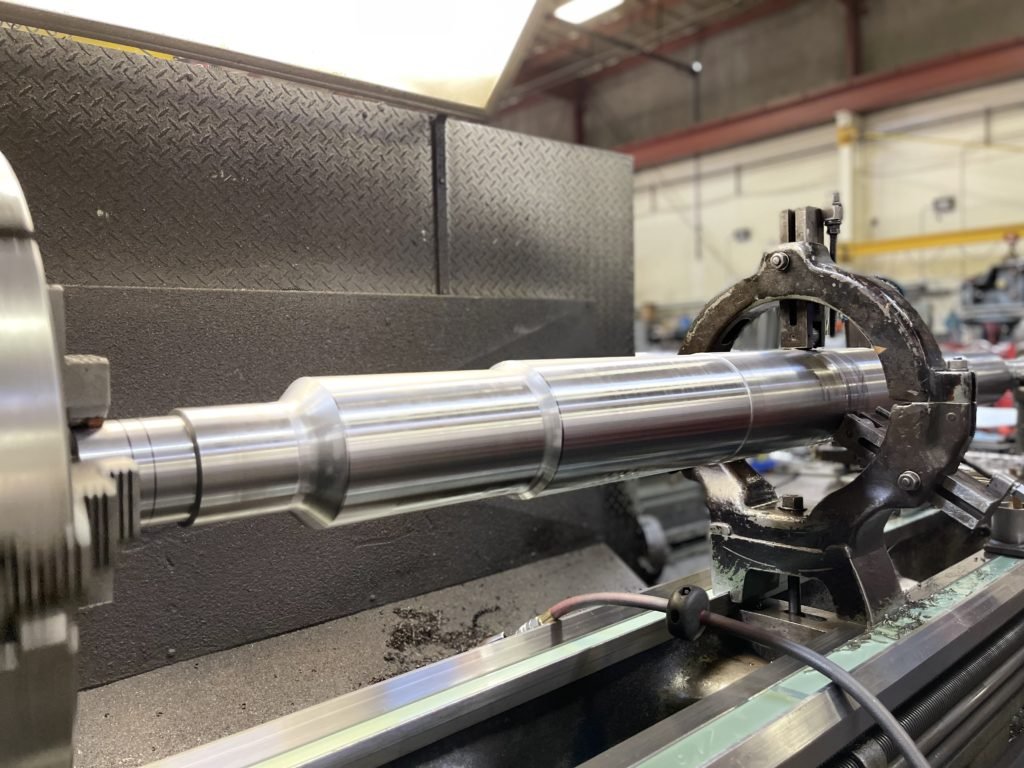

Surface, cylindrical and jig grinding achieve +/-0.001 mm flatness and parallelism on hardened components. Dawn grinding centers process ejector pins, core inserts and gauge blocks for tooling and robotics fixtures.

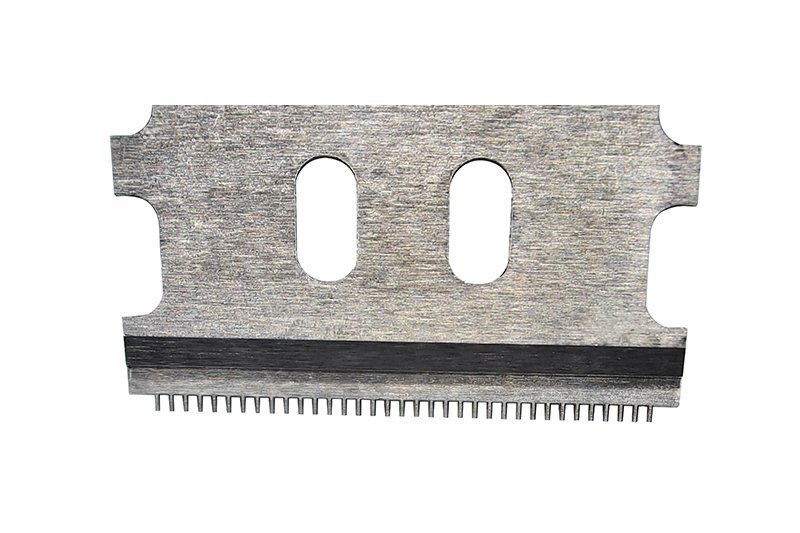

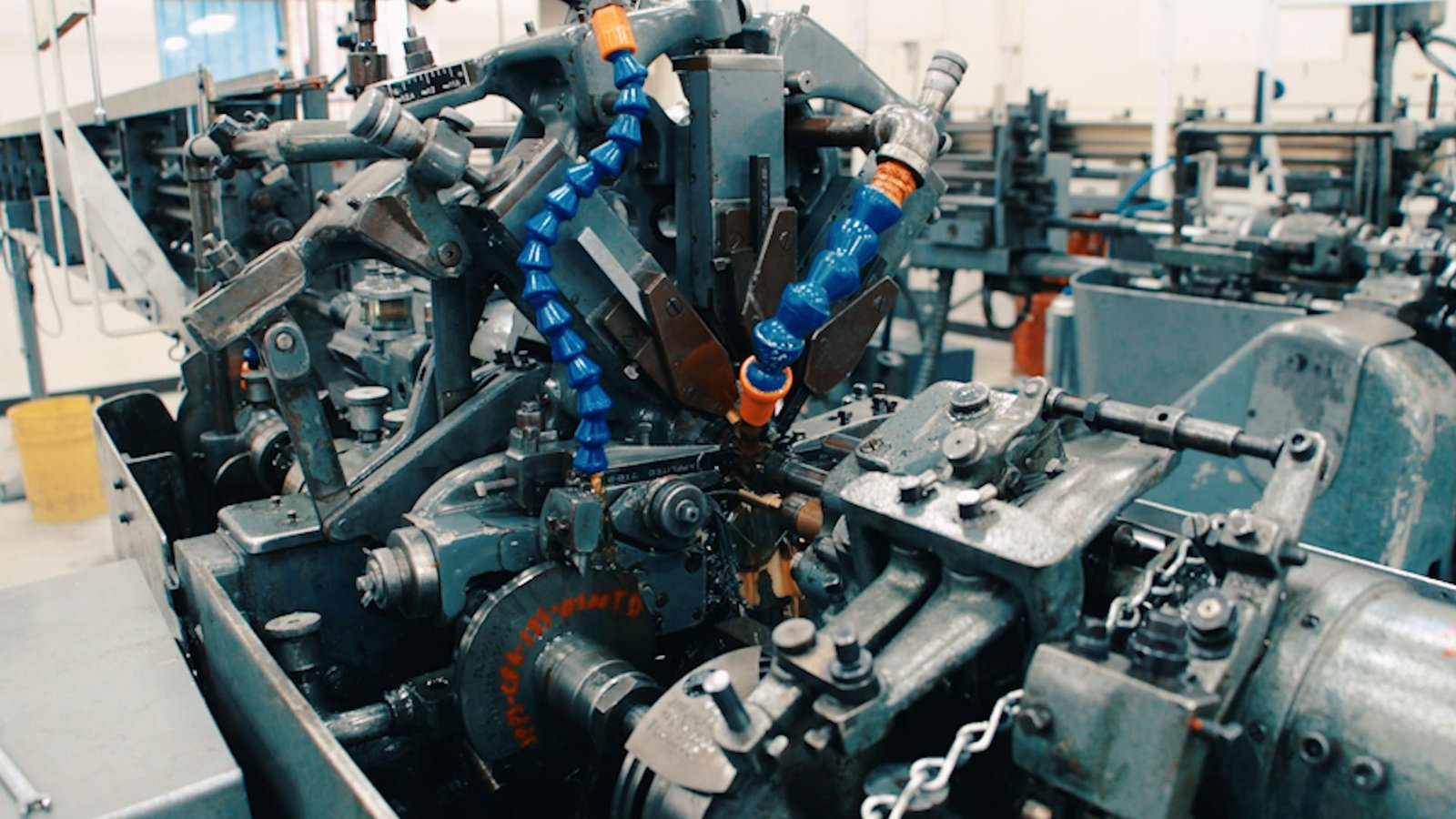

Micro-Machining for Sub-Millimeter Features

Beijing Jingdiao high-precision CNC handles electrode fabrication and micro-pin geometries below 0.3 mm diameter, supporting 5G board-to-board and FPC connector tooling with +/-0.003 mm positional accuracy.

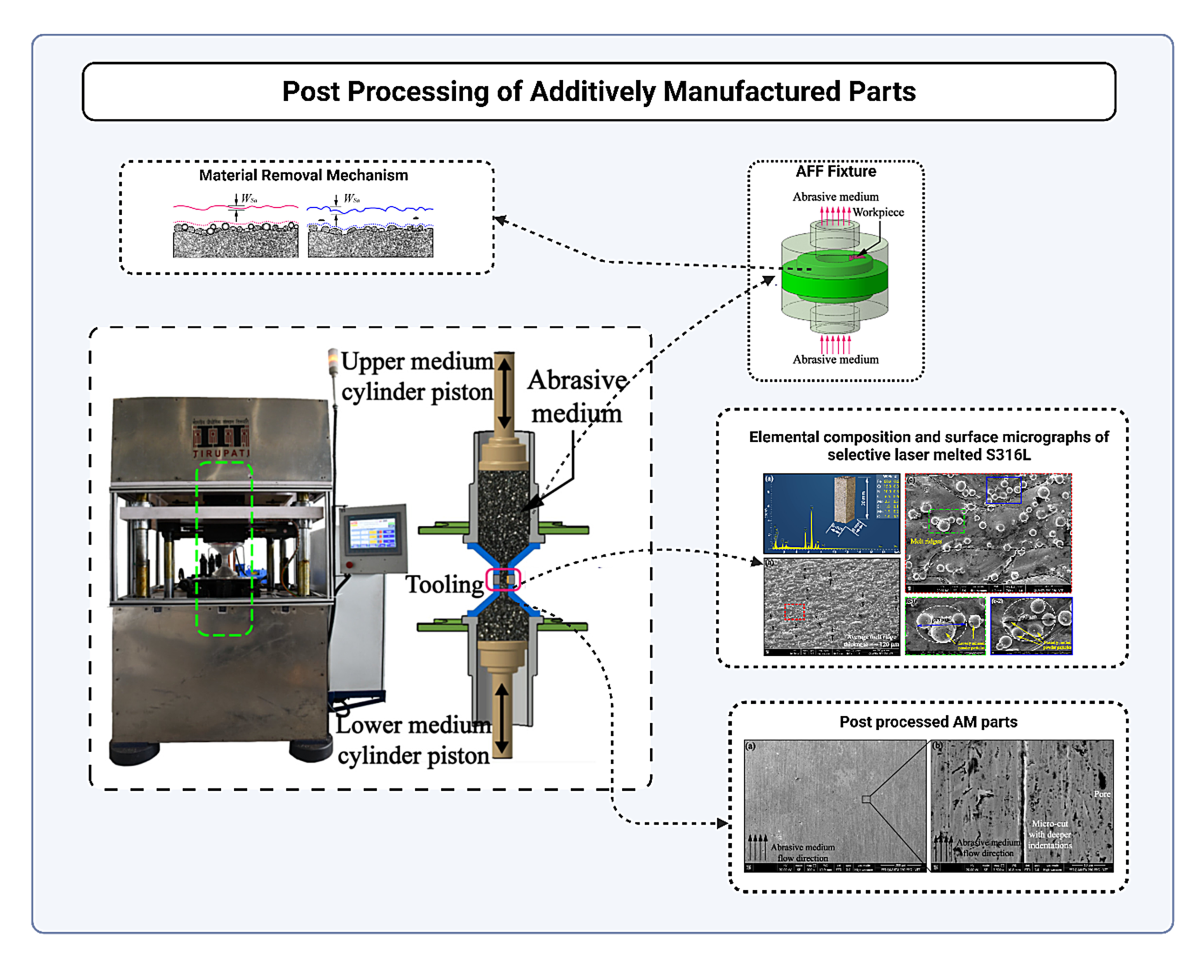

Mechanical Finishes: Blasting, Lapping, and Honing

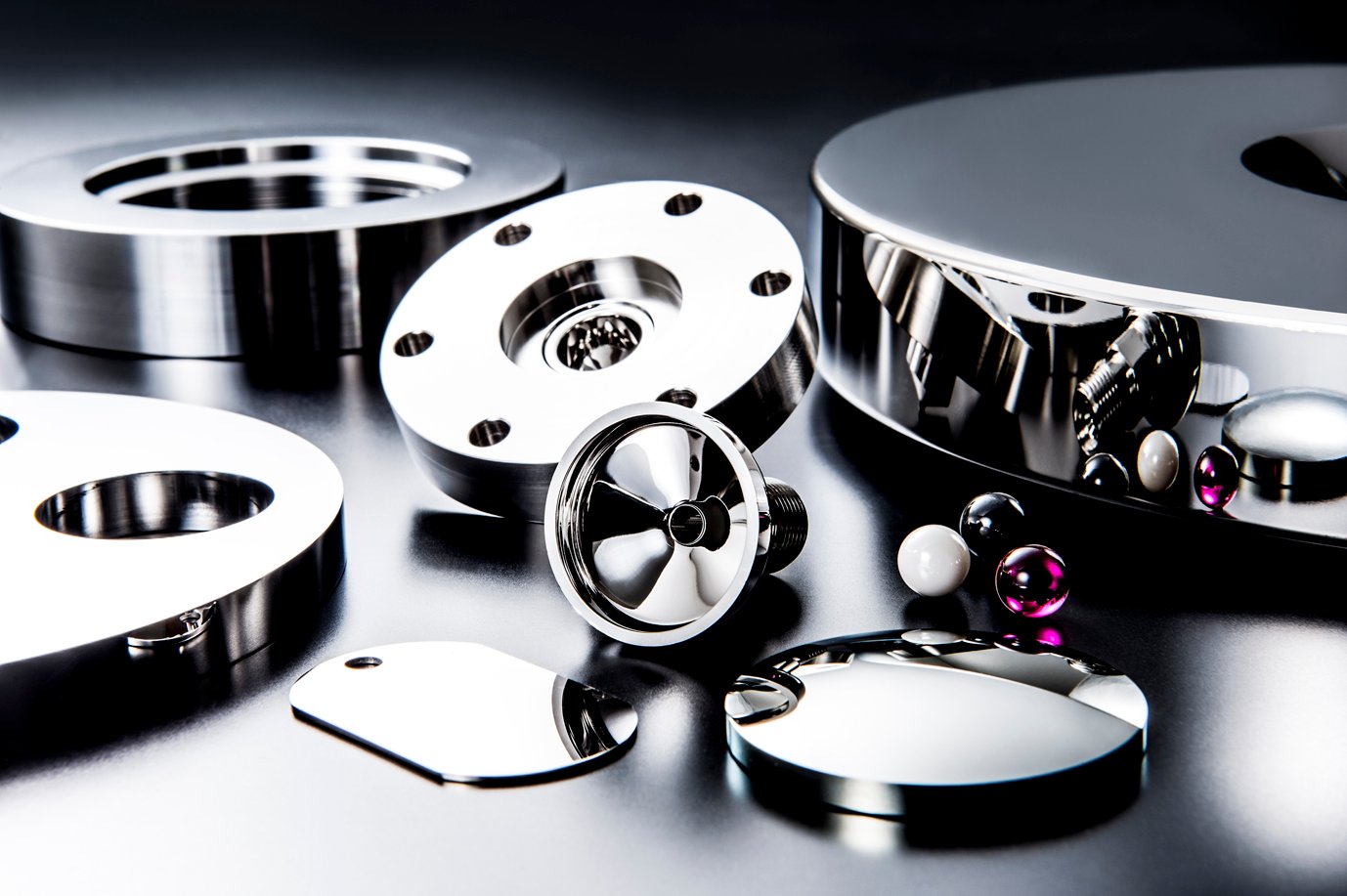

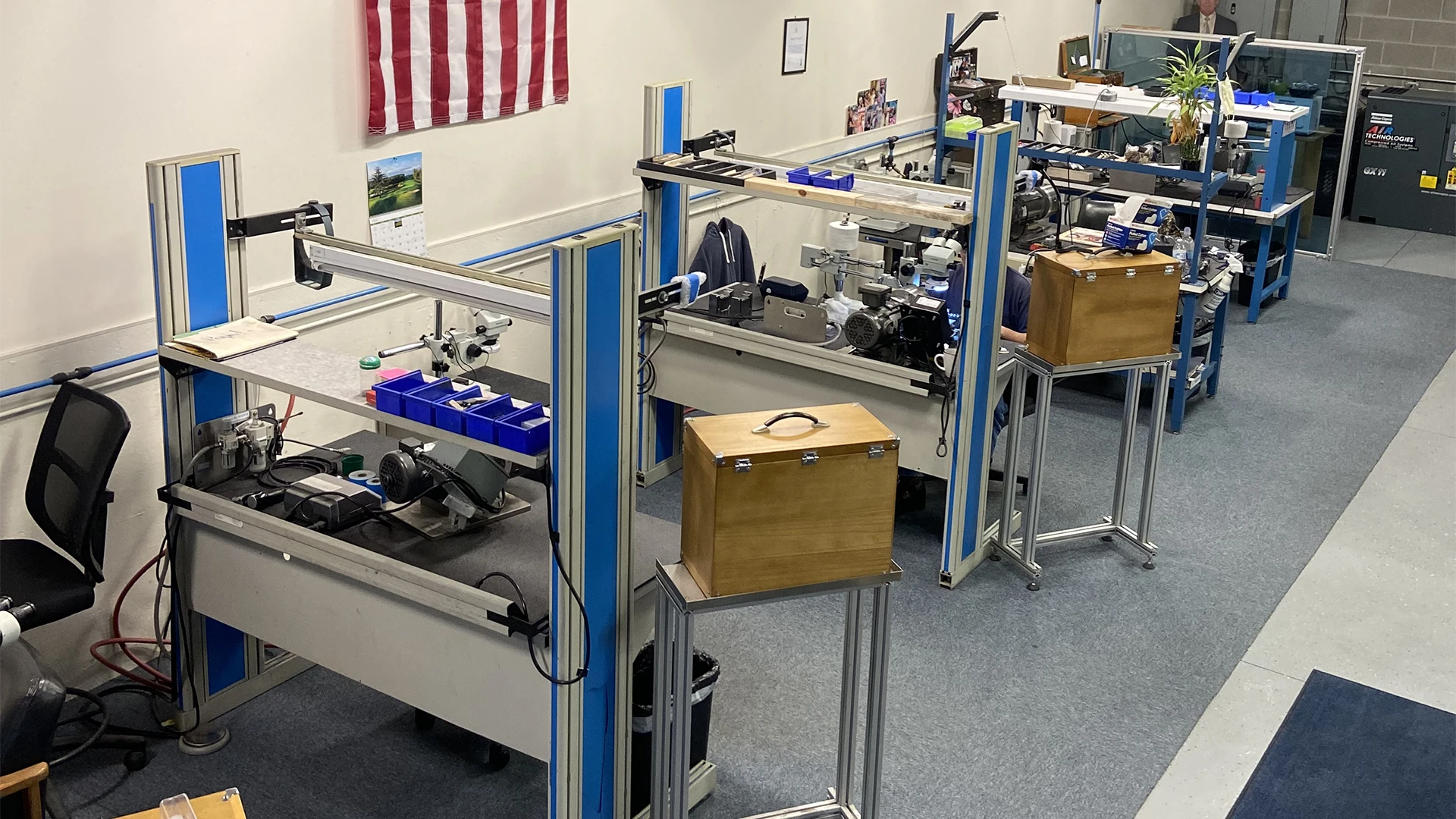

Bead blasting and vapor blasting remove tool marks and create uniform matte textures, typically achieving Ra 0.4–1.6 µm without affecting base dimensions beyond 0.005 mm. Lapping and honing are precision abrasive processes that bring mirror-grade mold inserts to Ra ≤0.1 µm — critical for optical connector housings and medical instrument surfaces where sub-micron flatness is non-negotiable.

Electrochemical and Coating Processes

Electropolishing removes 5–25 µm of surface material, smoothing stainless steel and titanium to Ra 0.1–0.4 µm while improving corrosion resistance. Passivation chemically cleans stainless parts without dimensional change. Anodizing (Type II sulfuric, Type III hard-coat) adds 5–50 µm of wear-resistant oxide to aluminum; specify Type III for connector housings requiring hardness above 400 HV. PVD and CVD coatings deposit TiN, TiAlN, or DLC films 1–5 µm thick, extending tool life in high-cycle mold cores.

Machine Tool Accuracy and Thermal Stability

Positioning repeatability under +/-0.002 mm requires ball-screw backlash compensation, closed-loop encoders and thermal-stable casting. XUXIANG’s Sodick and Seibu wire-EDM platforms hold +/-0.002 mm class positioning because they integrate temperature-compensated scales and granite bases.

Audit by requesting machine calibration logs (laser interferometry, typically six-month intervals) and shop-floor temperature records. Machines in non-climate-controlled shops drift beyond spec within hours.

Inspection Equipment and Metrology

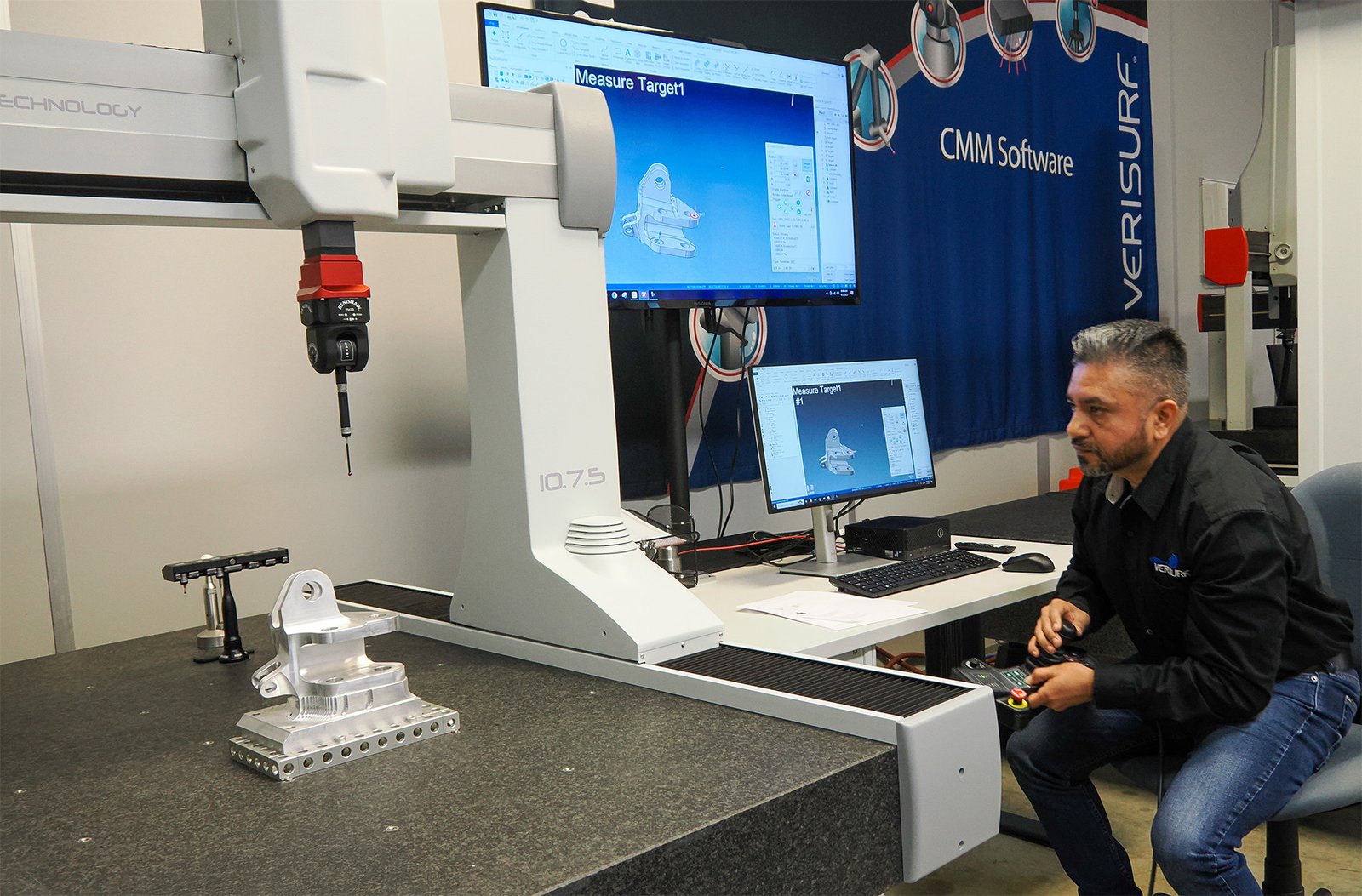

CMM accuracy must exceed part tolerance by a 4:1 ratio minimum. A +/-0.001 mm part demands 0.00025 mm (0.25 µm) CMM resolution. XUXIANG’s ZEISS MICURA measures to 0.7 µm, backed by Nikon toolmaker’s microscopes (V-12B / MM-400 class) for edge-radius verification.

Request calibration certificates (ISO 10360 for CMMs, traceable to national standards) and ask to observe in-process checks, not just final inspection.

Operator Certification and Process Documentation

Micron-grade work requires CNC programmers trained in thermal-expansion offsets, tool-wear prediction and fixture-stress analysis. ISO 9001:2015 mandates documented work instructions, but precision shops add DFM reviews — XUXIANG’s 10+ engineering experts flag tolerance risks before production.

Audit by reviewing operator training records, machine setup sheets and whether the shop offers proactive DFM feedback or waits for your drawings.

Environmental Controls

Temperature swings above +/-1 °C cause steel to expand ~11 µm per meter per degree. Precision cnc machining services require climate-controlled machining zones (20 °C +/-1 °C, 50–60% RH) and 24-hour thermal soak for workpieces and tooling.

Verify via shop-floor data loggers and ask whether inspection occurs in the same controlled environment as machining.

Traceability Systems

Every micron-tolerance part needs material spectral analysis (PMI or XRF), first-article inspection reports with CMM data, and serialized batch tracking. XUXIANG’s five-step QC flow includes material certificates and FAI documentation linked to each order.

Audit by requesting sample FAI packets and asking how the supplier links material certs to individual parts if a nonconformance surfaces months later.

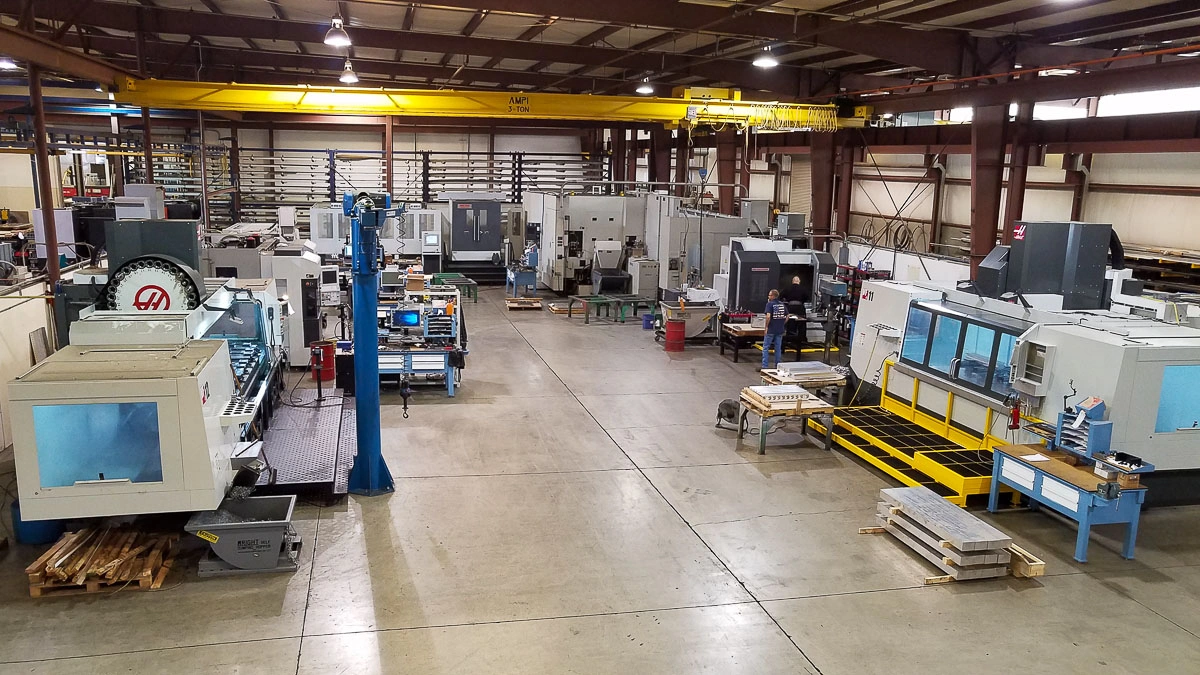

Verify Machine Capabilities and Tooling Inventory

Request a detailed equipment list with make, model and year for CNC mills, EDM systems, grinders and CMM assets. Reputable shops name specific platforms — Sodick sinker EDM, Charmilles wire EDM, ZEISS CMM — rather than generic ‘high-precision machines.’ Confirm climate-controlled machining zones; ambient temperature swings degrade micron-level repeatability.

Ask for achievable tolerances by process: +/-0.002 mm on slow-wire EDM and +/-0.001 mm on precision grinding are realistic benchmarks. Vague claims like ‘ultra-precise’ without documented capability studies signal risk.

Review Certifications and Quality Systems

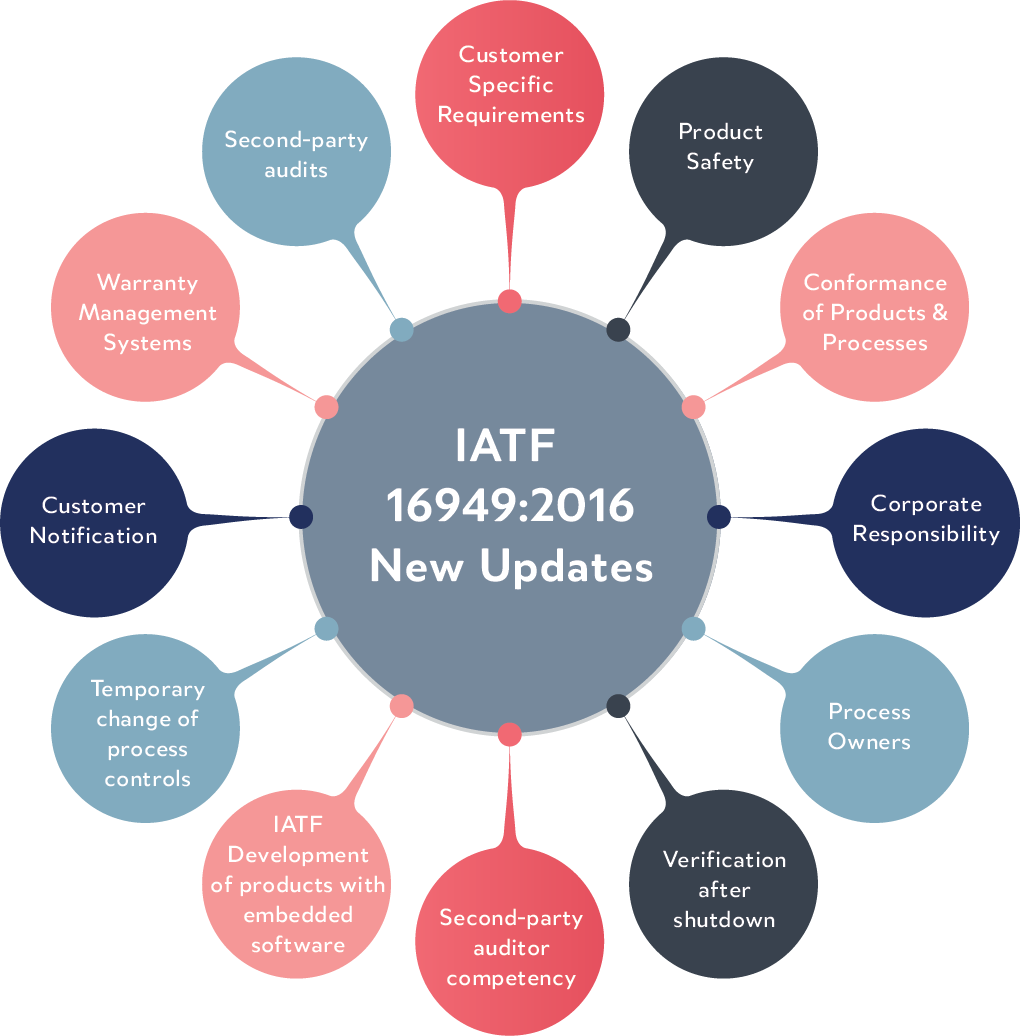

ISO 9001:2015 is the baseline; AS9100 (aerospace) or ISO 13485 (medical) indicate vertical-specific rigor. Request certificate copies and audit dates; expired or unverifiable credentials are immediate red flags. XUXIANG maintains ISO 9001:2015 with five-step QC including spectral analysis and ZEISS CMM verification on every production lot.

Assess Engineering Support Depth

Engineering-led providers offer DFM feedback, tolerance stack-up analysis and material-selection guidance before quoting. XUXIANG deploys 10+ engineering experts for pre-production reviews, catching design conflicts that would otherwise surface as scrap or rework. Confirm the shop provides FAI documentation, material certificates and full inspection reports — not summary pass/fail sheets.

Evaluate Lead Times and Scalability

Probe prototype-to-production transition plans: can the shop scale from 10-piece validation runs to 500-piece series without re-tooling delays? XUXIANG’s 2025 Quanzhou expansion targets 200% capacity growth, supporting both rapid prototyping and volume production. Delivery 30% faster than industry norms reflects integrated machining, EDM and inspection under one roof.

Check References in Your Industry Vertical

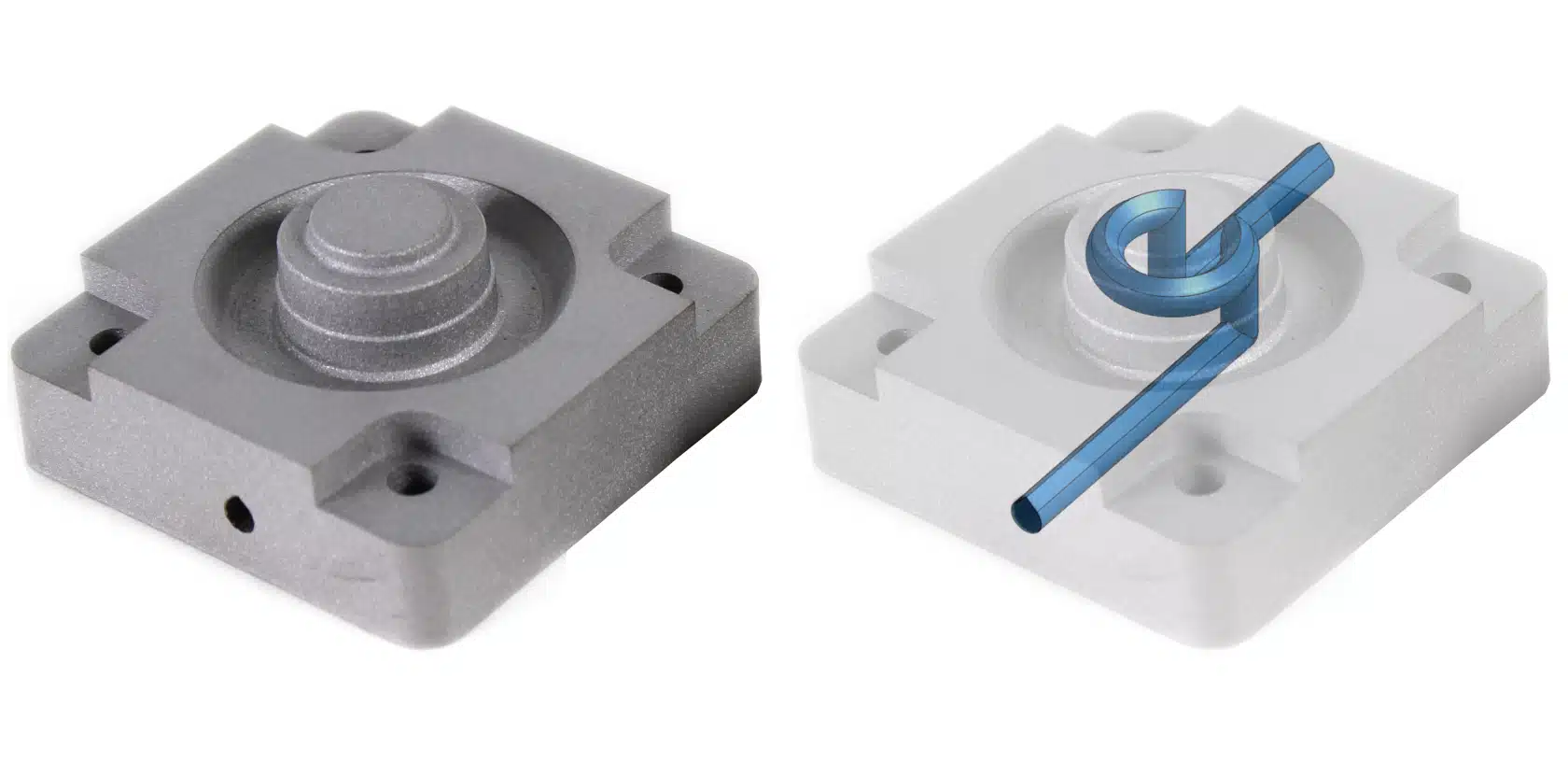

Request case studies or reference contacts from your sector — 5G/telecom micro-connector tooling differs fundamentally from automotive sensor housings. Verify the provider’s experience with your material (tool steel, stainless, aluminum) and feature complexity (thin walls, conformal cooling, micro-pins). Absence of vertical-specific examples suggests learning-curve risk on your program.

Specifying Tighter Tolerances Than Required

Calling out +/-0.001 mm when +/-0.01 mm meets functional requirements can triple machining cost and lead time. Every halving of tolerance window typically doubles setup, tool-change and inspection cycles.

XUXIANG’s DFM team reviews drawings to flag over-tolerance zones; shifting non-critical features from +/-0.002 mm to +/-0.005 mm can cut cycle time by 40 percent without affecting assembly fit.

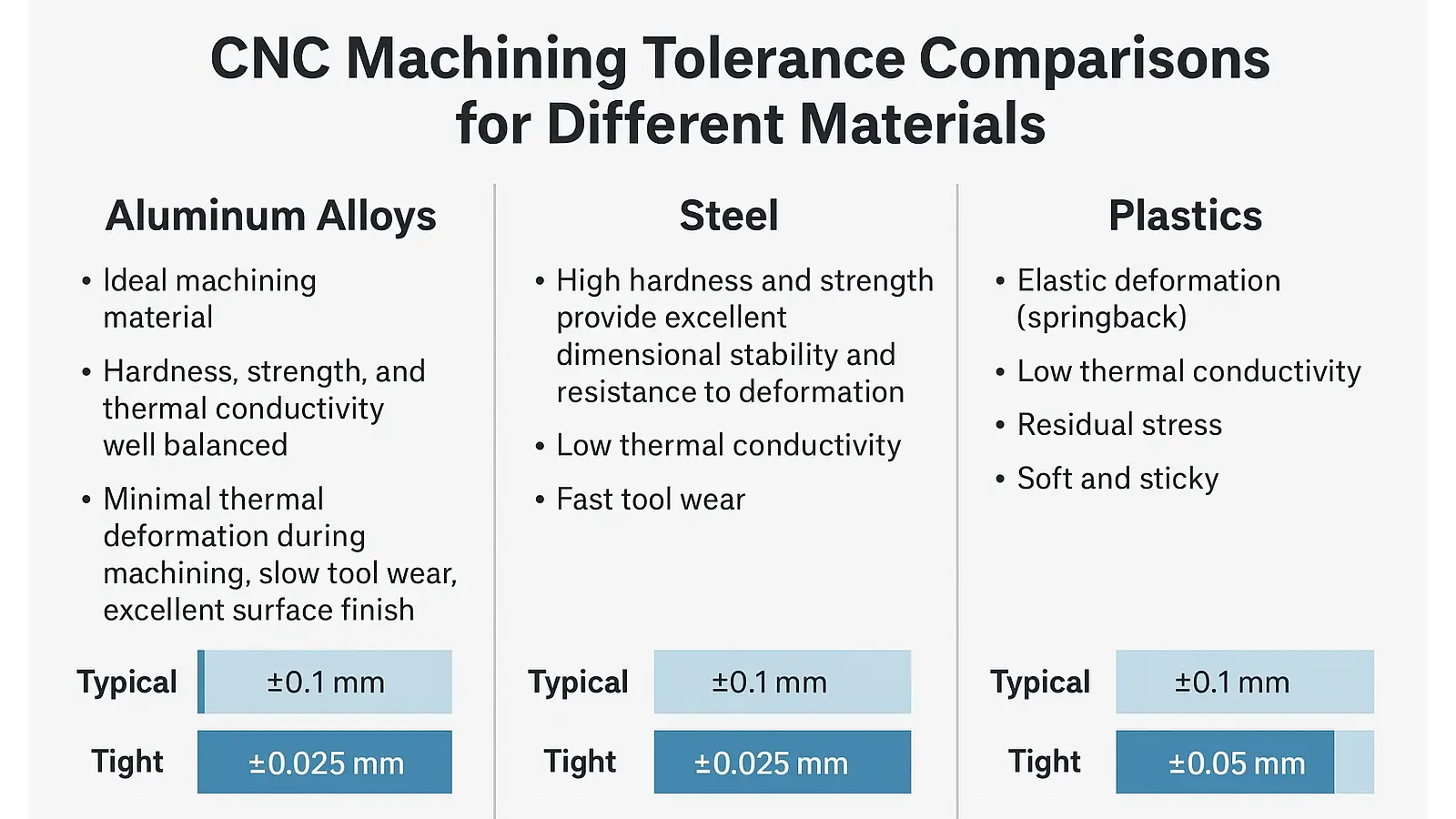

Ignoring Material Machinability

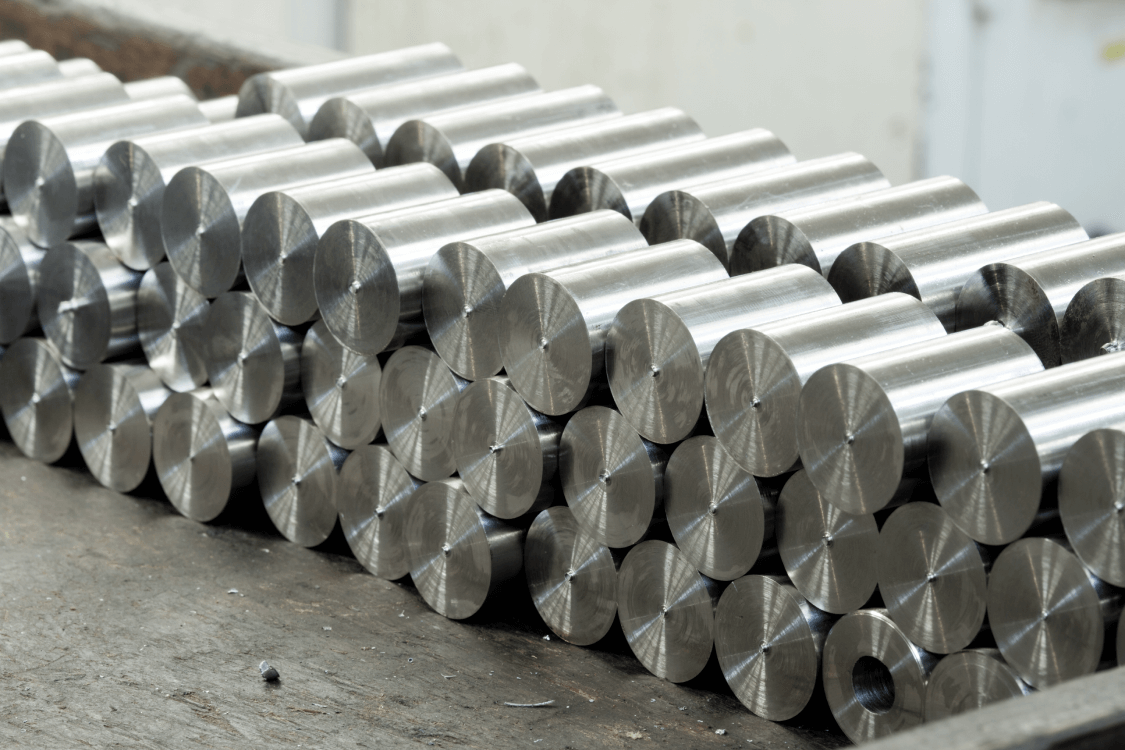

Specifying stainless 17-4PH or titanium Ti-6Al-4V without consulting the supplier on tool life and feed rates often leads to unexpected lead-time extensions. Hard alloys demand slower spindle speeds, carbide inserts and rigid fixturing that may not be available on every machine.

Request a material-capability matrix during RFQ; XUXIANG maintains pre-qualified parameters for over 30 engineering plastics and metals to ensure realistic quoting.

Underestimating First-Article Inspection Lead Time

FAI on a five-axis part with 20+ GD&T callouts can require two days of CMM programming and measurement. Buyers who budget only machining time miss 15–25 percent of true cycle duration.

Build three to five working days into your project plan for ZEISS or equivalent CMM validation, dimensional reports and material certification — standard practice in XUXIANG’s five-step QC flow.

Failing to Request Process Capability Data

Accepting a quote without Cpk documentation leaves you blind to whether the supplier’s equipment can hold your tolerance consistently across production lots. A Cpk below 1.33 signals high scrap risk even if the sample passes.

Ask for recent Cpk studies on similar geometries and tolerances; XUXIANG provides SPC data from Sodick wire-EDM and Dawn grinding centers to prove +/-0.002 mm repeatability.

Choosing Suppliers on Price Alone

A 20 percent lower quote often reflects missing inspection steps, uncalibrated tooling or no traceability — risks that surface only after delivery. ISO 9001:2015 certification and named metrology assets (ZEISS, Mitutoyo, Nikon) are minimum thresholds for precision cnc machining services.

Audit the supplier’s quality manual, calibration records and CMM capability before awarding; transparent documentation distinguishes precision shops from low-cost job shops.

Define Functional Tolerances and GD&T Requirements

Start by documenting which dimensions are critical to fit, function and assembly. Apply GD&T callouts (position, profile, perpendicularity) only where needed; over-specification inflates cost without adding value.

XUXIANG’s +/-0.001 mm machining capability supports tight positional tolerances, but engineering collaboration ensures you specify them where they matter most.

Prepare 3D CAD Models and 2D Drawings

Supply native STEP or IGES files alongside dimensioned 2D PDFs that include material grade, surface-finish requirements and inspection criteria. Clear documentation prevents rework and shortens DFM turnaround.

XUXIANG’s 10+ engineering experts review every file for manufacturability before quoting, catching potential issues early.

Request Quotes and DFM Reviews

Submit your package to shortlisted providers and compare not only price but also lead time, process recommendations and suggested material substitutions. A thorough DFM review identifies cost-saving design tweaks without compromising performance.

XUXIANG delivers transparent quotes with itemized tooling, machining and finishing costs, plus actionable DFM feedback within 48 hours.

Approve First-Article Inspection Reports

Before committing to volume, validate dimensional accuracy, surface integrity and material certification through a formal FAIR. XUXIANG’s ZEISS MICURA CMM (0.7 µm resolution) and five-step QC flow produce traceable FAI documentation that satisfies ISO 9001:2015 and customer audit requirements.

Scale to Production with Process Control

Lock in tooling parameters, inspection frequencies and packaging standards in a control plan. XUXIANG’s dual-factory footprint and 2025 Quanzhou expansion support volume ramp-up with ~30% faster delivery than industry averages, backed by in-process tolerance monitoring and batch traceability.
