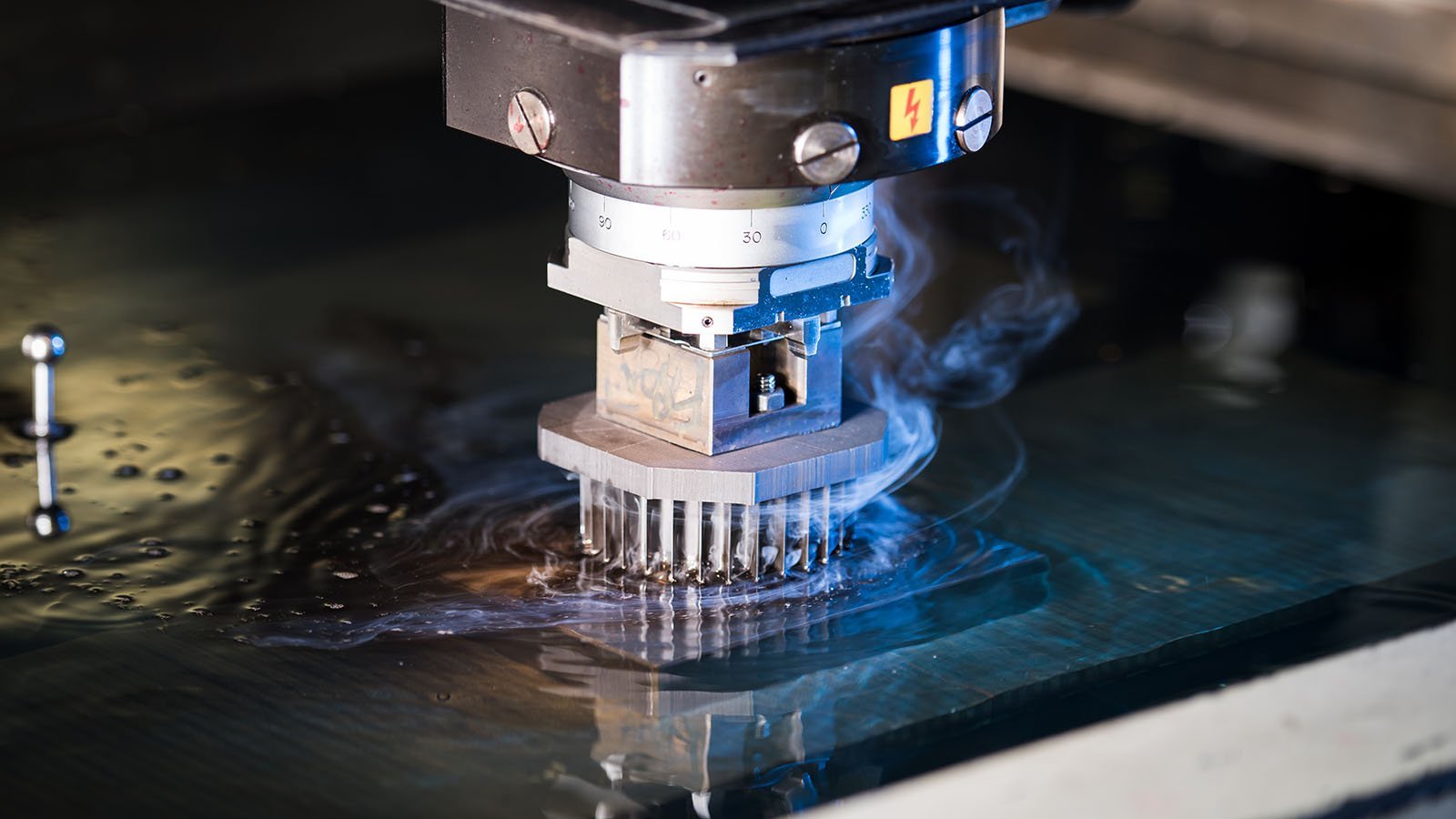

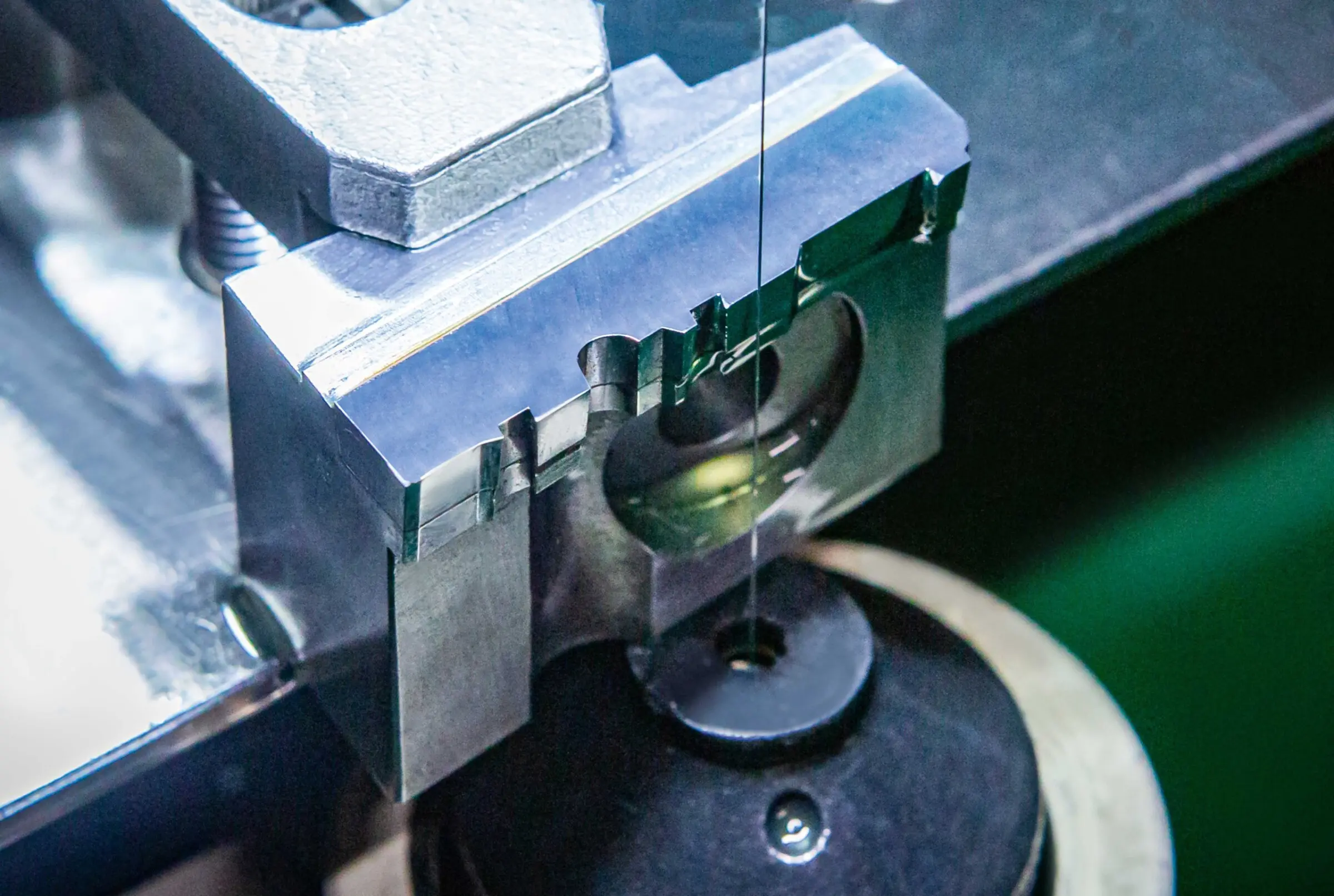

Two-Axis vs. Four-Axis vs. Five-Axis Configurations

Two-axis wire EDM cuts straight vertical profiles and is the workhorse for flat mold plates and simple punches. Four-axis machines add independent upper and lower guides, enabling taper angles up to ±30° for draft faces and undercut cores common in automotive sensor housings.

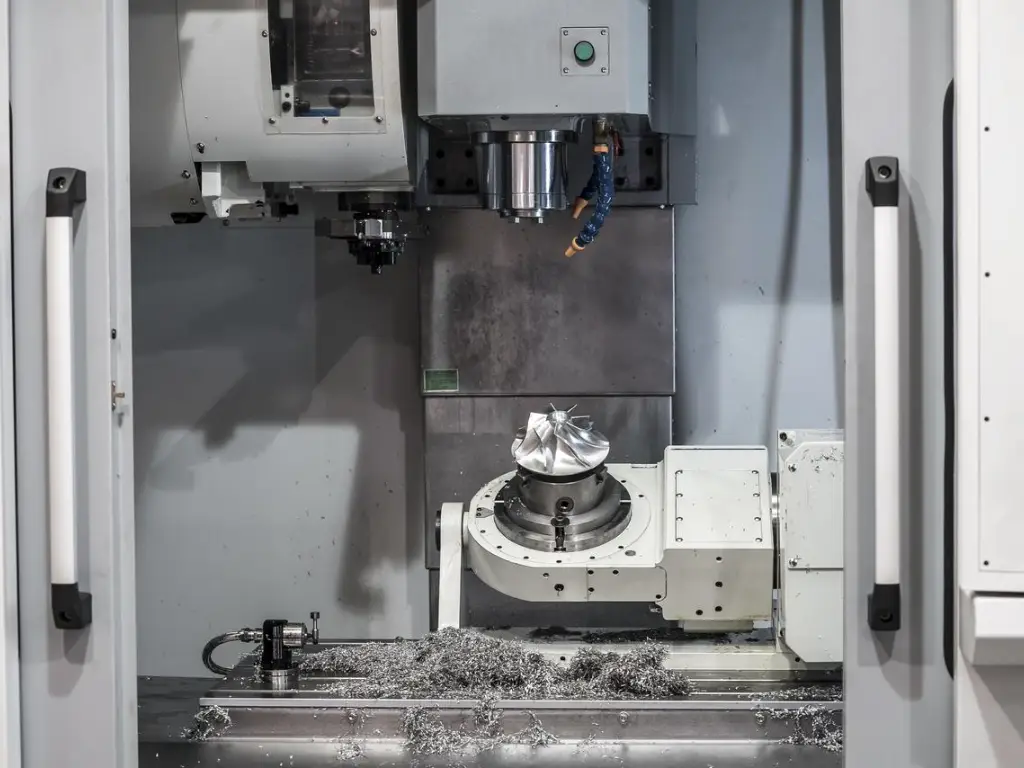

Five-axis systems rotate the workpiece or wire guide assembly, cutting complex 3D contours in a single setup — critical for micro-connector terminal cavities and conformal cooling channels where repositioning would compromise +/-0.002 mm tolerances.

Skim-Cut vs. Rough-Cut Strategies

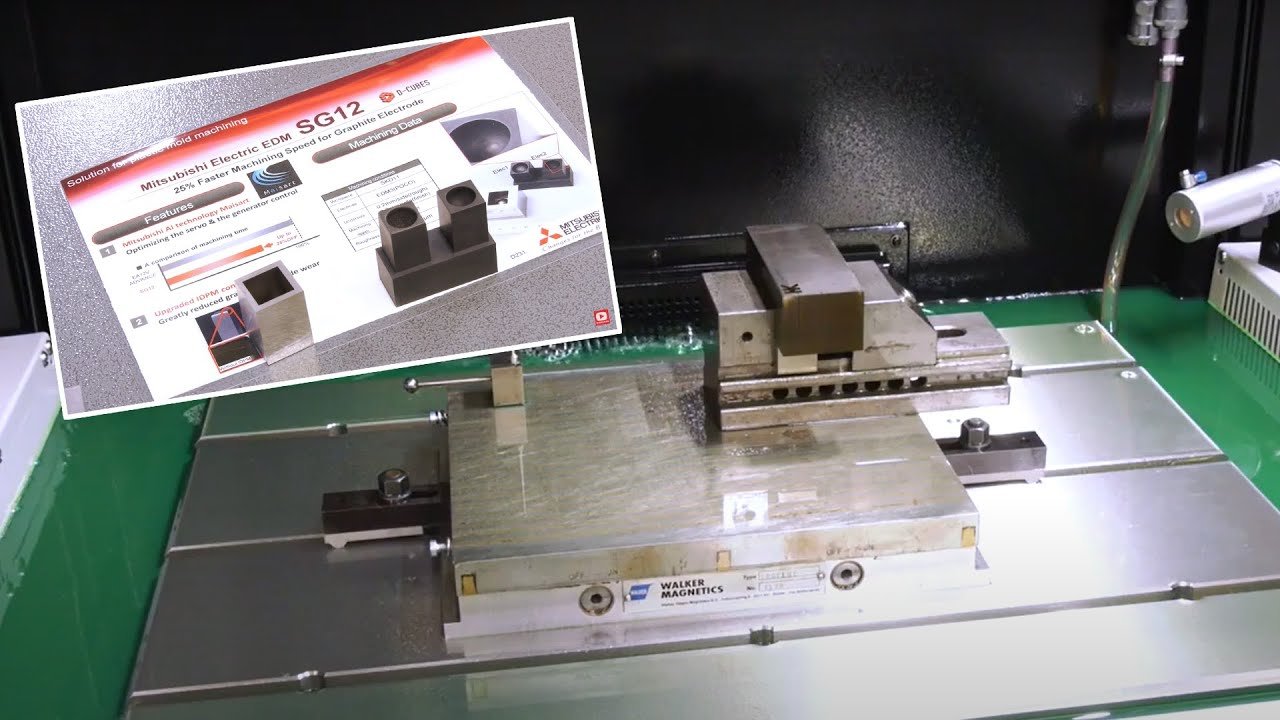

Rough cuts remove bulk material at 150–250 mm²/min with higher discharge energy, leaving 0.01–0.02 mm stock. Skim cuts — typically two to four passes at reduced power — achieve Ra 0.1–0.4 µm mirror finishes and hold +/-0.002 mm positioning, essential for mirror-class EDM cores and high-density terminal tooling where surface integrity directly affects mold life.

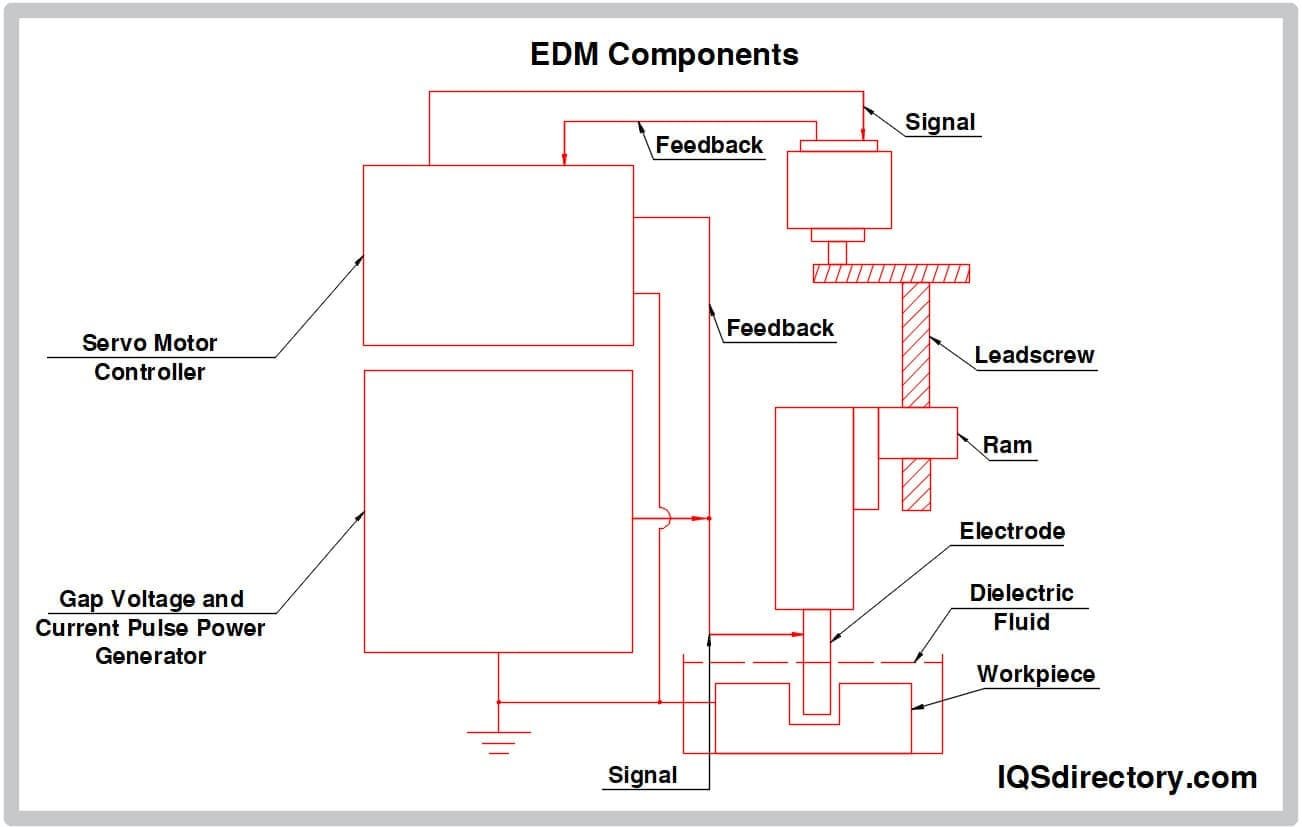

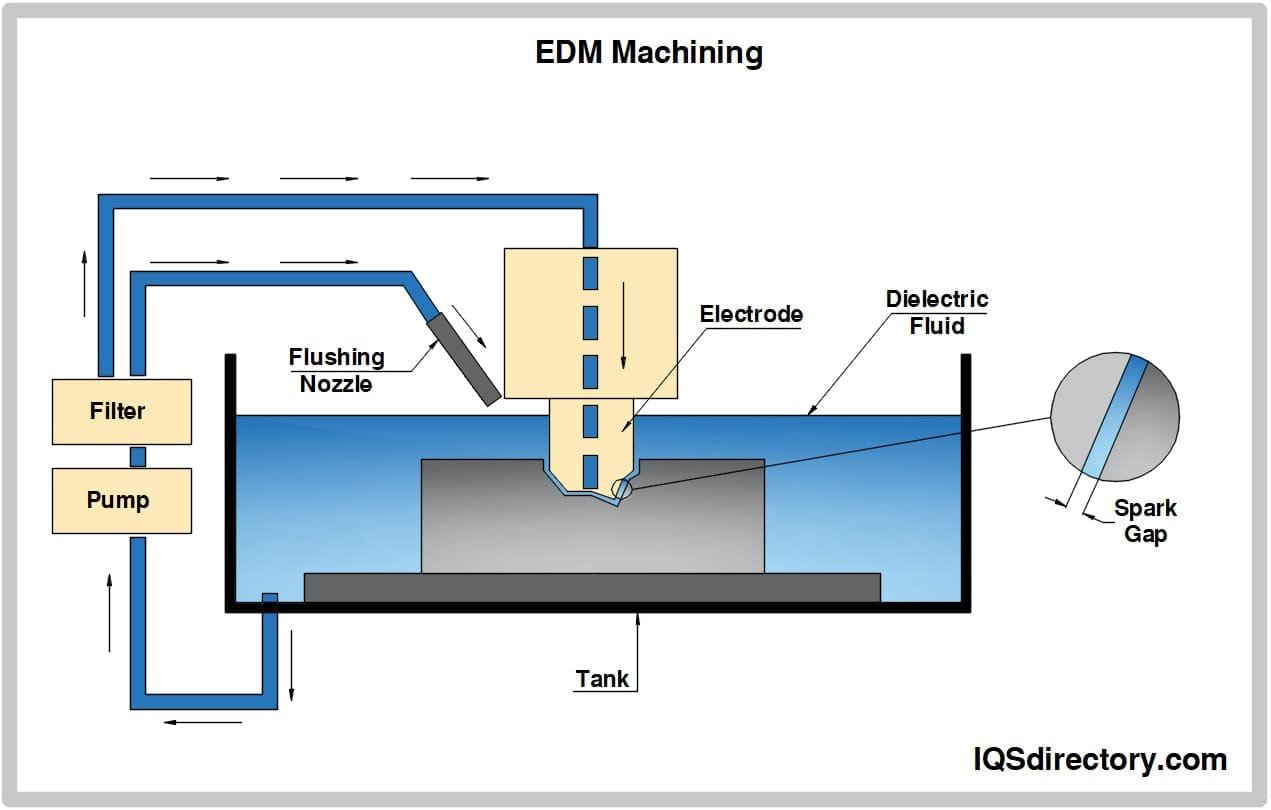

Submerged vs. Spray-Flush Dielectric Delivery

Submerged wire EDM immerses the workpiece in a dielectric tank, ensuring stable flushing for thick sections (>50 mm) and intricate cavities. Spray-flush systems jet dielectric onto the cut zone, suited for thin-wall parts (<5 mm) and preventing thermal distortion in delicate micro-pins where full immersion risks warping.

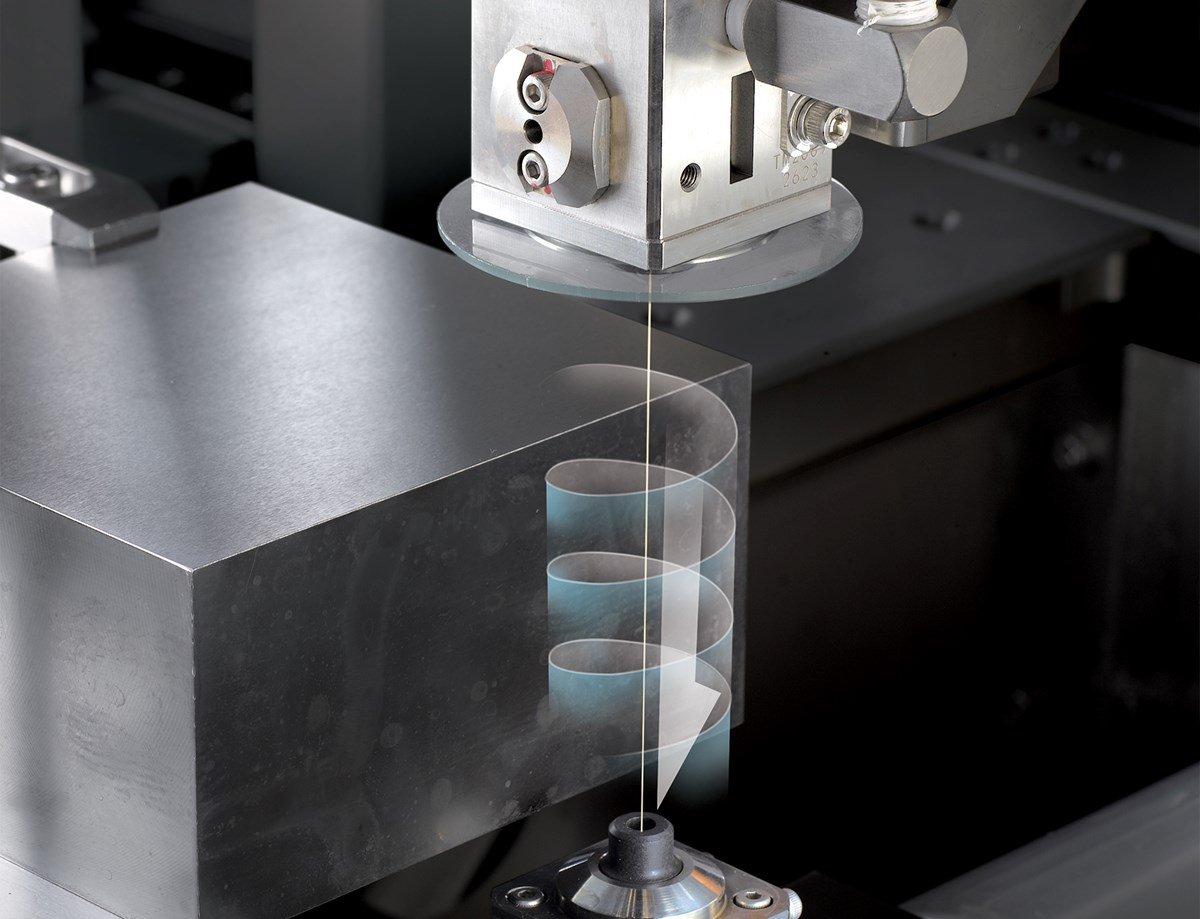

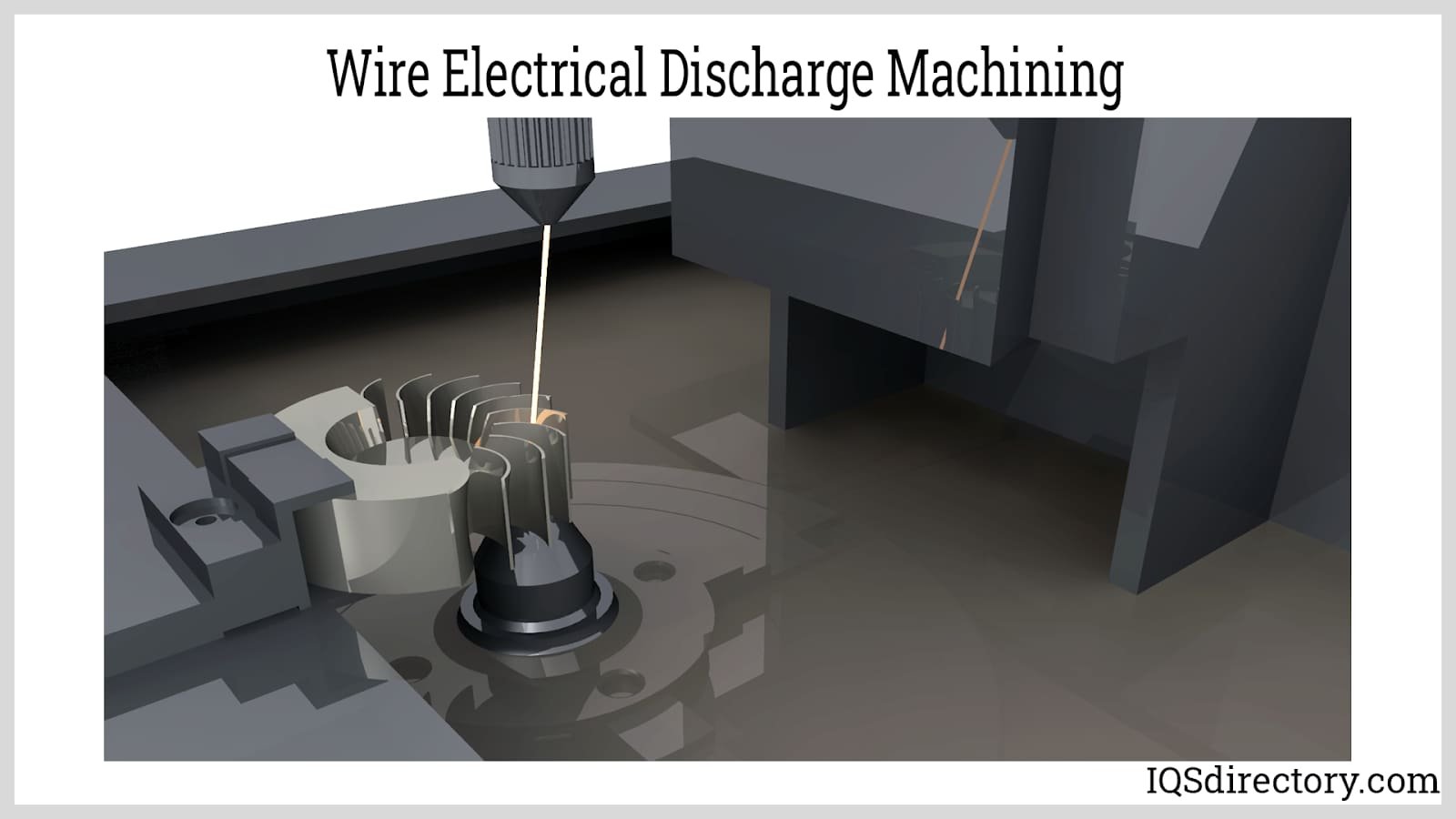

High-Speed WEDM-HS vs. Slow-Feed Precision Wire EDM

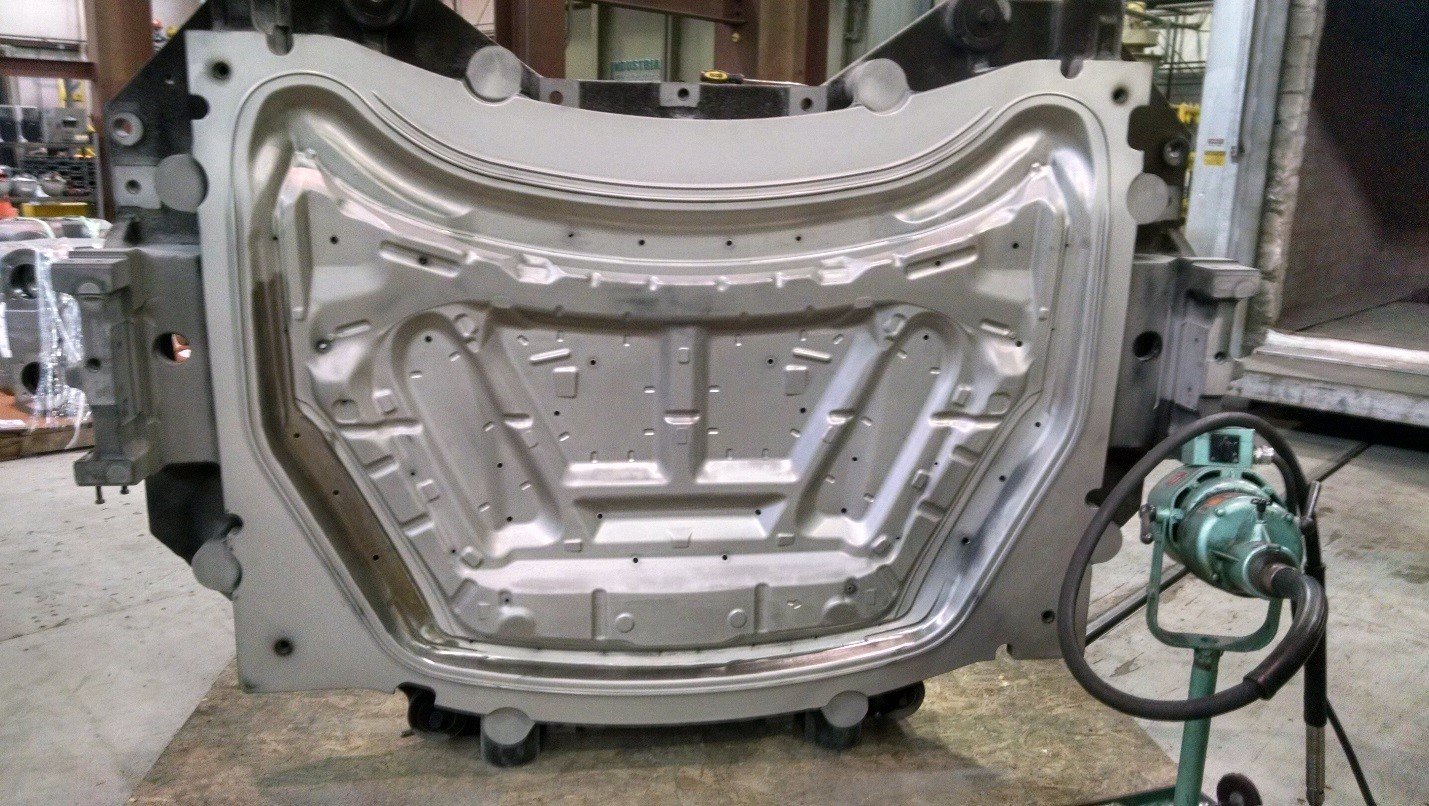

High-speed wire EDM (WEDM-HS) uses brass wire at 8–12 m/s for production runs of stamping dies and simple inserts, trading finish for throughput. Slow-feed precision wire EDM — Sodick and Seibu class — advances wire at 0.05–0.2 m/s, delivering +/-0.001 mm accuracy and Ra ≤0.2 µm for tooling applications like lifters, sliders and ADAS component molds where micron-stable precision is non-negotiable.

Sharp Internal Corners and Minimum Radii

Wire EDM produces internal corner radii as tight as the wire diameter plus spark overcut — typically R 0.05–0.10 mm with 0.20 mm brass wire, and down to R ≤ 0.015 mm with 0.02–0.03 mm wire on precision machines. XUXIANG’s Sodick and Seibu slow-wire systems hold +/-0.002 mm positioning, enabling micro-connector tooling and conformal cooling channels that require minimal fillet radii without secondary broaching.

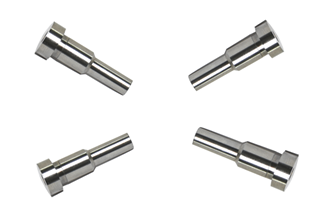

Taper Angles and Variable Z Profiles

Modern wire EDM machines tilt the wire up to ±30° from vertical, cutting tapered walls and variable Z-height contours in a single pass. This capability is critical for draft angles in injection-mold cores, progressive-die punches and angled pin sockets in high-density board-to-board connectors, eliminating costly multi-setup operations.

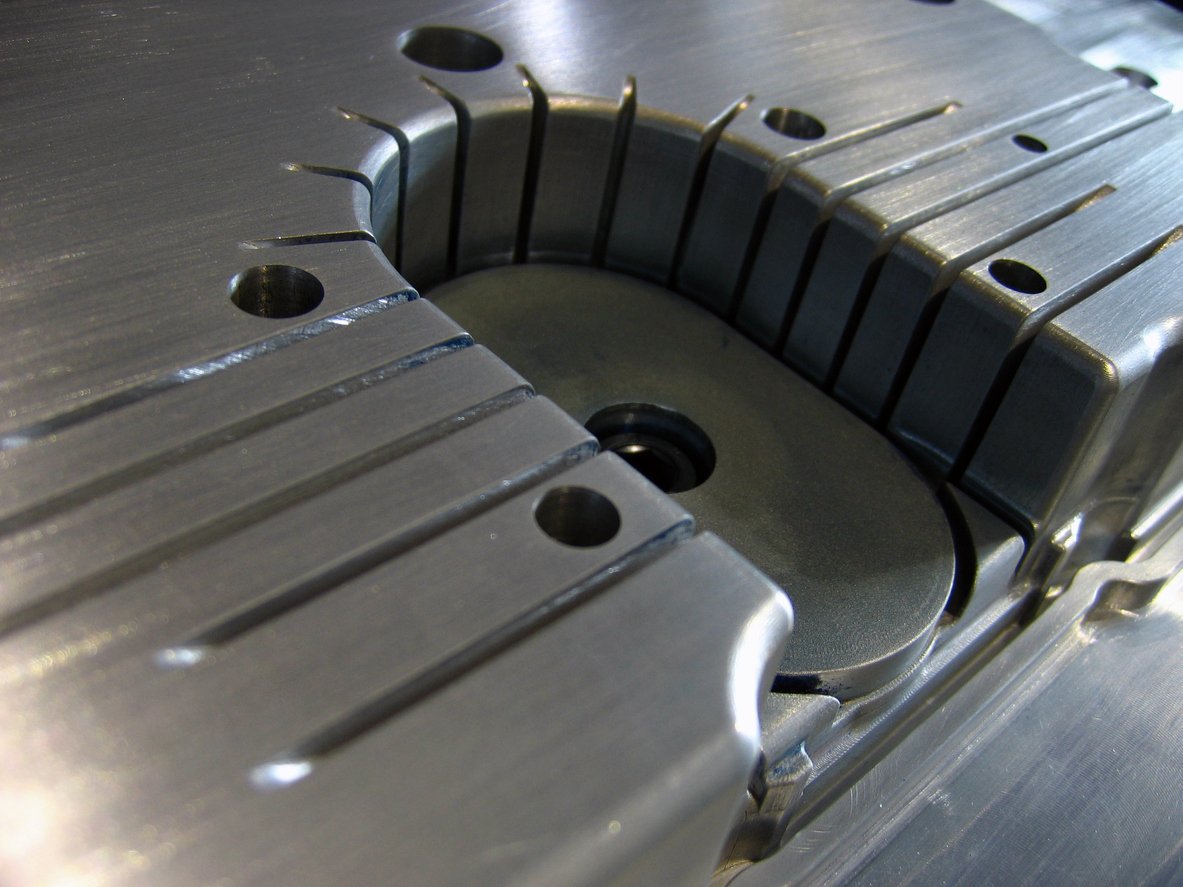

Engraving, Micro-Slots and Array Patterns

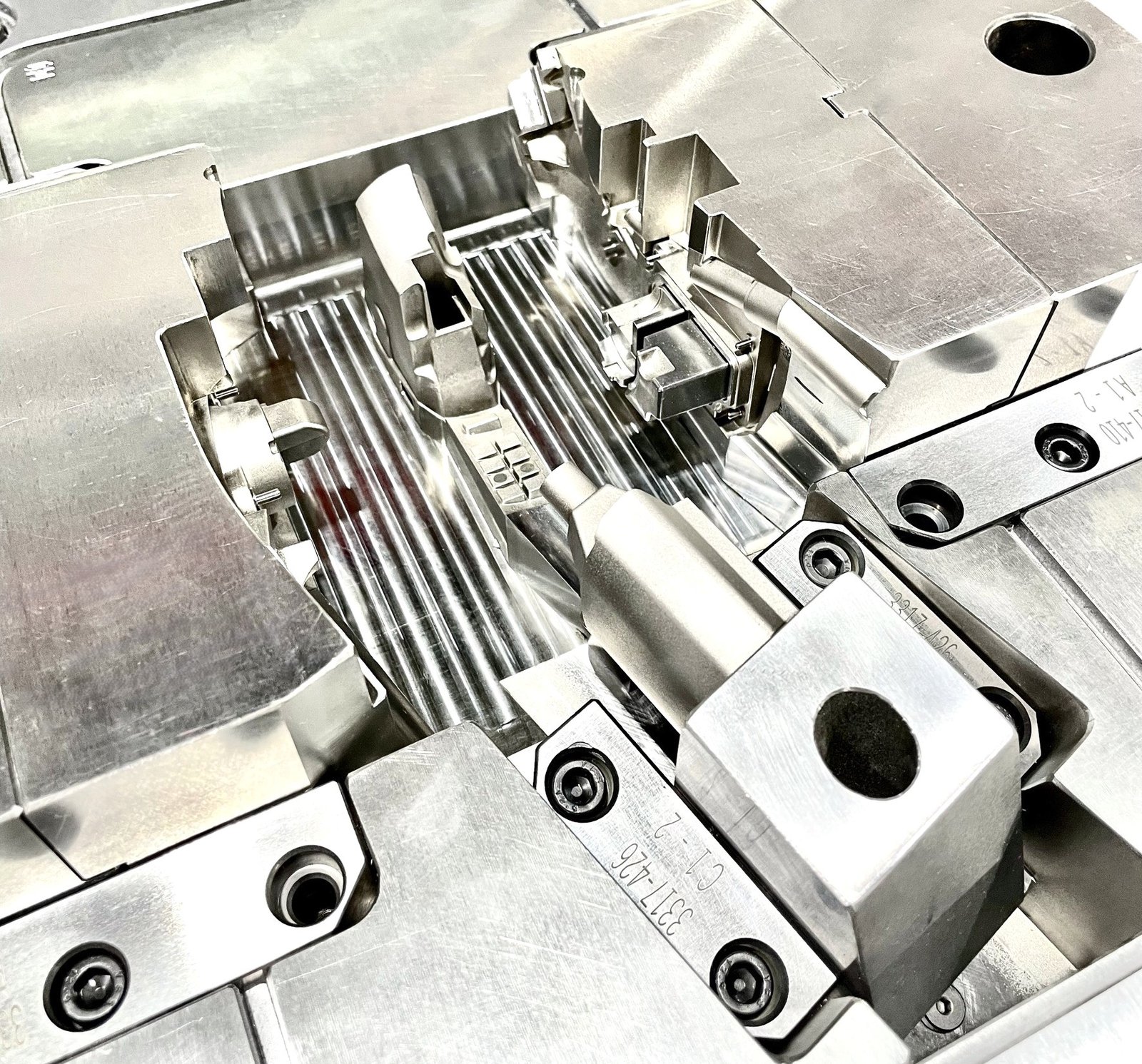

Wire paths can trace alphanumeric engraving, logo reliefs and repeating slot arrays with sub-10 µm positional accuracy. Micro-slots as narrow as 0.05 mm and array pitches below 0.2 mm are routine for RF connector tooling and multi-cavity mold inserts, where conventional end mills would deflect or break.

Integrated Secondary Operations

Post-EDM heat treatment (vacuum hardening to HRC 58–62), precision grinding (Ra ≤ 0.1 µm on Dawn centers) and PVD coatings (TiN, DLC for wear resistance) are coordinated in-house at XUXIANG. This integration maintains tolerance stack-up and shortens lead time by roughly 30%, ensuring mold cores and connector pin arrays meet both geometric and tribological specifications without re-fixturing.

Dimensional Tolerance Verification

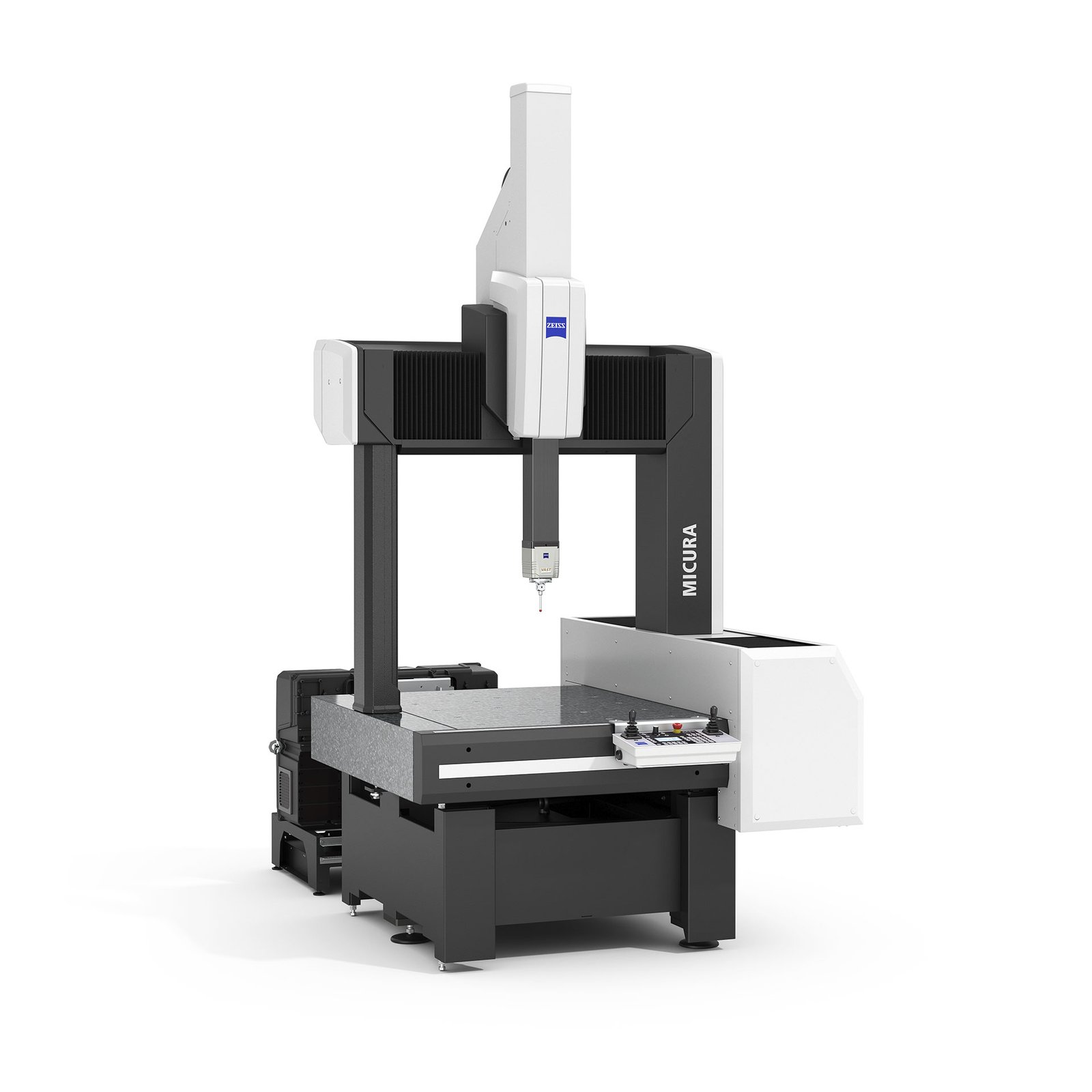

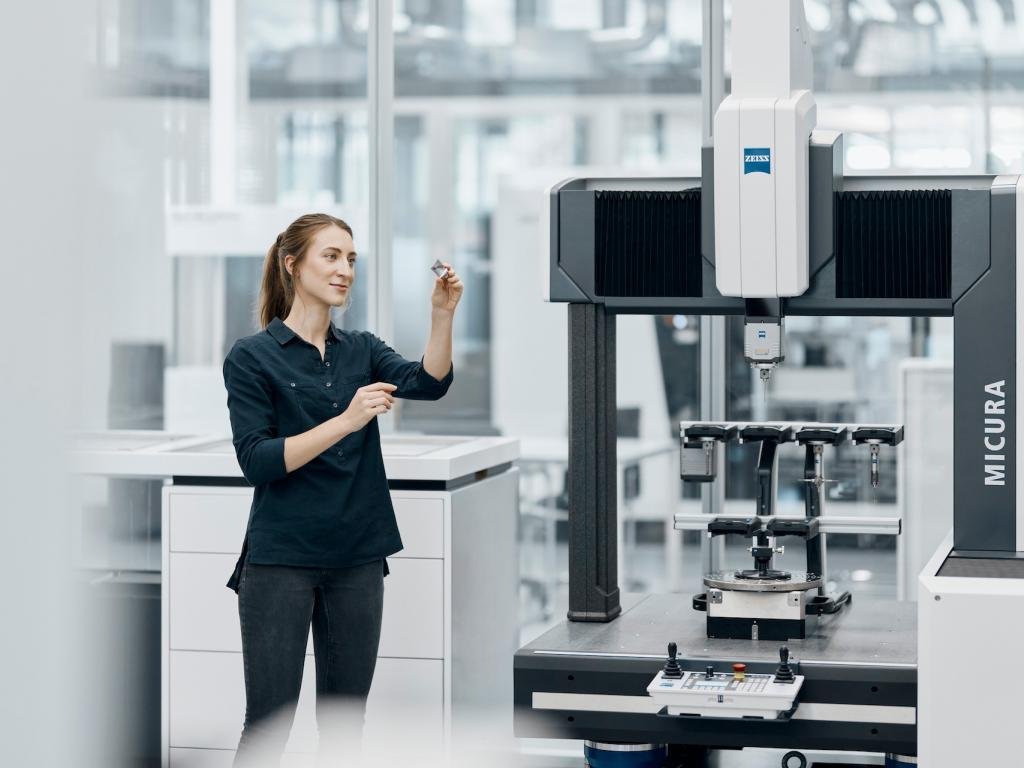

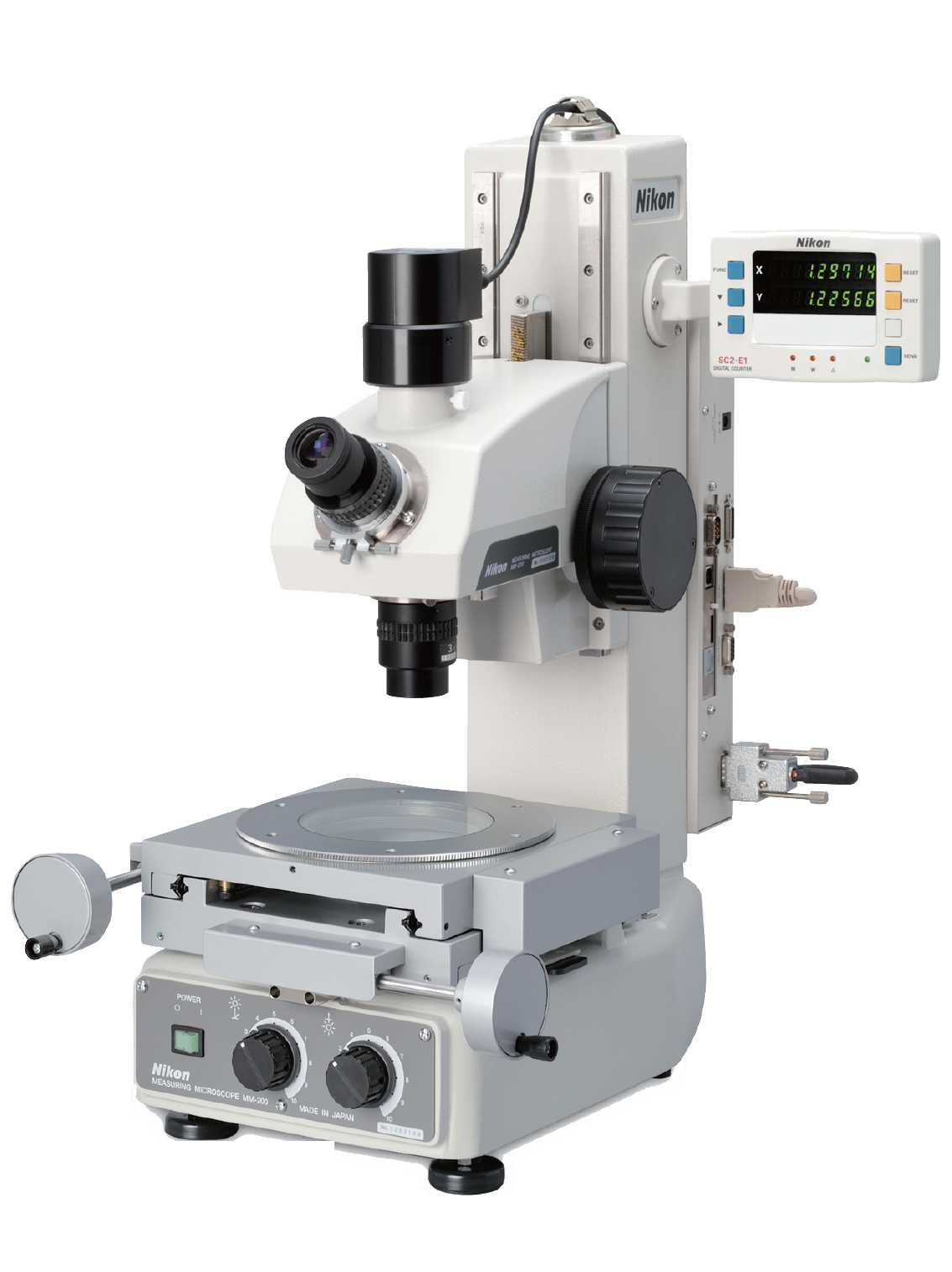

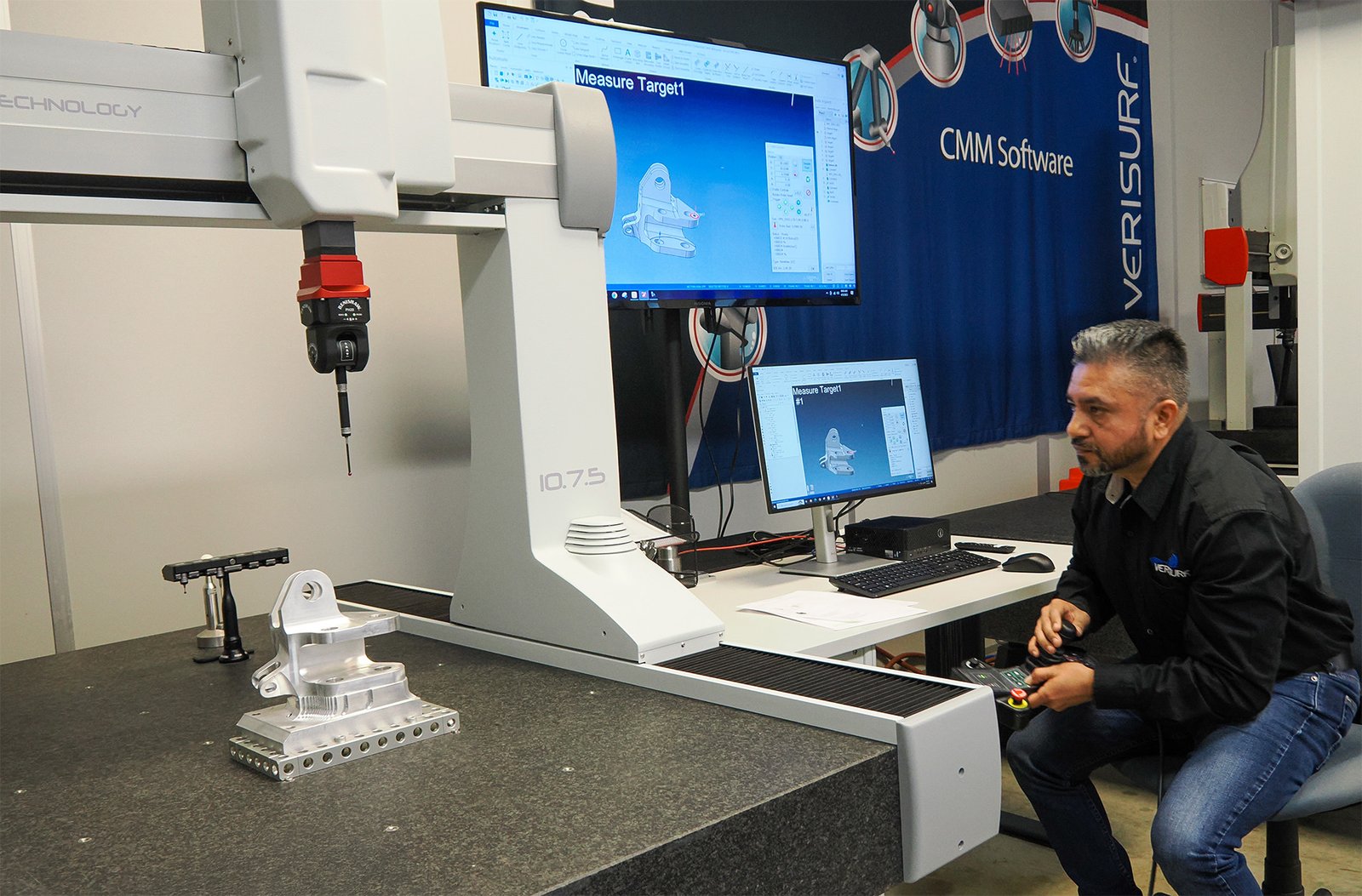

CMM inspection is non-negotiable for wire EDM work claiming ±0.002 mm class positioning. XUXIANG validates every critical feature on a ZEISS MICURA coordinate measuring machine with 0.7 µm resolution, cross-checked by Nikon toolmaker’s microscopes (V-12B / MM-400 class) for edge radii and profile consistency.

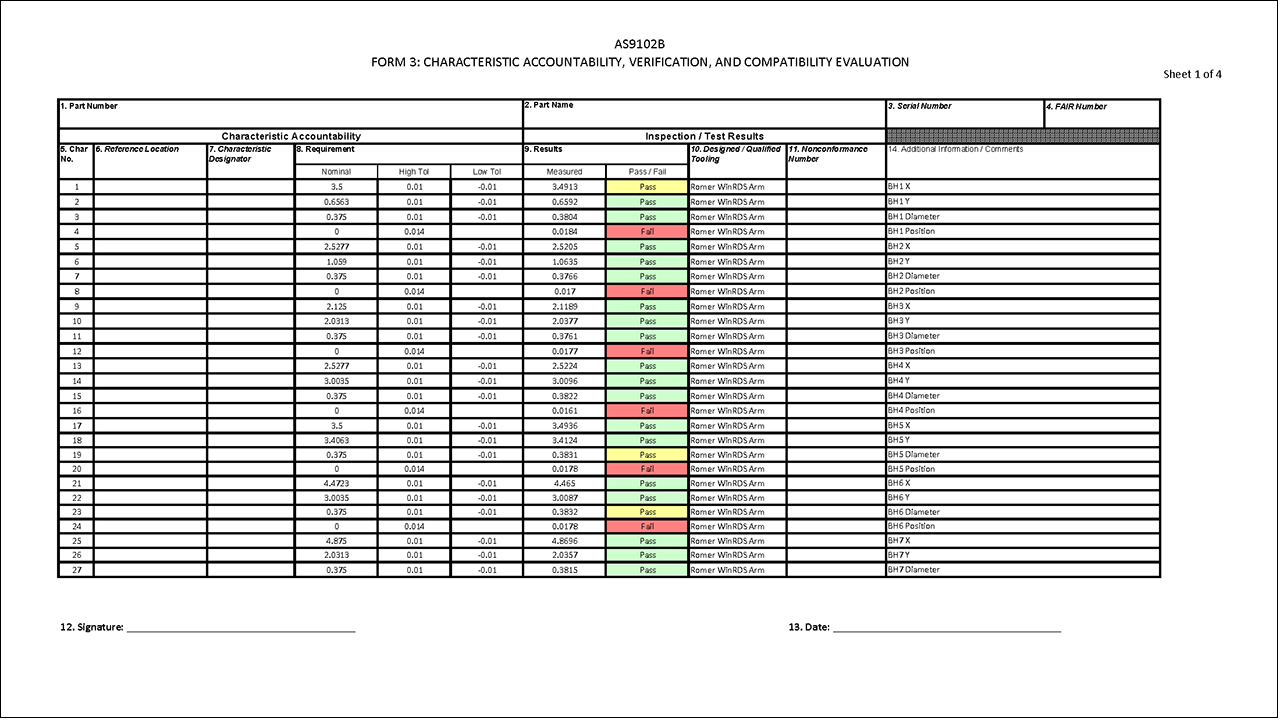

First-article inspection reports must include X-Y-Z coordinates for datum features, positional tolerance deviations and GD&T call-outs — not merely pass/fail stamps.

Surface Roughness and Recast Layer

Mirror-grade wire EDM finishes reach Ra 0.1 µm through multiple skim passes; production-grade work typically delivers Ra ≤ 0.2 µm. The recast layer — a thin, re-solidified zone inherent to thermal erosion — must stay below 5 µm for tooling inserts and under 2 µm for fatigue-critical aerospace components.

Request profilometer traces and metallographic cross-sections in your FAI package to confirm both roughness and recast thickness.

Wire Breakage Marks and Skim Cuts

Wire breakage during roughing leaves visible striations and localized recast spikes. Reputable shops eliminate these defects with at least one skim-cut pass at reduced energy, removing 0.05–0.15 mm per side.

Inspect sample parts under 20× magnification; any visible step or discoloration indicates insufficient skim allowance or premature process termination.

Micro-Cracking and Corner Radius Consistency

Thermal shock can nucleate micro-cracks perpendicular to cut surfaces, especially in carbide and hardened tool steels above 58 HRC. Dye-penetrant or fluorescent inspection detects sub-surface flaws before they propagate in service.

Corner radii below R 0.015 mm — achievable with 0.02 mm brass wire — demand profile tolerance call-outs; request radius-gauge verification or optical comparator overlays in the FAI report.

Certification Standards and FAI Checklists

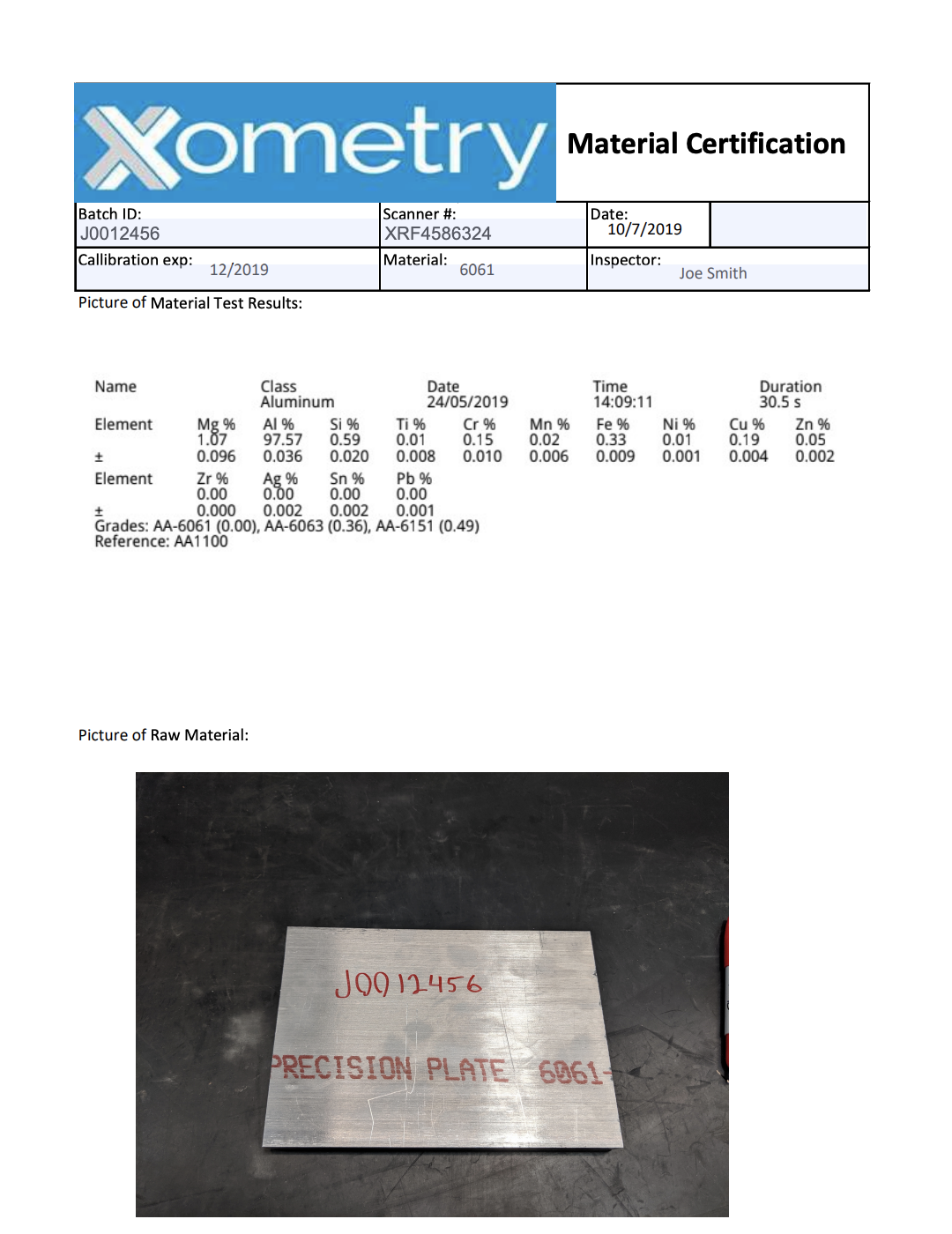

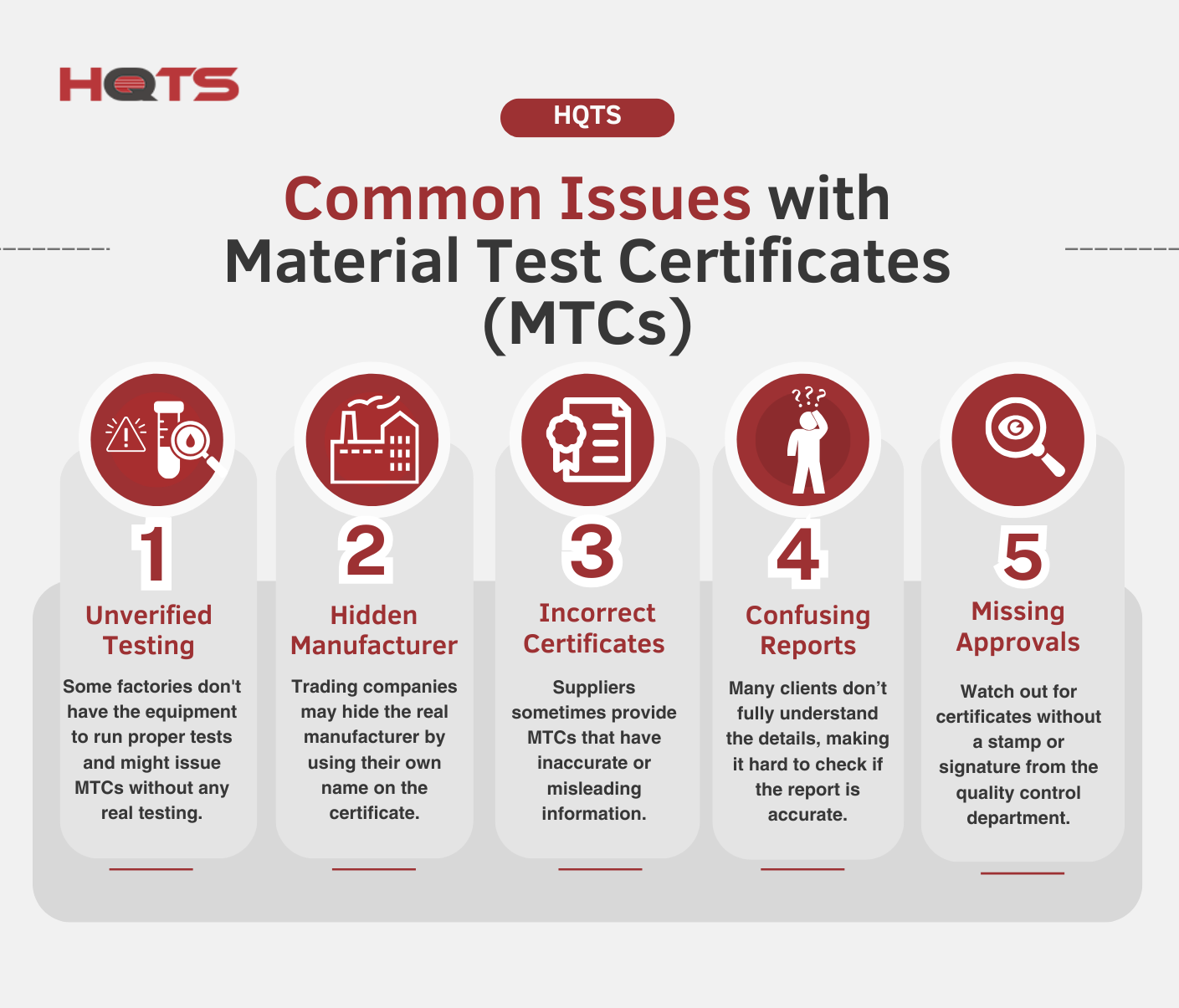

ISO 9001:2015 governs process control; AS9100 adds aerospace traceability for lot genealogy and non-conformance tracking. XUXIANG operates under ISO 9001:2015, issuing material certificates (mill test reports) and dimensional FAI documentation with every precision-mold and connector-tooling shipment.

Your first-article checklist should mandate: CMM coordinate data, surface-roughness traces, recast-layer micrographs, material certification and calibration dates for all metrology equipment.

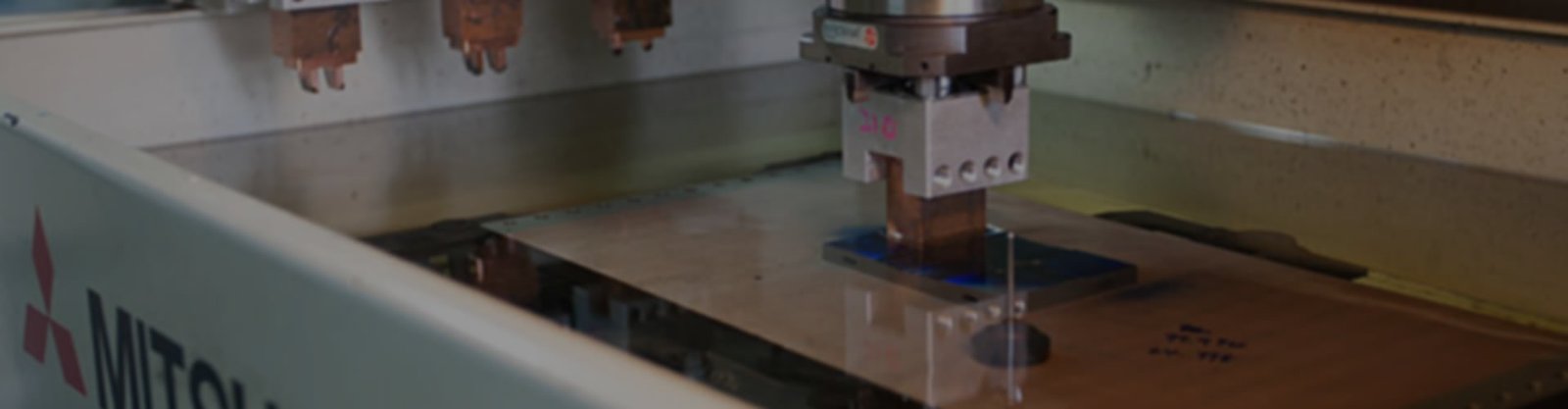

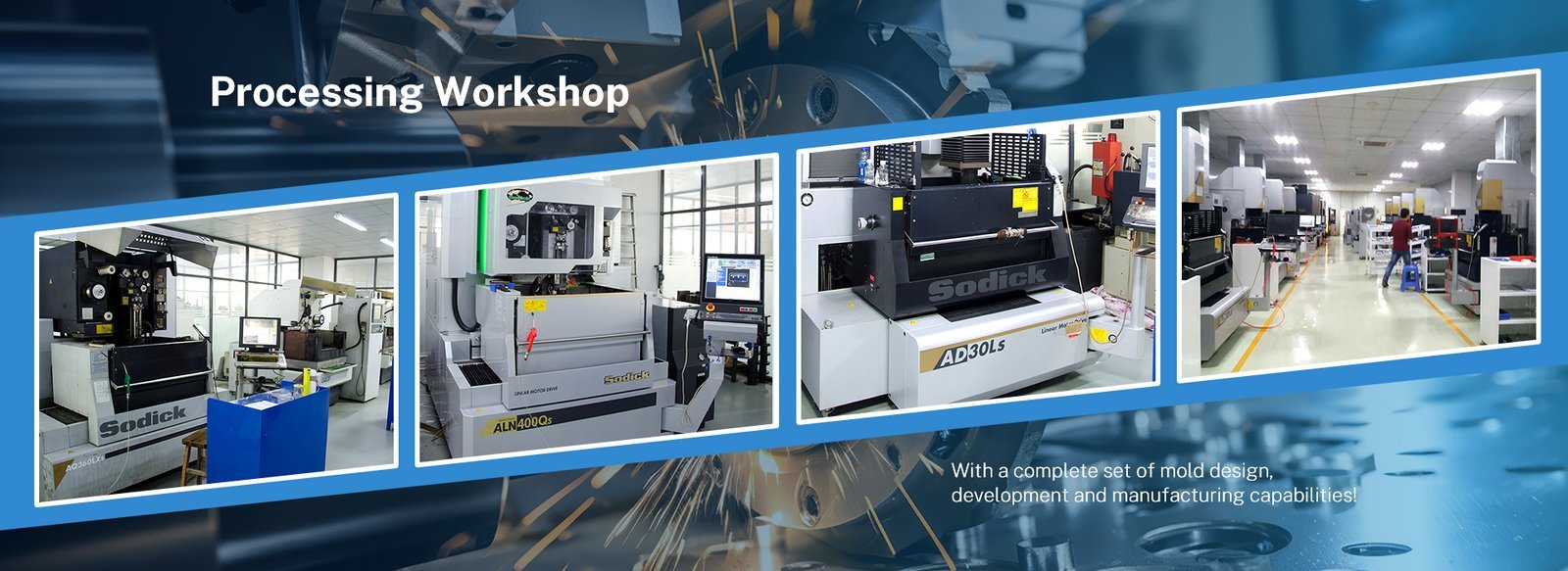

Machine Park and Work Envelope

Request the brand, model and axis count of every wire EDM machine — Sodick, Seibu and Charmilles platforms signal micron-class control. Verify XYZ travel and U-V taper axes; automotive mold cores often exceed 300 mm envelope. XUXIANG deploys Sodick and Seibu slow-wire systems with +/-0.002 mm positioning, backed by Beijing Jingdiao electrode CNC and Dawn grinding centers for end-to-end precision.

Wire Diameter Range and Dielectric Filtration

Micro-connector tooling demands 0.05–0.10 mm wire; heavier automotive dies use 0.25–0.30 mm. Ask which diameters the shop stocks and whether the dielectric filtration system meets 1 µm particulate removal — poor filtration degrades corner radii and surface finish below Ra 0.2 µm.

In-House Metrology and NDA Protocols

Insist on CMM brand and resolution — XUXIANG’s ZEISS MICURA measures to 0.7 µm, complemented by Nikon toolmaker’s microscopes (V-12B / MM-400 class). Confirm signed NDA workflows for proprietary mold designs and ask for case studies in your sector (5G, medical, NEV) to validate domain experience.

Specifying Impossible Corner Radii

Many RFQs call for R ≤ 0.010 mm internal corners without accounting for wire diameter. Standard 0.20 mm brass wire yields minimum radii around 0.10 mm; achieving R ≤ 0.015 mm demands 0.03–0.05 mm wire, slower feed rates and specialized Sodick or Seibu machines. XUXIANG’s slow-wire EDM holds R ≤ 0.015 mm when the design permits it — but buyers should verify feasibility during DFM review rather than after tooling begins.

Omitting Recast-Layer and Heat-Treatment Sequence

A Tier-1 automotive supplier once heat-treated H13 mold inserts before wire EDM; residual stress caused micro-cracks along cut edges. Best practice: rough-machine, heat-treat to final hardness, then wire EDM with multi-pass skim cuts to remove recast layer (typically 5–15 µm). Always specify maximum allowable recast thickness and request material certificates confirming hardness post-treatment.

Choosing the Lowest Bidder Without Machine Validation

Price-only sourcing often lands older two-axis machines incapable of taper cuts or auto-threading. Validate that the shop owns Sodick, Charmilles or equivalent four-axis wire EDM, a CMM (ZEISS MICURA-class preferred) and ISO 9001:2015 certification. XUXIANG’s metrology lab measures to 0.7 µm, ensuring every part meets print before shipment.

Finalize CAD with Tolerances and Surface Callouts

Before requesting quotes, lock down CAD models with GD&T annotations, corner-radius limits, surface-finish targets (Ra 0.1–0.4 µm typical for wire EDM) and material specifications. Ambiguous drawings invite rework and delay.

Include electrode-access zones, taper allowances and skim-cut requirements. Clear documentation accelerates DFM review and ensures every supplier quotes the same scope.

Request Multi-Supplier Quotes with Lead-Time Commitments

Solicit at least two quotes, specifying wire type (brass or coated), cut speed, inspection protocol and delivery window. Compare not only unit price but also tooling fees, FAI timelines and change-order policies.

Ask for machine-capability data — Sodick or Seibu slow-wire EDM with ±0.002 mm positioning is standard for precision mold work.

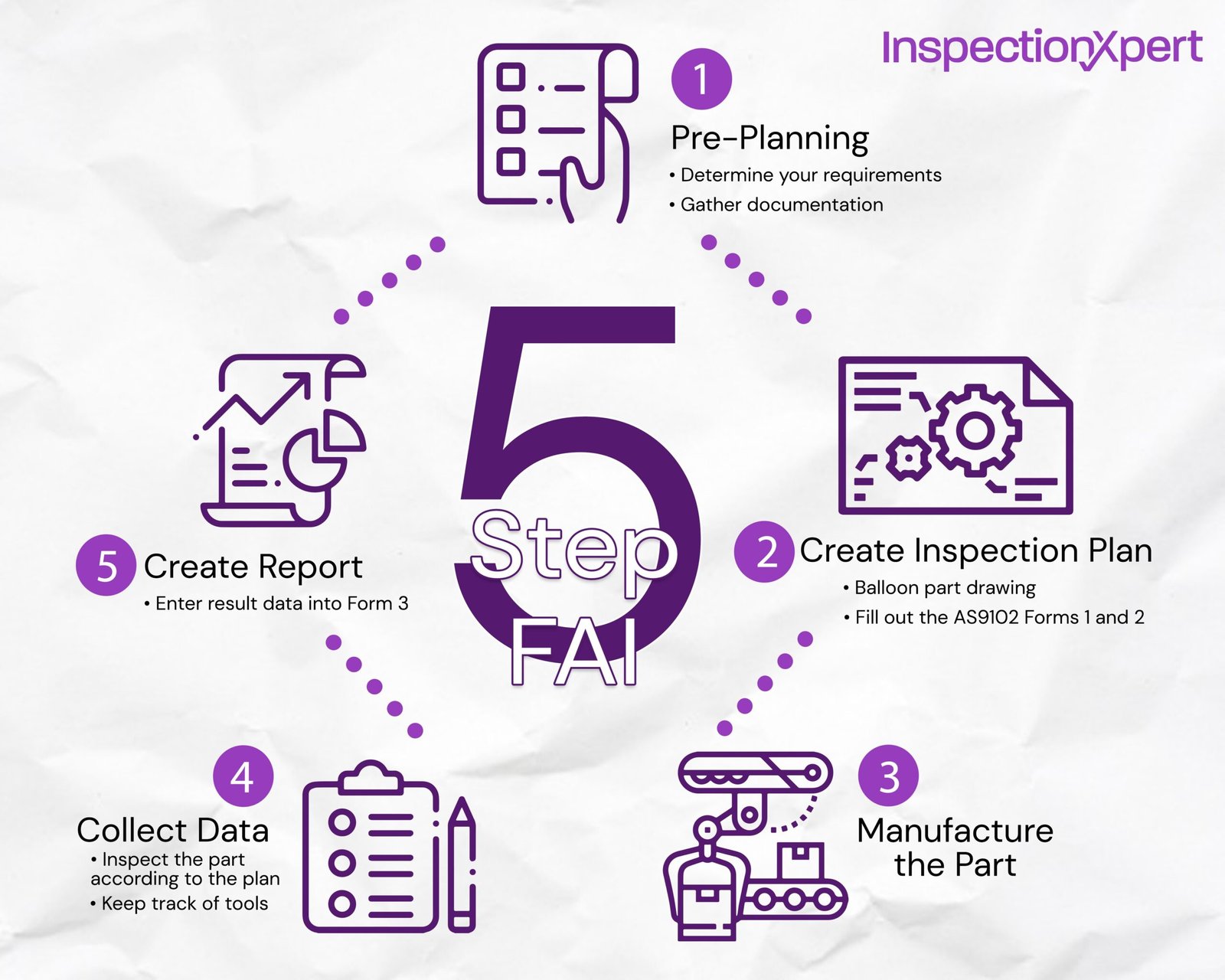

Approve First-Article Inspection Report

Require a full FAI package: CMM dimensional report (ZEISS or equivalent), surface-roughness measurements, material certificates and photographic evidence. XUXIANG validates every first article on a ZEISS MICURA CMM with 0.7 µm resolution.

Sign off only after verifying every critical dimension and finish callout. This document becomes your production baseline and change-order reference.

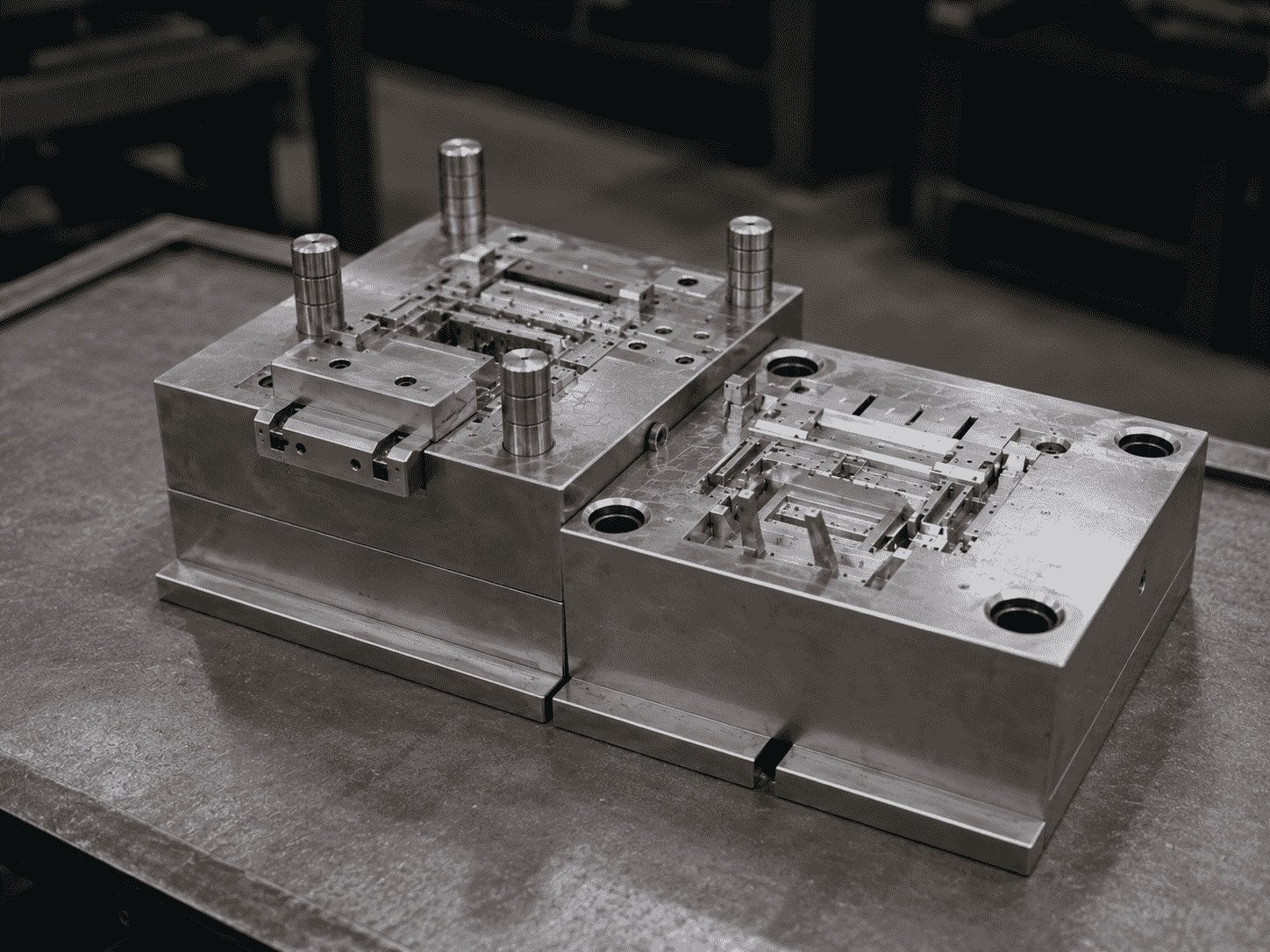

Partner with an Experienced Wire EDM Shop

Choose a supplier with proven metrology, transparent change-order protocols and ISO 9001:2015 traceability. XUXIANG combines Sodick slow-wire EDM, ZEISS inspection and roughly 30% faster delivery than industry average, backed by 16 years of mold-component expertise.
