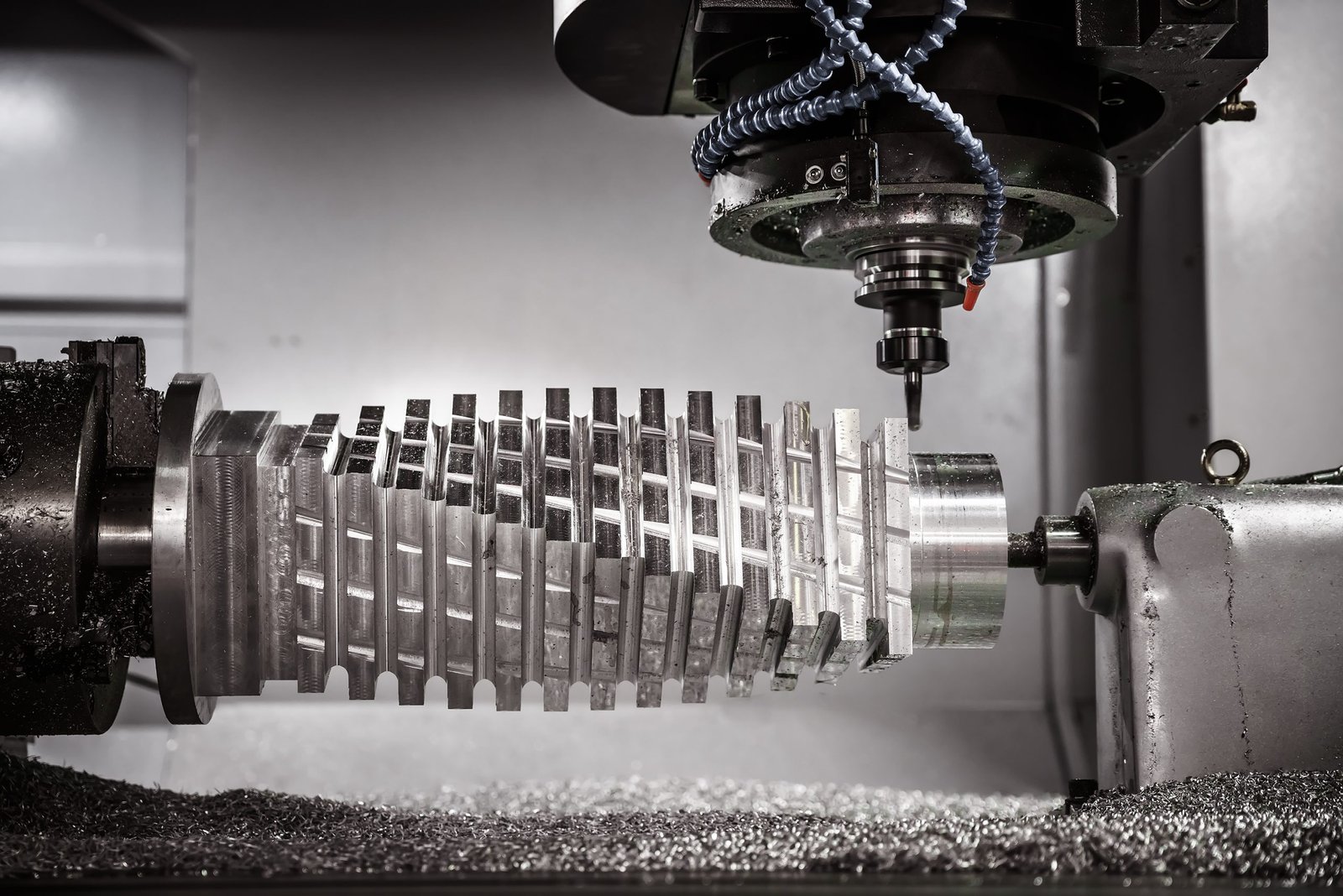

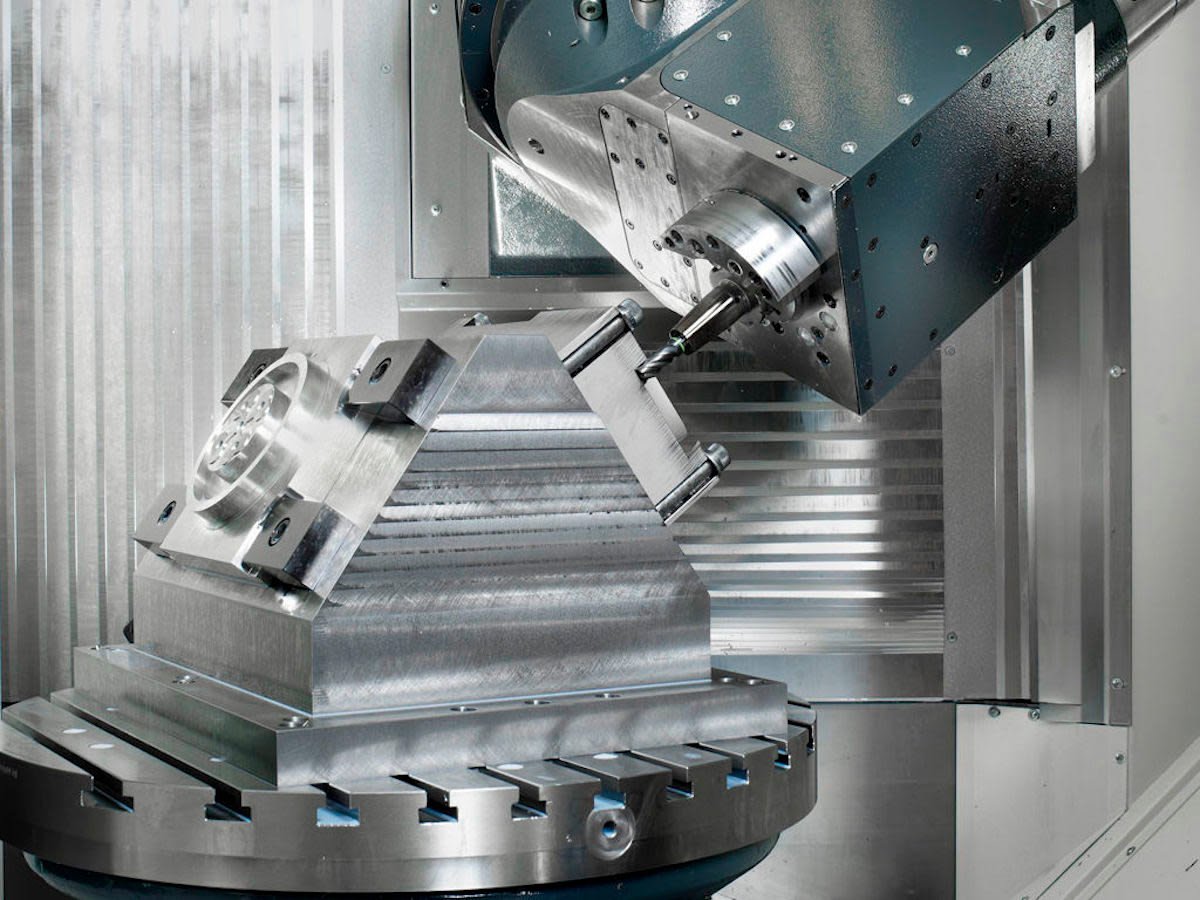

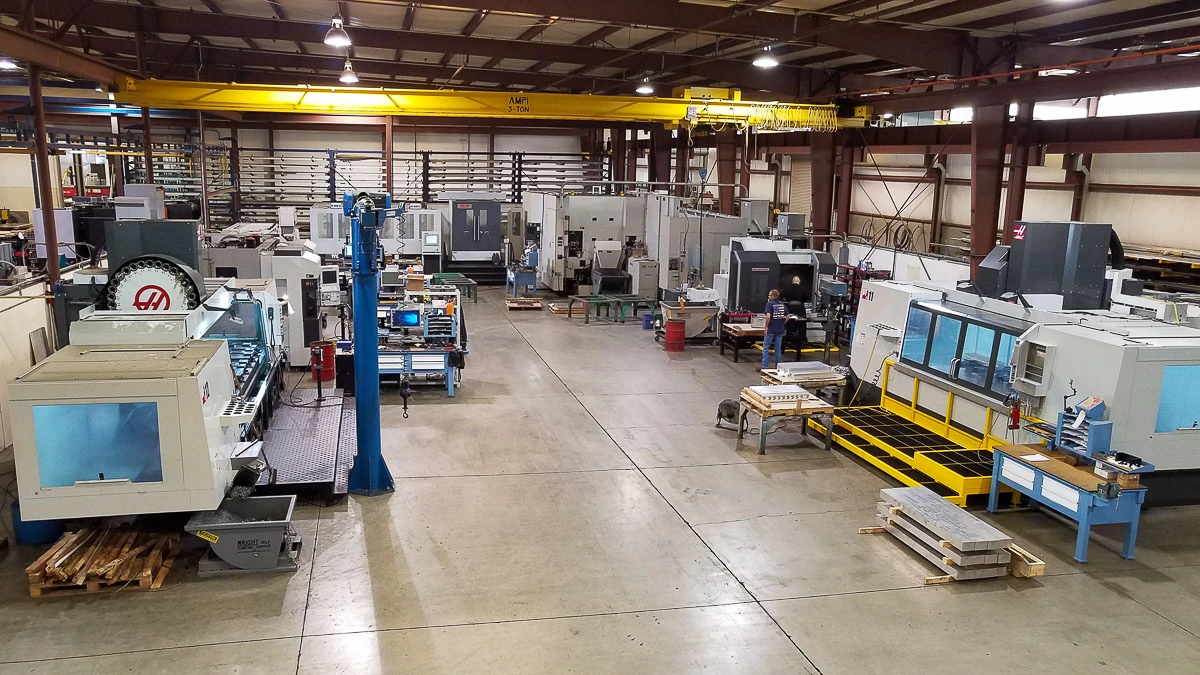

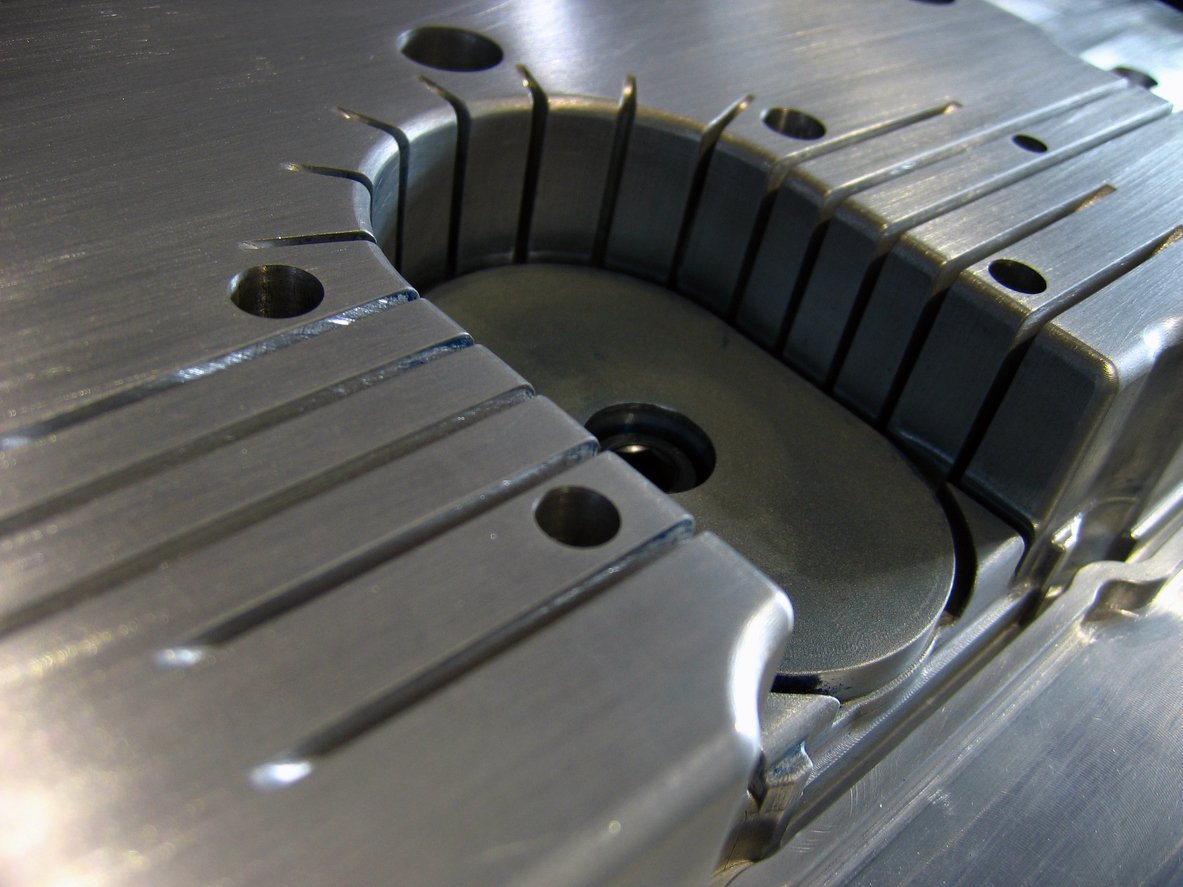

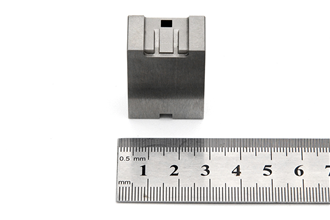

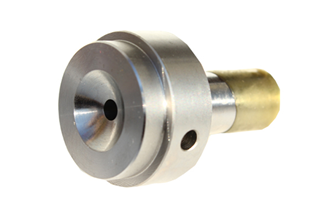

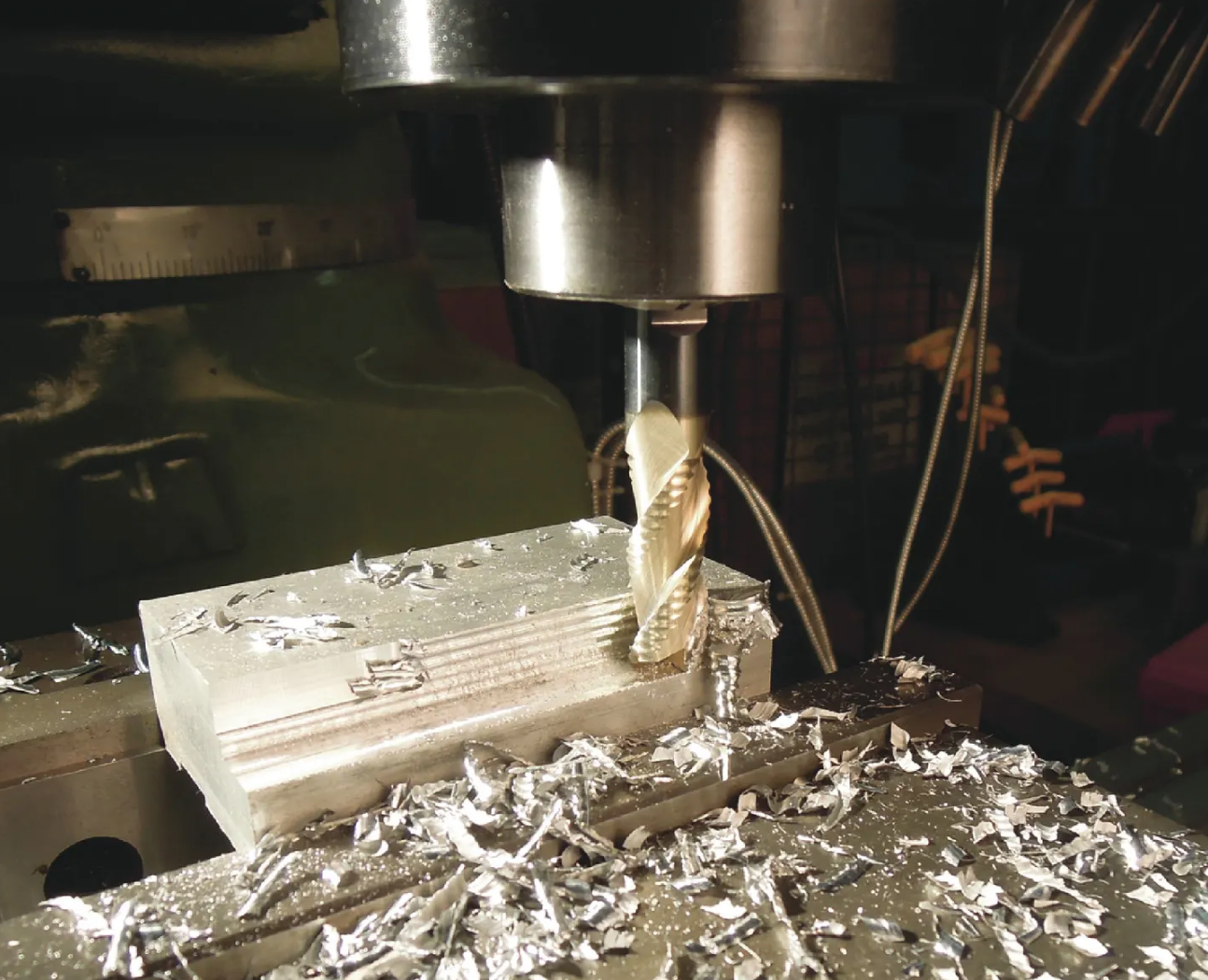

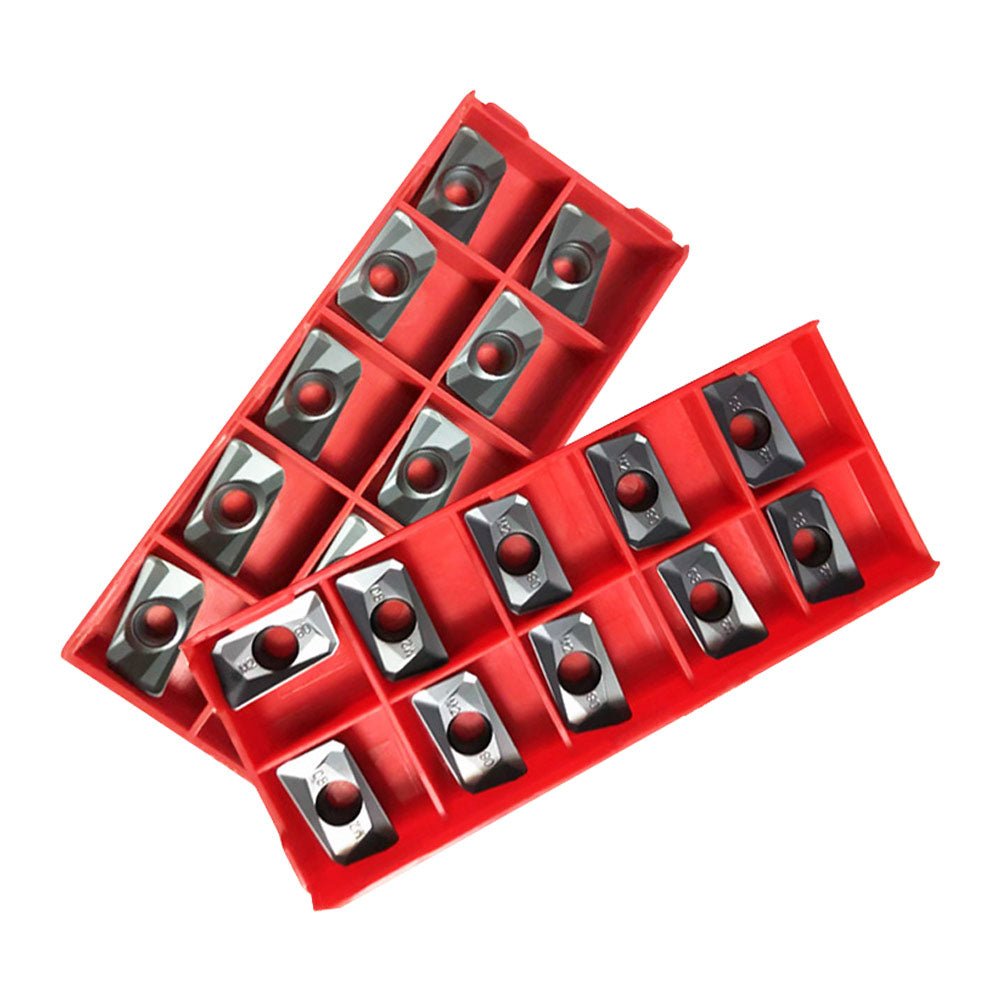

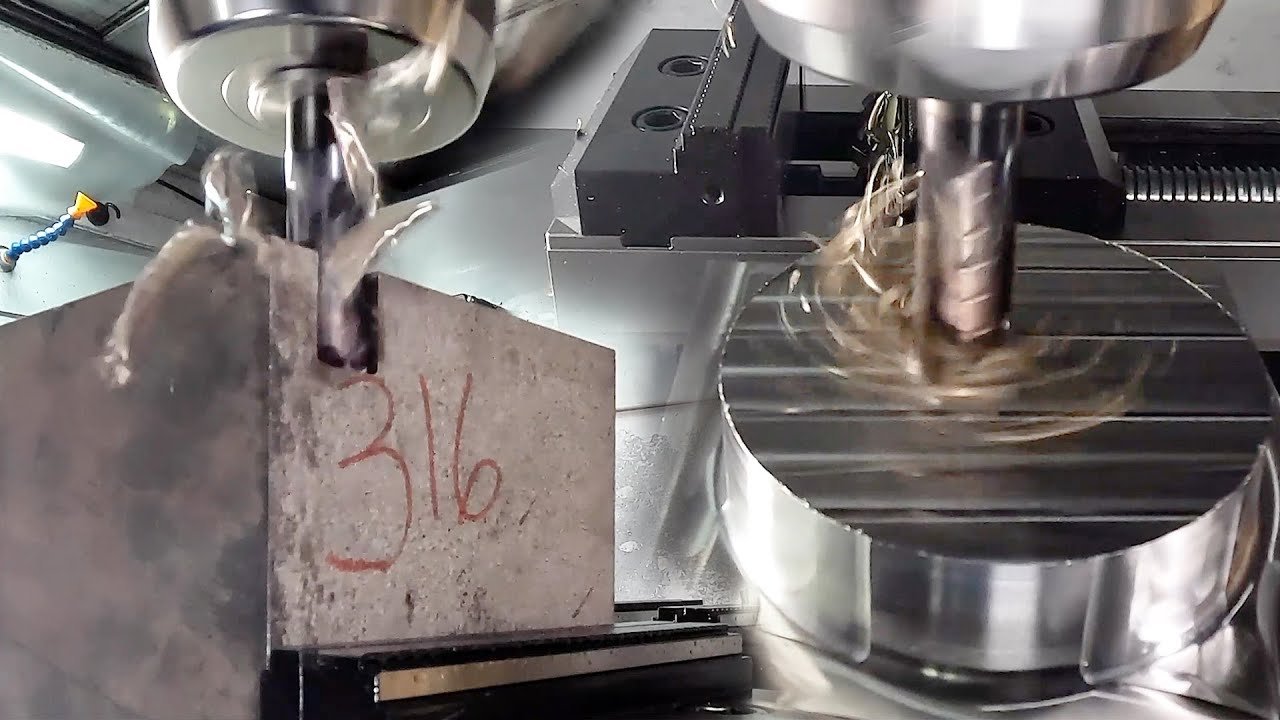

CNC Milling: 3-Axis and 5-Axis Centers

3-axis mills handle prismatic mold inserts and flat-face components to +/-0.005 mm; 5-axis centers eliminate multiple setups, holding +/-0.002 mm on complex contours and improving concentricity for micro-connector pins. Multi-axis work reduces fixture-induced error and shortens lead time by 20–30 % for sculptured cores.

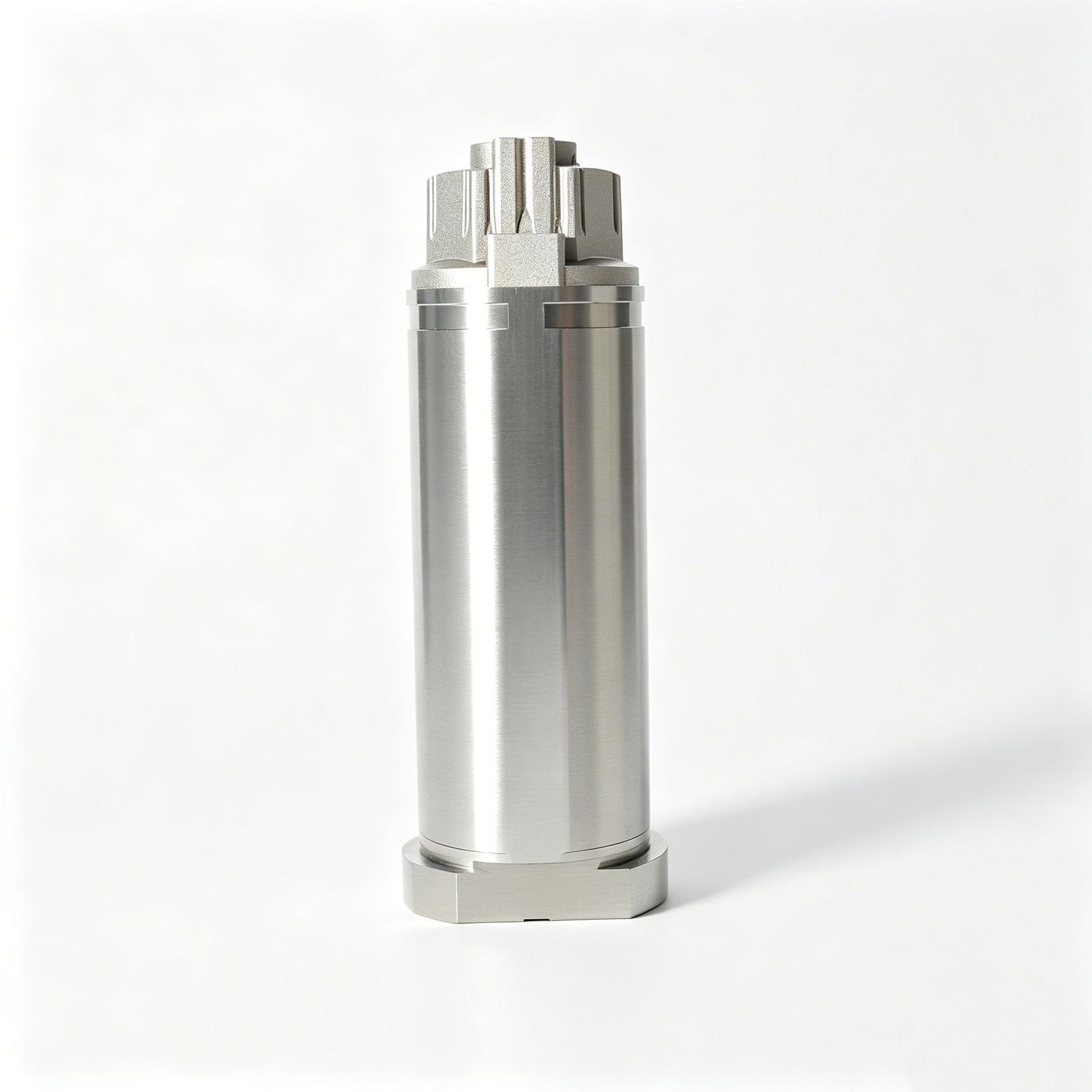

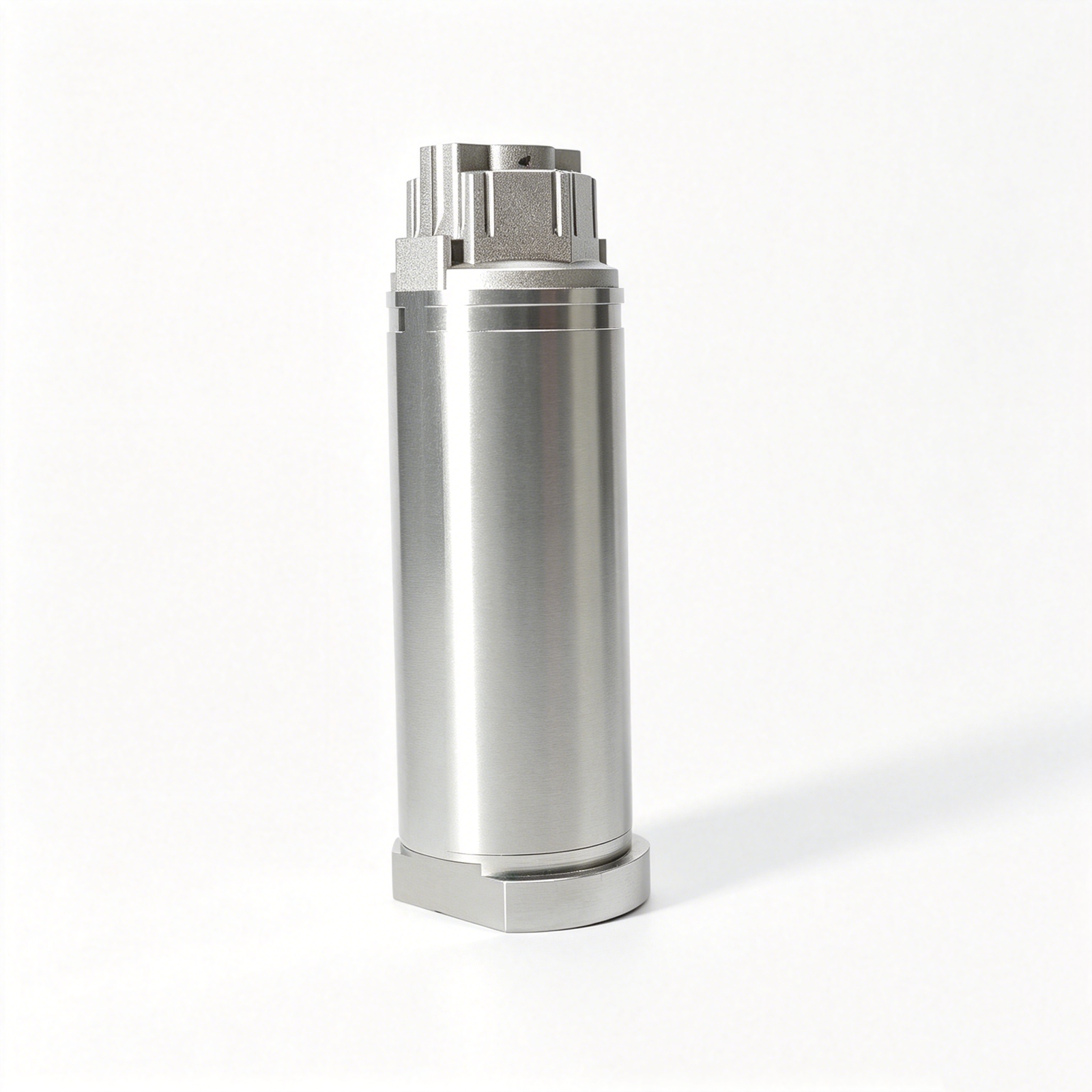

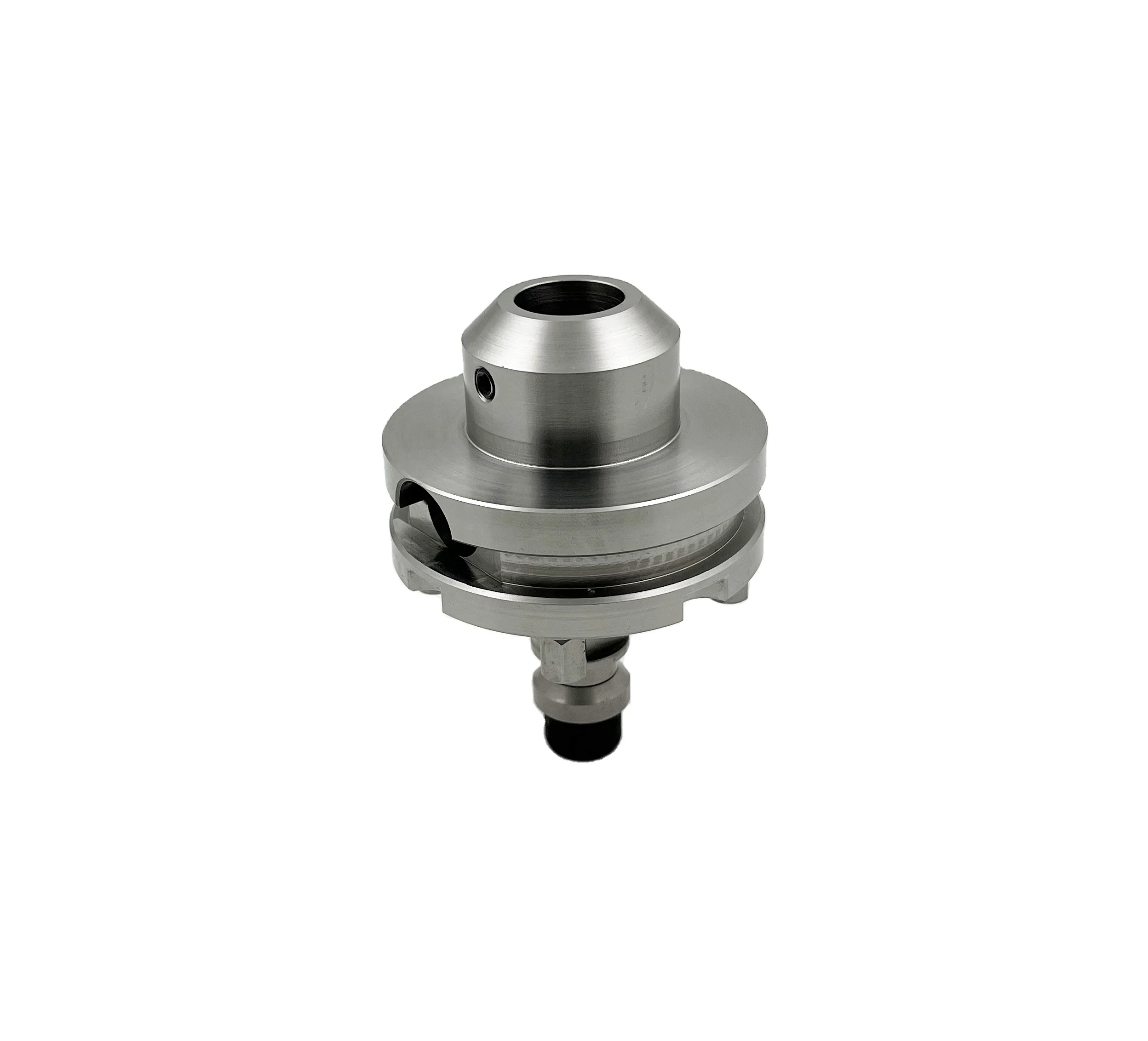

CNC Turning and Swiss-Type Lathes

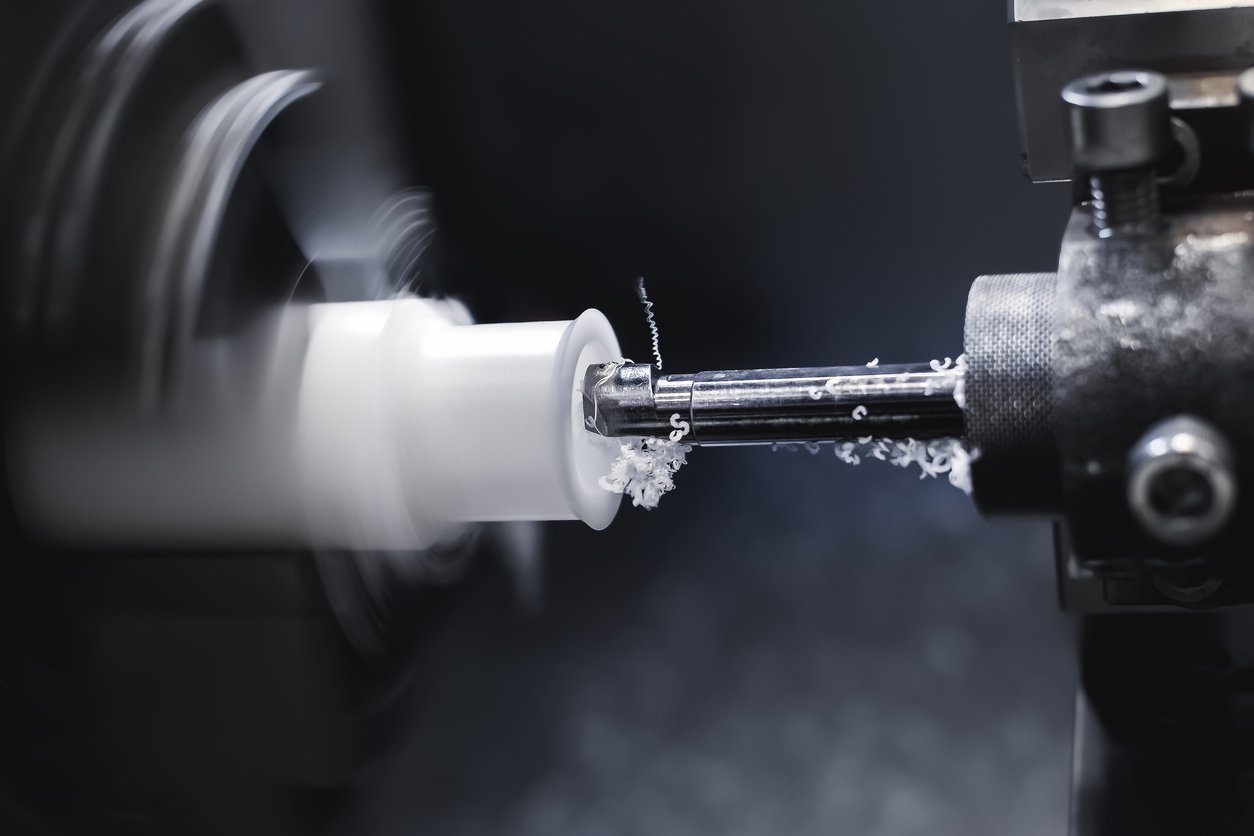

Turning centers machine cylindrical features — pins, bushings, threaded inserts — to +/-0.003 mm. Swiss-type lathes with guide bushings achieve +/-0.002 mm on slender, high-aspect-ratio pins common in board-to-board and FPC connector tooling, balancing speed with sub-5 µm runout.

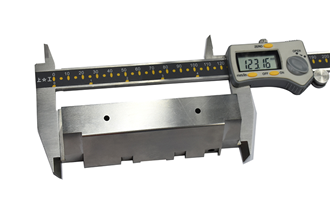

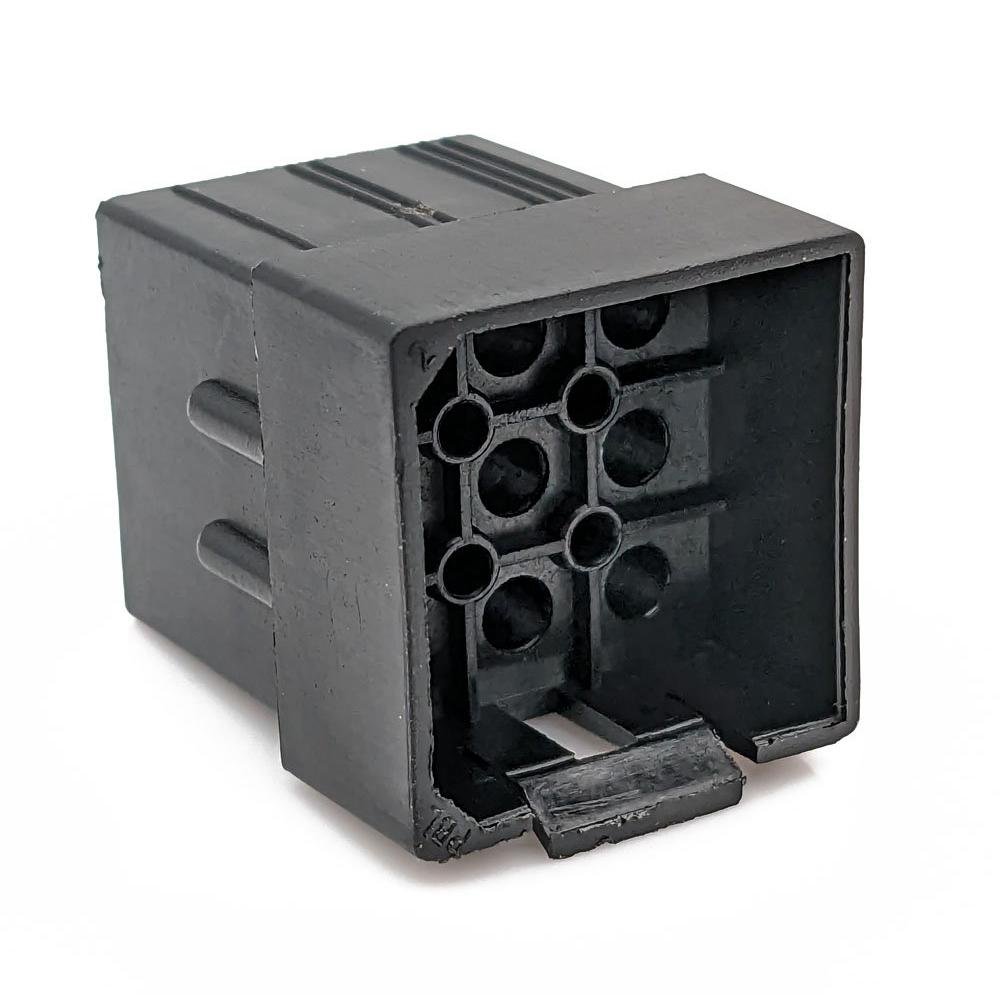

Wire EDM for Ultra-Thin Features

Slow-wire EDM cuts slot widths below 0.1 mm and corner radii down to R ≤ 0.015 mm without mechanical stress, ideal for thin-wall micro-sockets and high-density terminal cavities. Sodick and Seibu platforms deliver +/-0.002 mm positioning, with cycle times longer than milling but unmatched for fragile geometries.

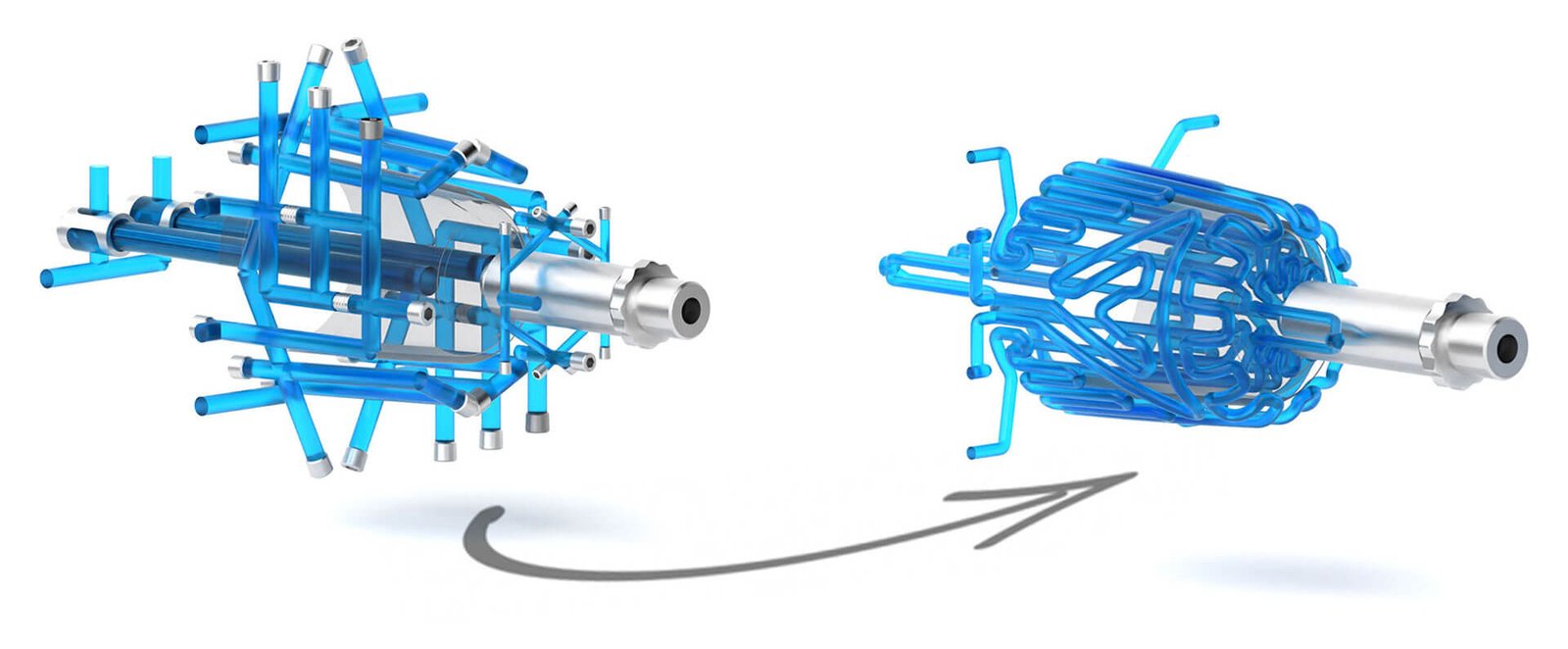

Hybrid Additive-Subtractive Workflows

Additive pre-forms near-net shapes; CNC finish passes bring critical surfaces to final tolerance. This hybrid route cuts material waste by up to 40 % on complex inserts and shortens roughing time, though it requires design-for-AM expertise and post-process validation to maintain +/-0.005 mm class accuracy.

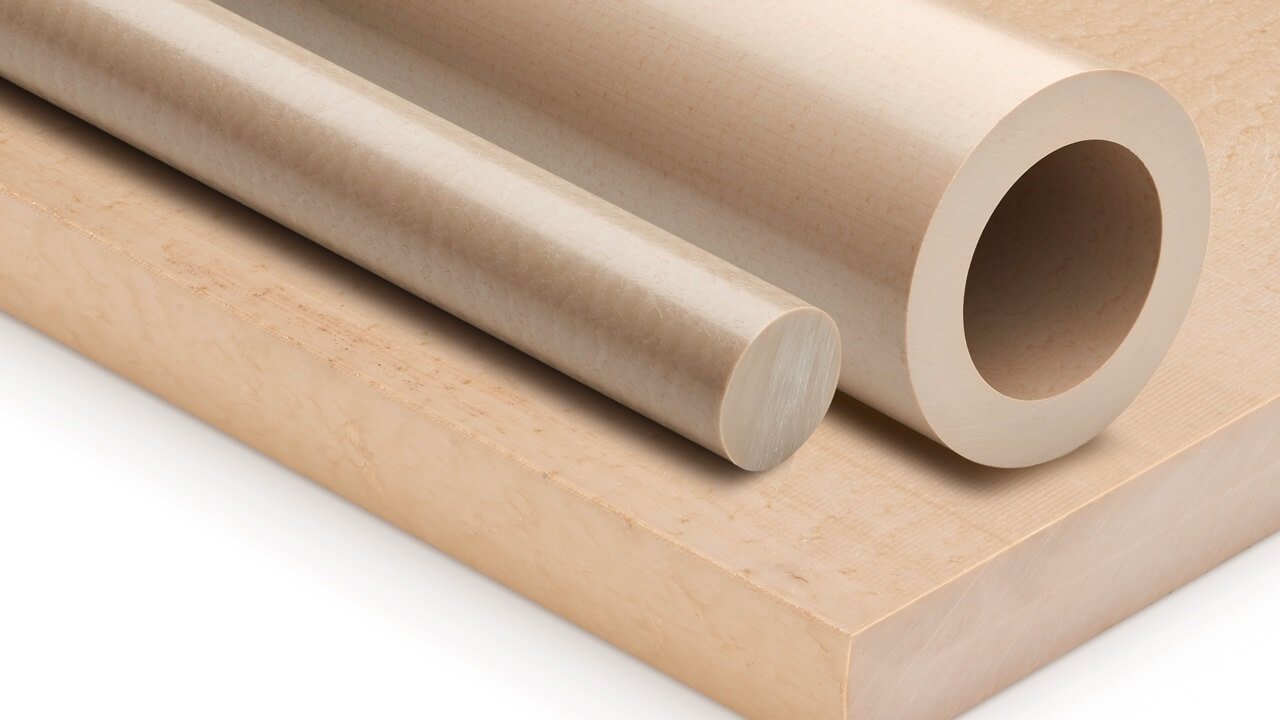

PEEK – Ultra-High Performance

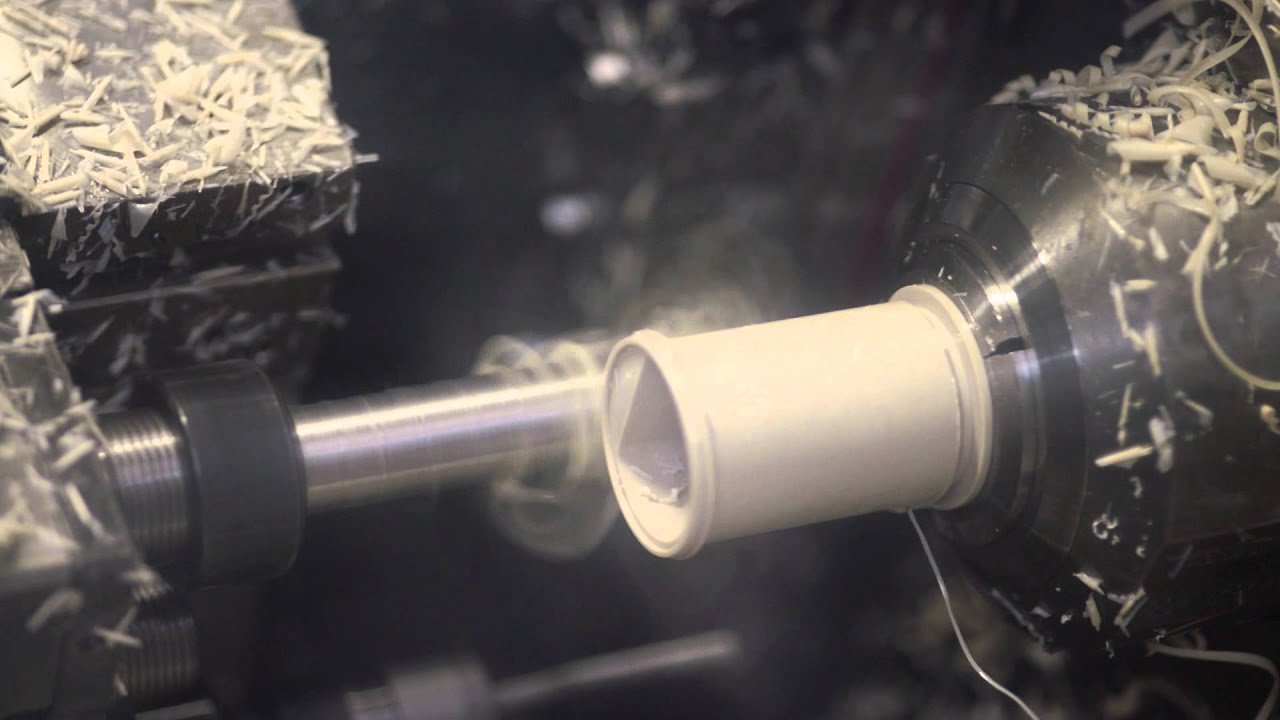

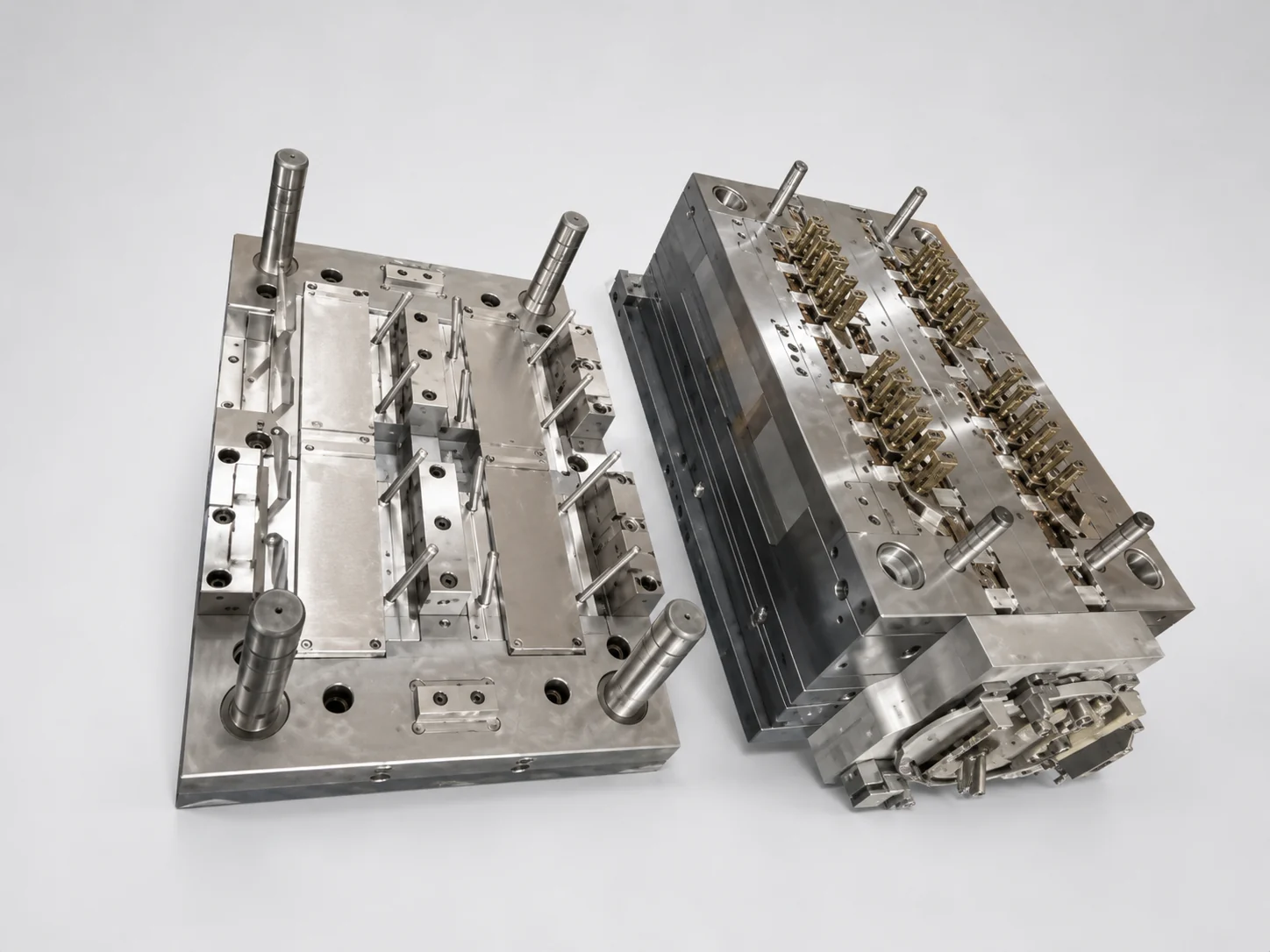

PEEK machines with continuous chips and moderate tool wear; carbide tooling holds edge life across multi-cavity runs. Dimensional stability remains within +/-0.005 mm across -40 to +250°C, making it ideal for autoclavable medical housings and ADAS sensor brackets. Dielectric strength exceeds 20 kV/mm, supporting high-voltage BMS connectors in NEV powertrains.

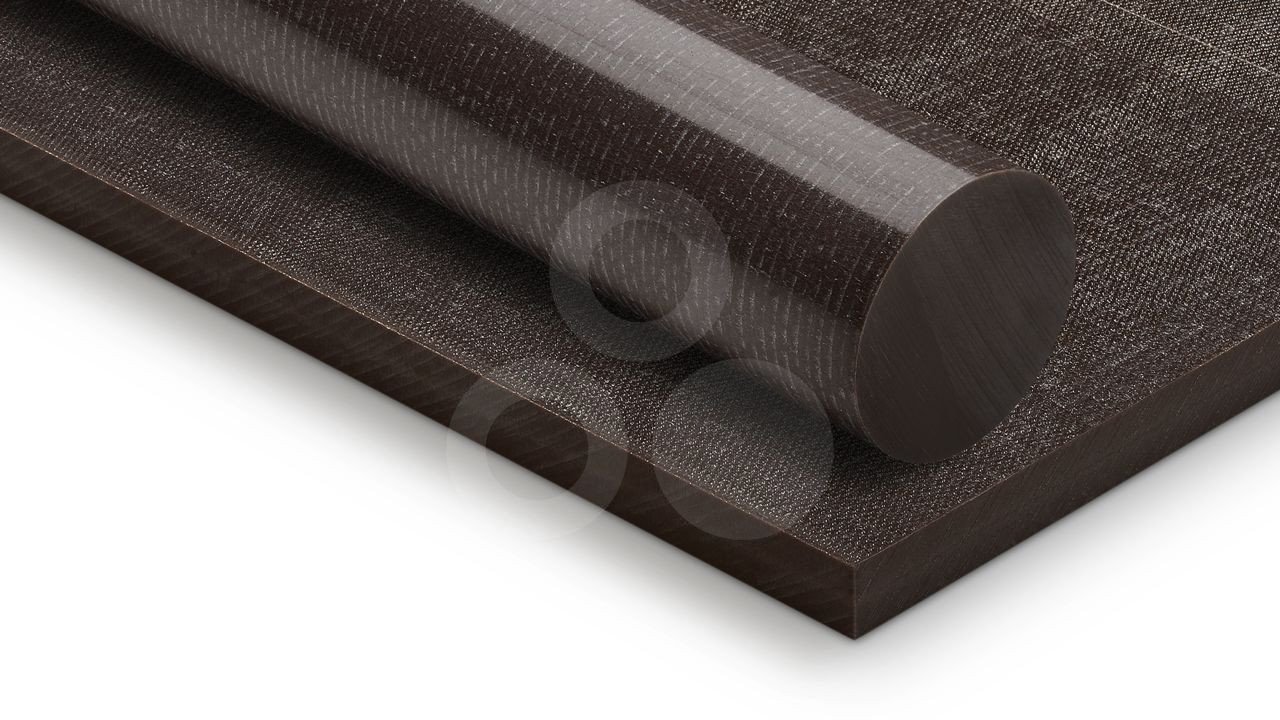

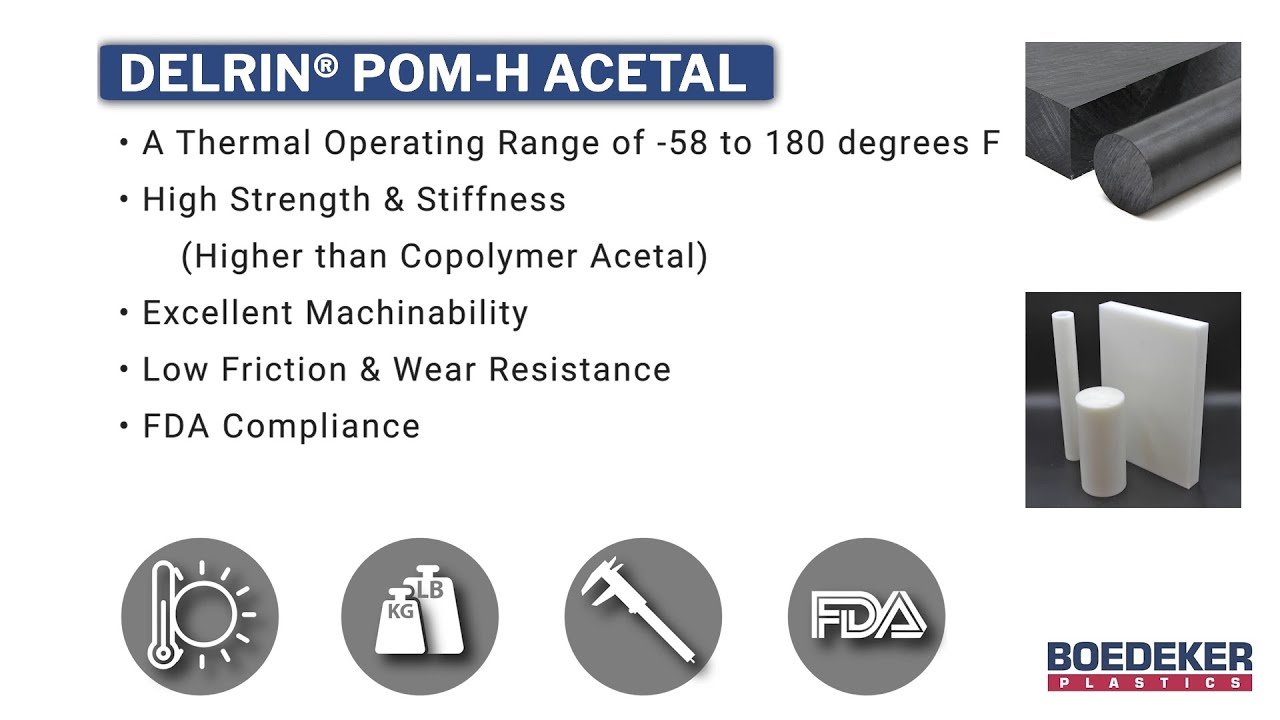

POM (Delrin) – Precision Workhorse

POM produces short, brittle chips with minimal burr formation, enabling +/-0.01 mm tolerances on micro-connector pins and thin-wall terminal tooling. Service temperature reaches +100°C with excellent dimensional recovery. Low friction and high stiffness suit 5G board-to-board mold inserts and industrial gripper jaws.

PTFE – Chemical and Thermal Inertness

PTFE’s soft, ductile nature demands sharp tooling and slow feeds to prevent smearing; typical tolerances relax to +/-0.05 mm. Continuous service to +260°C and near-universal chemical resistance make it the choice for medical fluid-path seals and RF connector insulators in telecom infrastructure.

Ultem (PEI) – Flame-Retardant Strength

Ultem machines similarly to PEEK but with higher brittleness, yielding clean chips and low tool wear. Max service temperature of +170°C and inherent flame resistance (UL 94 V-0) suit aerospace sensor housings and LED structural supports. Dimensional stability supports +/-0.01 mm on complex geometries.

Polycarbonate – Optical Clarity and Impact

Polycarbonate requires controlled feed rates to avoid stress cracking; achievable tolerances reach +/-0.02 mm with proper annealing. Service to +120°C and high impact strength make it suitable for automotive interior functional inserts and transparent sensor covers in industrial automation.

Glass and Carbon-Filled Grades

Glass-filled (10–30%) and carbon-filled resins increase stiffness and reduce thermal expansion but accelerate tool wear by 2–3×. Tolerances tighten to +/-0.005 mm with reduced creep. Applications include high-load robotic end effectors, automotive powertrain sensor housings and reinforced mold core inserts where dimensional stability under load is critical.

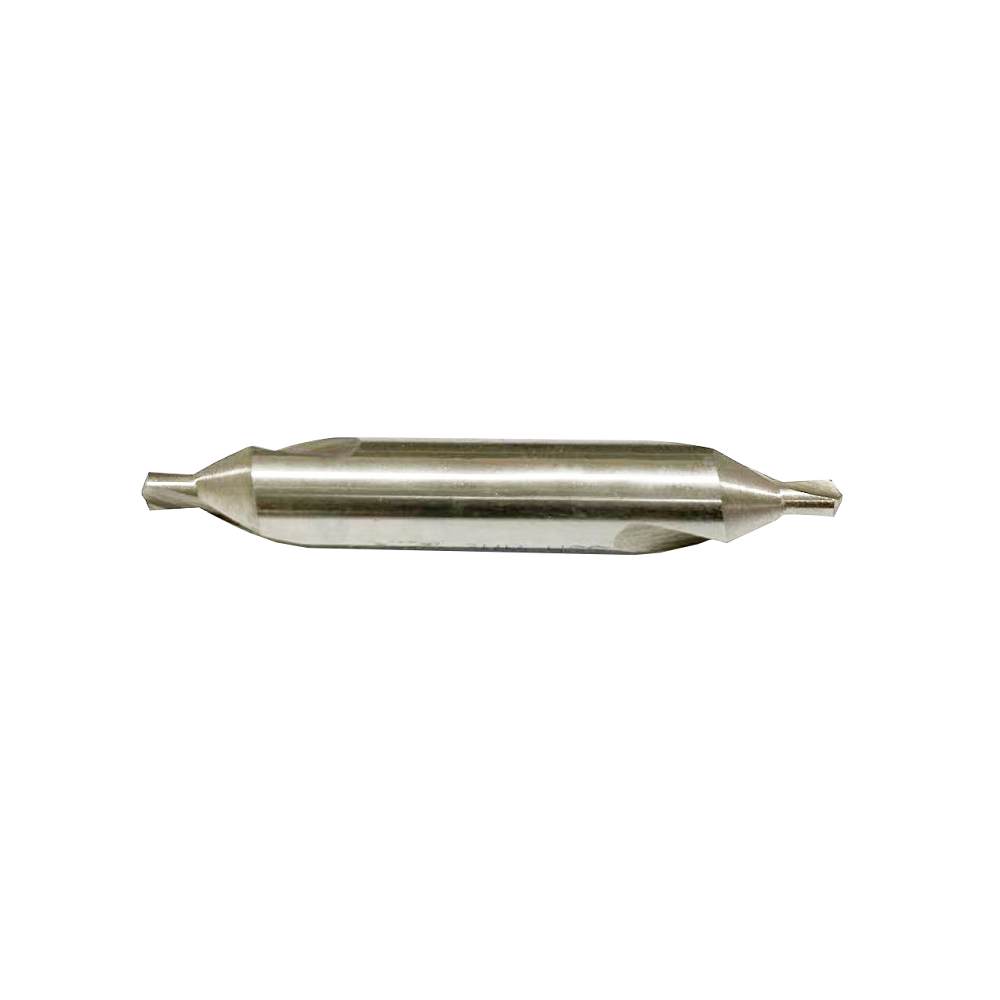

Secondary Operations and Insert Technologies

Ultrasonic inserts, heat-staking bosses and threaded brass inserts are commonly specified for snap-fit housings, sensor enclosures and connector assemblies. XUXIANG machines pilot holes to +/-0.01 mm, ensuring concentric insert placement and pull-out strength above 300 N for M2–M4 threads in PA66-GF30 and PPS substrates.

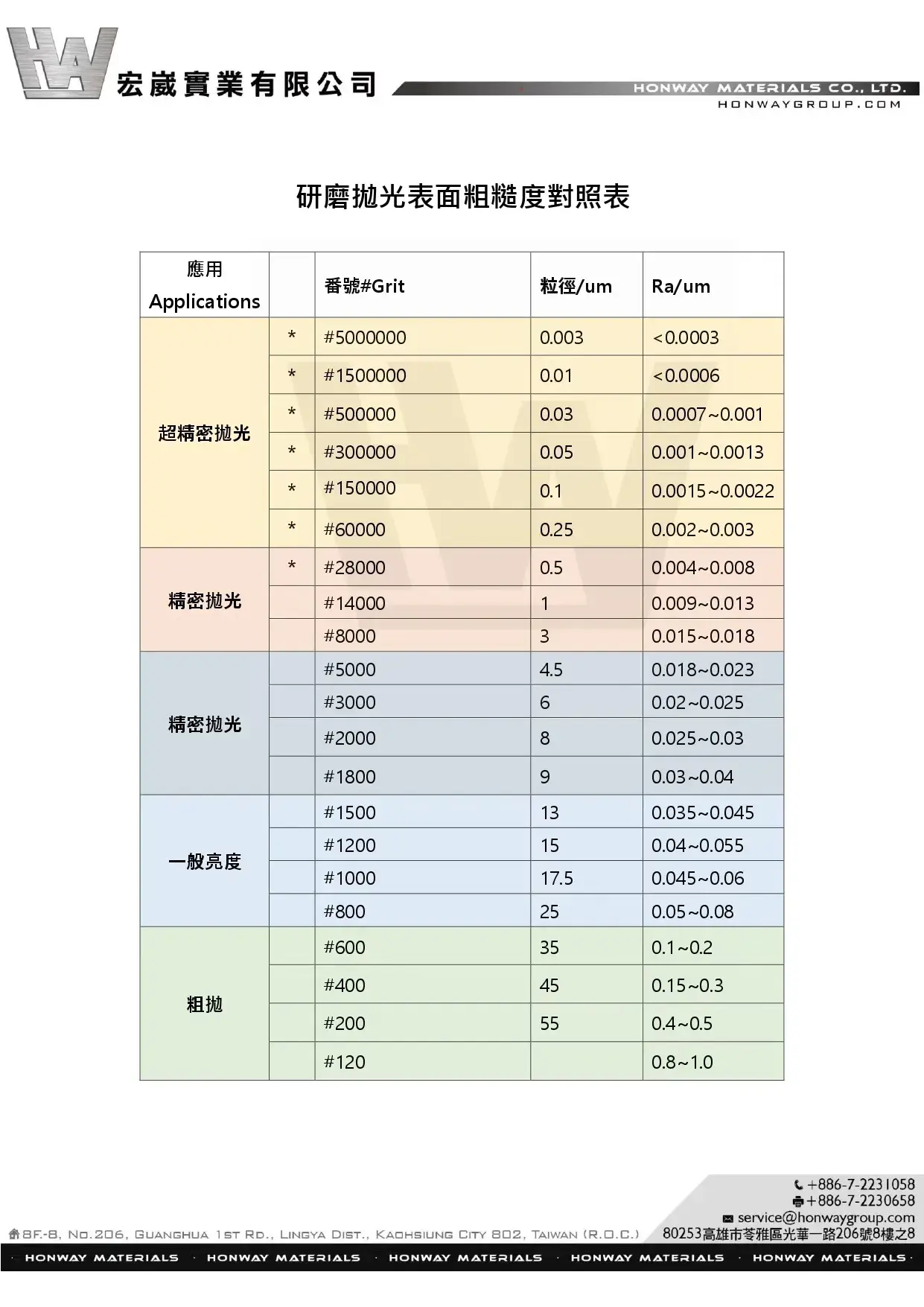

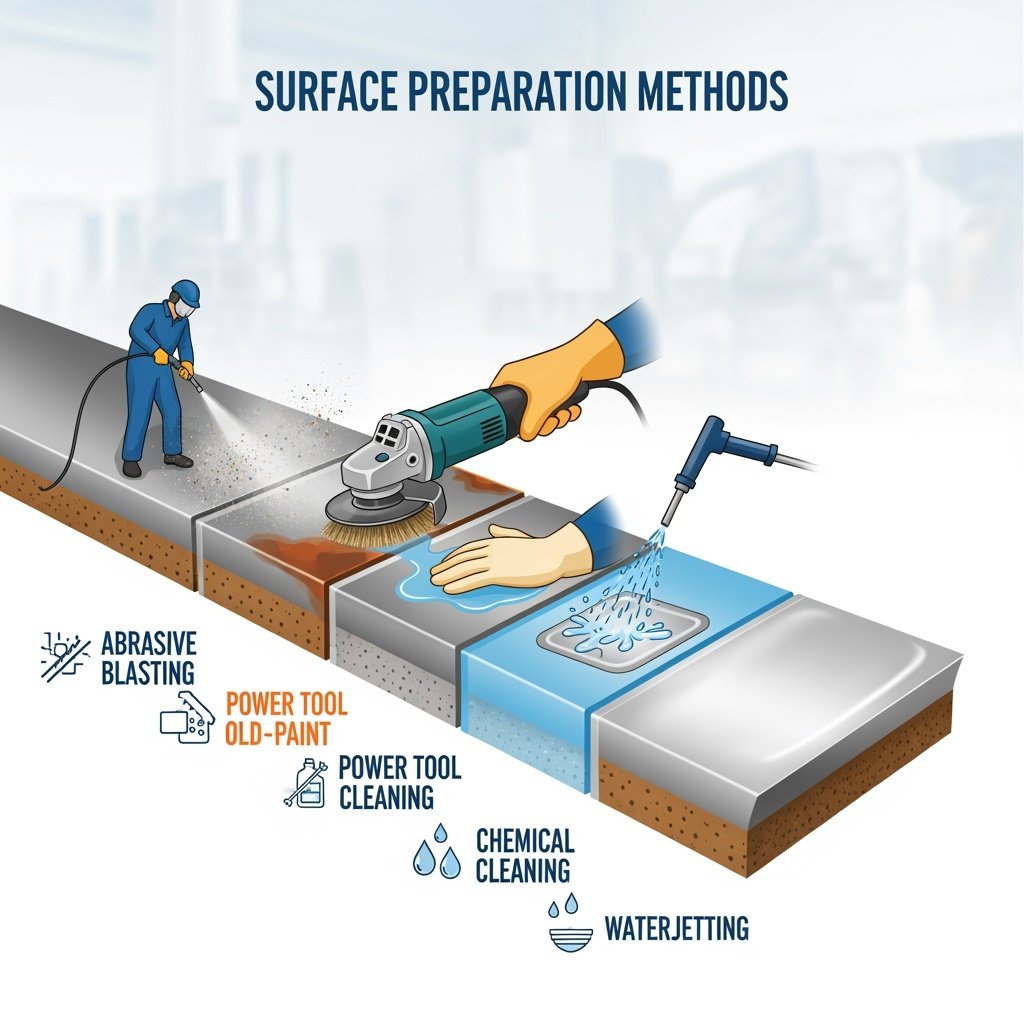

Surface Finishes and Achievable Roughness

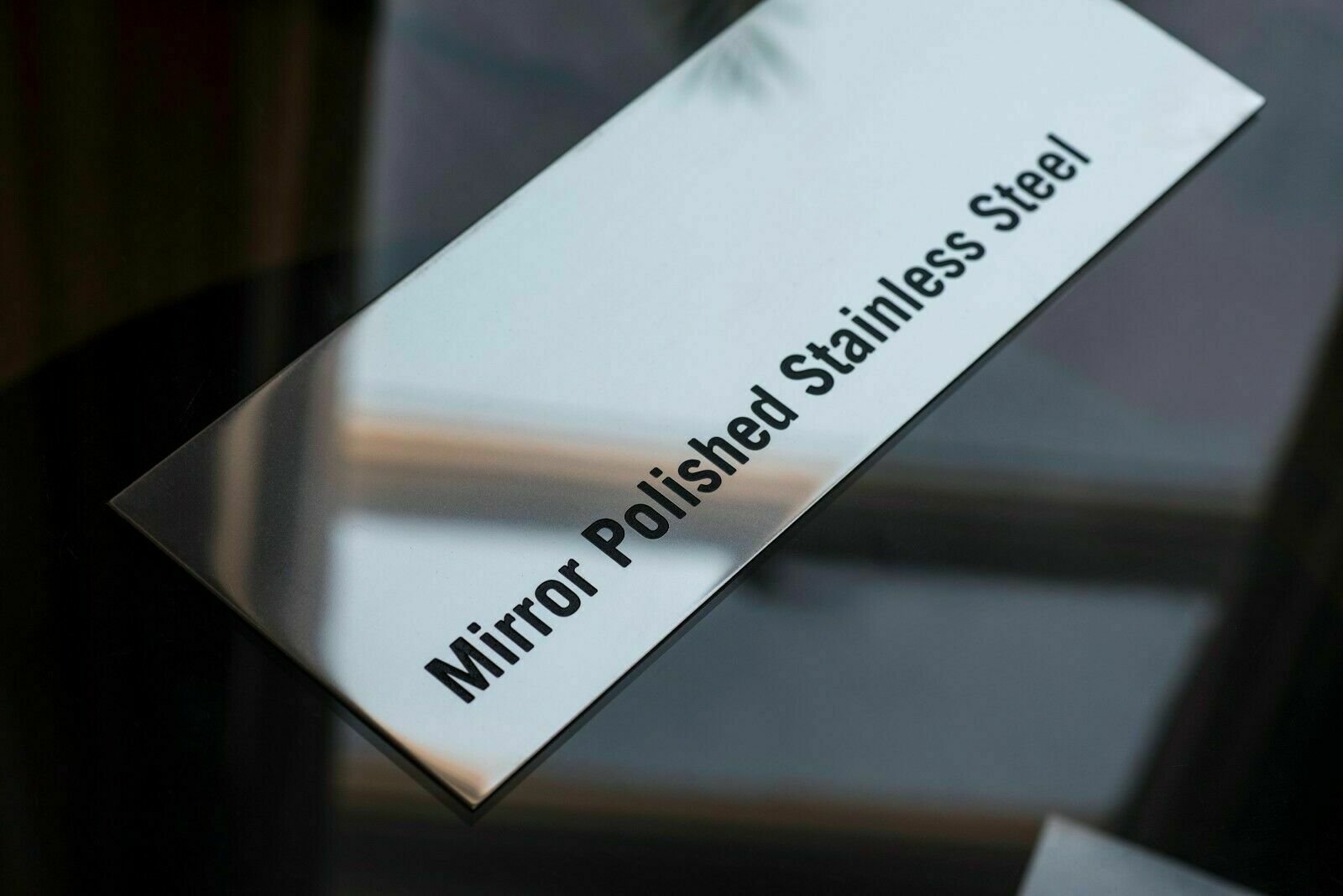

Mirror-grade EDM cores reach Ra 0.1 μm; precision-ground faces land at Ra 0.4–0.8 μm; standard CNC milling yields Ra 1.6–3.2 μm. Vapor polishing on PC and PMMA improves optical clarity to 92% light transmission; bead blasting (80–120 mesh alumina) delivers uniform Ra 3.2 μm for tactile grips.

Laser Marking and Serialization

Fiber-laser marking etches alphanumeric codes, 2D DataMatrix and QR symbols at 0.1 mm character height with <10 μm line width, traceable through ISO 9001:2015 batch records. Black-on-white contrast exceeds ANSI Grade C on POM, PA and PBT without thermal stress cracking.

Assembly and Sub-Assembly Kitting

In-house kitting pairs machined plastic components with O-rings, springs and fasteners under Class 100,000 cleanroom protocols. Pre-assembled sub-modules arrive ready for final integration, cutting your receiving inspection time by 50% and eliminating supplier coordination overhead.

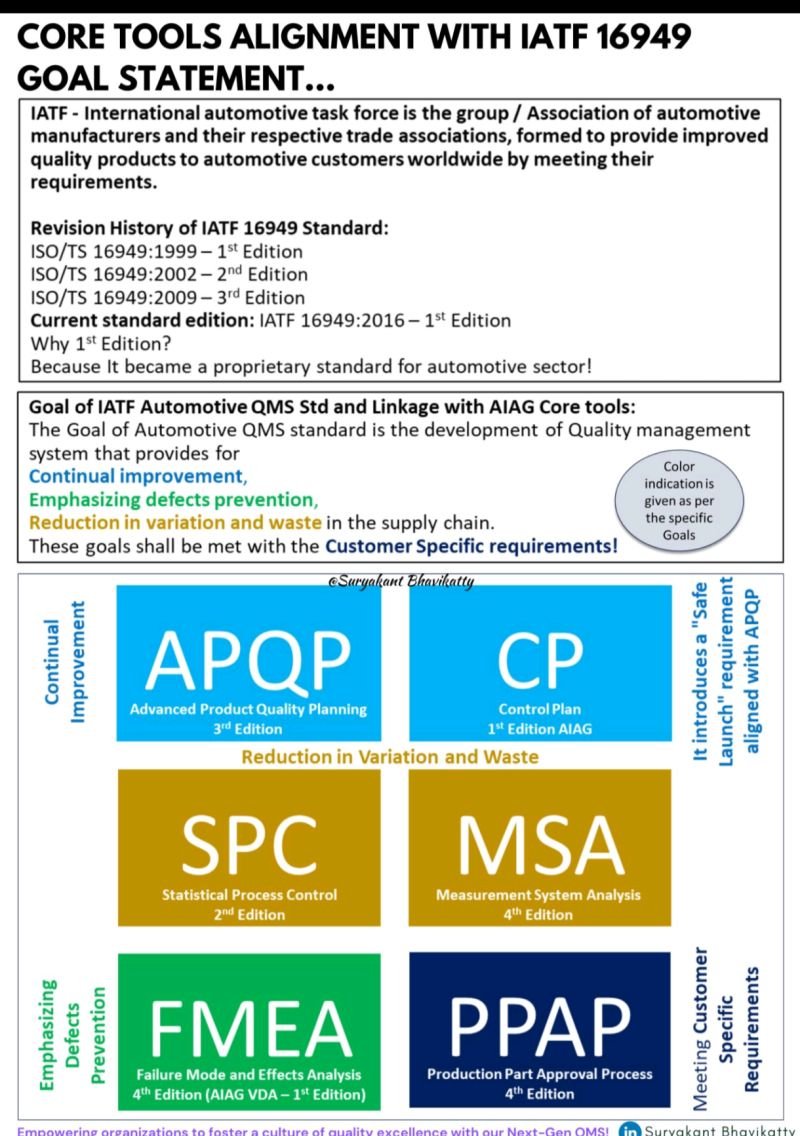

ISO 9001 and IATF 16949 Certification

ISO 9001:2015 ensures documented process control; IATF 16949 adds automotive-grade traceability and FMEA rigor. Request certification scopes and audit dates — expired or narrow-scope certificates signal gaps in governance that compromise +/-0.002 mm tolerances under volume.

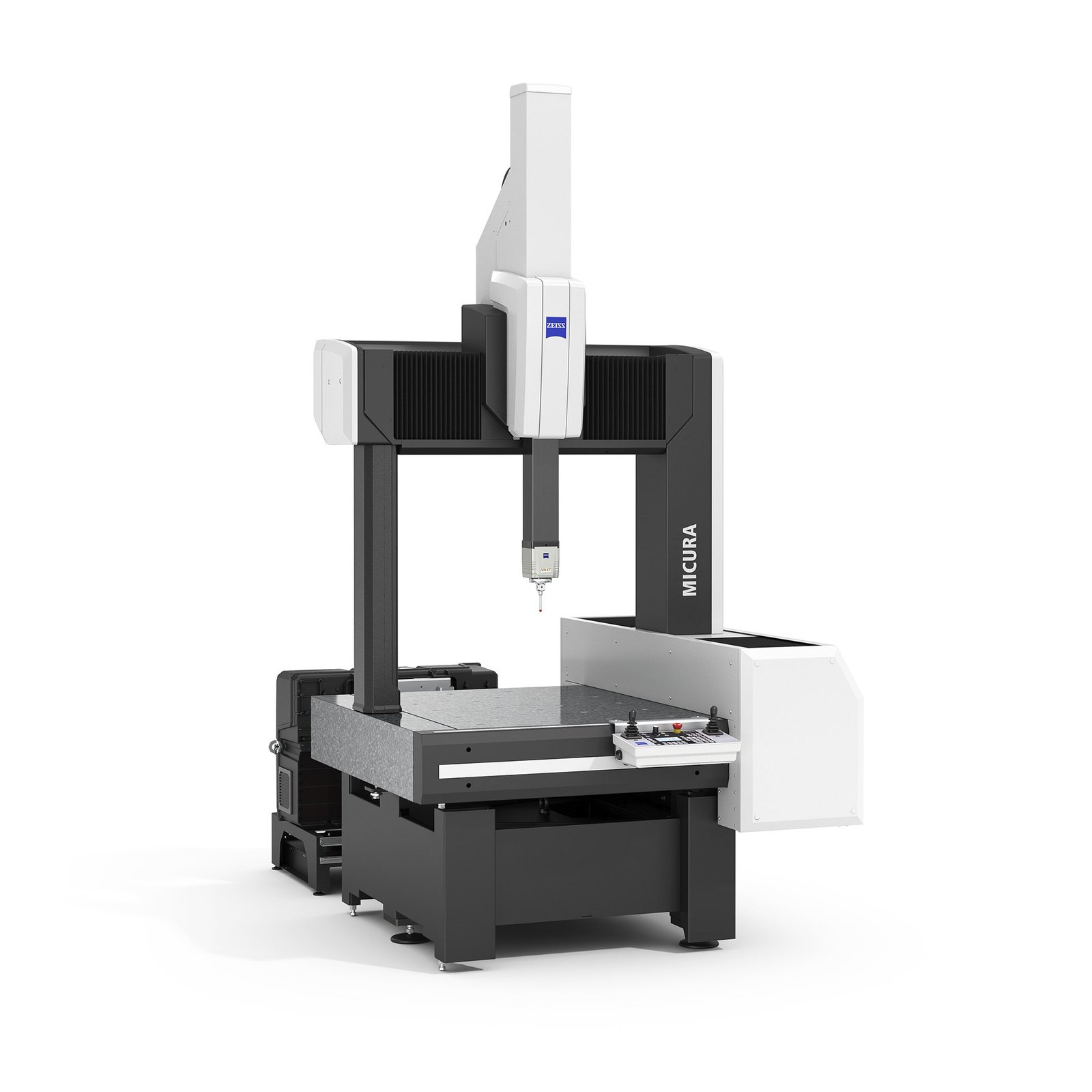

In-Process CMM and Optical Inspection

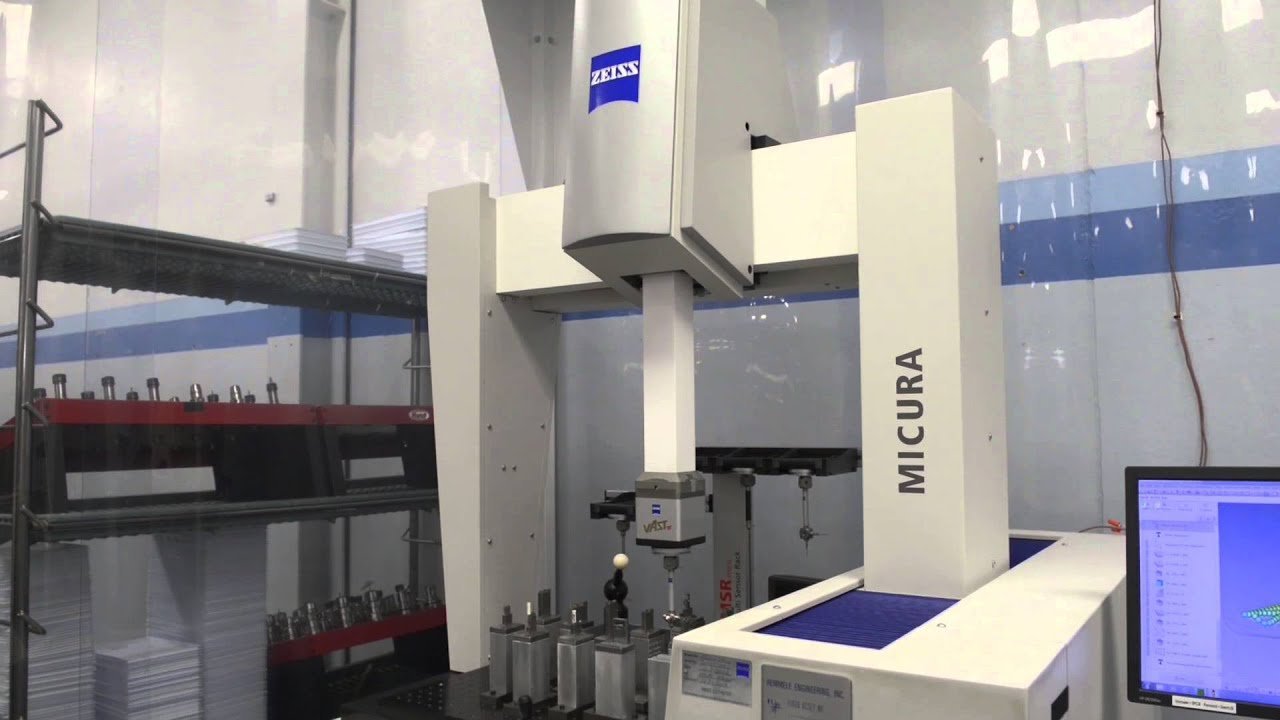

ZEISS or Mitutoyo CMM with ≤1 µm resolution, calibrated quarterly, is the baseline for +/-0.001 mm work. Ask for SPC chart samples and inspection frequency — every nth part or 100 % first-article. Shops without real-time SPC cannot detect drift before scrap.

Tool-Life Management and Preventive Calibration

Electrode wear and spindle runout degrade precision. Verify preventive-maintenance logs for EDM, CNC and grinding assets, plus tool-change intervals tied to cycle counts or measured wear, not calendar guesses.

Cleanroom or ESD-Safe Environments

Medical and electronics components require ISO Class 8 (100,000) cleanrooms or ESD-protected zones. Tour the production floor; static mats, ionizers and particulate monitoring are non-negotiable for connector tooling and sensor housings.

Traceability: Lot Codes and Material Certificates

Every batch needs laser-engraved lot codes and mill certificates (resin grade, supplier, date). Request a sample FAI package — missing spectral analysis or vague material IDs indicate weak traceability that blocks root-cause analysis during field failures.

Machine-Park Capability and Tolerance Verification

Demand named equipment brands — Sodick, Fanuc, Charmilles — with spindle speeds above 15,000 RPM and five-axis capability for complex geometries. Ask for work-envelope dimensions and actual achieved tolerances, not catalog specifications.

Red flag: any provider unwilling to share CMM reports or citing ‘high precision’ without micron-level numbers (+/-0.001 mm or tighter).

Material Expertise and Inventory Breadth

Verify on-site stock of engineering-grade resins — PEEK, PPS, POM, PTFE — with spectral-analysis certificates. Prototype-to-production scaling requires consistent material lots and traceability.

Red flag: no material certificates or vague ‘we can source anything’ claims without inventory proof.

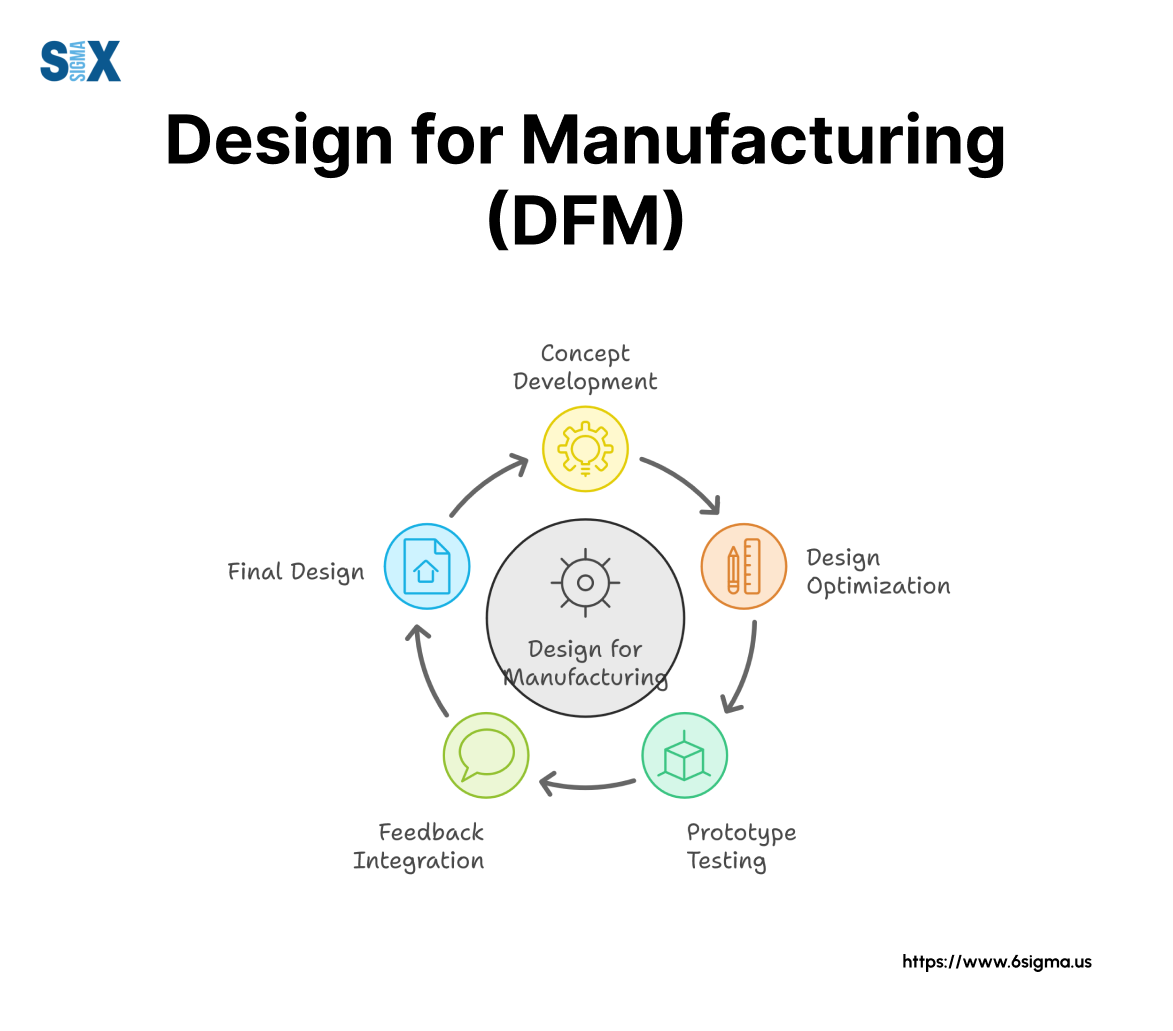

Engineering Support and DFM Feedback

Insist on tolerance stack-up analysis and DFM reviews before tooling kickoff. XUXIANG’s 10+ engineering experts catch design issues that add 20–30% to cost if discovered mid-production.

Red flag: no formal DFM process or engineering contact limited to sales staff.

Specifying Tighter Tolerances Than Functionally Required

Blanket +/-0.005 mm callouts across entire prints drive cost up 40–70% versus tolerance zoning. XUXIANG’s DFM reviews identify which features need +/-0.002 mm and which accept +/-0.02 mm, cutting machine time and inspection overhead.

Apply tight tolerances only to mating surfaces, datum features and functional interfaces; relax non-critical zones to standard machining grades.

Ignoring Material Anisotropy and Thermal Expansion

PEEK expands 5× more than aluminum; POM absorbs moisture and swells. Buyers who dimension at 20°C without thermal or hygroscopic coefficients see field failures.

Share operating temperature ranges and humidity exposure during RFQ; XUXIANG compensates machining offsets and recommends stabilization cycles for hygroscopic resins like PA66.

Underestimating Lead Time for Exotic Polymers

PPSU, PEI and medical-grade PEEK often require 2–3 weeks material lead time plus post-machining stress relief. Buyers assuming ‘plastic is fast’ miss launch windows.

Request material availability confirmation upfront; XUXIANG stocks common engineering grades and flags long-lead exotics during quotation.

Skipping First-Article Inspection Sign-Off

Launching production without formal FAI approval locks in dimensional drift or surface defects across thousands of parts. XUXIANG’s five-step QC — spectral analysis, in-process monitoring, ZEISS CMM, surface integrity, FAI documentation — requires buyer sign-off before batch release.

Requirements Definition and Material Down-Selection

Engineering defines dimensional tolerances, surface finish (Ra ≤ 0.2 µm for optical, ≤ 0.8 µm for connectors) and environmental loads (thermal cycling, chemical exposure). Quality and procurement jointly down-select materials — PEEK for 260 °C service, POM for wear resistance, or PA66-GF30 for structural rigidity — and lock resin grades with UL file numbers to avoid late substitutions.

RFQ Preparation: CAD, Inspection Plan and Volume Forecast

Procurement packages 2D GD&T drawings, 3D STEP or Parasolid models, an inspection plan citing critical-to-quality features and a three-year volume forecast (NPI, ramp, steady state). Including annual volume triggers supplier capital investment in dedicated fixtures and SPC tooling, shortening lead time by 20–30 %.

First-Article Build and Dimensional Validation

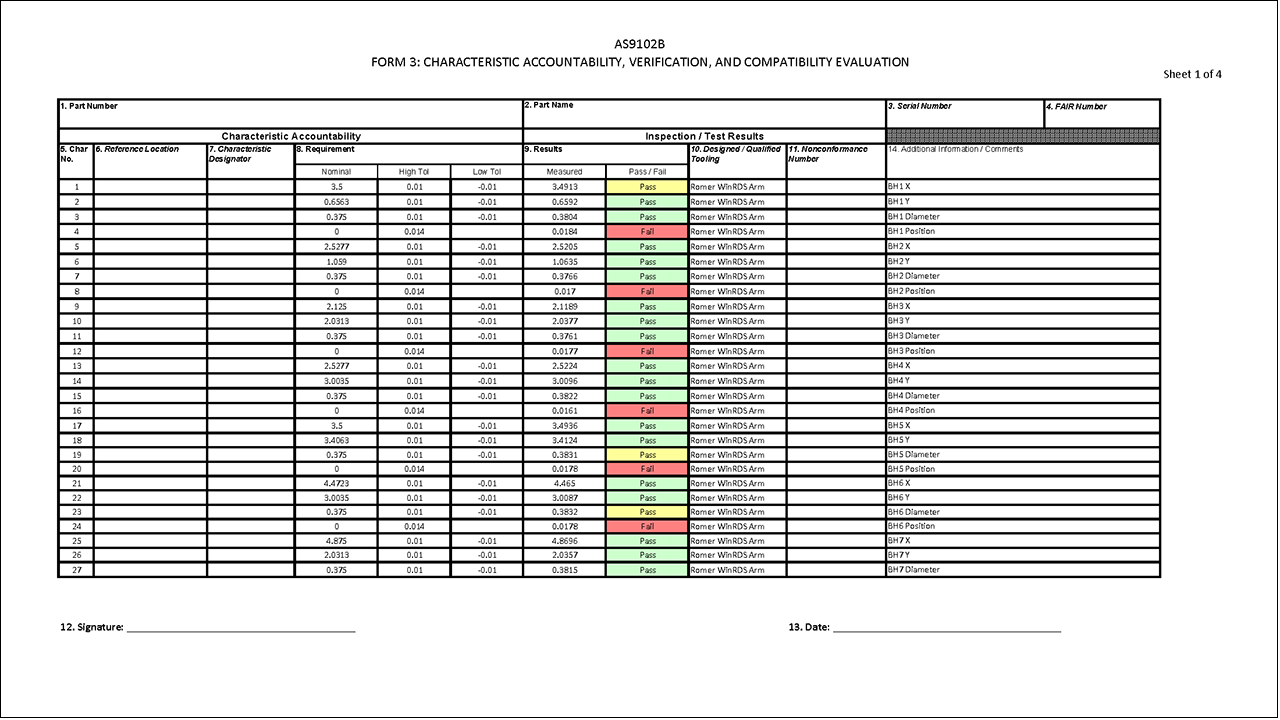

The supplier machines T1 samples, measures every GD&T callout on a ZEISS-class CMM and issues a full FAI report with material certificates. Automotive buyers require PPAP Level 3 (dimensional results, process FMEA, control plan). XUXIANG’s five-step QC — spectral analysis, in-process monitoring, CMM verification, surface integrity and FAI documentation — satisfies PPAP and accelerates design freeze.

Transition to Serial Production with SPC Monitoring

After design sign-off, production launches under ISO 9001:2015 process control. Real-time SPC charts track Cpk ≥ 1.33 on critical dimensions; any drift triggers corrective action before non-conformance. Cross-functional review meetings (monthly in ramp, quarterly in steady state) align engineering changes, capacity planning and cost reduction.
