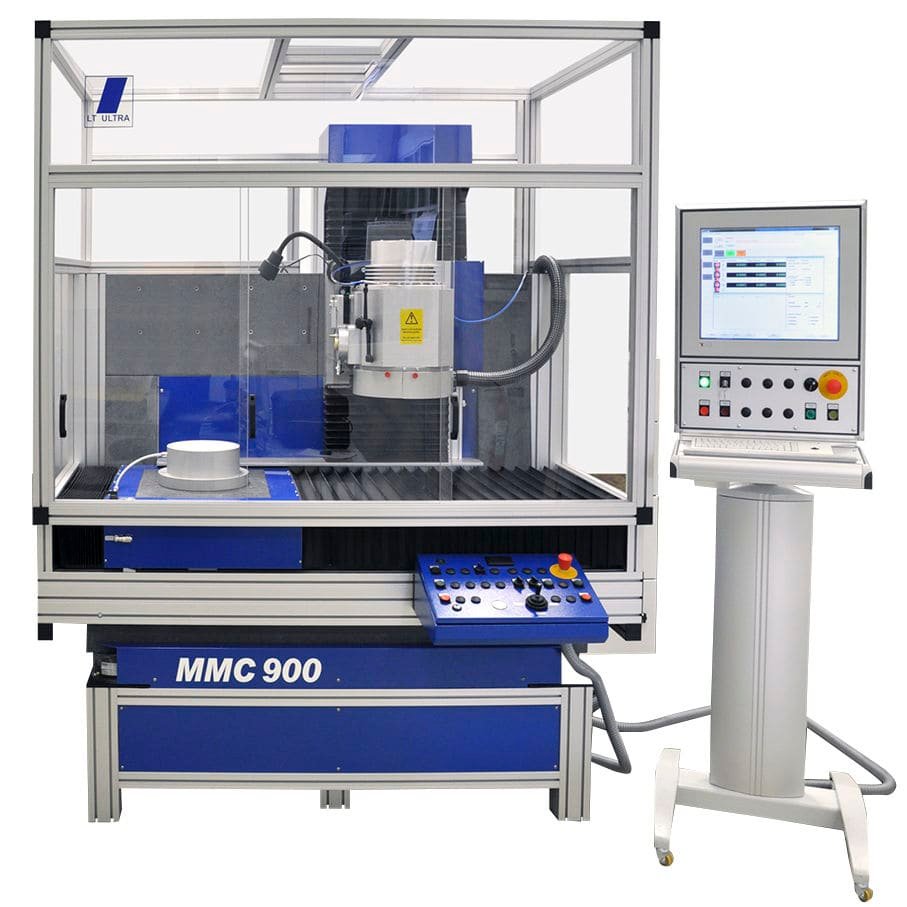

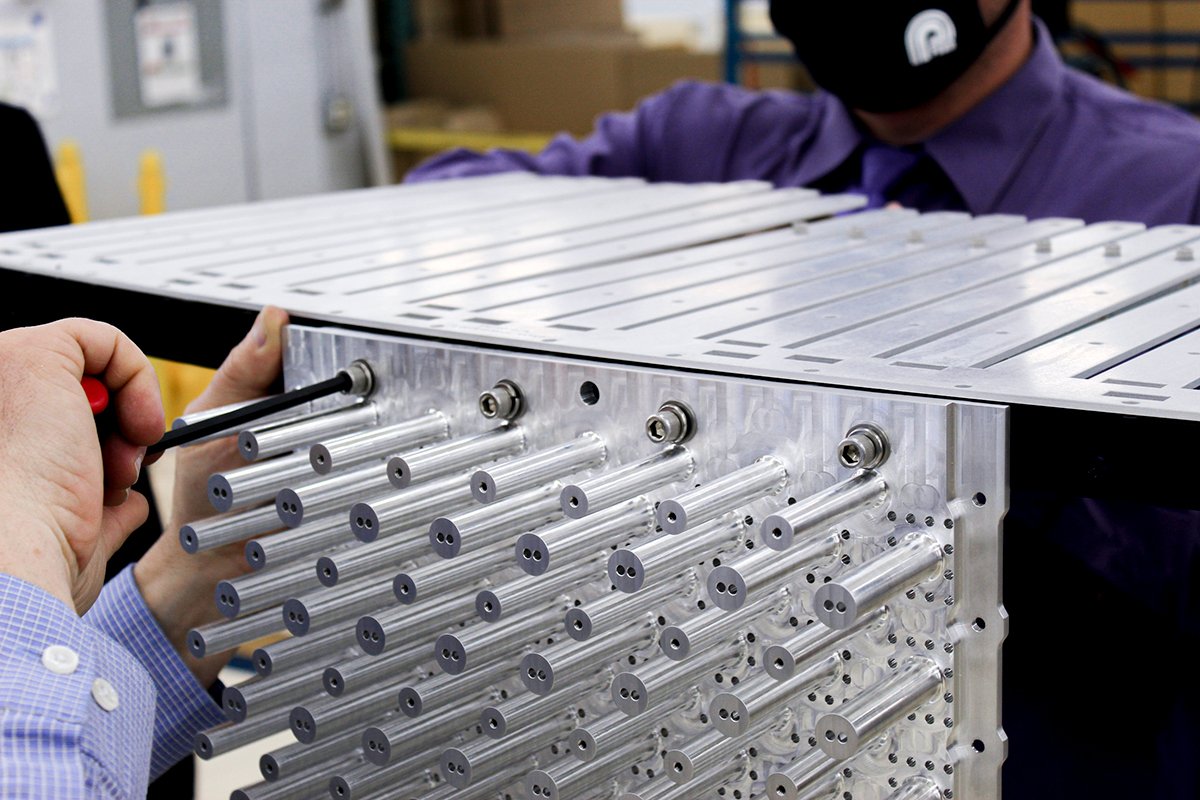

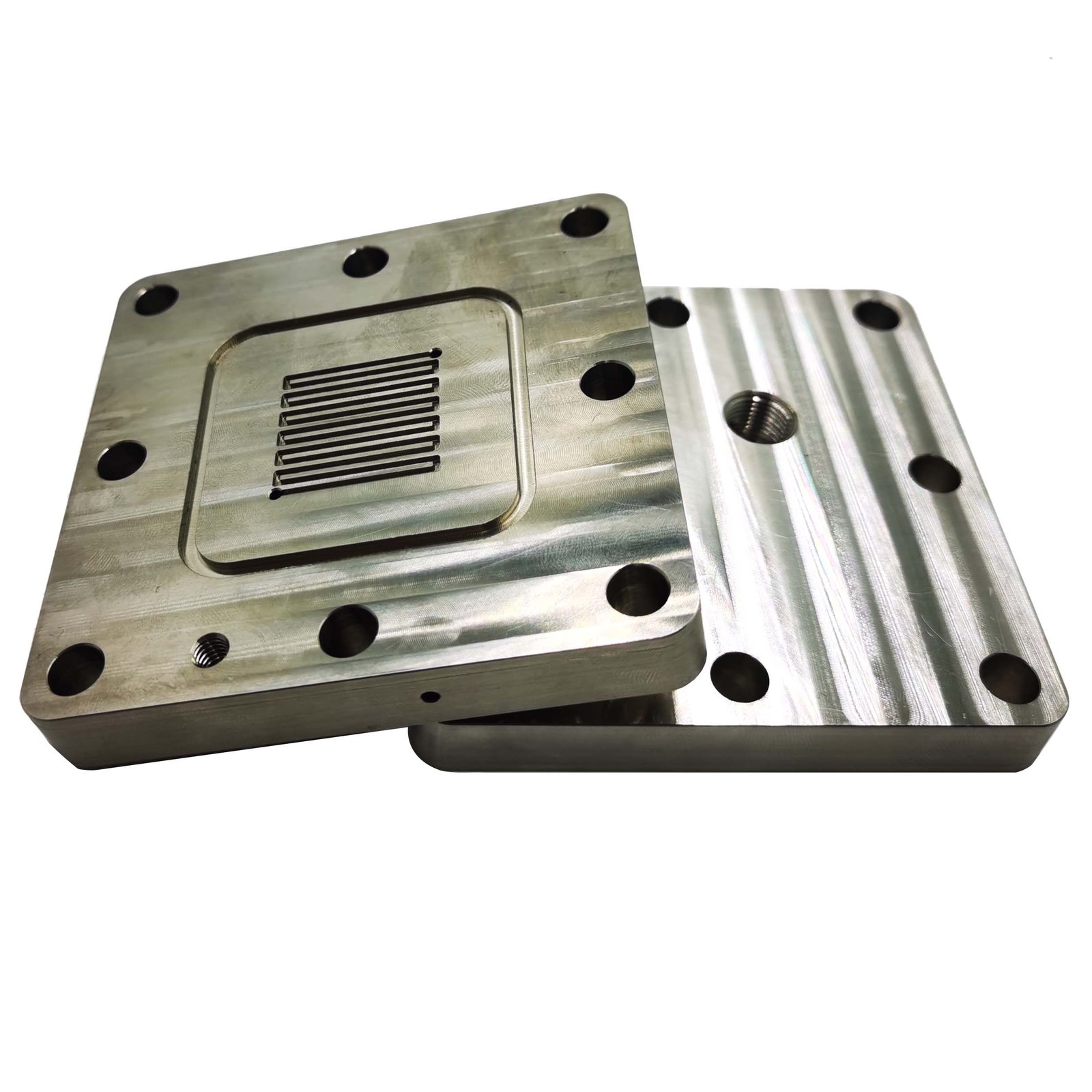

3-Axis Milling for Brackets and Plates

3-axis vertical machining centers handle flat copper brackets, mounting plates and heat-sink bases where features lie in a single plane. Typical tolerances reach ±0.02 mm on dimensions and ±0.01 mm on flatness, sufficient for most structural and thermal-management applications.

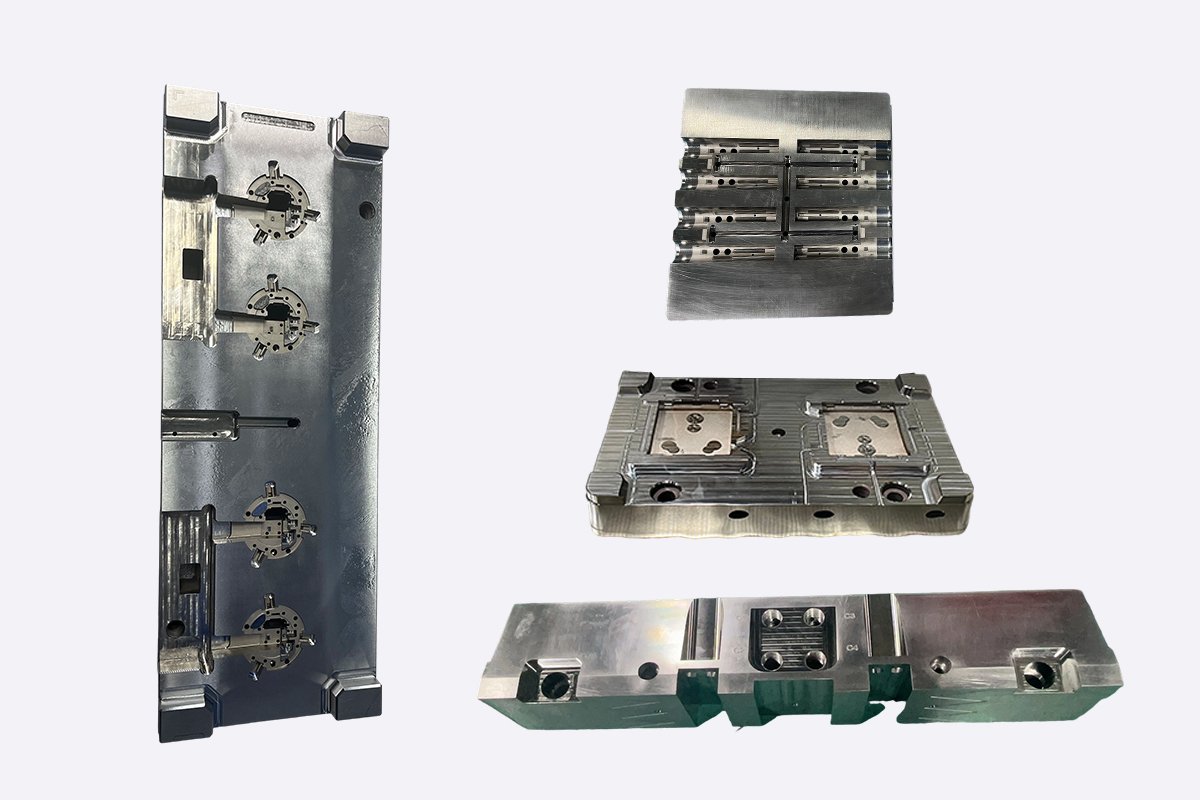

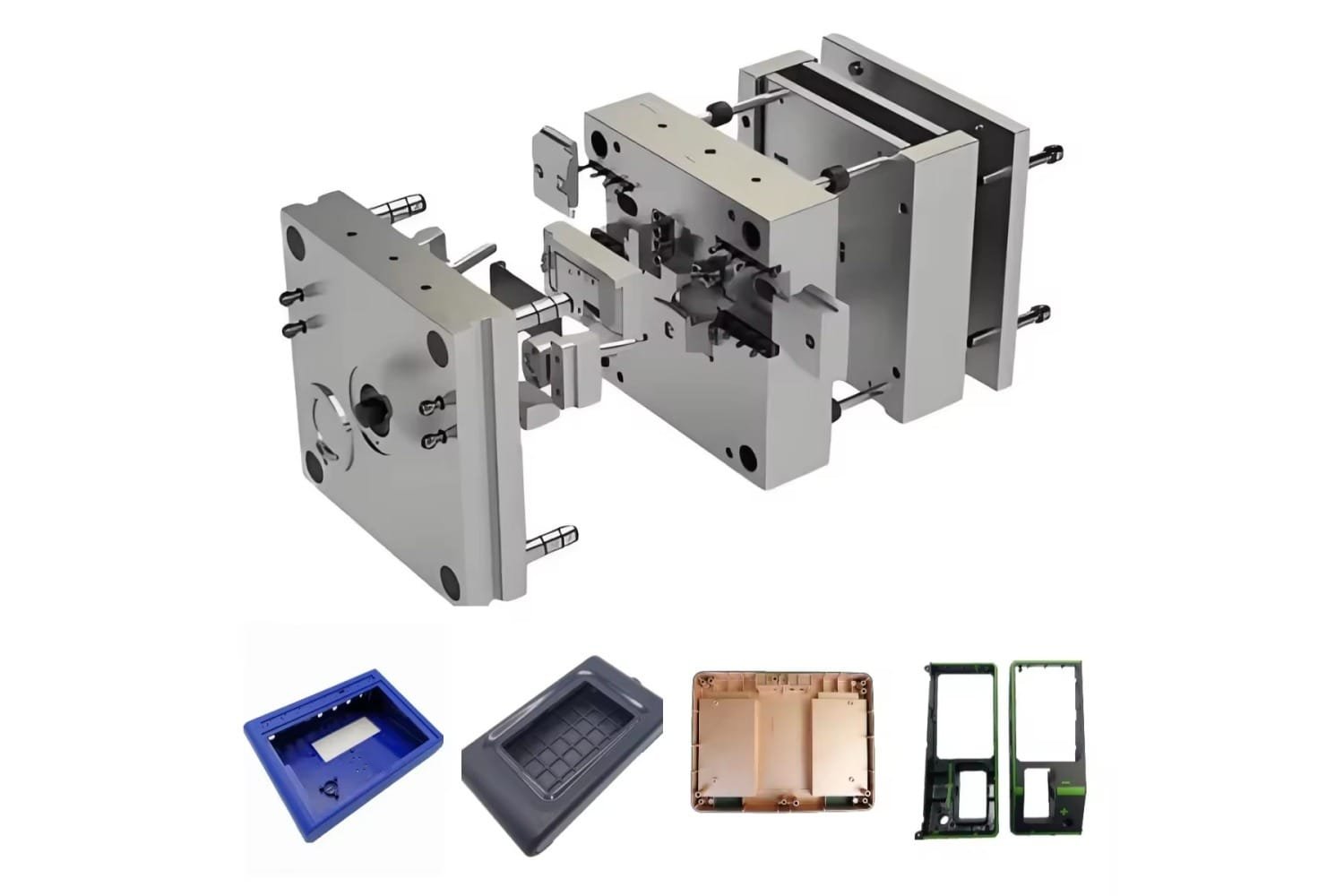

4/5-Axis Machining for Complex Geometries

Multi-axis simultaneous contouring produces undercuts, angled bores and sculptured cooling channels in one setup. XUXIANG’s Fanuc-class 5-axis centers hold ±0.005 mm positional accuracy, ideal for RF shielding housings and conformal-cooled mold inserts that demand minimal witness lines.

Precision Turning for Cylindrical Parts

CNC lathes generate pins, shafts, bushings and threaded terminals with diameters from 1 mm to 80 mm. Roundness tolerances of 0.003 mm and concentricity within 0.005 mm are routine for connector pins and sensor housings in automotive ADAS assemblies.

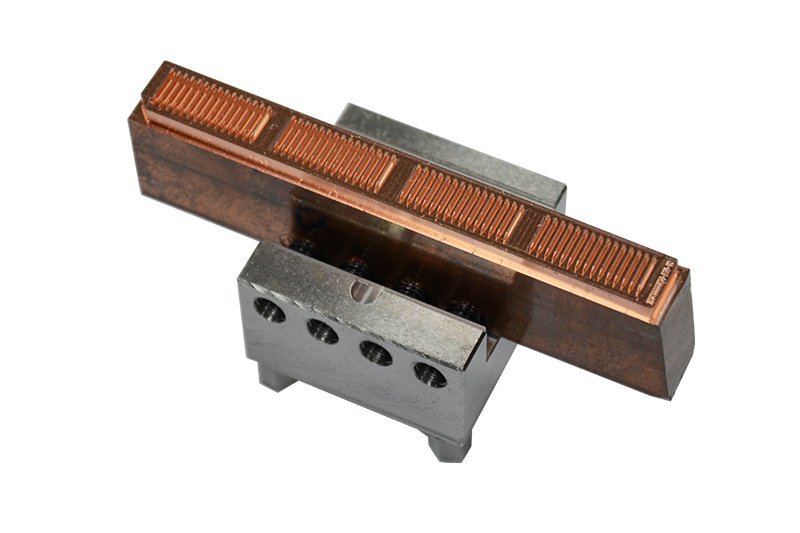

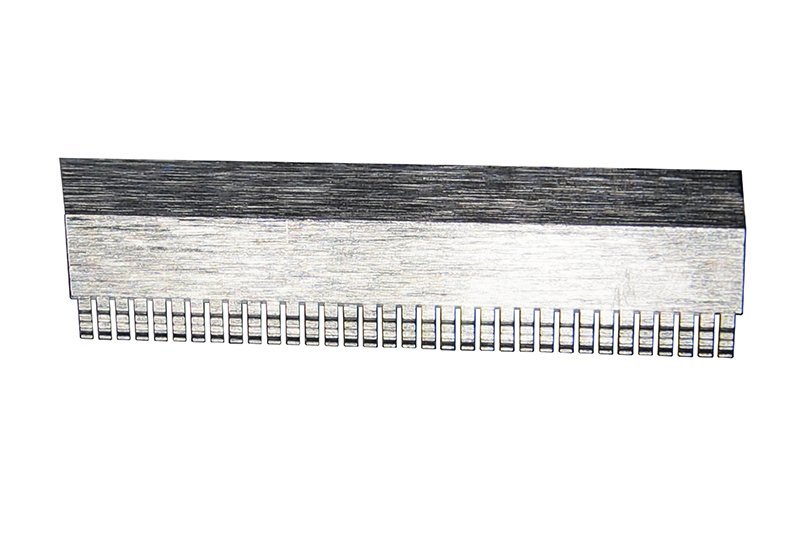

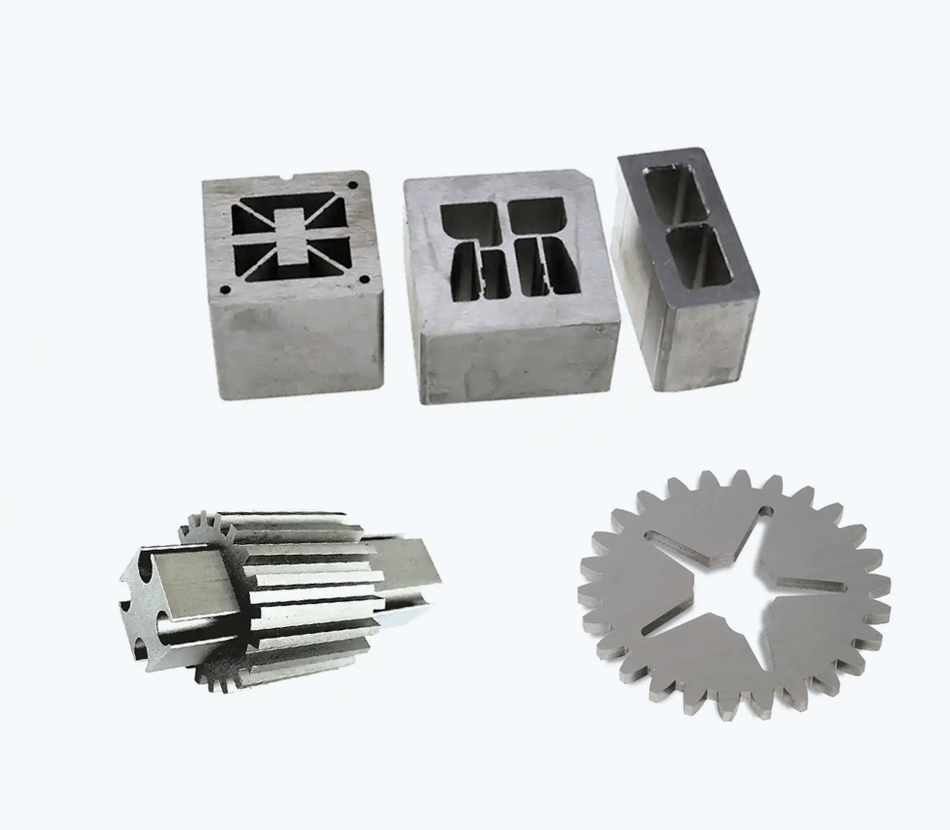

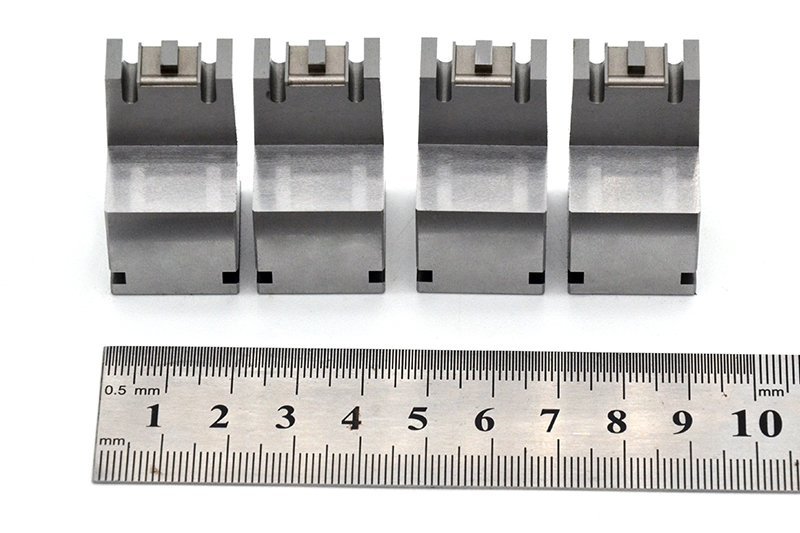

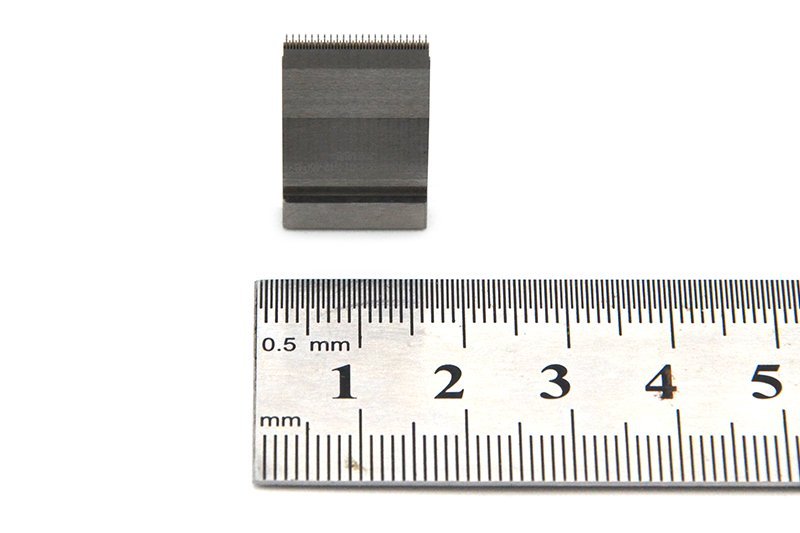

Micro-Machining for Sub-Millimeter Contacts

Beijing Jingdiao high-speed spindles and wire-EDM cut micro-connector contacts, spring fingers and terminal blades below 1 mm width. Corner radii down to R ≤ 0.015 mm and edge burr under 0.01 mm meet 5G board-to-board and FPC tooling standards without secondary deburring.

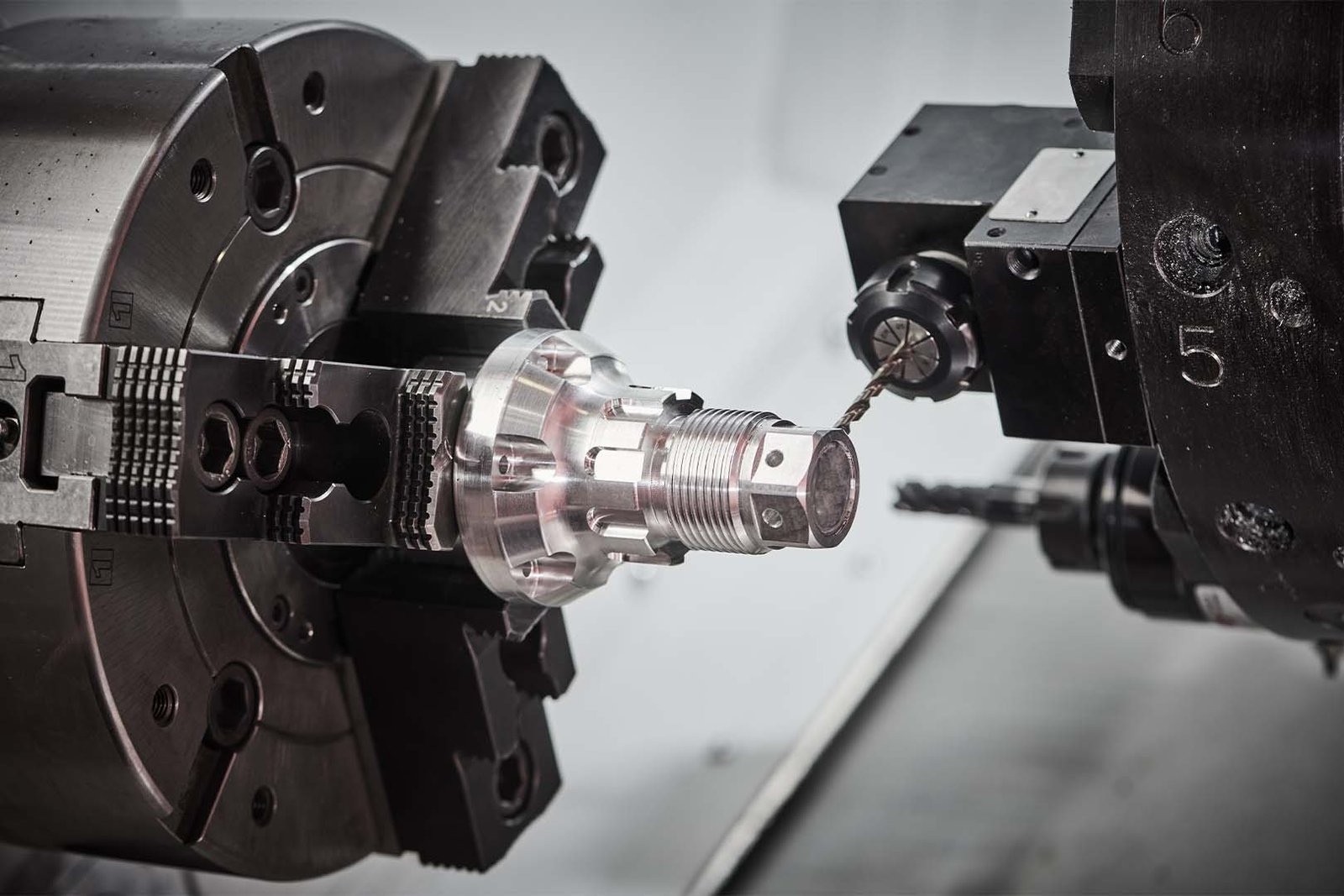

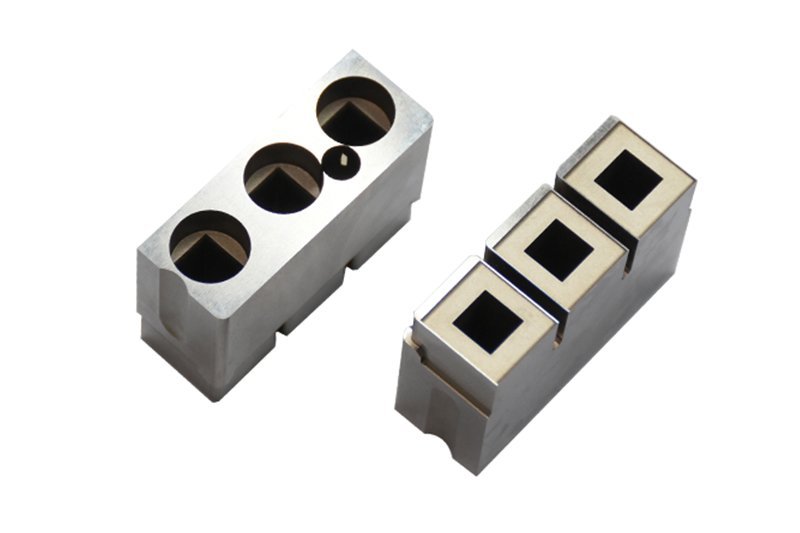

Combined Mill-Turn Operations

Integrated mill-turn centers machine prismatic features and turned diameters in a single chucking, eliminating datum shifts. This approach cuts lead time by roughly 20 % and ensures coaxiality within ±0.005 mm for hybrid geometries like sensor housings with both flanges and bores.

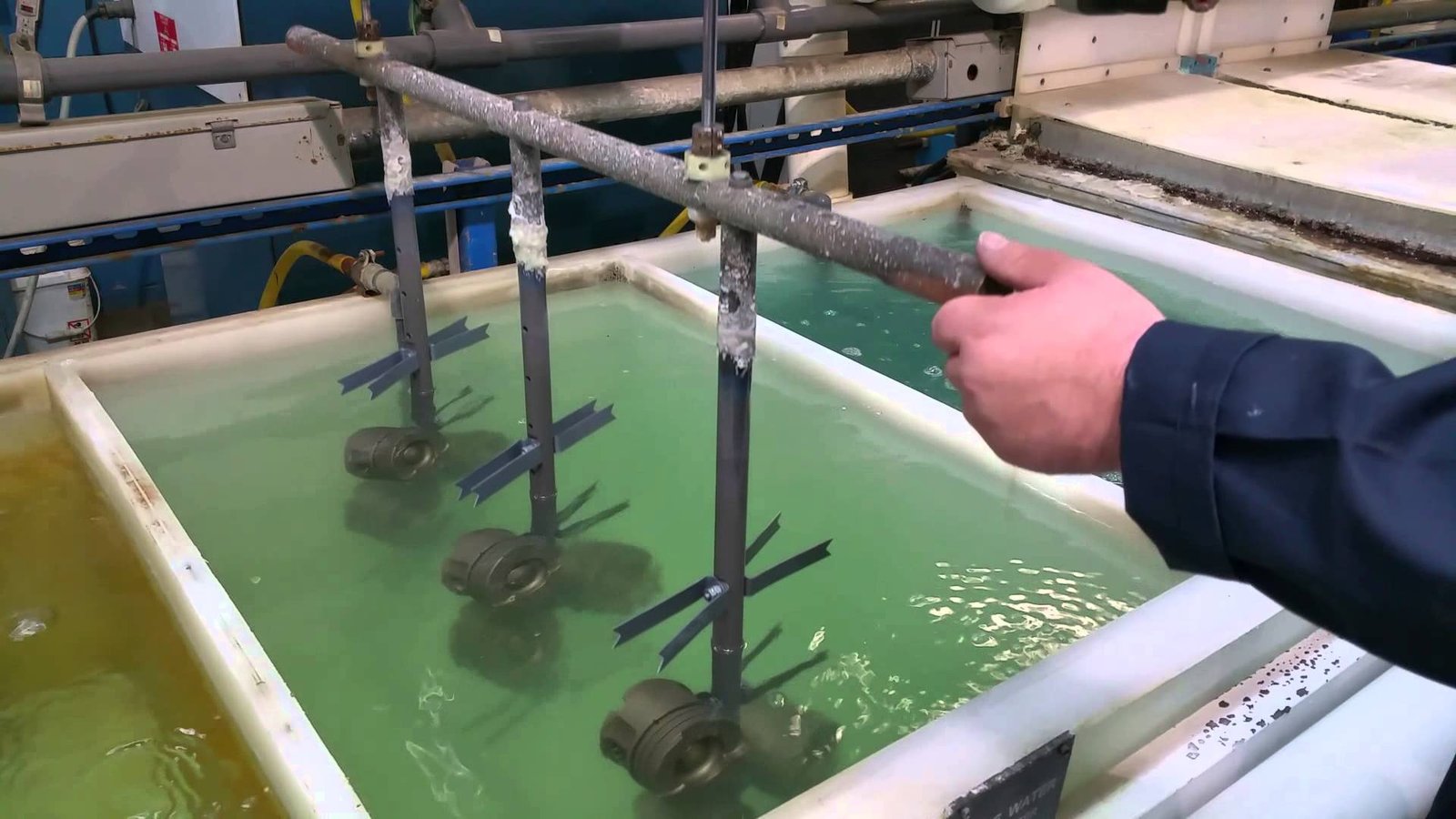

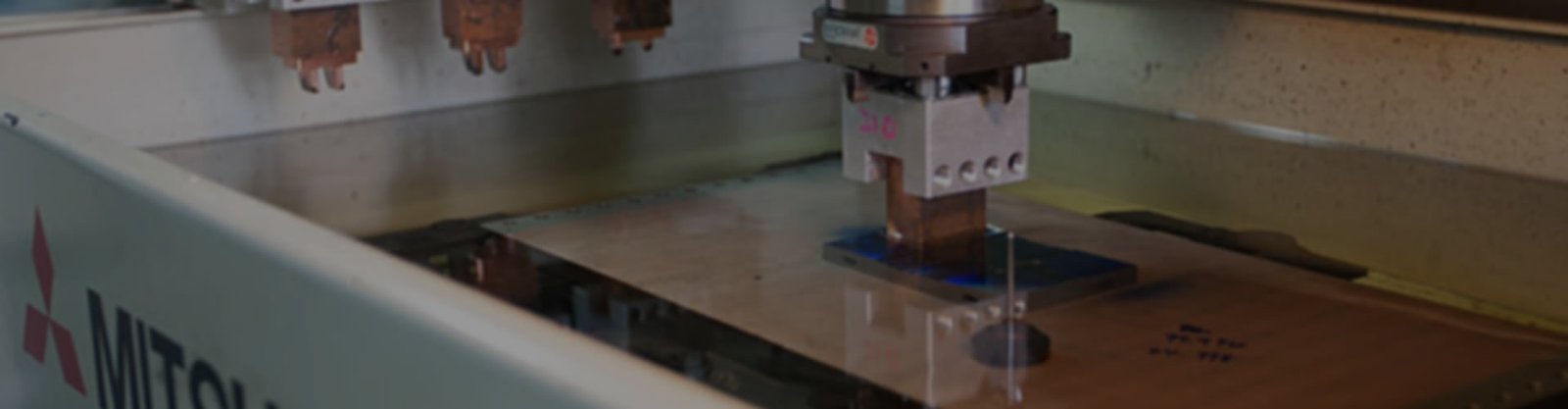

Post-Machining Finishing Services

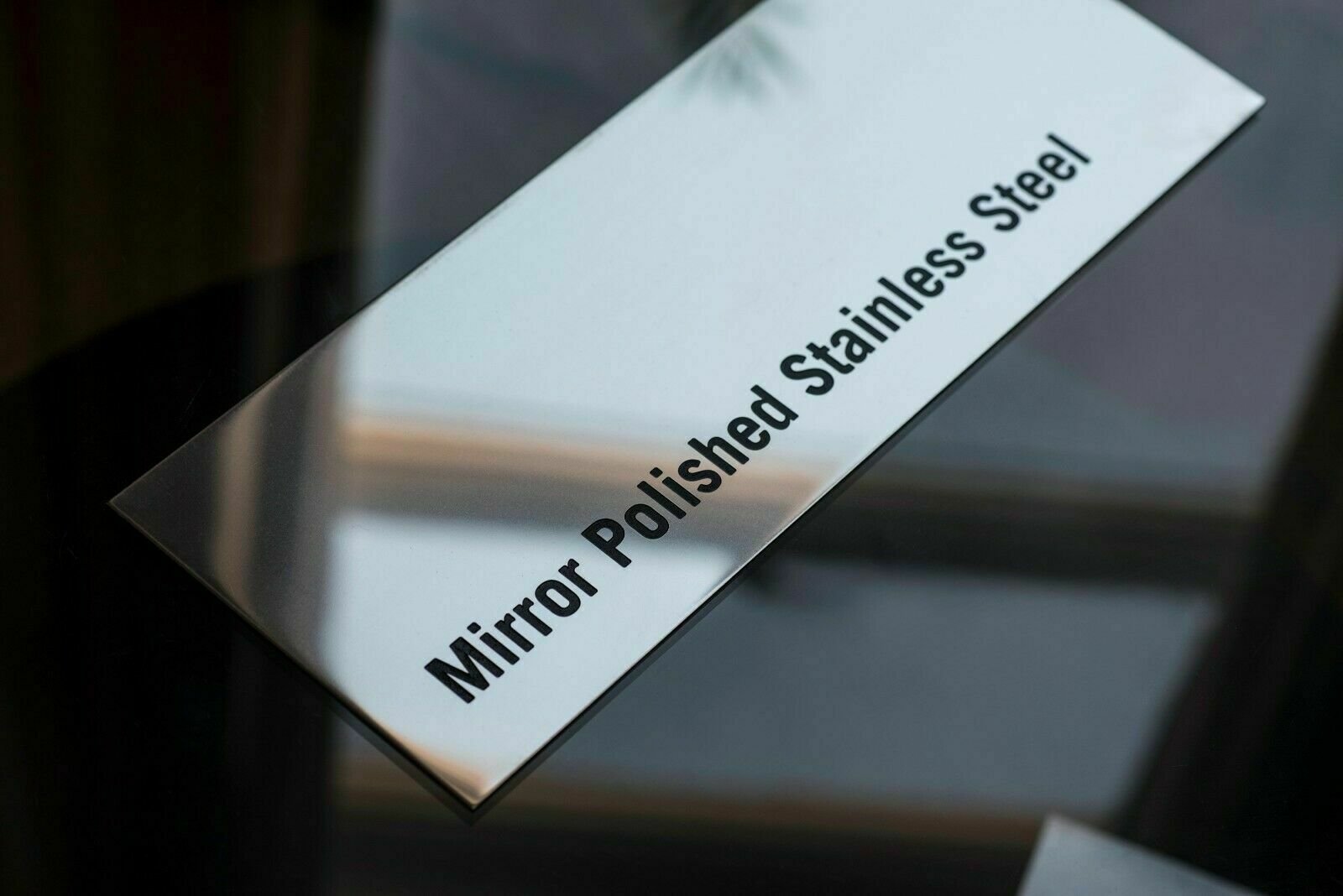

Deburring, mirror polishing to Ra 0.1 µm, nickel or tin electroplating and passivation extend part life and meet assembly-line handling requirements. XUXIANG’s five-step QC validates surface integrity and coating thickness before final FAI documentation, ensuring first-article approval without rework.

T2 Copper Versus Higher-Purity Grades

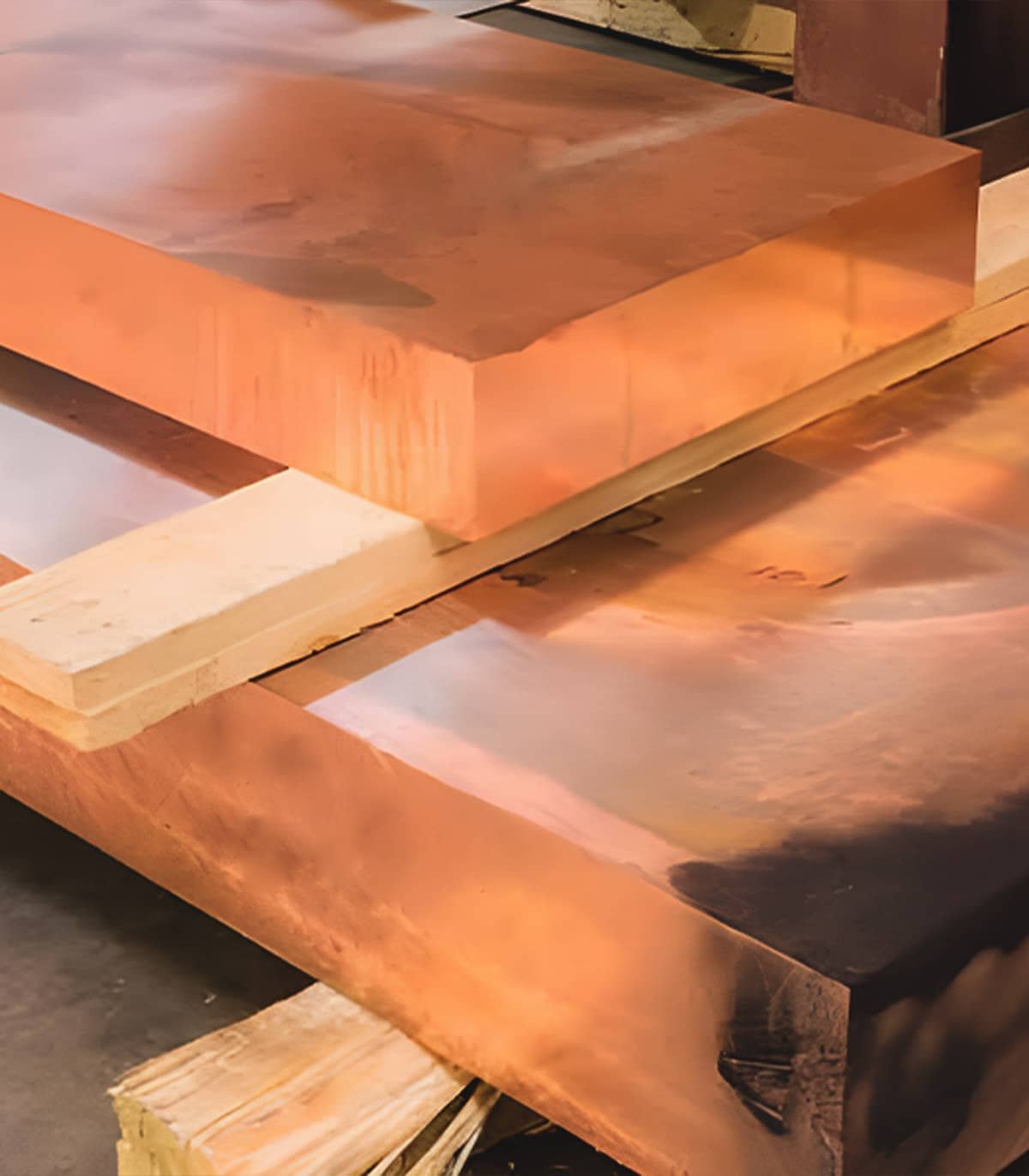

T2 (C11000) delivers 100% IACS conductivity and good machinability for bus bars, heat sinks and micro-connector terminals. Oxygen-free copper (C10100/C10200) offers 101% IACS and eliminates hydrogen embrittlement, critical for vacuum brazing and high-reliability aerospace or medical assemblies, but costs 15–25% more and machines slower.

Alloyed Copper for Strength and Wear

Beryllium copper (C17200) reaches 290 ksi tensile strength after heat treatment, ideal for spring contacts and wear-resistant tooling inserts, yet conductivity drops to 20–25% IACS. Brass alloys (C36000) machine 30% faster than pure copper and suit decorative or low-current housings where conductivity is secondary.

Material Certifications and Compliance

XUXIANG validates every copper lot with mill test reports (MTR) documenting chemical composition via spectral analysis. RoHS compliance certificates confirm restricted-substance limits for EU and global markets. ISO 9001:2015 traceability links each batch to source smelter, ensuring consistent purity across production runs.

Design Engineering and DFM Support

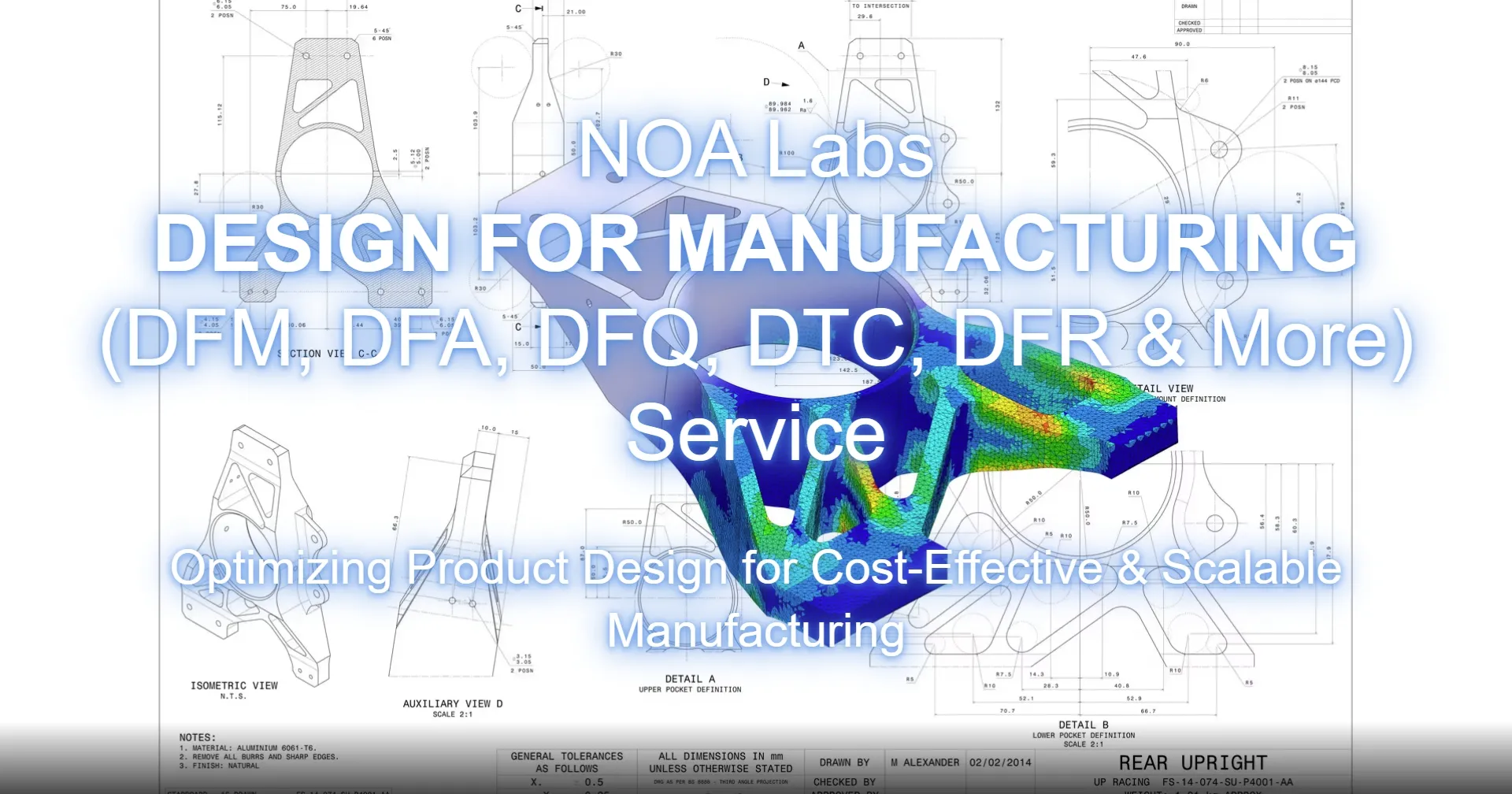

XUXIANG provides CAD/CAM file support (STEP, IGES, DWG) and reverse-engineering services to convert legacy samples into manufacturable 3D models. Before production, 10+ engineering experts deliver DFM feedback to optimize wall thickness, tool access and thermal stability, reducing scrap and shortening cycle time by up to 20%.

Surface Finish and Coating Options

Copper T2 components support electroplating (nickel, tin, gold), chemical passivation and mirror polishing to Ra 0.2 μm or better. Electroless nickel offers uniform coverage on complex geometries; gold plating suits high-frequency RF contacts. Polishing to Ra 0.1 μm is achievable on flat surfaces via precision grinding centers for optical or medical-grade applications.

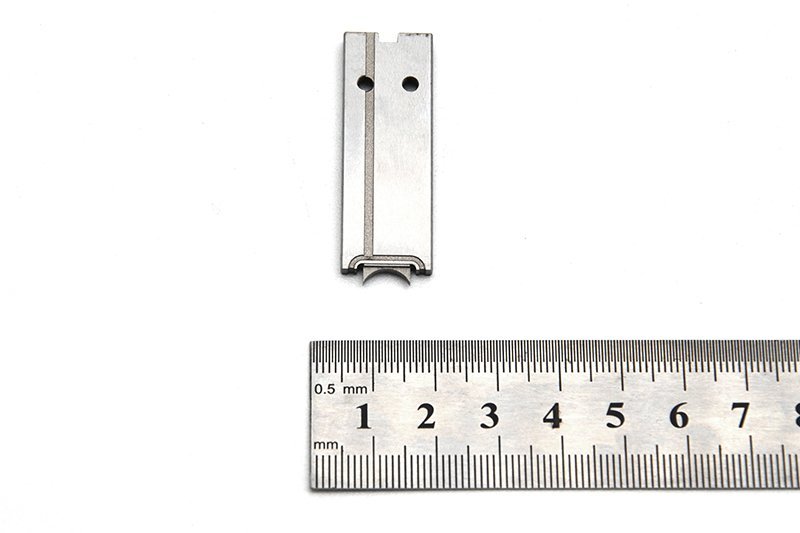

Tolerance Grades and Precision Levels

Standard commercial tolerance is ±0.05 mm; precision-grade work holds ±0.005 mm or tighter using slow-wire EDM and ZEISS MICURA CMM verification to 0.7 μm. Critical features — pin diameters, mating faces — are validated in-process to prevent cumulative drift across production runs.

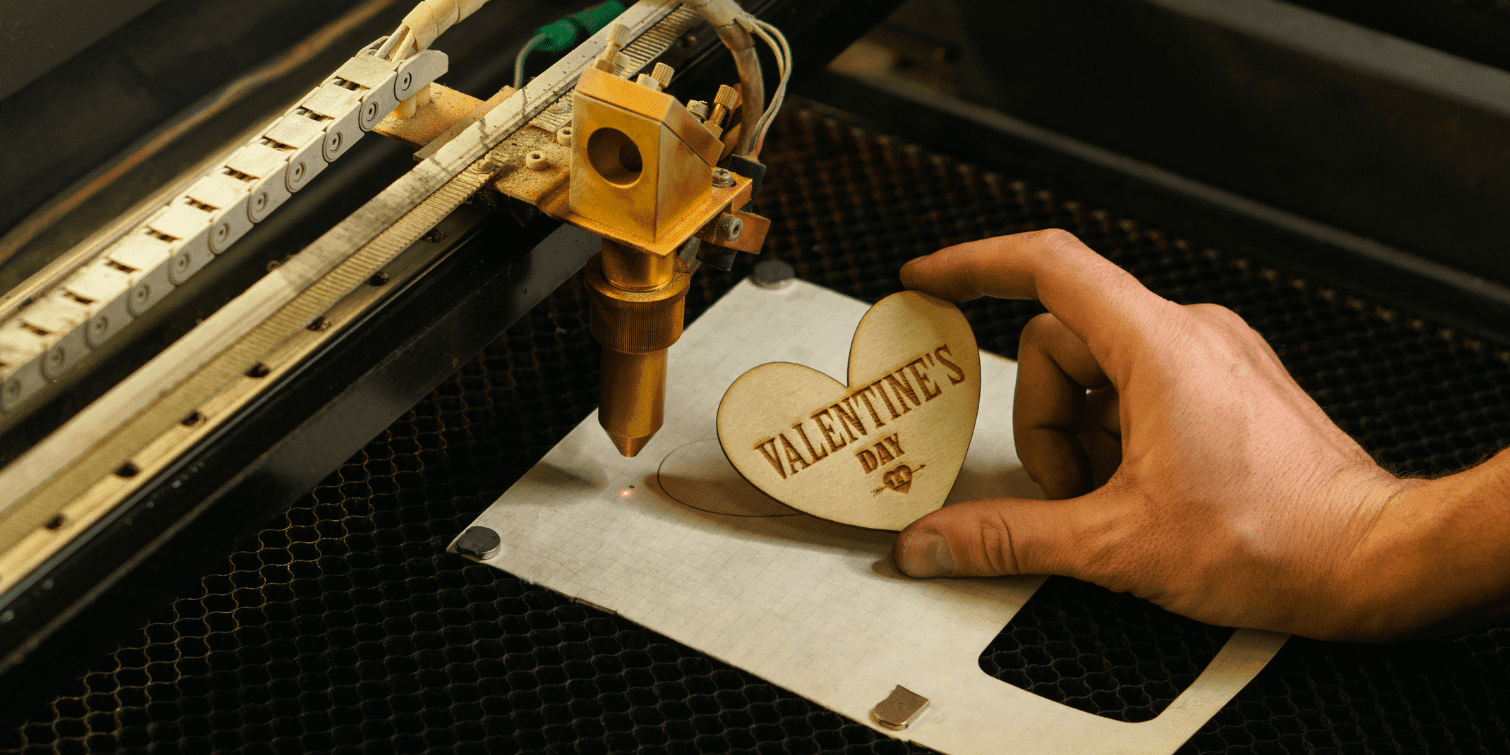

Marking and Serialization

Laser engraving delivers permanent alphanumeric codes, QR matrices and logos with 0.05 mm line width, ideal for traceability in automotive and medical supply chains. Mechanical stamping suits high-volume runs where depth ≥0.1 mm is acceptable; both methods withstand plating and cleaning cycles.

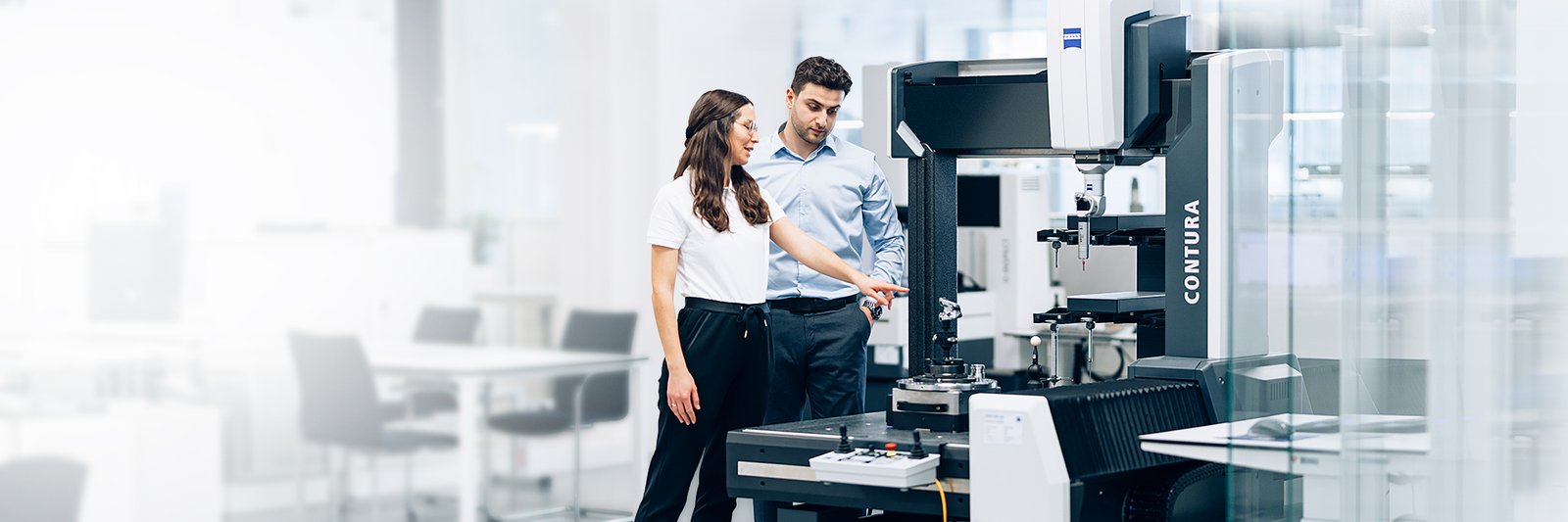

Dimensional Tolerance Verification

ZEISS or Mitutoyo CMM measurement to +/-0.001 mm is the baseline for connector pins, busbars and contact terminals. XUXIANG’s ZEISS MICURA CMM achieves 0.7 µm resolution, validating critical features like pitch, coaxiality and flatness. Nikon toolmaker’s microscopes (V-12B / MM-400 class) verify edge radii and micro-geometry that contact gauges cannot reach.

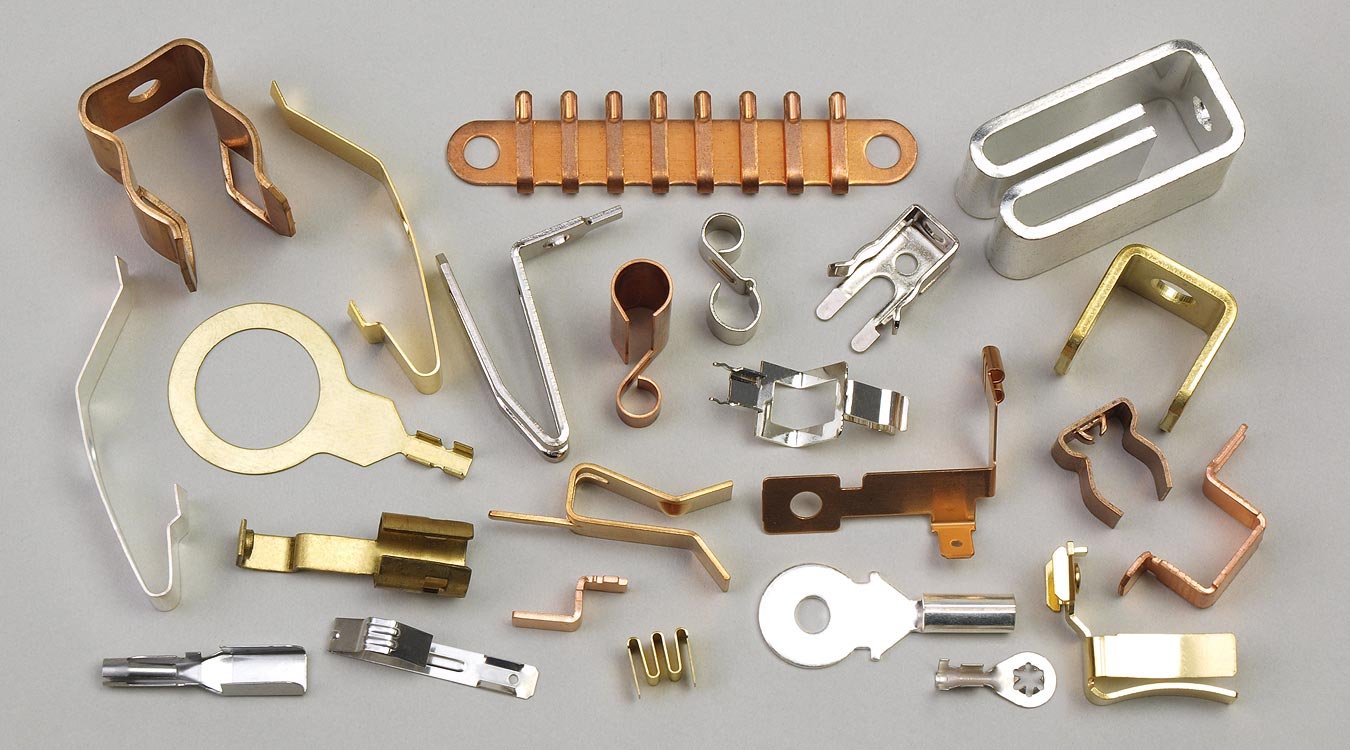

Surface Finish Standards

Copper electrical contacts require Ra ≤ 0.4 µm to minimize resistance; mirror-grade EDM finishes reach Ra 0.1 µm. Rz (peak-to-valley height) under 2.0 µm ensures consistent plating adhesion. Request profilometer reports and photomicrographs for every production lot.

Material Traceability and Certification

Every copper T2 batch must include mill certificates showing ≥ 99.90% Cu content, oxygen ≤ 0.03%, and conductivity ≥ 58 MS/m (IACS 100%). Spectral analysis at goods-in prevents substitution. ISO 9001:2015-certified suppliers maintain unbroken traceability from ingot to finished part.

Process Control and First-Article Inspection

SPC charts track bore diameter, wall thickness and concentricity shift across production runs. First-article inspection (FAI) with full dimensional report, material cert and surface-finish data locks in the quality baseline. XUXIANG’s five-step QC flow — spectral analysis, in-process monitoring, CMM verification, surface checks and FAI documentation — ensures repeatability lot to lot.

Cleanliness and Deburring

Residual chips or burrs cause short circuits in high-density connectors. Ultrasonic cleaning, compressed-air blow-off and optical inspection under 20× magnification are mandatory. Edge break ≤ 0.05 mm and particle counts below IPC-A-610 Class 3 limits safeguard electrical contact integrity.

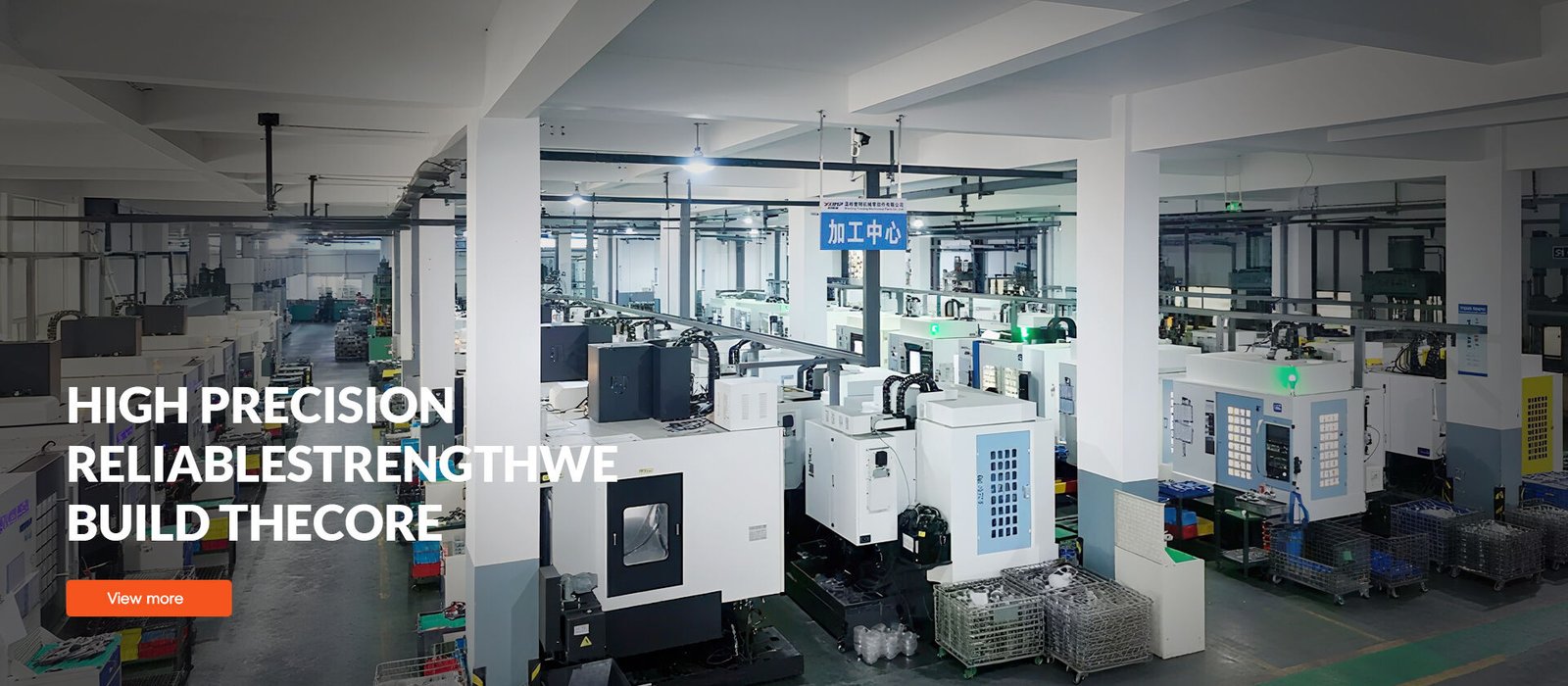

Machine Park Capability

Verify that the supplier operates 4- or 5-axis CNC centers with spindle speeds ≥ 12,000 rpm and named controllers (Fanuc, Siemens, Heidenhain). XUXIANG’s Fanuc-class CNC assets and Beijing Jingdiao high-precision systems achieve +/-0.001 mm accuracy on copper T2, essential for micro-connector and sensor-housing applications.

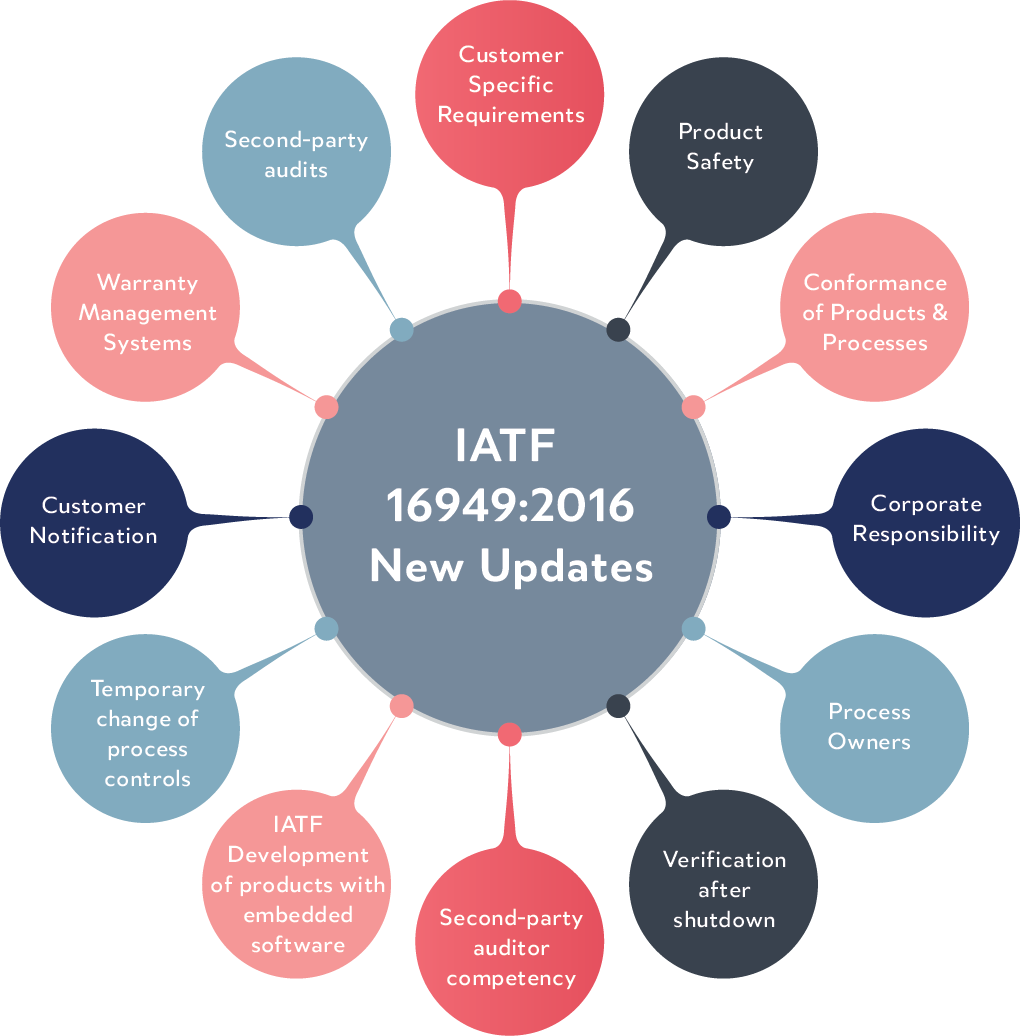

Quality Certifications and Standards

ISO 9001:2015 is baseline; IATF 16949 signals automotive capability, AS9100 aerospace rigor. Request audit dates and scope certificates to confirm coverage of CNC machining operations, not just assembly or distribution.

Engineering Support and DFM

Effective suppliers provide DFM feedback before quoting. XUXIANG assigns 10+ engineering experts to review tolerances, tool access and thermal expansion, reducing redesign cycles by up to 40 percent and preventing costly mid-project corrections.

Lead Time and Scalability

Confirm prototype turnaround (typically 5–7 days) and production ramp capacity. XUXIANG’s 2025 Quanzhou expansion targets 200 percent annual output growth, bridging prototype-to-production transitions roughly 30 percent faster than industry average.

Material Sourcing and Traceability

Demand spectral-analysis reports and mill certificates for every copper T2 lot. Lack of material certs, vague alloy designations or missing heat numbers are red flags that compromise electrical conductivity and regulatory compliance.

Customer References in Your Industry

Request case studies or contact details from clients in electronics, 5G/telecom, automotive or medical devices. Sector-specific experience reduces learning curves and ensures familiarity with industry tolerances, surface finishes and inspection protocols.

Over-Specifying Tolerances Beyond Functional Need

Specifying +/-0.002 mm when +/-0.01 mm meets assembly requirements drives machining time and cost up by 40–60%. Each micron tightens tool paths, slows feeds and demands additional CMM validation cycles.

Mitigation: Define tolerances zone-by-zone based on mating surfaces, electrical contact areas and cosmetic zones. XUXIANG’s DFM team highlights over-constrained features before production begins.

Ignoring Material Certification and Traceability

Copper T2 purity directly affects electrical conductivity and thermal performance; uncertified stock may test below 99.9% Cu. Missing mill certificates and spectral-analysis reports expose automotive and medical projects to compliance risk.

Mitigation: Request material certificates, spectral test data and batch traceability documentation with every shipment.

Underestimating Lead Time for Complex Geometries

Multi-axis features, micro-pins below 0.5 mm diameter and conformal cooling channels require electrode fabrication, slow-wire EDM and iterative CMM checks — typically 12–18 days versus 5–7 for simple profiles.

Mitigation: Share 3D CAD models early; XUXIANG provides realistic timelines during DFM review, with expansion capacity reducing delivery by roughly 30%.

Skipping DFM Review Before Production

Designs with sharp internal corners, inaccessible pockets or tool-interference zones often require costly mid-run redesigns. DFM feedback from 10+ engineering experts identifies manufacturability issues before first cut.

Mitigation: Request formal DFM analysis; adjust radii, draft angles and feature accessibility to avoid rework.

Choosing Supplier on Price Alone

Low quotes frequently correlate with uncalibrated equipment, missing CMM validation and inadequate QC documentation. ISO 9001:2015 certification, named metrology assets (ZEISS MICURA, Nikon V-12B) and five-step inspection protocols distinguish precision-grade suppliers.

Mitigation: Validate quality systems, request sample inspection reports and verify equipment lists before awarding contracts.

Define Technical Requirements and Specifications

Compile 2D drawings, 3D CAD models (STEP or IGES), material certificates specifying T2 (C1100 / C1020) grade, dimensional tolerances (+/-0.002 mm class or tighter), surface finish (Ra ≤ 0.4 µm for electrical contact zones), and functional notes (plating, heat treatment, deburring). Clear documentation accelerates quoting and reduces revision cycles by 30–40 percent.

Submit RFQ with CAD Files and Request DFM Feedback

Upload CAD files alongside your RFQ; XUXIANG’s engineering team reviews geometry for machinability, tool access and feature feasibility within 24–48 hours. DFM feedback highlights potential cost traps — thin walls, deep pockets, tight corner radii — and proposes alternative geometries or process sequences before toolpath programming.

Approve First-Article Samples and Inspection Reports

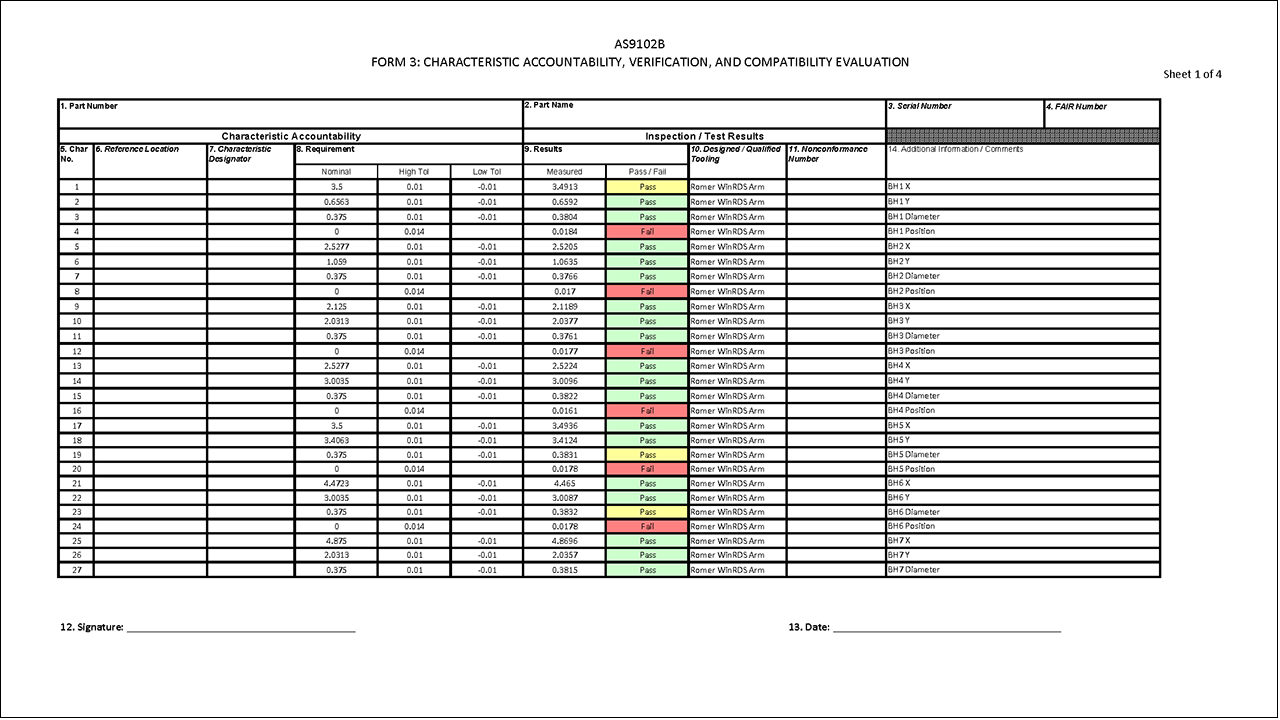

Request a first-article inspection (FAI) package: ZEISS CMM dimensional report, material certificate, surface-roughness data and photographic documentation. Compare measured values against print tolerances; approve only when all critical dimensions fall within specification. Pilot runs of 5–10 pieces validate repeatability before scaling.

Establish Quality Agreement and Ongoing Inspection Plan

Define sampling frequency (AQL 1.5 or tighter for contact parts), hold points for in-process checks, and final acceptance criteria. Document inspection methods — CMM for geometry, profilometer for finish, spectral analysis for alloy verification — and assign responsibility for non-conformance handling and corrective action.

Transition to Production and Monitor Quality Metrics

Lock the process control plan, establish communication cadence (weekly status calls, monthly Cpk reviews), and track on-time delivery, first-pass yield and dimensional drift. XUXIANG’s ISO 9001:2015 workflow logs every batch with traceability codes, enabling rapid root-cause analysis if trends emerge.
