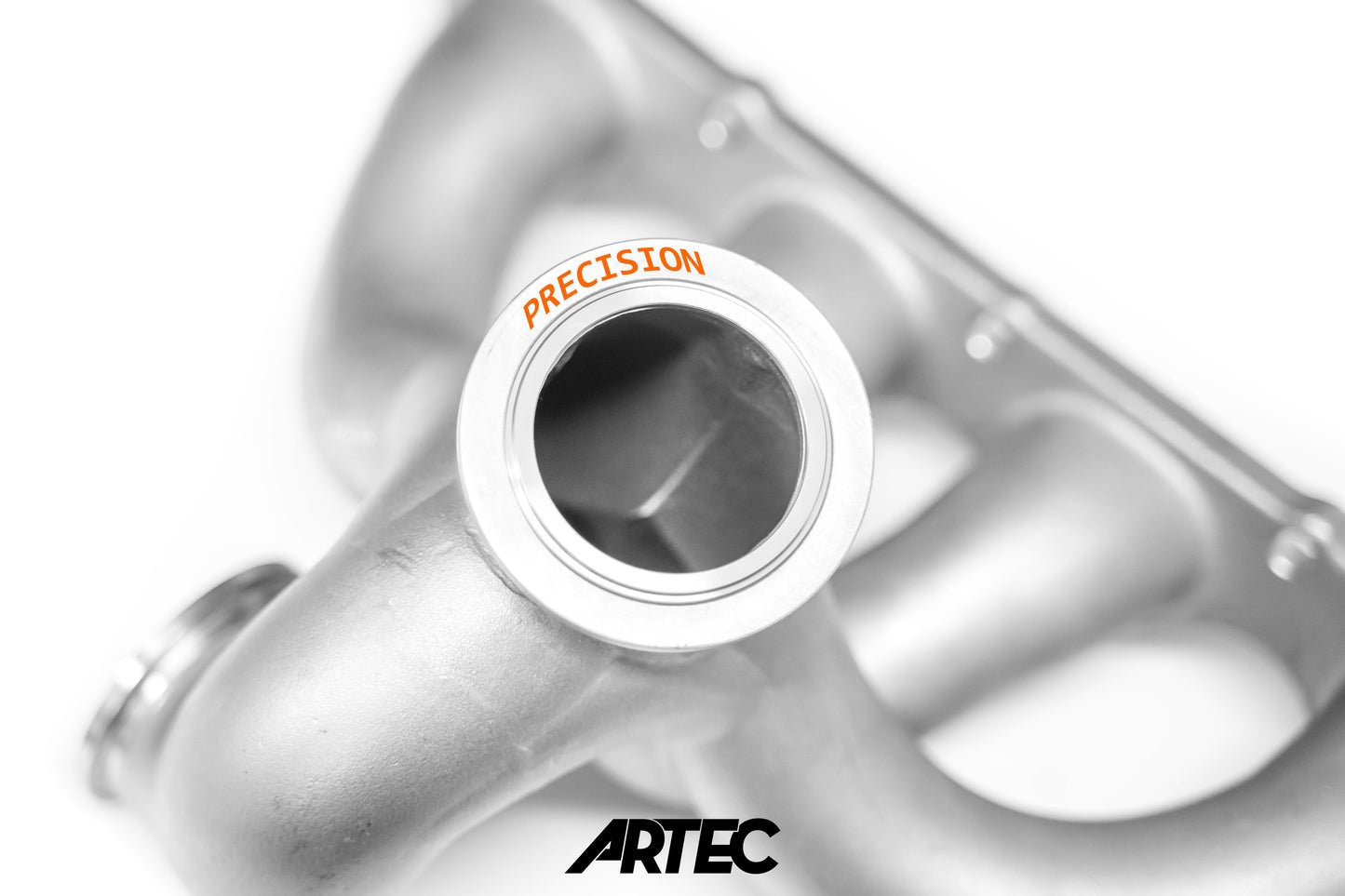

Standard Flange Type

Flange diameter typically 150–250 mm, shoulder height 12–20 mm, suited for 80–500 ton presses. Common in consumer electronics housings, appliance components, and general-purpose tooling where +/-0.02 mm positional accuracy suffices.

Balanced contact area minimizes platen wear while maintaining adequate centering force for mid-range production volumes.

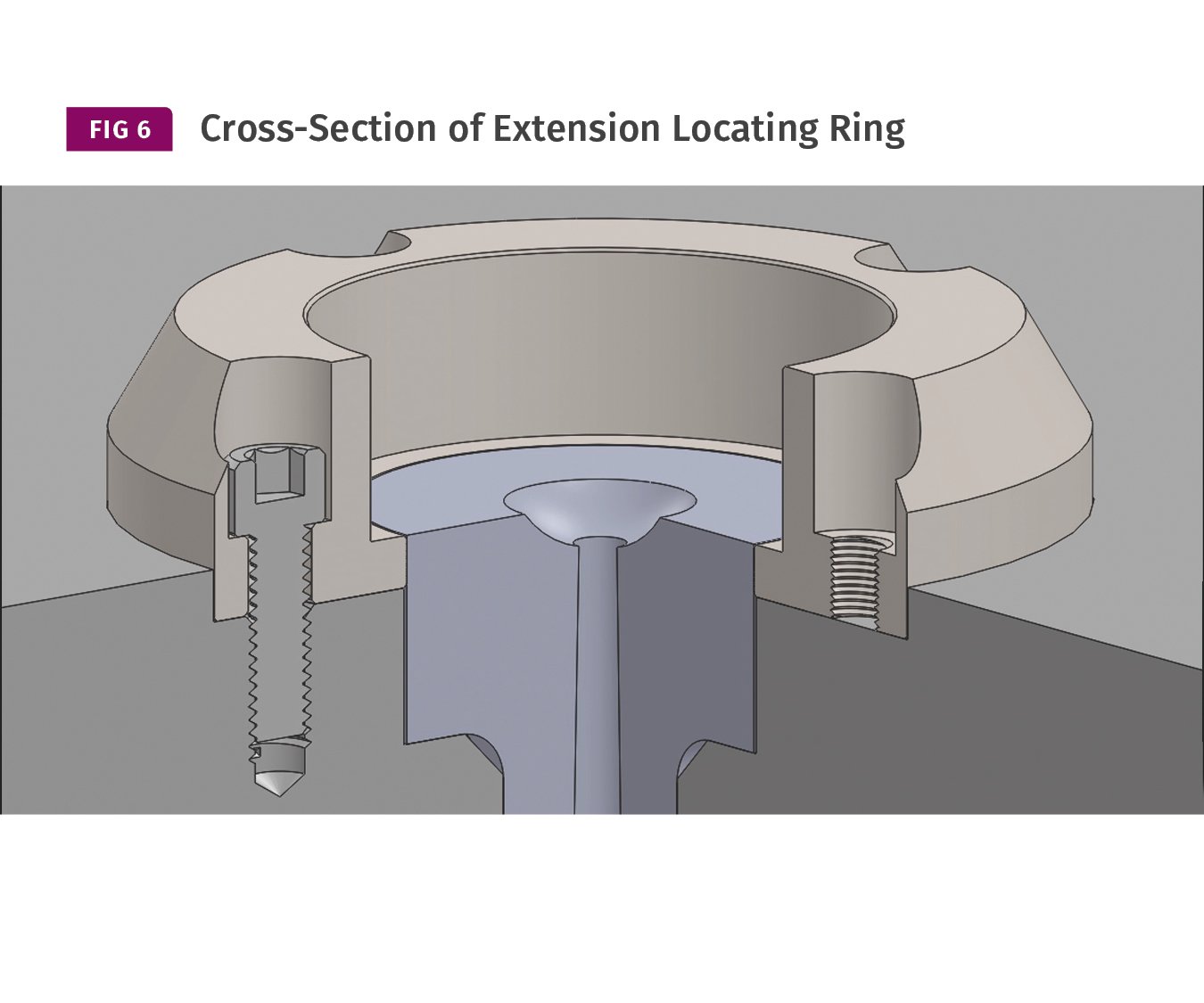

Extended Shoulder Type

Shoulder length 25–40 mm for deep-register molds in automotive dashboards and bumper tooling on 800–2,500 ton presses. Extended engagement length increases stiffness, reducing deflection under high clamp forces and improving alignment repeatability to +/-0.01 mm.

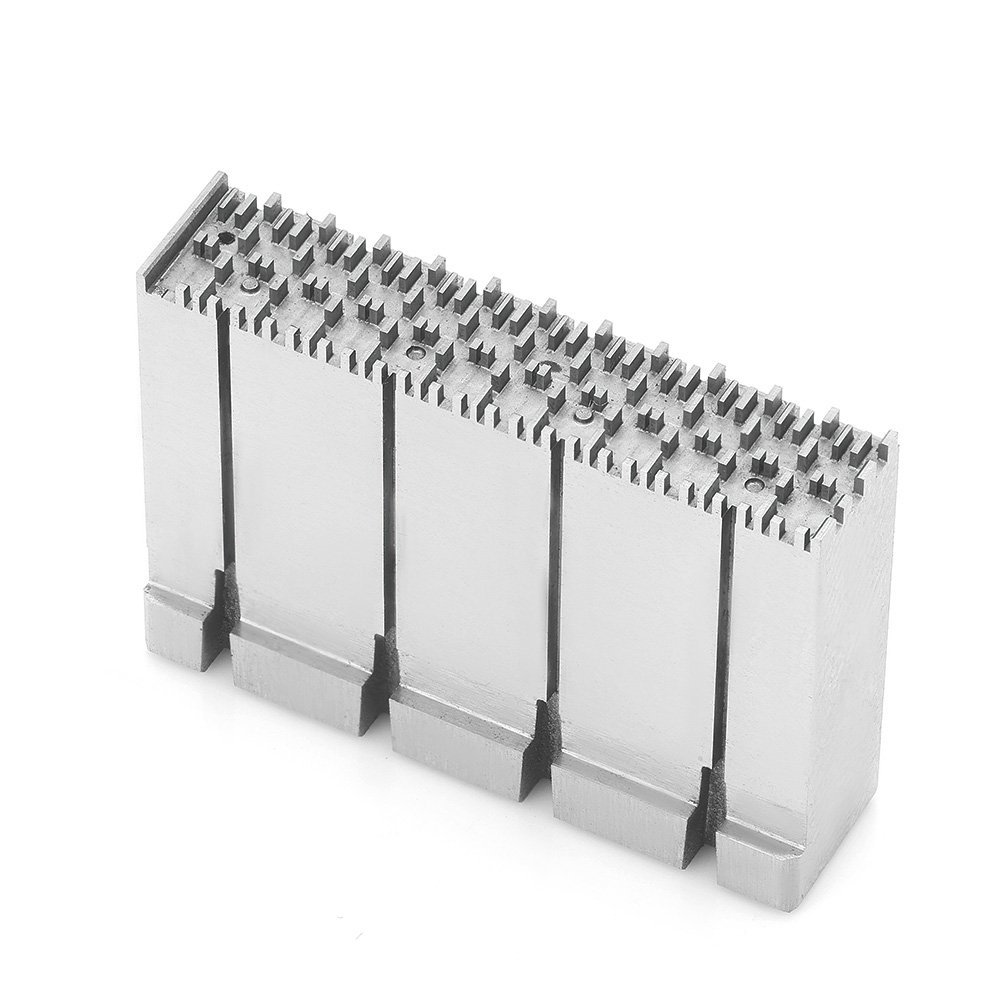

Thin-Wall Precision Type for Micro-Molding

Wall thickness 2.5–4 mm, bore tolerance +/-0.003 mm or tighter, designed for micro-connector and 5G terminal tooling on 50–150 ton machines. XUXIANG machines these rings on Sodick slow-wire EDM to hold +/-0.002 mm class positioning, ensuring repeatable alignment for 0.3 mm pitch terminal arrays.

Heavy-Duty Rings for Large Tonnage Presses

Flange diameter ≥300 mm, material thickness ≥25 mm, heat-treated to HRC 50–55 for 1,000+ ton automotive and industrial molds. Increased mass and hardness resist deformation and fretting wear over millions of cycles in high-clamp-force environments.

Dimensional Tolerances That Control Alignment

Bore diameter must hold ±0.005 mm to ensure repeatable press fit onto the machine platen. Flange flatness ≤0.01 mm prevents rocking under clamp pressure, while concentricity ≤0.01 mm and perpendicularity ≤0.01 mm guarantee coaxial mold mounting.

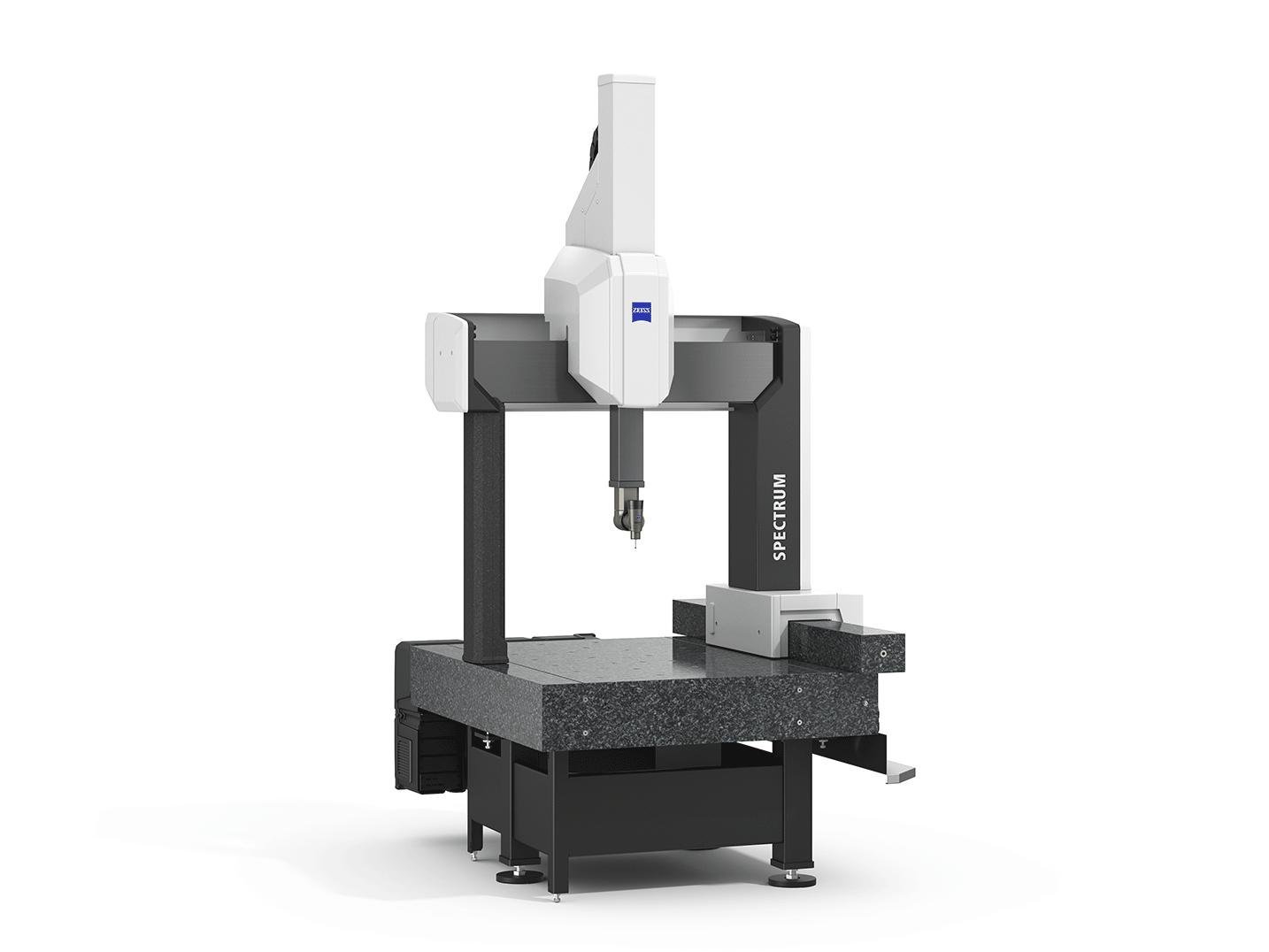

XUXIANG’s ZEISS MICURA CMM measures to 0.7 µm resolution, verifying every critical dimension before shipment.

Surface Finish and Mold Life

Sealing faces require Ra ≤0.4 µm to prevent resin flash and maintain vacuum integrity across thousands of cycles. Mirror-grade EDM finishes down to Ra 0.1 µm extend contact-face life by minimizing fretting corrosion.

Rough surfaces accelerate wear and create leak paths that compromise part quality.

Inspection Methods and Supplier Certifications

Rough surfaces accelerate wear and create leak paths that degrade part quality and increase scrap rates.

Non-Standard Diameters and Geometries

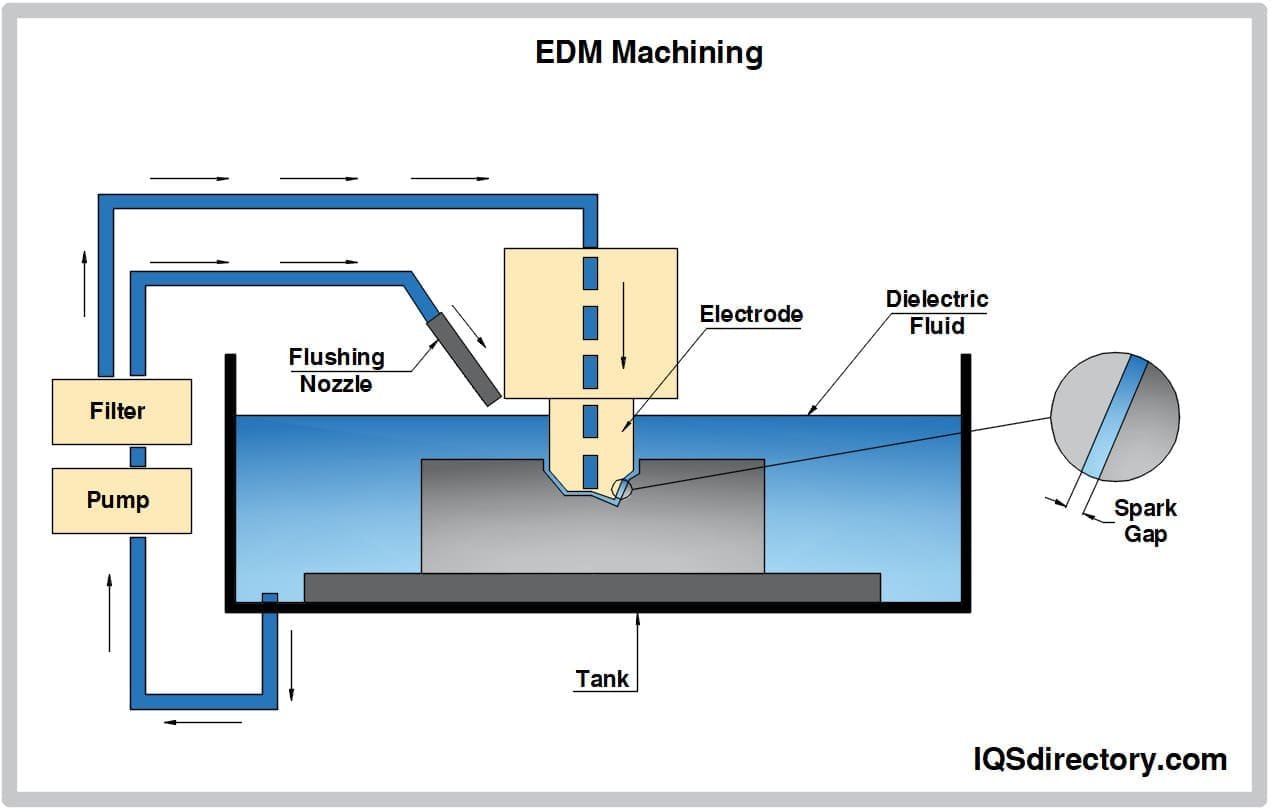

Proprietary mold bases — especially in automotive, medical, and 5G connector tooling — demand locating rings with diameters outside ISO 9448 or HASCO/DME tables. XUXIANG machines custom OD/ID combinations from CAD files, holding +/-0.002 mm on slow-wire EDM and +/-0.003 mm on sinker EDM.

MOQ typically starts at 10–20 pieces for one-off diameters; lead time adds 5–7 days over catalog stock. Cost premiums run 15–30% depending on complexity and material.

Surface Coatings for Extended Wear

PVD (TiN, TiAlN, CrN) and gas nitriding extend service life in abrasive resins or high-cycle applications. Coatings add 3–5 days and 20–40% cost but can double wear resistance.

XUXIANG coordinates coating with qualified sub-suppliers, validating hardness (≥ HV 1800 for PVD) and adhesion via Rockwell-C indentation before final CMM inspection.

Laser Engraving and OEM Branding

Laser-engraved part numbers, date codes, or logos aid traceability and inventory control. XUXIANG offers fiber-laser marking with 0.1 mm character height, no MOQ penalty, and < 1 day added lead time.

Custom packaging with branded labels is available for orders ≥ 50 pieces, supporting OEM kitting and just-in-time delivery programs.

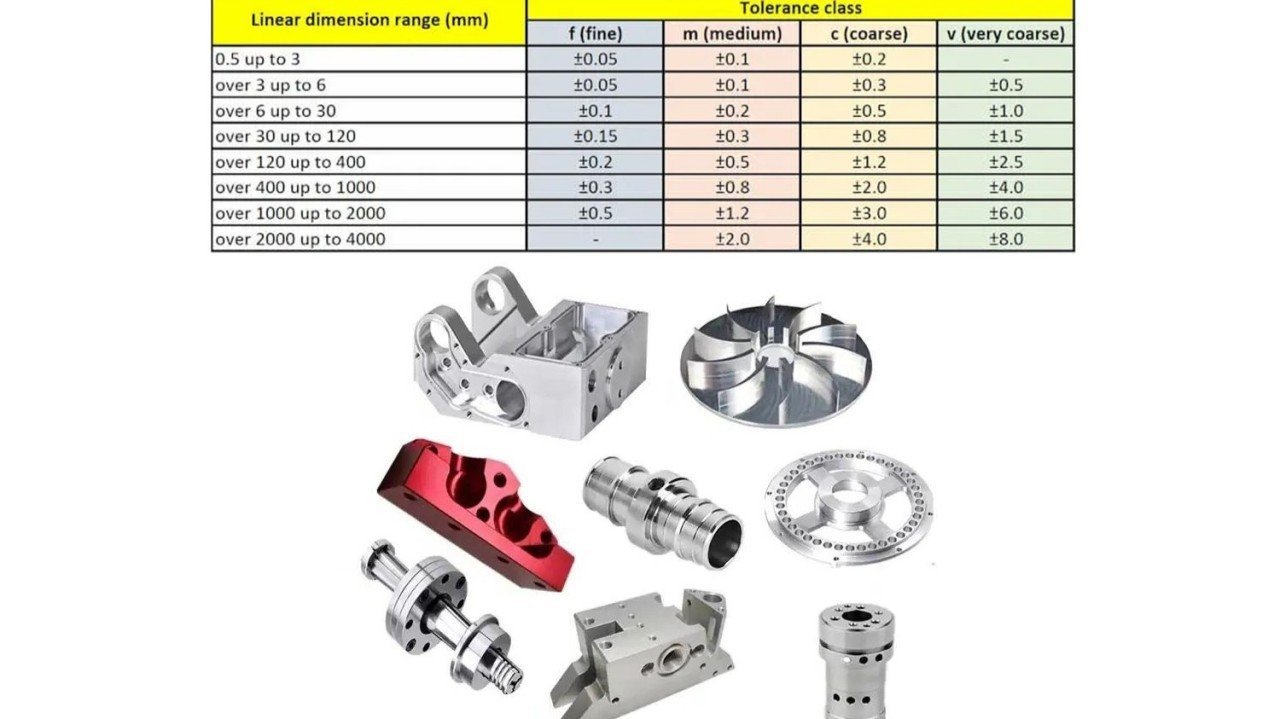

Machining and Grinding Precision

Verify the supplier operates precision grinding centers capable of +/-0.005 mm or tighter on bore and outer diameter, plus CNC turning or 5-axis machining for complex profiles. Ask for equipment lists — names like Sodick, Fanuc or Dawn signal serious capability. Request sample inspection reports showing actual achieved tolerances, not catalog specs.

Metrology Lab and Material Traceability

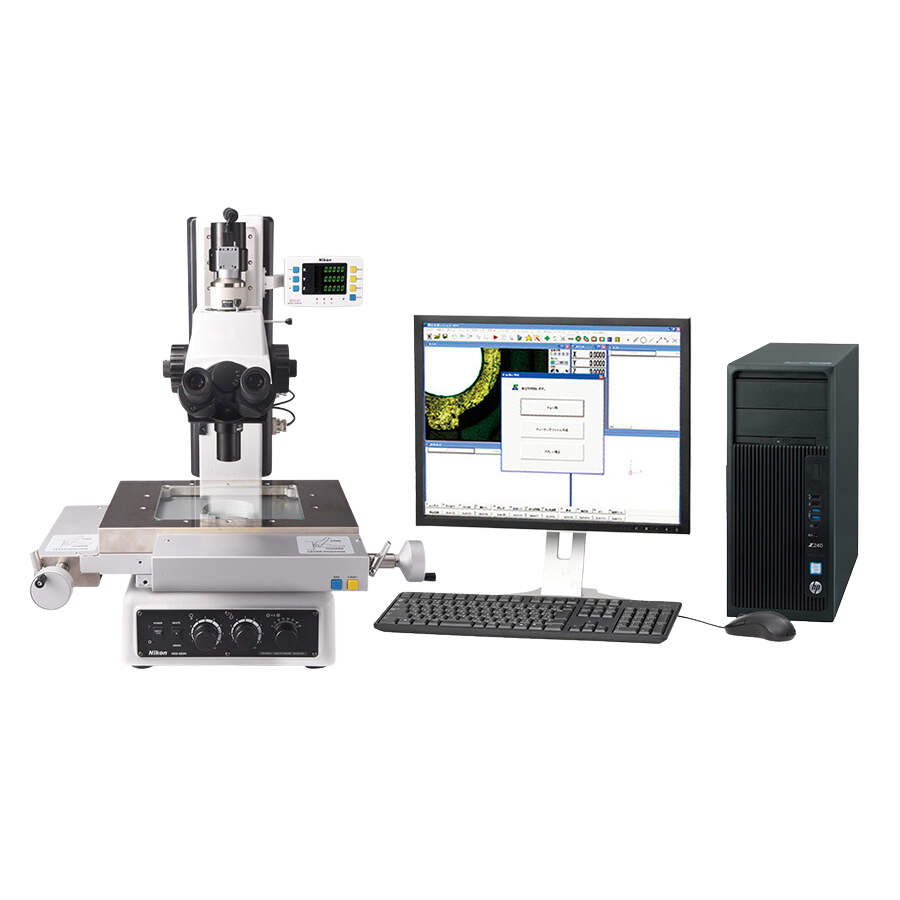

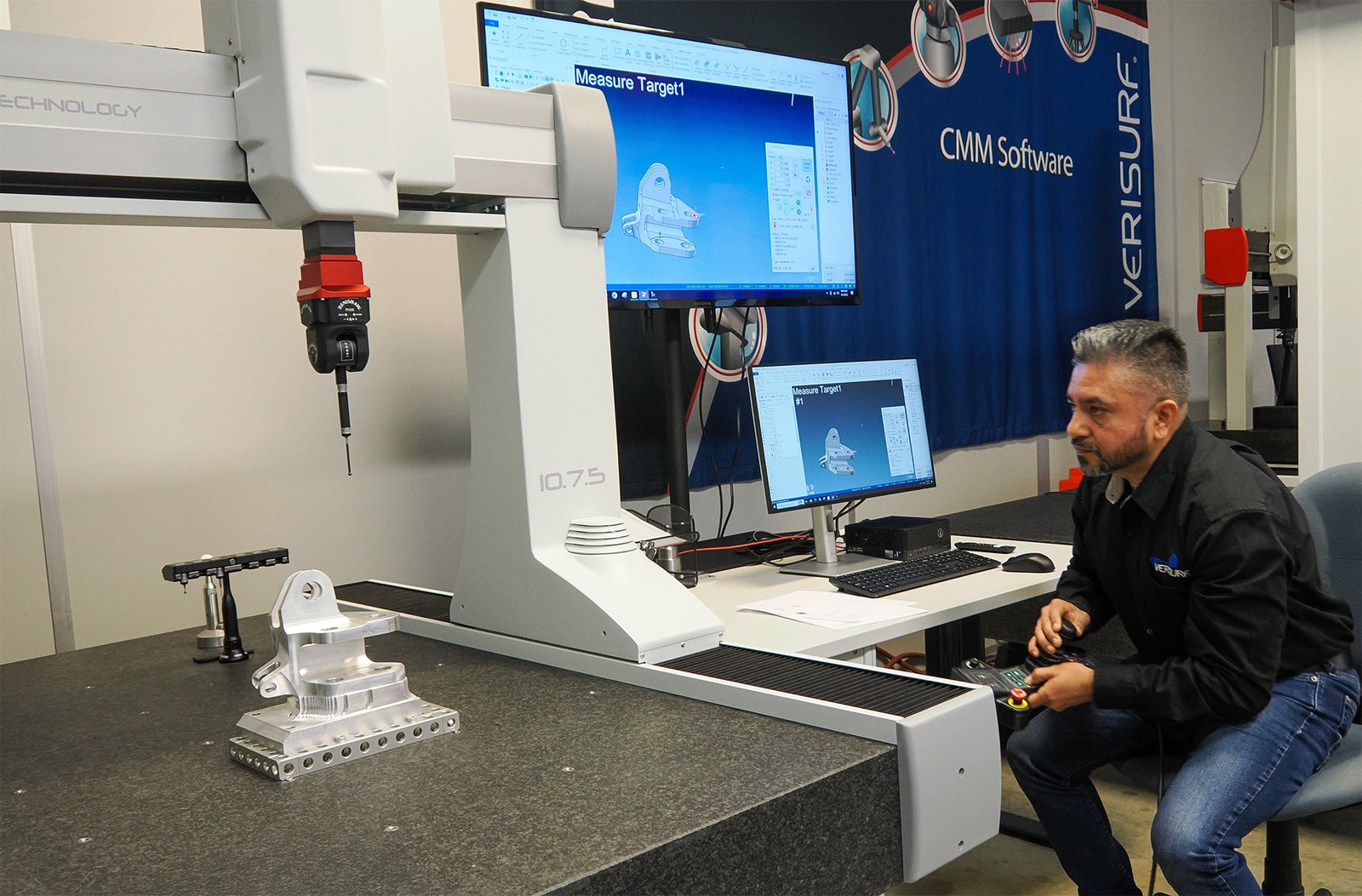

In-house CMM equipment (ZEISS, Mitutoyo or equivalent) measuring to 1 µm resolution confirms the supplier can validate what it machines. Demand material certificates with spectral analysis for every steel grade and heat-treatment reports with hardness data. Lack of traceability is a red flag for substitution risk.

Lead Times, Scalability and Post-Sale Support

Standard lead times for locating ring orders range from 7–14 days; expedited service should be available within 3–5 days. Confirm the supplier can scale from prototype quantities to volume ramp-ups without retooling delays. Evaluate responsiveness: suppliers unwilling to share Cpk data or process documentation often lack the control systems required for consistent quality.

Specifying Loose Tolerances That Permit Mold Shift

Buyers who accept +/-0.05 mm or wider on bore diameter risk axial misalignment exceeding 0.1 mm across the parting line, causing flash and core drift. XUXIANG holds +/-0.002 mm on slow-wire EDM and +/-0.003 mm on sinker EDM, validated by ZEISS MICURA CMM at 0.7 µm resolution.

Specify +/-0.01 mm or tighter for high-cavity molds; the premium is typically 10–15 % but eliminates rework loops that cost 3–5× more.

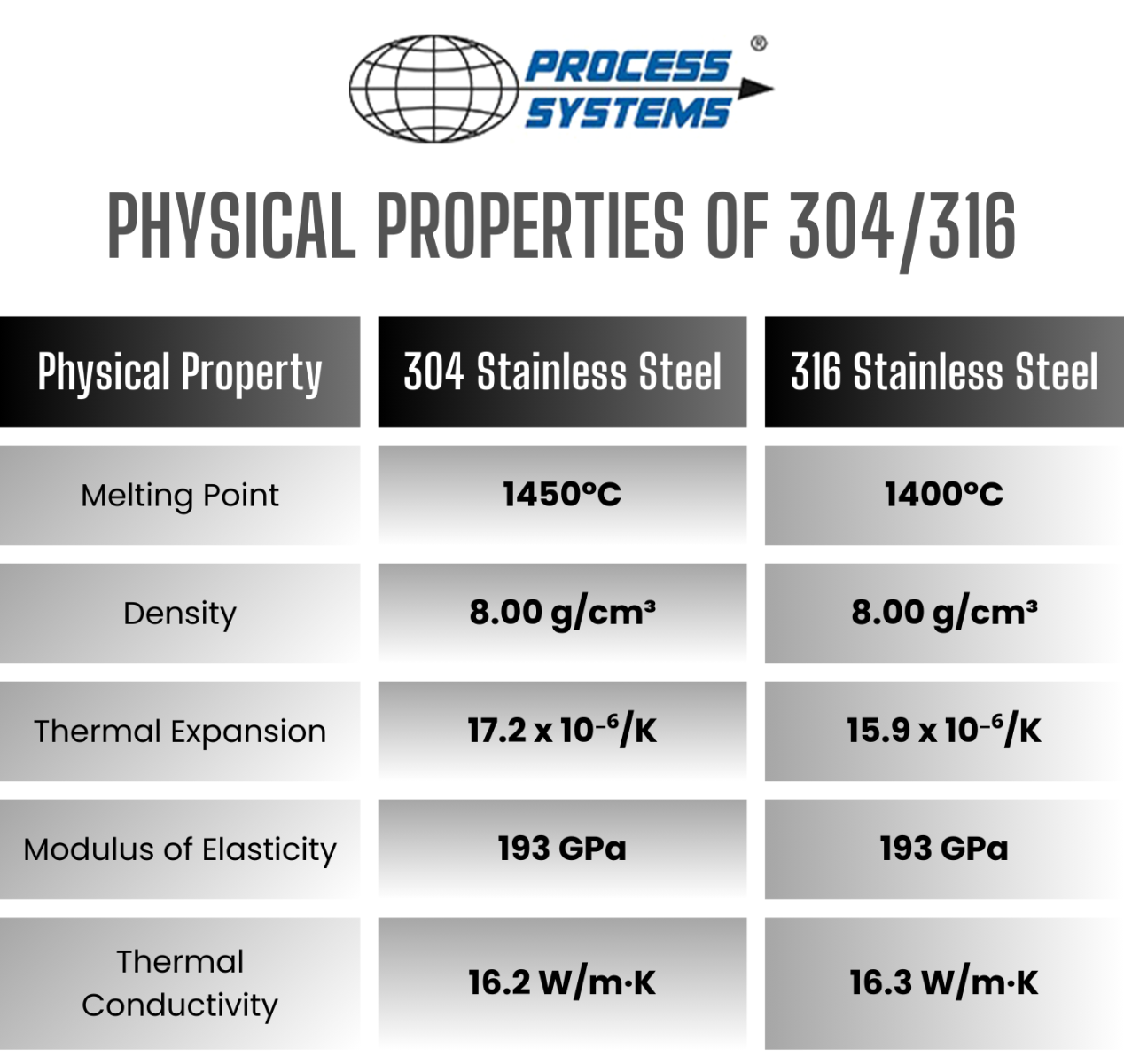

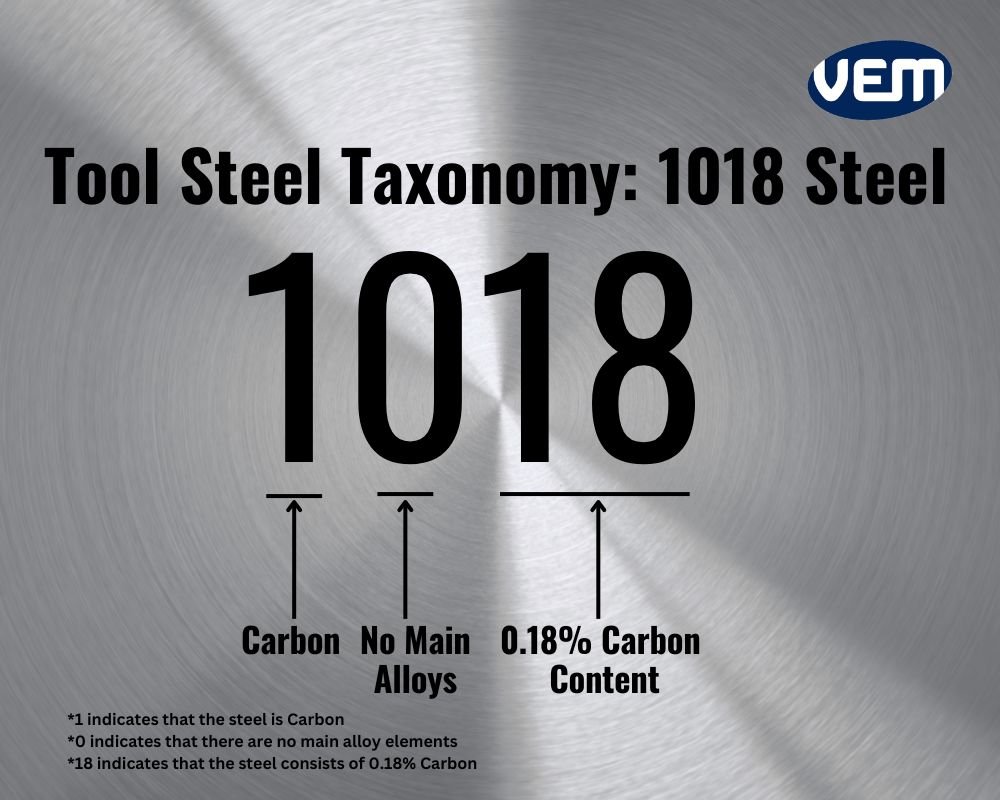

Choosing Soft Materials That Wear Prematurely

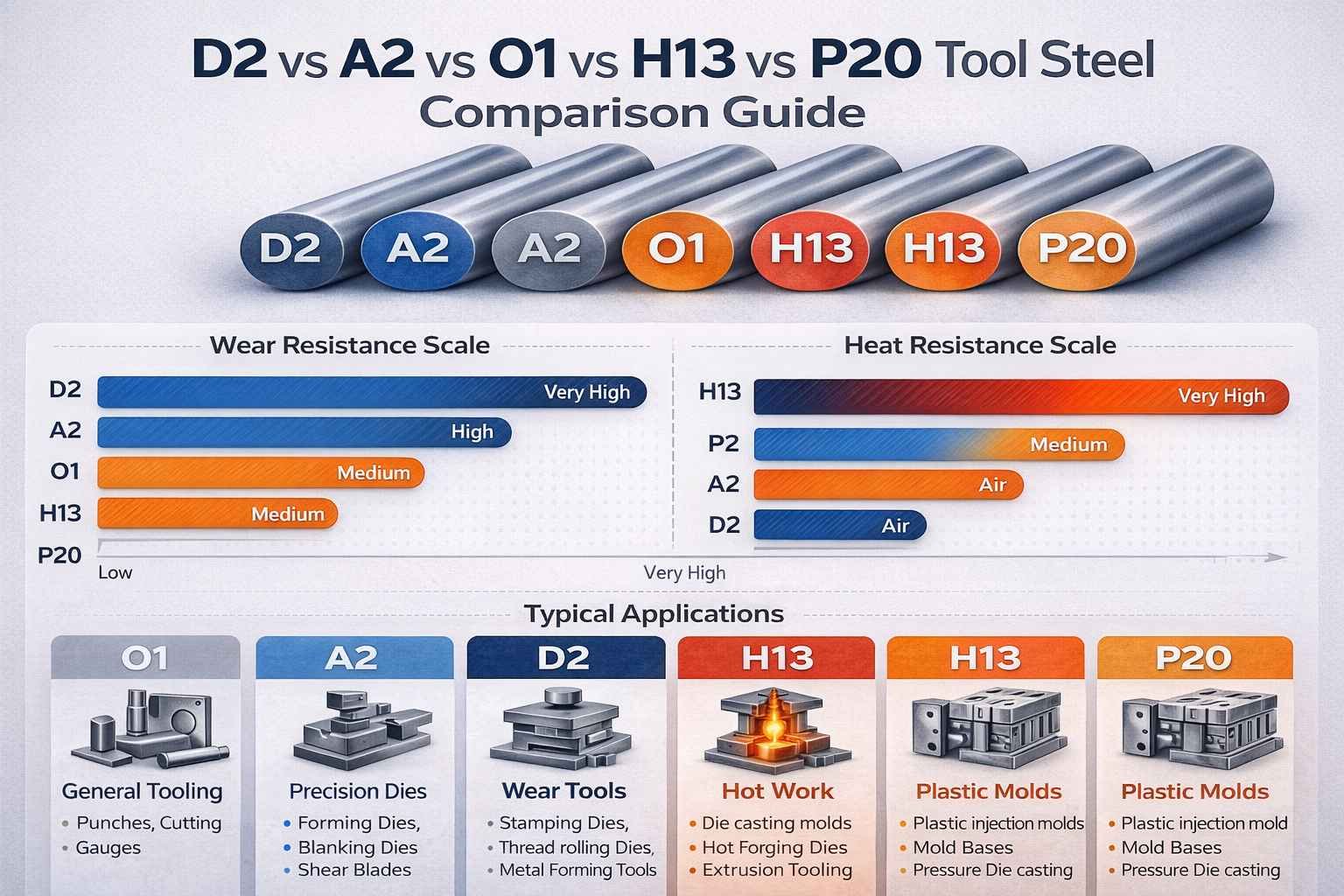

Unhardened mild steel or 1045 below HRC 28 deforms under clamping force within 5,000–10,000 cycles. Heat-treated 42CrMo or P20 at HRC 28–32 extends service life beyond 100,000 cycles with minimal dimensional change, confirmed by spectral analysis and hardness testing in XUXIANG’s five-step QC flow.

Neglecting Surface Finish on Sealing Faces

Rough-ground contact surfaces above Ra 0.8 µm trap debris and create micro-gaps that permit resin seepage. Mirror-grade EDM finishes down to Ra 0.1 µm, standard in XUXIANG’s Sodick and Charmilles cells, ensure metal-to-metal sealing and reduce mold maintenance by approximately 40 %.

Ordering Without Material Certificates

Omitting mill test reports (MTRs) and FAI documentation leaves alloy composition unverified, risking brittleness or insufficient hardness. ISO 9001:2015 protocols require spectral analysis and dimensional FAI with every shipment; XUXIANG provides certificates as standard, eliminating downstream quality disputes.

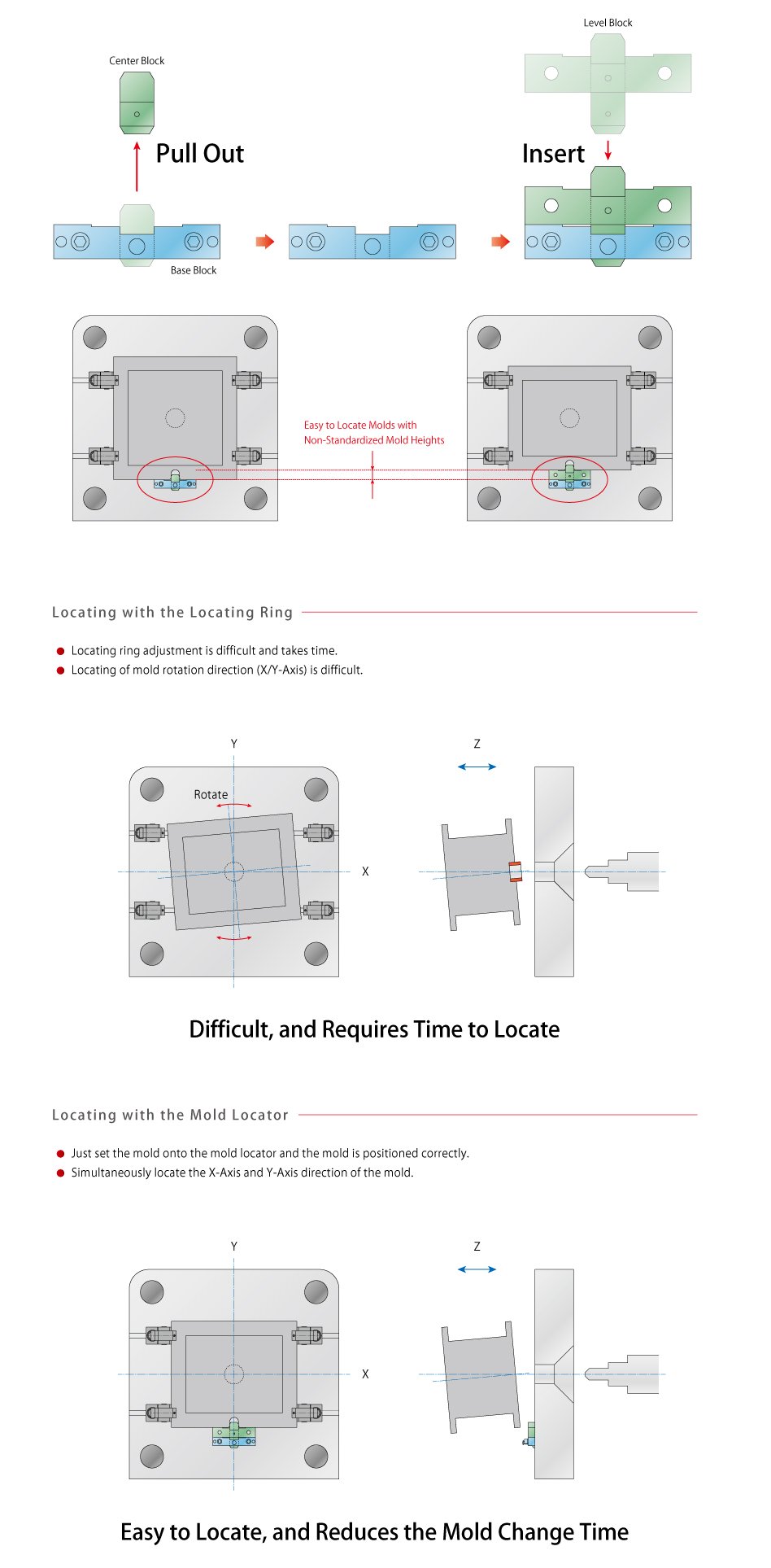

Ignoring Mold-Base Standard Compatibility

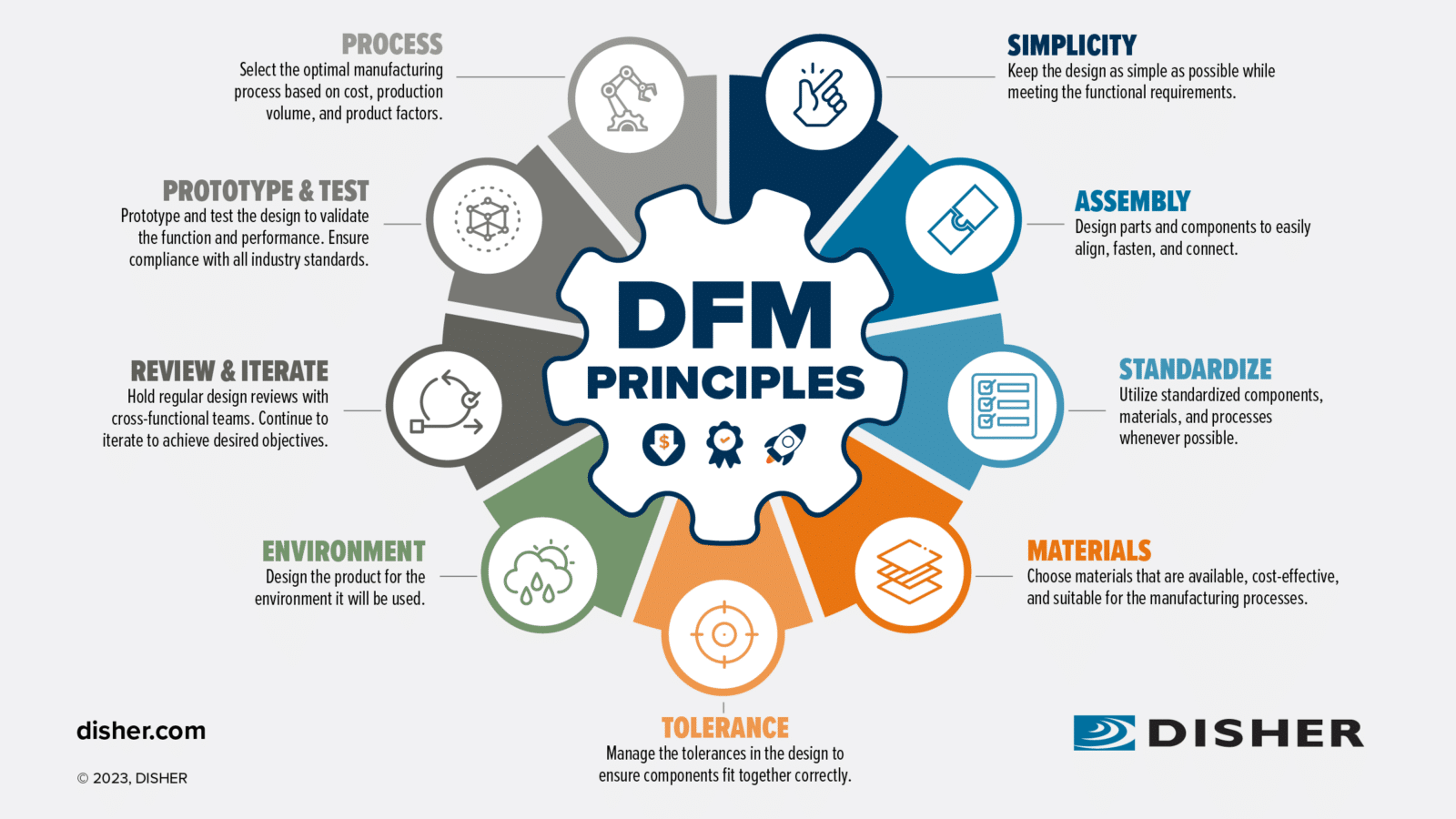

Mixing DME and HASCO locating ring dimensions causes interference fits or excessive clearance; pilot diameters differ by 0.5–2.0 mm across standards. Confirm your mold base before ordering; XUXIANG’s DFM team cross-checks drawings against both standards, preventing costly remakes and 2–3 week delays.
