2-Axis Horizontal Lathes

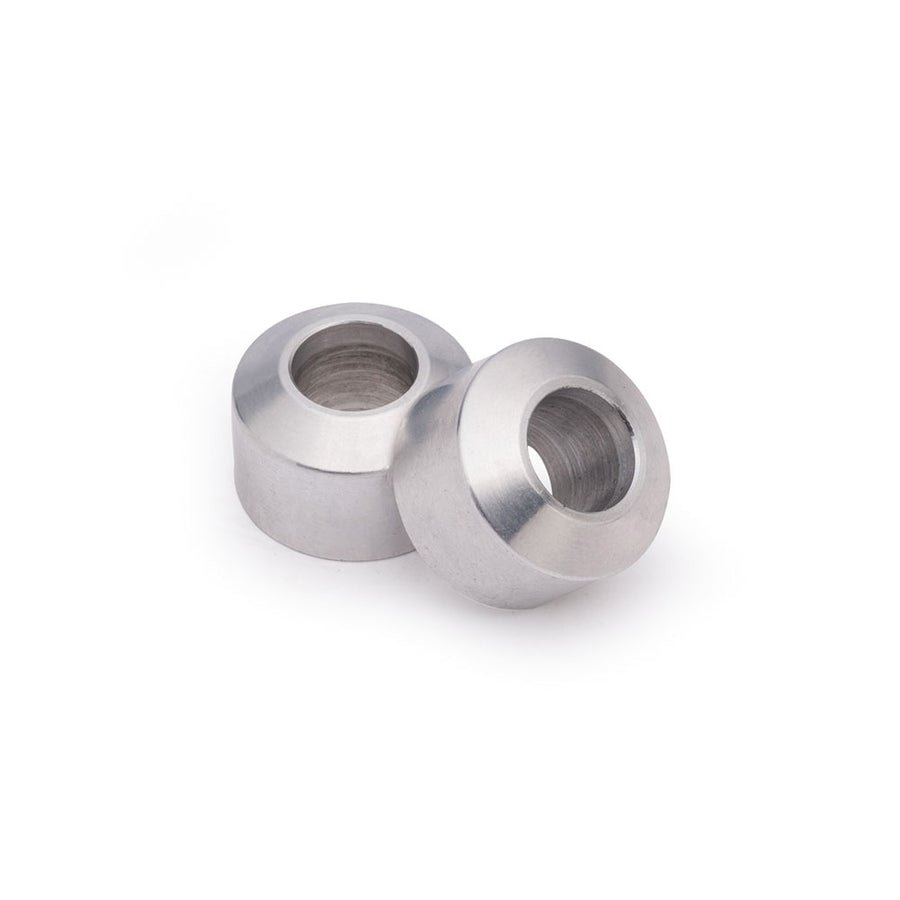

Traditional 2-axis CNC lathes excel at high-volume cylindrical parts — shafts, bushings and sleeves — with diameters from 10 mm to 500 mm. Cycle times are fast for simple profiles, but secondary milling or drilling requires re-fixturing.

Ideal for mold ejector pins, guide pillars and low-complexity inserts where radial symmetry dominates and tolerances fall in the ±0.01–0.02 mm range.

Multi-Axis Turning Centers

Adding Y-axis interpolation and live tooling, multi-axis centers machine off-center holes, flats and cross-drilling in a single setup. Typical work envelopes handle Ø6–300 mm × 200 mm length.

XUXIANG’s Fanuc-class multi-axis assets hold ±0.002 mm positioning for complex mold cores, automotive sensor housings and robotics end-effectors, cutting lead time by eliminating transfer between lathe and mill.

Swiss-Type Sliding-Headstock Machines

Swiss lathes guide bar stock through a fixed guide bushing, enabling ultra-slender parts — Ø0.5–32 mm, length-to-diameter ratios exceeding 10:1 — with minimal deflection. Cycle times drop 30–50% versus conventional turning on micro-components.

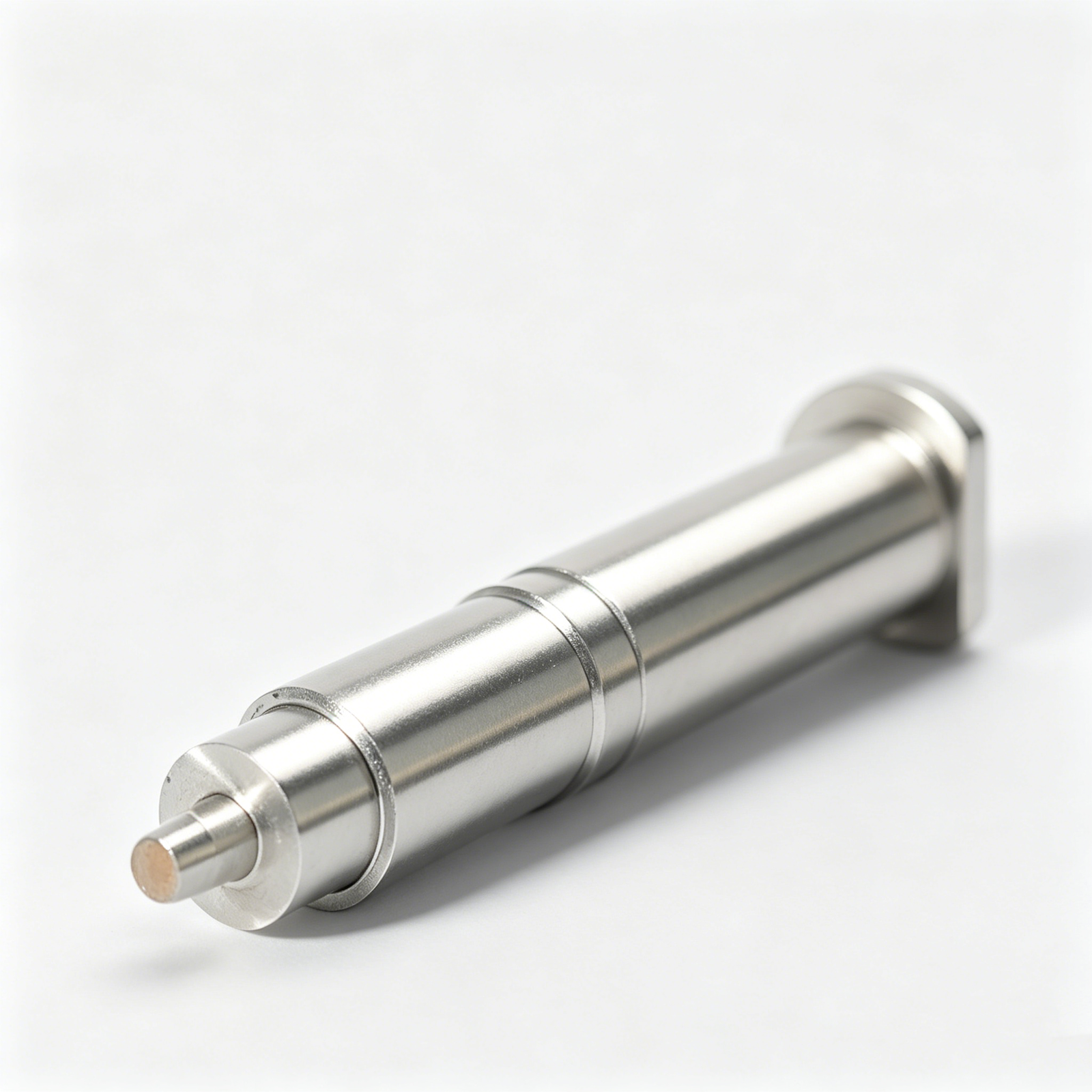

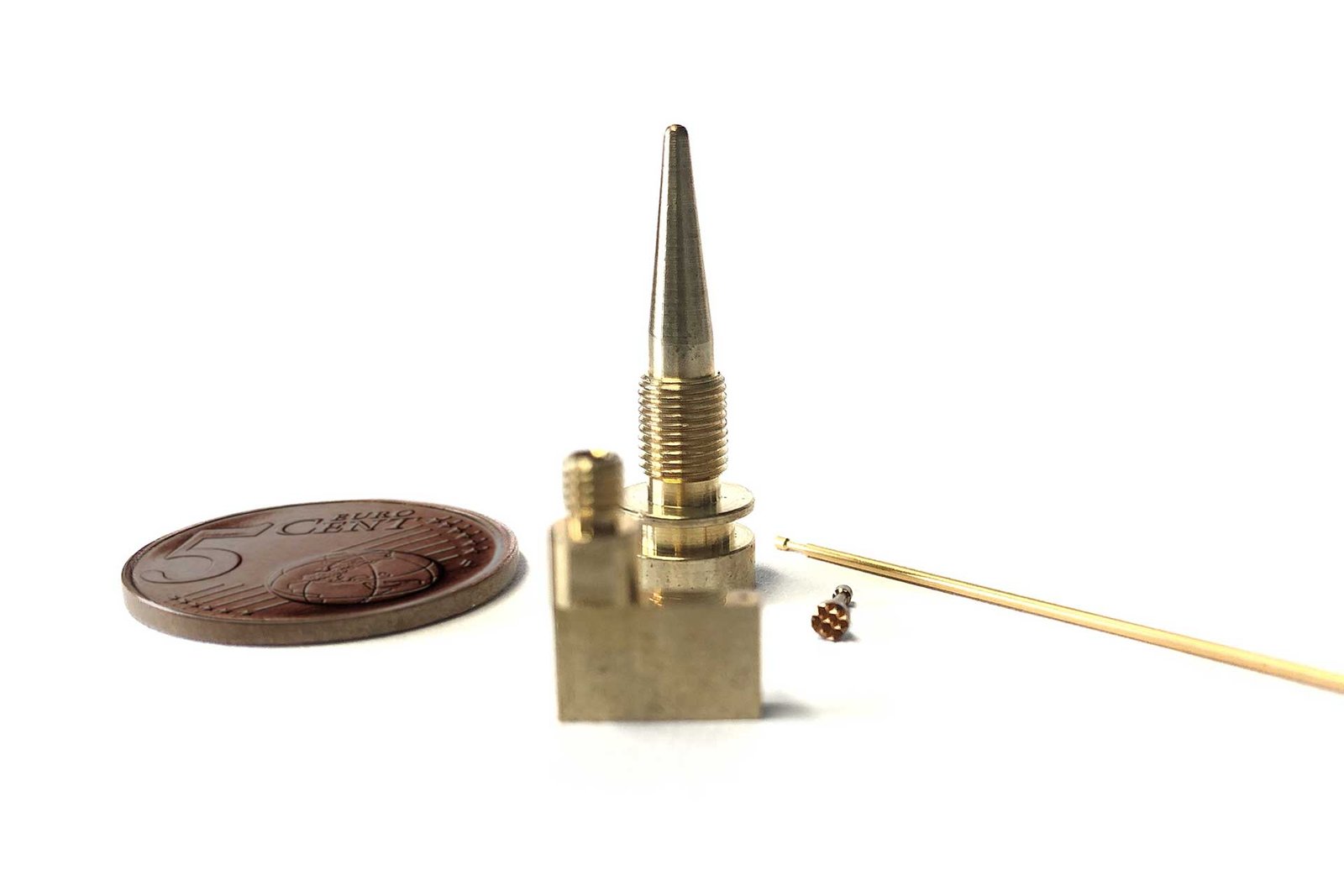

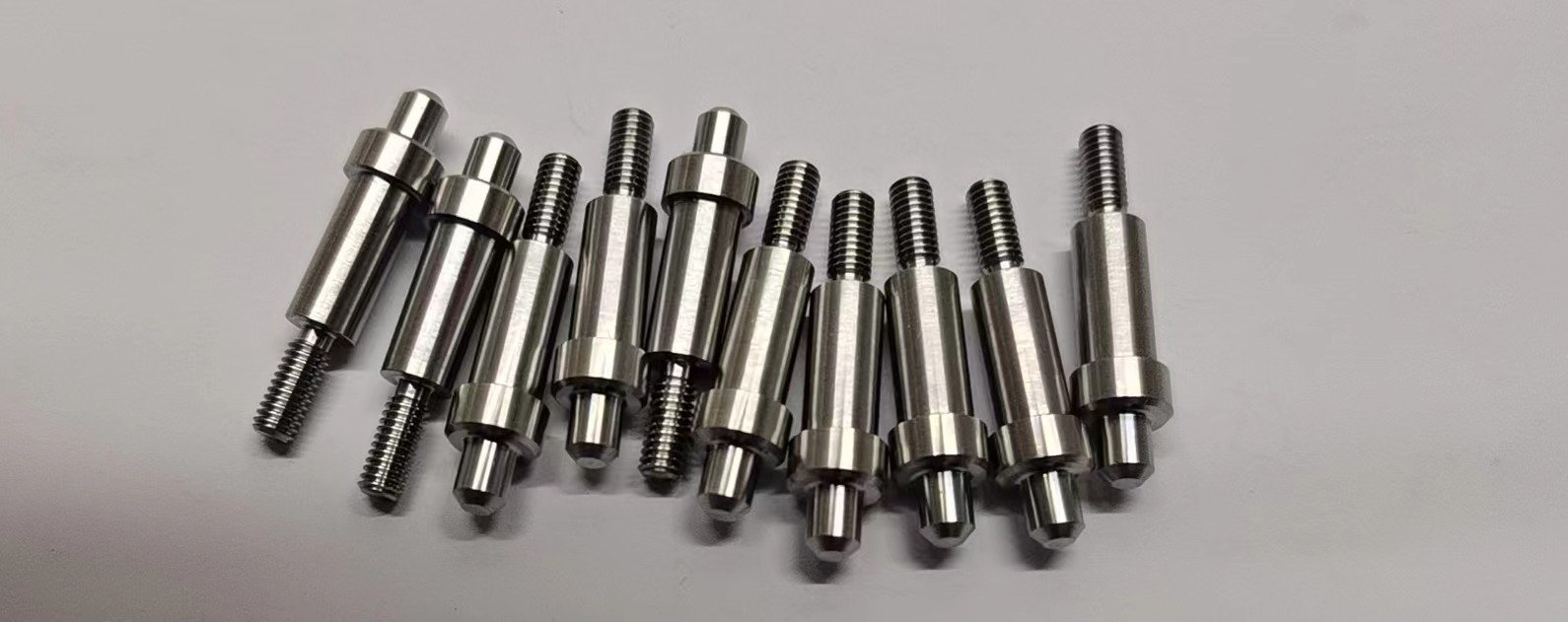

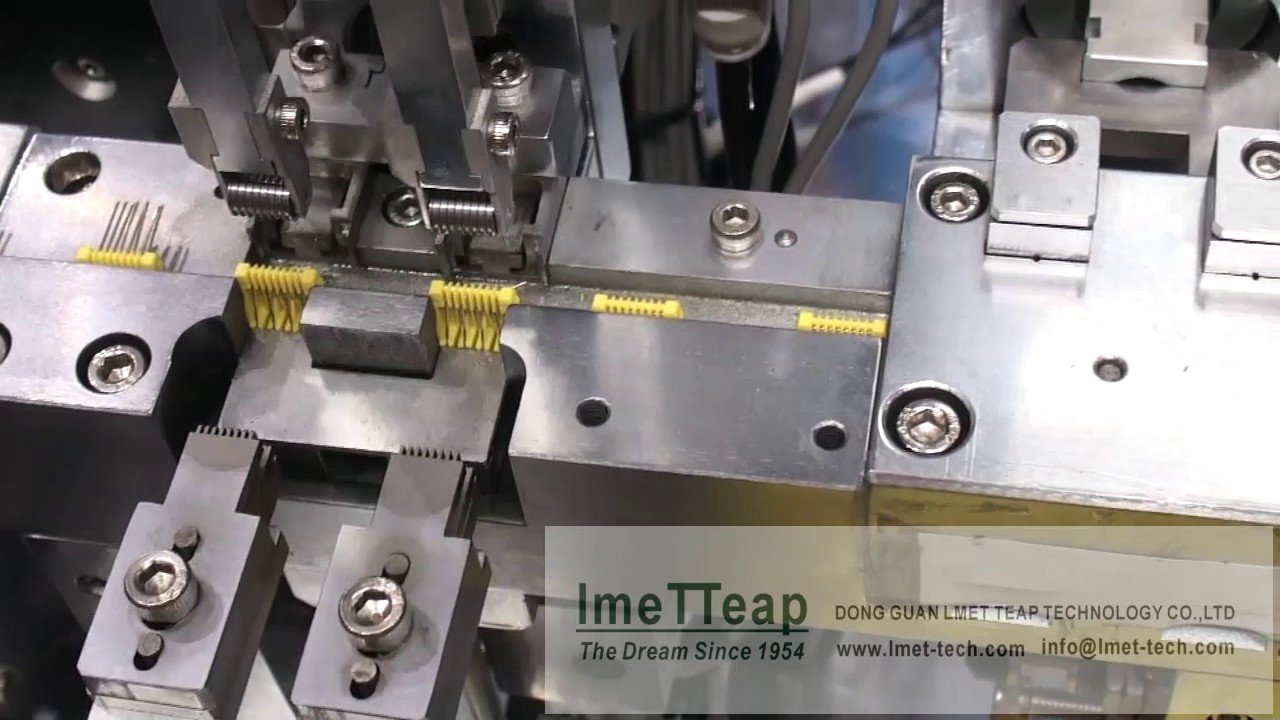

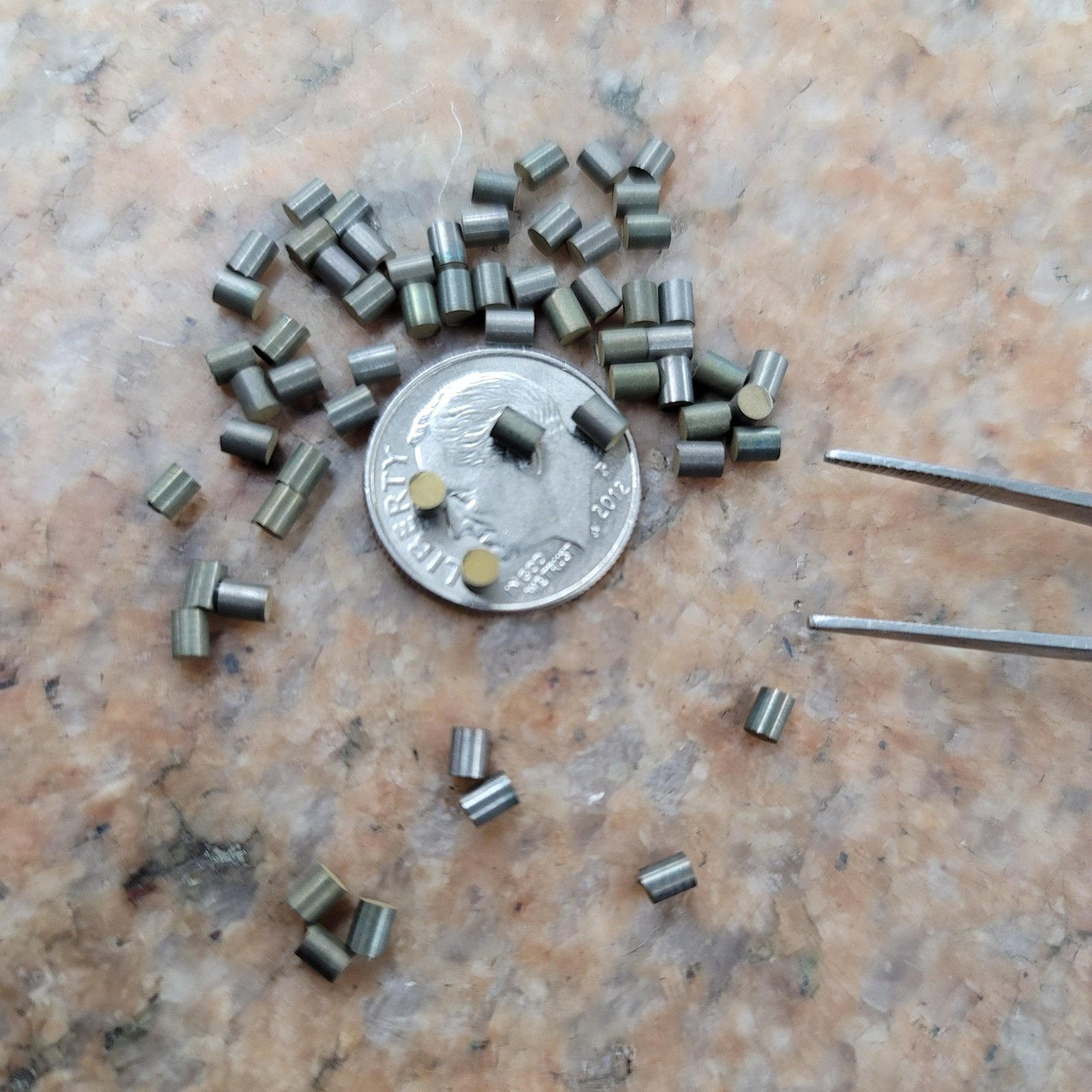

Critical for 5G micro-connector pins, medical catheter fittings and precision terminals where radial runout must stay below 0.005 mm.

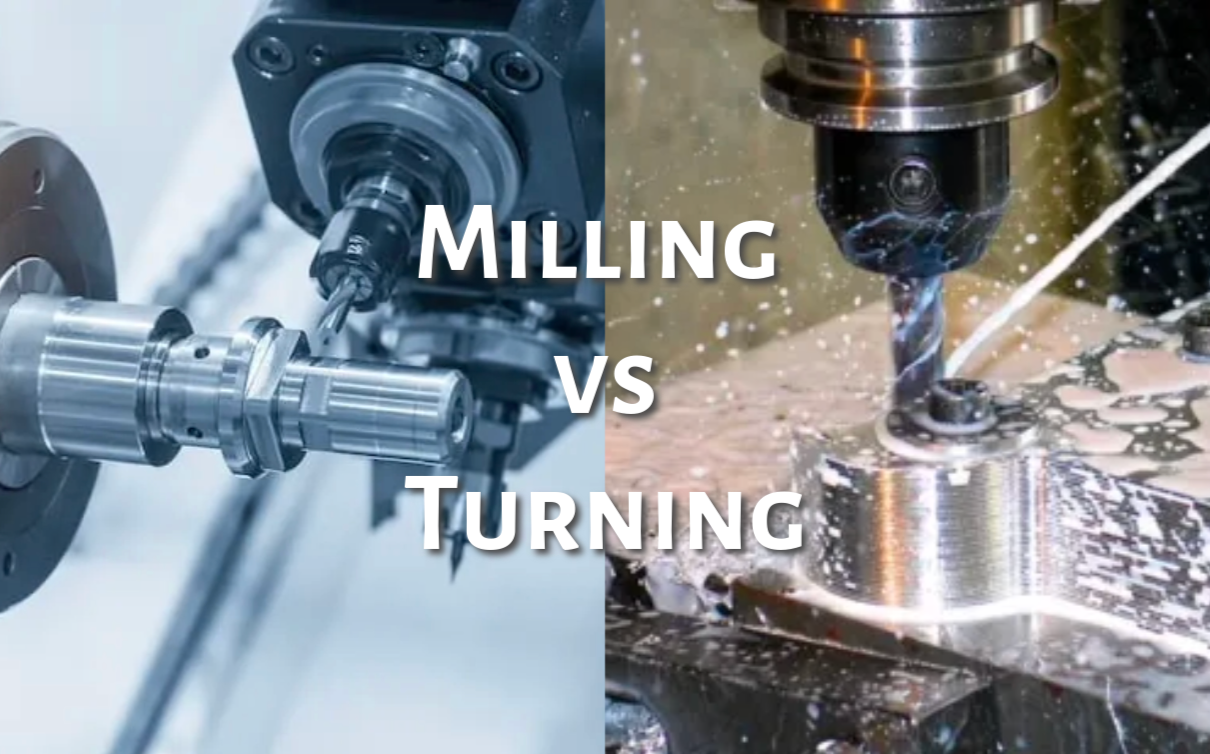

Mill-Turn Hybrid Centers

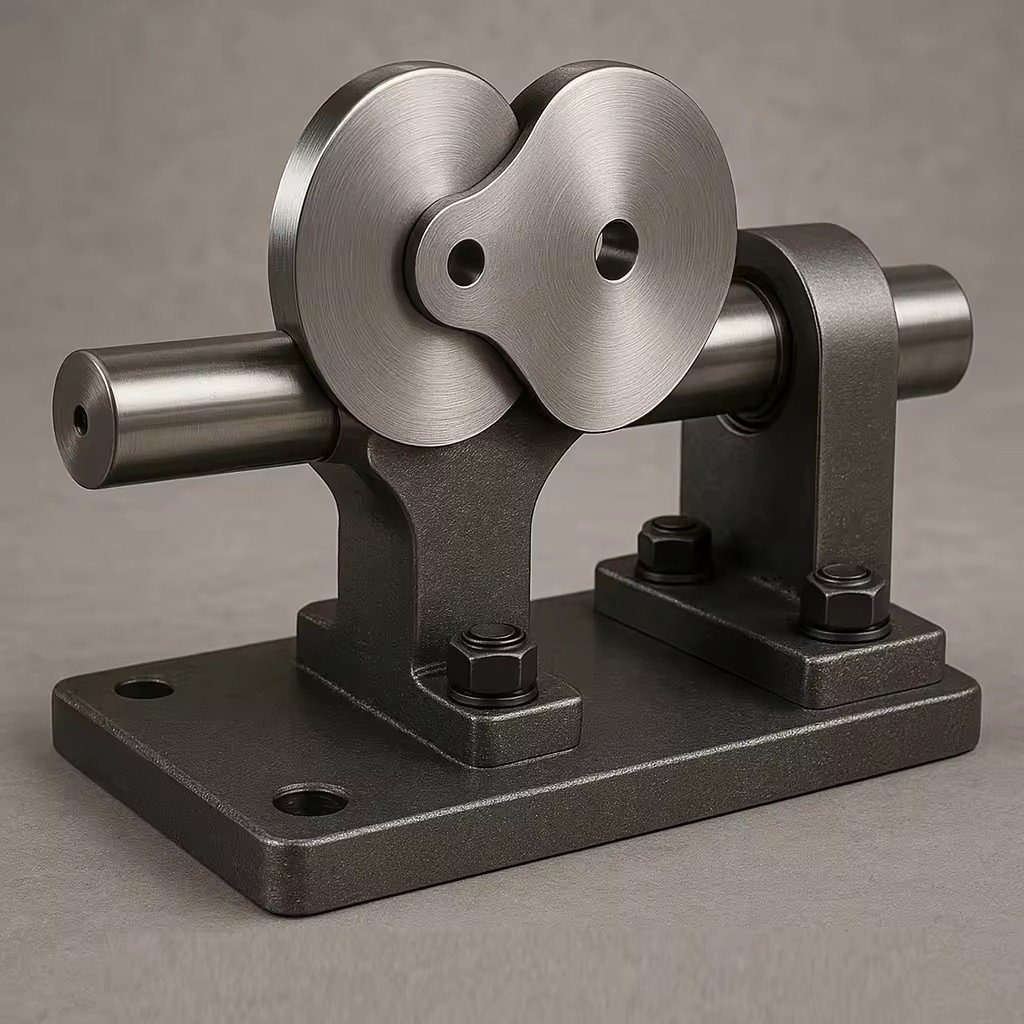

Mill-turn machines combine full 5-axis milling with turning spindles, completing complex mold inserts — pockets, angled bores, sculptured surfaces — without repositioning. Diameter capacity reaches Ø400 mm; part complexity rivals full machining centers.

XUXIANG deploys mill-turn for high-density connector tooling and NEV interconnect molds, achieving ±0.001 mm tolerances and mirror Ra 0.1 µm finishes in one chucking, reducing handling risk and inspection overhead.

Common Machining Customizations

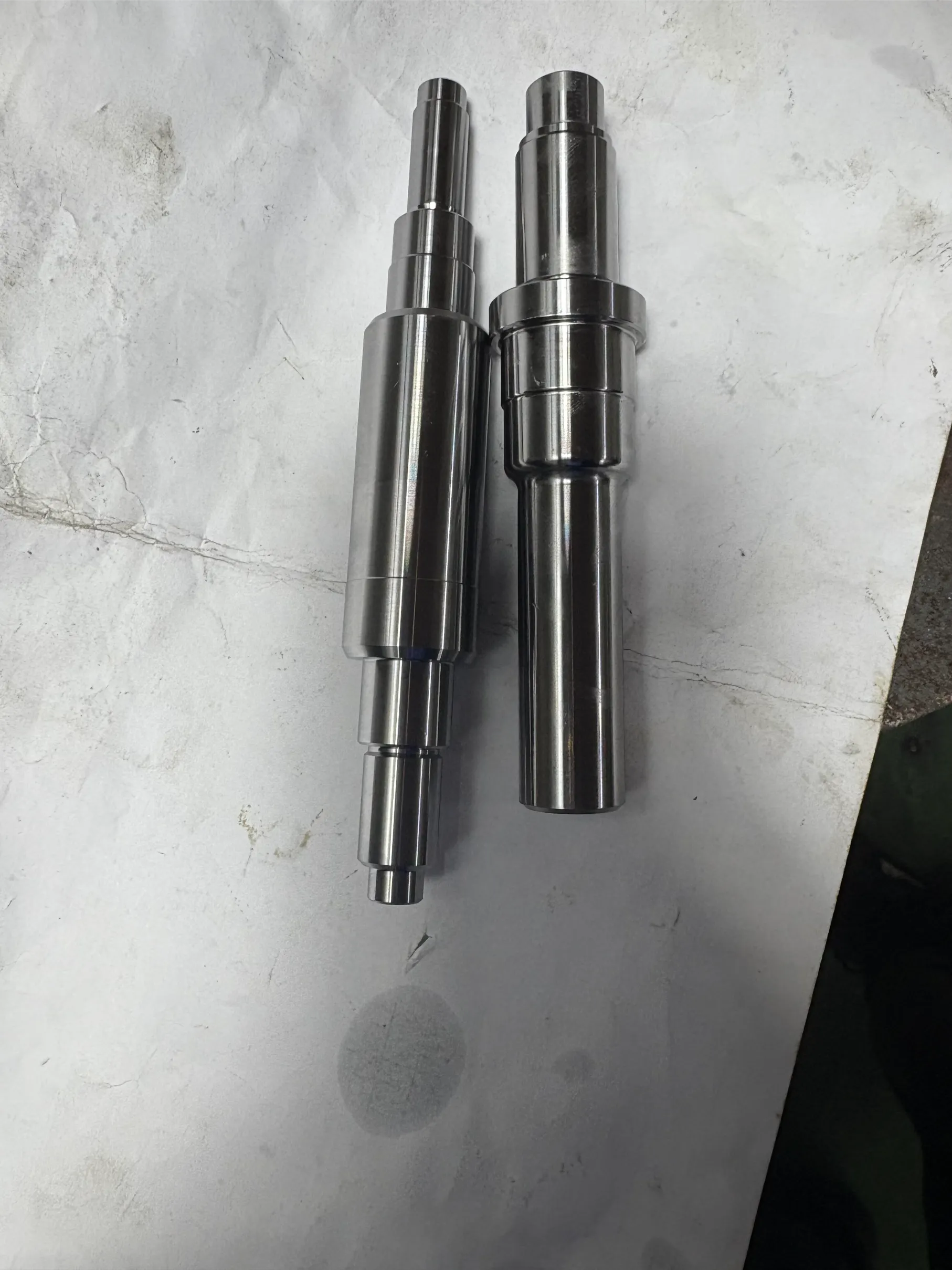

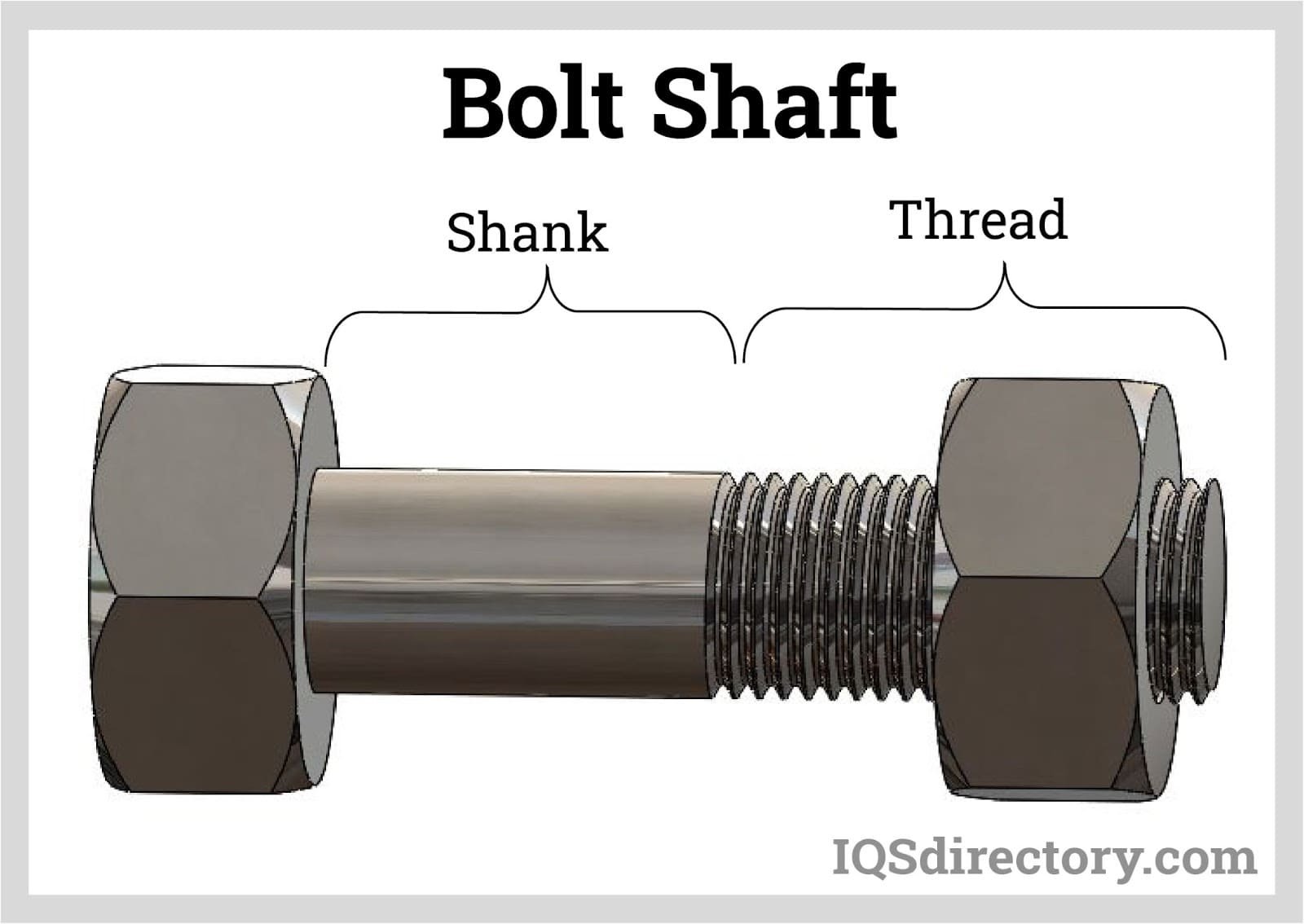

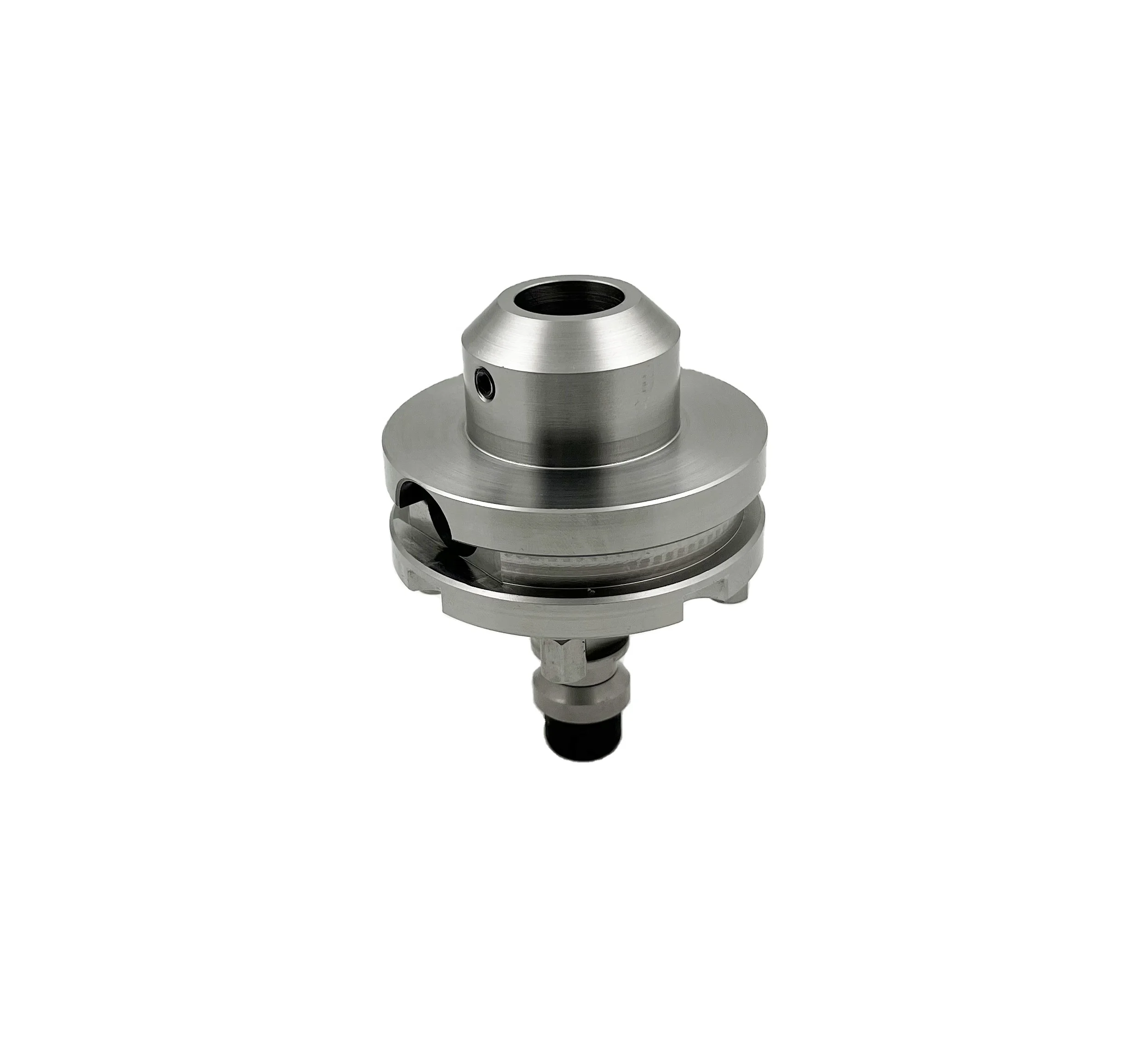

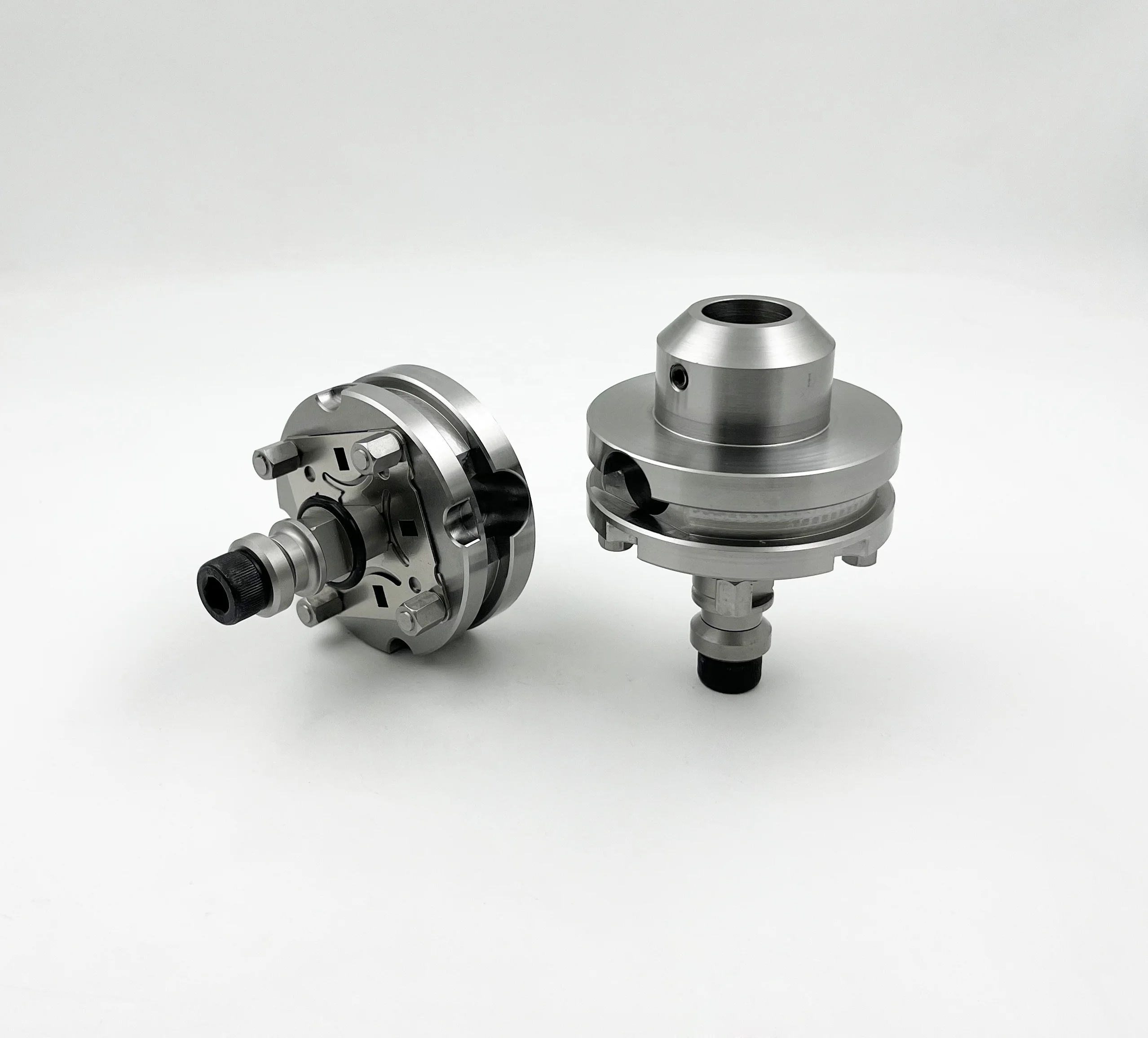

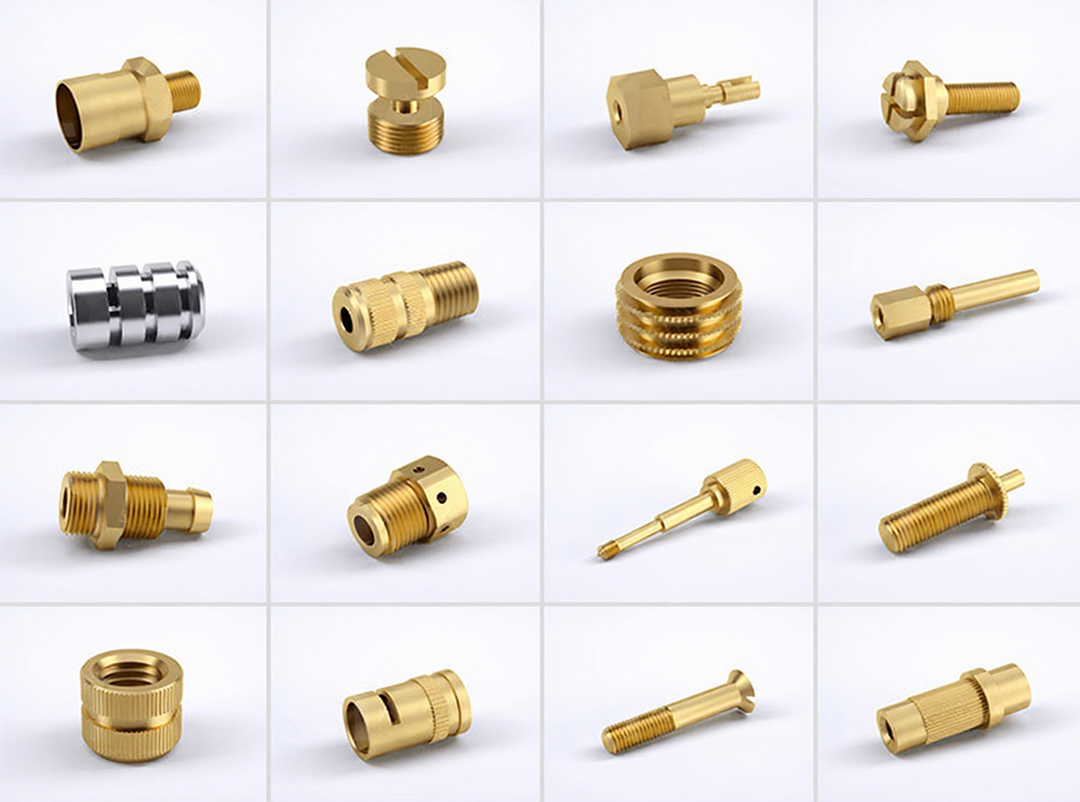

Threading (internal and external) is specified by pitch, class and depth; M2×0.4 micro-threads for medical connectors demand +/-0.01 mm pitch tolerance. Knurling—diamond or straight—adds grip to adjustment knobs and press-fit shafts. Grooving accommodates O-rings, snap rings or undercuts; widths down to 0.5 mm are routine on precision lathes.

Cross-drilling with live tooling machines radial holes, flats and keyways without a second setup, cutting lead time by 20–30%. Multi-diameter features—shoulders, tapers and radii—are programmed in one operation, holding +/-0.005 mm positional tolerance across length.

Surface Finishing and Protective Coatings

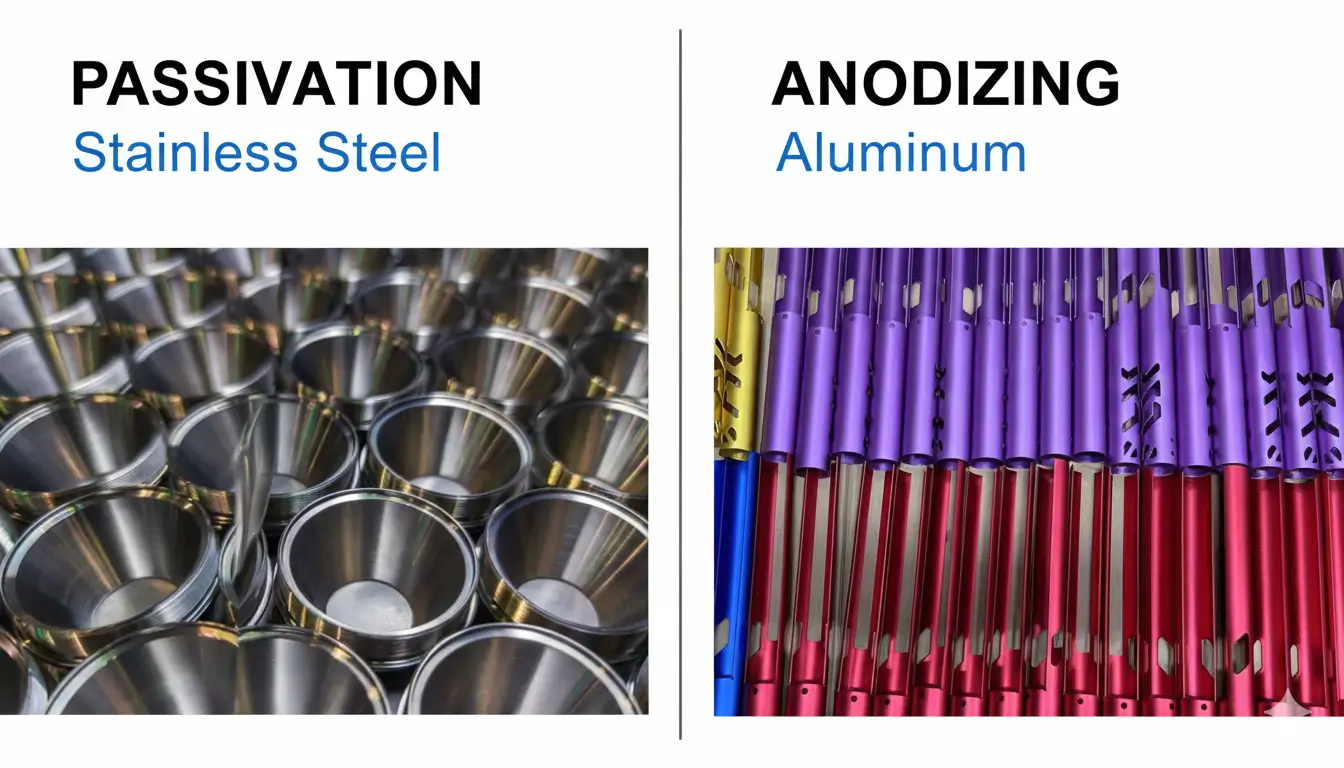

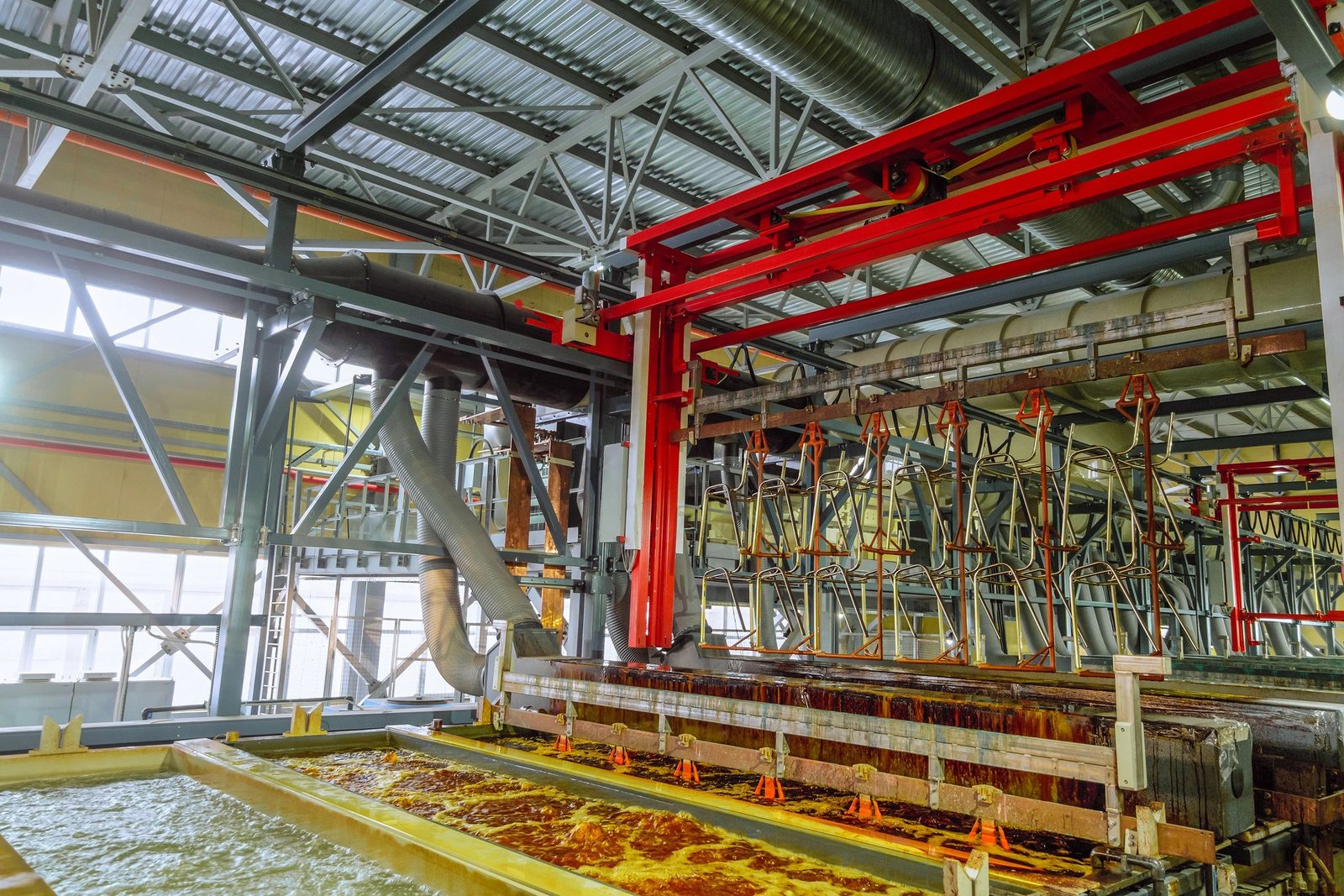

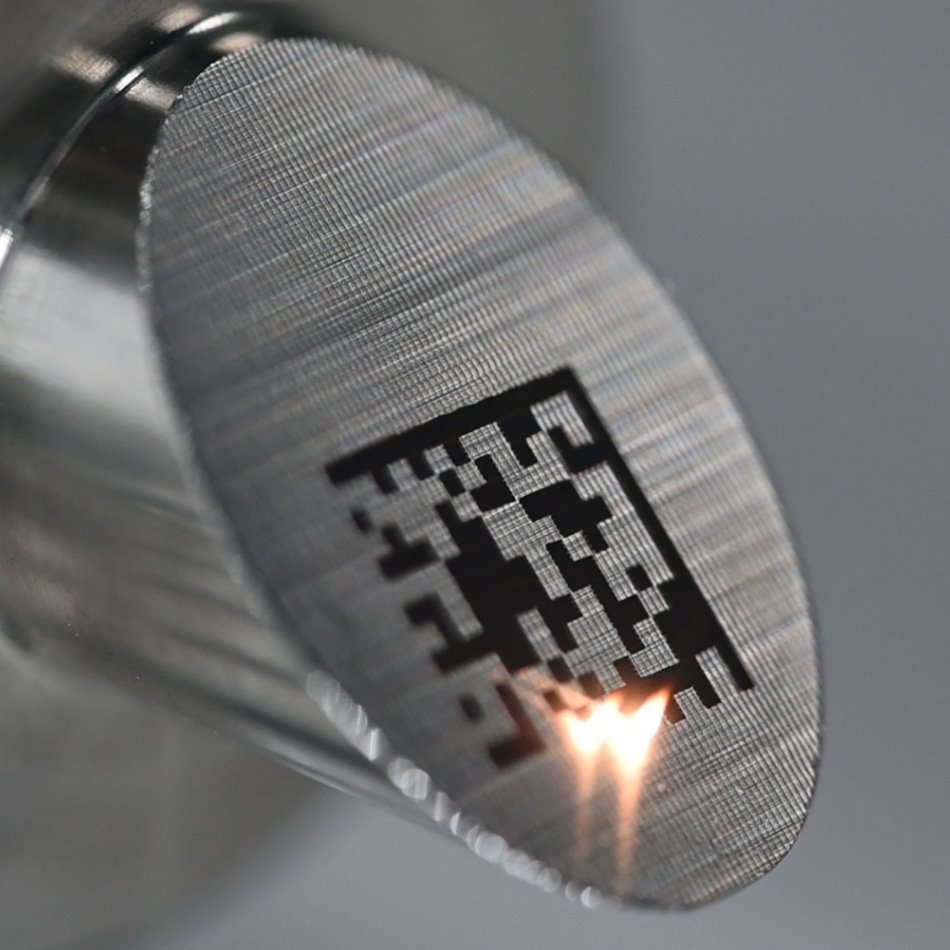

Anodizing (Type II, Type III hard-coat) protects aluminum against corrosion and wear; typical layer thickness is 5–25 µm. Electroplating—nickel, zinc or gold—meets RoHS and REACH standards for electronics; gold flash (0.5–1.0 µm) ensures low contact resistance in micro-connectors. Passivation removes free iron from stainless steel, extending service life in medical and food-grade assemblies.

Lead time for plating adds 3–5 days; anodizing 2–4 days. Minimum order quantities often rise to 100–500 pieces to justify batch processing, and unit cost increases 15–40% depending on coating complexity.

Dimensional Tolerance and Geometric Control

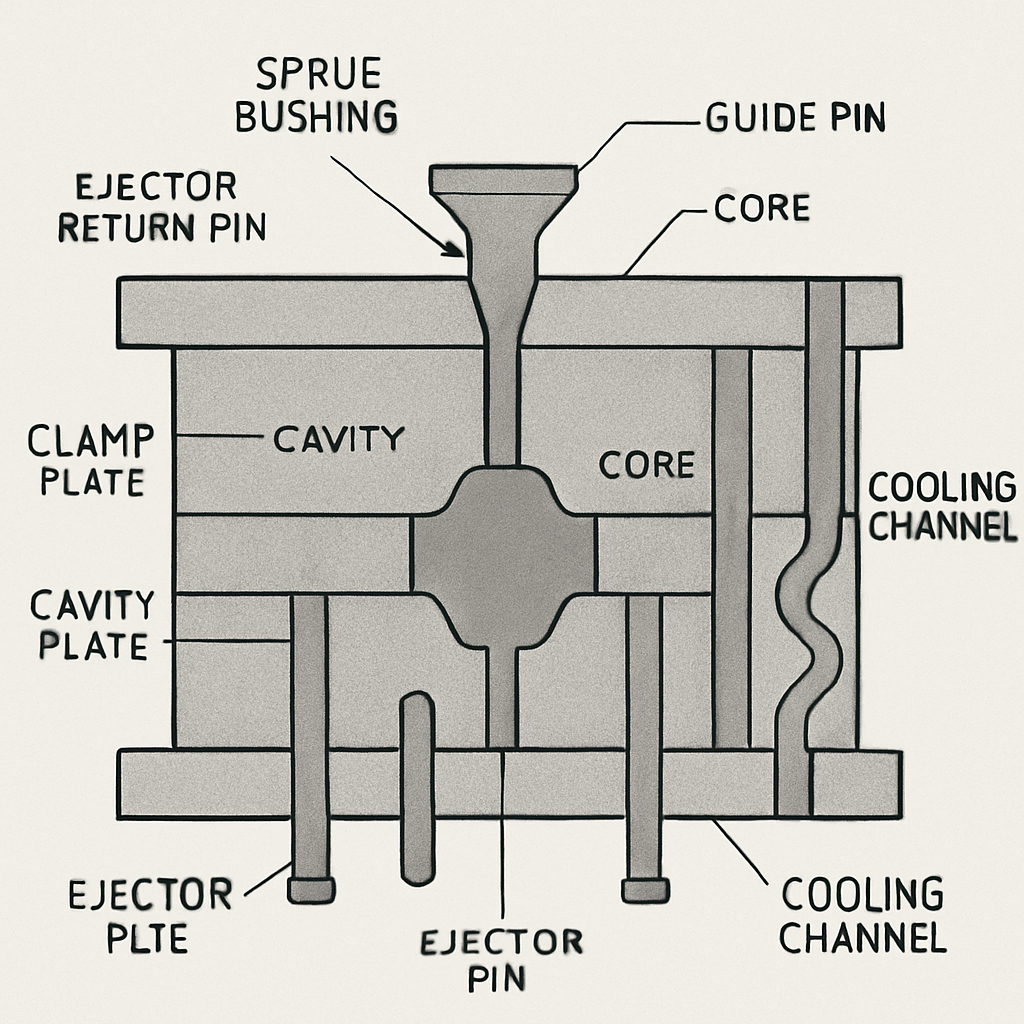

Precision cnc turning typically achieves ±0.005 mm for general work, ±0.002 mm for tooling-grade parts, and ±0.001 mm for ultra-precision applications such as connector pins and mold cores. Geometric tolerances — concentricity, perpendicularity and roundness — are equally critical: connector housings demand concentricity within 0.01 mm, while mold ejector pins require perpendicularity under 0.005 mm to prevent binding.

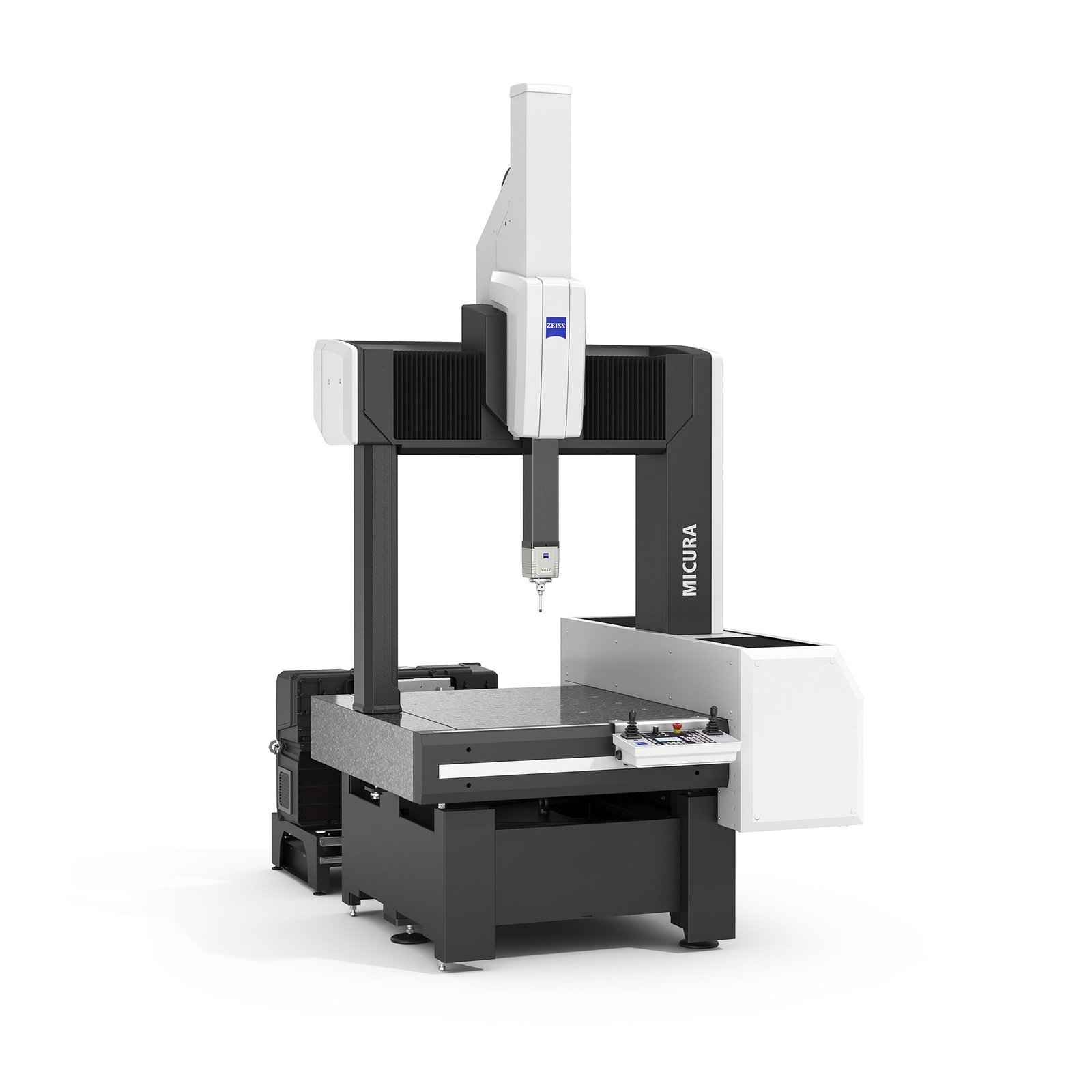

XUXIANG’s maximum machining accuracy of ±0.001 mm and ZEISS MICURA CMM resolution of 0.7 µm enable verification of these tight geometric constraints on every batch.

Surface Roughness Specifications

Surface finish directly affects mating performance and part longevity. General turning delivers Ra 3.2 µm; precision finish turning reaches Ra 0.8–1.6 µm; and mirror-grade EDM or grinding achieves Ra 0.4 µm or finer. Medical and optical components often specify Ra ≤ 0.8 µm to minimize contamination and wear.

XUXIANG’s mirror-grade EDM finishes down to Ra 0.1 µm complement turned features, enabling hybrid parts that combine rotational geometry with ultra-smooth critical surfaces.

Inspection Methods and Equipment

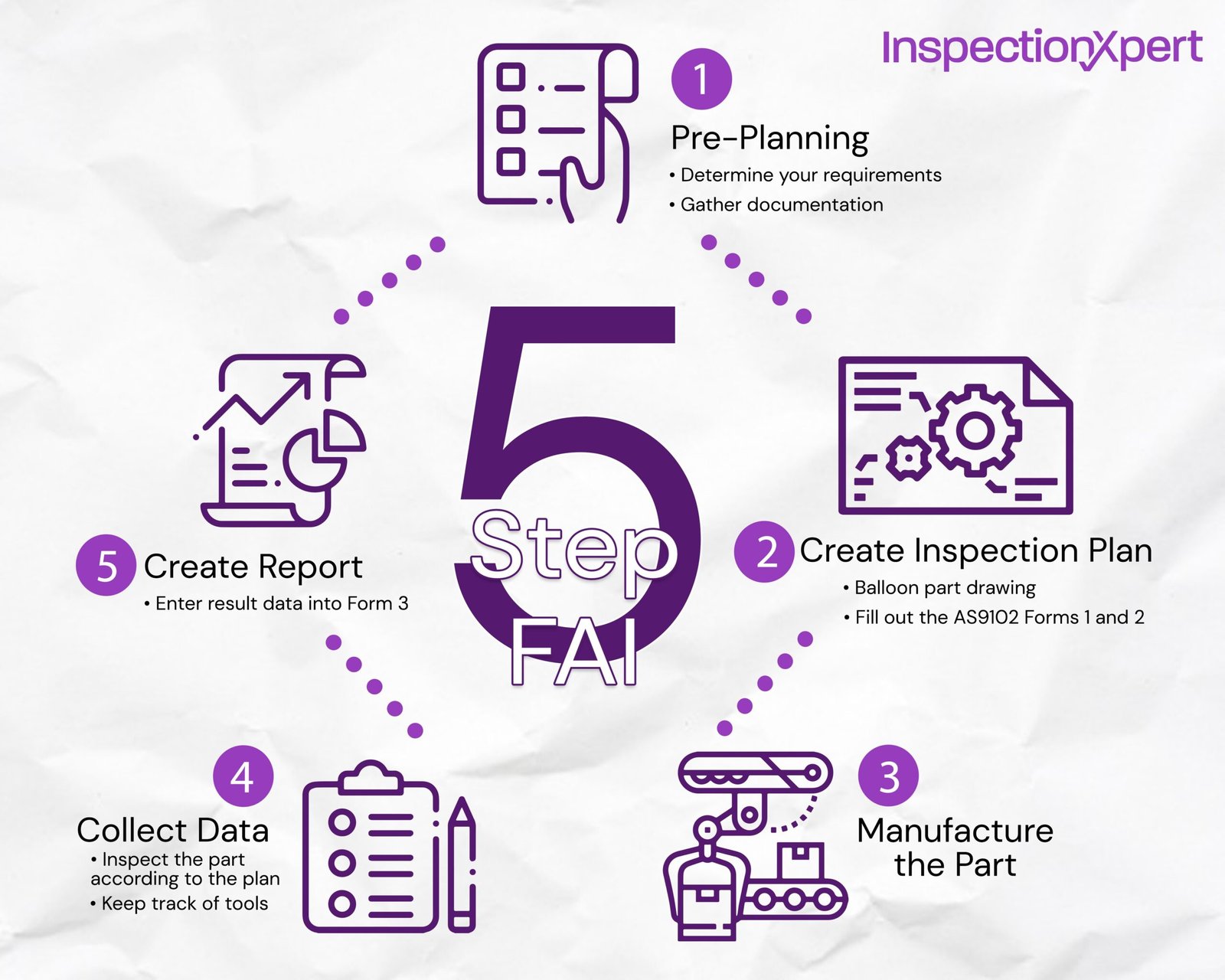

Coordinate measuring machines (CMM) verify complex 3D geometry and GD&T callouts with micron-level repeatability. Optical comparators check profile accuracy against CAD overlays, while contact and optical profilometers measure surface roughness. XUXIANG’s ZEISS MICURA CMM and Nikon toolmaker’s microscopes (V-12B / MM-400 class) form the backbone of a five-step QC flow — material spectral analysis, in-process monitoring, CMM verification, surface checks and FAI documentation.

Certifications and Process Capability

ISO 9001:2015 is baseline; IATF 16949 is mandatory for automotive tier suppliers, and ISO 13485 governs medical-device components. Process capability index (Cpk) ≥ 1.33 is standard for critical dimensions, with Cpk ≥ 1.67 preferred for safety-critical or high-volume parts. XUXIANG operates under ISO 9001:2015, ensuring traceable inspection records, material certificates and capability studies that meet OEM audit requirements across electronics, automotive and medical supply chains.

Machine Park and Capacity

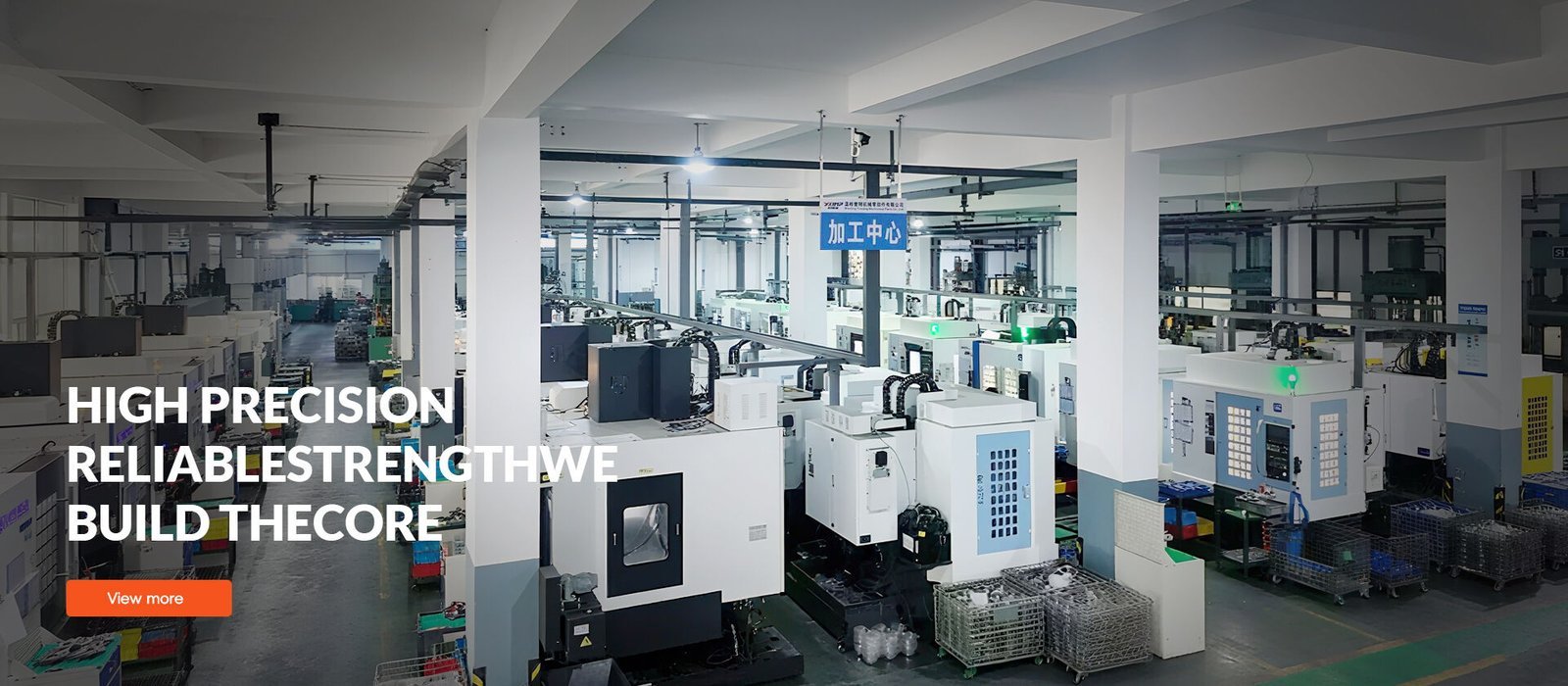

Ask for a detailed machine list: number and type of CNC lathes, maximum swing diameter, turning length and spindle power. XUXIANG’s Fanuc-class CNC assets and +/-0.001 mm machining accuracy demonstrate the floor-level precision needed for mold components and micro-connector hardware.

Request swing/length specifications aligned with your part envelope. Shops with multi-axis turning centers can complete secondary features in one setup, reducing lead time by 20–30%.

Material Expertise and Secondary Operations

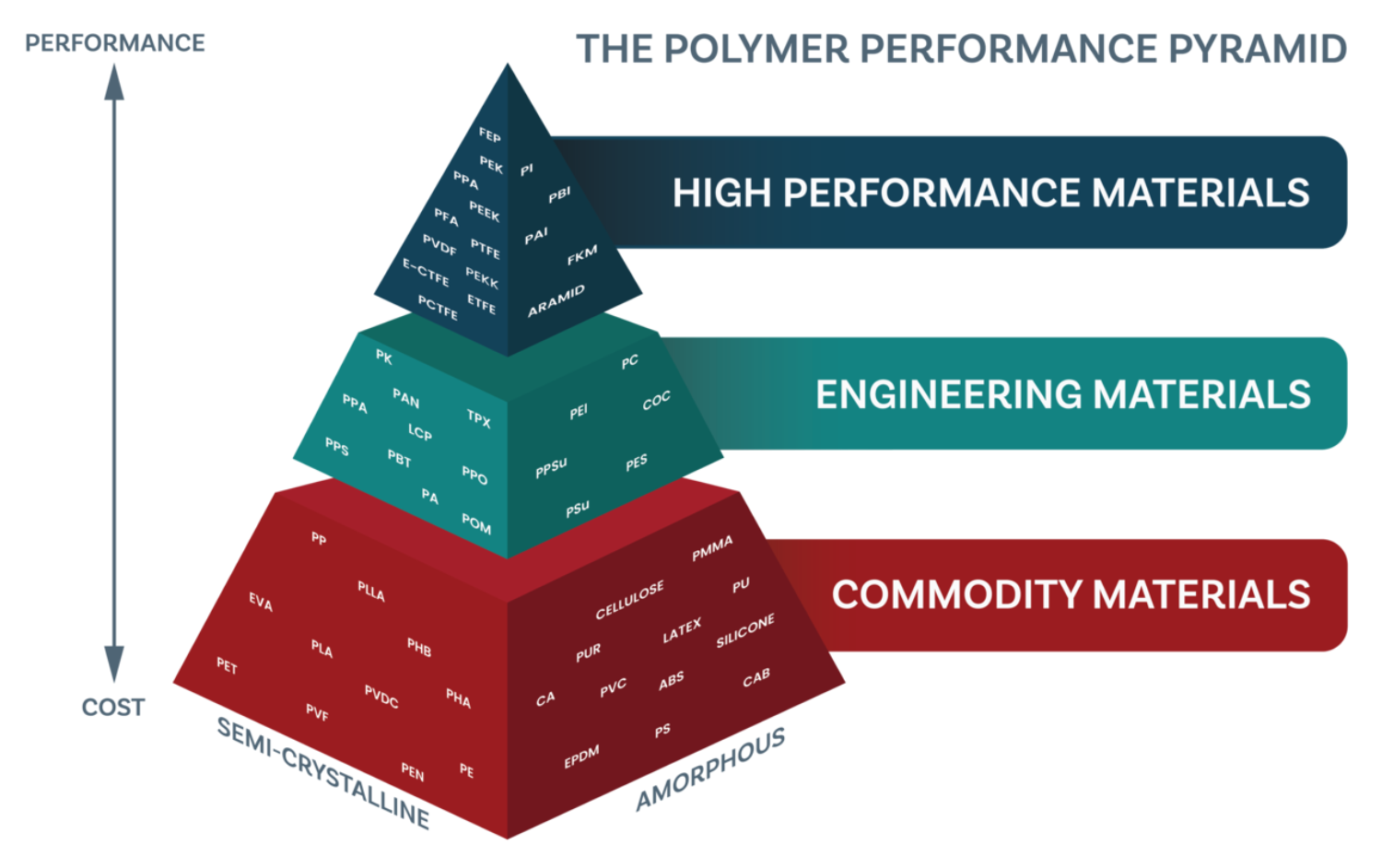

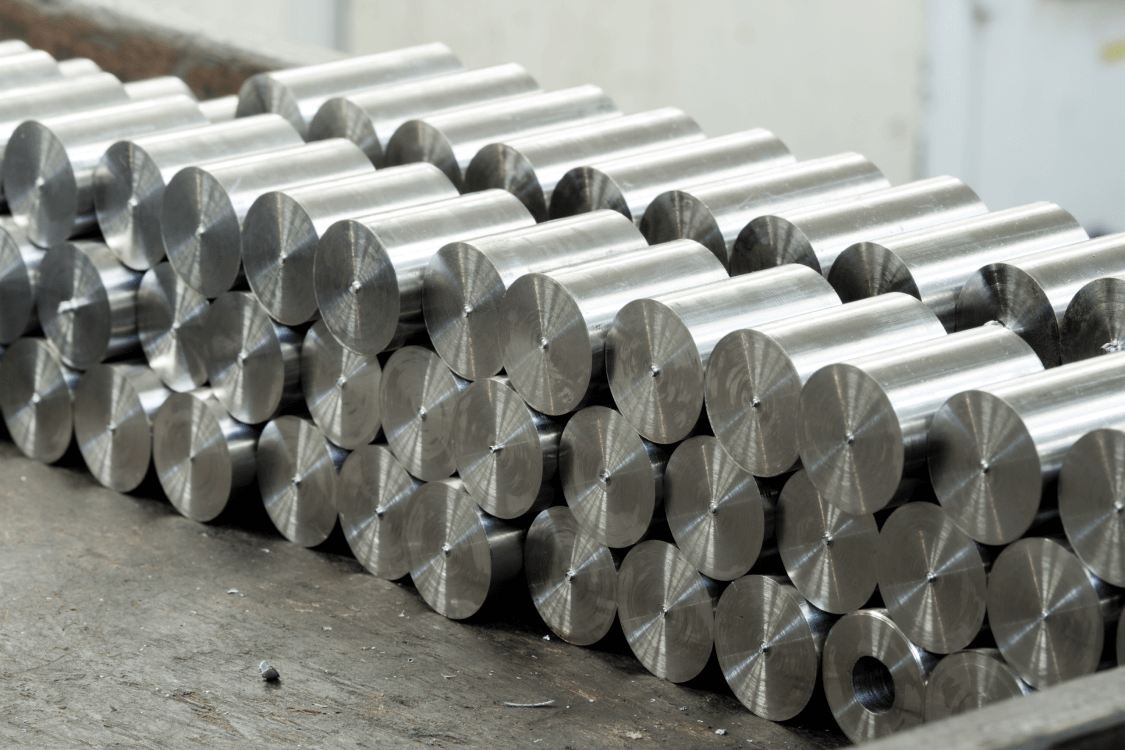

Confirm in-house capabilities for the alloys you specify — stainless steel, aluminum, brass, engineering plastics — and secondary processes like grinding, EDM or heat treatment. XUXIANG integrates precision grinding, slow-wire EDM and sinker EDM under one roof, eliminating hand-offs.

Ask whether the supplier performs spectral analysis on incoming stock. Material certificates and in-process validation prevent costly scrap from grade substitution.

Quality Systems and Sample Validation

ISO 9001:2015 certification is baseline; probe for CMM equipment and measurement resolution. XUXIANG’s ZEISS MICURA CMM measures to 0.7 µm, backed by Nikon toolmaker’s microscopes for surface integrity.

Demand a first-article inspection (FAI) report with dimensional data before production. Sample validation catches tolerance drift and surface-finish issues that written specs cannot capture.

DFM Support and Lead-Time Commitments

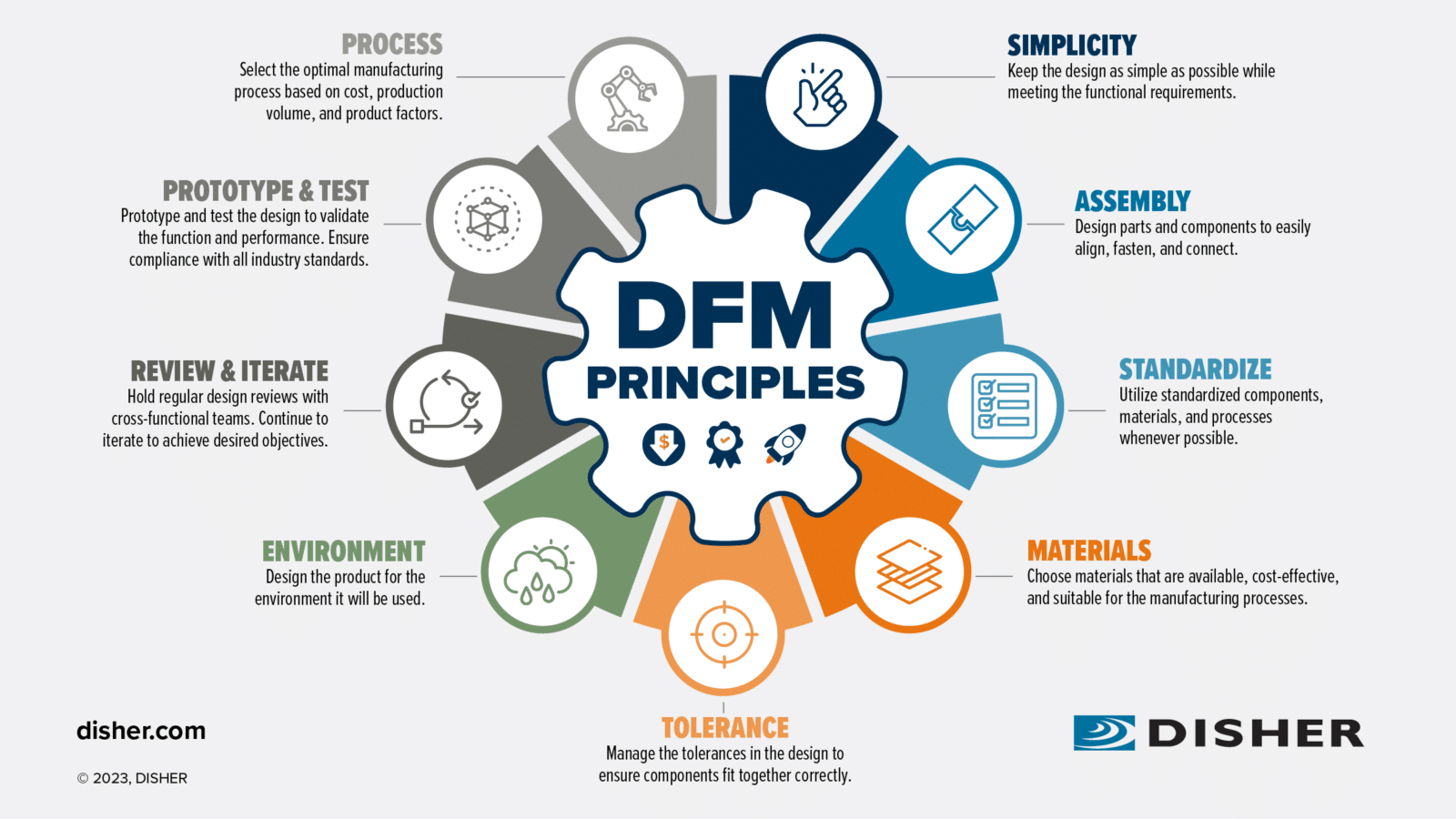

Engineering-led suppliers offer design-for-manufacturability feedback before quoting. XUXIANG’s 10+ engineering experts review every project to flag tolerance stack-ups, tool access and cycle-time risks.

Request documented lead times and ask how the shop manages capacity spikes. Transparent scheduling and dual-factory capacity — like XUXIANG’s 2025 Quanzhou expansion — deliver roughly 30% faster turnaround than single-site competitors.

Specifying Unrealistic Tolerances Without Functional Justification

Blanket +/-0.005 mm callouts on every dimension drive cost and lead time up by 40–60% without improving part function. XUXIANG’s DFM reviews identify which features genuinely need micron-class precision and which can relax to +/-0.02 mm, cutting cycle time and tool wear.

Define tolerances feature-by-feature, citing mating-part interfaces, assembly clearances or seal-groove depths that demand tight control.

Ignoring Material Traceability and Certifications

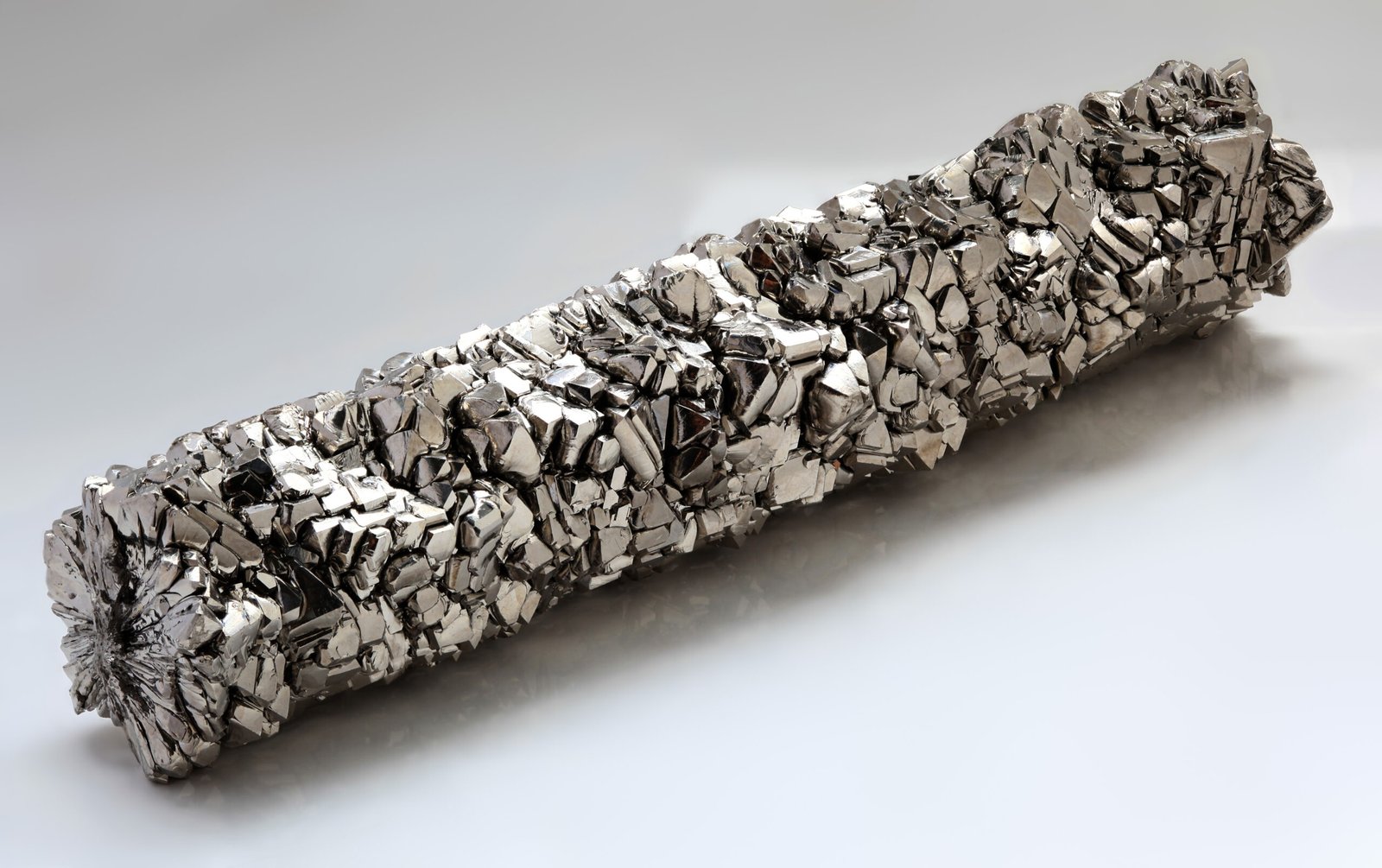

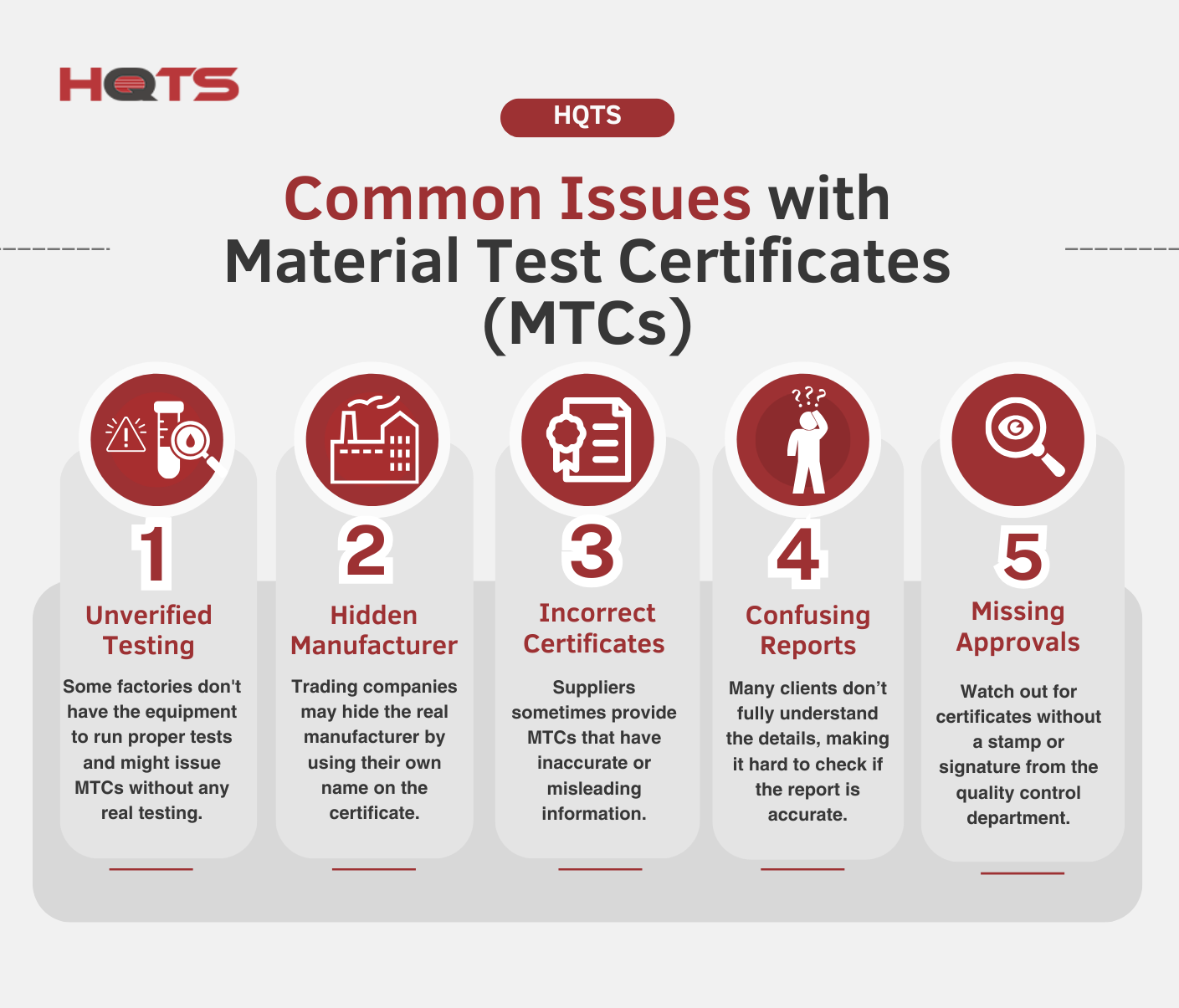

Medical-device and automotive buyers who skip material certificates risk batch rejection at incoming inspection. XUXIANG provides spectral-analysis reports and mill certificates for every heat lot, traceable to ISO 9001:2015 records.

Request material certs and third-party test data upfront, especially for 316L stainless, titanium alloys and aerospace-grade aluminum.

Choosing Suppliers Solely on Price Without Validating Capacity

A 15% price advantage means nothing if the shop lacks CMM validation or misses your launch window. XUXIANG’s ZEISS MICURA (0.7 µm resolution) and Nikon toolmaker’s microscopes confirm that quoted tolerances are measurable, not aspirational.

Audit metrology capability, machine-tool age and order-book loading before awarding high-stakes programs.
