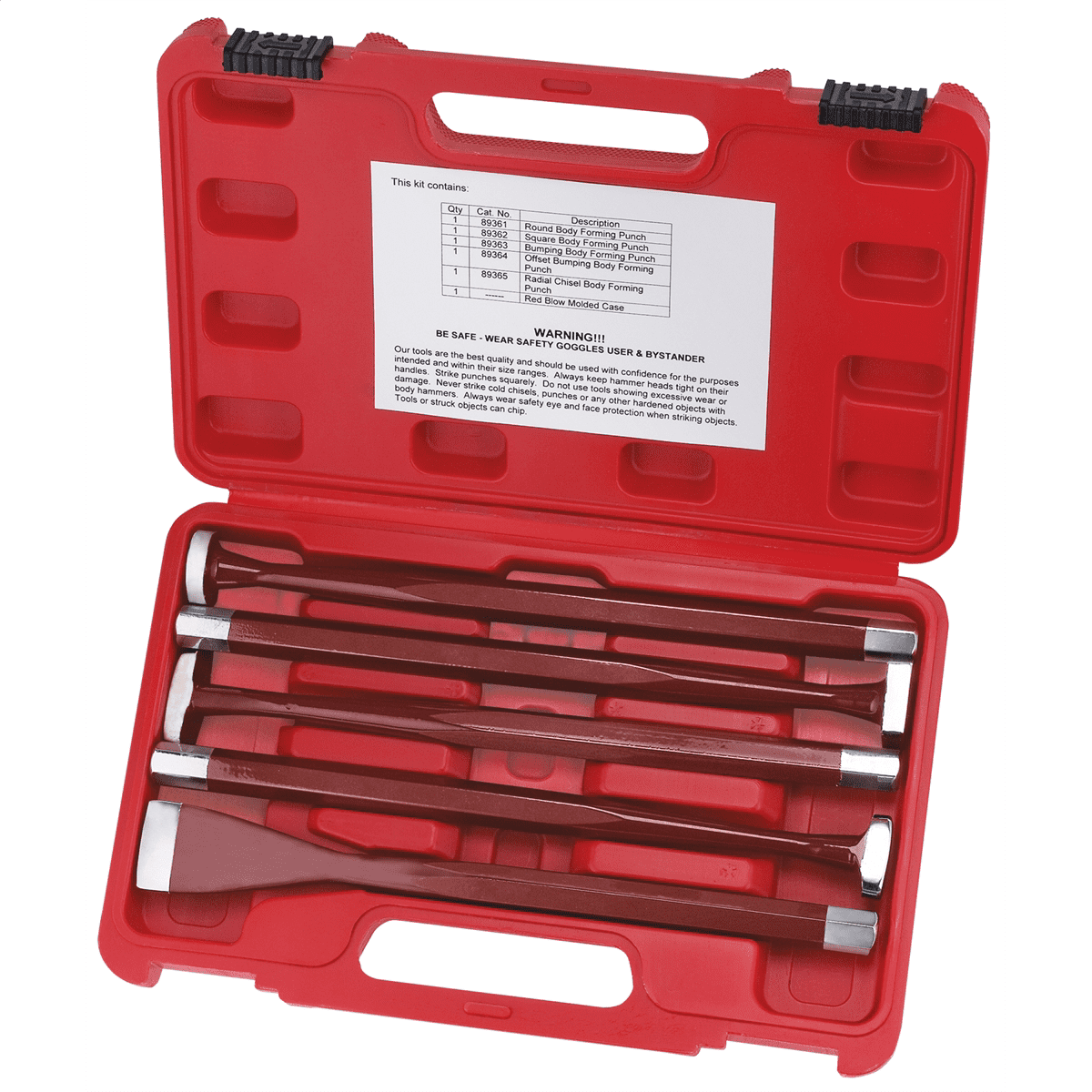

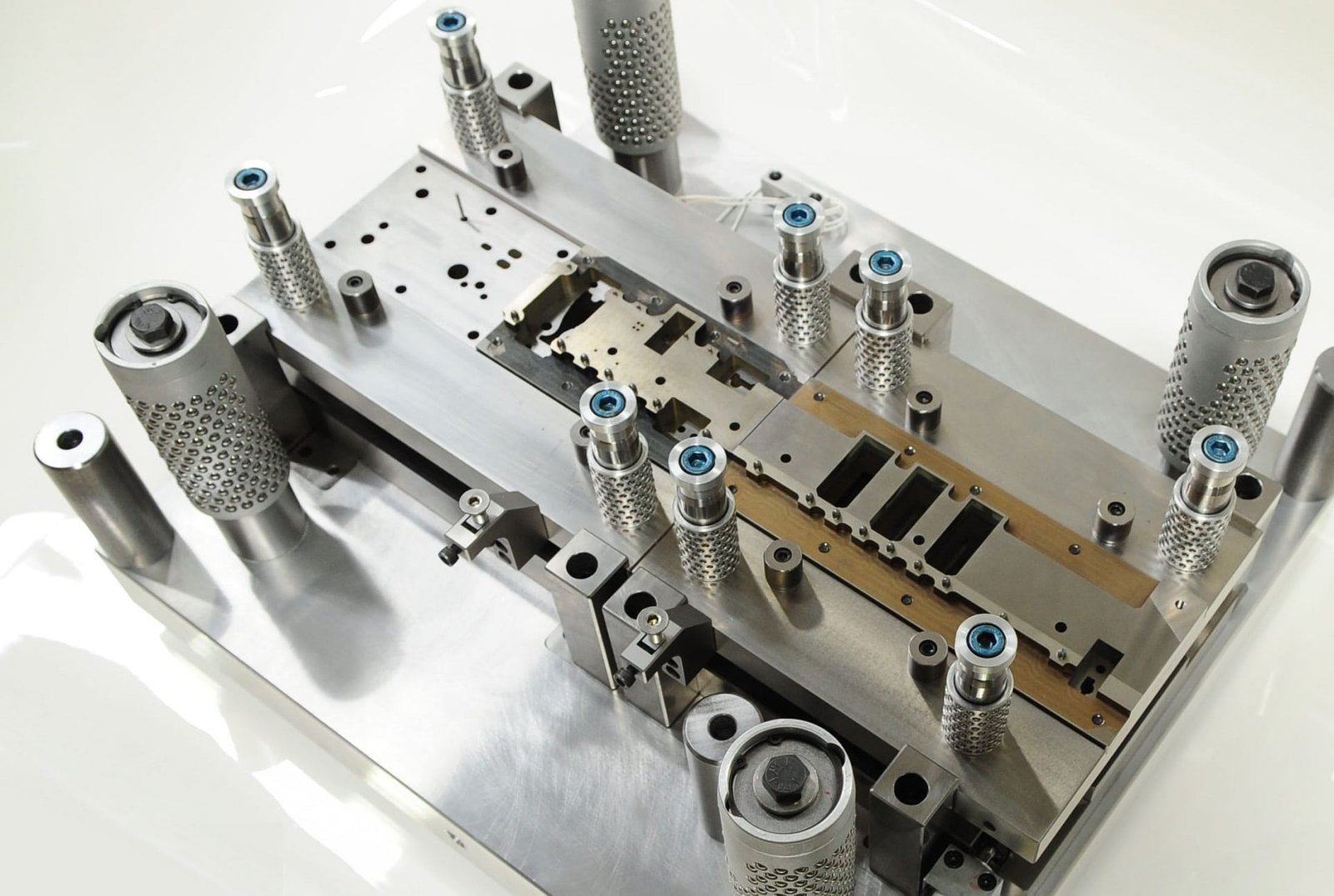

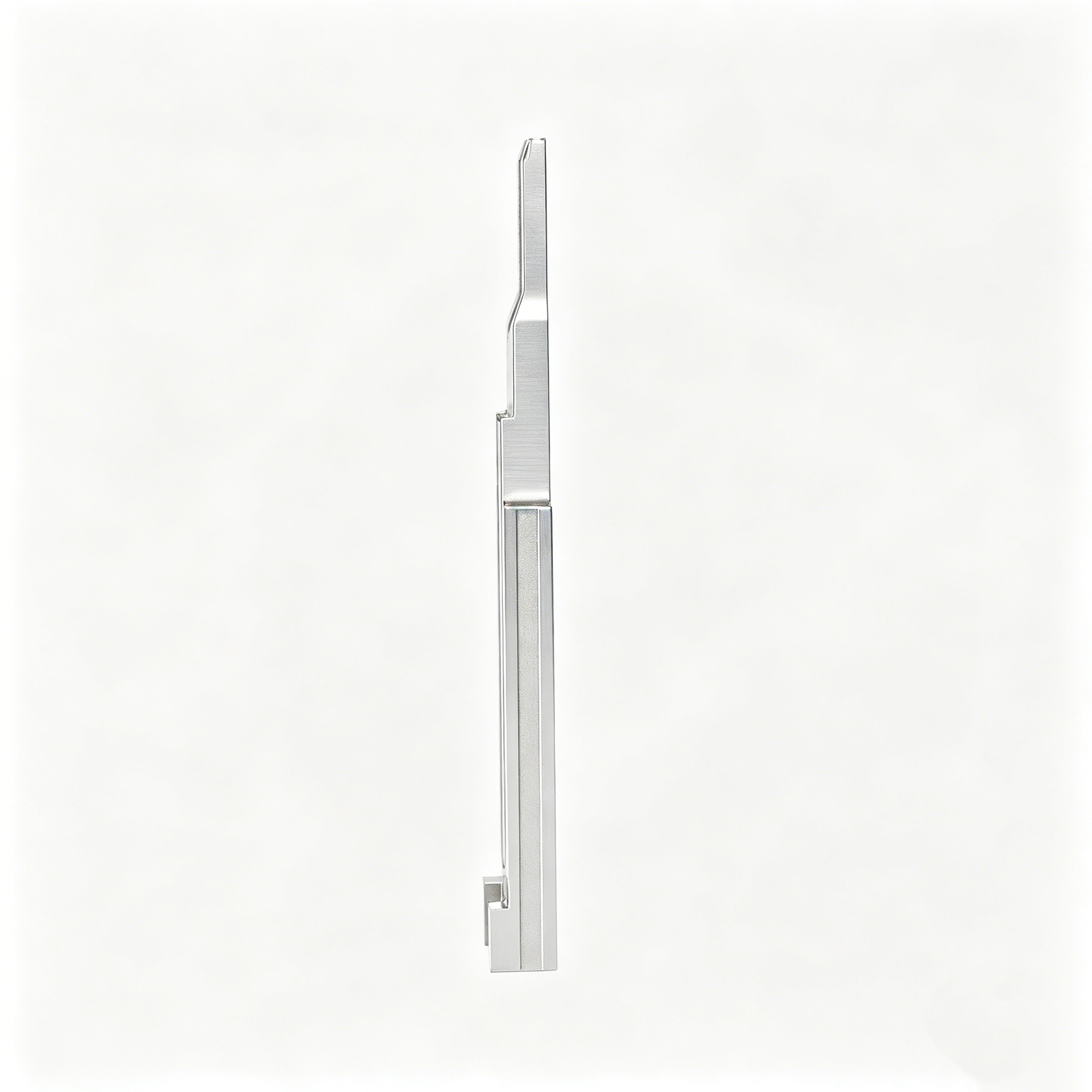

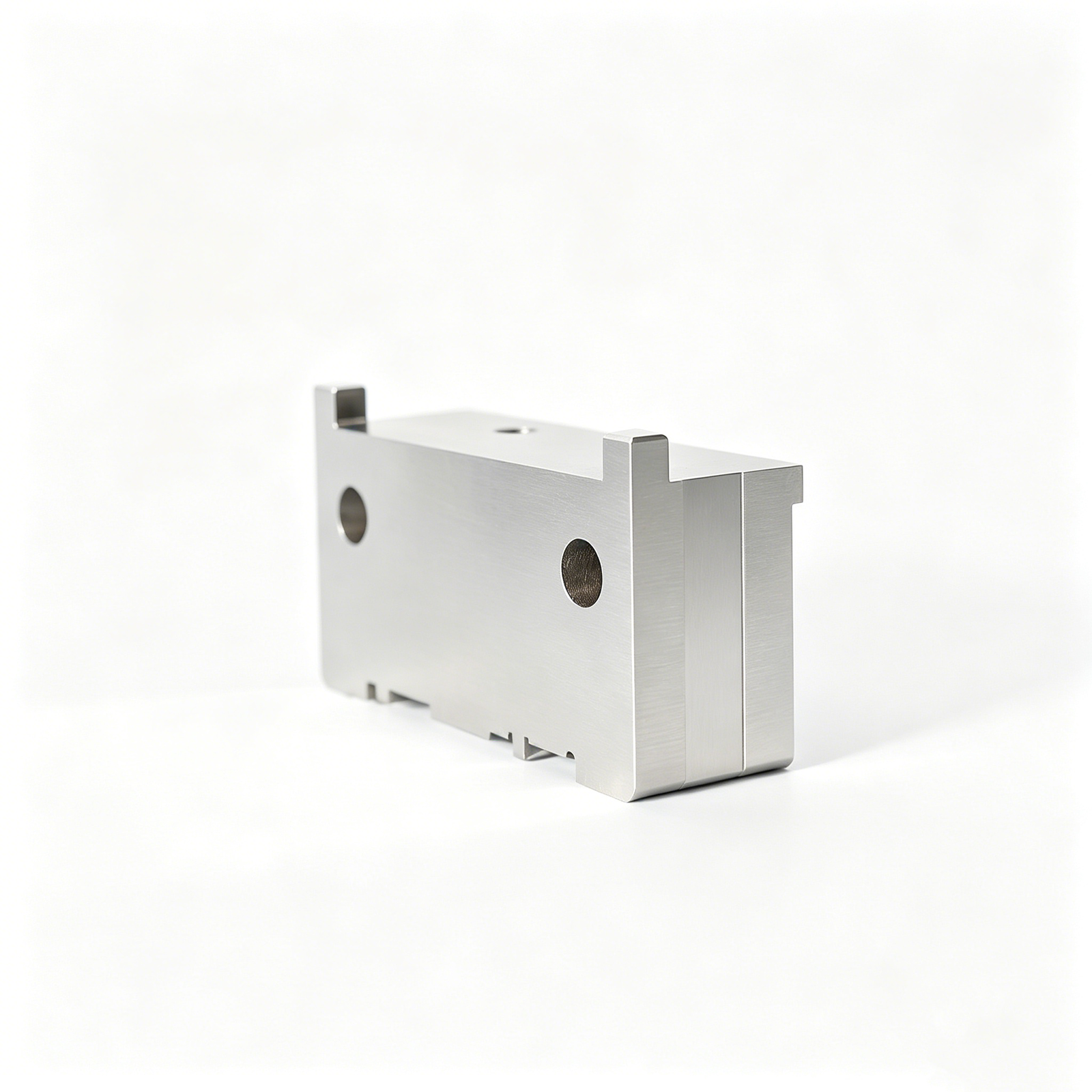

Punches: Piercing, Forming and Coining

Punches execute shearing and displacement operations. Piercing punches hold +/-0.005 mm for hole location; forming punches bend or emboss at +/-0.01 mm; coining punches imprint features under high tonnage, requiring +/-0.003 mm flatness. Chipping and galling constitute the primary failure modes, accelerated by misalignment or inadequate lubrication.

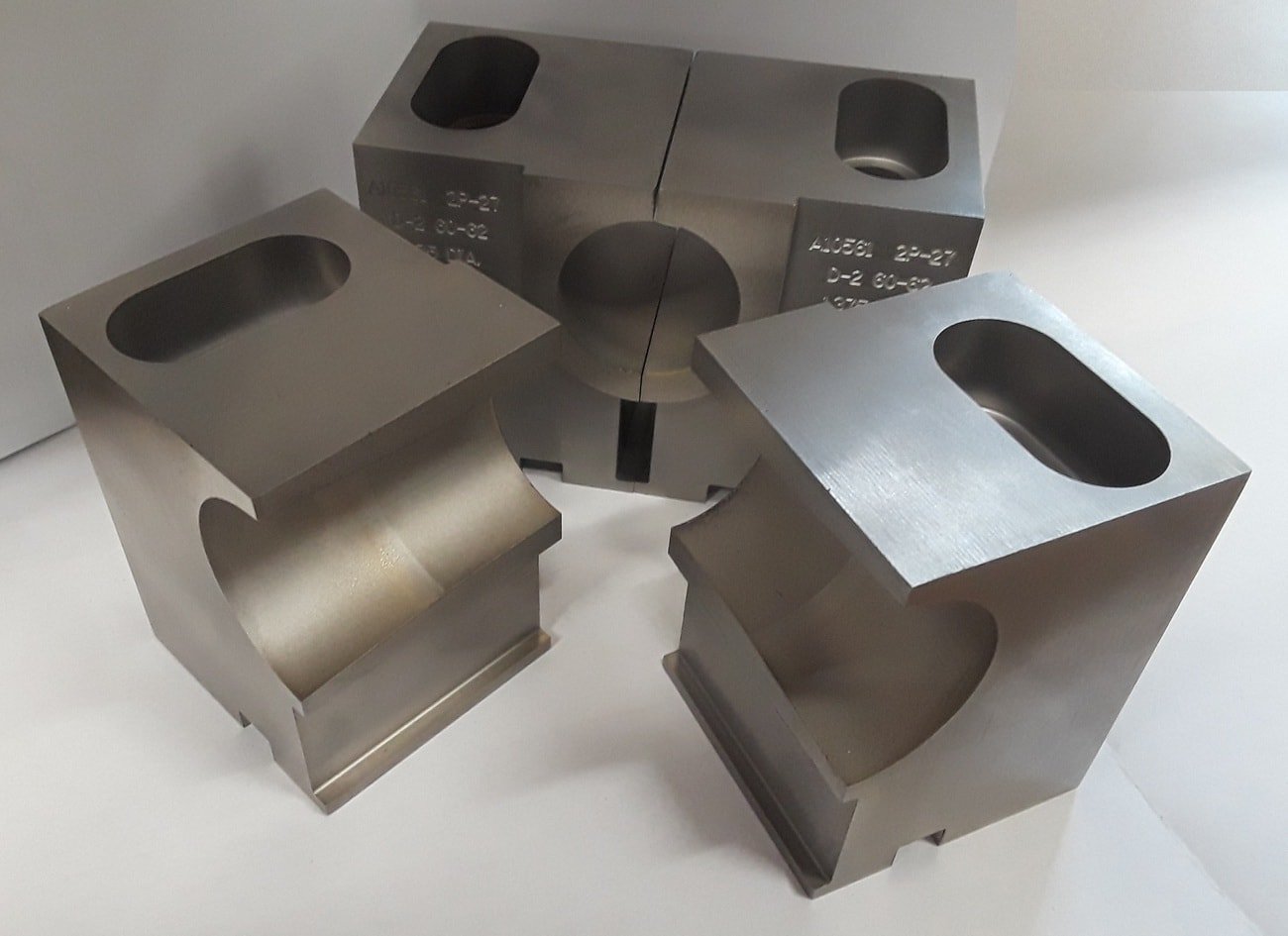

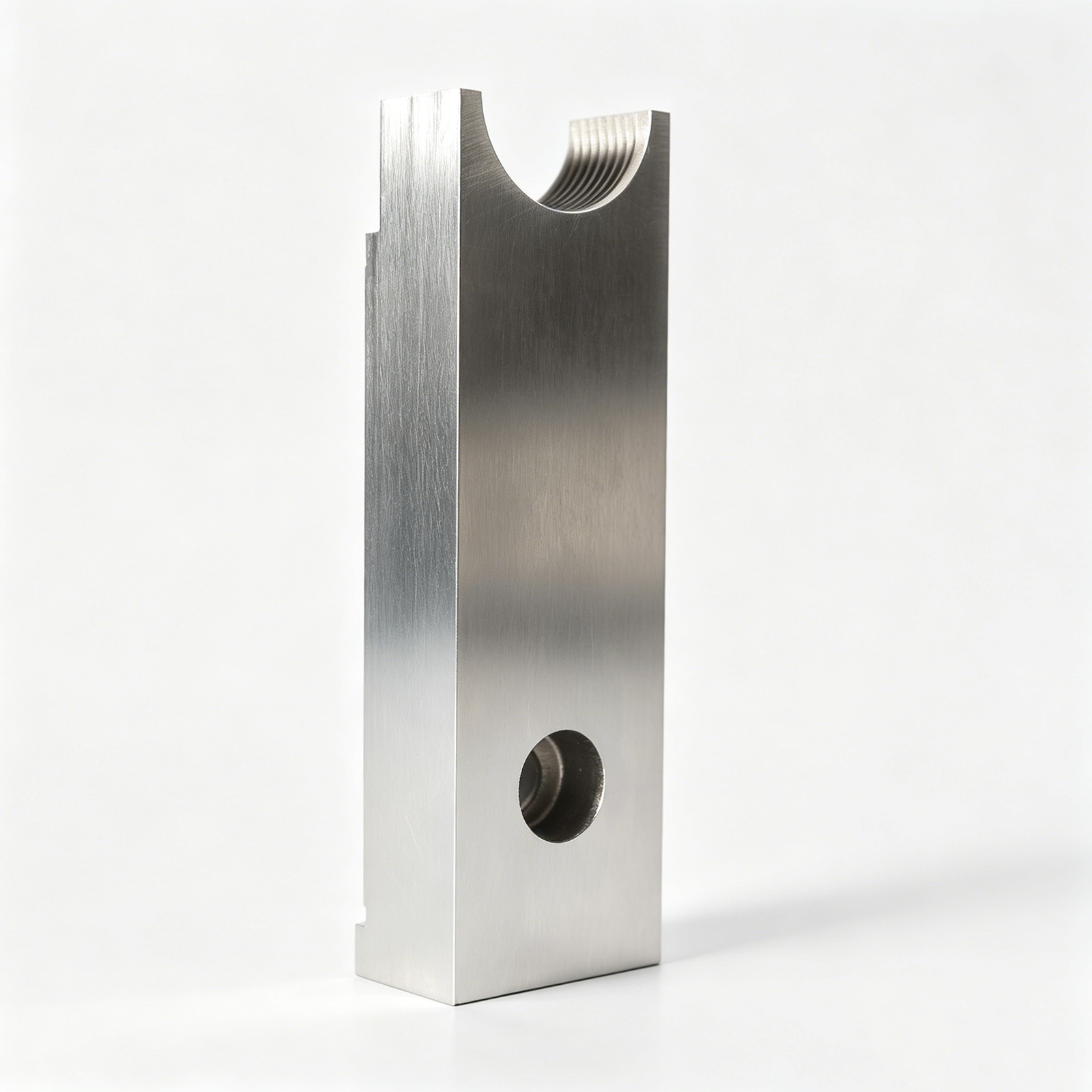

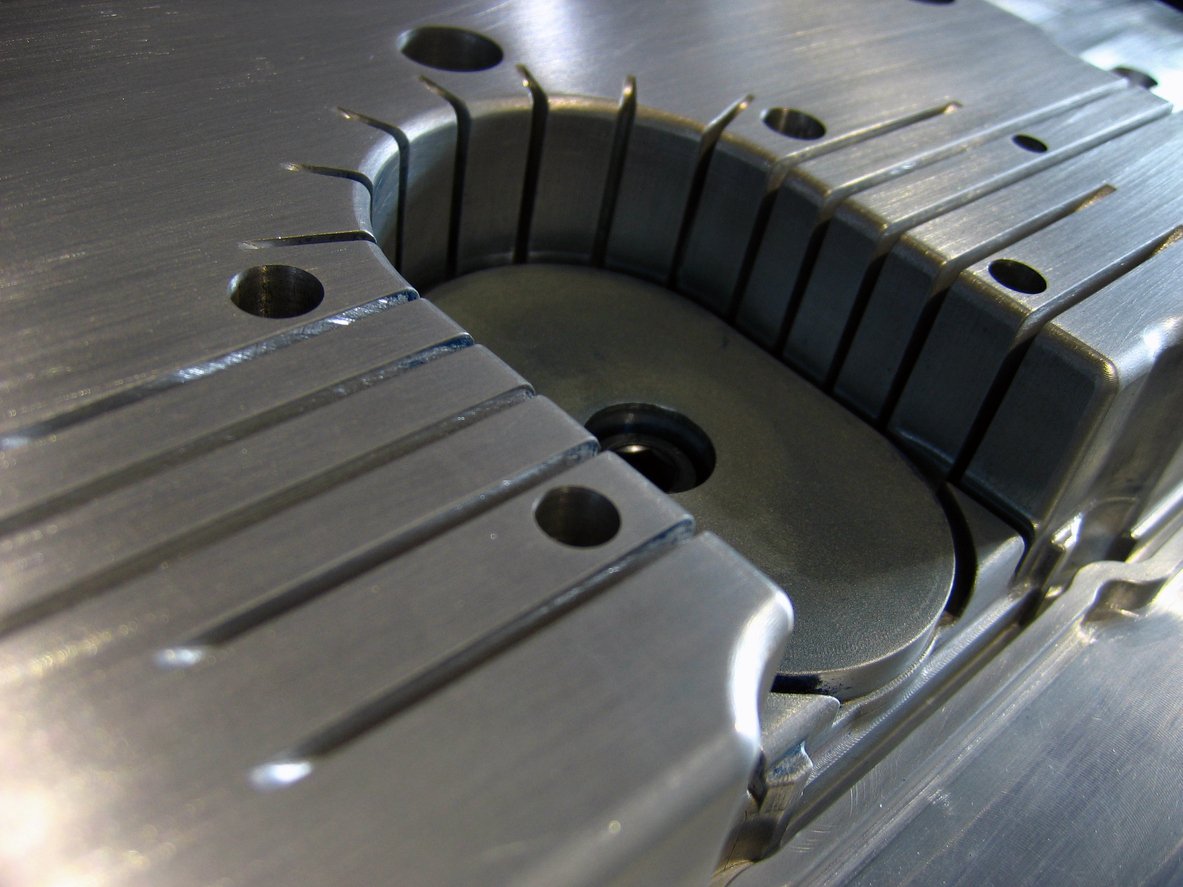

Dies: Cutting, Bending and Drawing

Dies provide the mating surface for punches. Cutting dies maintain +/-0.005 mm edge sharpness; bending dies hold +/-0.01 mm angular tolerance; drawing dies shape cups or channels, demanding Ra ≤ 0.2 µm finish to prevent galling. Cracking at sharp corners and wear on high-friction zones drive replacement cycles.

Pilots and Guides

Pilots register strip position station-to-station. Fixed pilots achieve +/-0.002 mm repeatability; spring-loaded pilots absorb minor strip wander, holding +/-0.005 mm. Wear and breakage occur when pilot diameter deviates beyond +0.005/-0.000 mm or when strip burrs foul the guide bore.

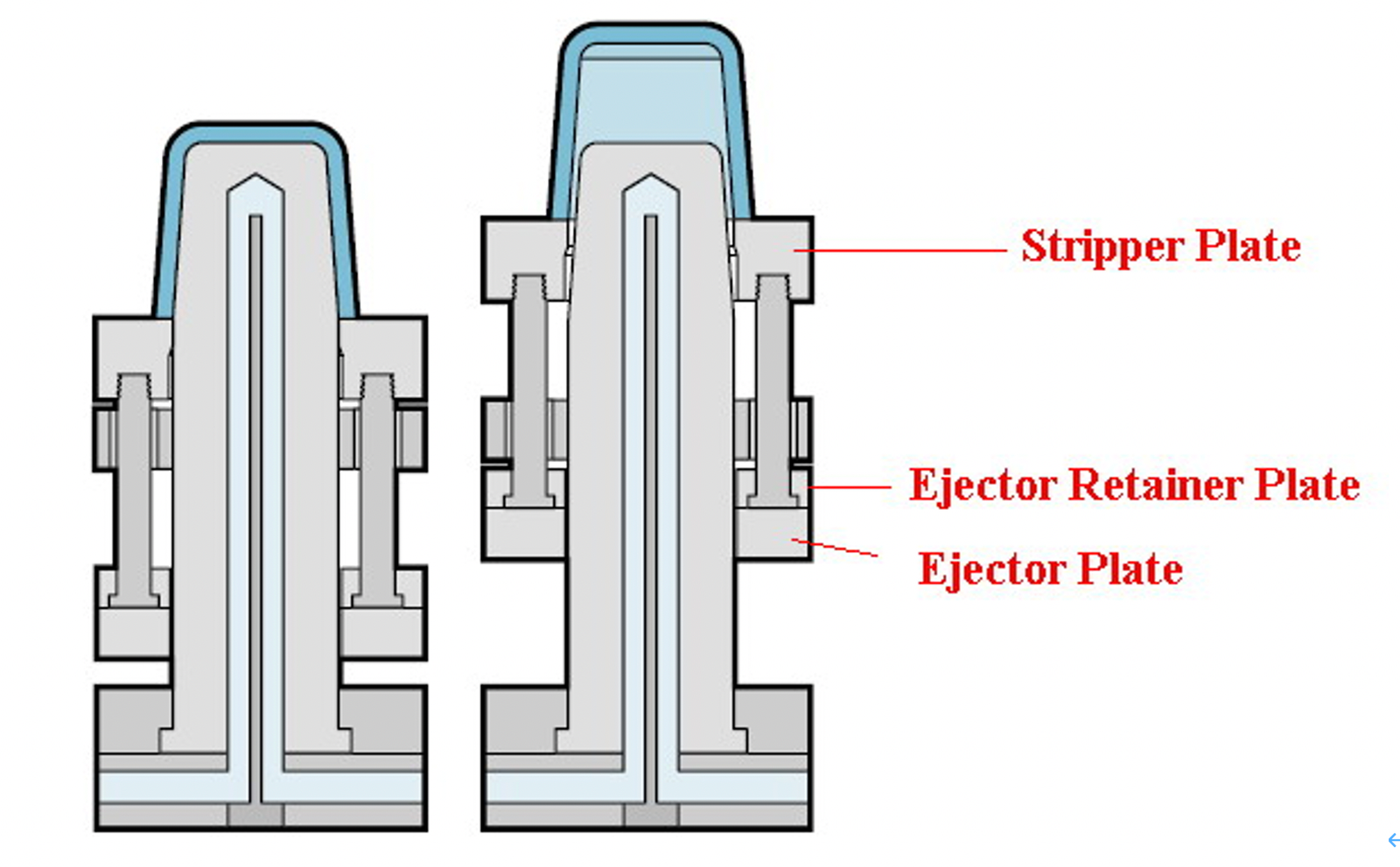

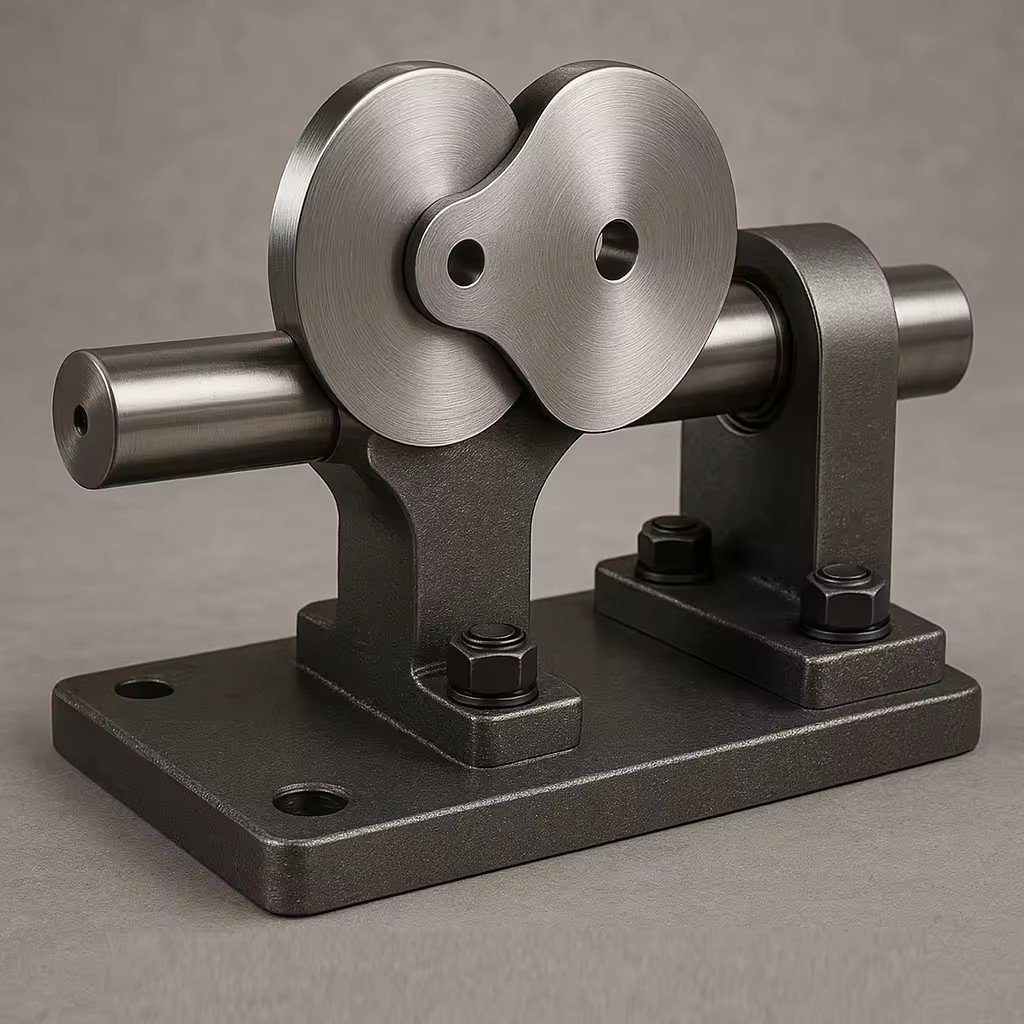

Strippers and Lifters

Strippers eject the strip from punches; lifters actuate side-action features. Spring strippers maintain 2–5 mm travel; cam-driven lifters require +/-0.01 mm slide clearance. Binding, spring fatigue and cam-track scoring are common when tolerances drift or lubrication schedules slip.

Tool Steel Grades and Hardness Ranges

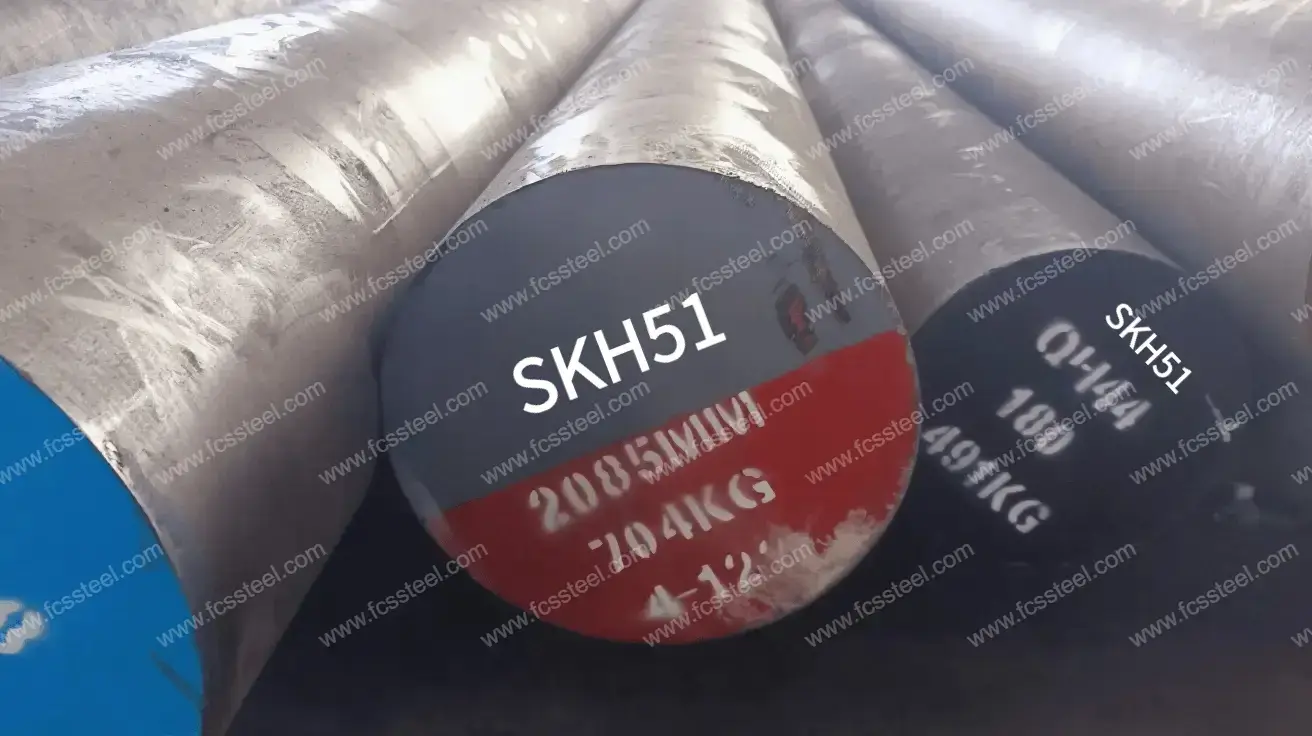

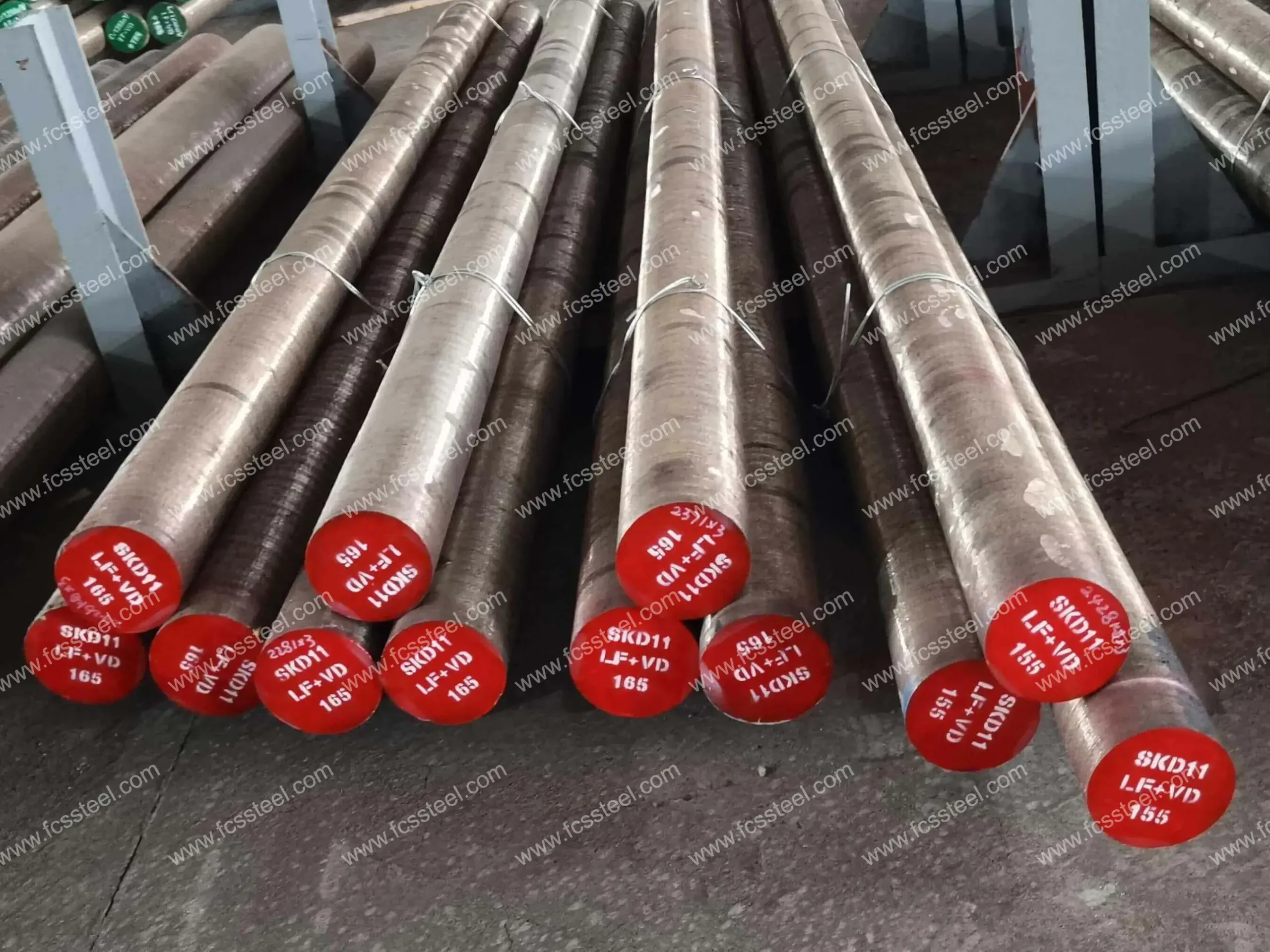

SKD11 (1.2379 / D2) is the workhorse for general progressive dies, hardened to 58–62 HRC with good toughness and machinability. SKH51 (M2 high-speed steel) reaches 62–65 HRC and offers superior wear resistance for punches in abrasive materials. ASP23 (powder-metallurgy HSS) delivers the highest wear life at 62–64 HRC, with fine carbide distribution that resists chipping in thin-section punches.

Vacuum hardening minimizes decarburization and distortion; cryogenic treatment (-80°C to -196°C) stabilizes retained austenite and lifts hardness by 1–2 HRC. Nitriding adds a 0.1–0.3 mm case to reduce galling without compromising core toughness.

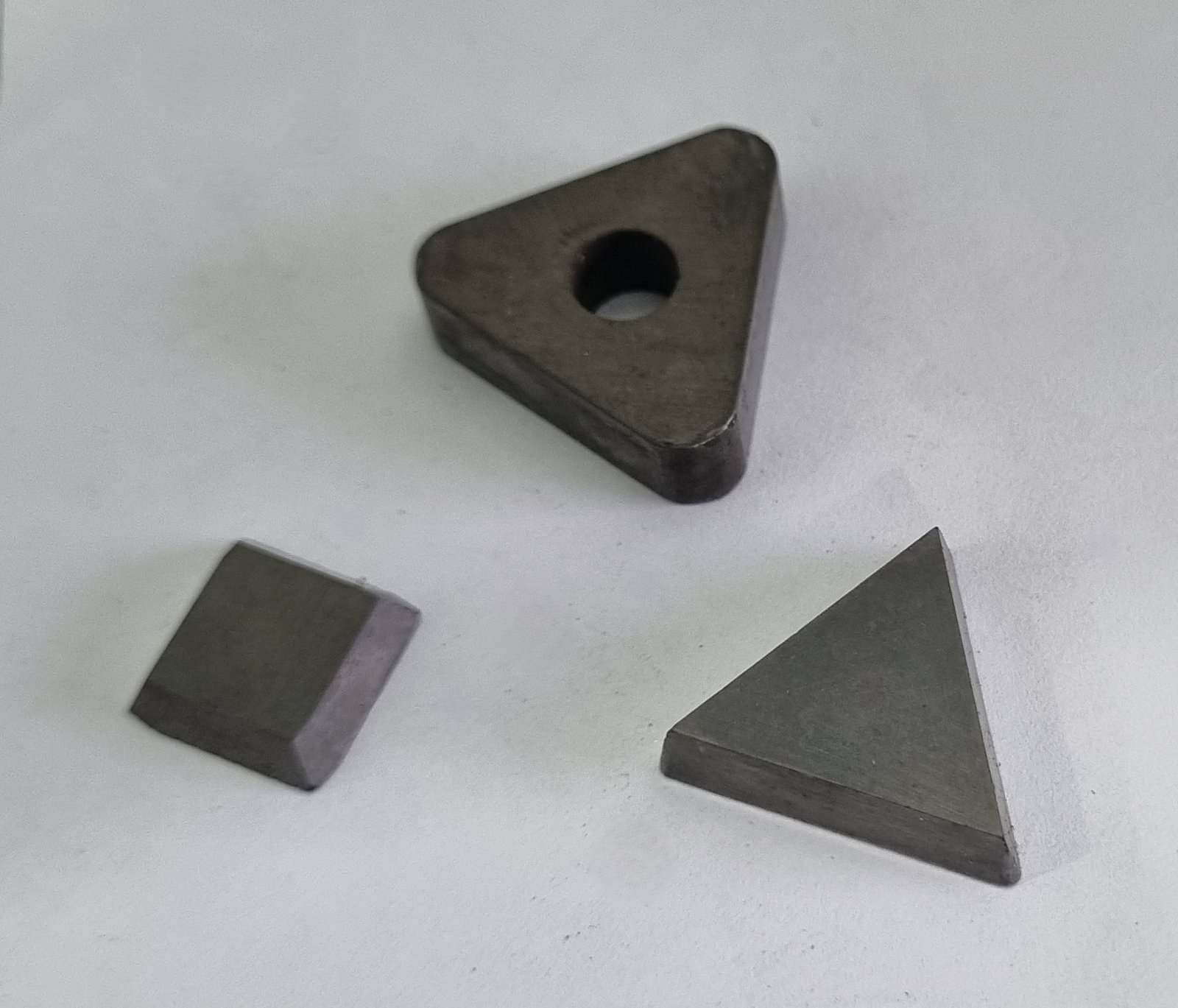

Tungsten Carbide vs. High-Speed Steel

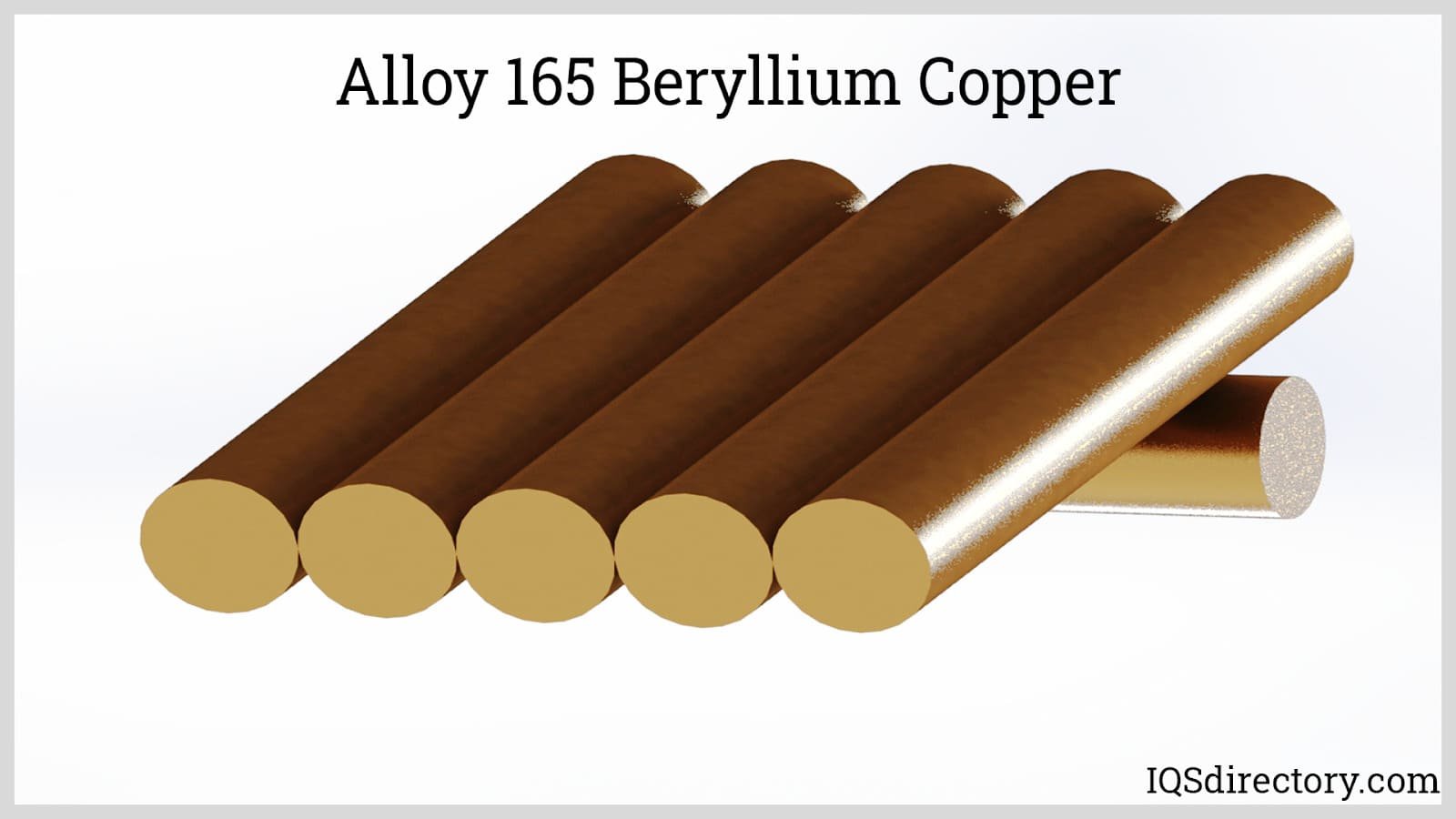

Carbide inserts (K10–K30 grades) run 10–50× longer than HSS in piercing and blanking operations but fracture under shock loading. Specify carbide for production volumes above 500,000 strokes or when piercing stainless steel, beryllium copper or hard plastics.

HSS punches tolerate misalignment and side loads better, making them the safer choice for prototype tooling, complex forms with lateral forces, or runs under 200,000 parts. Hybrid designs — carbide tips brazed into HSS bodies — balance wear life and toughness in medium-volume (200k–1M) applications.

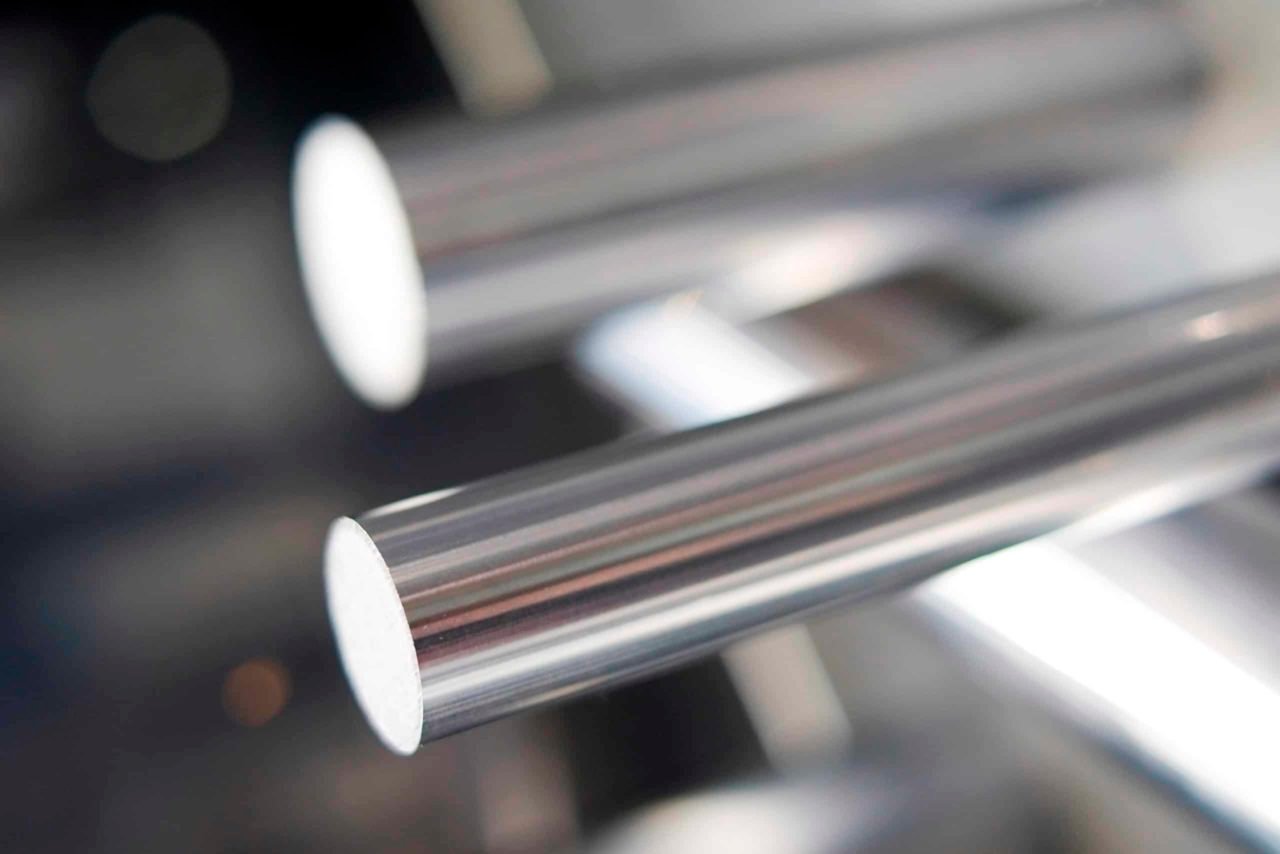

PVD Coatings for Extended Tool Life

TiN (titanium nitride) coatings increase surface hardness to 2,300–2,500 HV and reduce friction by ~20%, ideal for moderate-volume runs. TiAlN (titanium aluminum nitride) offers superior oxidation resistance to 800°C and 30% lower friction, suited for high-speed stamping. DLC (diamond-like carbon) delivers the lowest coefficient of friction (0.1–0.15) and extends die life up to 5× in abrasive or adhesive contact, at roughly 2× the cost of TiN.

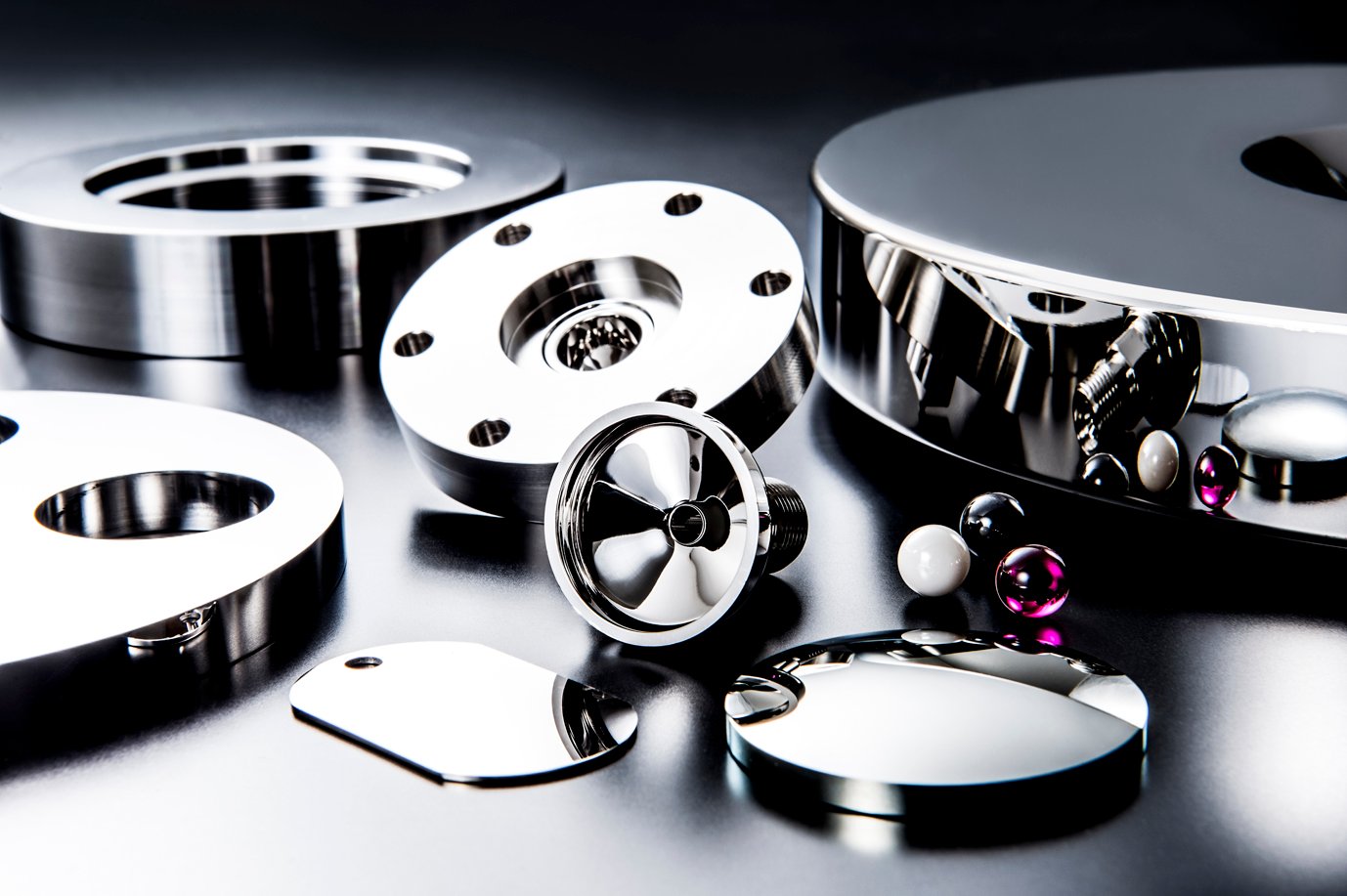

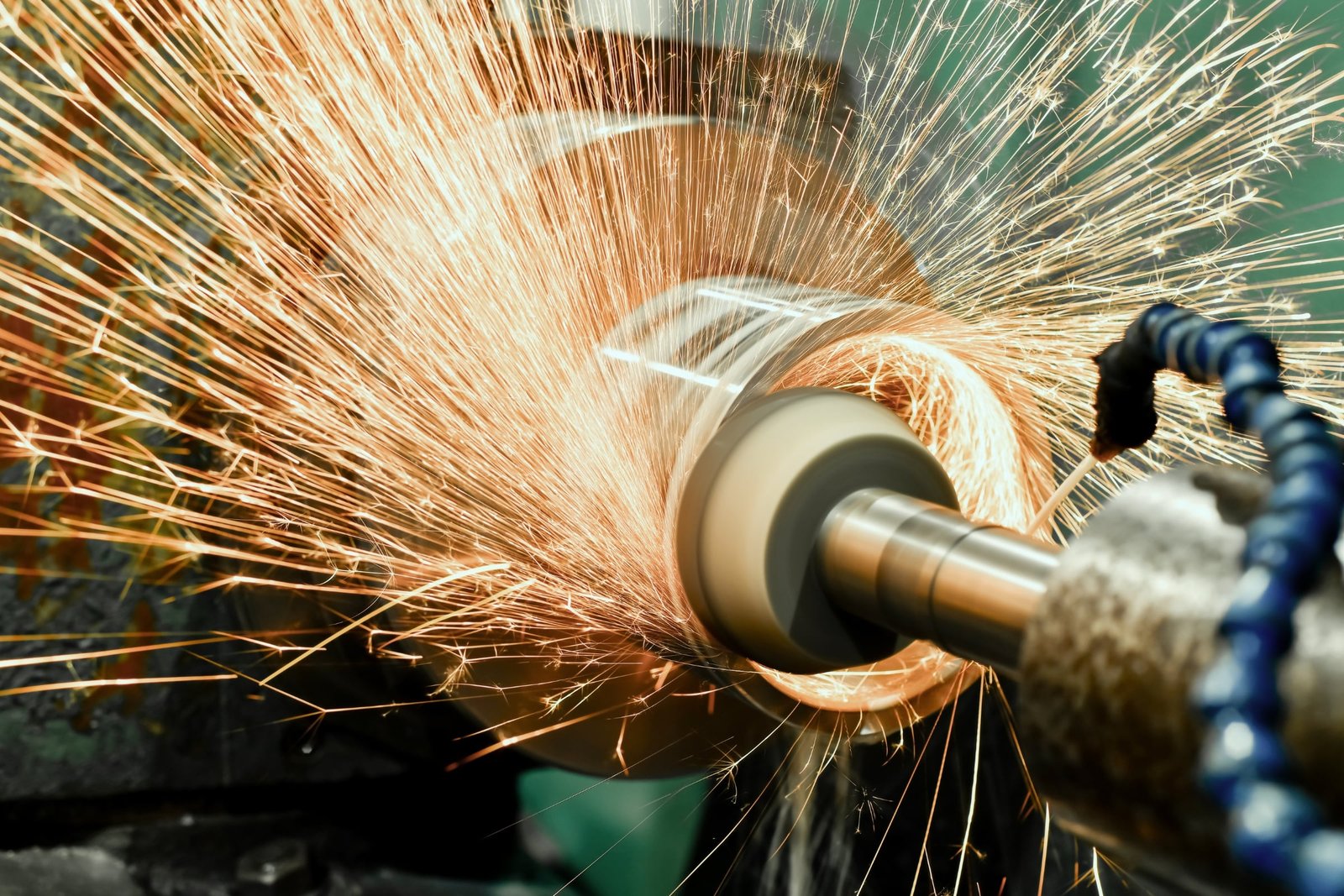

Mirror Polishing and Micro-Texturing

Mirror polishing to Ra 0.1–0.2 μm minimizes material pickup on punches and dies, critical for clean-edge blanking in stainless steel and copper alloys. Micro-texturing — laser-etched dimples 10–50 μm deep — retains lubricant in high-pressure zones, reducing galling and enabling dry or semi-dry stamping in automotive applications.

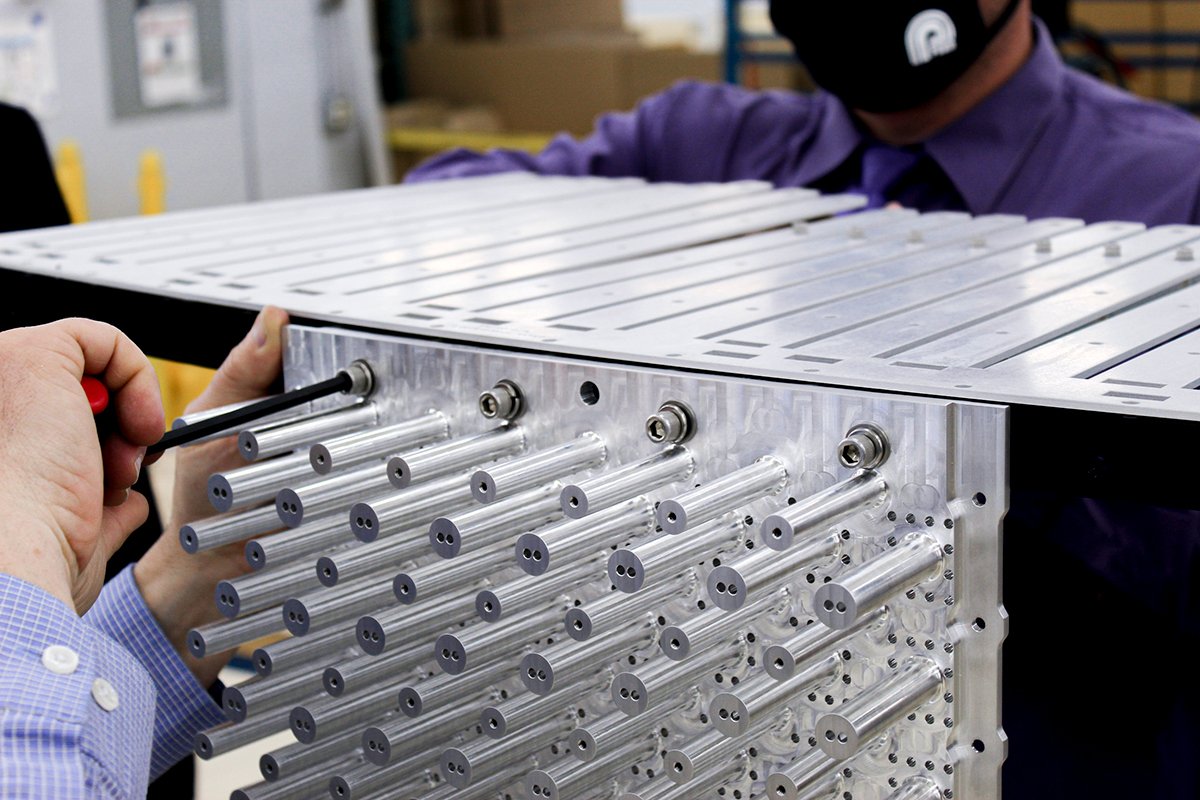

Modular vs. Monolithic Design

Modular inserts allow field replacement of wear zones in 15–30 minutes without removing the entire die set, cutting downtime by 50–70%. Monolithic designs offer superior rigidity and positional repeatability (+/-0.002 mm) for ultra-precision work but require full-set removal for repair. Quick-change cassette systems combine both: a monolithic core nested in a standardized frame, enabling <5-minute swaps between product families.

Dimensional Tolerance Verification

Dimensional tolerance defines the permissible deviation from nominal CAD geometry. Progressive mold components typically require ±0.001 mm (1 µm) class accuracy on critical features such as punch diameters, die apertures and pilot holes.

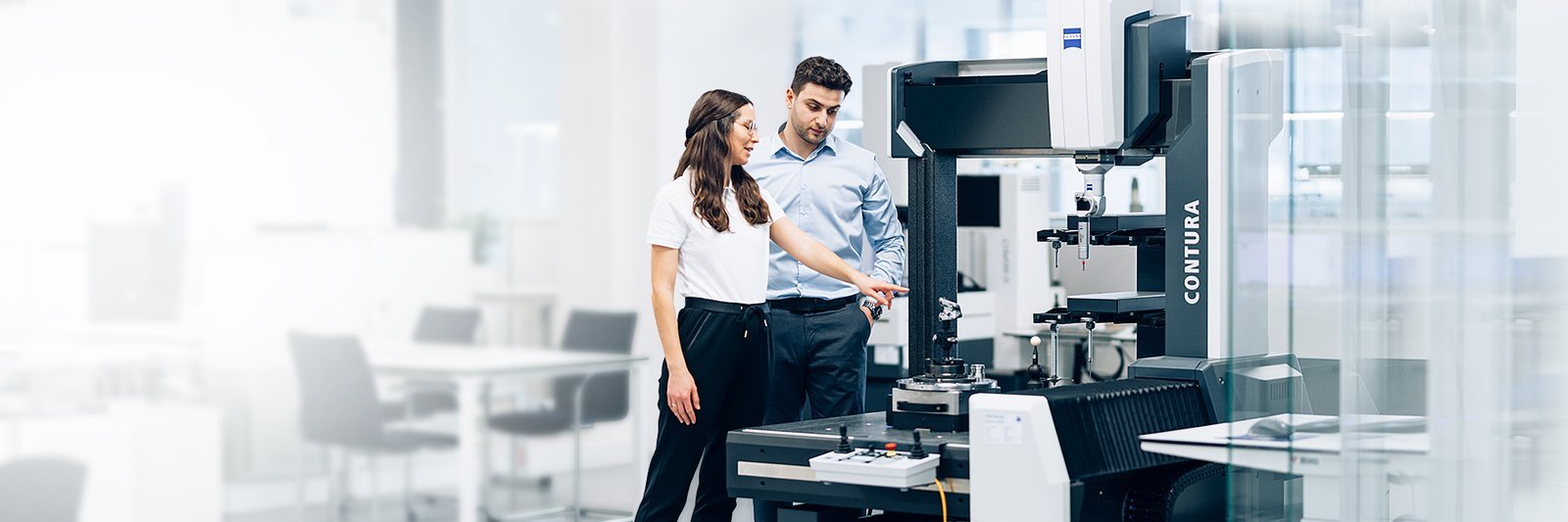

Coordinate-measuring machines (CMMs) — ZEISS MICURA systems measure to 0.7 µm repeatability — provide traceable verification. Every FAI report must include actual-versus-nominal deviation data for form-critical dimensions, ensuring stamping alignment over millions of cycles.

Surface Roughness and Finish Quality

Surface roughness (Ra) governs friction, wear and part-release behavior. Mirror-grade EDM finishes achieve Ra ≤ 0.1 µm on punch faces and die cavities, minimizing galling and extending tool life.

Optical profilometry and toolmaker’s microscopes (Nikon V-12B class) map peak-to-valley topology. Buyers should request Ra and Rz values on inspection reports, especially for high-speed or thin-foil applications where surface defects propagate rapidly.

Geometric Tolerances: Concentricity and Parallelism

Geometric tolerances control orientation and position independent of size. Concentricity errors between punch and bushing exceed 0.002 mm cause eccentric wear; parallelism deviations above 0.003 mm induce tilt and premature cracking.

CMM software calculates these form deviations using least-squares datum references. Suppliers must document concentricity and parallelism on critical mating pairs, validated through multi-point probing across the component envelope.

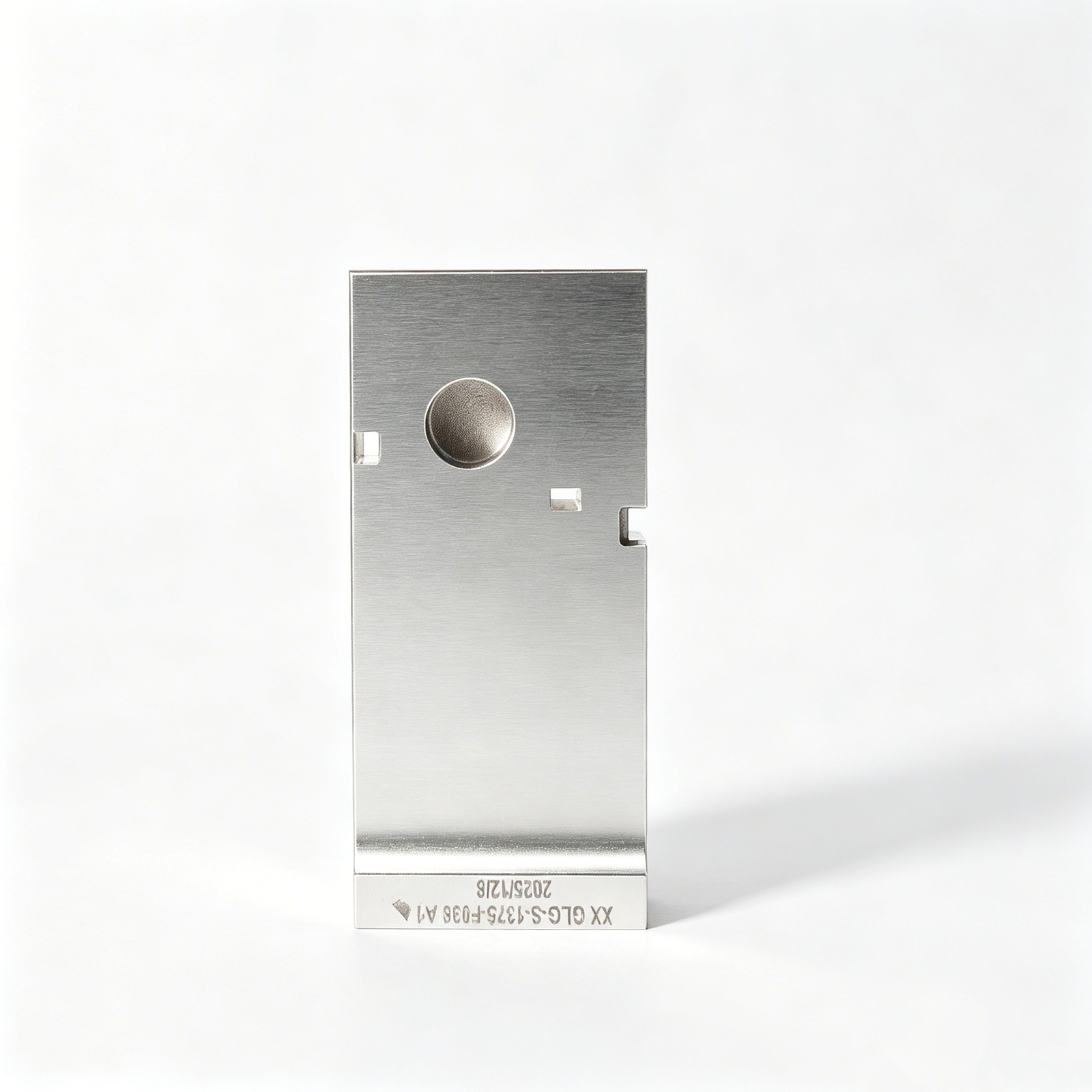

Certifications and Material Traceability

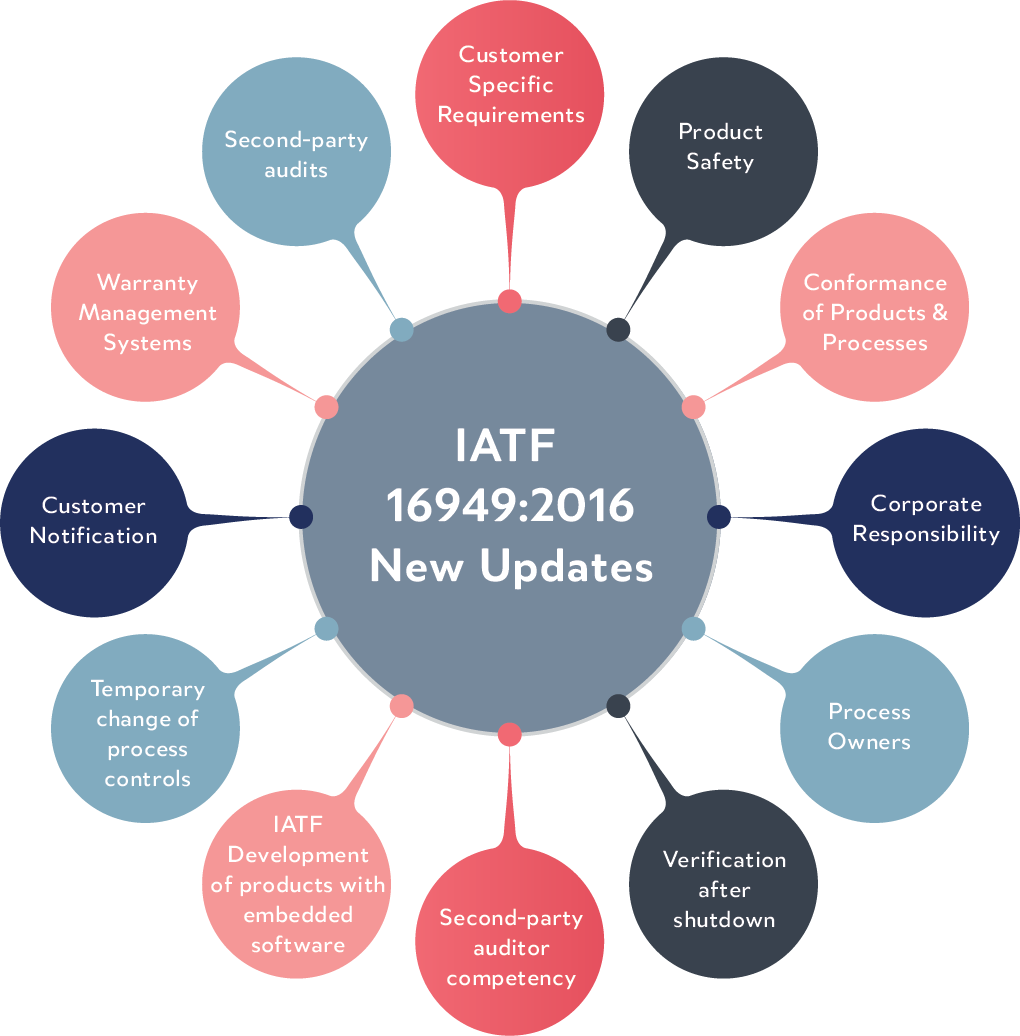

ISO 9001:2015 ensures process consistency; IATF 16949 adds automotive-specific controls for progressive mold components destined for NEV and ADAS applications. Every shipment requires material certificates (mill test reports with spectral composition) and dimensional inspection records.

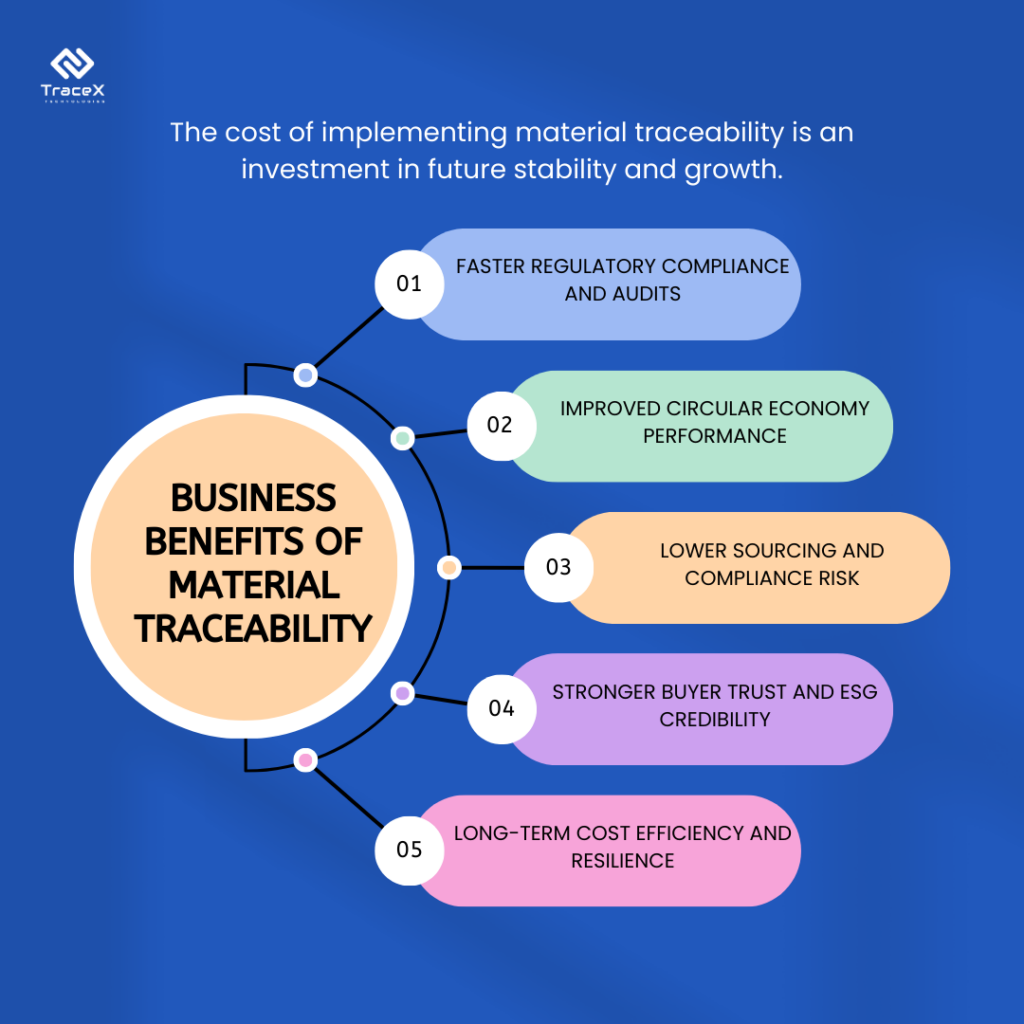

Traceability links heat lot, machining route and final inspection data, enabling root-cause analysis if field failures occur. Buyers should audit supplier QMS documentation and CMM calibration schedules before awarding contracts.

Machining Equipment and Capability Audit

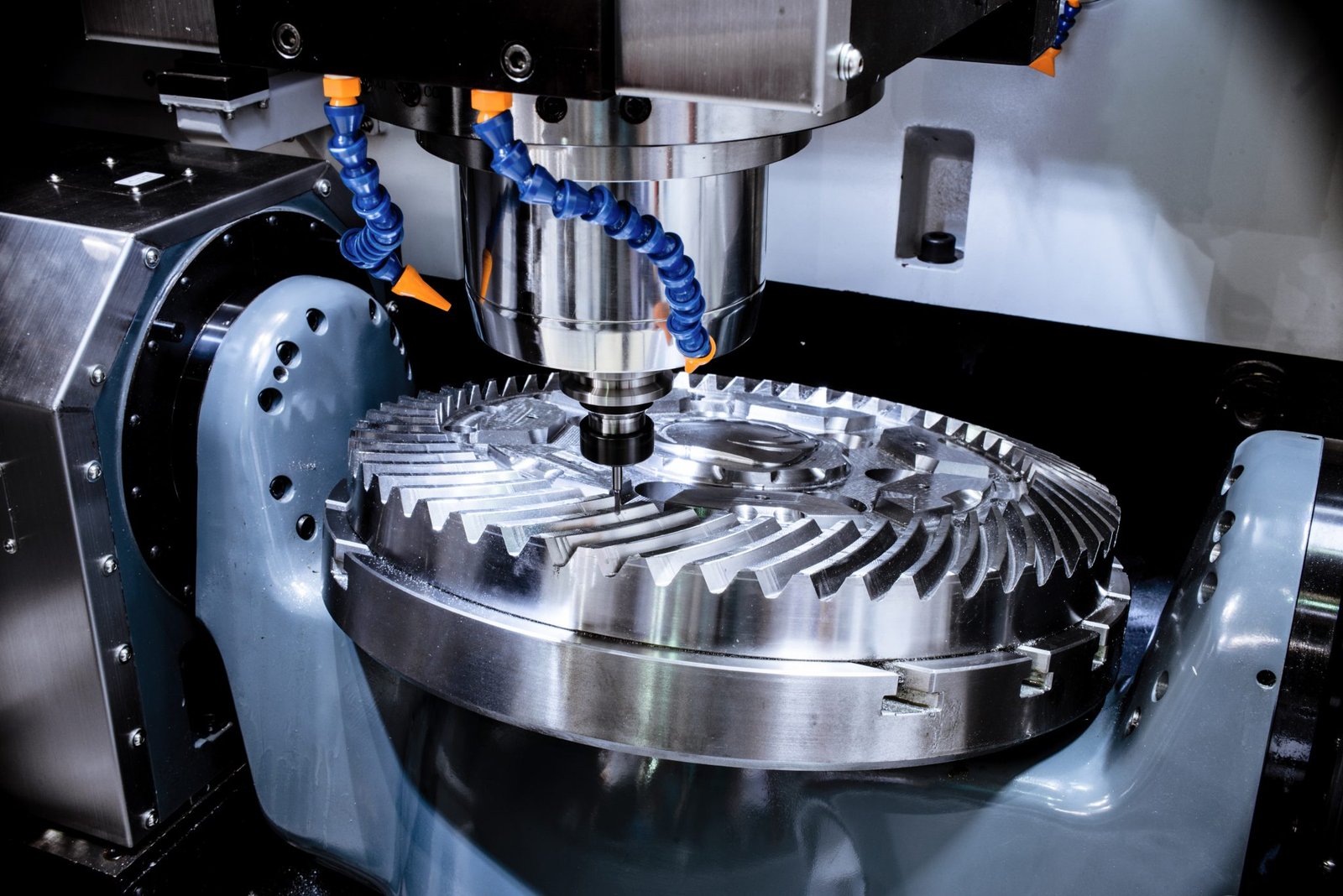

Verify that the shop operates 5-axis CNC, slow-wire EDM with +/-0.002 mm resolution, and precision grinding centers. XUXIANG deploys Sodick and Seibu wire EDM, Beijing Jingdiao electrode CNC and Dawn grinding, holding corner radii to R ≤ 0.015 mm.

Request machine lists and recent calibration logs; lack of brand-name assets or aging equipment signals limited precision headroom.

Quality Documentation and Traceability

Demand full FAI reports with CMM data (ZEISS MICURA class, 0.7um resolution), material spectral analysis and heat-treatment certificates. ISO 9001:2015 certification and five-step in-process QC are baseline requirements.

Absence of material traceability or generic inspection stamps are immediate disqualifiers for critical progressive mold components.

Lead Time Flexibility and Capacity

Assess dual-factory capacity and expansion plans; XUXIANG’s 2025 Quanzhou site adds 1,400 m² and targets 200% output growth, enabling 30% faster delivery than industry average.

Single-site suppliers often lack surge capacity for urgent re-orders or design iterations.

After-Sales Support: Regrinding and Coating Renewal

Confirm post-delivery services including punch regrinding, PVD re-coating and dimensional restoration. A supplier with in-house EDM and grinding can refresh worn progressive mold components without third-party delays.

Lack of rework capability forces costly new-part orders and extended downtime.

Specifying Generic Tolerances Without Application Context

Blanket callouts like ‘+/-0.01 mm on all features’ drive cost without benefit. A pilot pin demands +/-0.002 mm fit, but a mounting hole can accept +/-0.05 mm. XUXIANG’s DFM reviews flag over-specification on ~40% of first-time RFQs, cutting machining time by 15–25% when buyers adopt tiered tolerances tied to function.

Ignoring Material Certificates and Heat-Treatment Records

Accepting parts without mill certs or hardness reports invites premature failure. A Tier-1 automotive stamper traced cracked punches to uncertified SKD11, replacing 18 dies in six months. XUXIANG includes spectral analysis and Rockwell reports in every FAI package, verifying alloy chemistry and HRC before shipment.

Underestimating Lead Time for Carbide Grinding

Carbide punches require 7–10 days of grinding and wire-EDM finishing; buyers who assume steel timelines miss launch windows. A 5G connector project delayed two weeks when the buyer scheduled carbide delivery on a four-day steel quote. XUXIANG quotes carbide separately, flagging grinding and inspection cycles up-front.

Neglecting Pilot Pin and Stripper Plate Wear Rates

Focusing only on punch and die costs while ignoring consumables creates unplanned downtime. Pilots wear every 500k–1M hits; strippers every 2–3M. A medical-device stamper budgeted zero spares, facing $12k expedite fees for air-freight replacements. XUXIANG recommends a 2× pilot and 1× stripper spare set at project kickoff.

Choosing the Lowest Bid Without Validating Capability

Price-only decisions often backfire when suppliers lack CMM verification or mirror-grade EDM. One buyer saved 18% on quote, then spent 9 weeks and 22% more reworking out-of-tolerance inserts. XUXIANG’s ZEISS MICURA reports and named equipment list (Sodick, Seibu, Beijing Jingdiao) let buyers verify capability before PO, eliminating post-delivery surprises.

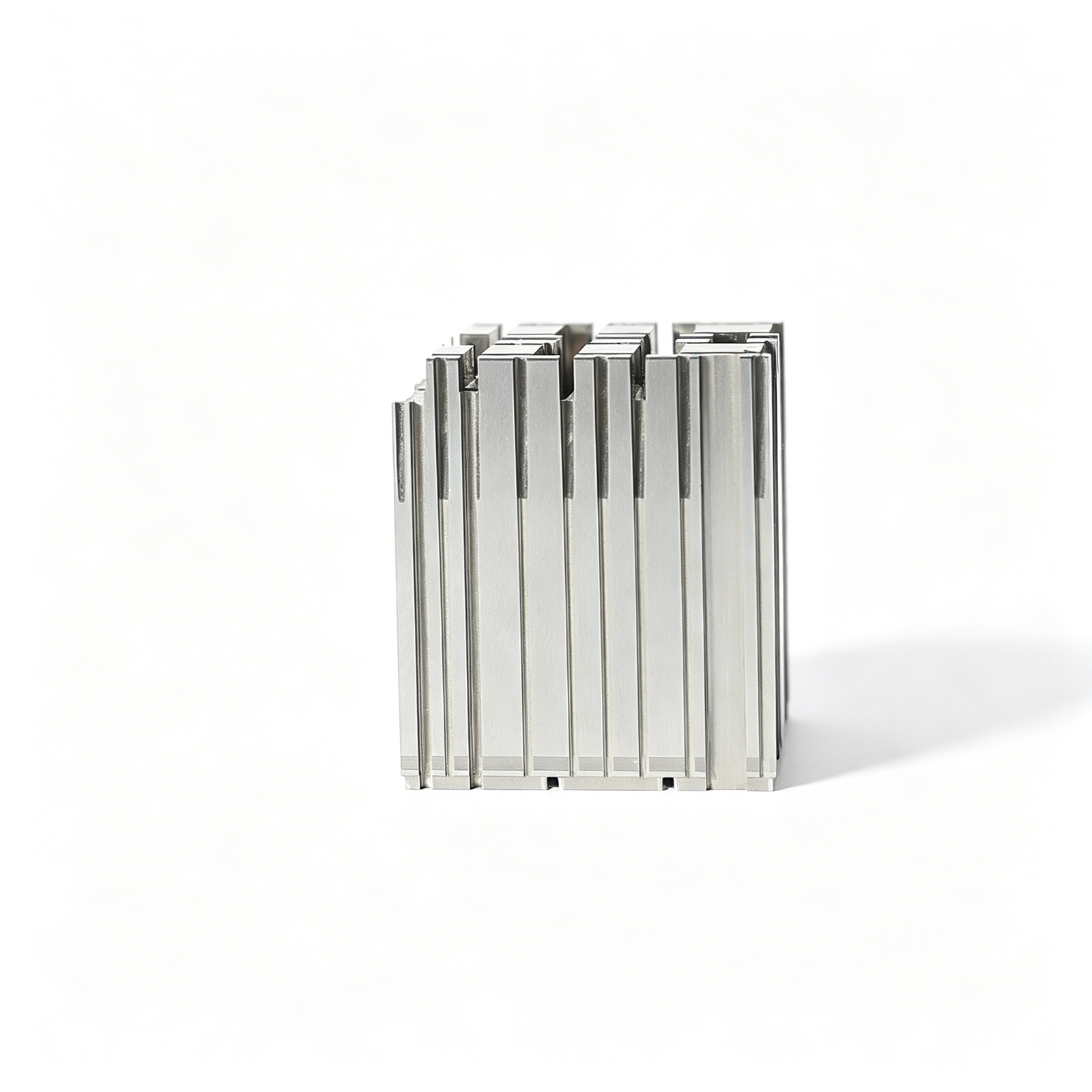

Design Review and DFM Collaboration

Submit CAD files (STEP, IGES or native) for DFM analysis within 24–48 hours. Engineers flag undercut risks, draft angles and wall-thickness ratios before tooling begins, preventing costly mid-project revisions.

Material and Coating Selection

Specify steel grade (SKD11, SKH-51, ASP-23) and surface treatment (TiN, TiCN, PVD) based on cycle count and part geometry. Material certificates and spectral analysis confirm chemistry before machining starts.

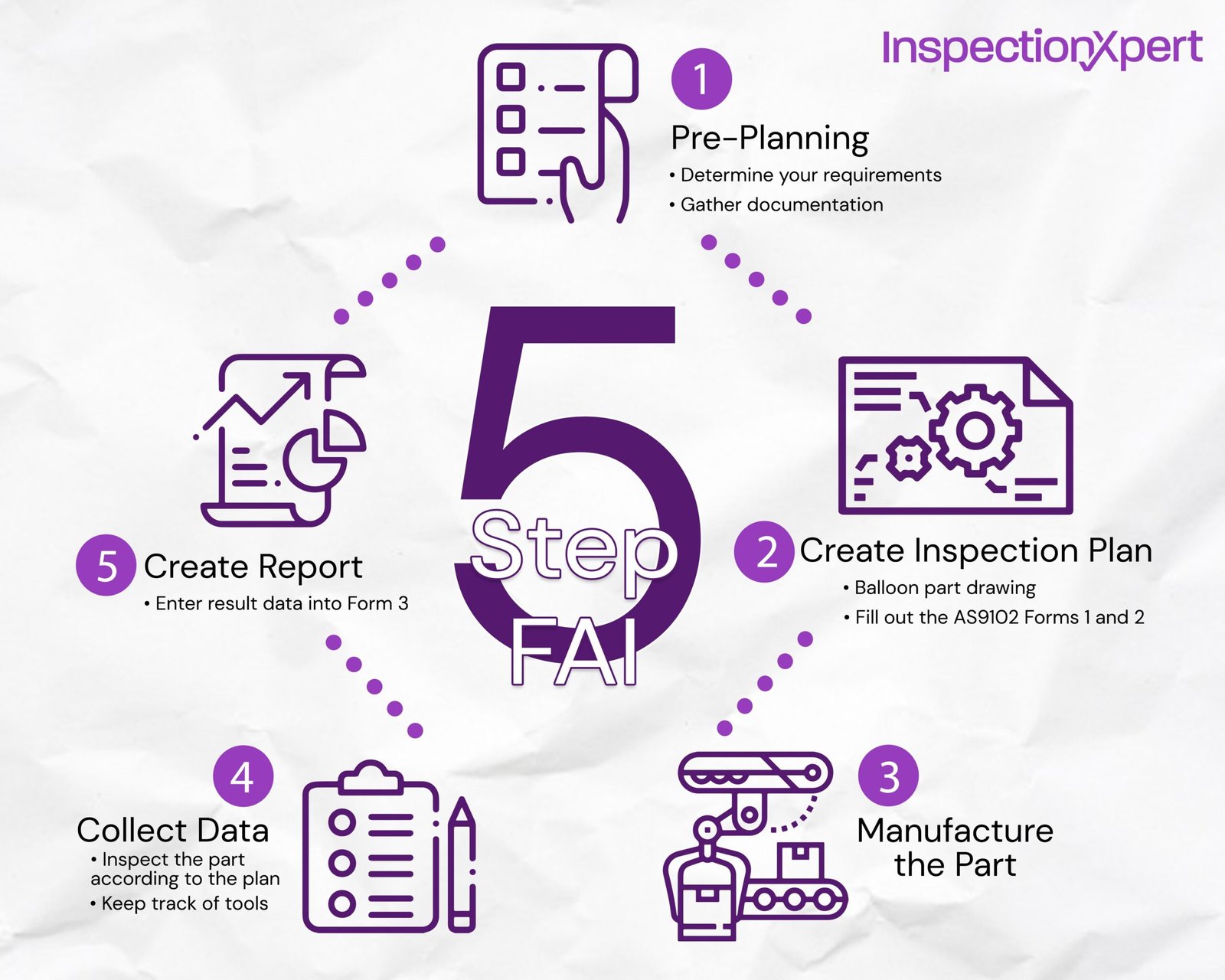

Prototype Sampling and First-Article Inspection

T1 samples undergo ZEISS MICURA CMM validation to 0.7 µm and Nikon toolmaker’s microscope surface checks. FAI reports include dimensional data, material certs and surface-integrity documentation for traceability.

Production Ramp and Process Validation

Pilot runs verify repeatability across multi-cavity layouts; in-process monitoring tracks tolerances at +/-0.002 mm on slow-wire EDM. ISO 9001:2015 process controls lock parameters before volume release.

Ongoing Maintenance Scheduling

Schedule preventive inspection every 50,000–100,000 shots, depending on material abrasiveness. XUXIANG offers refurbishment services including re-EDM, re-grind and PVD re-coating to extend die life by 30–50%.
