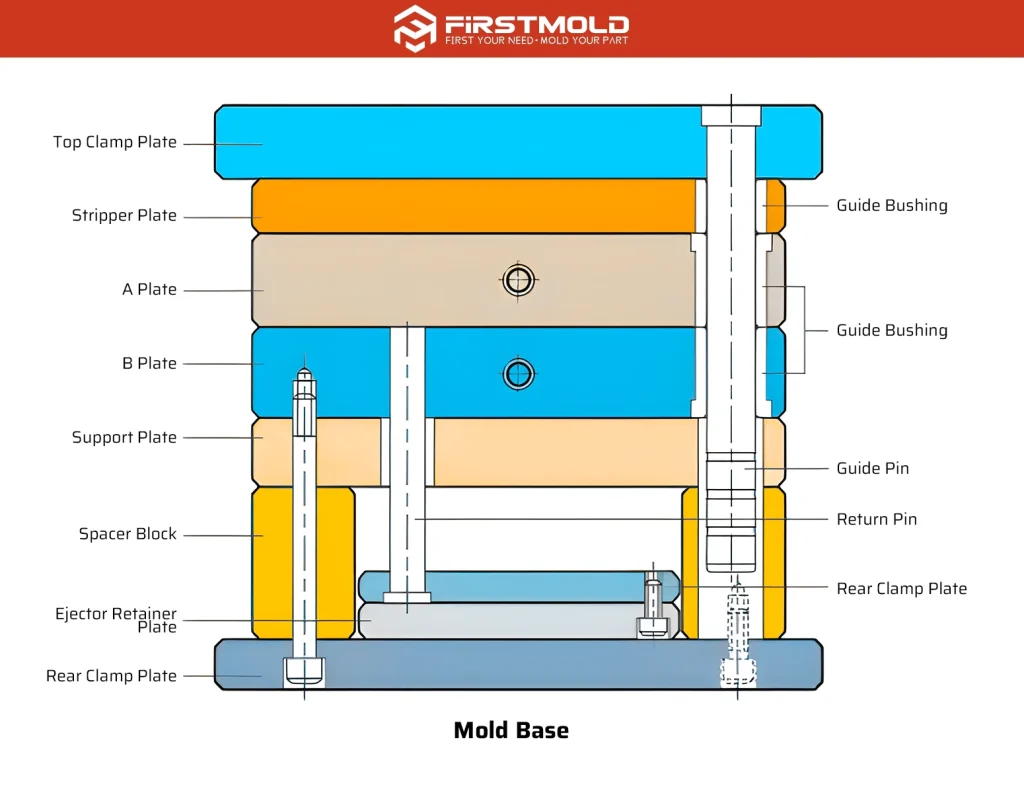

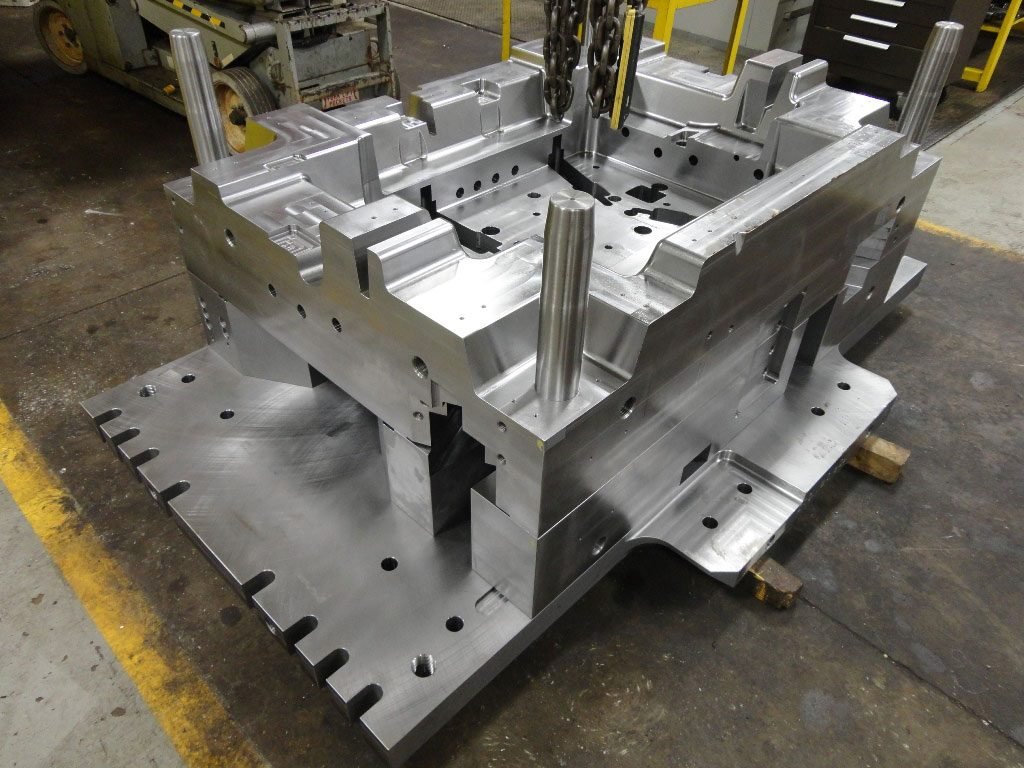

Two-Plate Bases

Two-plate designs separate along a single parting line, ejecting part and runner together. Typical shot sizes range from 50 to 2,000 tonnes; cavity counts scale from 1 to 64+ for small electronics housings. XUXIANG machines two-plate bases to +/-0.002 mm positioning for 5G connector shells and automotive sensor enclosures, where simplicity and cost efficiency drive high-volume programs.

Three-Plate Bases

Three-plate bases add a second parting plane to separate runners automatically, reducing manual degating and improving gate aesthetics. Ideal for 100–800-tonne presses and 2–32 cavities in consumer electronics, medical disposables and cosmetic caps. The extra plate increases base height by 40–80 mm and tooling cost by roughly 15–25 percent versus two-plate equivalents.

Hot-Runner Bases

Hot-runner manifolds eliminate cold runners entirely, cutting material waste to near zero and shortening cycle times by 10–30 percent. Shot sizes from 150 tonnes upward; cavity counts often exceed 32 for micro-connectors and LED brackets. XUXIANG integrates thermal-management channels and precision manifold pockets, holding +/-0.003 mm on nozzle bores to prevent melt leakage and ensure gate-to-gate balance.

Stack Molds

Stack molds double output per cycle by molding on two or more levels within a single press stroke. Common in 500+ tonne machines for thin-wall packaging, caps and closures. Tooling investment is 1.8–2.2× that of conventional bases, justified when floor space or press availability constrains capacity and annual volumes exceed 10 million shots.

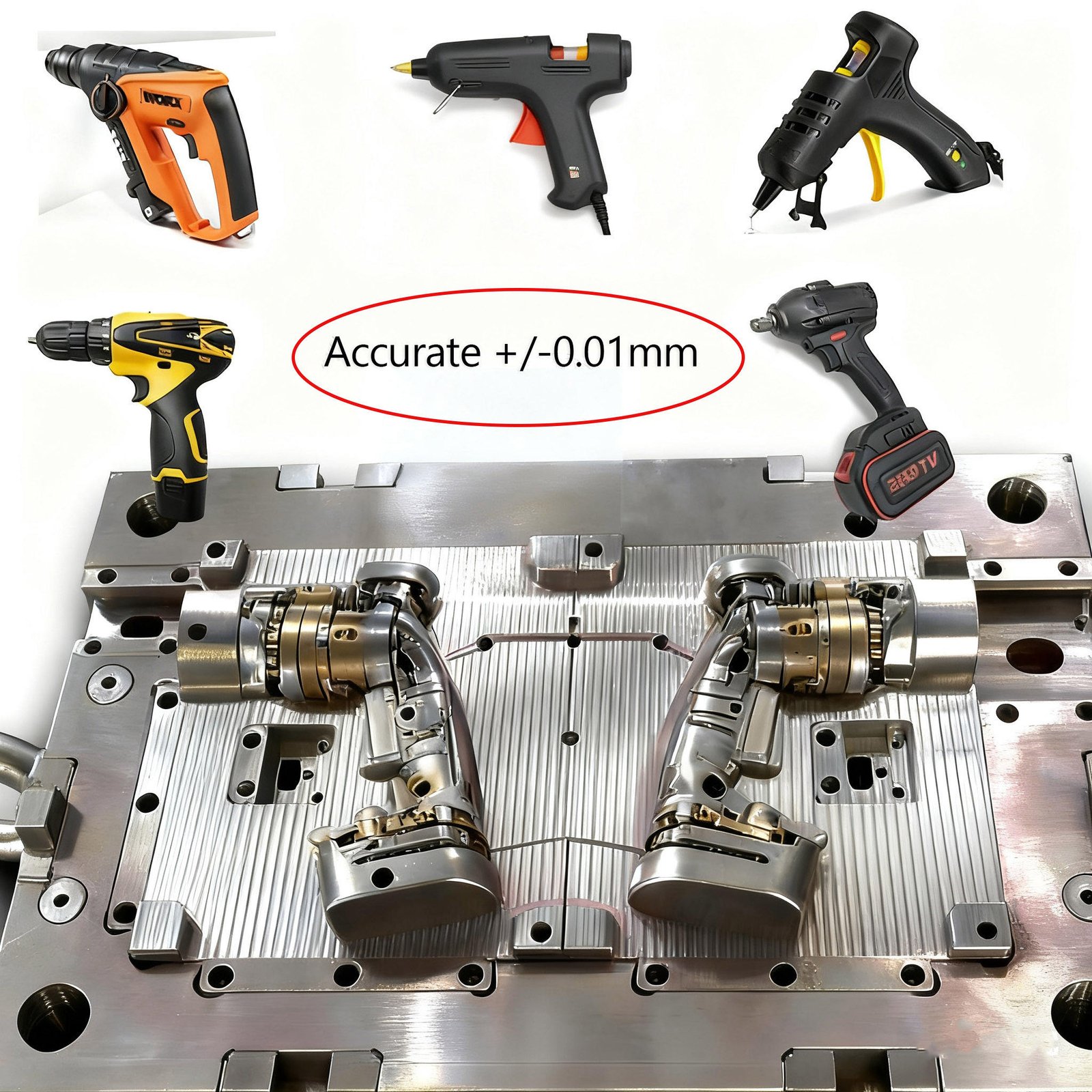

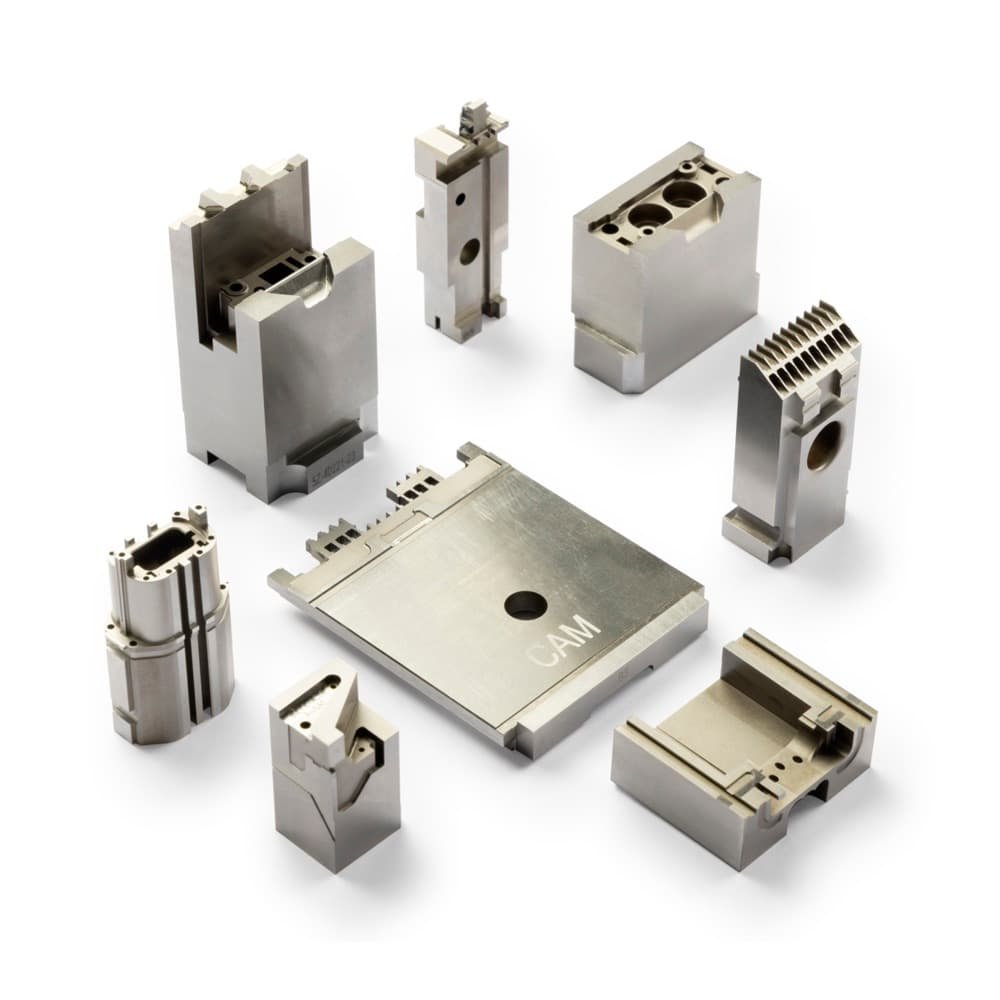

Insert and Family Bases

Insert bases accept interchangeable cavity blocks for part-number flexibility; family bases mold multiple geometries simultaneously. Both suit prototyping, low-to-medium volumes (10k–500k annually) and industries requiring frequent design iterations—medical devices, industrial sensors, automotive interior trim. XUXIANG’s modular insert pockets maintain +/-0.001 mm repeatability across block swaps, verified by ZEISS CMM.

Guided Ejector Systems and Lifter Configurations

Return-pin guidance, four-post ejector plates and angled lifters ensure repeatable part release and prevent core deflection under high ejection forces. Lifter systems add 8–12 % to base cost but reduce cycle time by 1.5–2 seconds and cut maintenance intervals from 50,000 to 100,000+ shots by eliminating misalignment wear.

Cooling-Channel Layouts: Straight-Drilled vs. Conformal

Straight-drilled channels cost 60–70 % less and suit simple geometries; conformal cooling—machined via deep-hole drilling or additive inserts—reduces cycle time by 15–30 % for complex cores. XUXIANG’s ZEISS CMM verifies channel position to +/-0.002 mm, preventing hot spots that warp thin-wall parts.

Sensor Pockets and Process Monitoring

Machined pockets for temperature, pressure and cycle-counter sensors enable real-time SPC and predictive maintenance. Adding sensor ports increases upfront cost by 3–5 % but cuts scrap rates by 20–40 % in high-volume runs by detecting melt-temperature drift before defects appear.

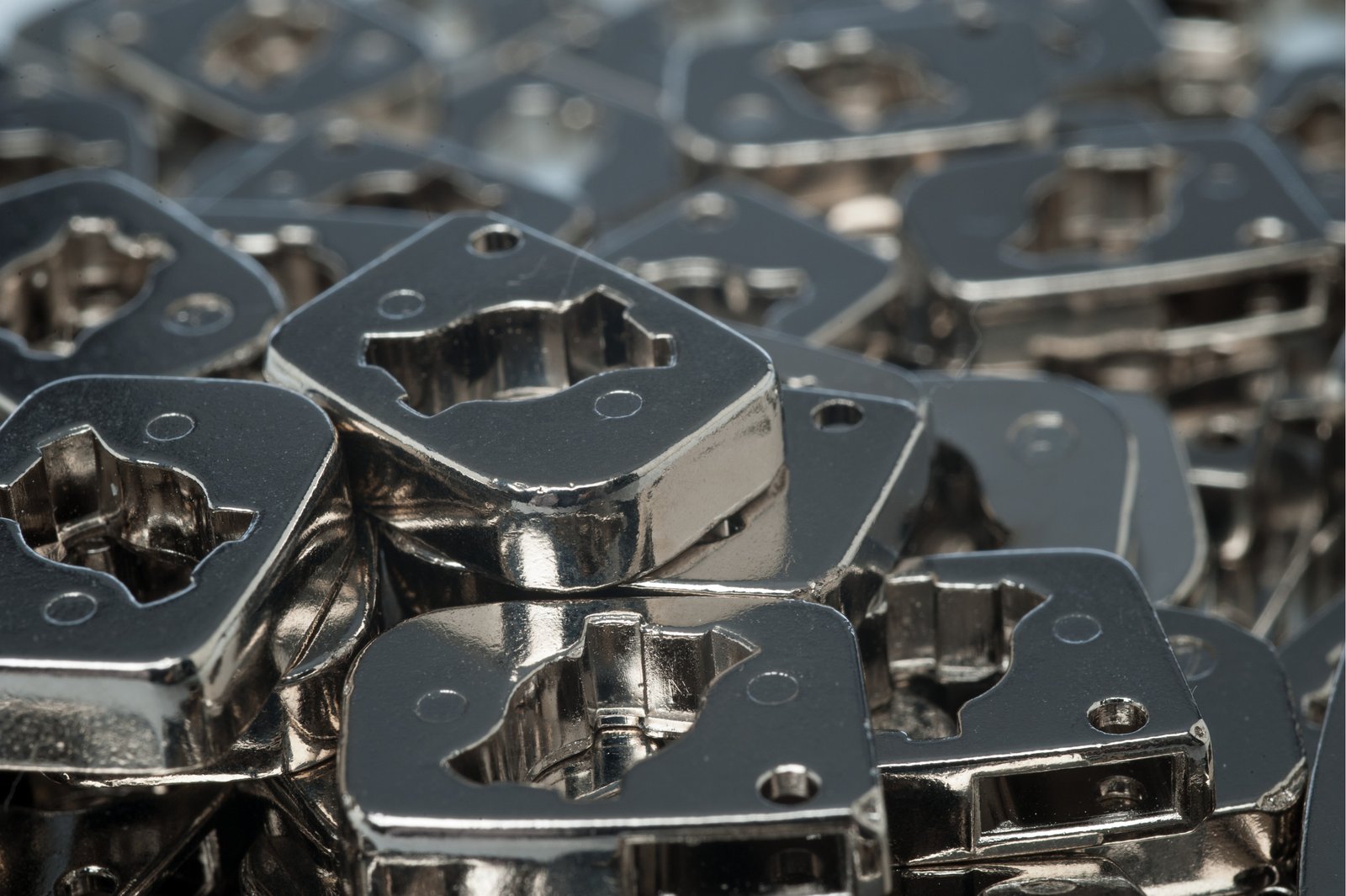

Surface Treatments for Wear and Corrosion Resistance

Nitriding (HV 600–1,000) extends service life in glass-filled resins; PVD coatings (TiN, CrN) prevent galling on ejector pins; chrome plating protects against halogen and flame-retardant additives. Treatment costs range from USD 50–200 per cavity but double maintenance intervals in corrosive resin environments.

Flatness and Parallelism of Parting Surfaces

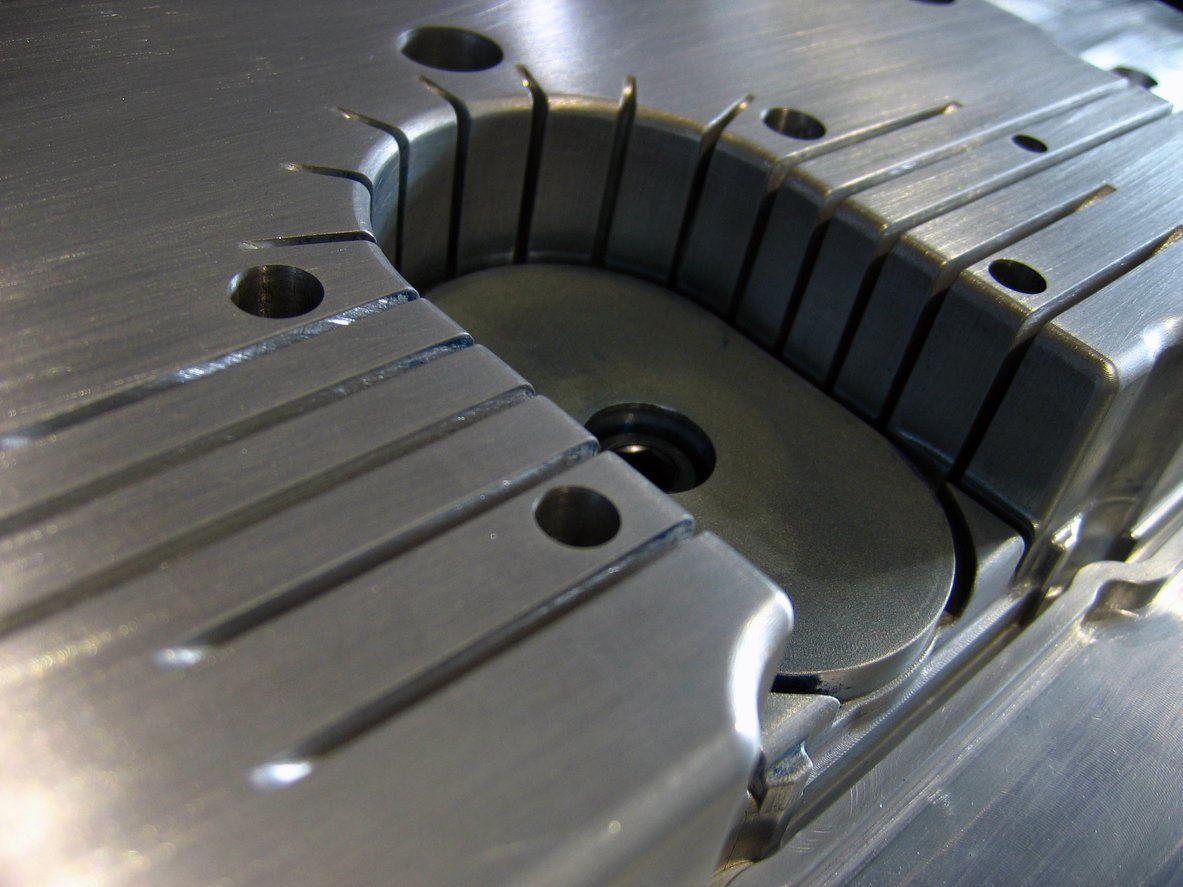

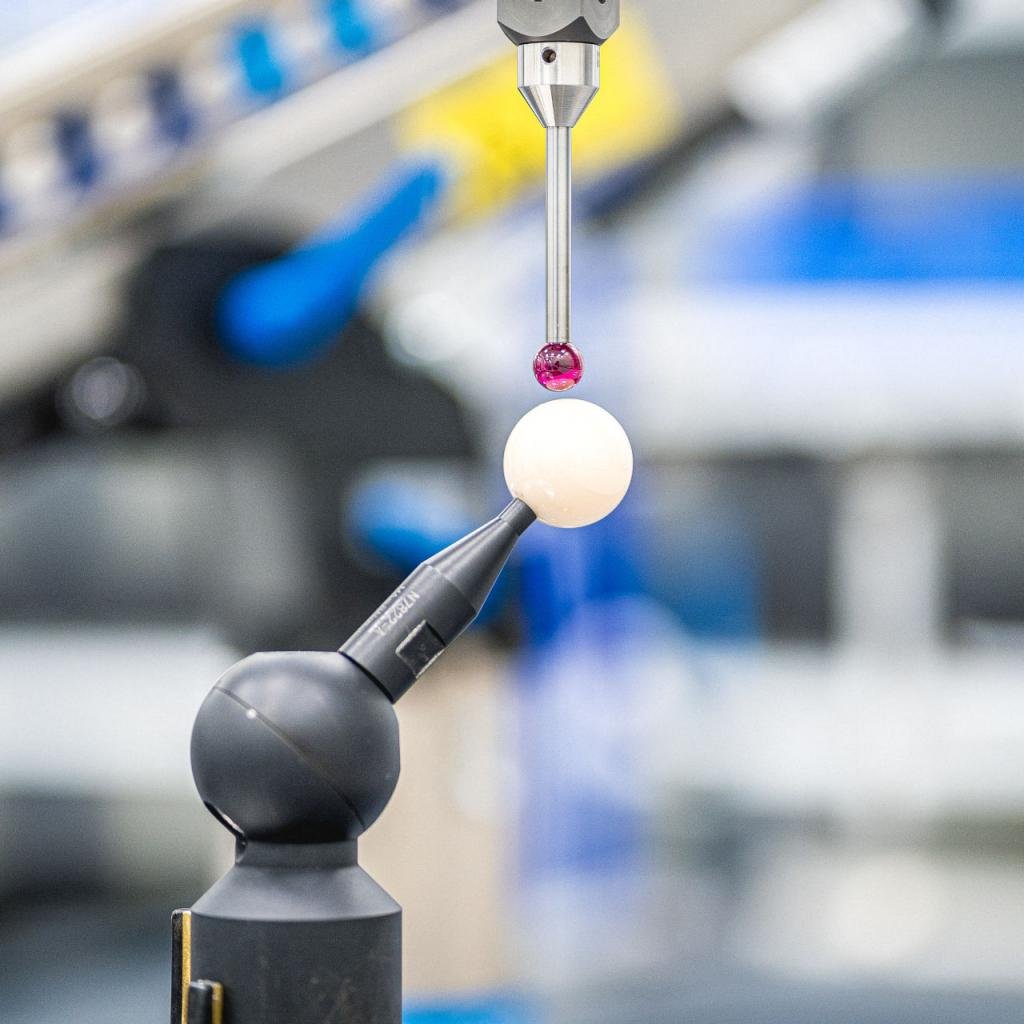

Parting-surface flatness and parallelism must hold ≤0.002 mm over 500 mm to ensure even clamping force and prevent flash at the mold interface. XUXIANG verifies these geometries with ZEISS MICURA CMM measuring to 0.7 µm, capturing full-surface deviation maps.

Out-of-spec parting surfaces allow resin to escape under injection pressure, producing flash that requires secondary trimming and increases scrap rates in high-cycle production.

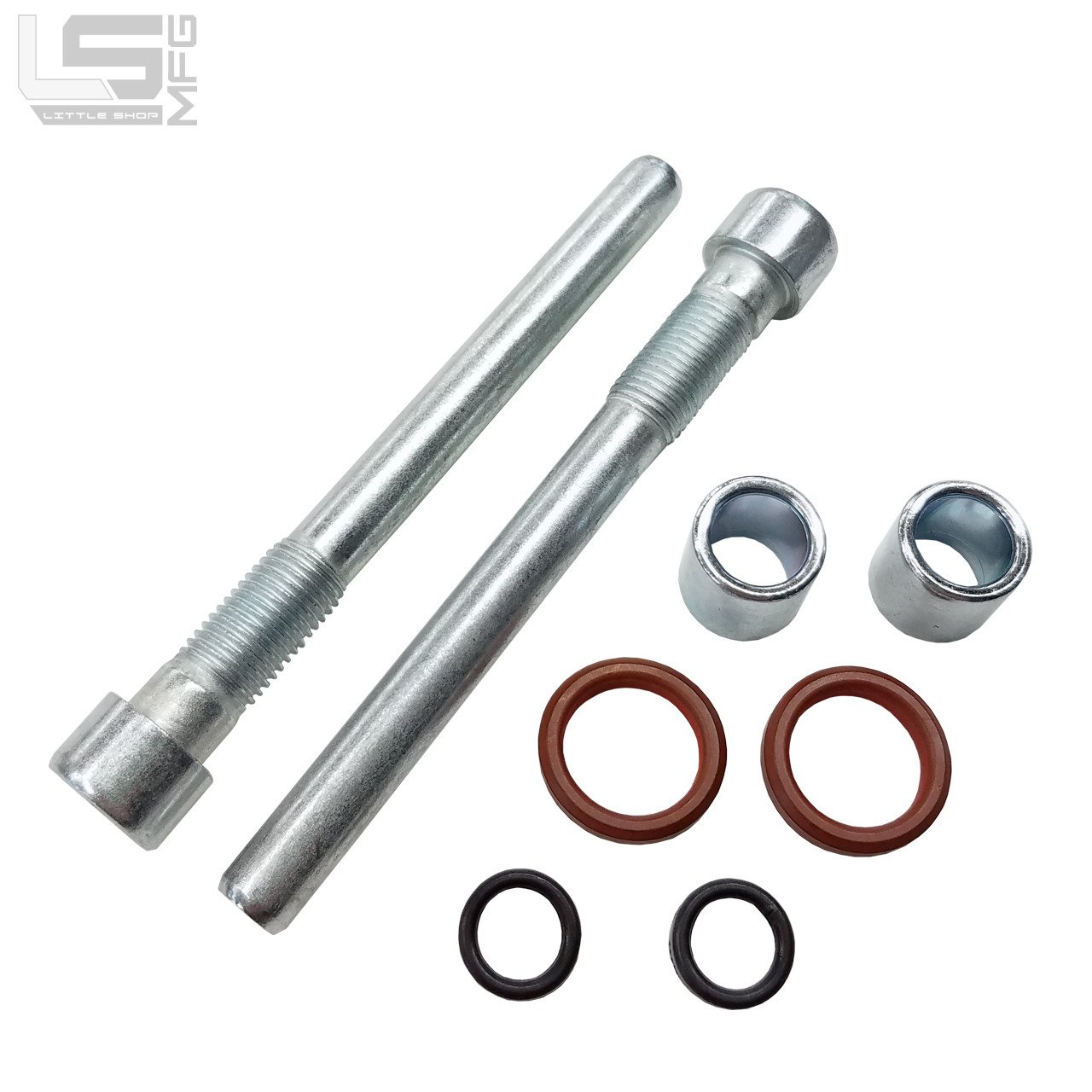

Perpendicularity of Guide-Pin Bores

Guide-pin bores must be perpendicular to the parting plane within ±0.003 mm to ensure repeatable alignment and prevent lateral play during mold opening and closing. Misalignment accelerates bushing wear and causes core shift, leading to dimensional drift in molded parts.

XUXIANG machines guide-pin holes on Fanuc-class CNC centers and inspects bore angle and position with Nikon toolmaker’s microscopes (V-12B / MM-400 class) to validate alignment before assembly.

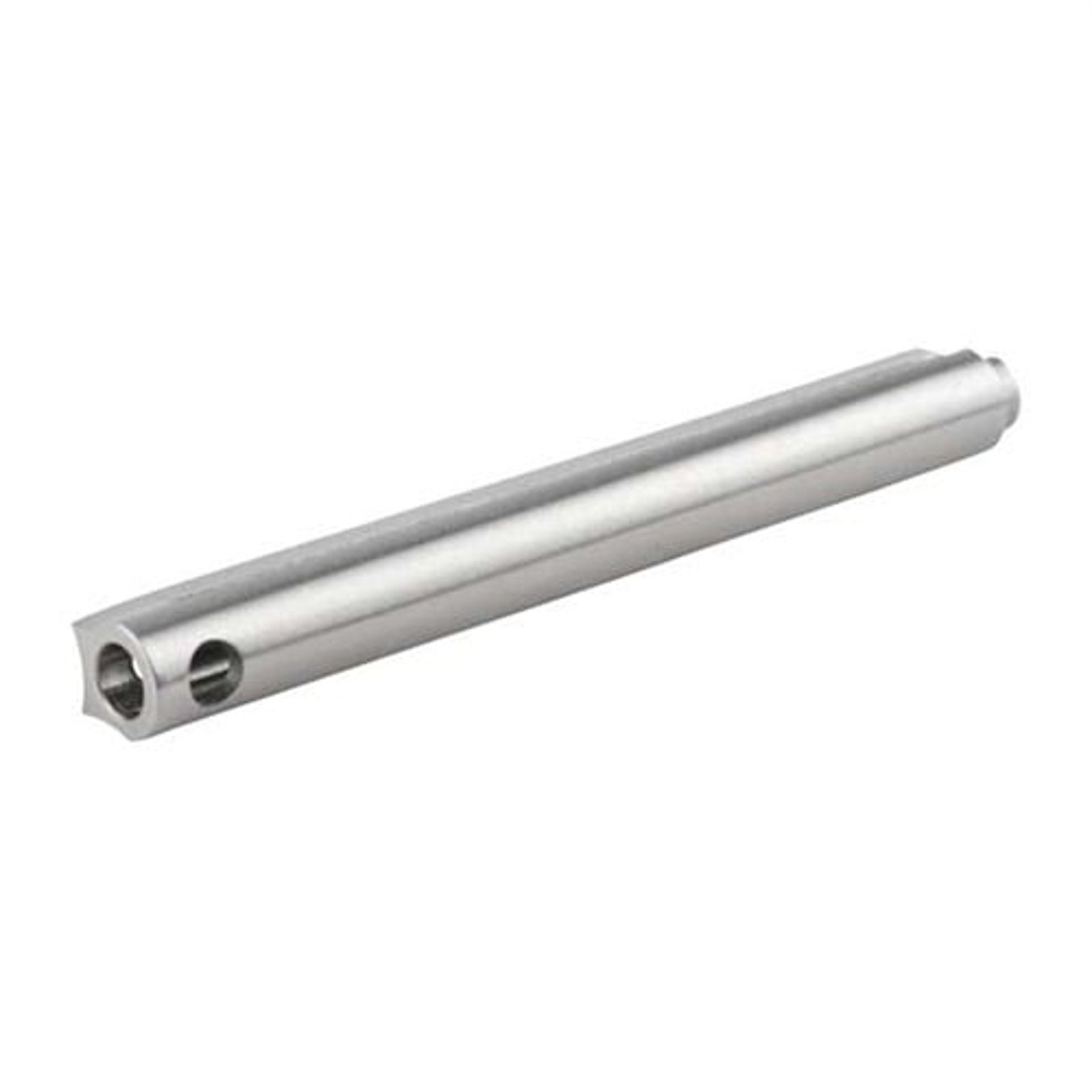

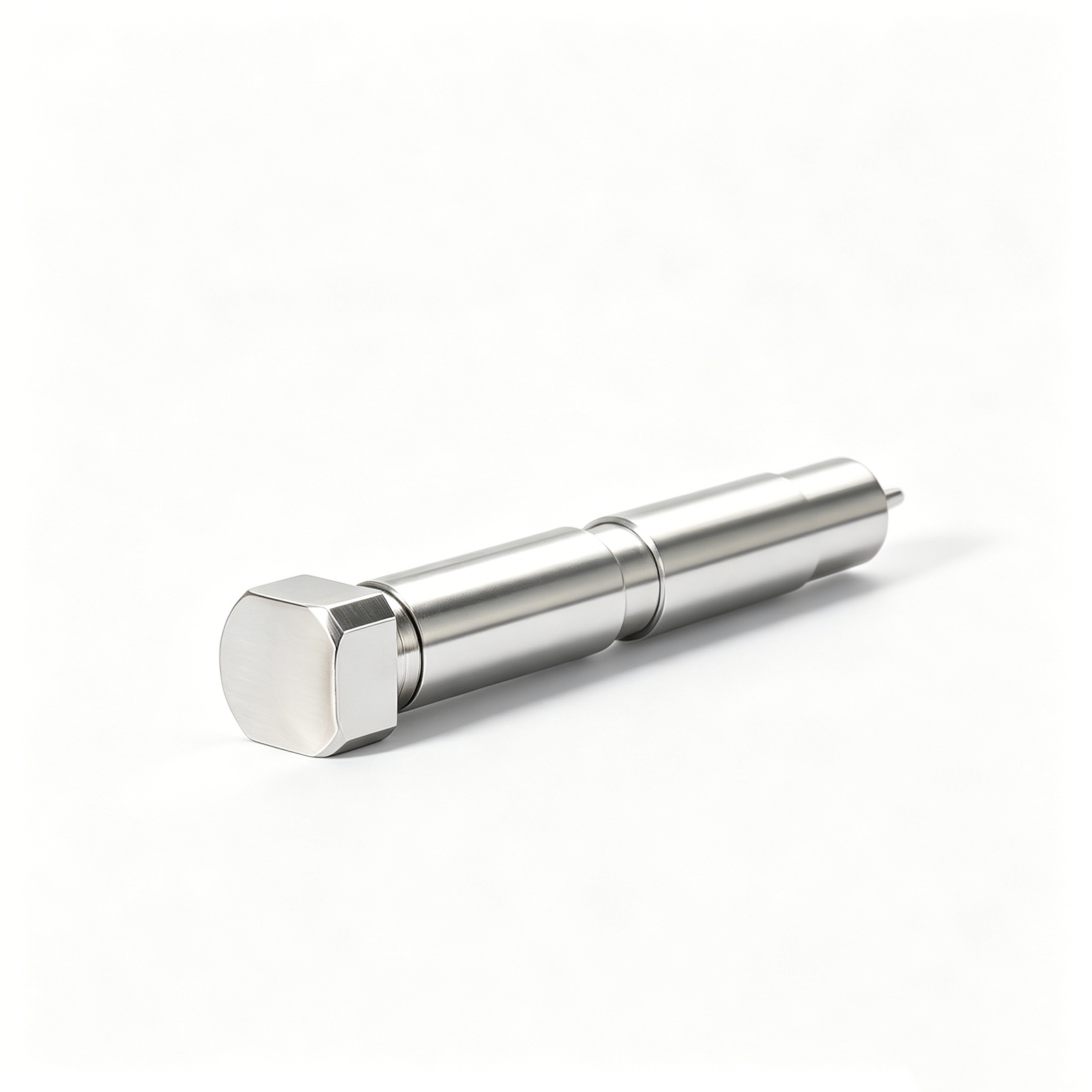

Concentricity of Ejector-Pin Bushings

Ejector-pin bushing concentricity ≤0.005 mm ensures smooth pin travel and prevents binding or breakage during part ejection. Eccentric bushings increase friction, accelerate wear, and can cause ejector-pin fracture in automated high-speed cycles.

CMM verification and in-process bore inspection catch concentricity errors before final assembly, reducing field failures and maintenance downtime.

Surface Finish and Material Documentation

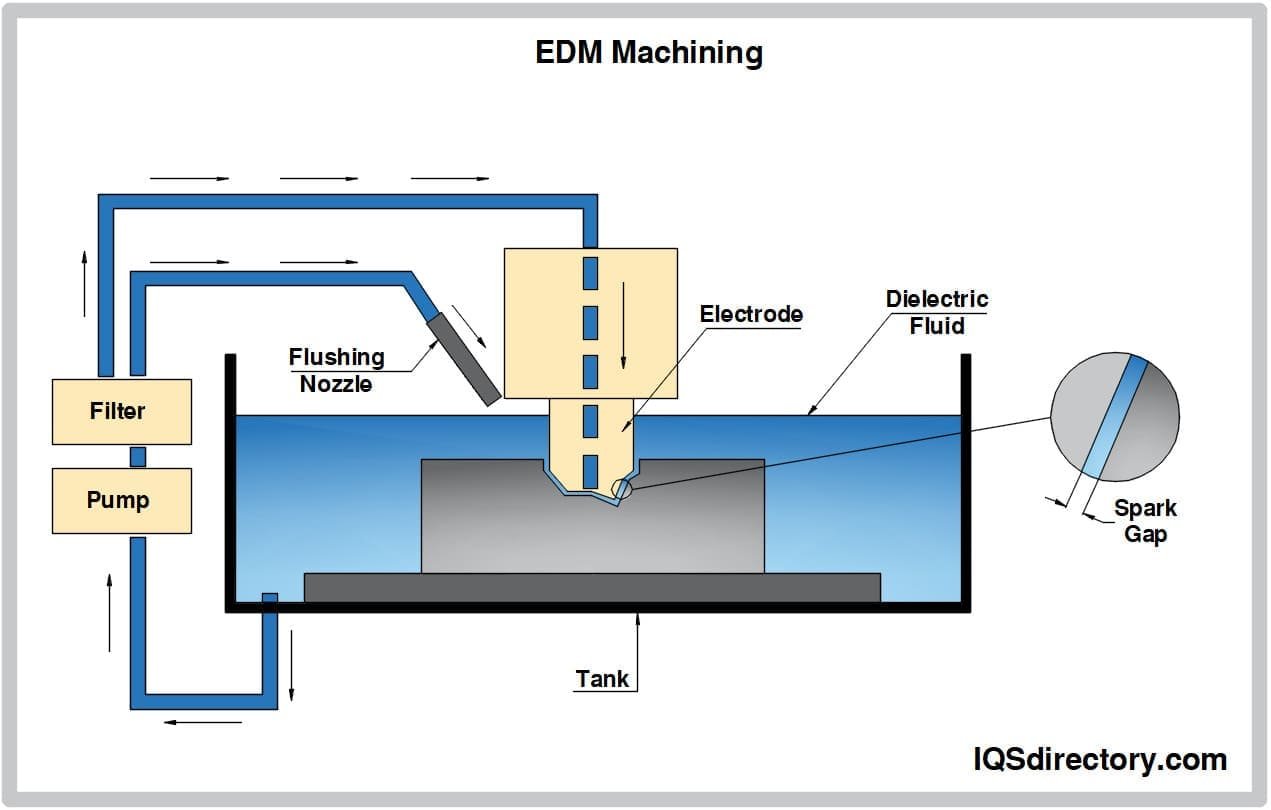

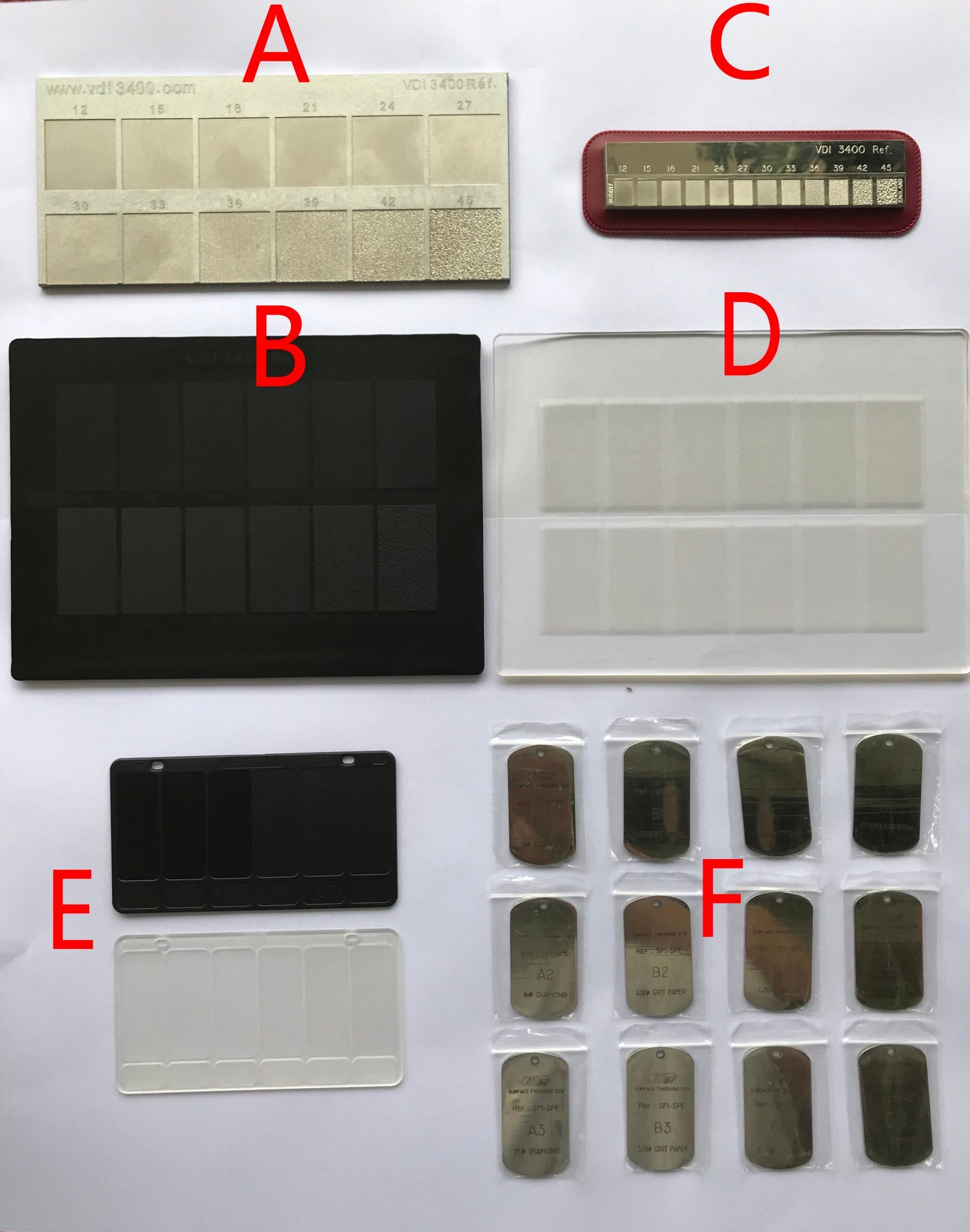

Sealing surfaces require Ra ≤0.4 µm to prevent micro-leakage and maintain vacuum integrity in gas-assisted or conformal-cooling molds. XUXIANG achieves mirror-grade EDM finishes down to Ra 0.1 µm on critical seal zones.

Material certificates (mill test reports) and heat-treatment documentation verify alloy composition, hardness (typically HRC 28–52), and dimensional stability, ensuring the base meets design-life targets in high-cycle production environments.

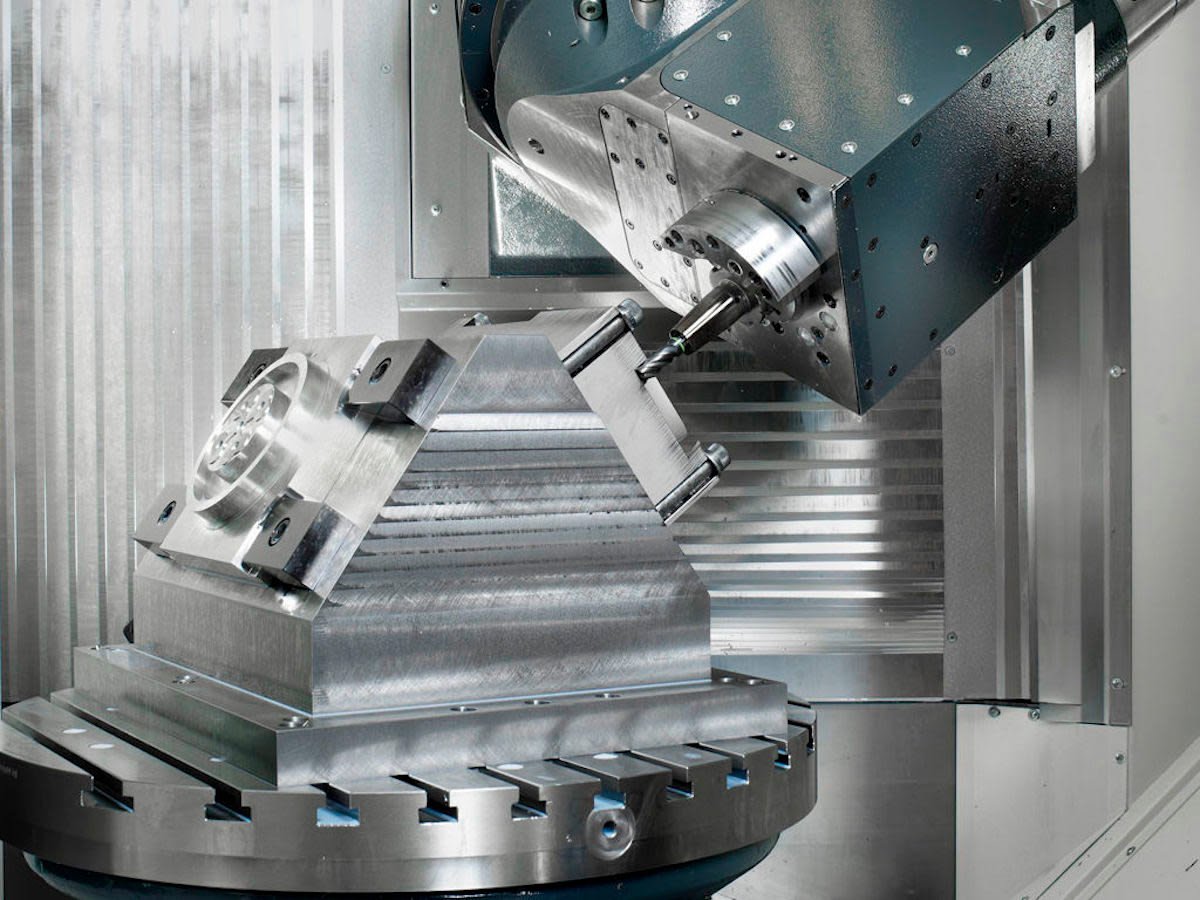

In-House CNC and Machining Capabilities

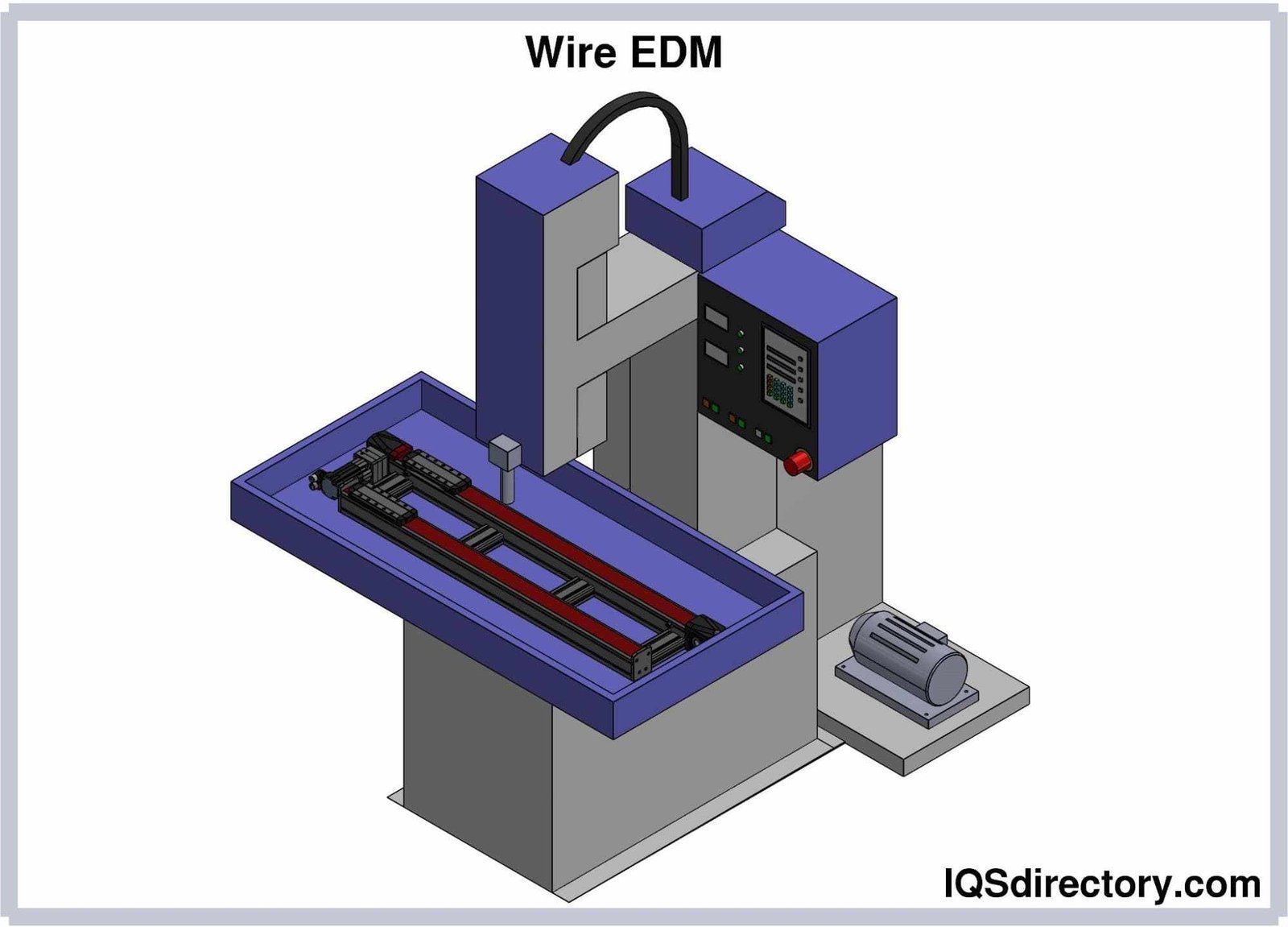

Verify that the shop operates three-axis CNC as a baseline; five-axis machining is preferred for complex cooling channels and undercut geometries. Ask for equipment lists — XUXIANG’s Fanuc-class CNC, Sodick slow-wire EDM and Dawn precision grinding centers deliver +/-0.001 mm accuracy and enable single-setup processing that minimizes tolerance stack-up.

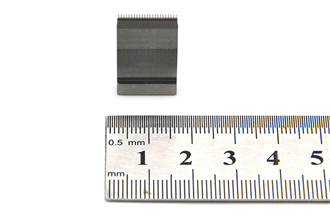

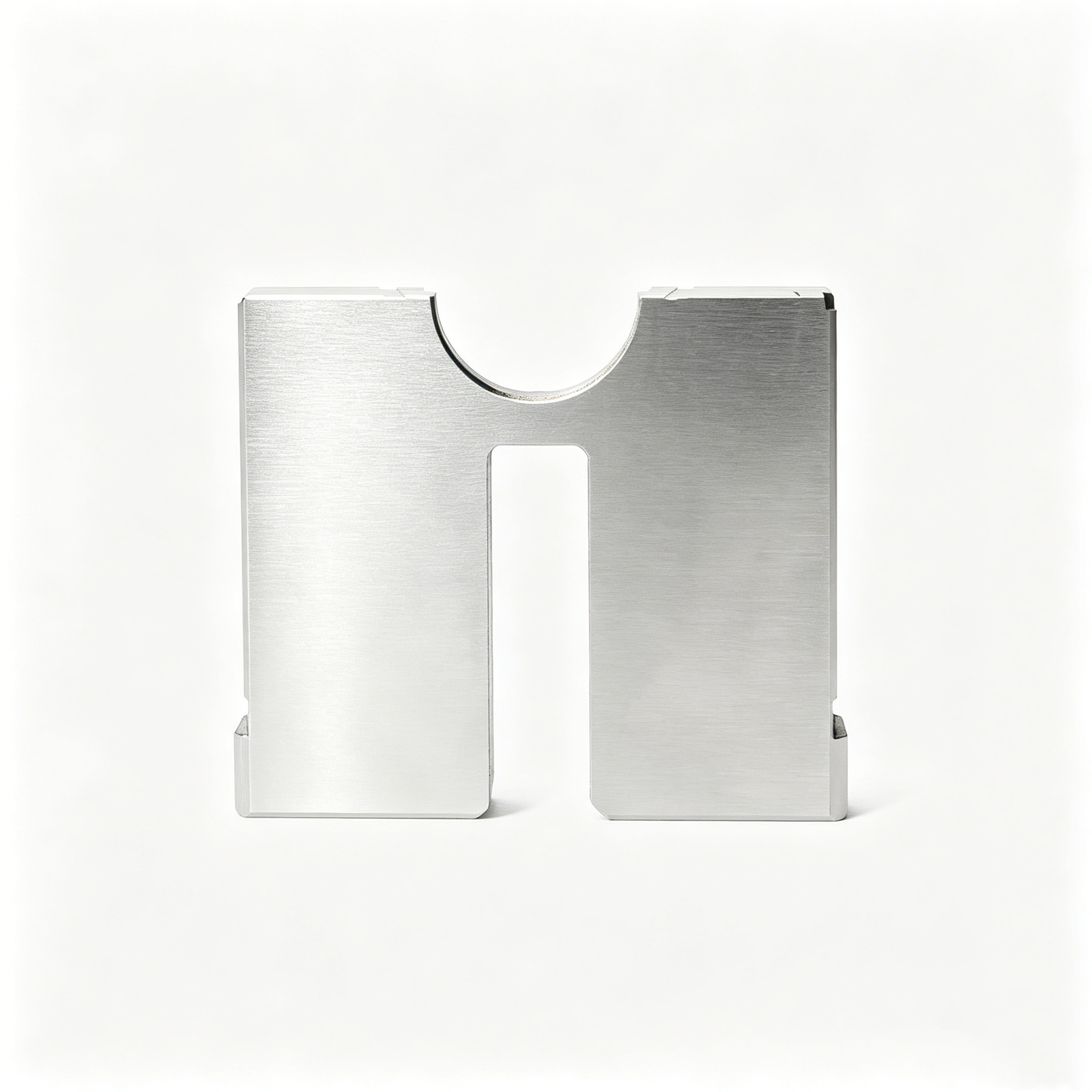

Material Sourcing and Steel-Mill Certification

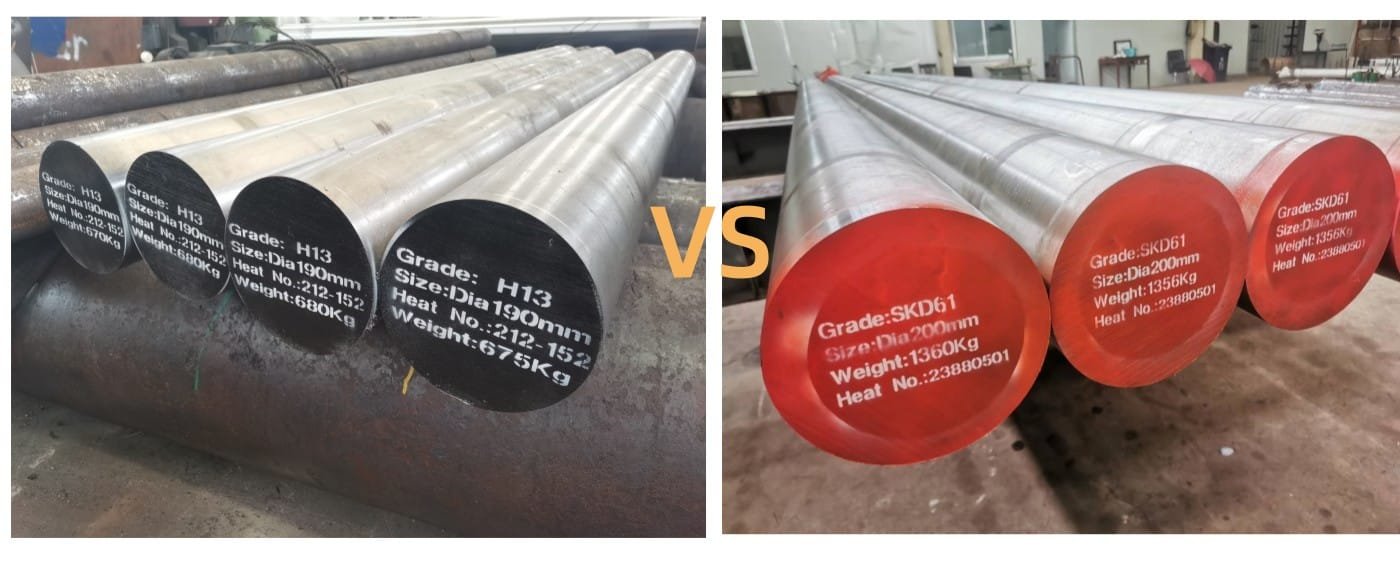

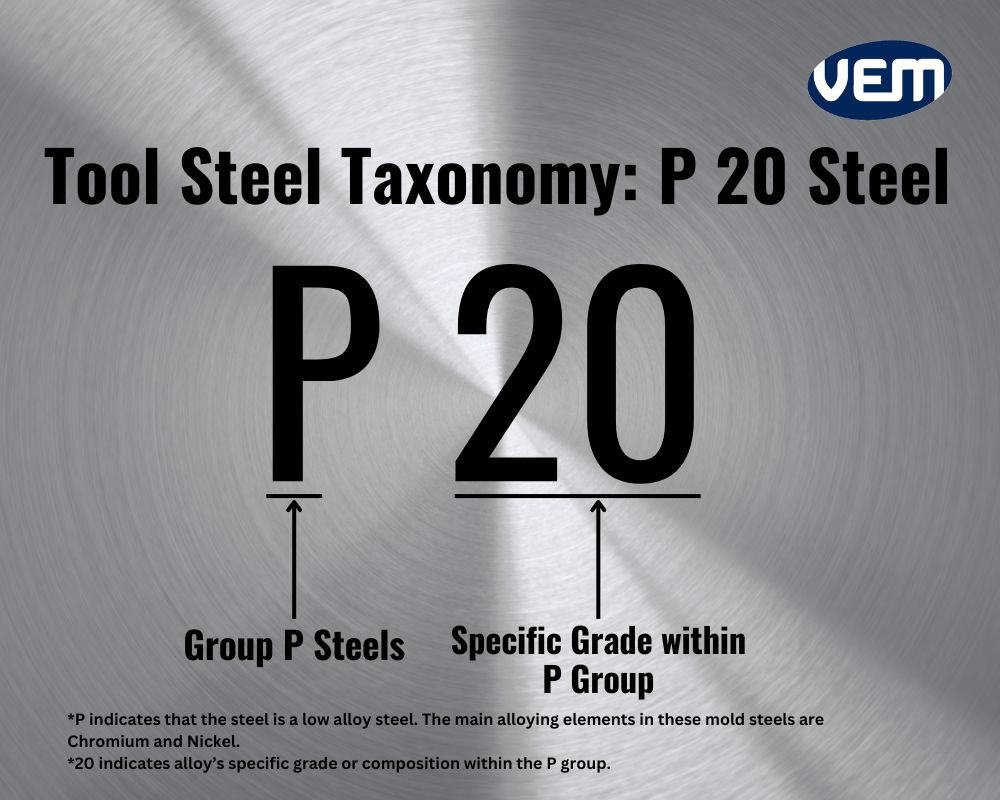

Demand material certificates from recognized mills (LKM, ASSAB, Daido). Spectral analysis at incoming inspection ensures that P20, H13 or S136 grades meet hardness and composition specifications, preventing premature wear or cracking under injection pressure.

Quality Certifications and Inspection Reports

ISO 9001:2015 is the floor; IATF 16949 is essential for automotive and NEV projects. Request sample FAI reports showing ZEISS CMM data, surface-finish readings and dimensional verification — evidence of a five-step QC flow, not spot checks.

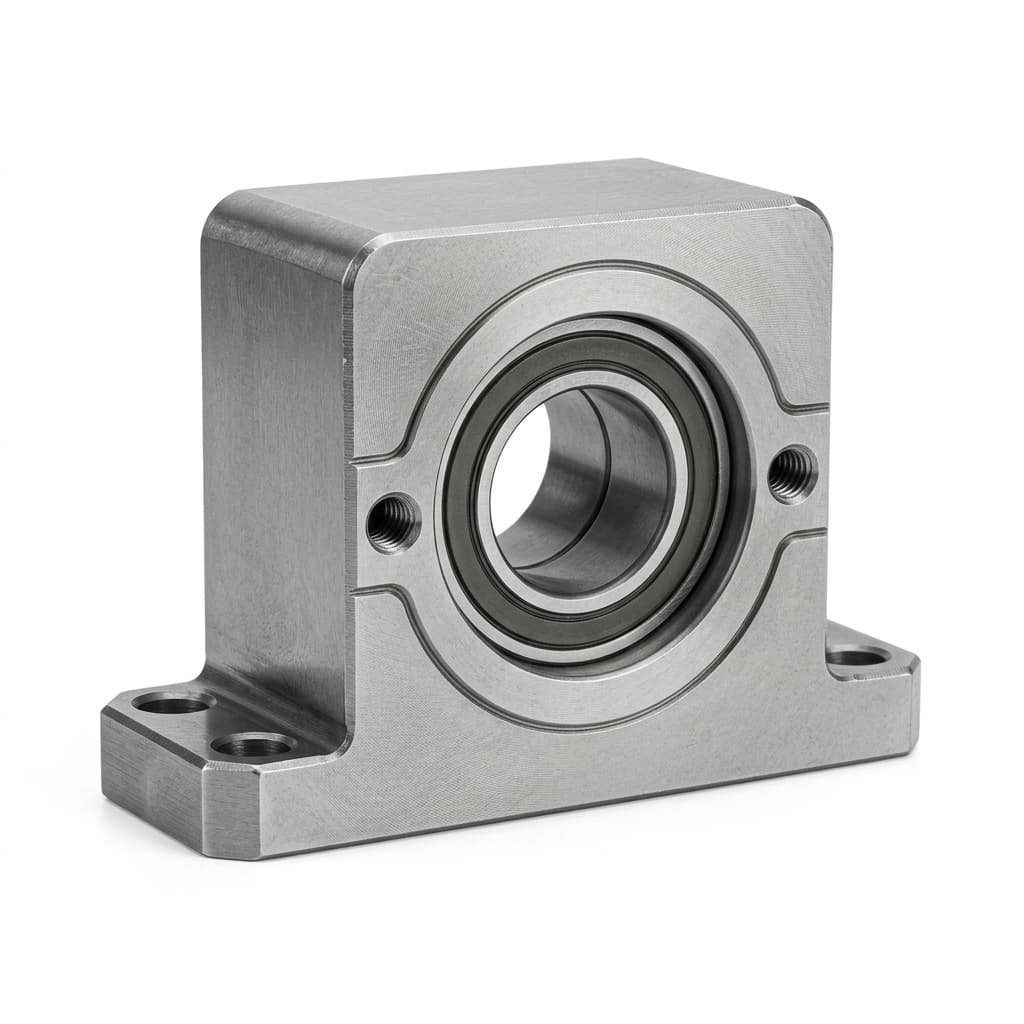

Lead-Time Commitments and Engineering Support

Confirm documented lead times and ask whether DFM analysis and cooling simulation are included before production. XUXIANG’s 10+ engineering experts provide pre-production feedback, cutting revision cycles and accelerating time-to-market by roughly 30 percent versus industry norms.

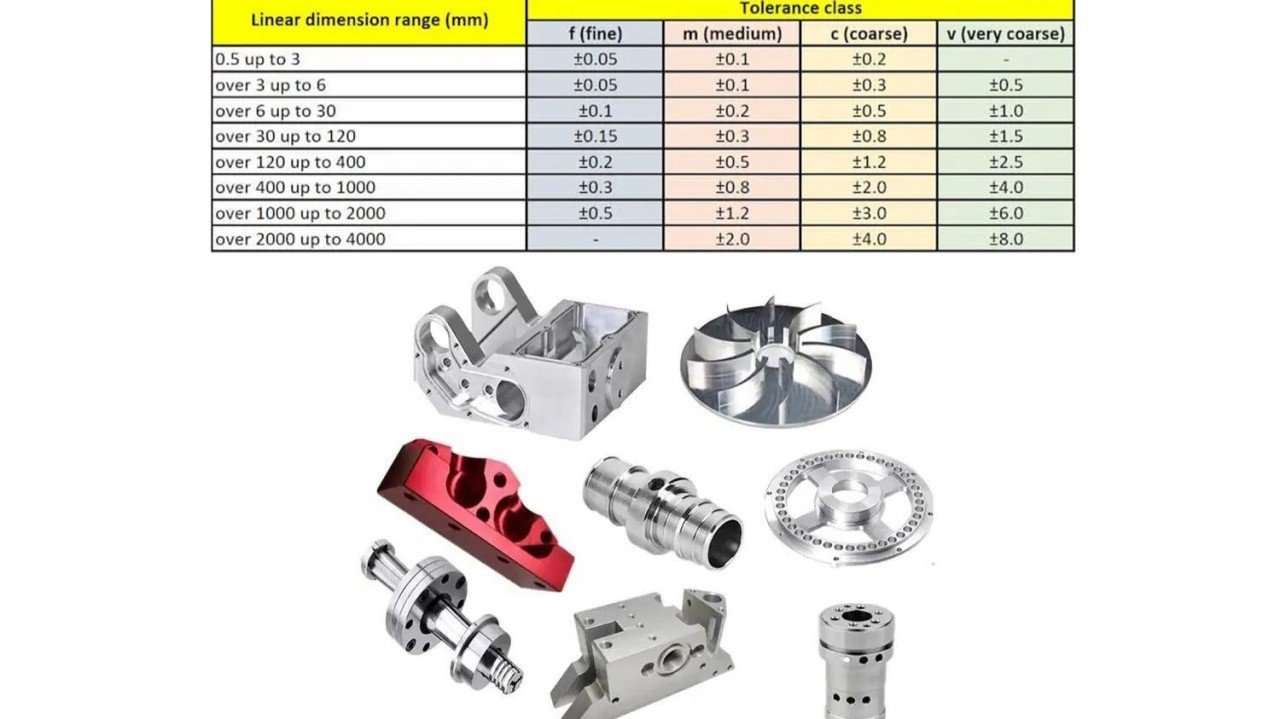

Specifying Standard Tolerances for Micro-Part Tooling

Generic +/-0.05 mm callouts fail when molding sub-millimeter connectors or thin-wall housings; misalignment between core and cavity causes flash or short shots. XUXIANG recommends +/-0.002 mm positioning for micro-connector molds and explicit flatness limits (≤0.003 mm over plate length) in the purchase specification.

Ignoring Thermal Expansion Coefficients

Mixing an S50C base with H13 inserts without calculating differential expansion can shift core alignment by 0.01 mm at operating temperature. Match steel families or specify pre-stress assembly; ZEISS CMM verification at room temperature and simulated mold temperature catches discrepancies before first shot.

Underestimating Cooling-Channel Design Impact

Standard drilled channels may double cycle time versus conformal cooling in high-cavity micro-tooling. Request thermal simulation and channel-layout drawings during DFM; XUXIANG’s 10+ engineering experts model flow and recommend optimized geometries that cut cycle time by 20–30 percent.

Choosing the Lowest Bid Without Heat-Treatment Verification

Inadequate quench-and-temper leaves bases soft (< HRC 28) or warped beyond flatness spec. Require material certificates, hardness-test reports (Rockwell or Vickers) and post-heat-treatment CMM data in every FAI package before approving production shipment.

Neglecting Spare Ejector Pins and Bushings

Tooling downtime for a $5 ejector pin can halt a $50,000 production run. Include two sets of wear components — pins, bushings, return springs — in the initial PO; XUXIANG ships spares with every mold base to minimize line interruption.

Failing to Define Acceptance Criteria in the Contract

Ambiguous flatness or hardness clauses trigger disputes at receiving inspection. Write explicit limits: flatness ≤0.005 mm, parallelism ≤0.003 mm, hardness HRC 28–32 for P20, surface finish Ra ≤0.4 µm. Reference ISO 9001:2015 inspection procedures and require signed dimensional reports with serial traceability.

Define Geometry, Material and Volume

Document part envelope, cavity count, ejection strategy and expected annual shot volume. Specify resin family (PC, PA, LCP) and any flame or medical certifications. This data drives base size, steel grade and cooling layout decisions in subsequent steps.

Select Base Type and Steel Grade

Match construction (two-plate, three-plate, stack) and steel (P20, H13, S136) to cycle time and corrosion requirements using criteria from earlier sections. XUXIANG’s mirror-grade EDM and +/-0.001 mm machining accommodate both standard and exotic alloy requests.

Request DFM Review and Cooling Analysis

Shortlist suppliers who offer conformal cooling simulation and gate-location optimization. XUXIANG validates thermal balance and ejection force before quoting, reducing mold-trial iterations by an estimated 30 percent and cutting first-article lead time.

Review Quotations for Certs, Tolerances and Lead Time

Compare material certificates, stated positional tolerance (+/-0.002 mm class for slow-wire work) and delivery windows. Verify that CMM reports (ZEISS MICURA or equivalent) and spectral analysis are included in the FAI package at no extra charge.

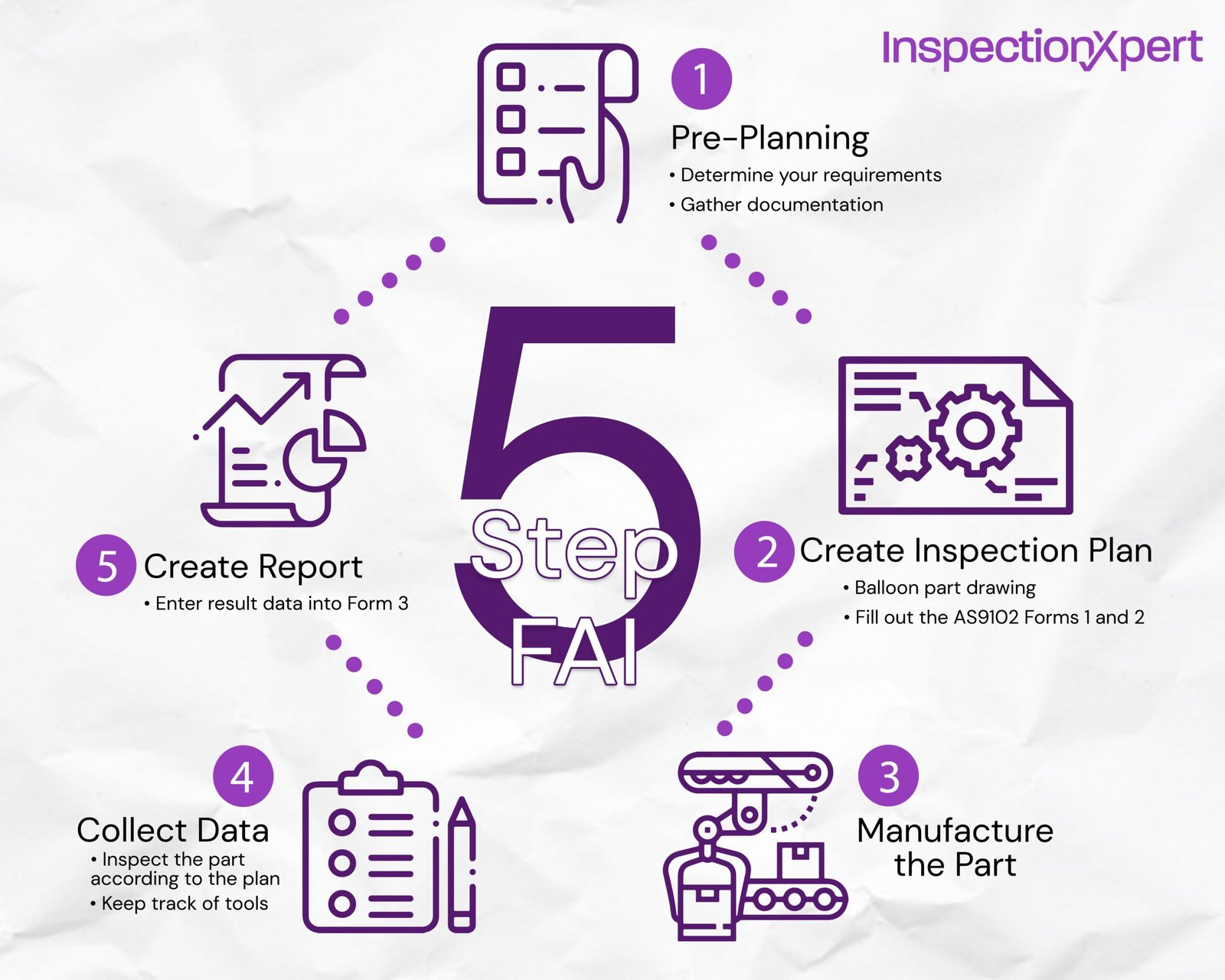

Approve First-Article Inspection Plan

Schedule witness points for material incoming, post-heat-treat hardness and final CMM verification. XUXIANG’s five-step QC flow — spectral analysis, in-process monitoring, ZEISS/Nikon verification, surface checks and FAI documentation — ensures traceability and ISO 9001:2015 compliance.

Conduct Pre-Shipment Inspection

Arrange on-site or video inspection to confirm flatness, perpendicularity and parting-line fit. Document any deviations before shipment to avoid costly rework after installation in your press.

Plan Mold Trials and Document Results

Record cycle time, dimensional stability across 50+ shots and cosmetic defects (flash, sink, gate vestige). Share data with your supplier to refine cooling or venting for production. Early engineering collaboration at this stage locks in long-term yield and uptime.
