Standard Round Die Buttons

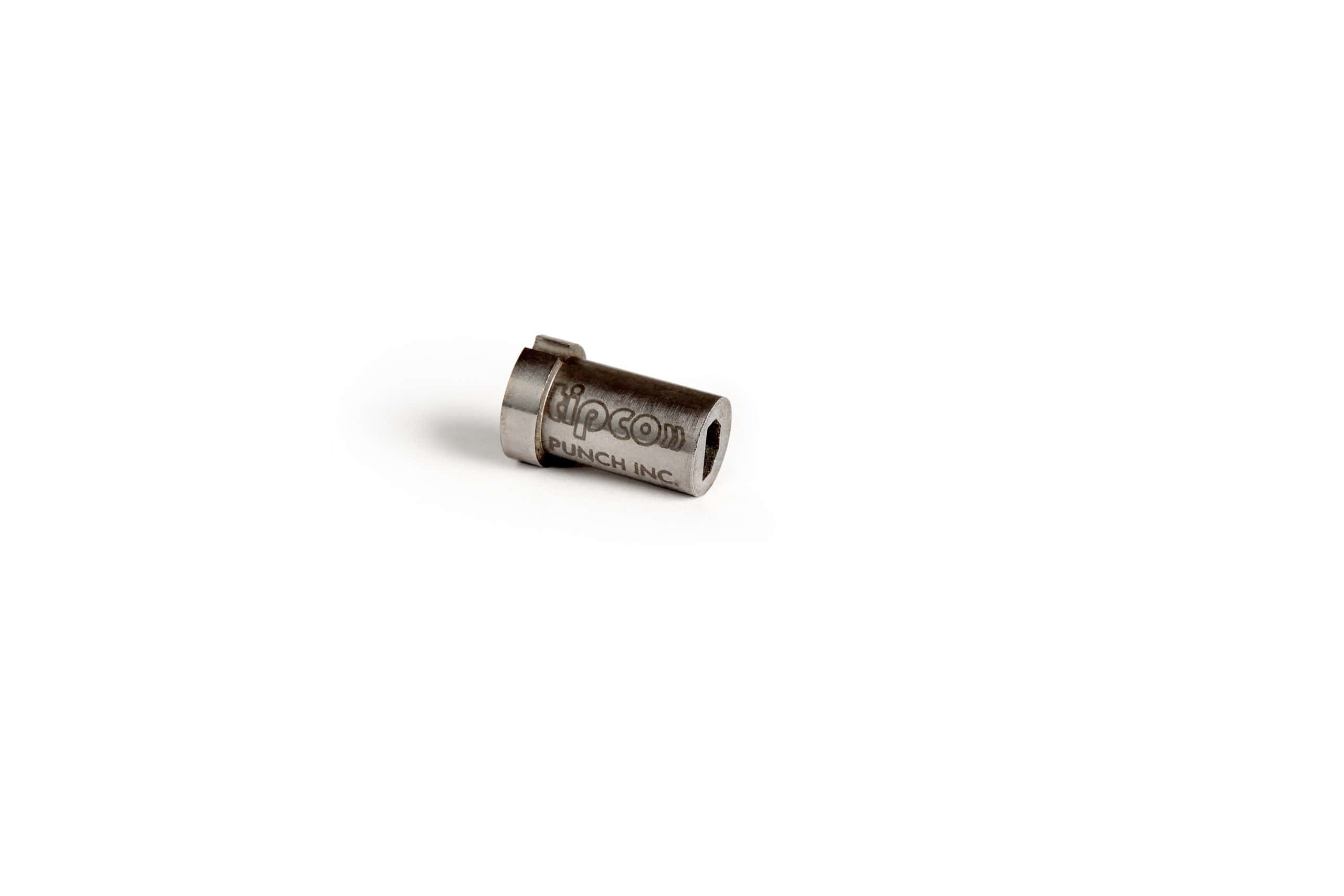

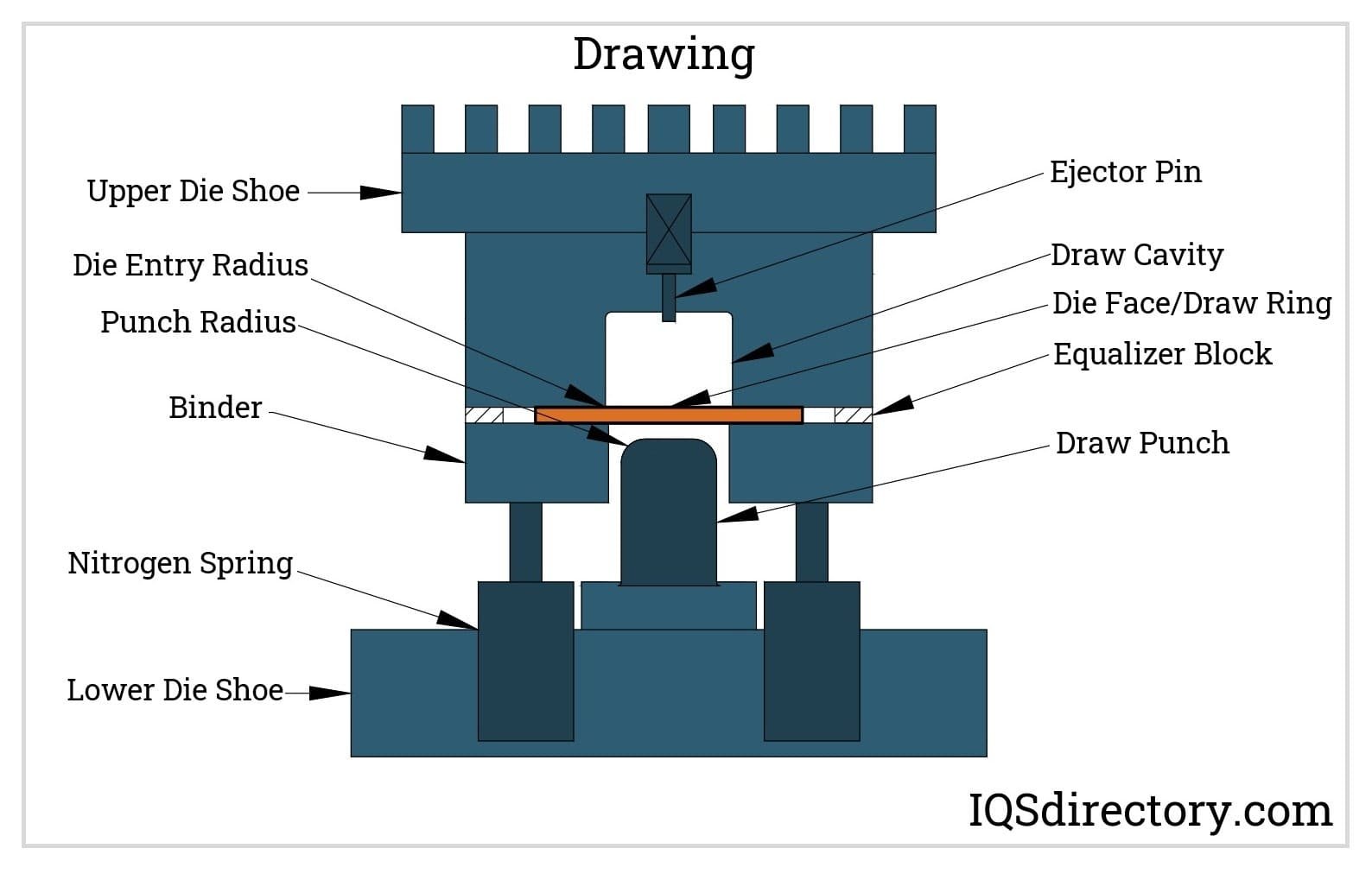

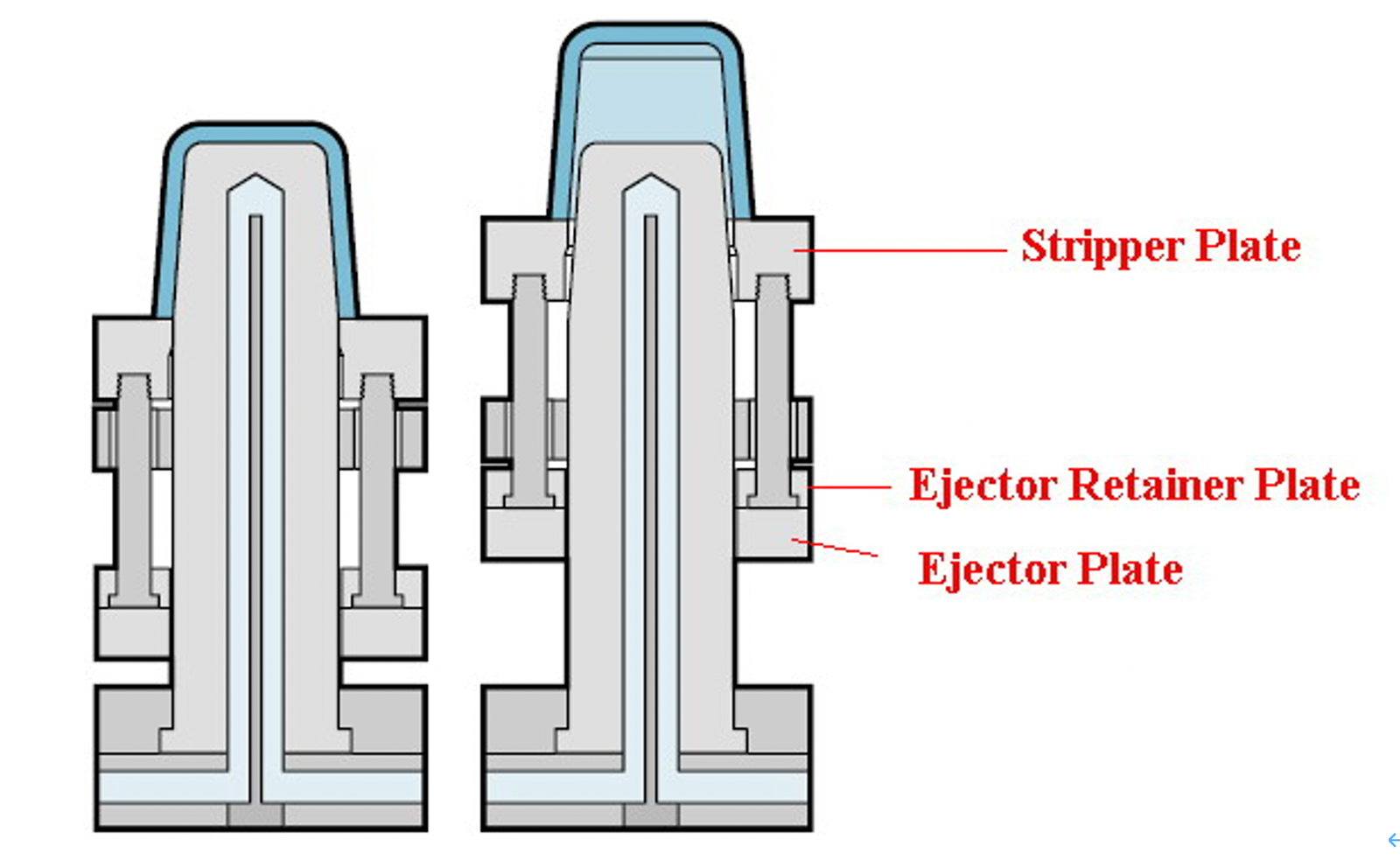

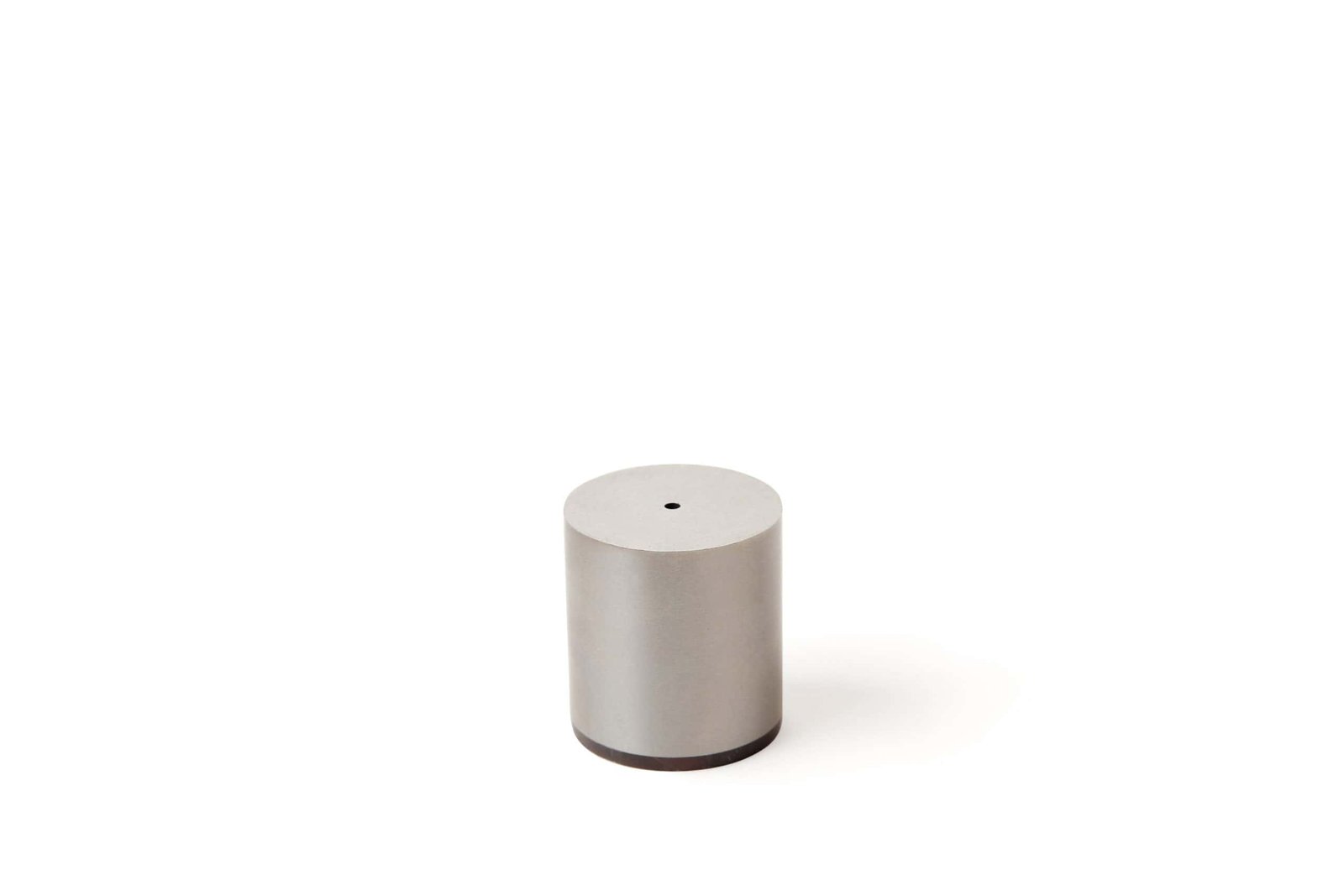

Standard round die buttons fit press-fit bores in mold plates and guide ejector pins through repetitive cycles. Typical OD tolerance is +0.000/−0.005 mm; bore fit H7/m6 or tighter. SKD61 or tool steel is preferred for automotive and industrial-automation tooling exceeding 500,000 cycles.

Flanged Die Buttons for Secure Mounting

Flanged die buttons add a machined shoulder that registers against the plate face, preventing axial migration under high ejection force. Flange perpendicularity is held to ≤0.005 mm. Common in 5G micro-connector molds and medical-device tooling where misalignment risks part rejection.

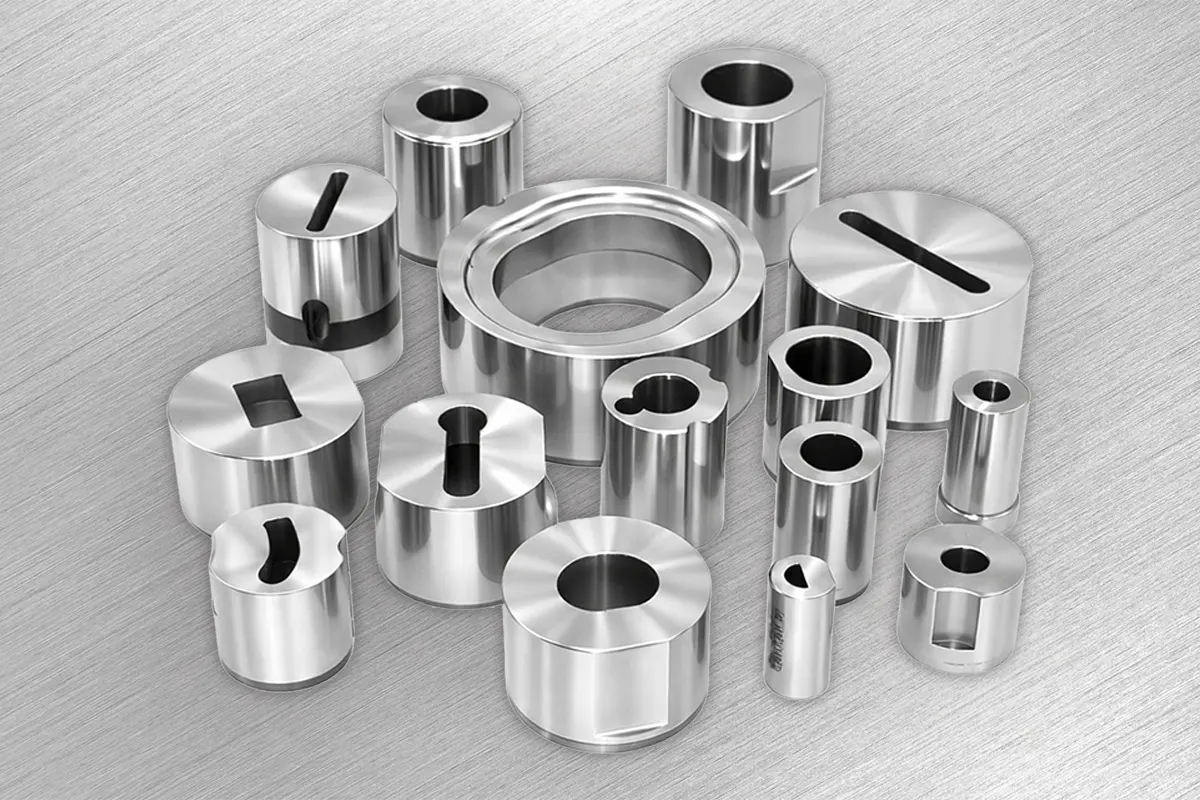

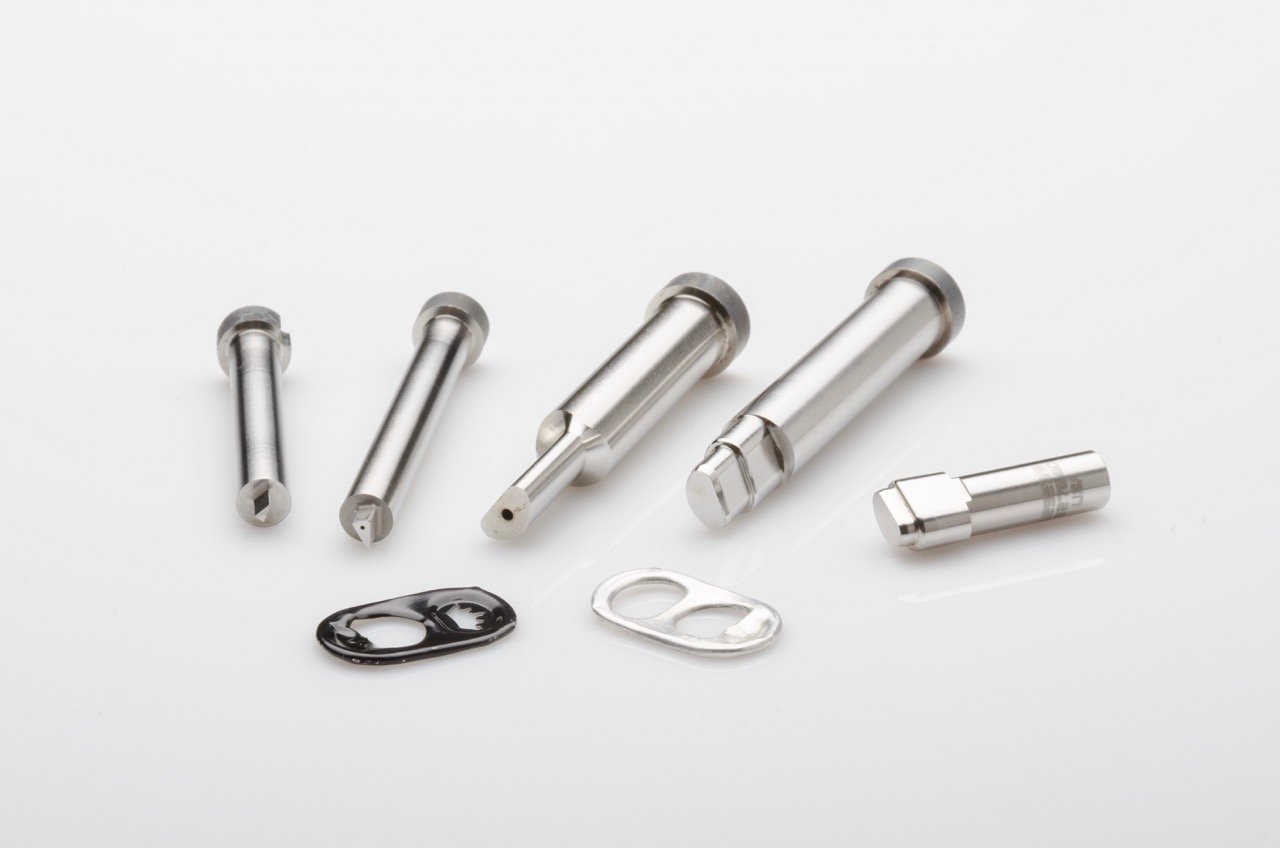

Shoulder Die Buttons with Integrated Stops

Shoulder die buttons incorporate a mid-body step that limits ejector-pin travel, eliminating separate stop pins. Step height tolerance ±0.01 mm; used in automotive sensor housings and NEV battery-interconnect tooling. XUXIANG machines shoulder profiles on Sodick wire EDM to maintain ±0.002 mm positional accuracy.

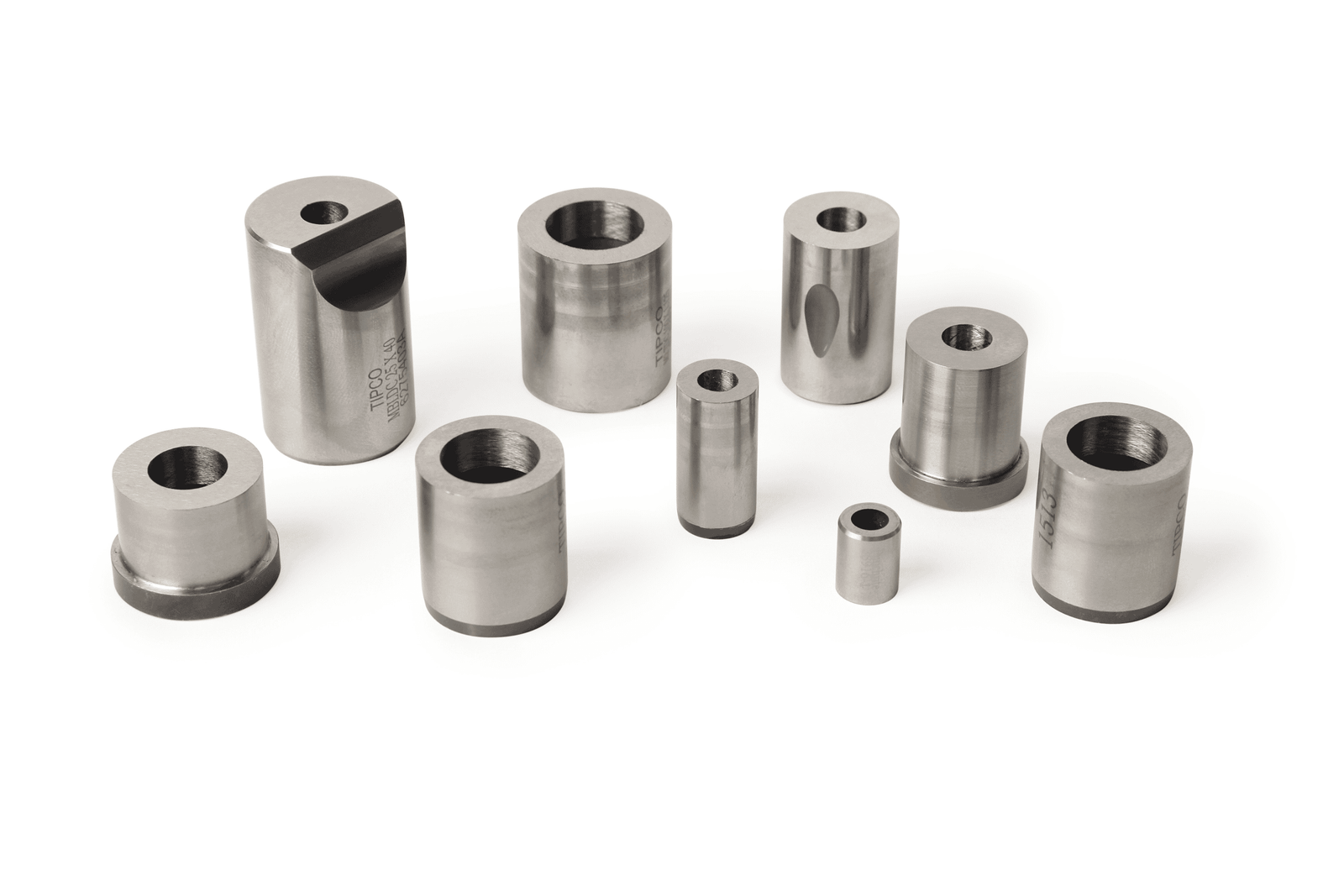

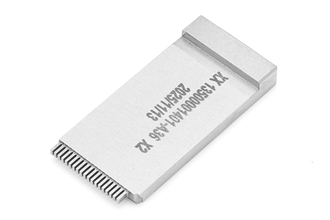

Custom-Profile Die Buttons

Custom-profile die buttons feature non-circular cross-sections, relief grooves or conformal cooling channels for micro-connector and telecom applications. XUXIANG’s ZEISS MICURA CMM verifies complex geometries to 0.7 µm, supporting thin-wall terminal tooling and high-density board-to-board connector molds in 5G infrastructure.

Common Die Button Materials

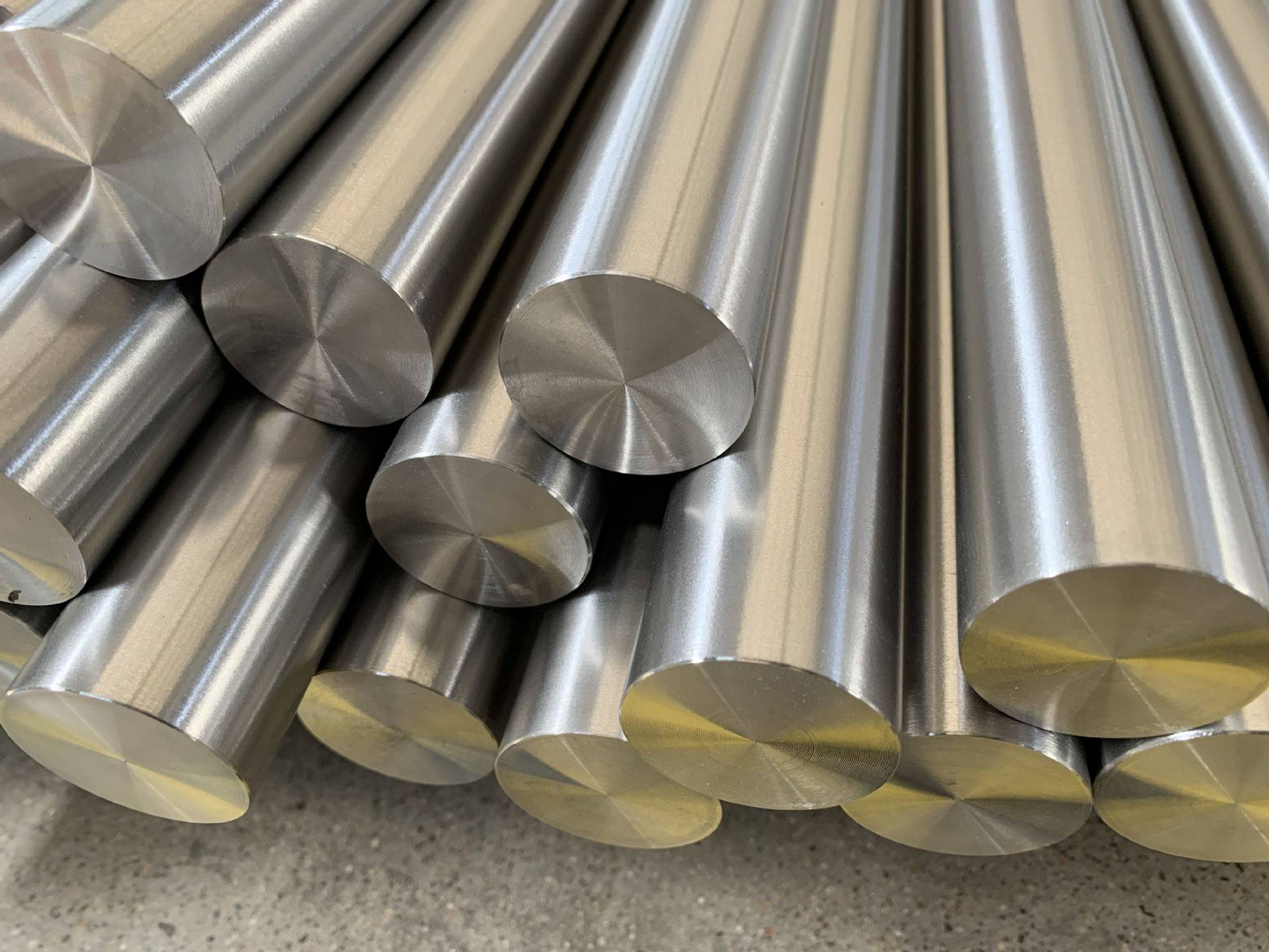

Tool steels — SKD11 (JIS) and D2 (AISI) — dominate general-purpose die buttons, offering HRC 58–60 after through-hardening and excellent machinability. High-speed steels (SKH51, M2) reach HRC 62–64, suited to high-shear applications like fine blanking.

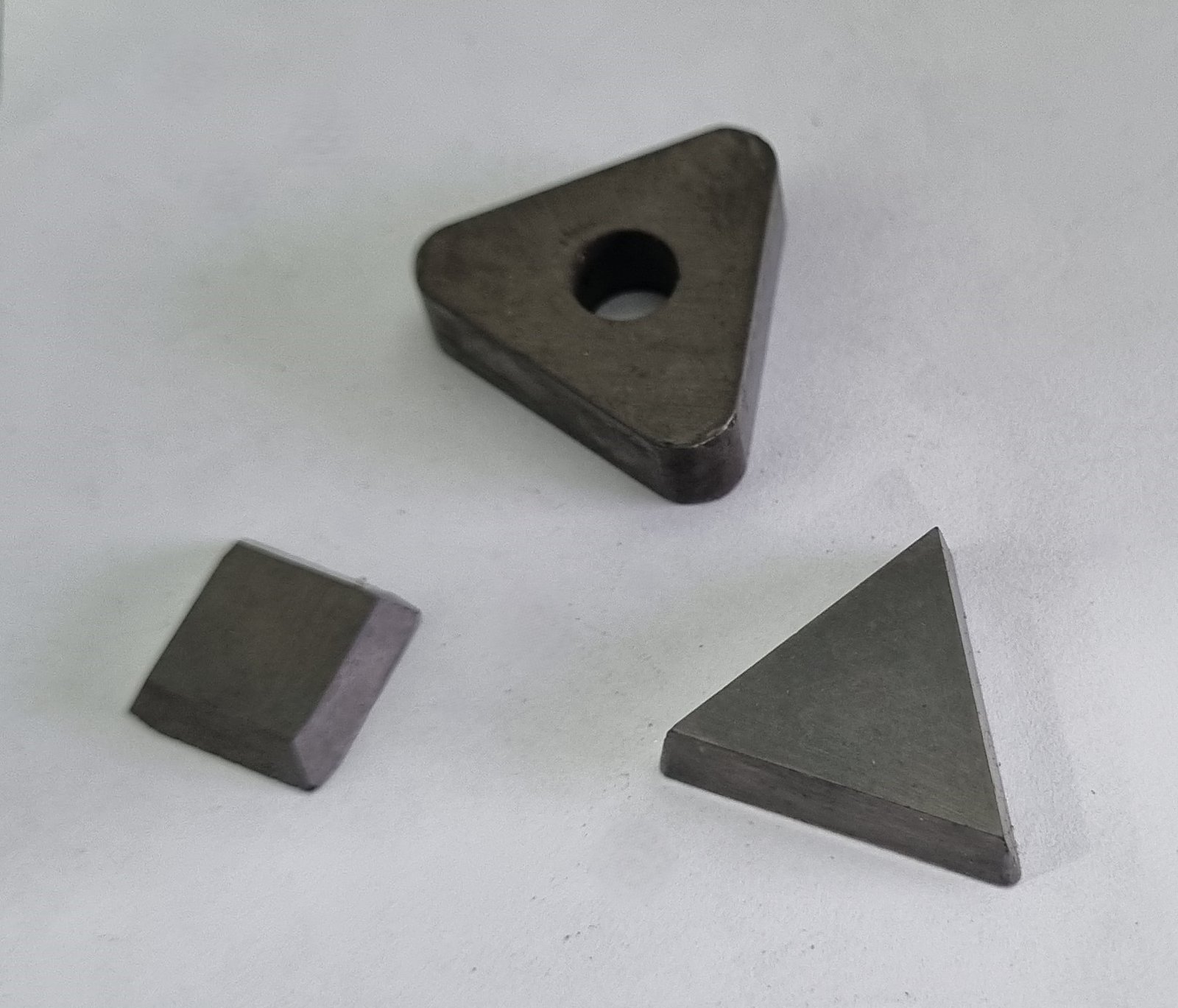

Tungsten carbide delivers wear resistance 10–20× that of tool steel but costs 3–5× more; specify it for ultra-high-volume runs (> 500,000 cycles). Bearing steel SUJ2 (GCr15) bridges cost and hardness for moderate-wear tooling.

Heat-Treatment Processes and Performance Impact

Through-hardening heats the entire die button to austenitizing temperature, then quenches to achieve uniform HRC 58–62 core hardness and maximum dimensional stability. Case-hardening (carburizing) hardens only the surface layer, preserving a tough core for impact resistance.

Nitriding diffuses nitrogen at 500–550 °C, forming a thin, ultra-hard skin (HV 900–1,100) without distortion — ideal for precision inserts where post-treatment grinding must be minimized.

Coatings for Extended Tool Life

TiN (titanium nitride) coatings add HV 2,000–2,400 surface hardness and reduce friction by ~30%, extending die button life in high-volume stamping (> 100,000 cycles). DLC (diamond-like carbon) offers even lower friction and non-stick properties for polymer-contact applications.

XUXIANG recommends coatings when cycle counts exceed 200,000 or when lubricant access is restricted, offsetting the 15–25% cost premium with 40–60% longer service intervals.

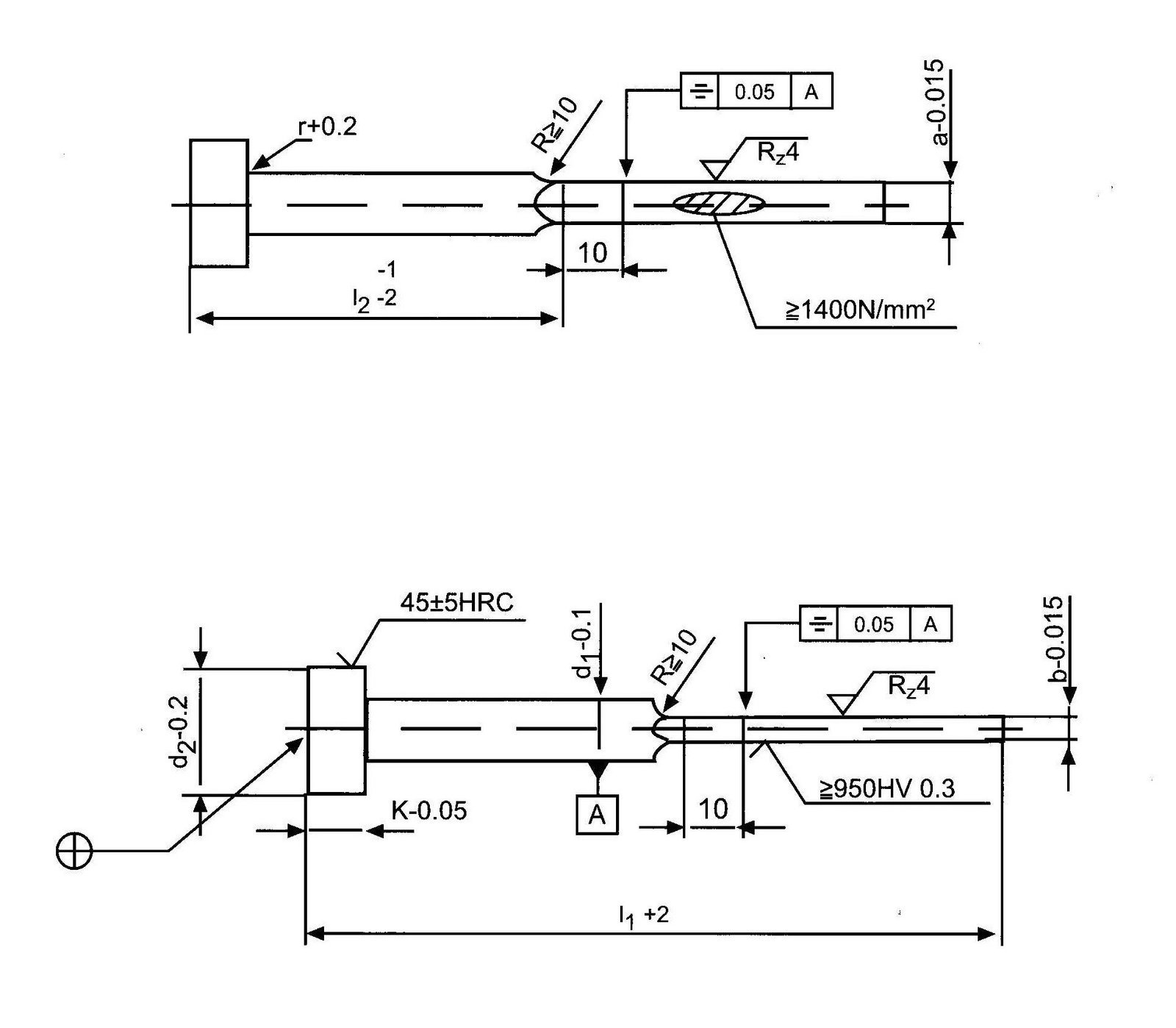

Critical Dimensional Tolerances

OD and ID tolerances govern fit and alignment in the mold base. Standard production tooling accepts ±0.005 mm; micro-connector and medical-device molds require ±0.002 mm or tighter. Concentricity between bore and outer surface must stay within 0.003 mm to prevent ejector-pin binding and premature wear.

Surface-Finish Specifications

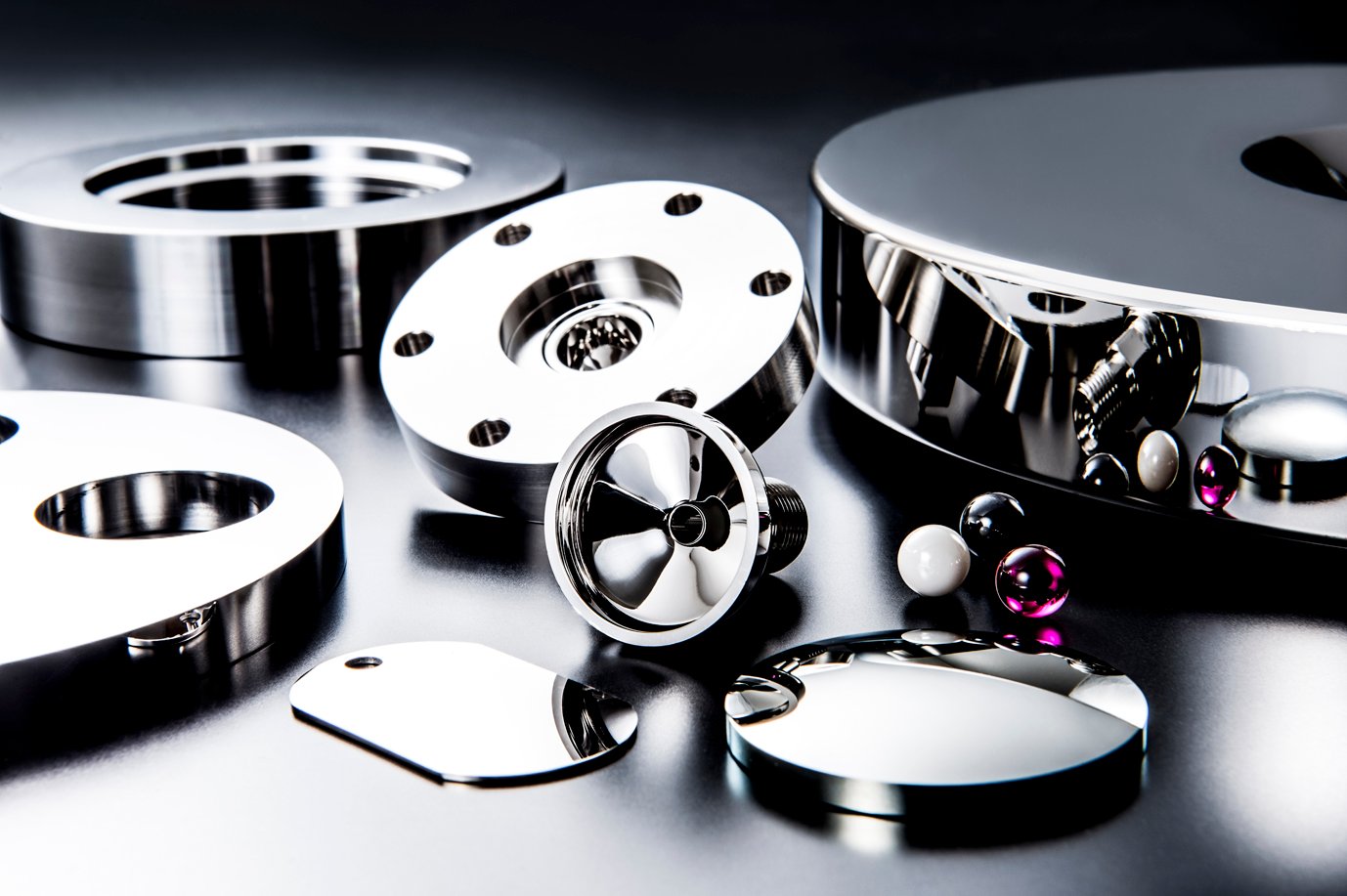

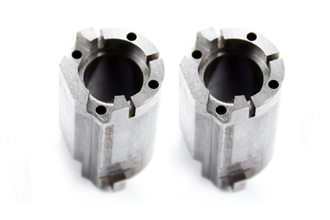

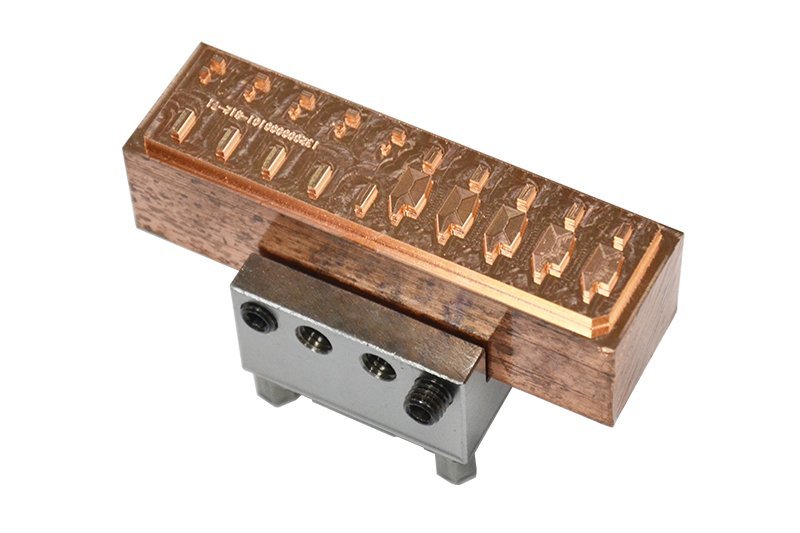

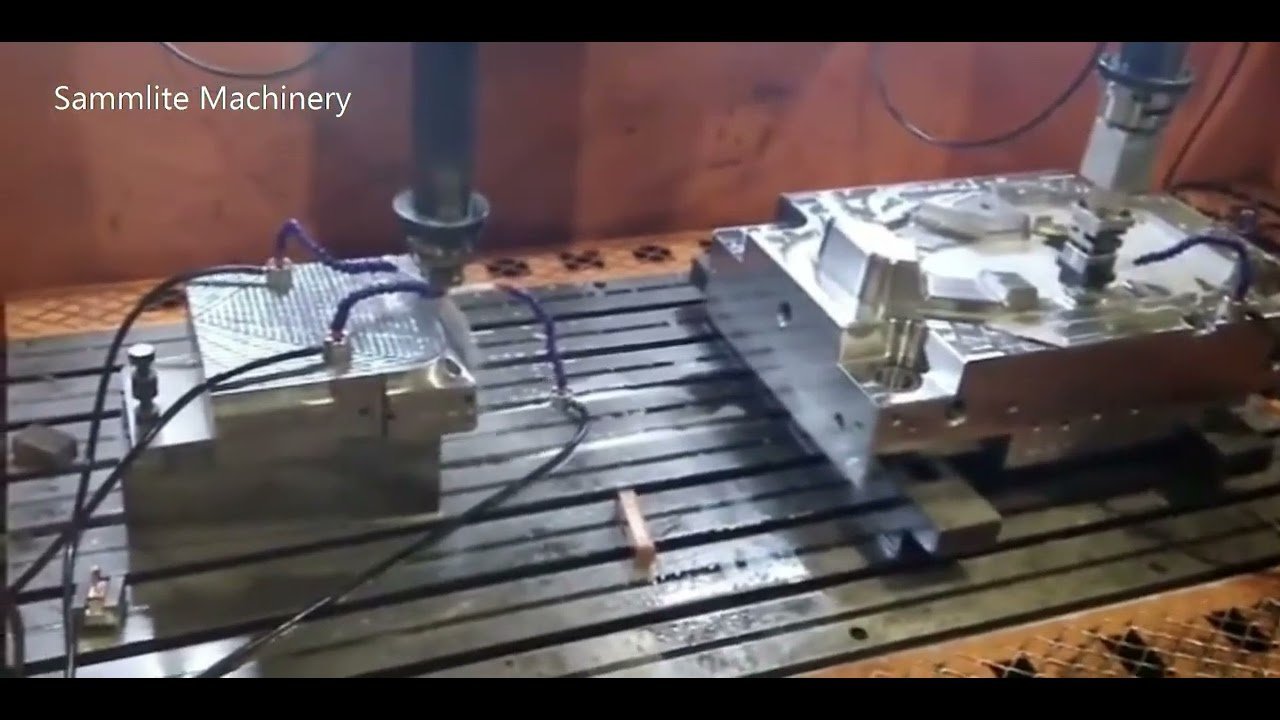

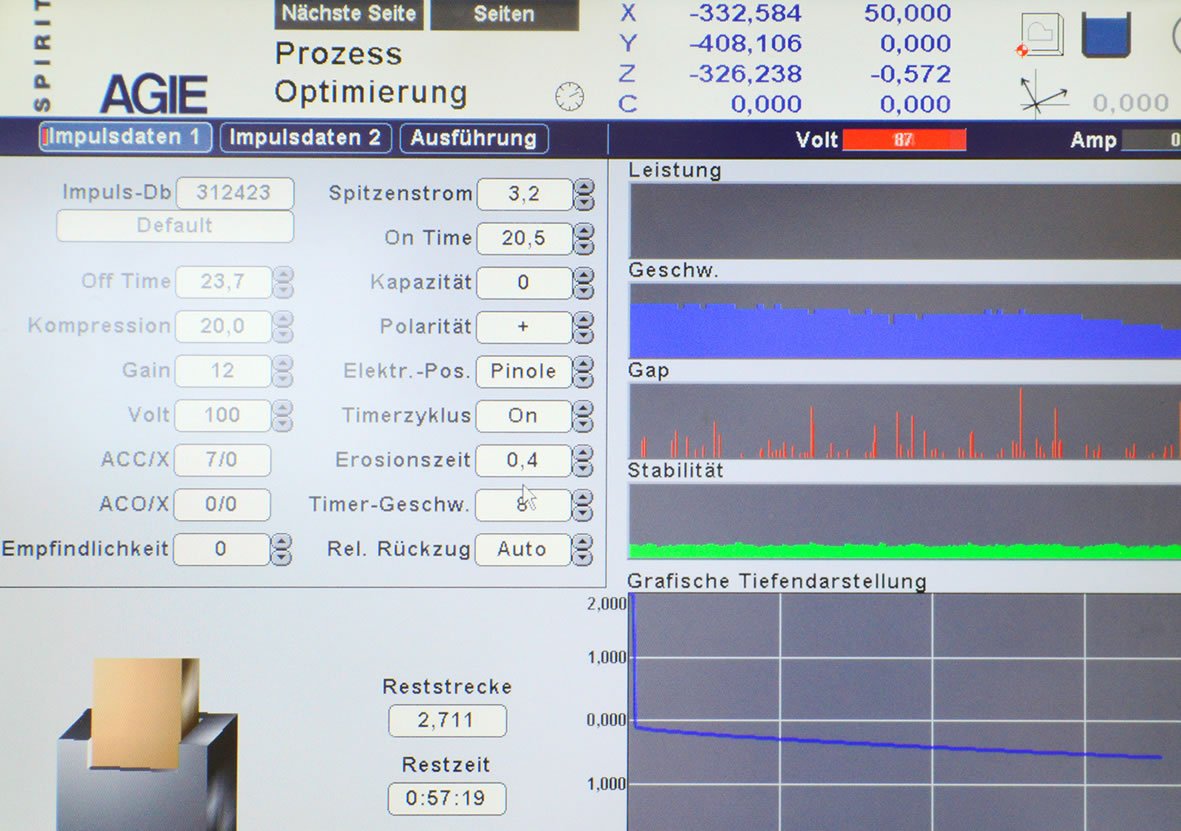

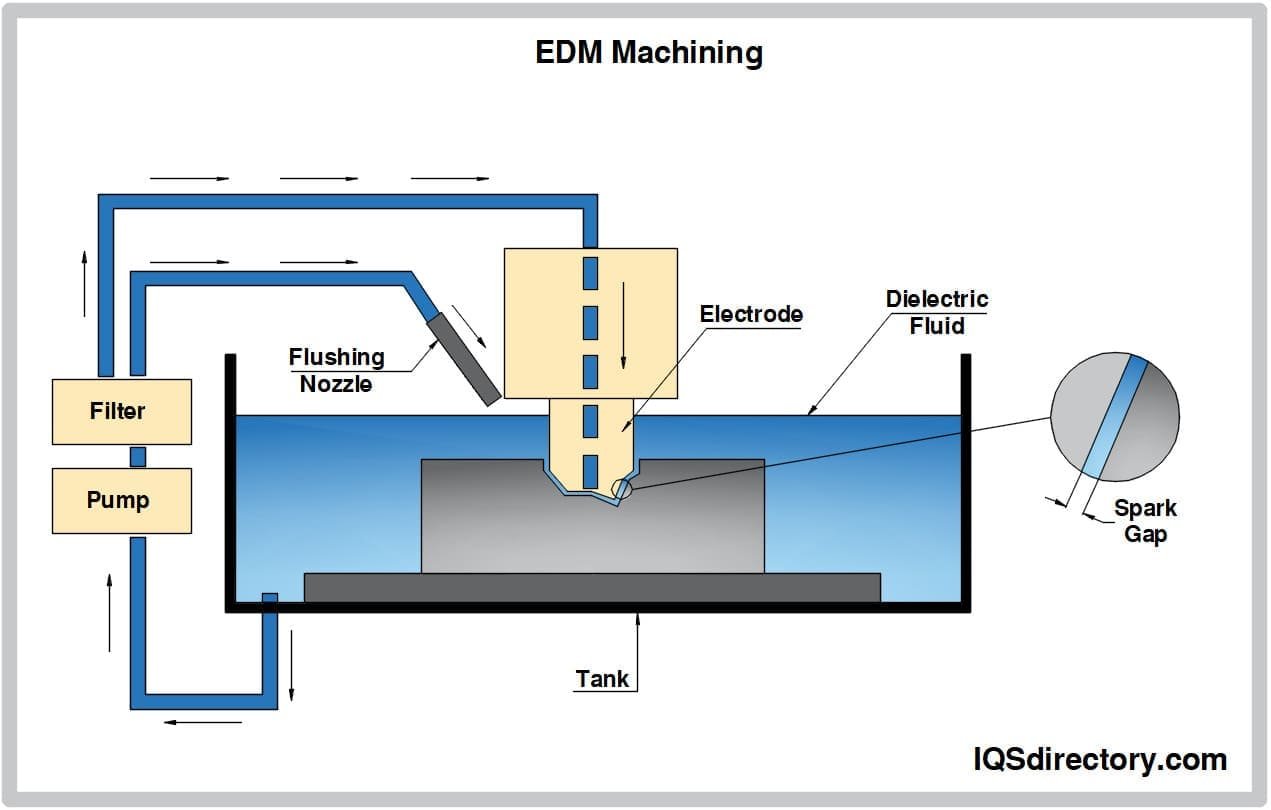

Mirror-polished bores with Ra 0.1–0.4 μm reduce friction, minimize galling and extend ejector-pin service life by 30–50%. XUXIANG achieves Ra 0.1 μm finishes using Sodick and Charmilles sinker EDM combined with precision grinding, validated by Nikon toolmaker’s microscopes (V-12B / MM-400 class).

Geometric Tolerances and Inspection

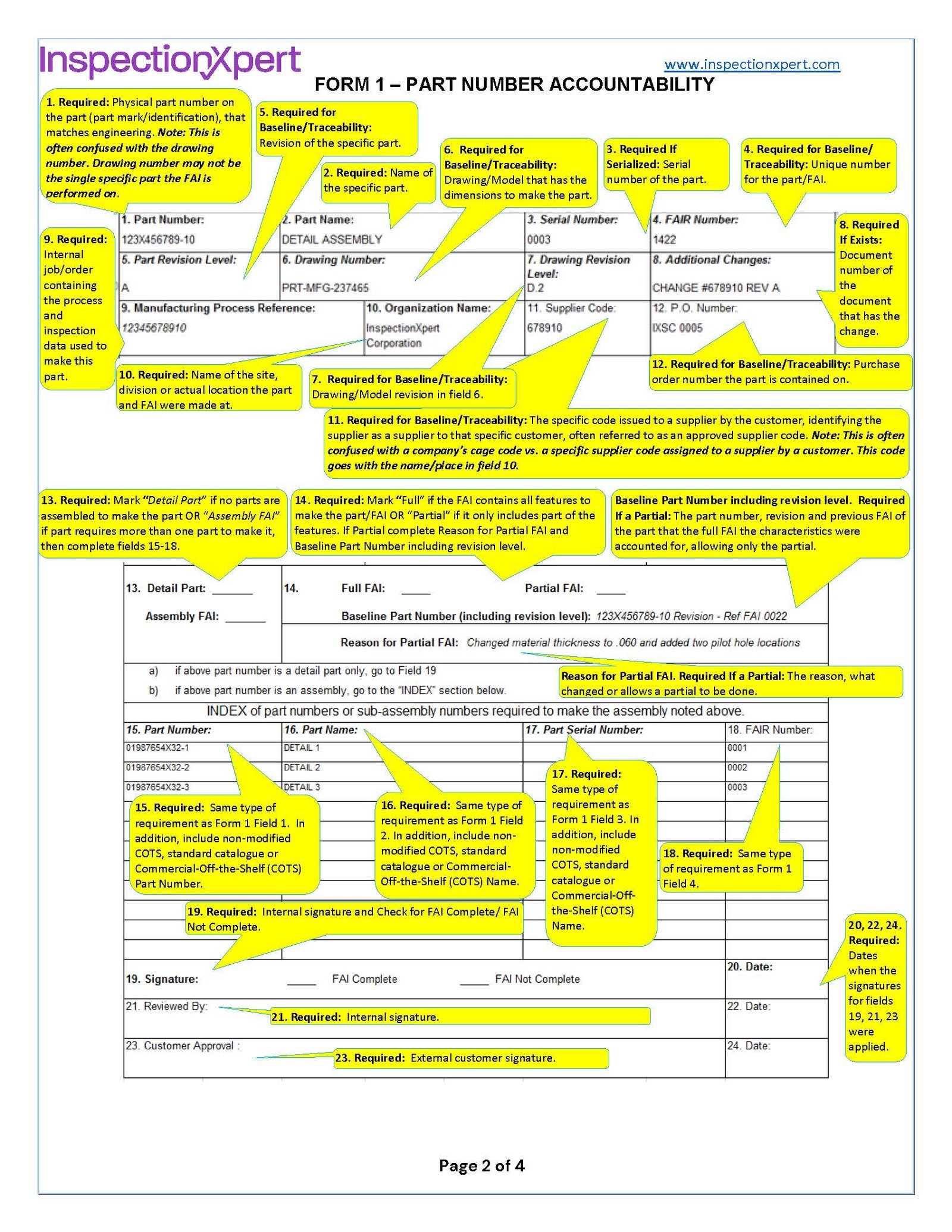

Cylindricity and perpendicularity tolerances ensure consistent ejection force and tool longevity. ZEISS MICURA CMM measuring to 0.7 μm verifies geometric form; optical comparators cross-check profile accuracy. Five-step QC — material spectral analysis, in-process monitoring, CMM verification, surface-integrity checks and FAI documentation — validates every die button batch.

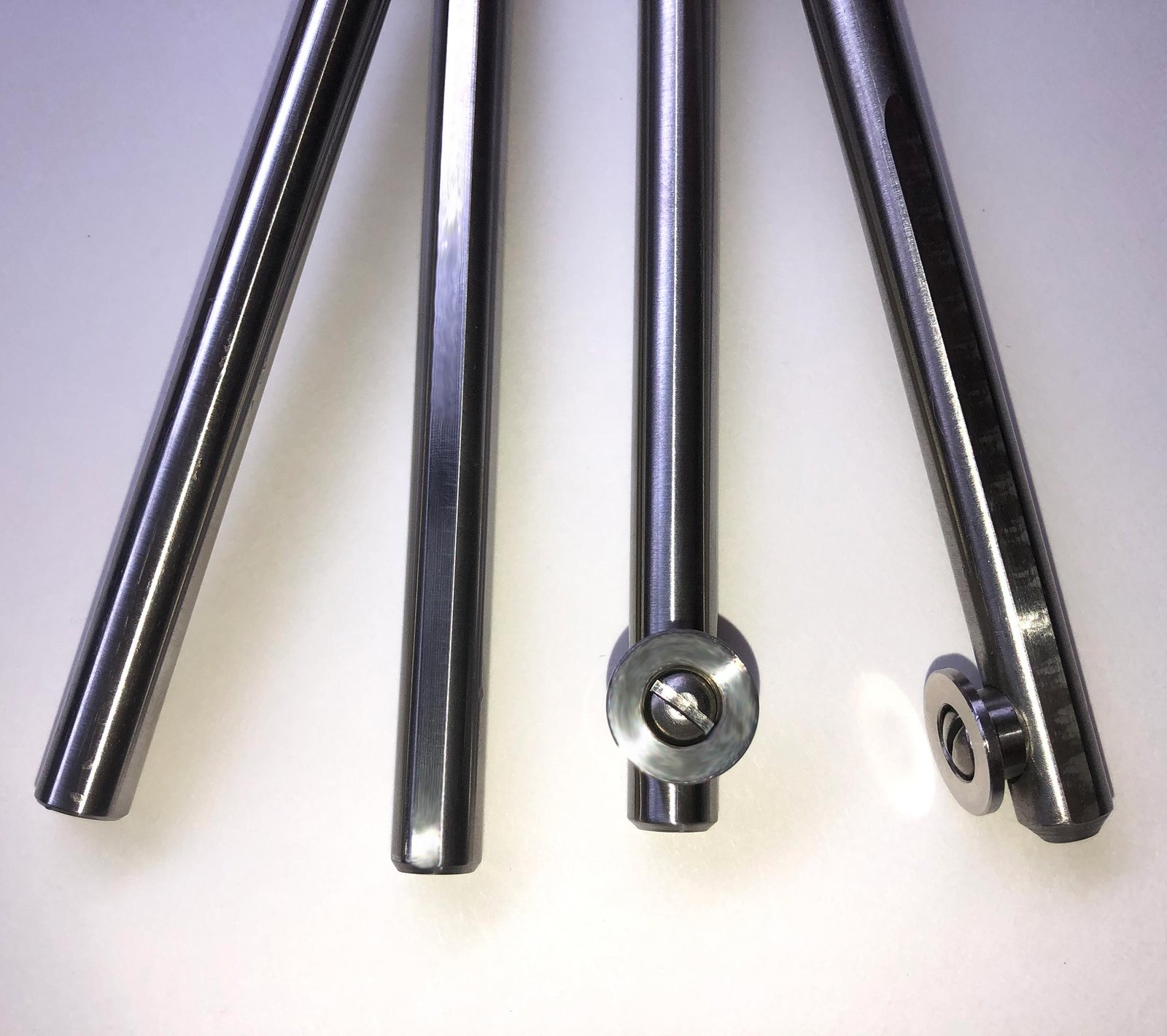

Non-Standard Diameters and Extended Lengths

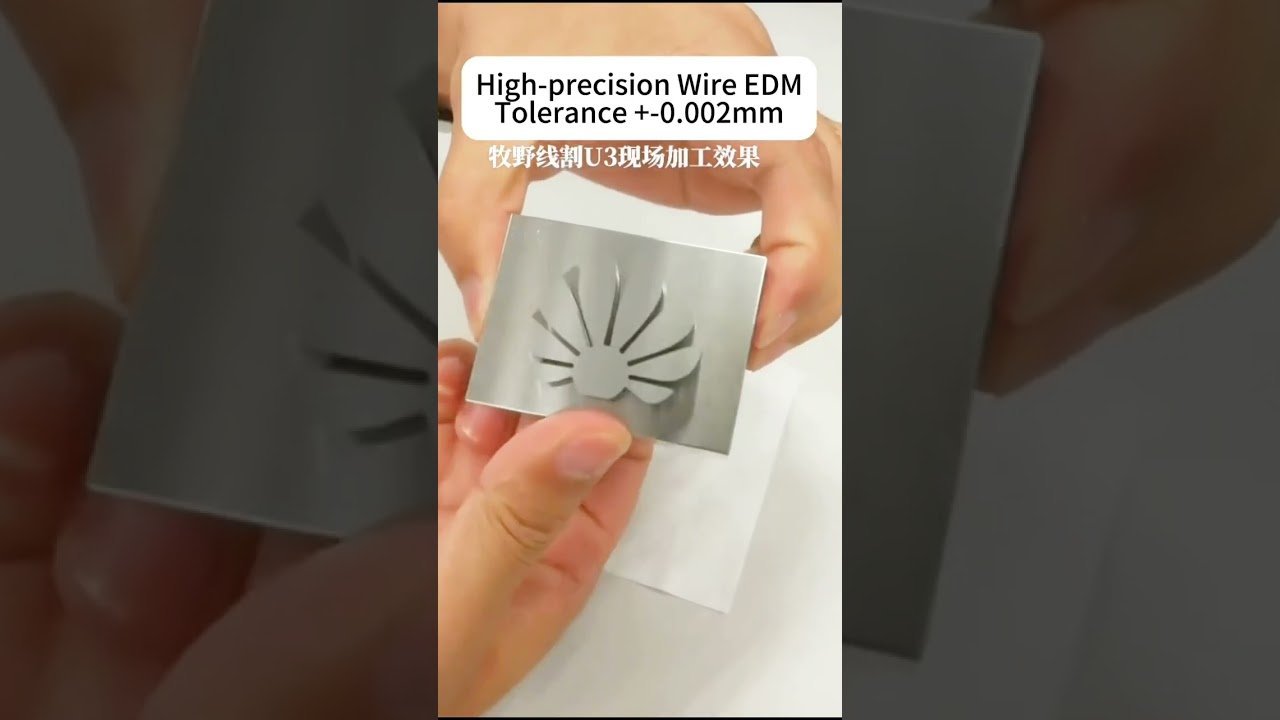

Micro-connector tooling for 5G board-to-board assemblies often requires die button diameters below 3 mm or lengths exceeding 150 mm to reach deep cavity cores. XUXIANG machines these variants on Sodick slow-wire EDM and Beijing Jingdiao high-precision CNC, holding +/-0.002 mm positional tolerance and ensuring concentricity within 0.003 mm over the full length to prevent deflection during high-cycle molding.

Proprietary Flange Geometries and Cooling Channels

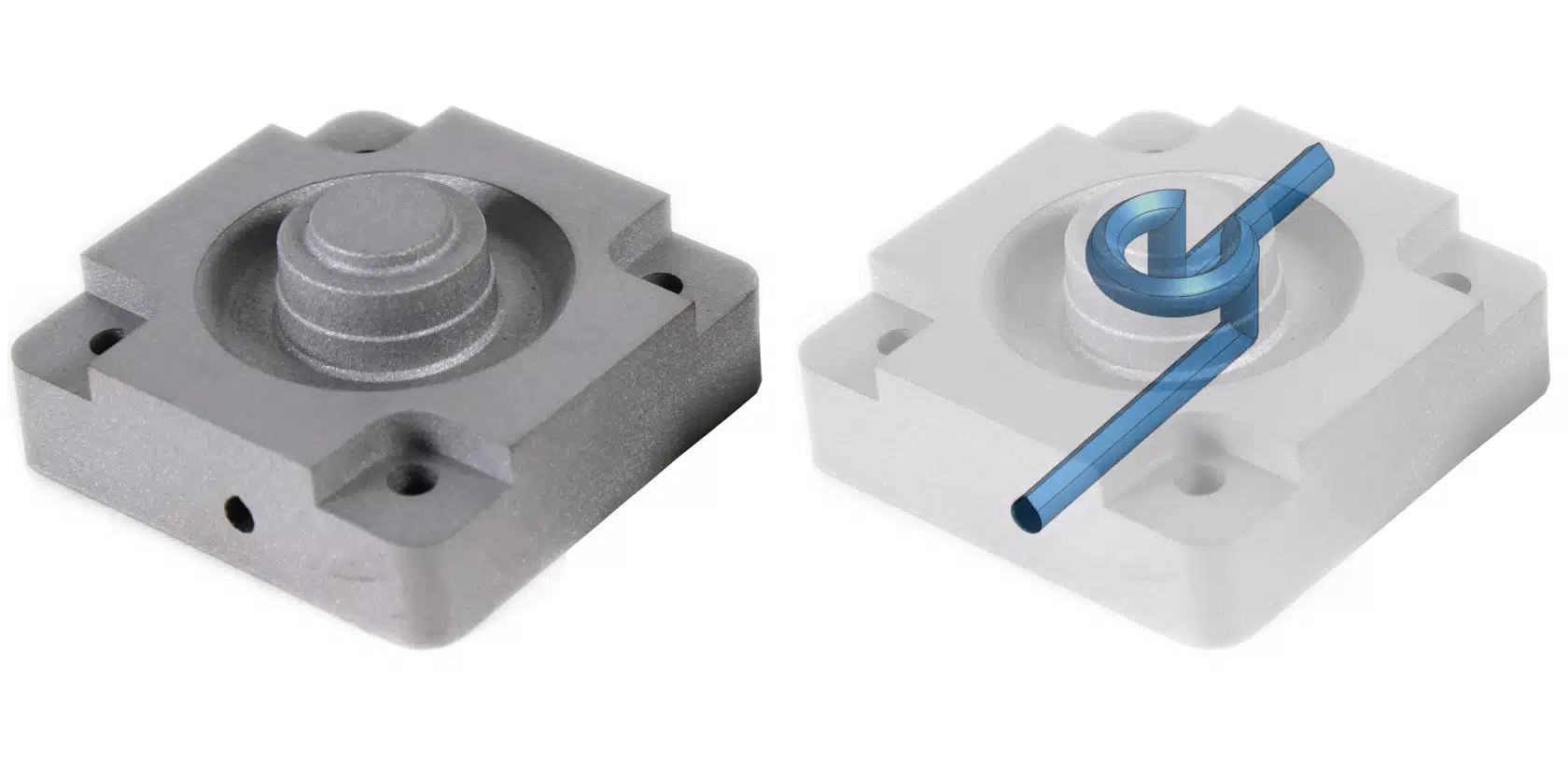

NEV battery-pack mold projects frequently specify custom flange profiles to mate with proprietary retainer plates, plus internal spiral cooling channels to manage heat in long-cycle insert molding. XUXIANG’s DFM team collaborates with mold makers to optimize channel diameter (typically 6–10 mm), pitch and wall thickness, balancing thermal performance against CNC machinability and post-heat-treatment distortion, verified on the ZEISS MICURA CMM to +/-0.001 mm.

DFM Review and Lead-Time Implications

Every custom die button design receives feedback from XUXIANG’s 10+ engineering experts within 24–48 hours, covering CNC tool-path optimization, heat-treatment distortion prediction, and assembly tolerance stack-up. Custom orders typically add 5–7 days to standard lead times, with MOQs starting at 10 pieces for fully bespoke geometries versus immediate availability for catalog SKUs, ensuring both agility and cost efficiency.

Machining and Grinding Capabilities

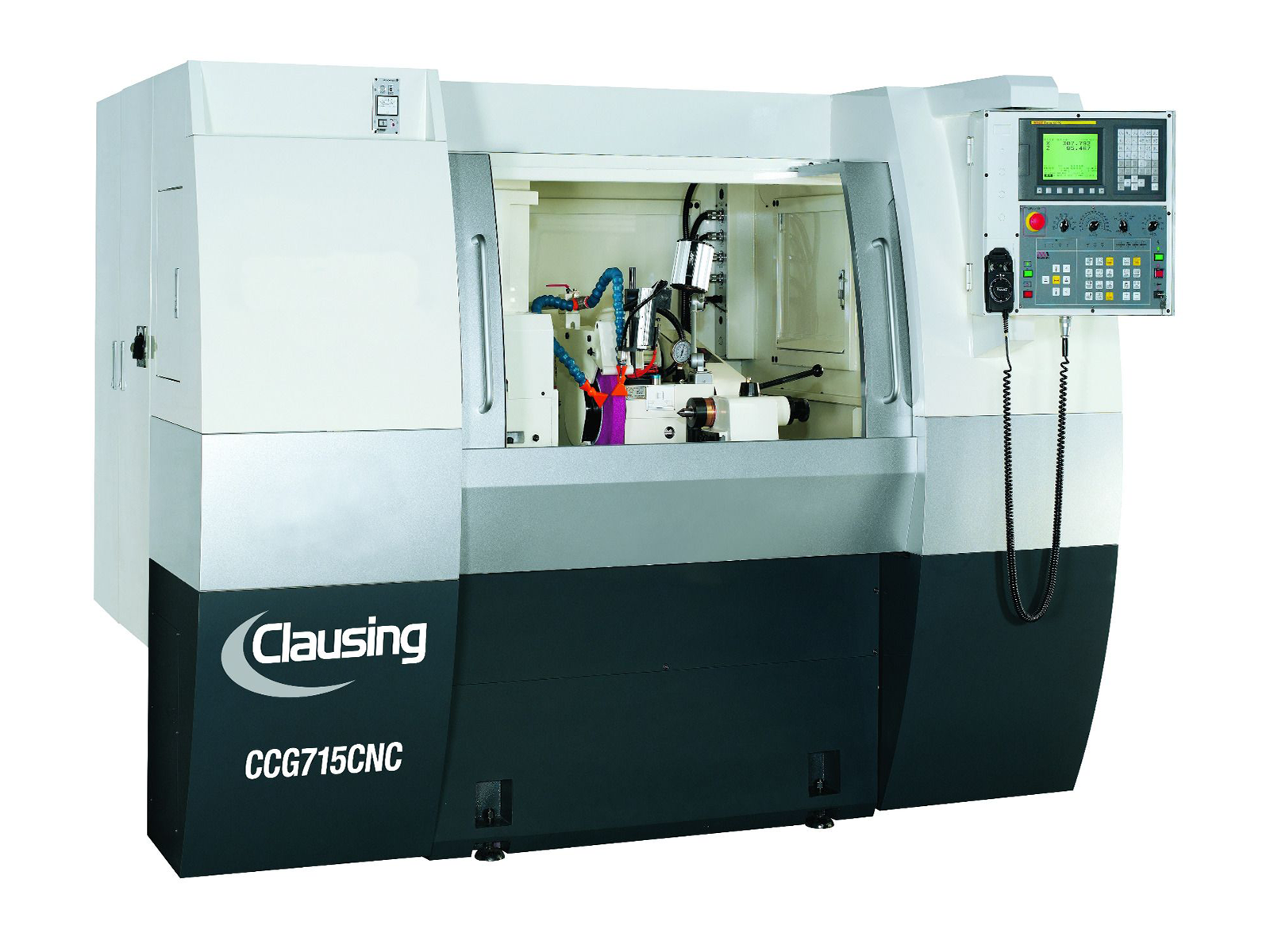

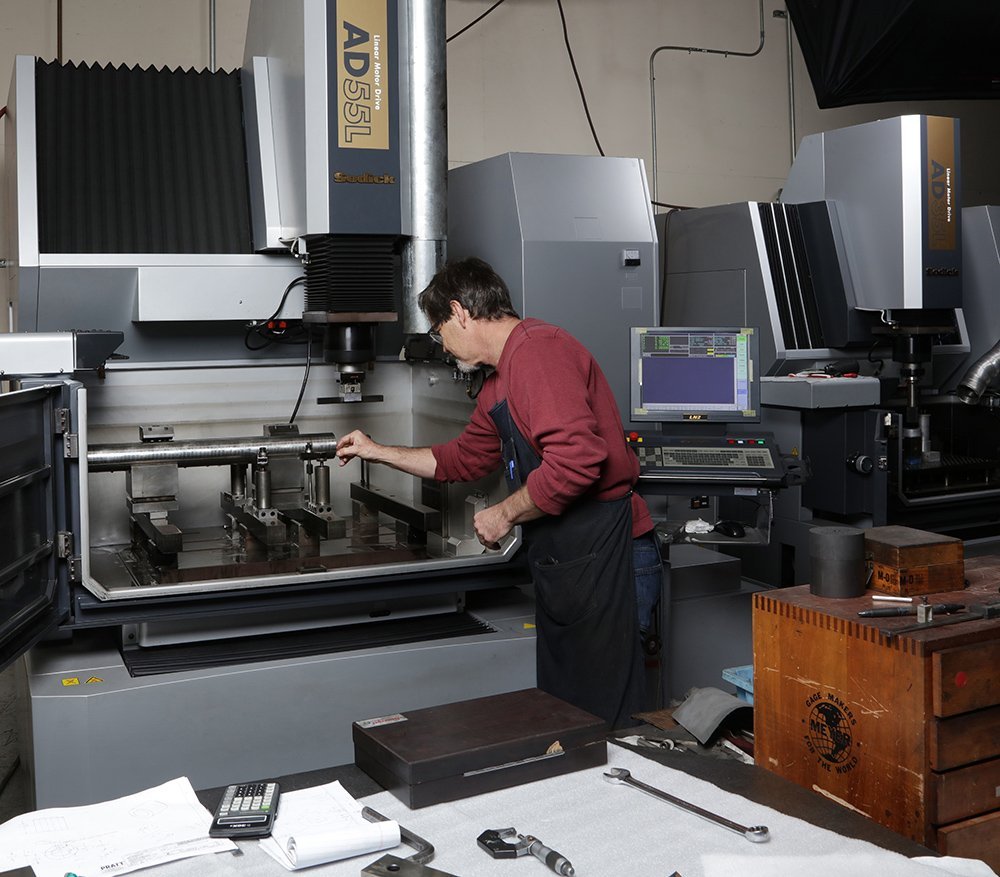

Verify that the supplier operates 5-axis CNC machining centers and precision grinding equipment capable of sub-micron repeatability. XUXIANG’s Dawn grinding centers and Sodick slow-wire EDM achieve +/-0.002 mm positioning, ensuring diameter and height tolerances remain stable across production runs. Ask for equipment lists and recent capability studies.

Heat Treatment and Coating Infrastructure

In-house heat treatment and surface coating eliminate subcontractor variability and protect lead times. Confirm the vendor controls hardness curves, tempering cycles and coating adhesion internally, rather than outsourcing critical thermal processes that affect dimensional stability.

Quality Certifications and Metrology

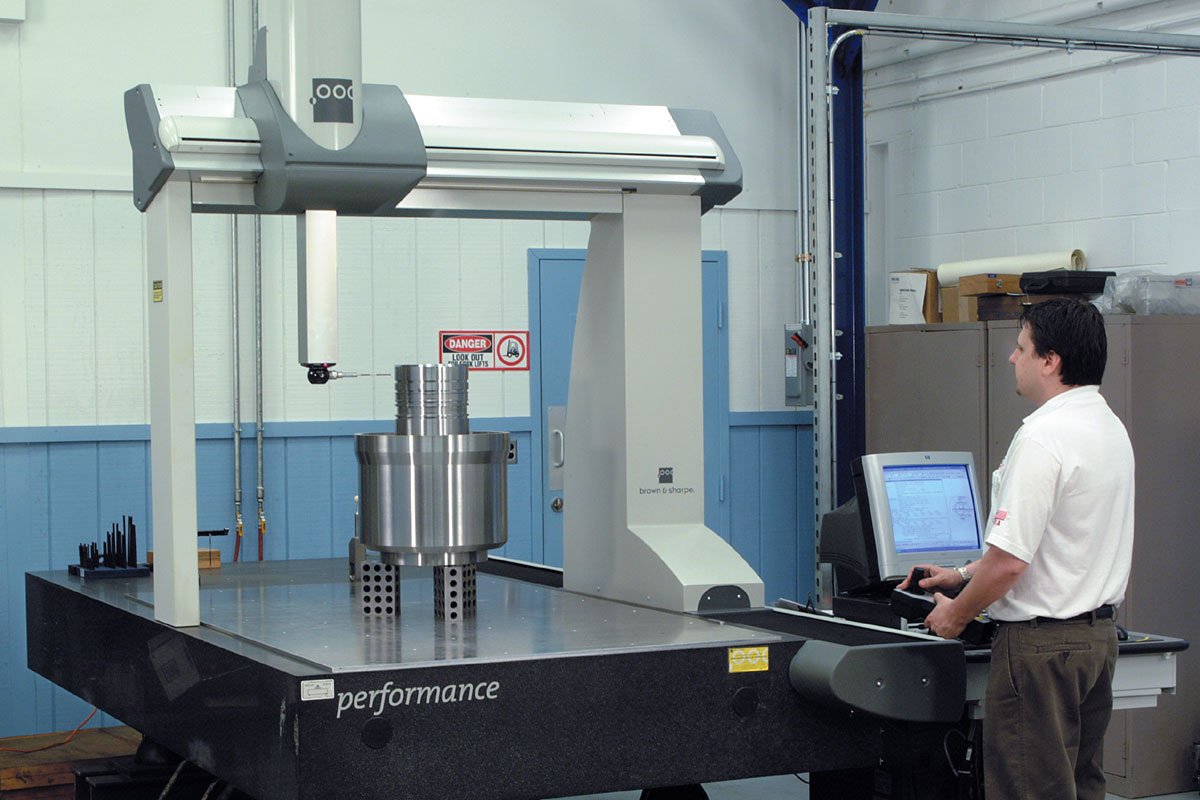

ISO 9001:2015 is baseline; automotive tooling buyers should require IATF 16949. Inspect metrology assets — XUXIANG’s ZEISS MICURA CMM measures to 0.7 µm and every die button ships with CMM reports and material certificates, ensuring traceability and dimensional verification.

Engineering Support and DFM Feedback

Evaluate the supplier’s design-for-manufacturability process. XUXIANG’s 10+ engineering experts review every project before production, flagging tolerance conflicts, material mismatches and assembly risks — reducing costly revisions and ensuring first-article success.

Under-Specifying Tolerances and Surface Finish

Buyers frequently request +/-0.01 mm tolerances when the application demands +/-0.002 mm, accelerating wear and causing ejector-pin binding within 50,000 cycles. Omitting surface-finish callouts (Ra 0.2 µm or better) invites galling and premature failure.

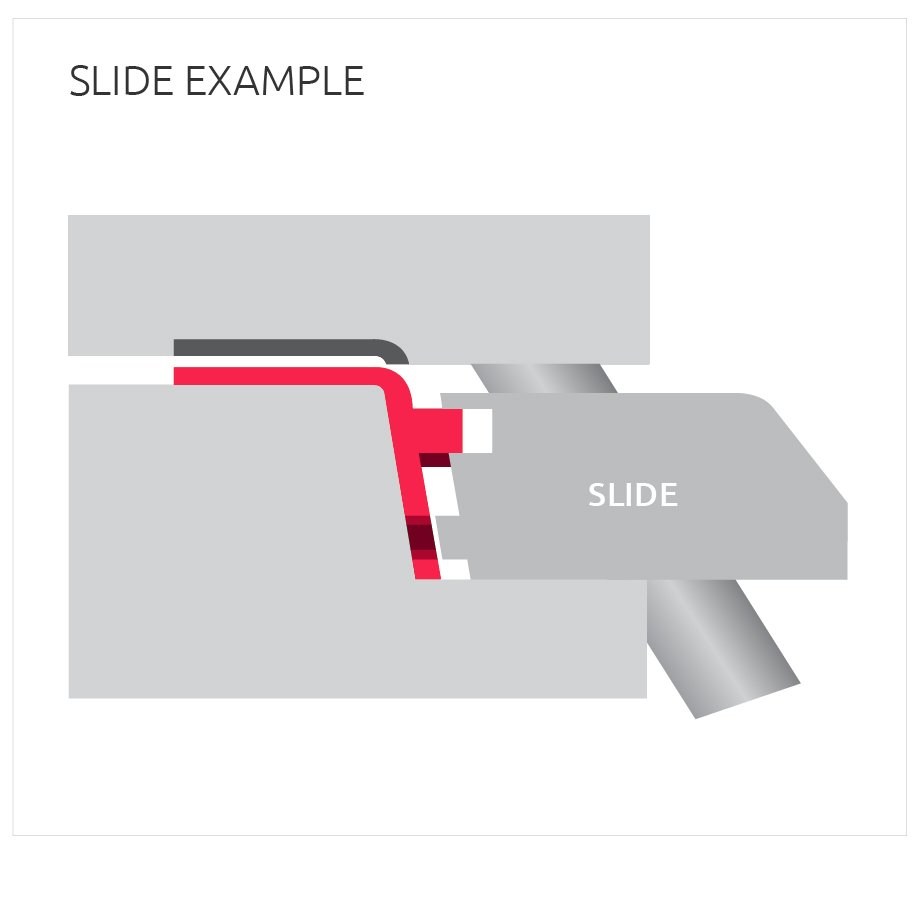

Always cross-check tolerance requirements against cycle-life targets and specify mirror-grade EDM finishes when the die button interfaces with hardened pins or slides.

Choosing Material on Price Alone

Opting for unhardened steel over SKD61 or ASP23 may save 20–30% upfront but can triple replacement frequency, erasing any initial savings. Cycle-life economics — not unit price — determine true cost.

Request material certificates and hardness reports (HRC 58–62 typical) to verify heat treatment; suppliers who hesitate lack traceability.

Skipping Documentation and Lead-Time Planning

Failing to request dimensional inspection reports and material certs leaves you with no recourse when out-of-spec parts arrive. Custom geometries (non-catalog profiles, conformal cooling) add 7–14 days; last-minute orders cascade into mold-build delays.

Demand CMM reports (ZEISS-class preferred) and build 2–3 weeks into schedules for engineered die buttons. Red flag: any supplier unwilling to share metrology data.
