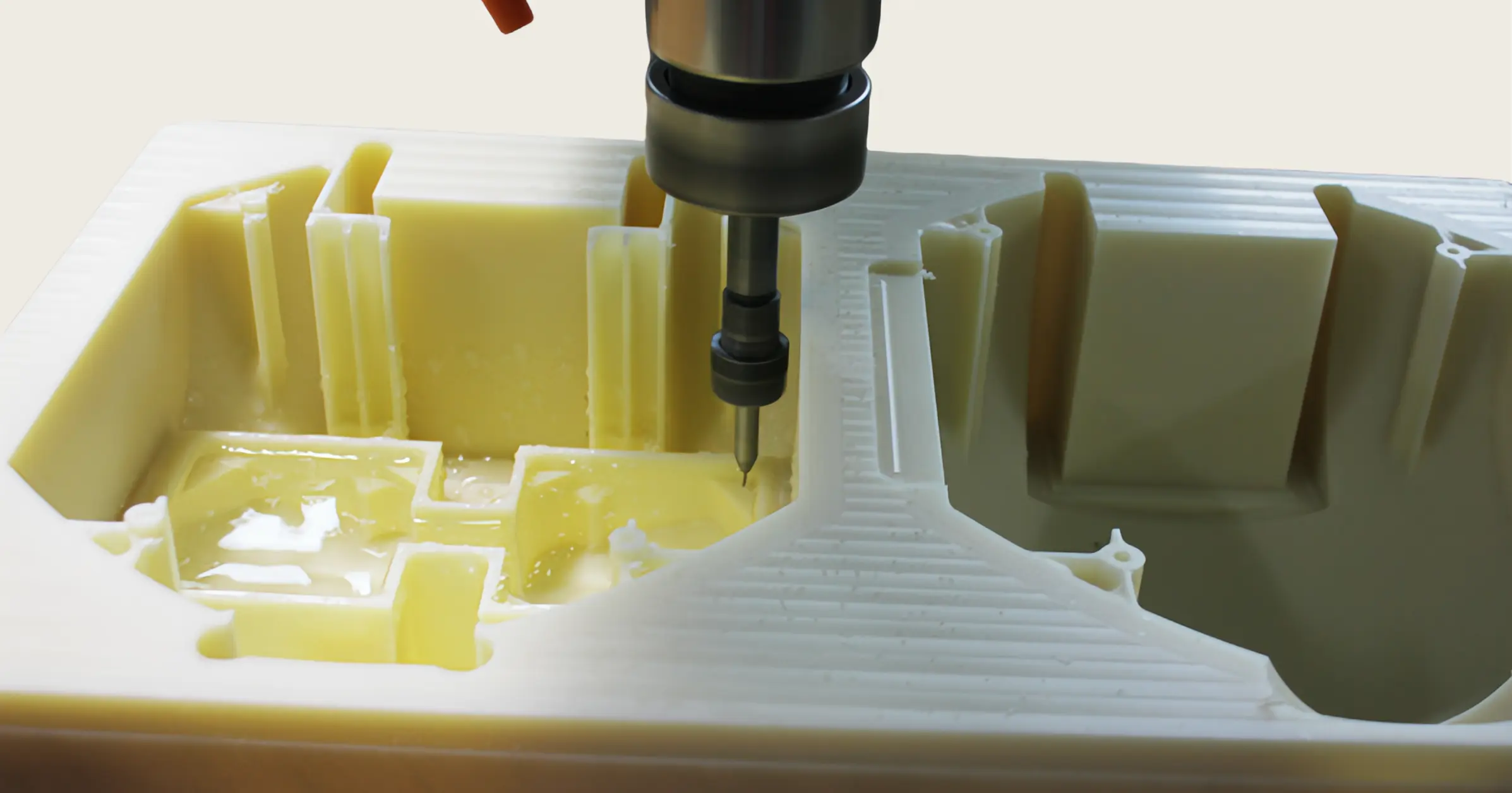

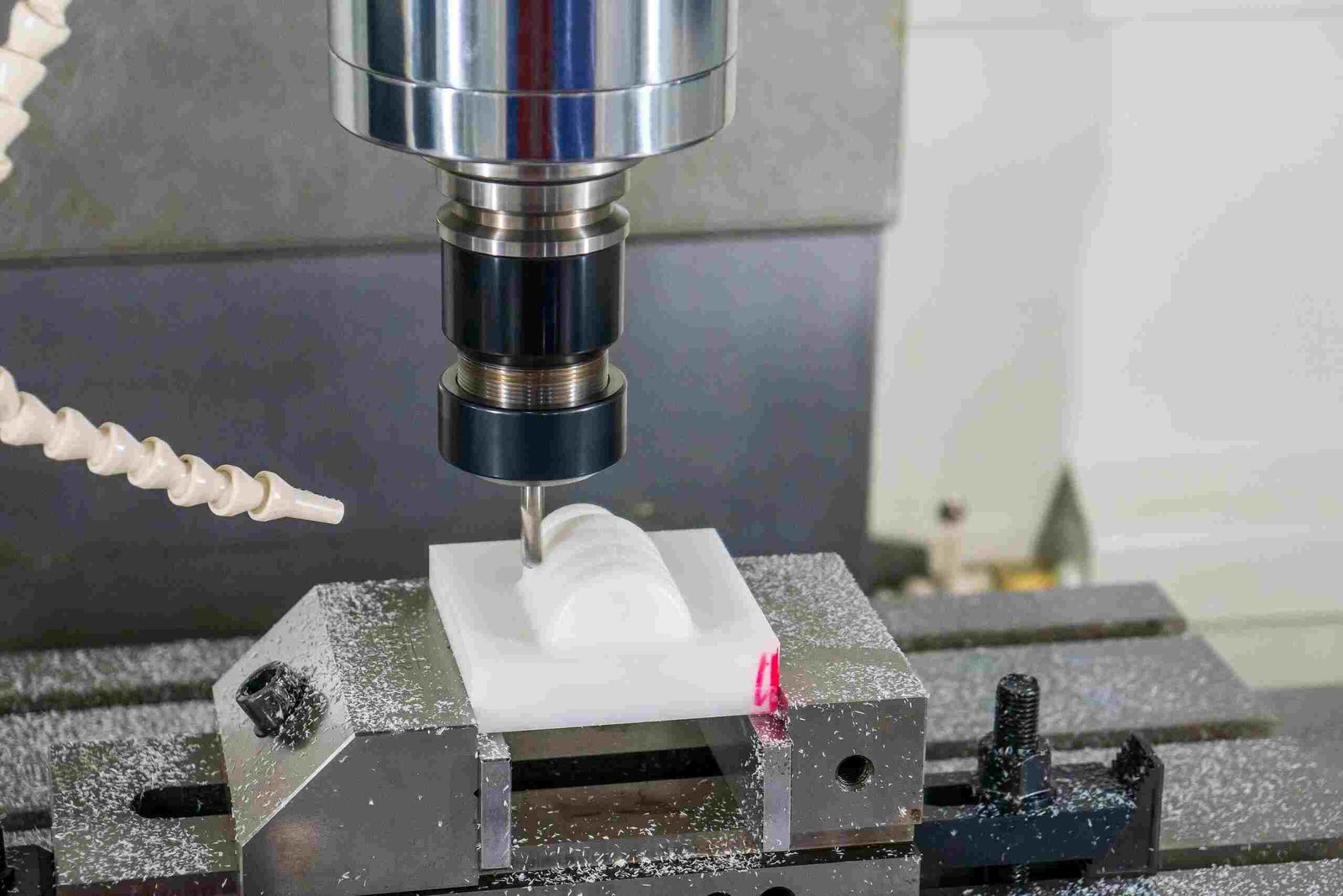

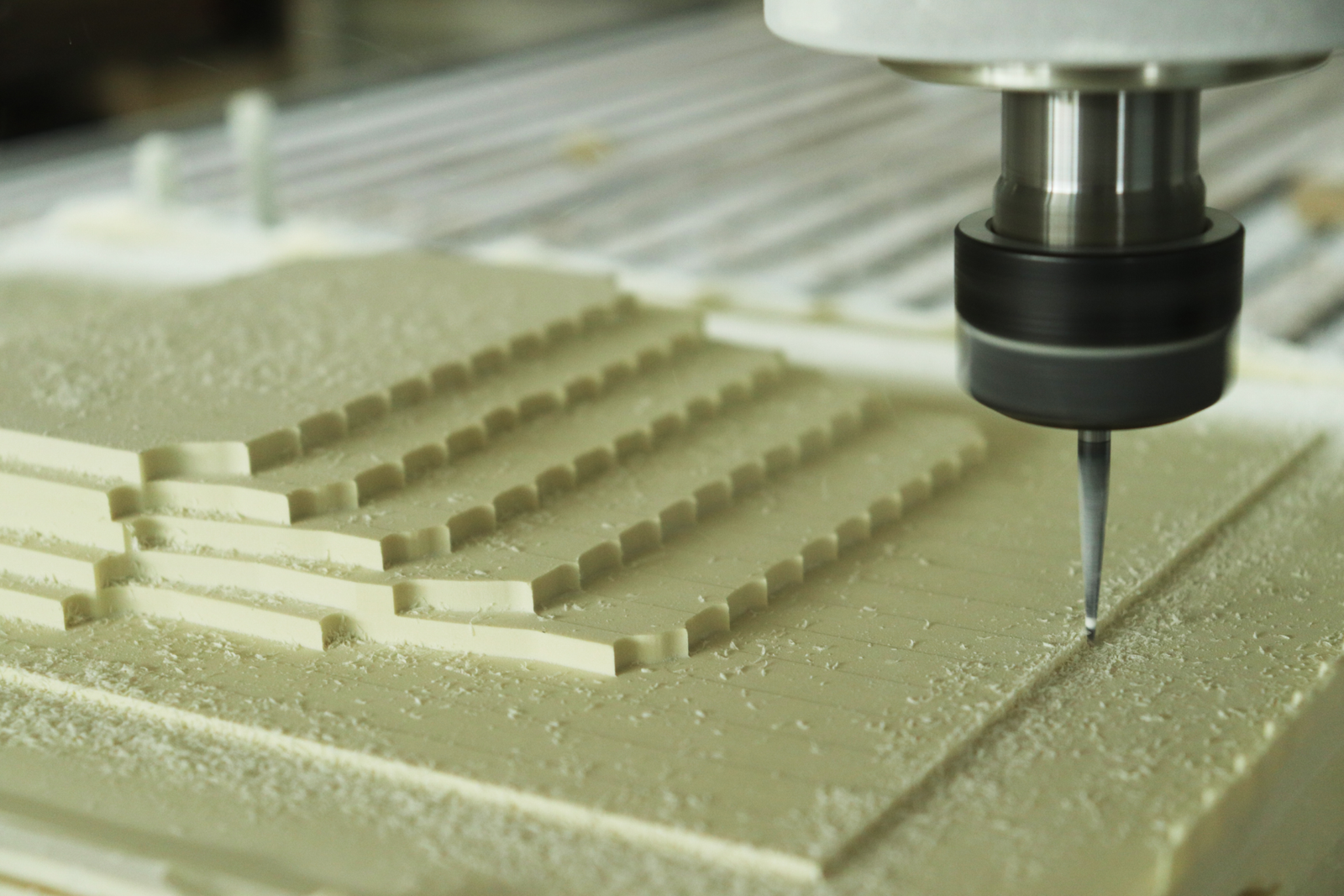

CNC Milling (3-, 4-, 5-Axis)

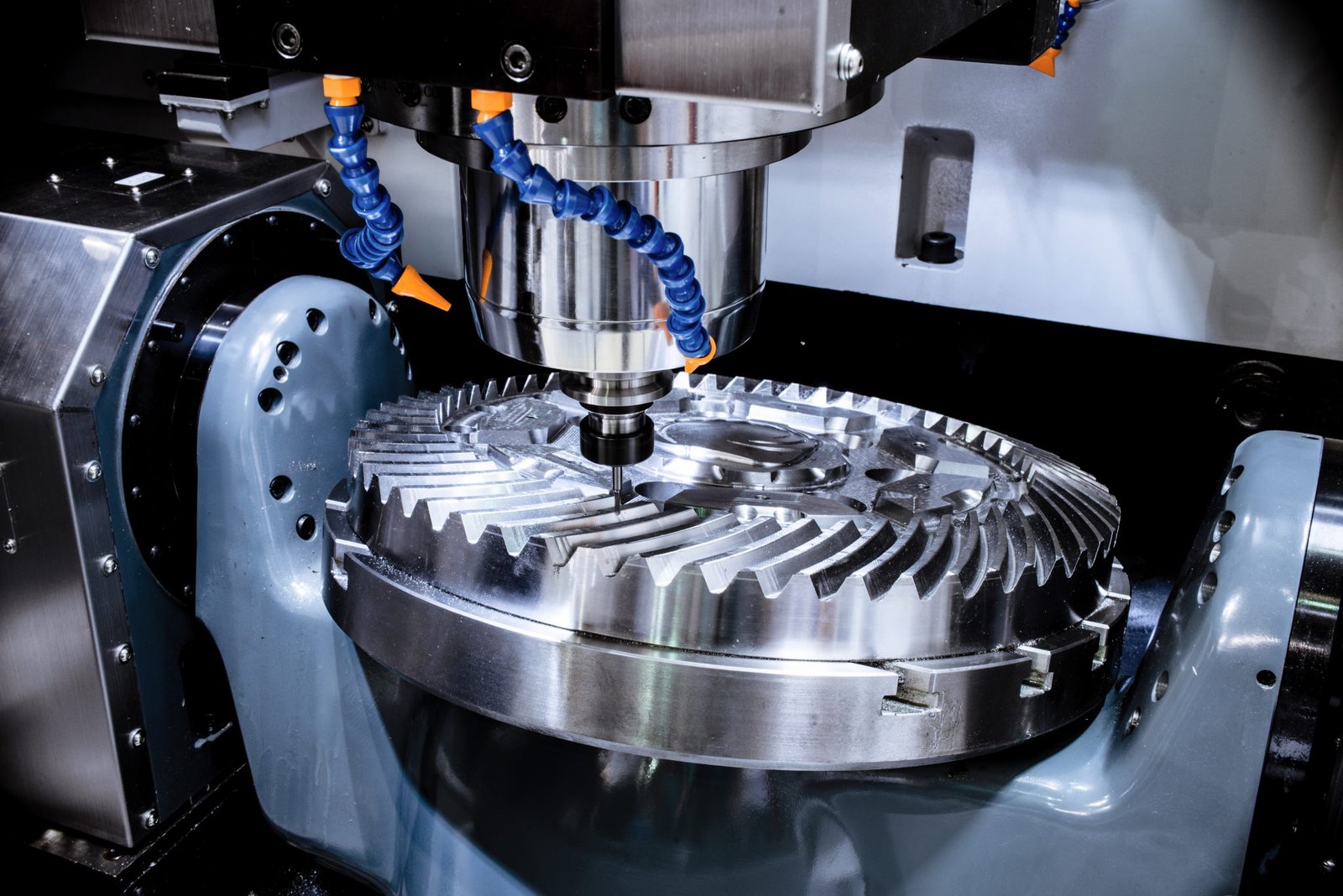

Multi-axis CNC milling handles complex housings, connector shells and enclosures with undercuts or compound curves. 3-axis machines reach +/-0.01 mm; 5-axis centers achieve +/-0.005 mm with Ra 0.4–0.8 µm finishes.

Ideal for ADAS sensor housings, medical-device covers and 5G antenna brackets where feature access and surface continuity matter.

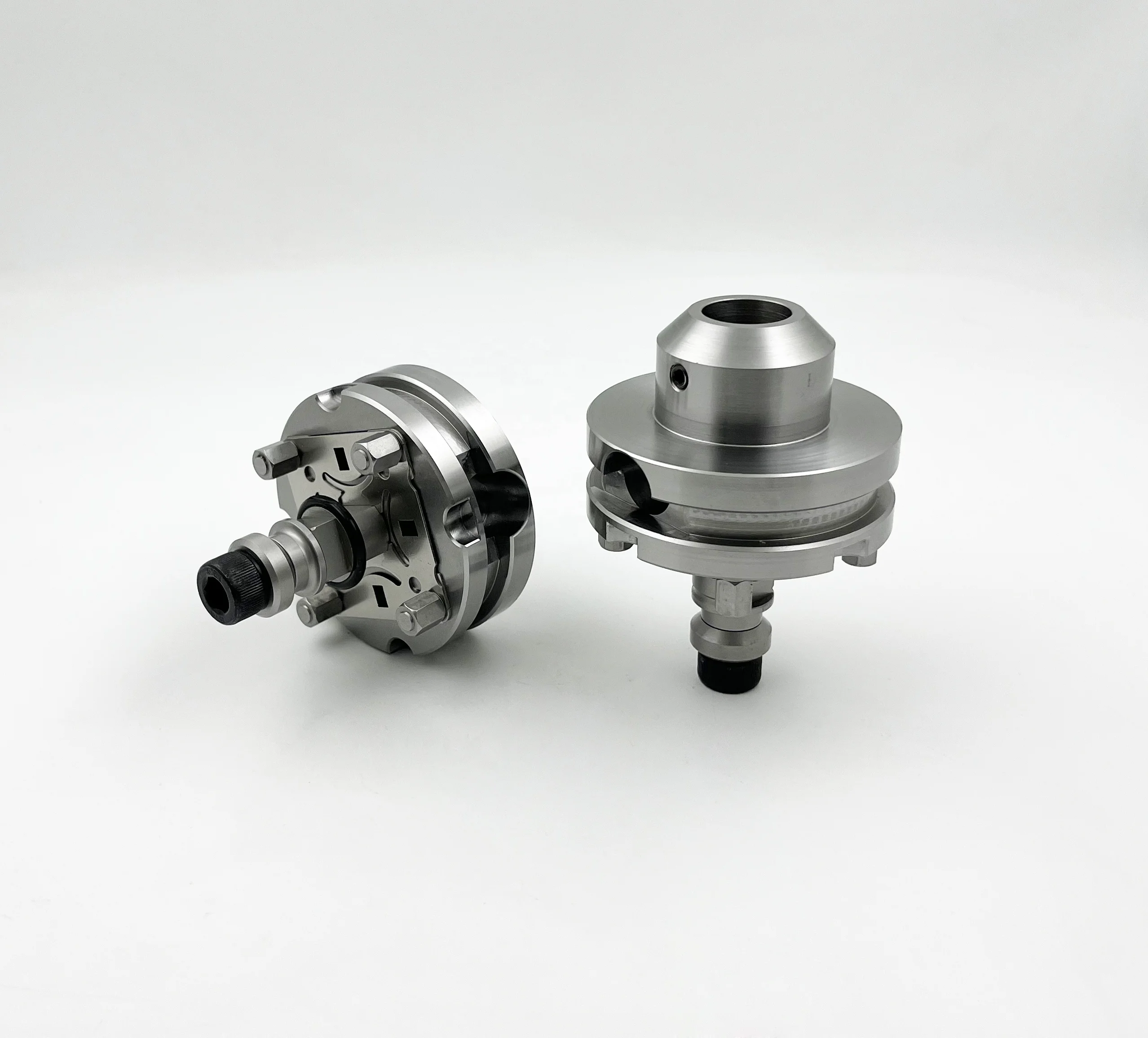

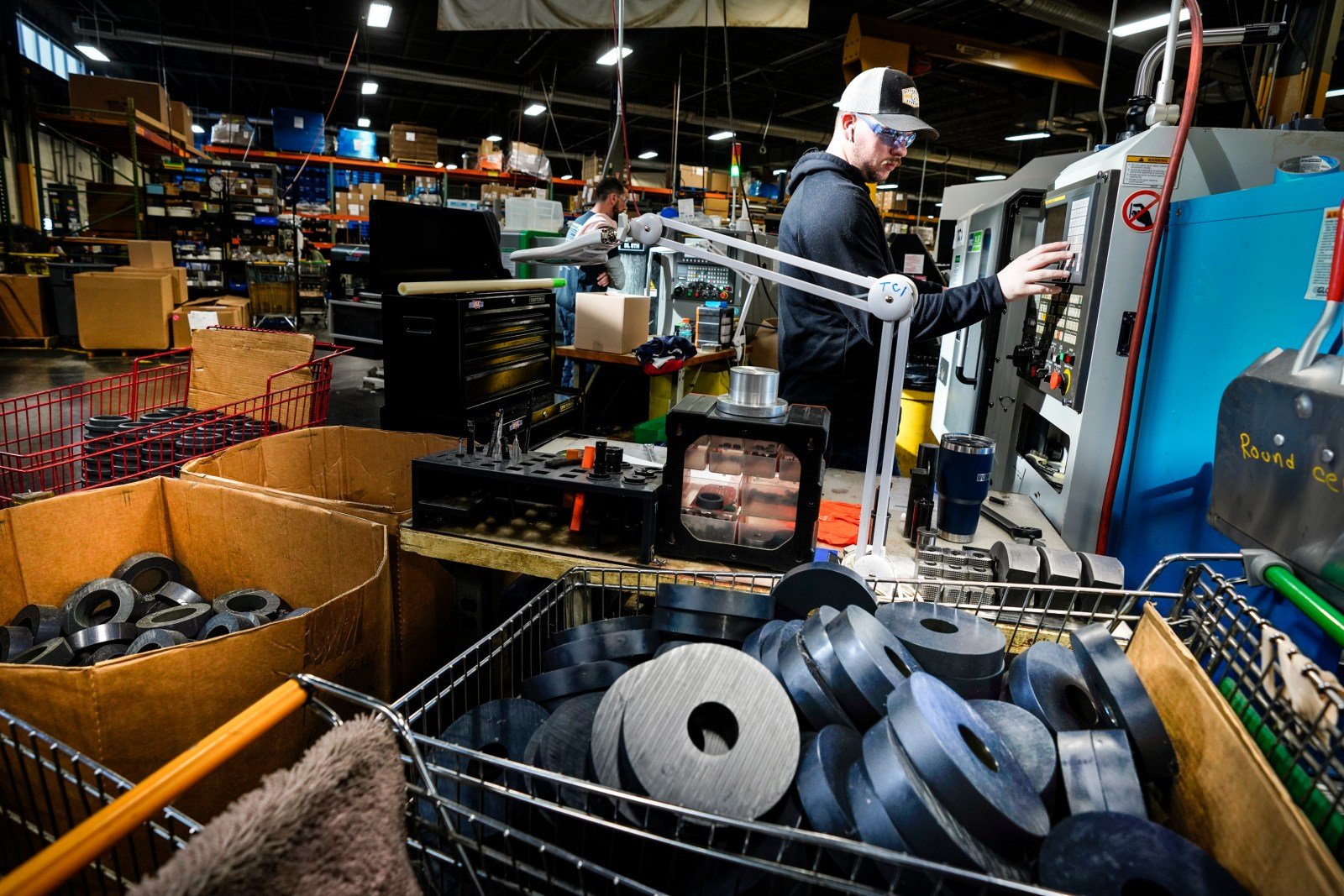

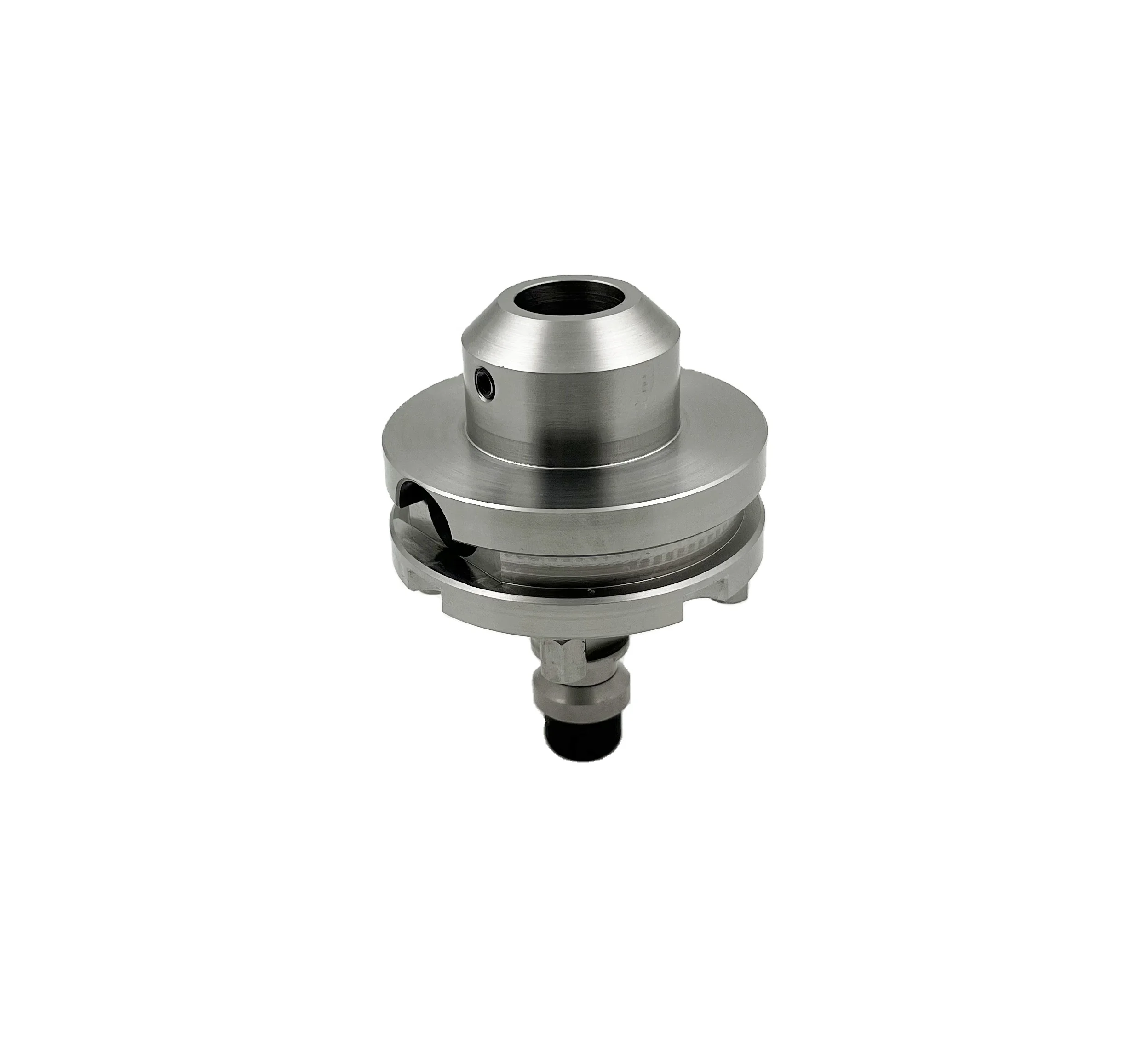

CNC Turning and Swiss-Type Machining

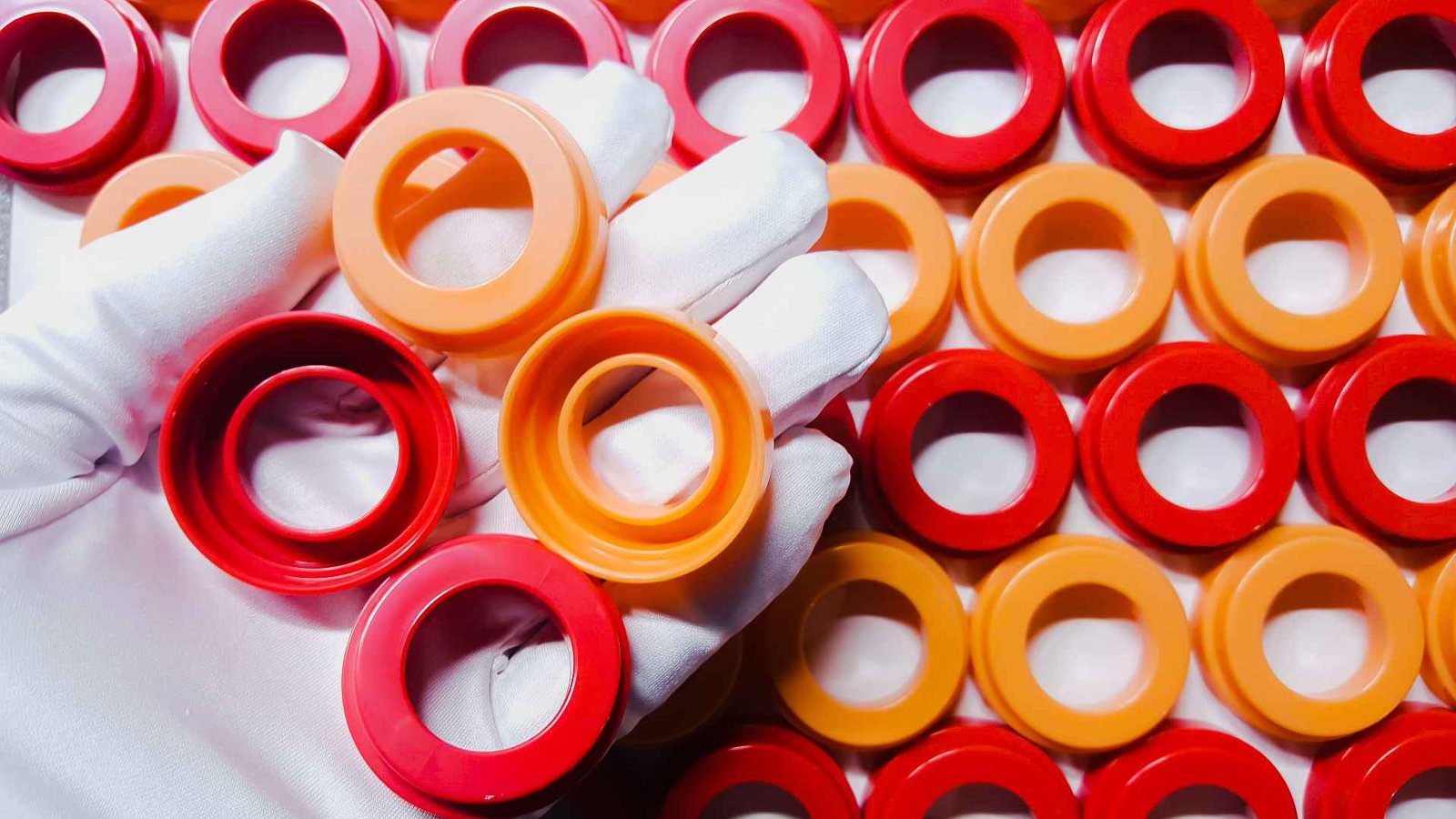

Swiss-type lathes excel at micro-pins, terminal contacts and cylindrical inserts down to 0.3 mm diameter, holding +/-0.002 mm on length and concentricity. Multi-spindle turning scales production of bushings and standoffs.

Typical applications include micro-connector pins, FPC alignment posts and board-to-board terminal cores.

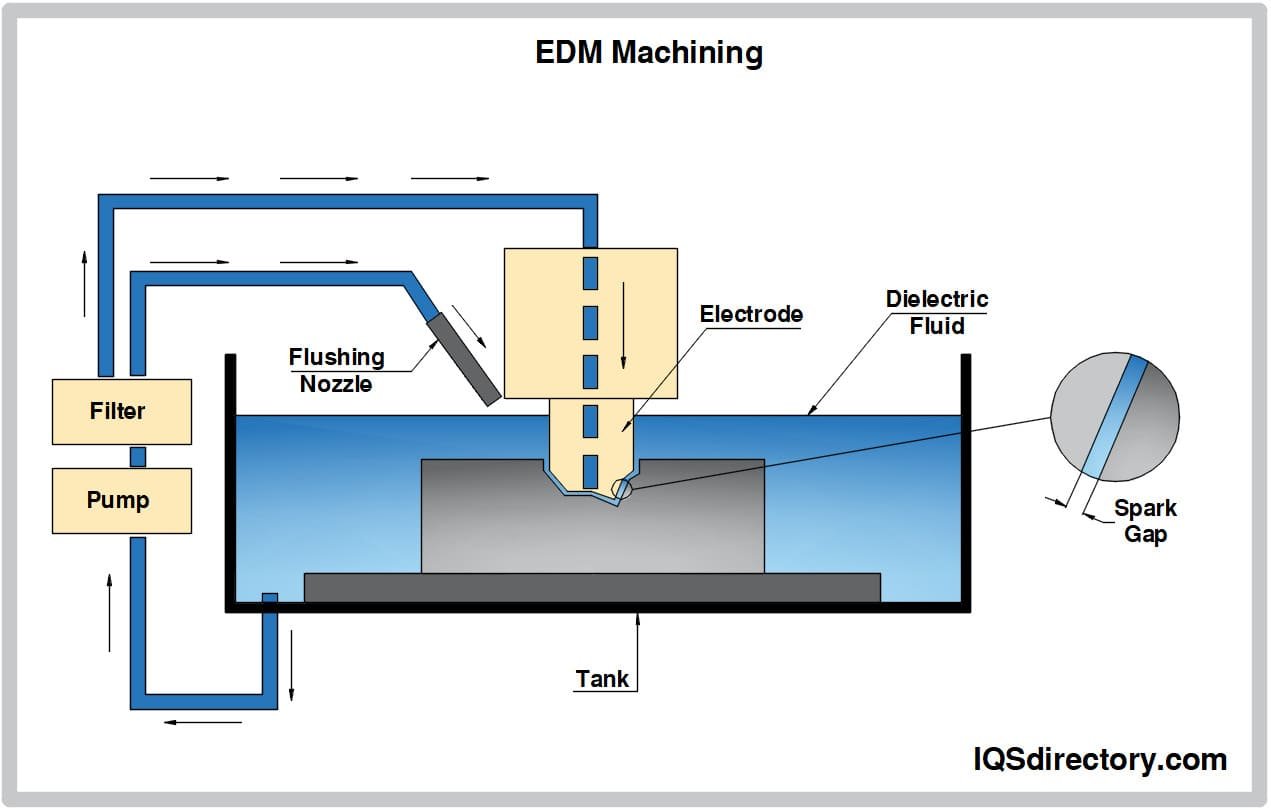

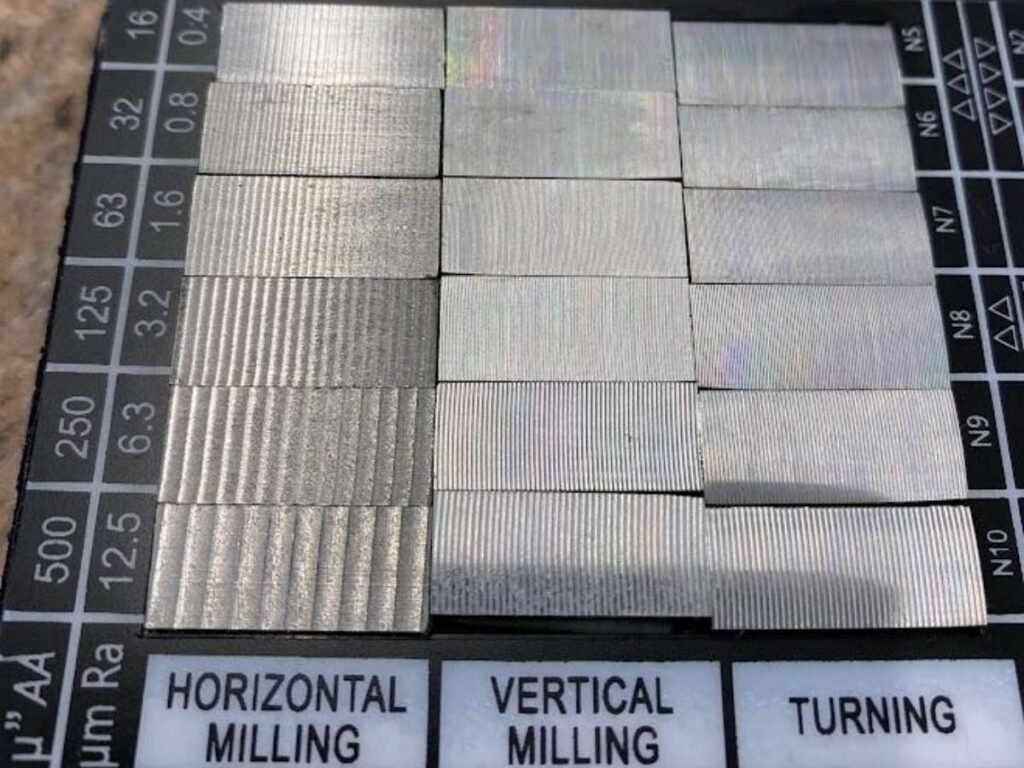

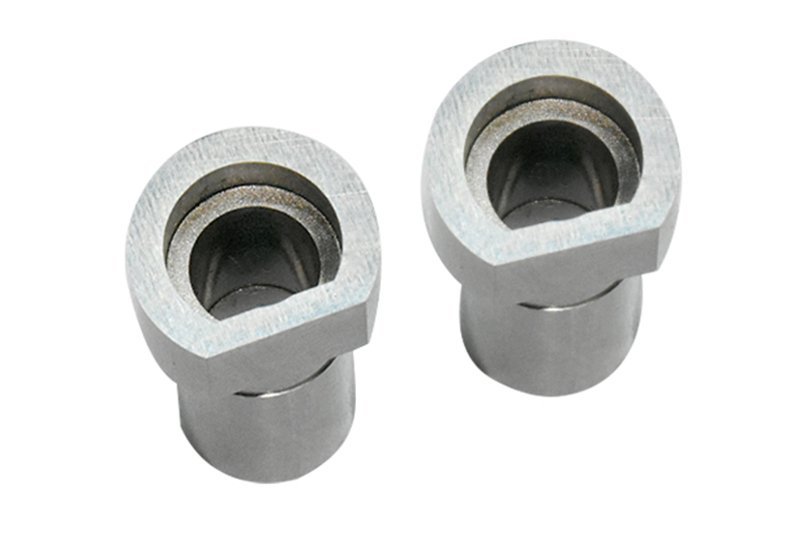

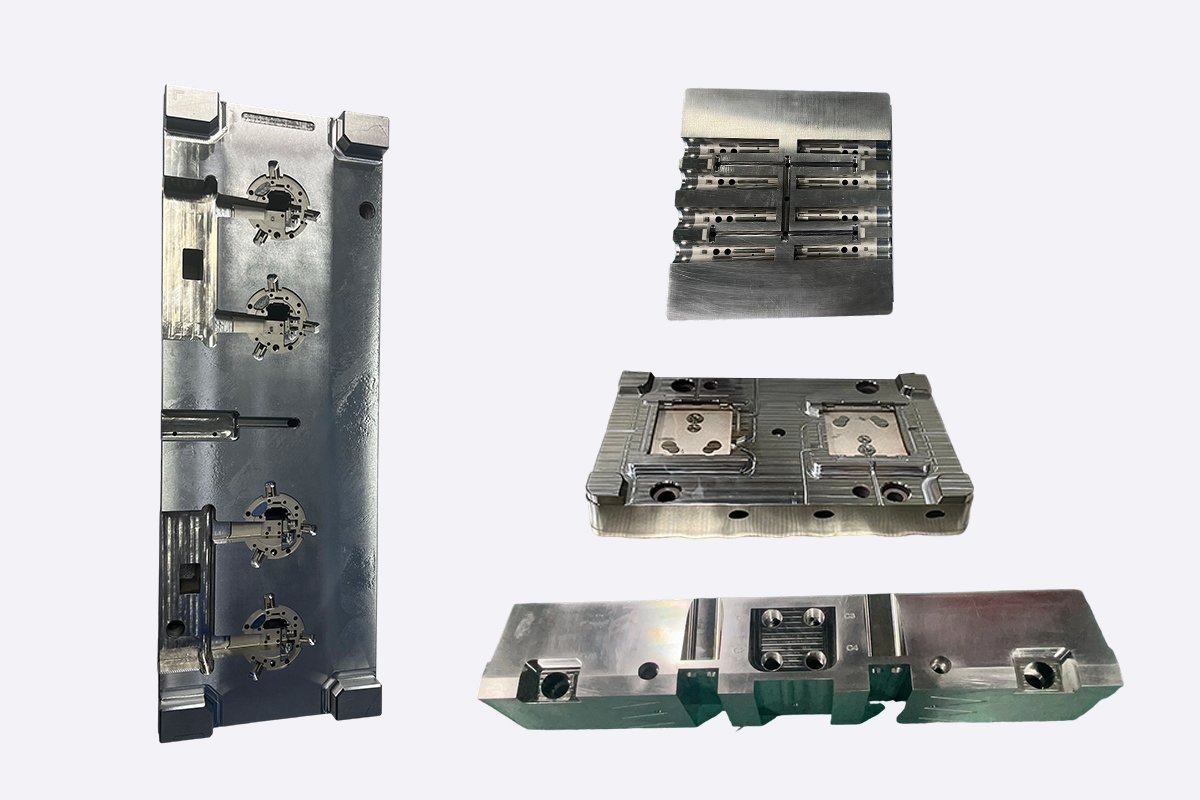

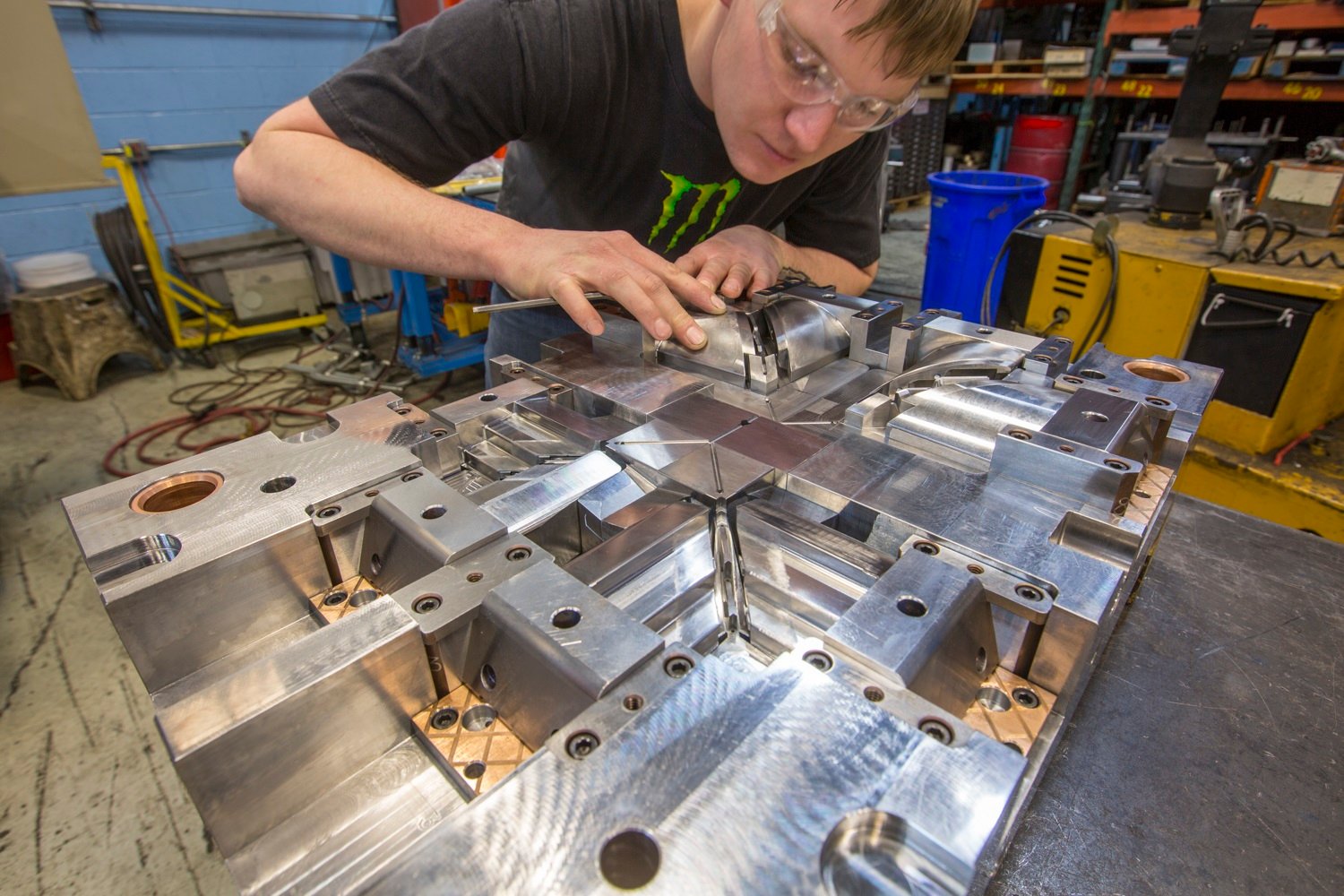

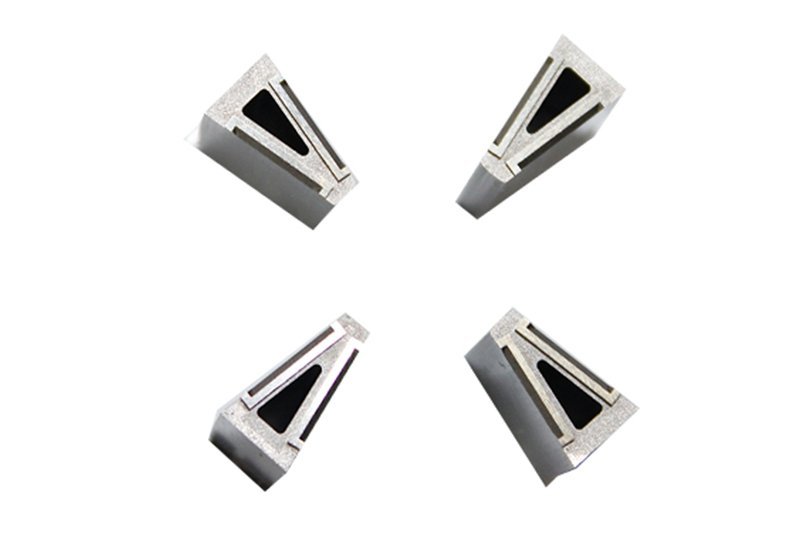

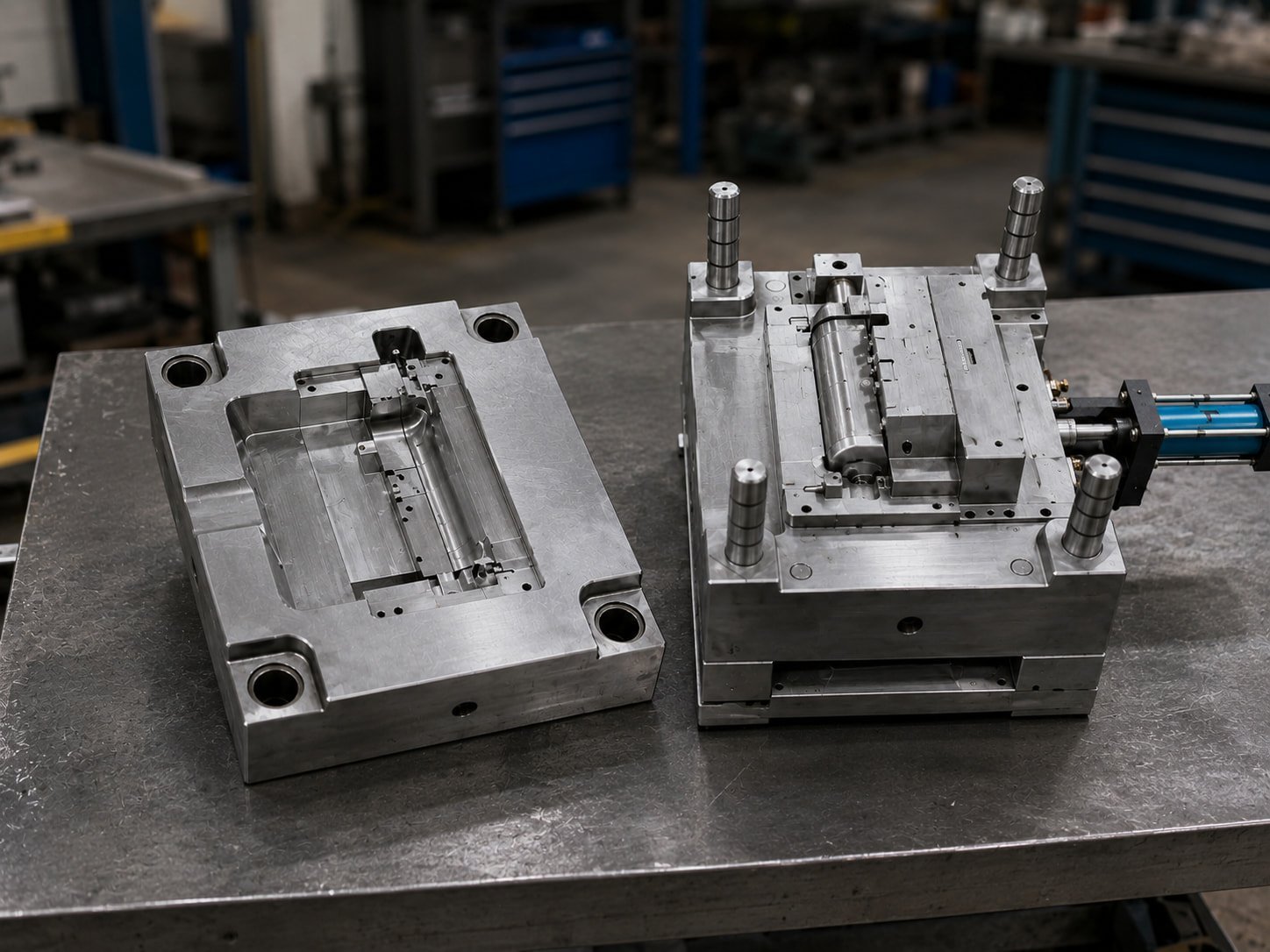

Precision Grinding and EDM for Plastics

Precision grinding delivers mirror-class finishes (Ra ≤ 0.1 µm) on flat datum surfaces and tight-tolerance bores. Sinker and wire EDM cut conductive-filled engineering plastics or graphite electrodes for subsequent mold inserts, achieving +/-0.003 mm and corner radii down to R 0.015 mm.

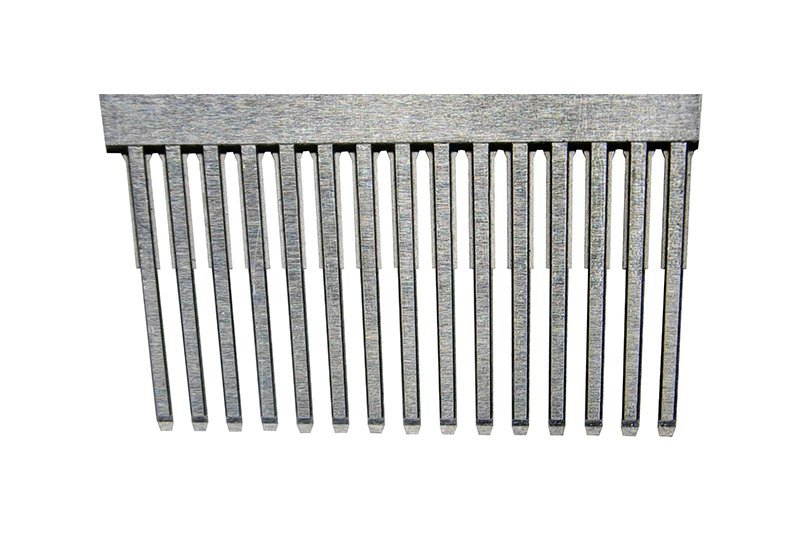

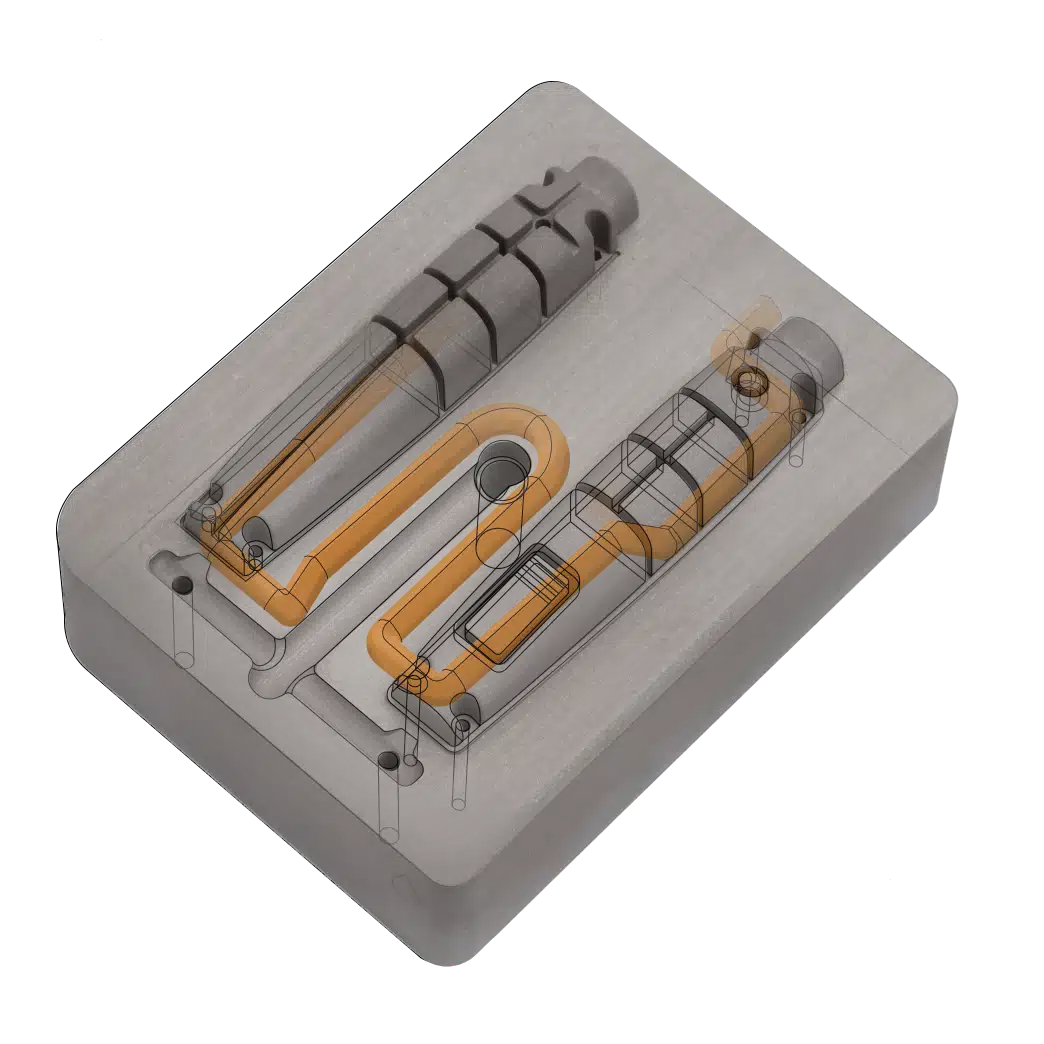

Grinding suits optical-component fixtures; EDM supports high-density connector tooling and conformal-cooling cores.

Impact on Tool Wear and Cycle Time

Abrasive fillers in PEEK and Torlon accelerate carbide-tool wear by 30–50% versus unfilled resins, raising per-part cost. PTFE’s low modulus demands slower feed rates to prevent deflection, extending cycle time by 20–40%. Delrin and nylon machine rapidly with standard tooling, minimizing both wear and lead time in high-volume plastic precision machining services.

Laser Marking and Engraving

Fiber and CO₂ lasers add permanent traceability — serial numbers, QR codes, logos and date codes — without fixturing or consumables. Typical mark depth ranges 0.01–0.05 mm on PC, ABS, POM and PEEK.

Lead-time adds 1–2 days; cost premium is $0.02–0.10 per part depending on character count and cycle time.

Ultrasonic Insert Installation

Ultrasonic energy melts precision pockets around brass or stainless threaded inserts, creating pull-out strengths exceeding 500 N in reinforced nylon and PC. Insert diameters from M1.6 to M8 are common in connector housings and sensor mounts.

Typical premium: $0.05–0.20 per insert; adds 2–3 days to schedule.

Coatings: Parylene, PTFE and Anodizing

Parylene C and N conformal coatings deliver 10–25 µm biocompatible, pinhole-free barriers for medical implants and sensors. PTFE impregnation reduces friction to µ ≤ 0.1 on sliding surfaces; anodizing applies only to metal inserts or hybrid assemblies.

Lead-time: 5–7 days for external coating; cost adds 15–40% to part price.

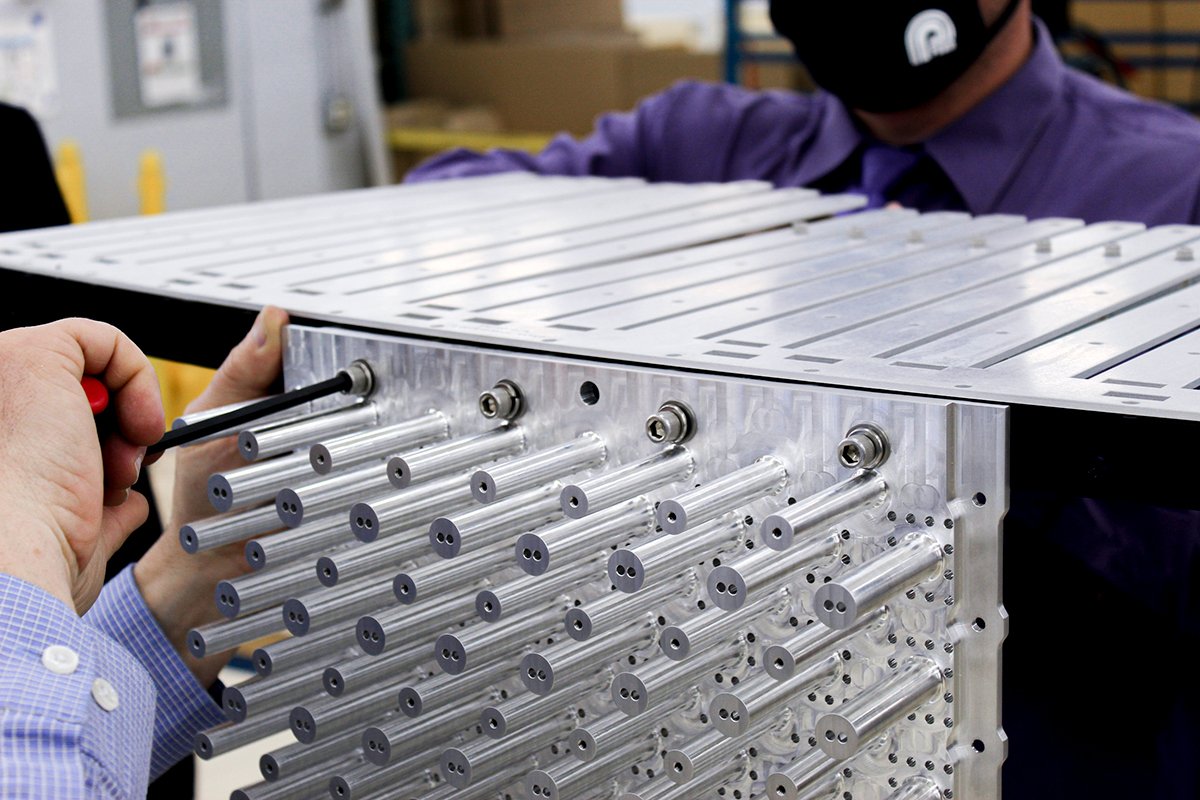

Assembly, Kitting and Cleanroom Packaging

Multi-component assembly — snap-fit covers, O-rings, springs, PCBs — ships as validated subassemblies with full traceability. ISO Class 7 cleanroom packaging meets medical (ISO 13485) and semiconductor particle-count requirements, with ESD-safe trays and vacuum-sealed foil.

Assembly adds 3–5 days; cleanroom packaging premium: 10–25% depending on validation documentation.

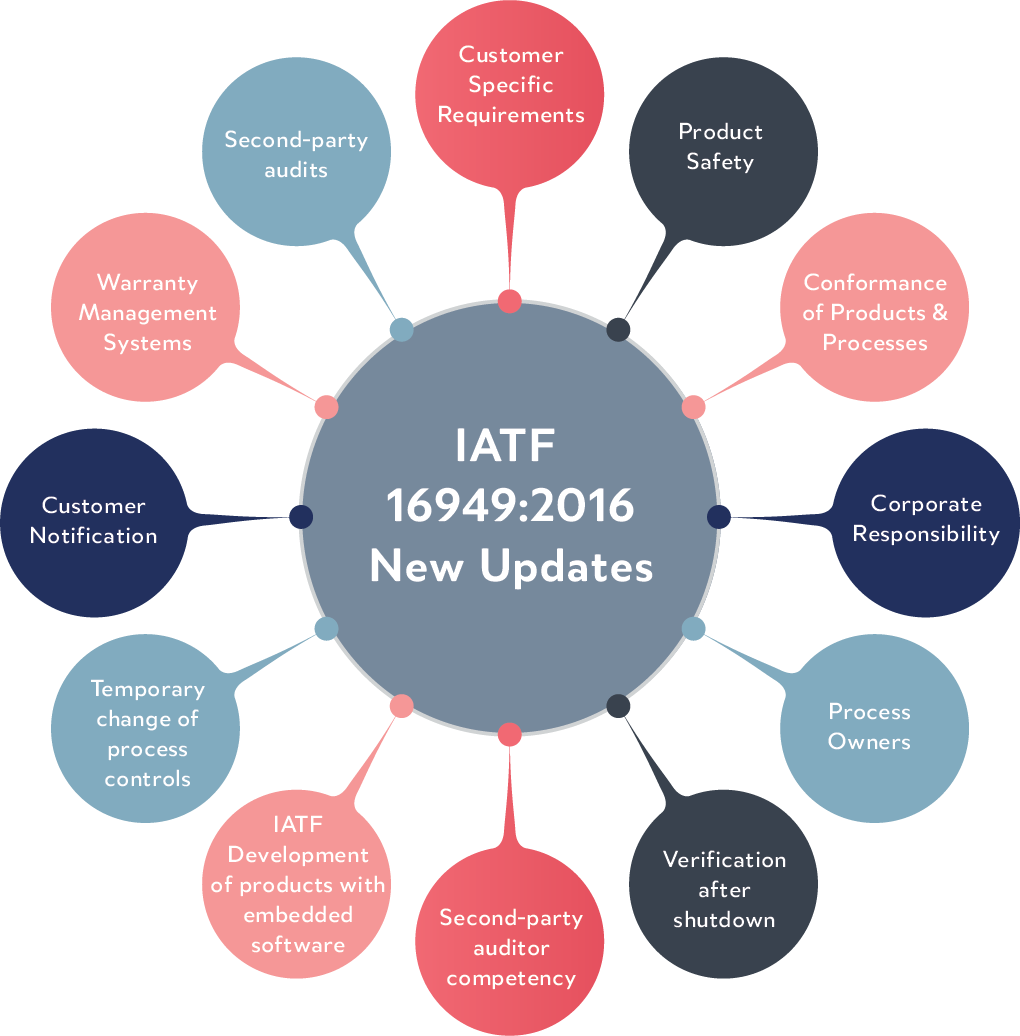

ISO Certification and Process Control

ISO 9001:2015 is the baseline for documented process control; ISO 13485 is mandatory for medical-device components. Verify that the supplier maintains in-process SPC with Cpk ≥ 1.33 for critical dimensions and publishes control charts on request.

XUXIANG operates under ISO 9001:2015 governance and tracks tolerance stability through five-step QC — material spectral analysis, in-process monitoring, CMM verification, surface-integrity checks and FAI documentation.

CMM and Measurement Uncertainty

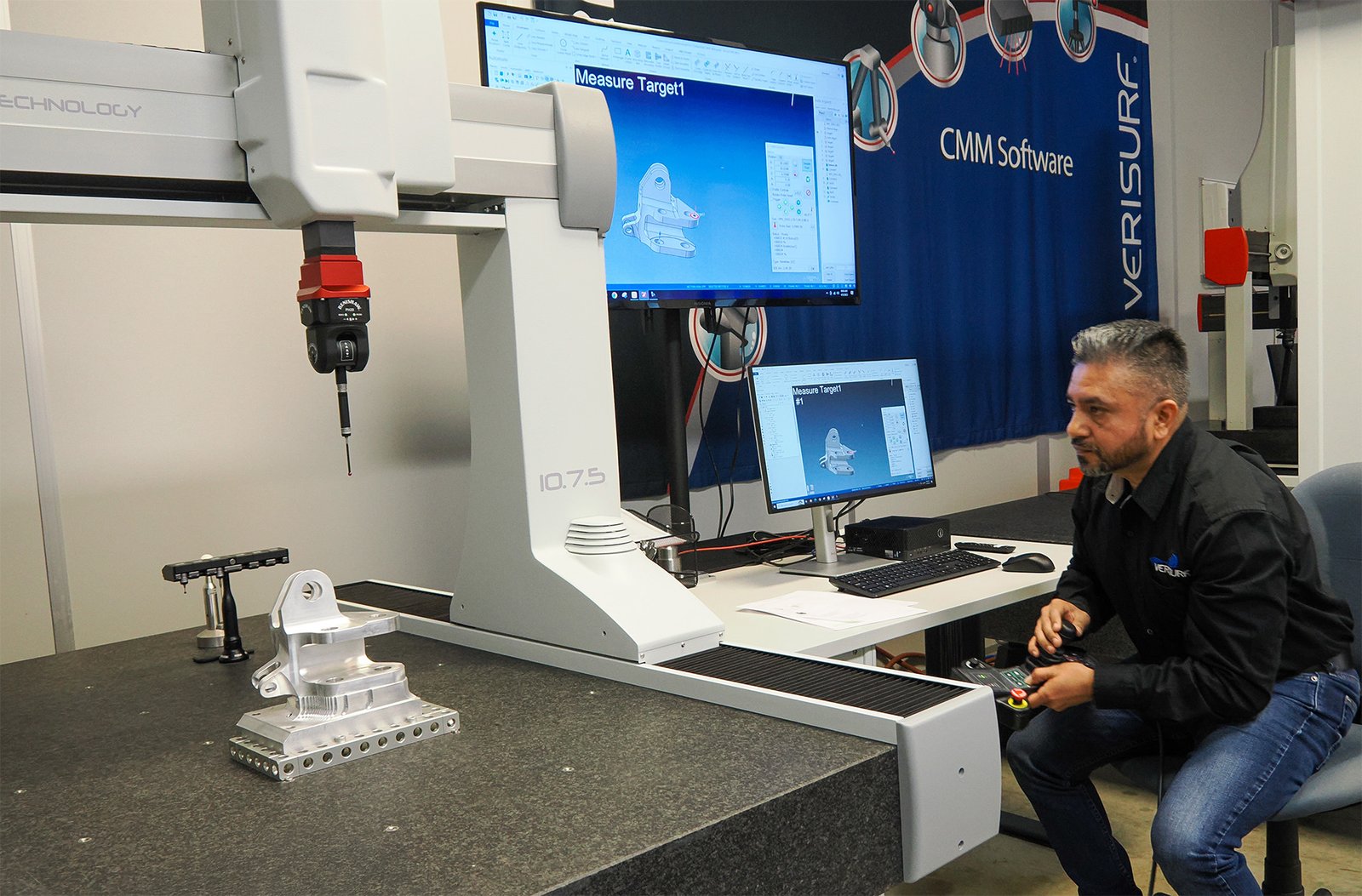

A ZEISS, Mitutoyo or equivalent CMM with measurement uncertainty ≤ 1 µm is essential for validating +/-0.002 mm tolerances. Confirm that the lab is temperature-controlled (20 ± 1 °C) and that calibration certificates are current.

XUXIANG’s ZEISS MICURA CMM measures to 0.7 µm uncertainty, backed by Nikon toolmaker’s microscopes (V-12B / MM-400 class) for optical verification of micro-features and surface finish down to Ra 0.1 µm.

Traceability and Environmental Controls

Lot codes, material certificates and FAI reports enable root-cause analysis and audit trails. For electronics and medical applications, ask whether machining occurs in ESD-safe zones or ISO Class 7/8 cleanrooms to prevent contamination and electrostatic damage.

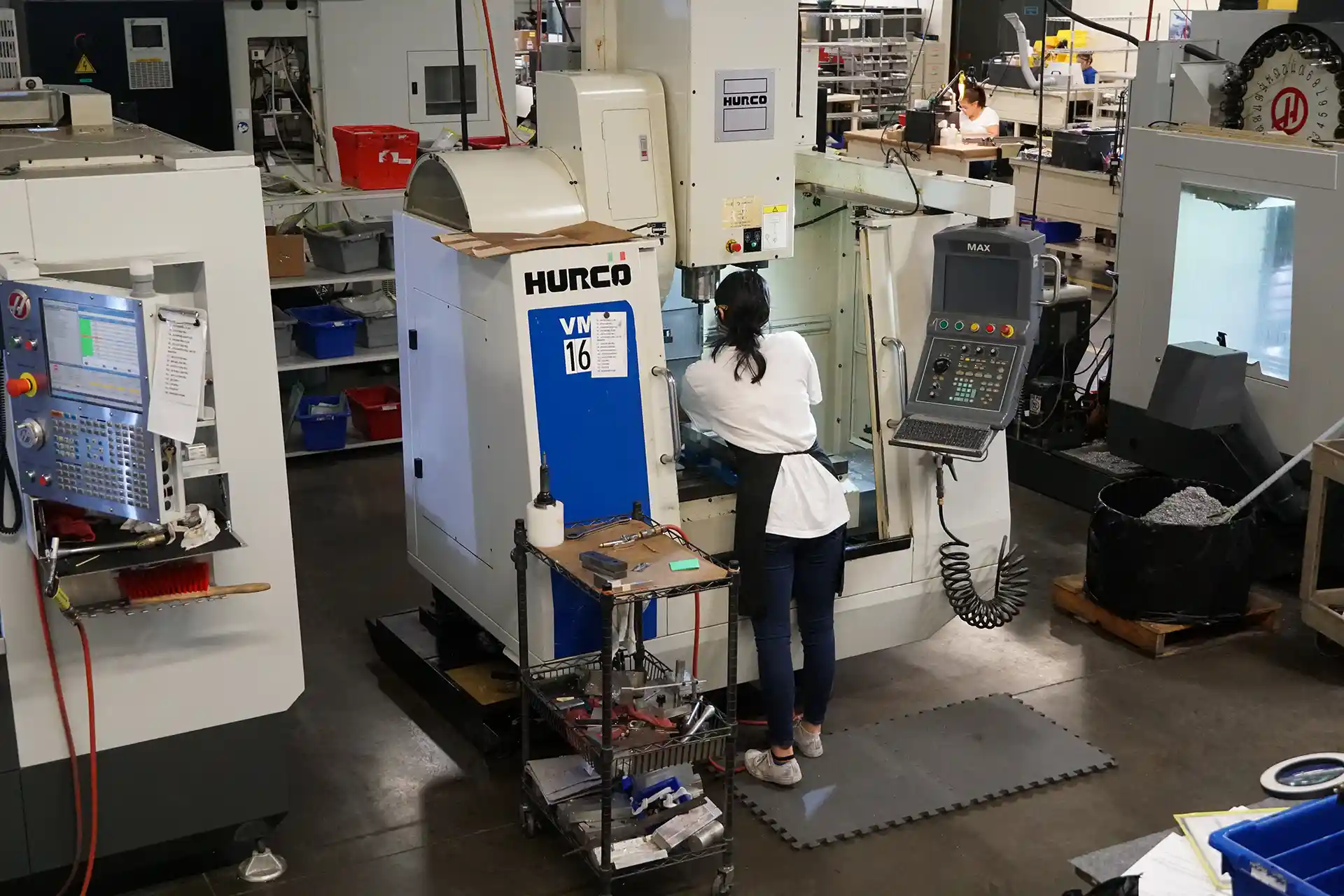

Machine-Park Capabilities

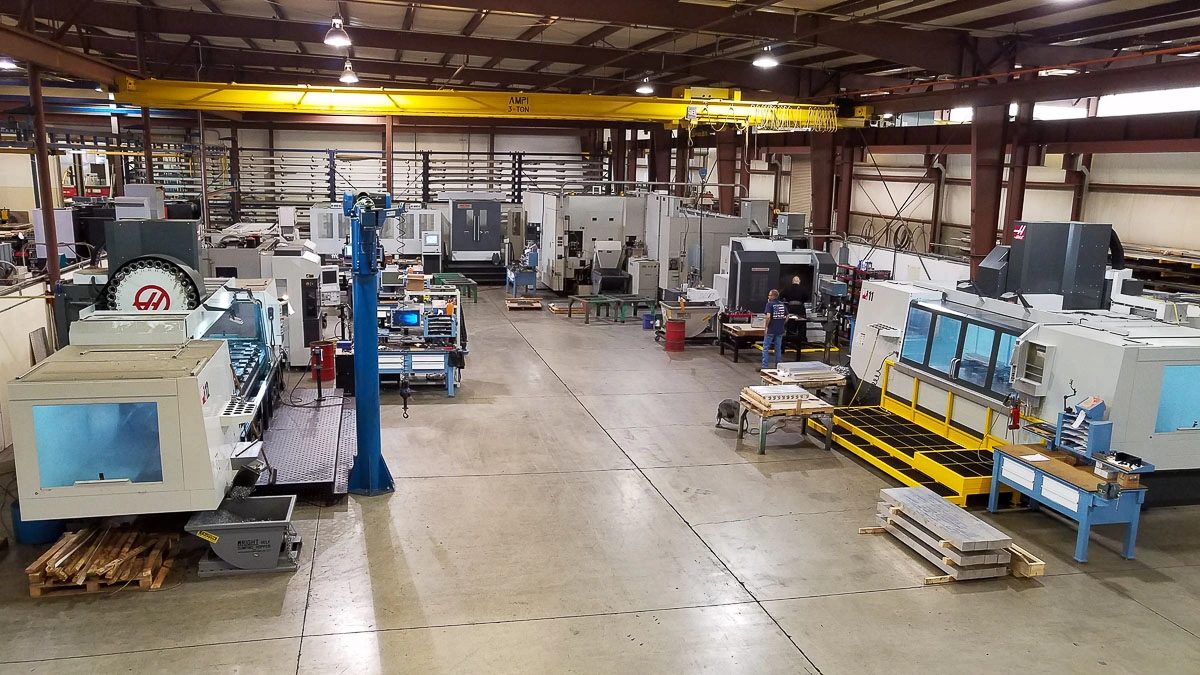

Document CNC axis count (3-, 4- or 5-axis), spindle speeds (≥24,000 rpm for micro-features), work envelope and repeatability specs. Ask for asset lists with OEM names — Sodick, Makino, Fanuc-class equipment signals capability for +/-0.005 mm tolerances; generic machines rarely hold tighter than +/-0.02 mm.

Material Certifications and Traceability

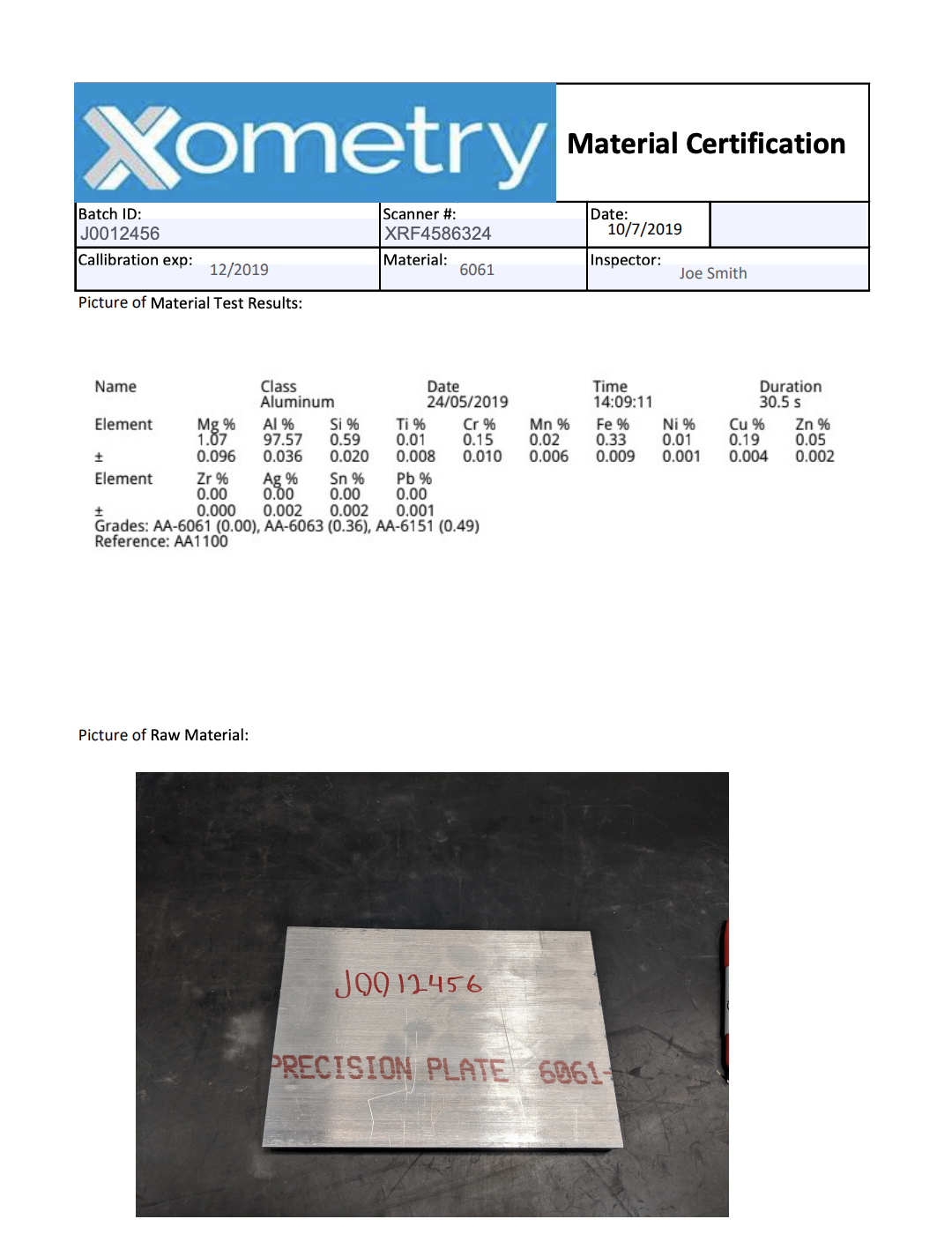

Request mill certificates for engineering resins (PEEK, PPS, PPSU) and spectral-analysis reports verifying grade compliance. ISO 9001:2015 providers maintain batch traceability; ask how lot numbers link to final FAI documentation.

Inspection Equipment and Calibration

Validate CMM brand (ZEISS, Mitutoyo), measurement uncertainty (≤1 µm for micron-class work) and annual calibration certificates. Providers with toolmaker’s microscopes (Nikon, Keyence) can verify edge radii ≤0.02 mm and surface finish to Ra 0.1 µm.

Engineering and DFM Support

Evaluate pre-production DFM feedback depth: tolerance stack-up analysis, draft-angle recommendations and material-substitution proposals. Ask how many engineers review designs and typical turnaround time for DFM reports.

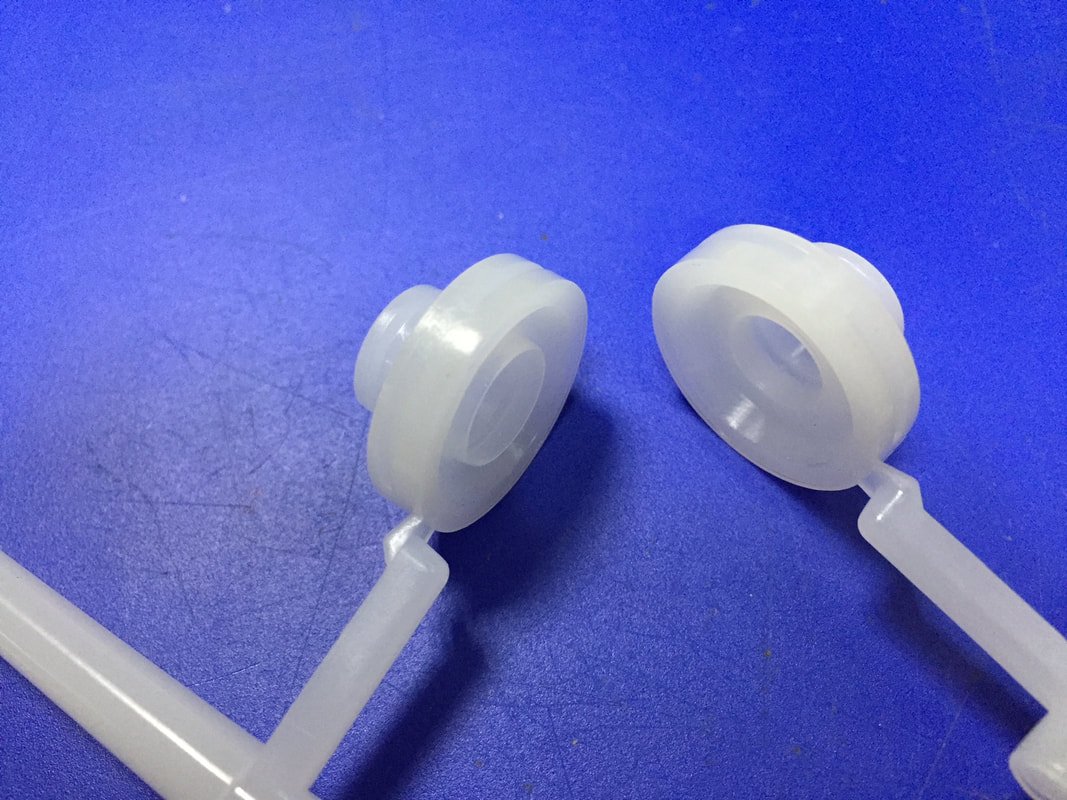

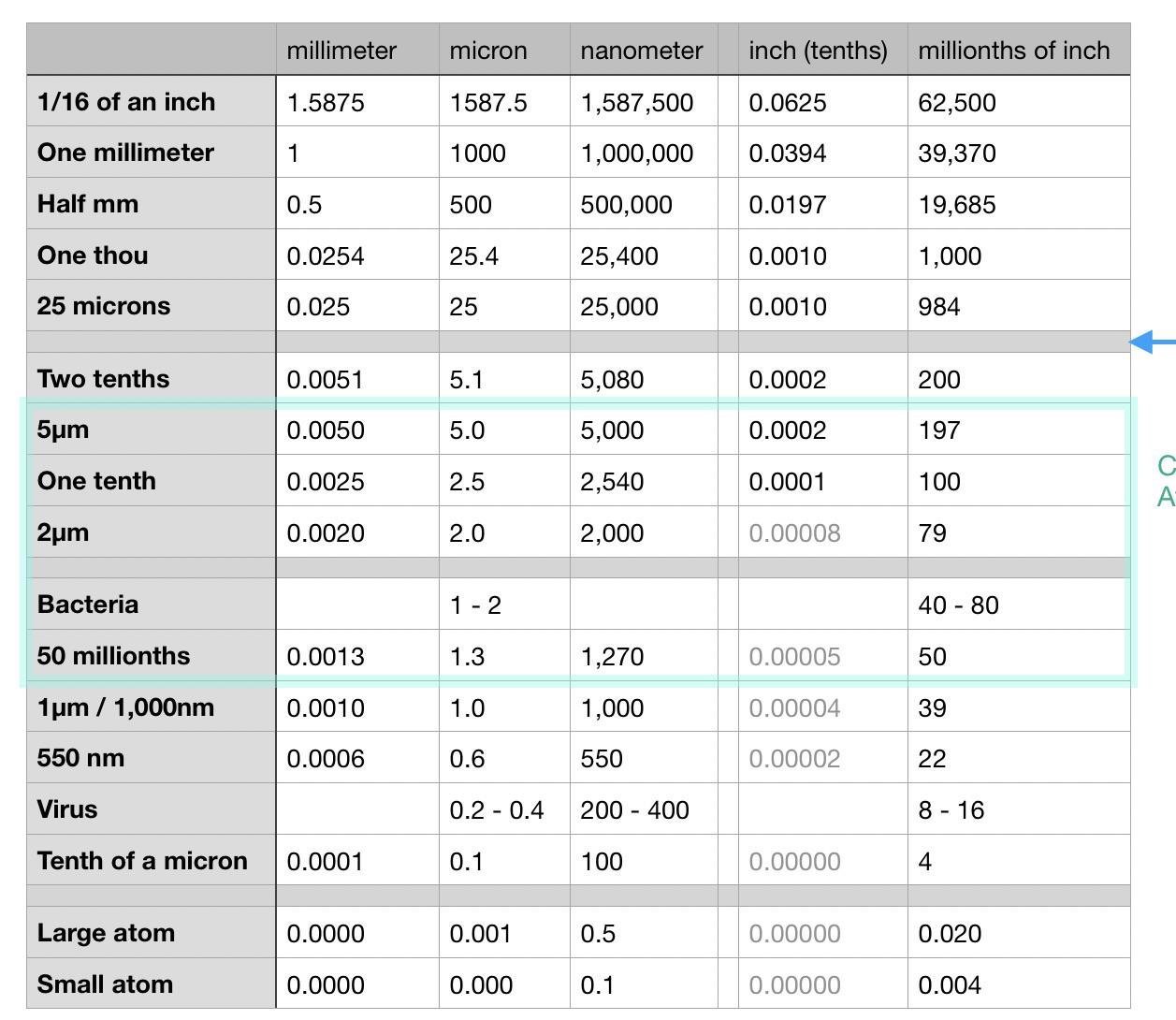

Specifying Tighter Tolerances Than Functionally Necessary

Calling out +/-0.005 mm when +/-0.02 mm suffices doubles machining time and triples inspection cycles. A medical-device buyer once specified +/-0.003 mm on non-critical bosses, adding 35% to unit cost.

Correction: assign ISO 2768-fine to general features and tight tolerances only to mating surfaces. XUXIANG’s DFM reviews flag over-toleranced dimensions before the PO, saving cycle time and preserving function.

Ignoring Material Anisotropy and Thermal Expansion

Plastics expand 5–10× more than metals; PEEK’s CTE is ~47 ppm/°C. A telecom customer’s PPS housing warped 0.08 mm post-machining because the buyer ignored grain direction and ambient temperature swings.

Correction: specify operating temperature range on the drawing. XUXIANG stabilizes blanks for 24 hours and machines along the grain, then validates dimensional stability at +23°C and the target service temperature.

Failing to Define Surface-Finish Requirements

Drawings marked ‘smooth finish’ yield Ra 1.6–3.2 µm — acceptable for housings but catastrophic for optical lenses or seal faces. An automotive sensor program rejected 200 parts because the buyer assumed ‘machined’ meant ‘polished.’

Correction: specify Ra or Rz numerically. XUXIANG delivers mirror EDM finishes to Ra 0.1 µm and documents every surface with Nikon toolmaker’s microscope verification and CMM texture scans.

Underestimating Lead Times for Exotic Materials

PEEK, PPS and LCP rod stock often requires 3–4 weeks procurement versus 1–2 days for POM. A robotics buyer’s 10-day RFQ assumed immediate material availability, delaying the program by three weeks.

Correction: confirm material lead time during RFQ. XUXIANG maintains strategic inventory of POM, PEEK and PPS and flags long-lead exotics in the quotation, preventing schedule surprises.

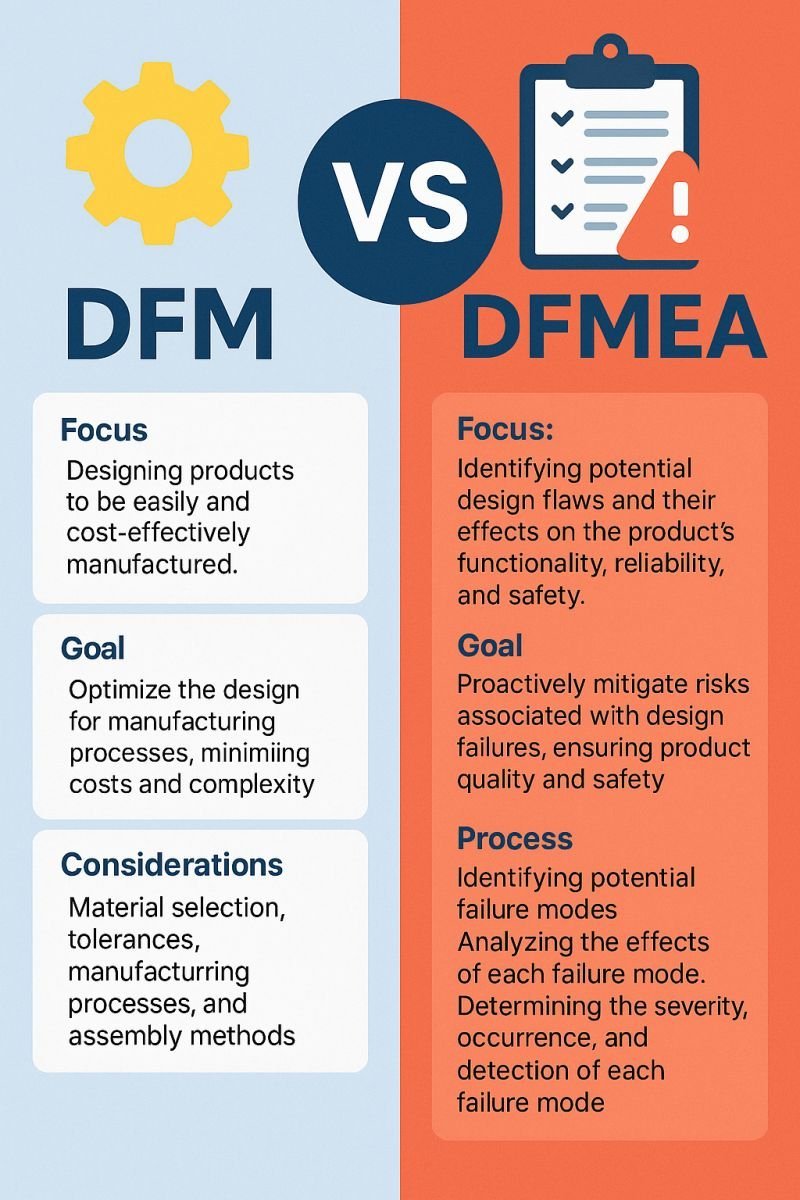

Neglecting DFM Reviews Before Purchase Order

Issuing a PO without design-for-manufacturability feedback locks in costly features: blind pockets with L/D > 5, internal radii below tool size or impossible inspection access. One NEV program required a $12,000 re-tool because the buyer skipped DFM.

Correction: request a formal DFM report. XUXIANG’s 10+ engineering experts review every drawing for machinability, tolerance feasibility and inspection access before production, eliminating rework and protecting tooling investment.

Choosing Suppliers Without Proper Metrology

Shops claiming +/-0.005 mm but lacking CMM equipment cannot verify their own work. An electronics OEM’s connector tooling failed because the supplier used calipers for 0.01 mm features, missing a 0.015 mm offset.

Correction: audit the supplier’s inspection assets. XUXIANG’s ZEISS MICURA CMM measures to 0.7 µm, backed by Nikon V-12B and MM-400 toolmaker’s microscopes, with full FAI reports and material certificates for every shipment.

Design Review and Tolerance Analysis

Submit CAD models (STEP, IGES or Parasolid) and critical-dimension drawings to the machining partner. XUXIANG’s 10+ engineering experts review geometry for machinability, flag tight tolerances that drive cost, and confirm whether +/-0.001 mm capability is required or if relaxed zones can reduce cycle time.

For production transfers, include legacy inspection reports and known failure modes to guide the tolerance stack-up.

Material Selection and DFM Feedback

Define operating environment — temperature range, chemical exposure, mechanical load — then select engineering plastics (PEEK, POM, PTFE, PA66-GF) accordingly. Request formal DFM feedback covering wall thickness, corner radii (minimum R 0.015 mm on slow-wire EDM), draft angles and potential assembly interference.

XUXIANG provides written DFM reports before quoting, ensuring cost estimates reflect manufacturable designs.

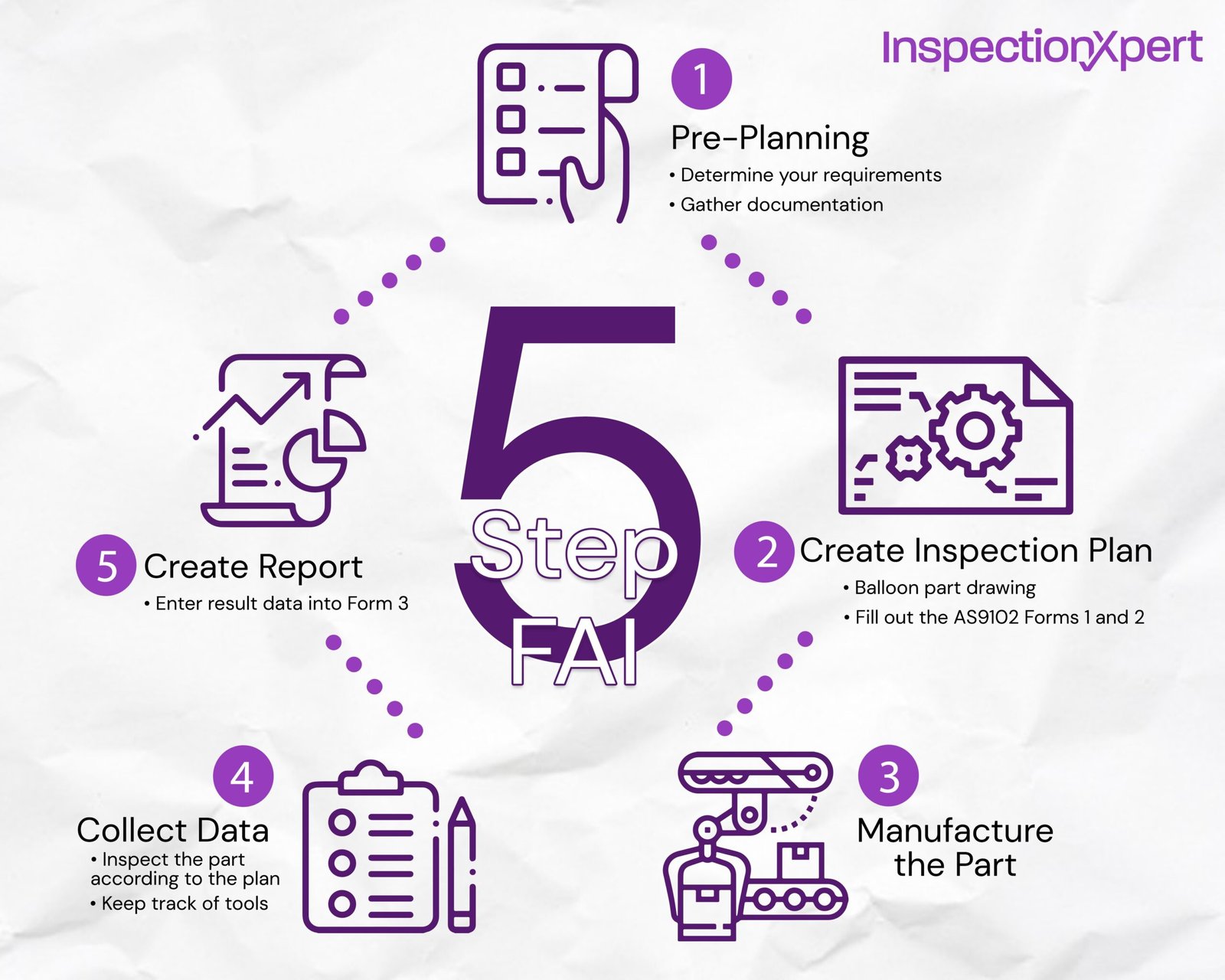

Prototype and First-Article Validation

Order first-article samples with full dimensional inspection: ZEISS MICURA CMM reports (0.7 µm resolution), surface-finish measurements and material certificates. Perform functional tests — fit checks, environmental cycling, mechanical load — before approving production tooling.

For NPI, budget 2–3 design iterations; for transfers, one FAI cycle typically suffices if legacy data is complete.

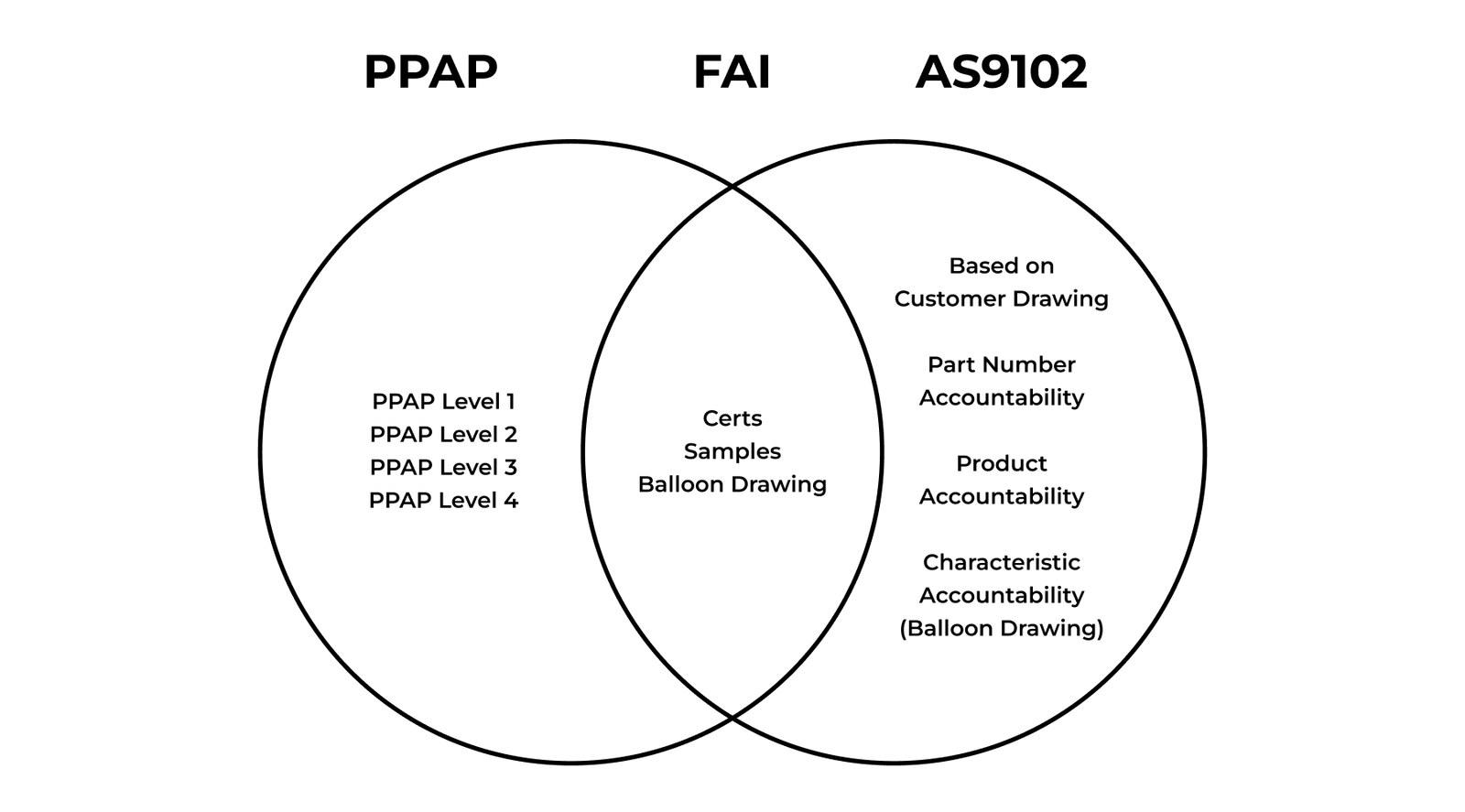

PPAP Approval and Production Ramp

Review PPAP or FAI documentation (dimensional reports, process FMEA, control plans, material certs) and approve production release. Establish a phased ramp schedule — pilot lot, qualification lot, full production — with defined inspection frequency at each gate.

XUXIANG’s ISO 9001:2015 five-step QC flow includes in-process monitoring and final verification, supporting both JIT and safety-stock inventory strategies.
