Standard Straight-Bore Sprue Bushings

Straight-bore designs feature a constant taper (typically 2–5°) from nozzle seat to runner, suited to commodity three-plate molds and general-purpose thermoplastics. DME and HASCO standards define seat radii (SR) of 10–25 mm and orifice diameters from 3–8 mm.

XUXIANG machines straight-bore bushings to +/-0.002 mm on the locating register, ensuring zero-gap nozzle contact and minimal drool between shots.

Radius-Tip Sprue Bushings for High-Shear Resins

Radius-tip (or ‘spherical-end’) bushings replace the sharp gate break with a smooth R0.5–2.0 mm transition, reducing shear heating in glass-filled nylons, PPS and LCP. This geometry cuts gate-vestige stress concentrations by roughly 30% in connector housings.

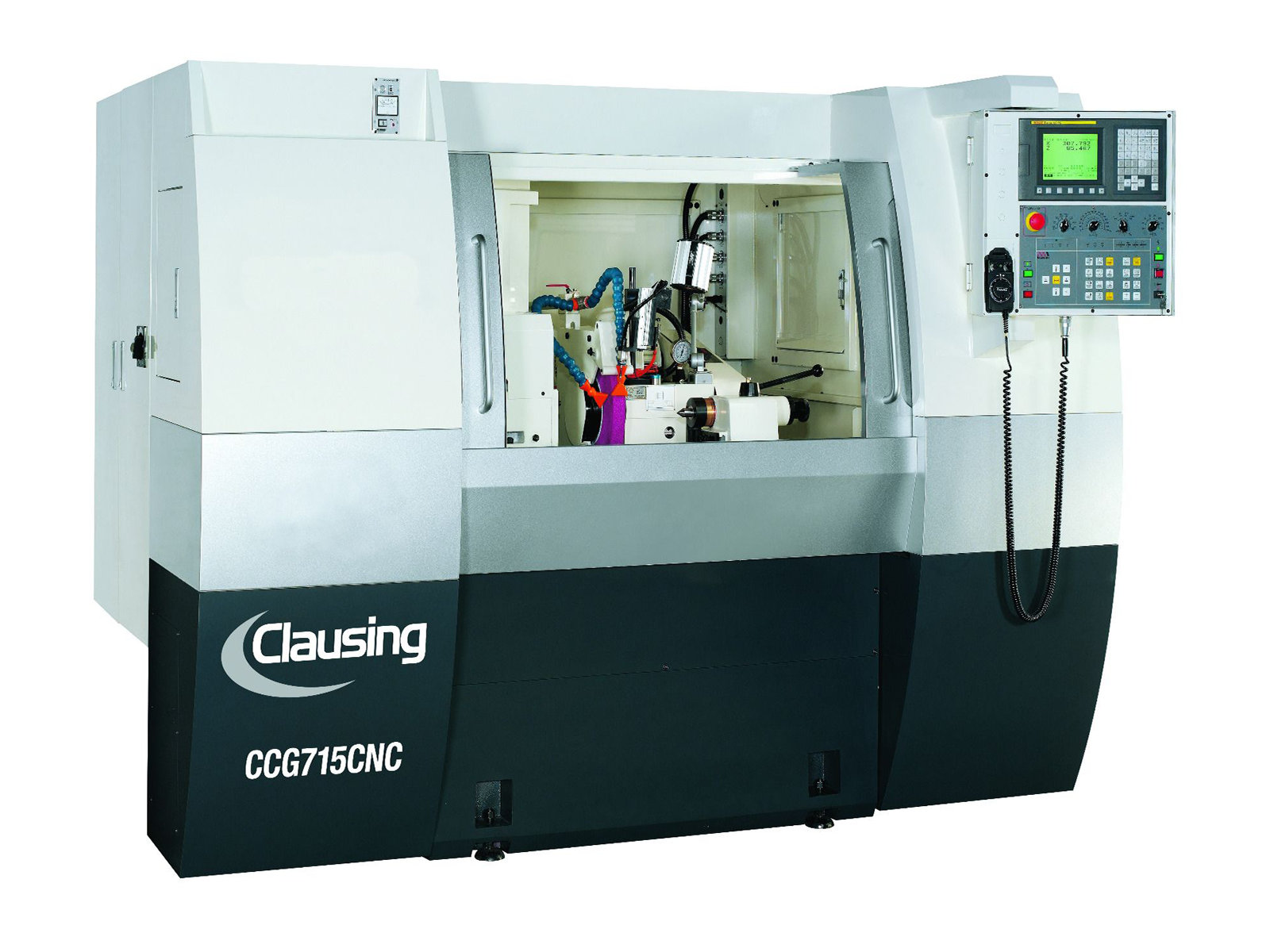

XUXIANG grinds radius tips on Dawn precision centers, holding form tolerance within 0.003 mm to preserve melt-flow symmetry across multi-cavity layouts.

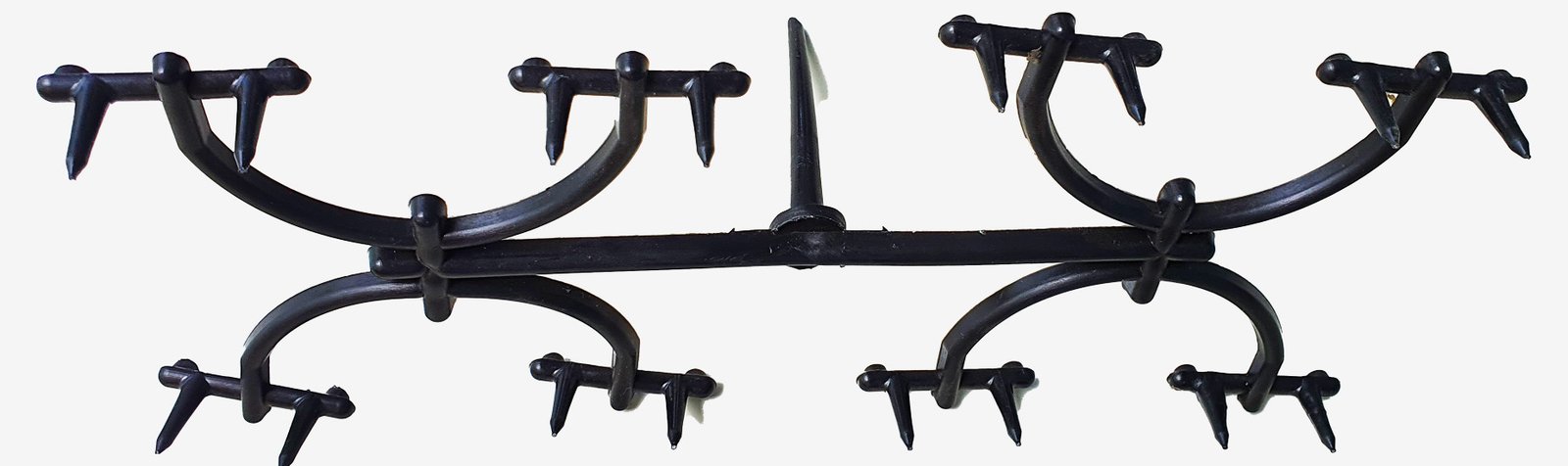

Extended-Length Bushings for Stack Molds

Extended bushings (L > 150 mm) bridge the parting plane in stack or tandem-runner molds, requiring concentricity better than 0.005 mm over length to prevent core shift. Thermal expansion becomes critical; H13 at 48–52 HRC balances stiffness and dimensional stability.

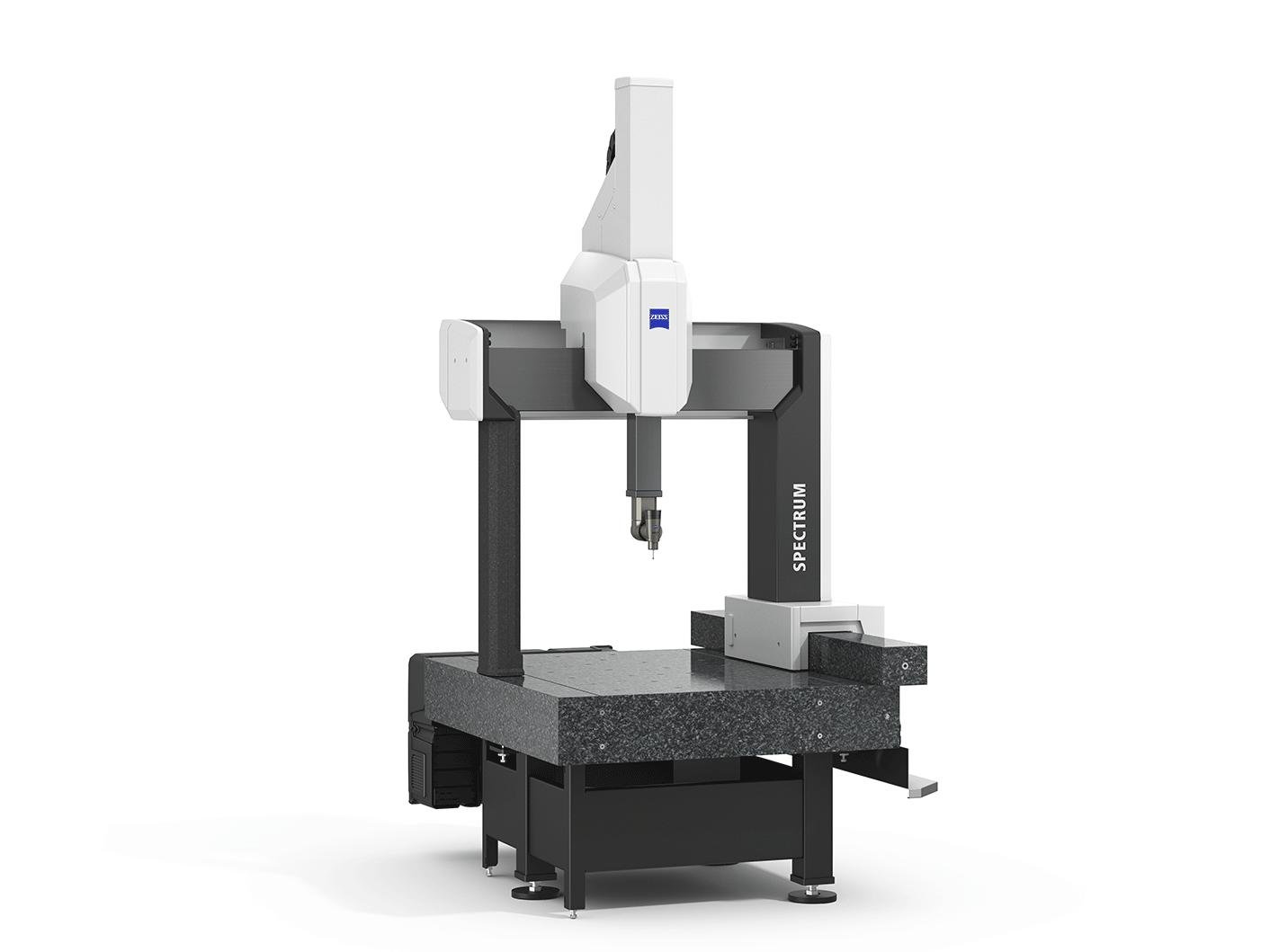

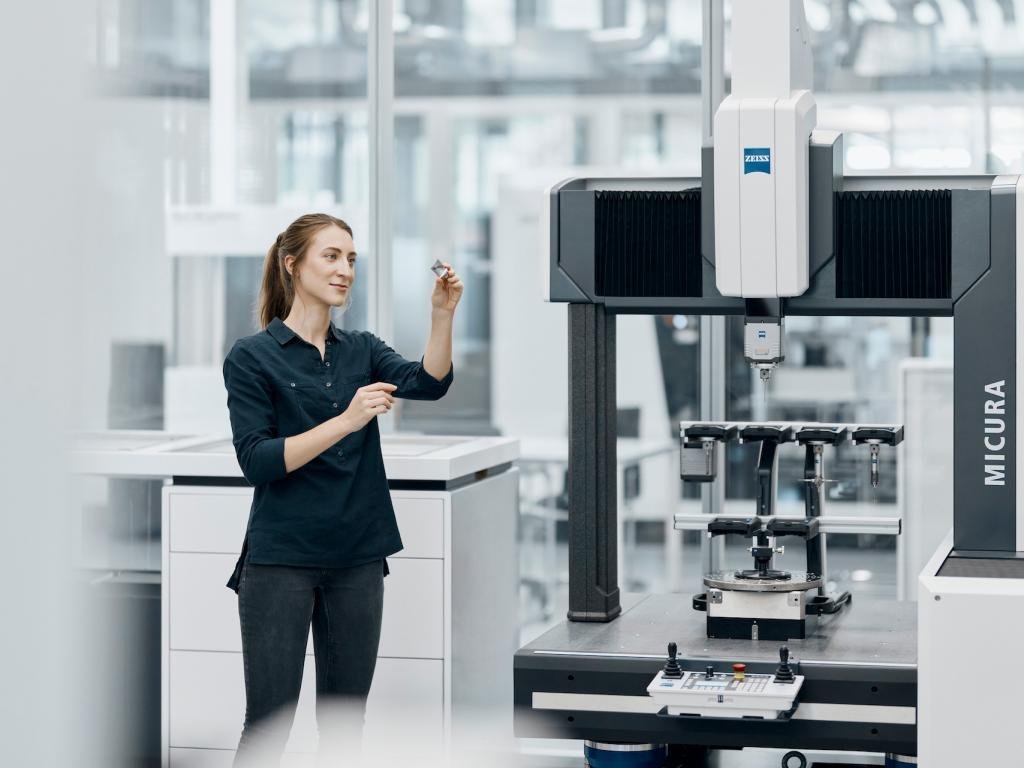

XUXIANG validates extended sprue alignment on the ZEISS MICURA CMM (0.7 µm resolution), correlating as-machined straightness with post-heat-treat runout to guarantee first-shot success.

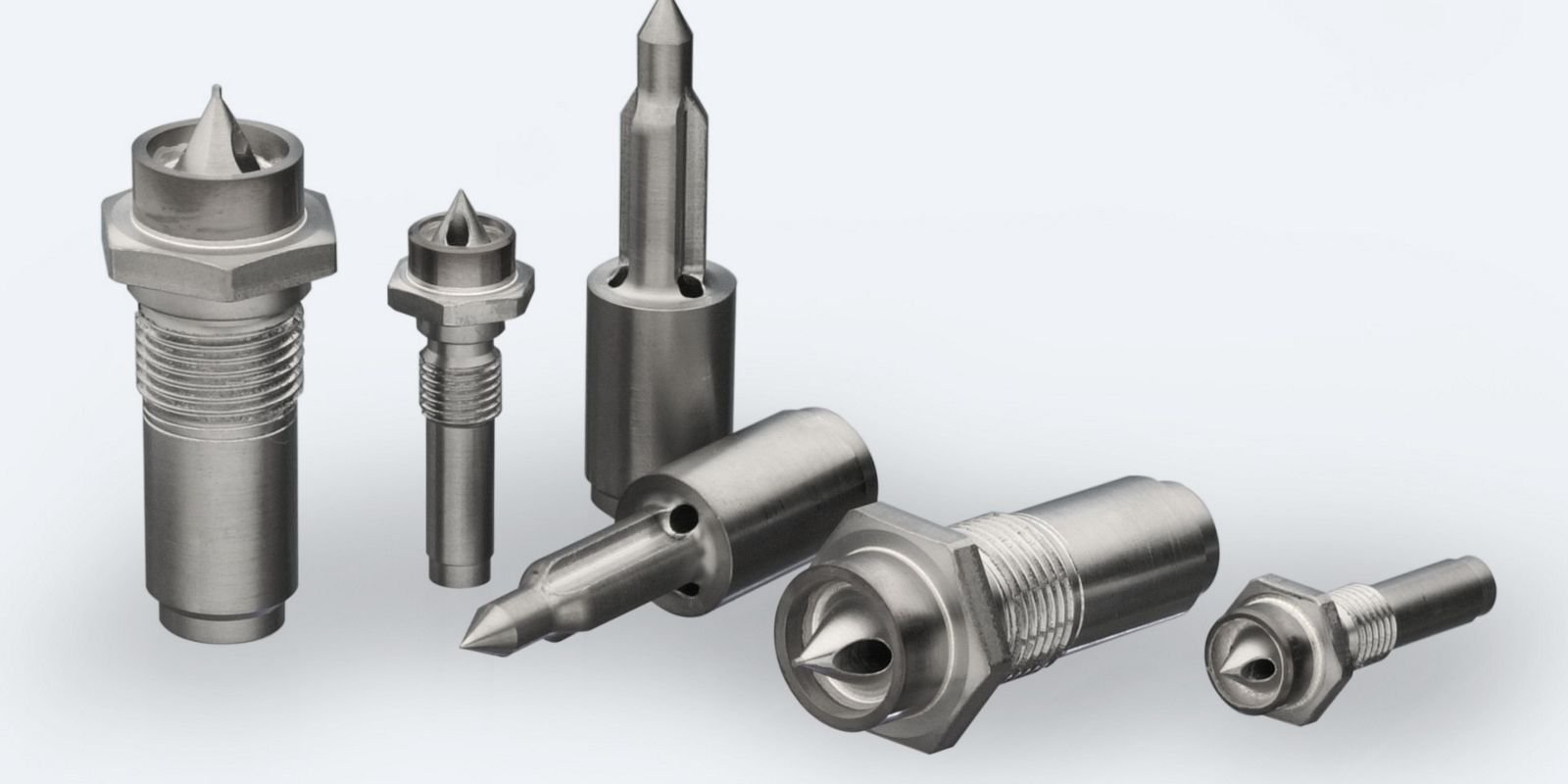

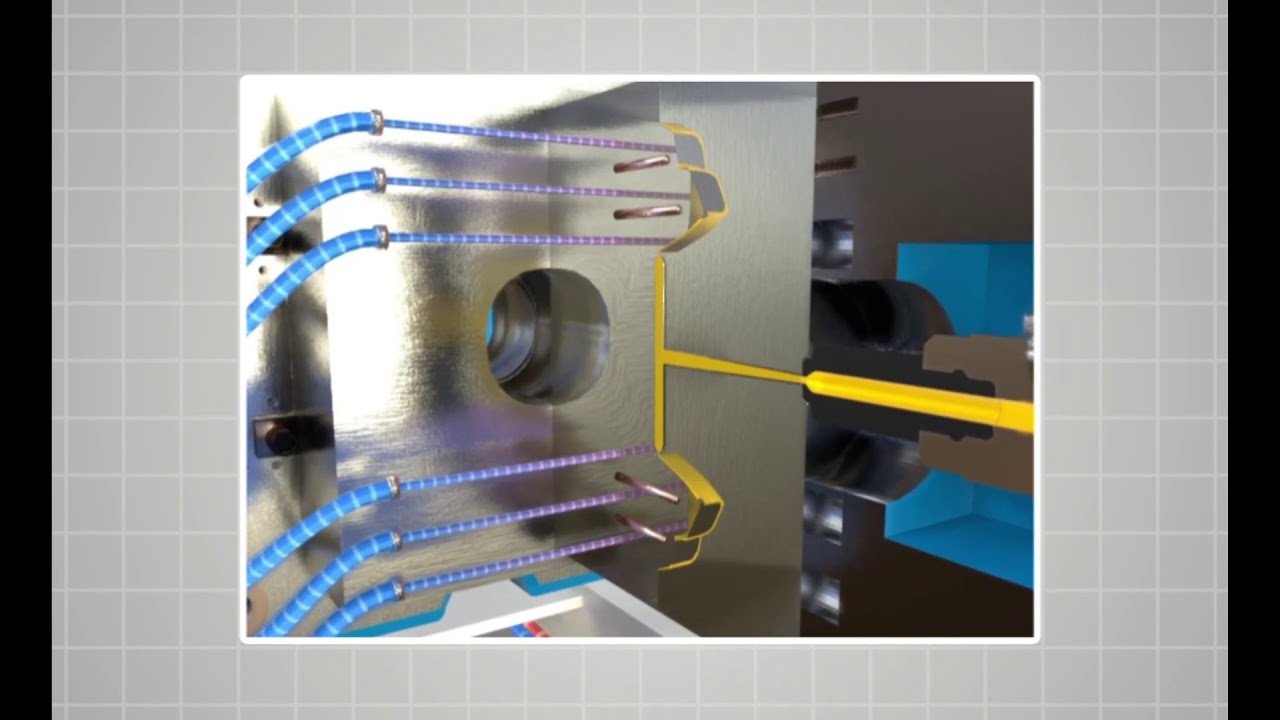

Insulated Hot-Runner Sprue Bushings

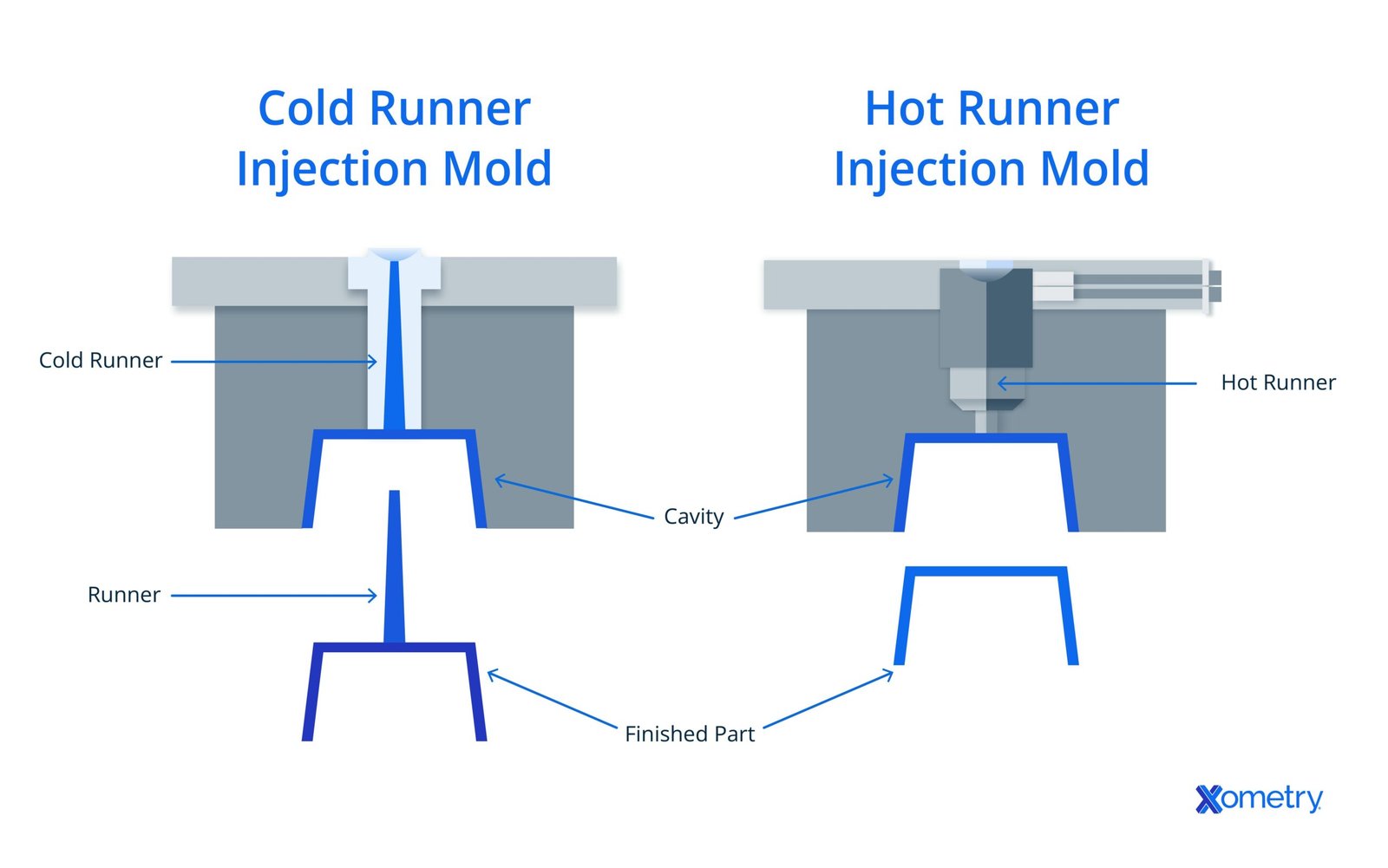

Hot-runner sprue bushings incorporate heater bands or cartridge elements to maintain melt temperature above solidification, eliminating sprue scrap and shortening cycle time by 15–25%. Insulation sleeves (often Teflon or ceramic) isolate the heated core from the cooled A-plate.

XUXIANG machines hot-runner bushings with internal heater pockets held to +/-0.01 mm, verified by toolmaker’s microscope, ensuring uniform wall thickness and preventing hotspot cracking in 24/7 production.

H13 Tool Steel — Industry Workhorse

H13 delivers 48–52 HRC after through-hardening and offers excellent hot-strength retention to 540 °C. Thermal conductivity of ~24.5 W/m·K balances heat transfer with wear resistance, making it the default choice for general-purpose and glass-filled resins.

Nitriding adds a 0.1–0.2 mm case to 60+ HRC, extending life in abrasive compounds without sacrificing core toughness. XUXIANG validates post-heat-treatment dimensions on ZEISS CMM to +/-0.002 mm, ensuring no warp-induced misalignment.

S7 Shock-Resistant Steel

S7 reaches 54–58 HRC with superior impact toughness, ideal for high-clamp-force presses and frequent gate changes. Lower thermal conductivity (~20 W/m·K) suits moderate-temperature resins where mechanical shock dominates wear mechanisms.

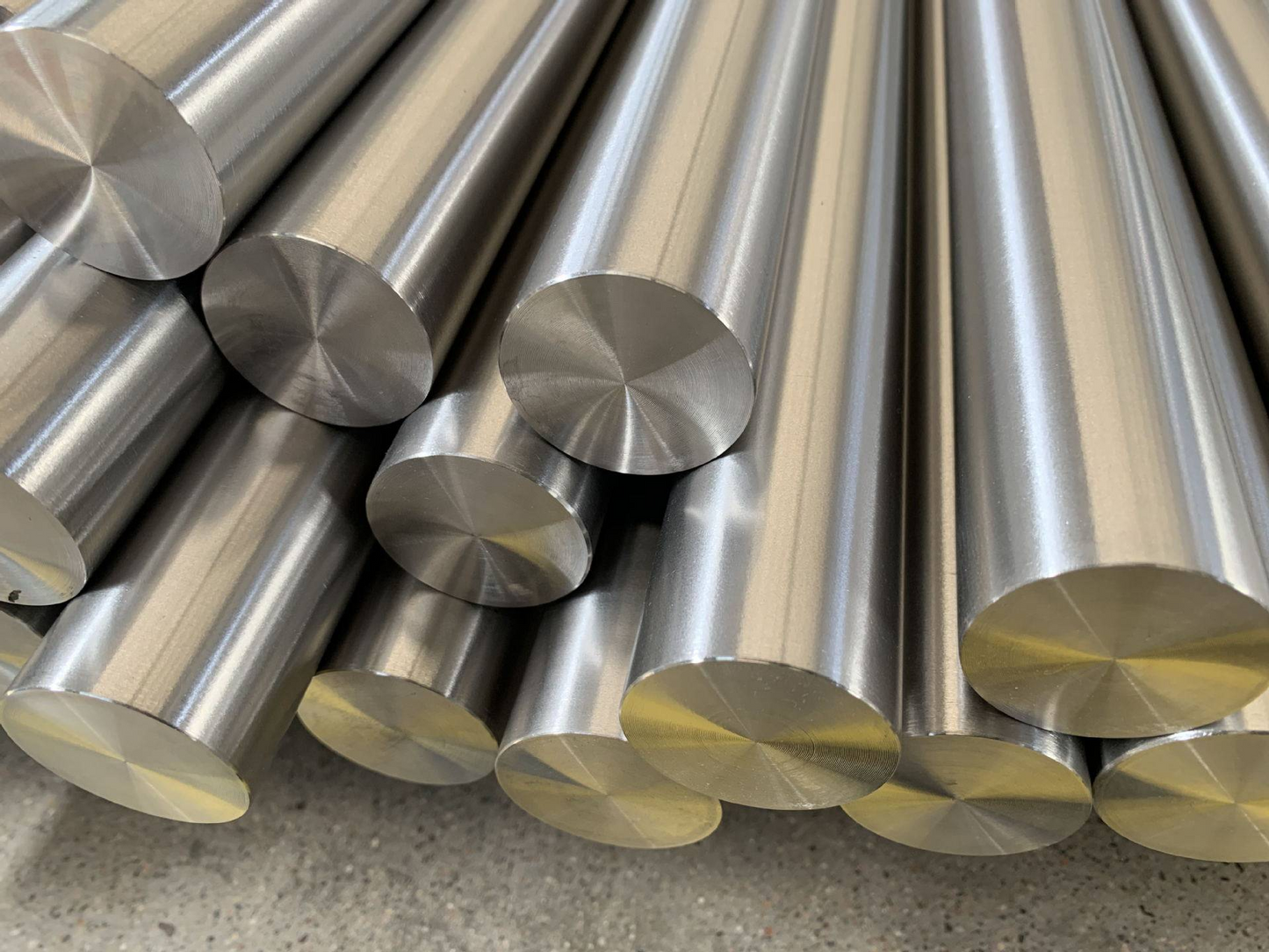

Beryllium Copper and Specialty Stainless

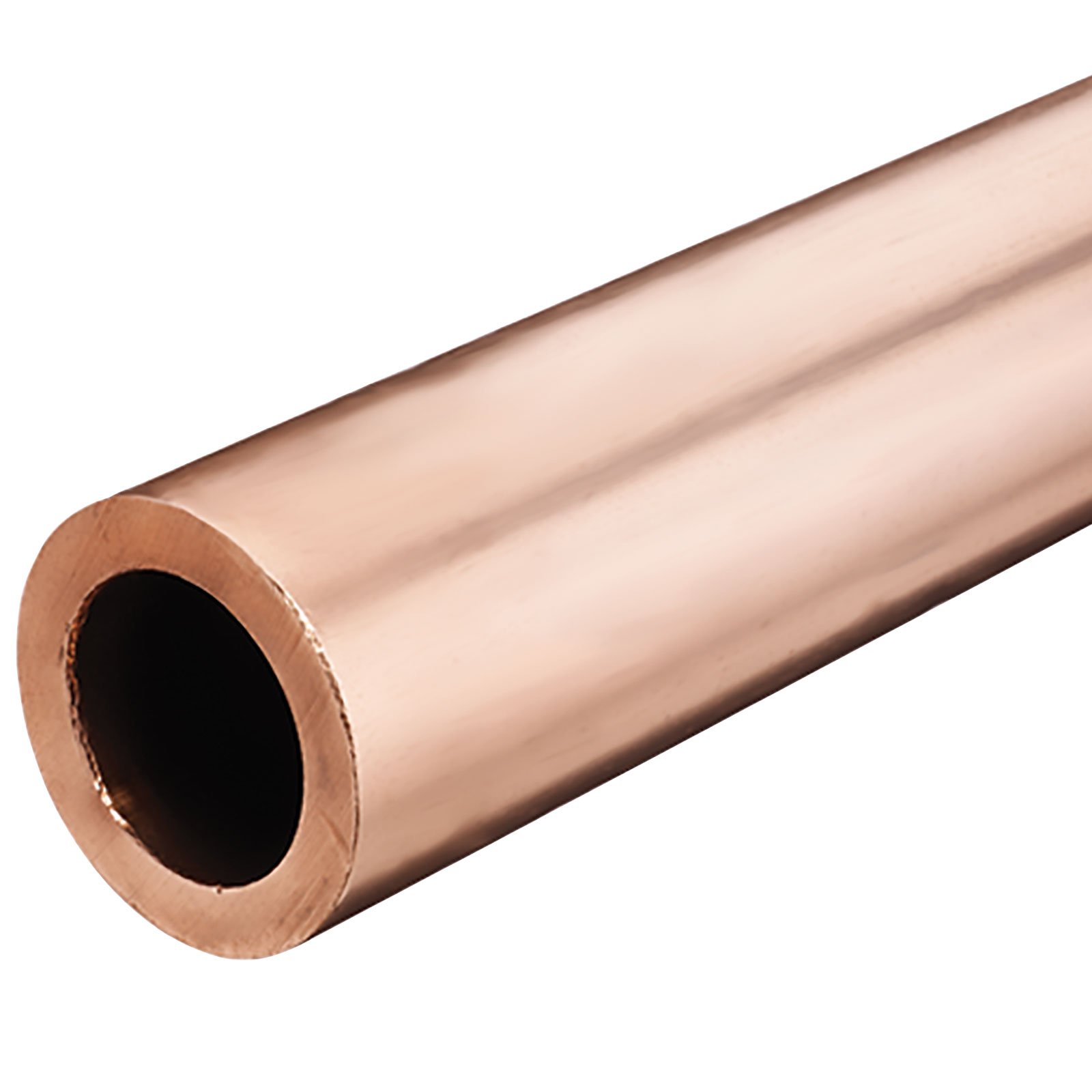

Beryllium copper (C17200) combines 35–42 HRC with ~105 W/m·K conductivity, accelerating cycle times in thin-wall micro-connector tooling. Stainless 420 (50–54 HRC) resists corrosive flame-retardant and halogenated resins but requires precision grinding to maintain Ra ≤ 0.4 µm finishes.

Nitriding for Wear Resistance

Gas nitriding diffuses nitrogen into steel, hardening the surface to 600–1100 HV while maintaining a tough core. Nitrided sprue bushings resist galling from glass-fiber or mineral-filled resins and extend service life by 3–5× in high-cycle automotive and industrial tooling.

XUXIANG recommends nitriding for tool steels (H13, P20) running abrasive compounds above 500,000 cycles, where the cost premium of 15–25% is recovered through reduced downtime and rework.

PVD Coatings: TiN and TiAlN

Physical vapor deposition applies micron-thin ceramic layers — TiN (gold, ~2400 HV) or TiAlN (violet-gray, ~3300 HV) — that cut friction by 30–50% and resist corrosive resins like PPA, PPS and halogenated compounds.

TiAlN’s superior oxidation resistance suits hot-runner systems above 280 °C. XUXIANG validates coating thickness (2–4 µm) and adhesion via Rockwell-C indentation, ensuring no delamination during sprue ejection in medical-device and 5G-connector tooling.

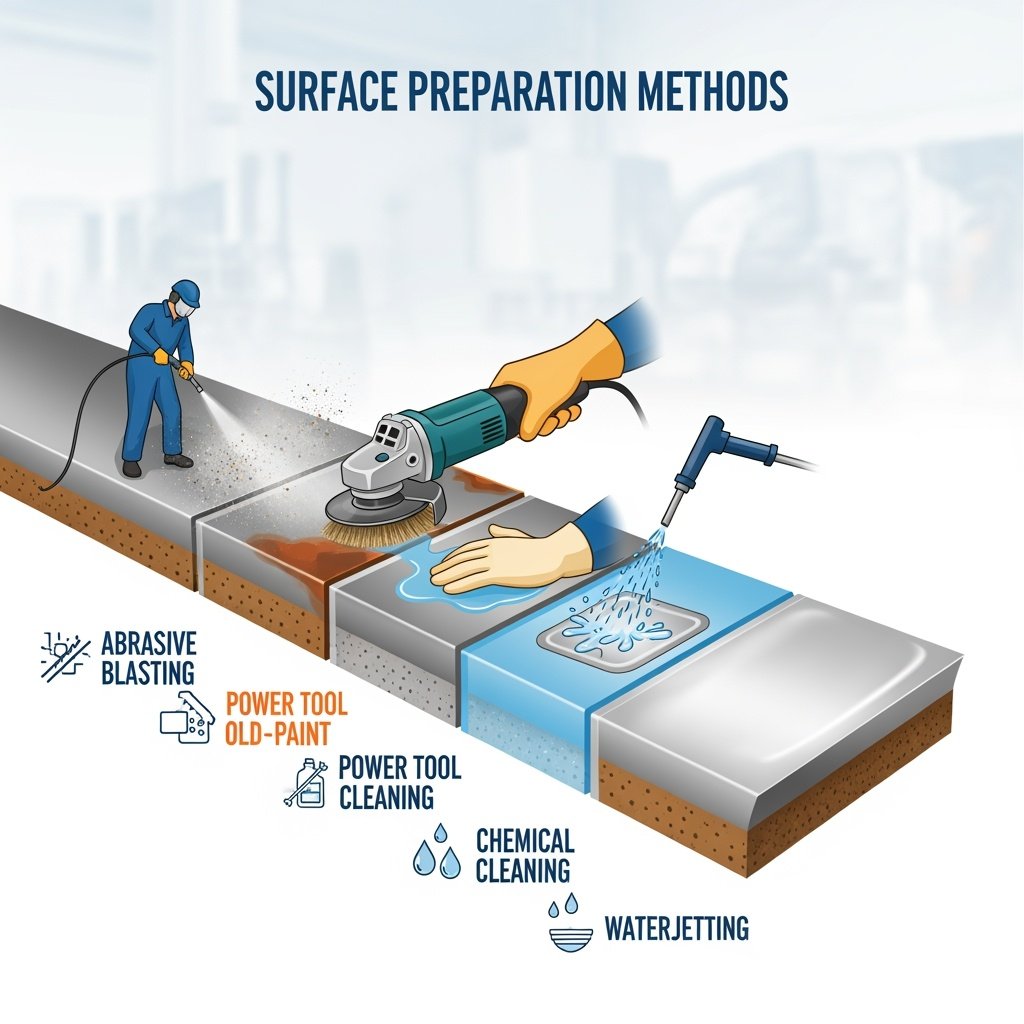

Electroless Nickel Plating and Mirror Polishing

Electroless nickel deposits a uniform 10–25 µm layer with 500–700 HV hardness, providing corrosion protection and a low-friction surface that simplifies sprue release in clear-lens and optical applications.

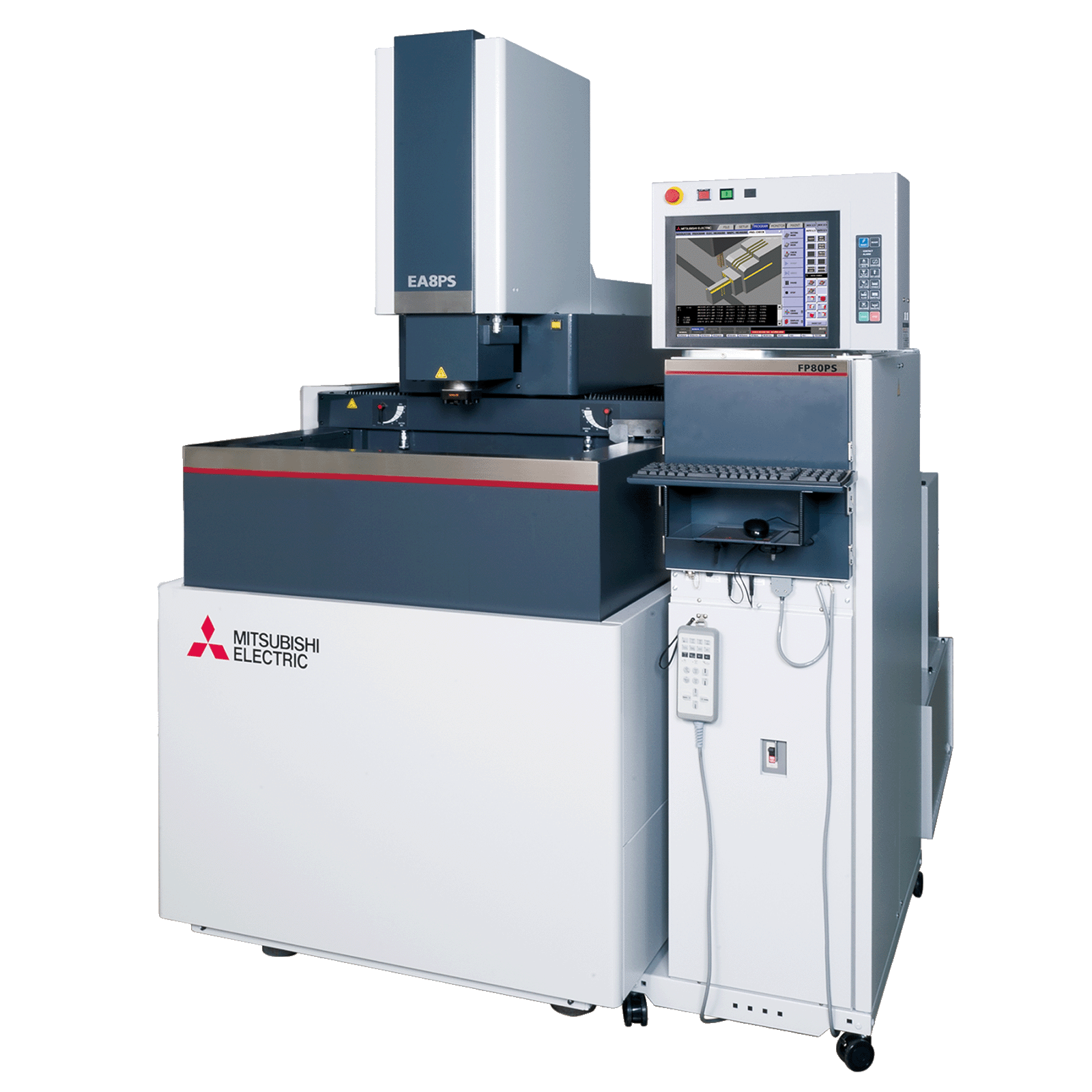

Mirror polishing to Ra ≤ 0.1 µm, achieved on XUXIANG’s Sodick EDM and validated by Nikon microscopy, eliminates micro-scratches that trap contaminants — essential for medical-grade and Class 100,000 cleanroom molding where even trace residue triggers batch rejection.

Spherical-Radius Concentricity and Bore Straightness

The spherical seat must achieve concentricity within +/-0.001 mm relative to the central bore; any offset creates point contact with the injection-machine nozzle, inducing leakage and uneven thermal transfer. Bore straightness tolerance of +/-0.002 mm over the full depth prevents melt-flow turbulence and shear-induced molecular degradation.

XUXIANG verifies these geometries on a ZEISS MICURA CMM with 0.7 µm resolution, ensuring spherical-radius form error remains below 0.003 mm and bore cylindricity holds within +/-0.001 mm.

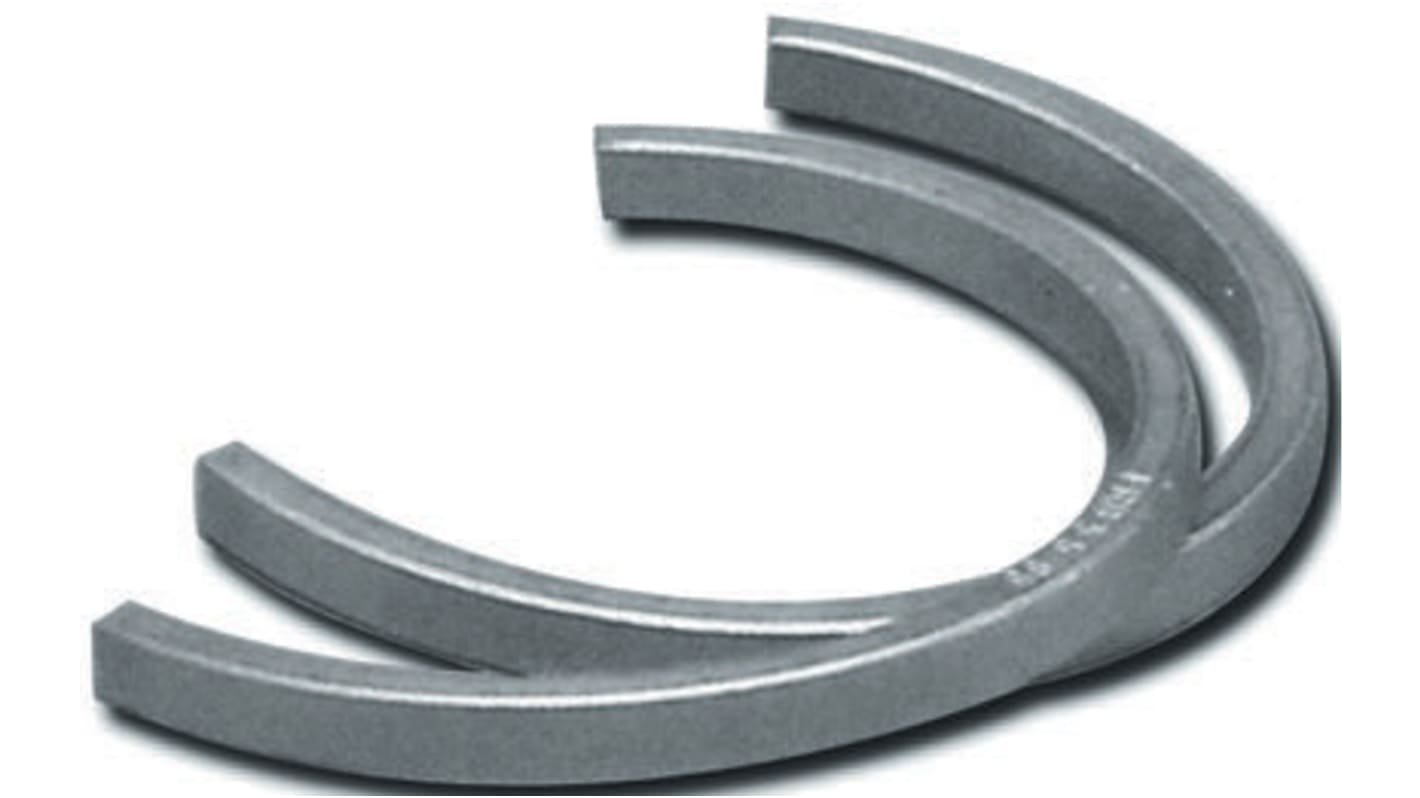

Surface Finish and Locating-Ring Perpendicularity

Internal bore surface finish must reach Ra ≤ 0.2 µm to minimize melt stagnation and color contamination; mirror-grade EDM or precision grinding is mandatory. Locating-ring face perpendicularity within +/-0.002 mm prevents mold-plate cocking and ensures repeatable clamp alignment across multi-cavity tools.

Nikon toolmaker’s microscopes (V-12B class) validate edge radii and perpendicularity, while material certifications confirm hardness (HRC 48–52 typical) and spectral composition before machining begins.

Certifications and Quality Systems

Confirm ISO 9001:2015 registration and, for automotive or medical applications, IATF 16949 or ISO 13485. These standards ensure documented process control, corrective-action loops and traceability — not simply final inspection.

In-House Machining and Heat Treatment

Assess whether the shop owns CNC grinding centers (e.g., Dawn or equivalent) and partners with certified heat-treatment facilities. In-house control over grinding and hardening minimizes lead time and preserves dimensional stability across HRC 48–58 ranges.

Lead Time, MOQ and Material Traceability

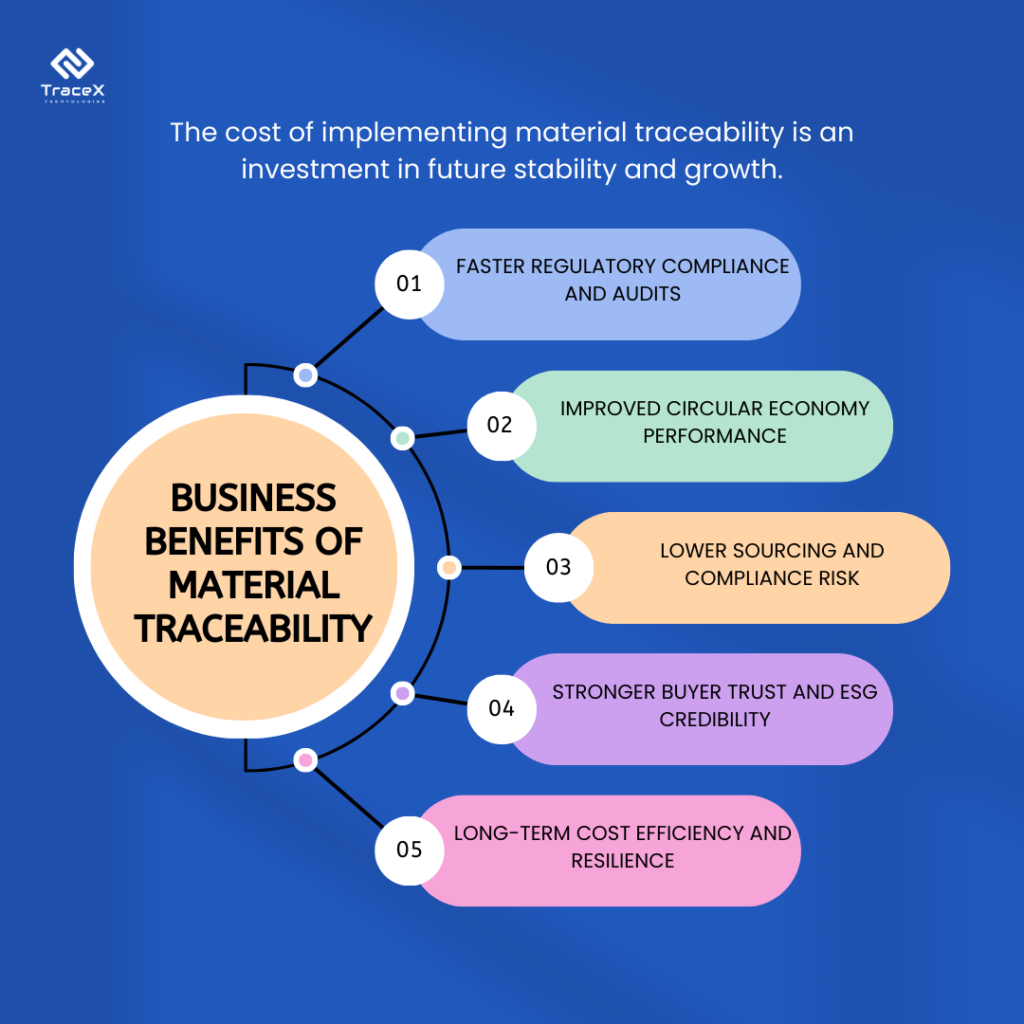

Review typical lead times (XUXIANG averages ~30% faster than industry norms) and minimum order quantities. Request evidence of material lot tracking — spectral analysis reports and mill certificates — to verify alloy compliance and batch traceability for audit trails.

Industry References and Custom Capability

Check client references in your vertical — 5G connector tooling, automotive sensor housings or medical-device molds. Catalog suppliers offer speed for standard geometries; custom precision shops like XUXIANG provide DFM feedback and micron-level tolerances for complex sprue configurations.

Catalog Parts Without Nozzle-Tip Verification

Standard sprue bushings assume a spherical nozzle-tip radius, typically SR 12–20 mm. Mismatched radii create annular gaps that bleed resin, trap air and cause flash or short shots.

XUXIANG’s DFM review cross-checks machine datasheets against sprue geometry before machining, eliminating fit issues at the design stage.

Ignoring Thermal Expansion Coefficients

Steel expands ~12 µm/m/°C; H13 and P20 differ slightly. A sprue bushing sized at 20 °C may bind or leak at 200 °C mold temperature if clearances are not calculated.

Specify assembly temperature and interference-fit tolerances explicitly; XUXIANG models thermal growth in CAD to hold +/-0.002 mm positioning even under cyclic heating.

Under-Specifying Surface Finish

Ra 1.6 µm catalog finishes suffice for commodity resins but cause ejection drag and gate vestige in glass-filled or flame-retardant compounds. Mirror EDM to Ra 0.1 µm reduces friction and scrap.

XUXIANG’s Sodick sinker EDM delivers consistent Ra 0.1 µm on sprue bores, validated by Nikon toolmaker’s microscope surface scans.

Neglecting Spare-Part Inventory

High-cavitation molds cycling 24/7 wear sprue tips every 500k–1M shots. A single missing bushing halts production and erases weeks of profit.

Order two spare bushings per tool at launch; XUXIANG archives CAD and process parameters for 10+ years, enabling matched replacements without re-engineering.

Choosing Price Over Precision in Micro-Molding

Micro-connector sprue gates demand +/-0.005 mm or tighter; a 20 % cheaper part with +/-0.02 mm tolerance generates gate-mark rejects and terminal-insertion failures costing multiples of the savings.

XUXIANG’s ZEISS MICURA CMM (0.7 µm resolution) and +/-0.001 mm machining capability ensure first-article success in high-density 5G and board-to-board tooling.

Lock Down Mold-Base and Nozzle Interface Dimensions

Confirm the mold-base standard (DME, HASCO, LKM or custom) and nozzle tip radius before ordering. Mismatched sprue bushing seat diameters or locating-ring heights trigger costly rework and delay first-article approval.

Request Material and Heat-Treatment Certificates

Demand mill certificates for H13, spectral analysis reports and hardness test data (HRC 48–52 typical). XUXIANG’s five-step QC flow includes material spectral verification and CMM documentation, ensuring every sprue bushing meets drawing callouts before shipment.

Order Sample Parts for Fit and Thermal Testing

Run a short pilot series to validate concentricity, gate freeze time and ejection force. Sample testing catches interference issues and confirms that the sprue breaks cleanly under production cycle rates.

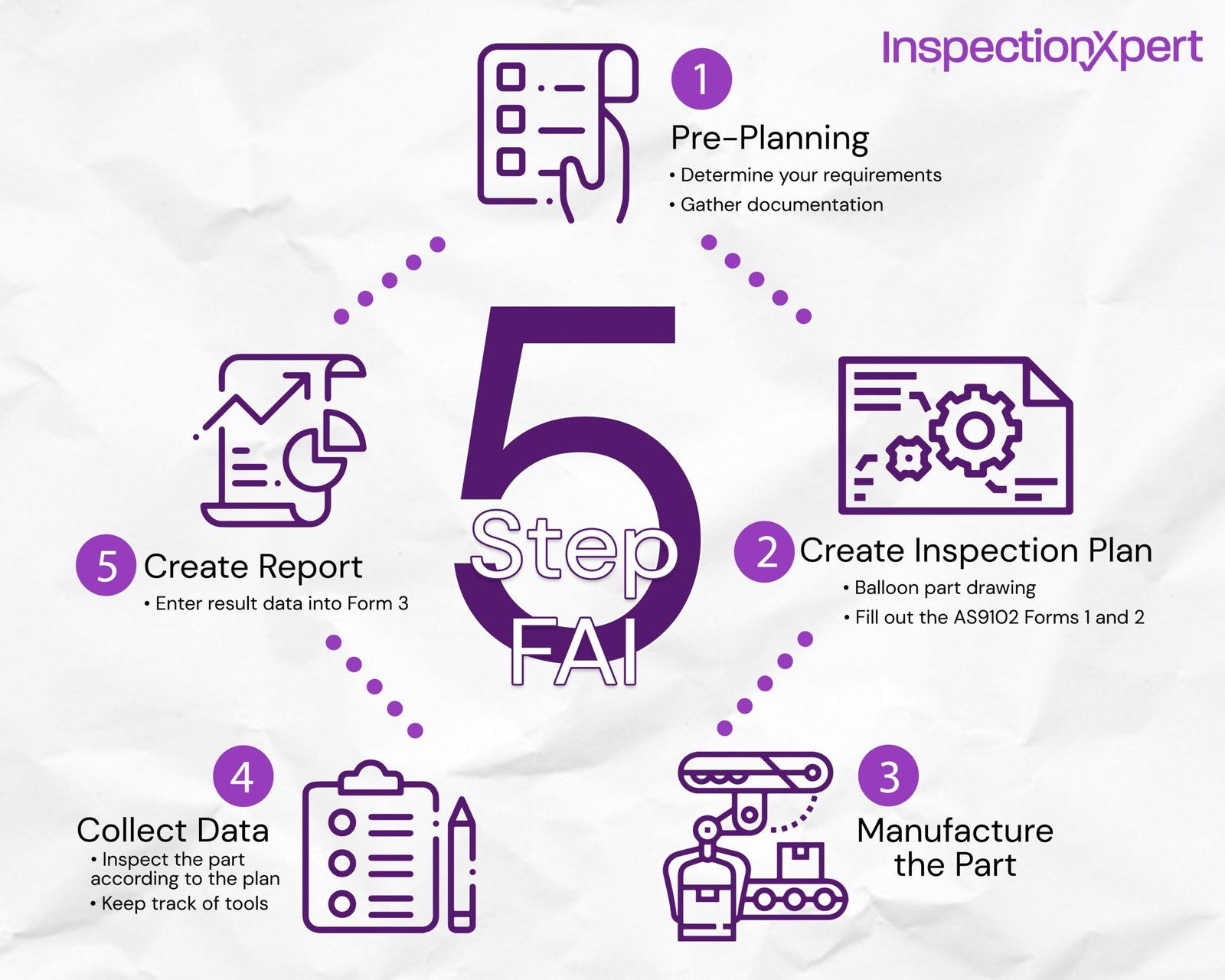

Establish a Quality Agreement with Inspection Criteria

Define acceptance limits for bore diameter, surface finish (Ra), perpendicularity and tip radius. Agree on CMM reporting format and frequency to avoid disputes during mass production.

Plan Spare Inventory by Shot-Count Projections

Calculate wear intervals based on resin abrasiveness and annual volume. Stocking two to three spare sprue bushings per active tool prevents line stoppages when refurbishment or replacement is needed.
