Two-Plate Base

The two-plate standard mold base uses a single parting line; the runner and part eject together. Typical applications include simple housings, caps and single-gate components where gate vestige is acceptable.

Tooling cost is lowest, and cycle times are fastest — ideal for volumes above 100,000 pieces annually. XUXIANG machines two-plate bases to +/-0.002 mm flatness for micron-stable repeatability.

Three-Plate Base

A three-plate configuration adds a second parting plane to separate runners from molded parts automatically. Common in multi-gate cosmetic parts, lens bezels and connectors requiring centered gating.

Cycle time increases 10–15% due to the extra separation stroke, but labor cost drops and gate marks move to non-critical zones. Best suited for mid-volume production (50,000–500,000 units) where aesthetics justify the added tooling investment.

Hot-Runner and Stack Bases

Hot-runner bases eliminate runners entirely, cutting material waste by up to 30% and shortening cycles. Stack molds double cavity count in the same press footprint, ideal for high-volume commodity parts above 1 million units annually.

Both demand tighter thermal control and precision alignment — XUXIANG’s ZEISS CMM validation and mirror-grade EDM finishes ensure sub-micron mating-surface flatness for leak-free manifold sealing and stable multi-daylight operation.

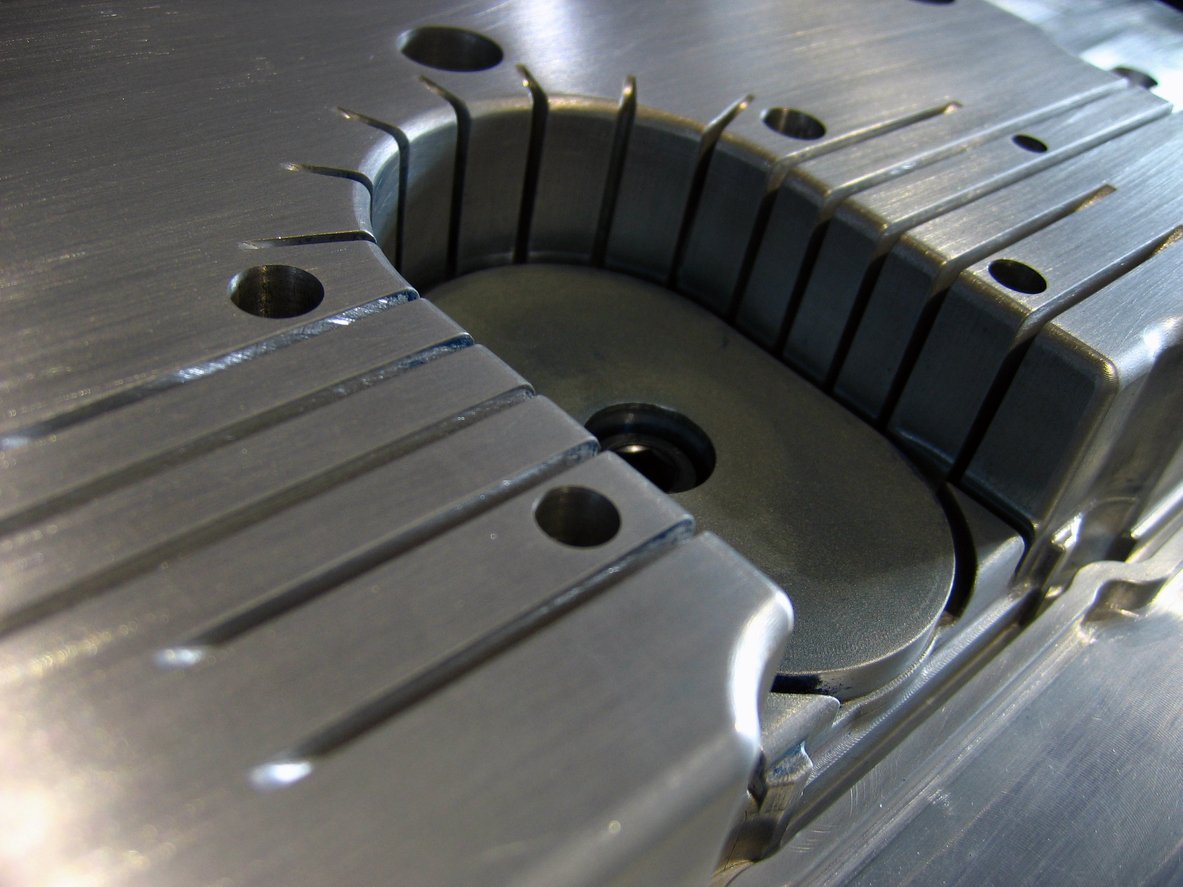

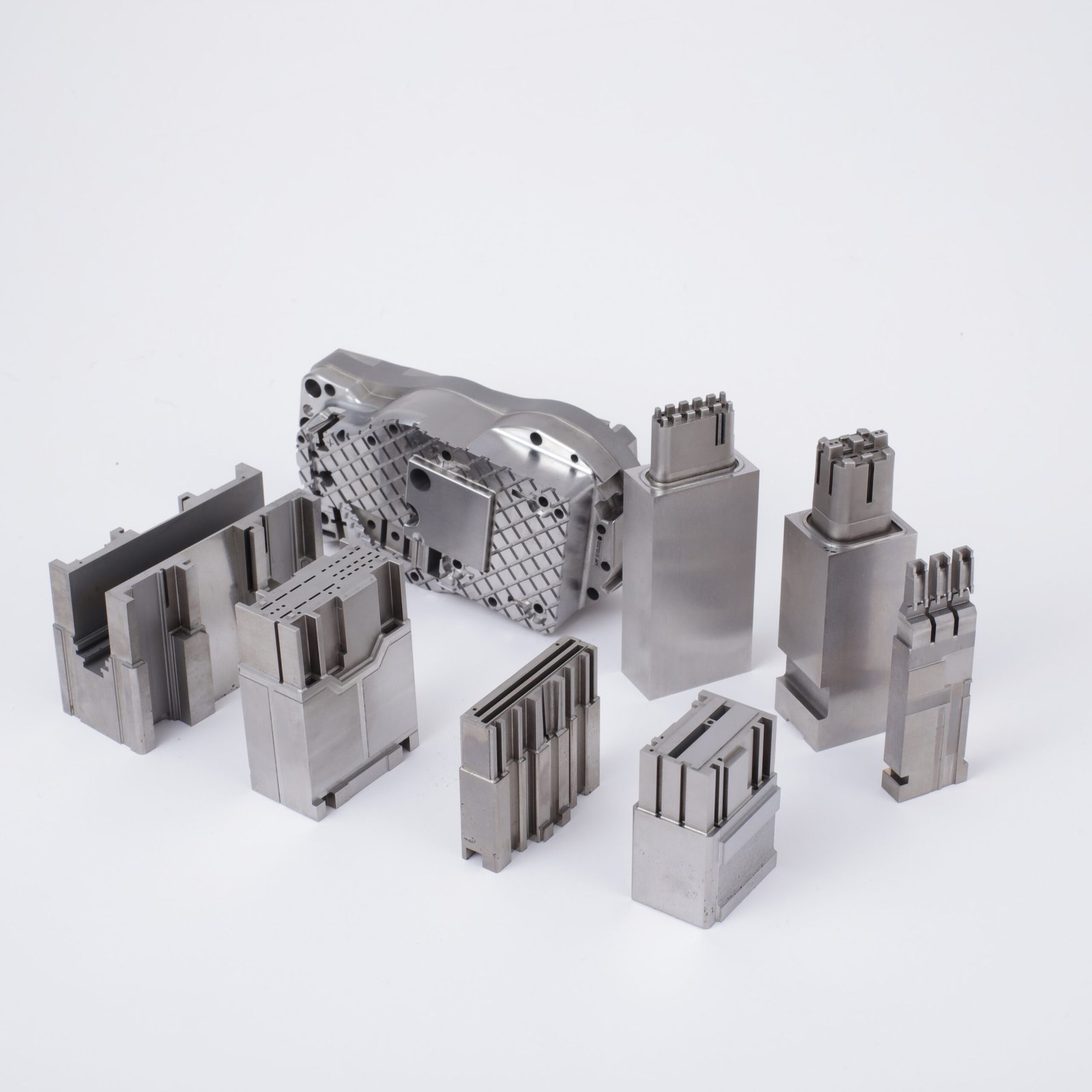

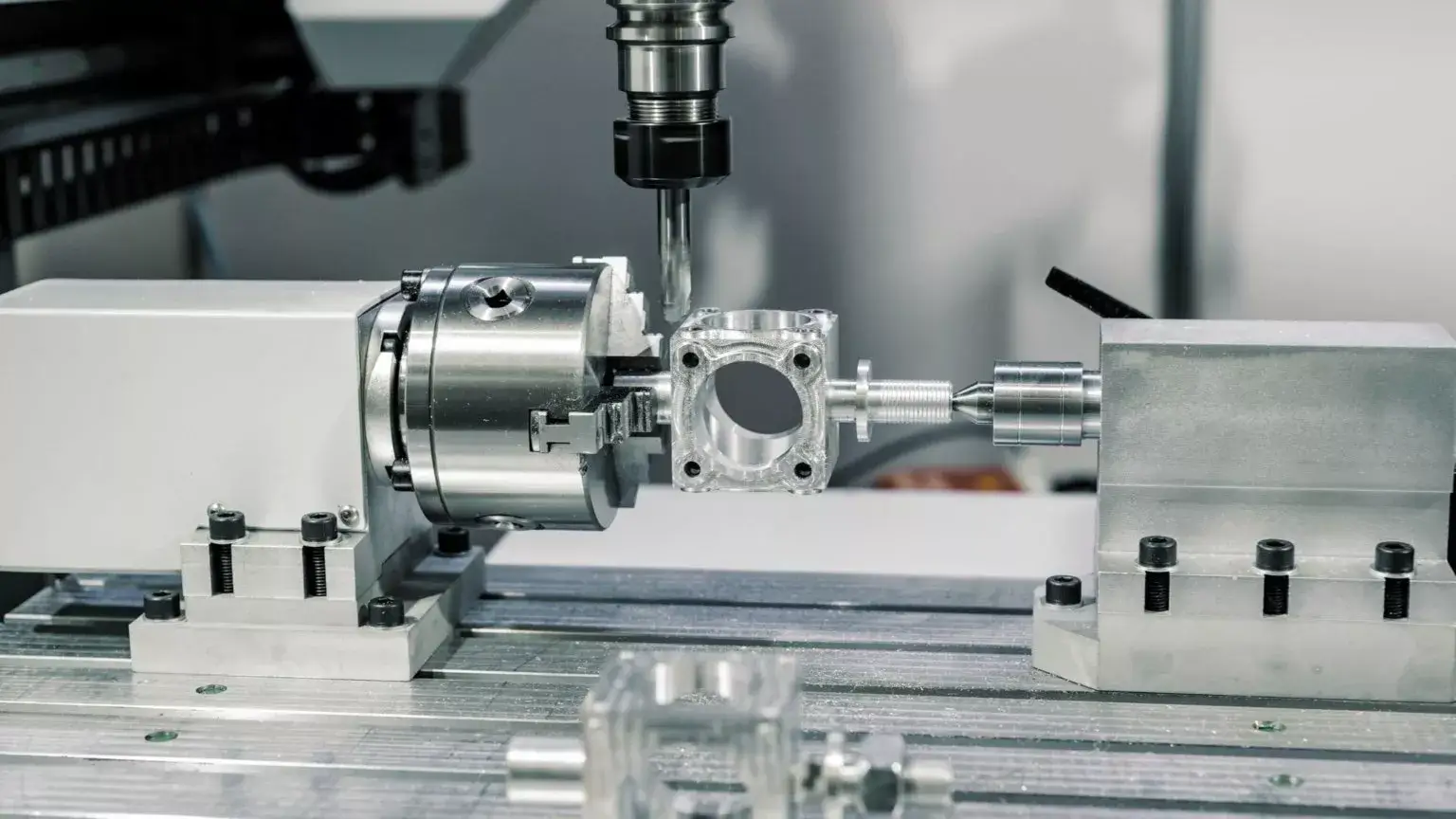

Custom Pocket Machining and Core Inserts

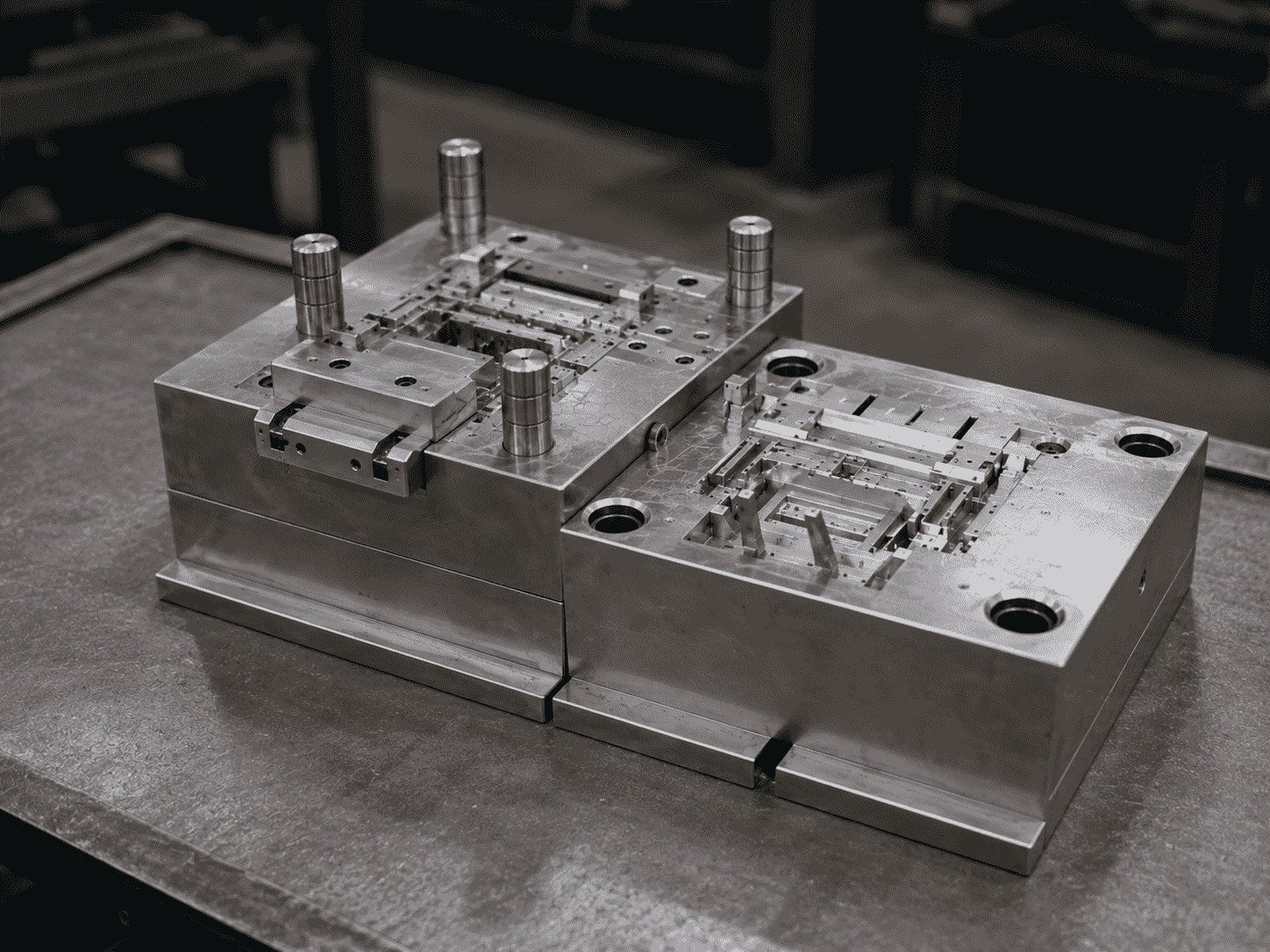

Cavity pockets are CNC-machined into the standard mold base to accept customer-specific core and cavity inserts. XUXIANG holds +/-0.001 mm machining accuracy and uses Beijing Jingdiao high-precision CNC and Dawn grinding centers to cut multi-cavity layouts, ensuring pocket flatness within 0.002 mm. This modification adds 2–3 days to lead time and raises cost by roughly 10–15 percent over catalog pricing.

Integrated Cooling Channels and Conformal Cooling

Straight-drilled cooling channels are standard; conformal cooling — following complex part geometry — requires EDM drilling or additive-manufactured inserts. Conformal layouts reduce cycle time by 15–25 percent in thin-wall connector tooling but extend machining lead time by 5–7 days and increase cost by 20–30 percent, depending on channel density and depth.

Ejector-Pin Layouts, Slide and Lifter Provisions

Custom ejector-pin patterns, slide pockets and lifter rails are machined to match part undercuts and draft angles. XUXIANG’s DFM team reviews layouts for interference and validates positioning with ZEISS MICURA CMM verification. Slide provisions add 3–4 days; complex lifter assemblies may extend lead time by one week and raise cost 15–20 percent.

Engraving, Serialization and Supplier Logos

Laser or EDM engraving adds part numbers, date codes and traceability serial numbers directly onto plate surfaces. XUXIANG offers standard engraving at no extra charge; custom logos or deep relief marks incur a one-time setup fee of USD 50–100 and negligible lead-time impact, typically 1 day.

Flatness and Parallelism Tolerances

Flatness across mounting surfaces should hold ±0.005 mm or tighter to prevent clamp-induced distortion. Parallelism between A and B plates governs parting-line mismatch; XUXIANG maintains ±0.005 mm across plates up to 600 mm diagonal using Dawn precision grinding centers.

Five-axis CNC machining and post-grind inspection on a ZEISS MICURA CMM (0.7 µm resolution) validate geometry before assembly, eliminating rework and ensuring long-term dimensional stability under cyclic thermal loads.

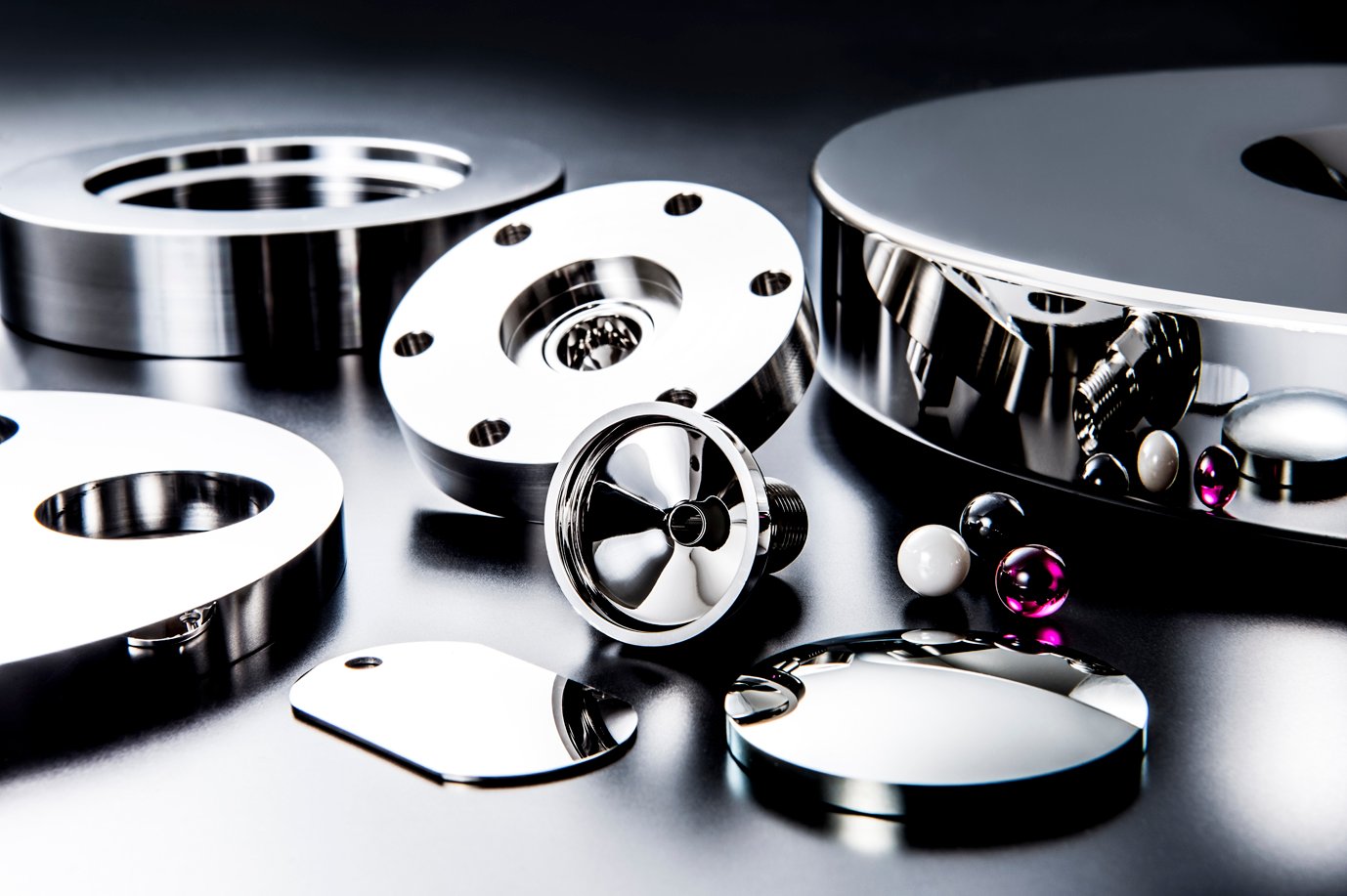

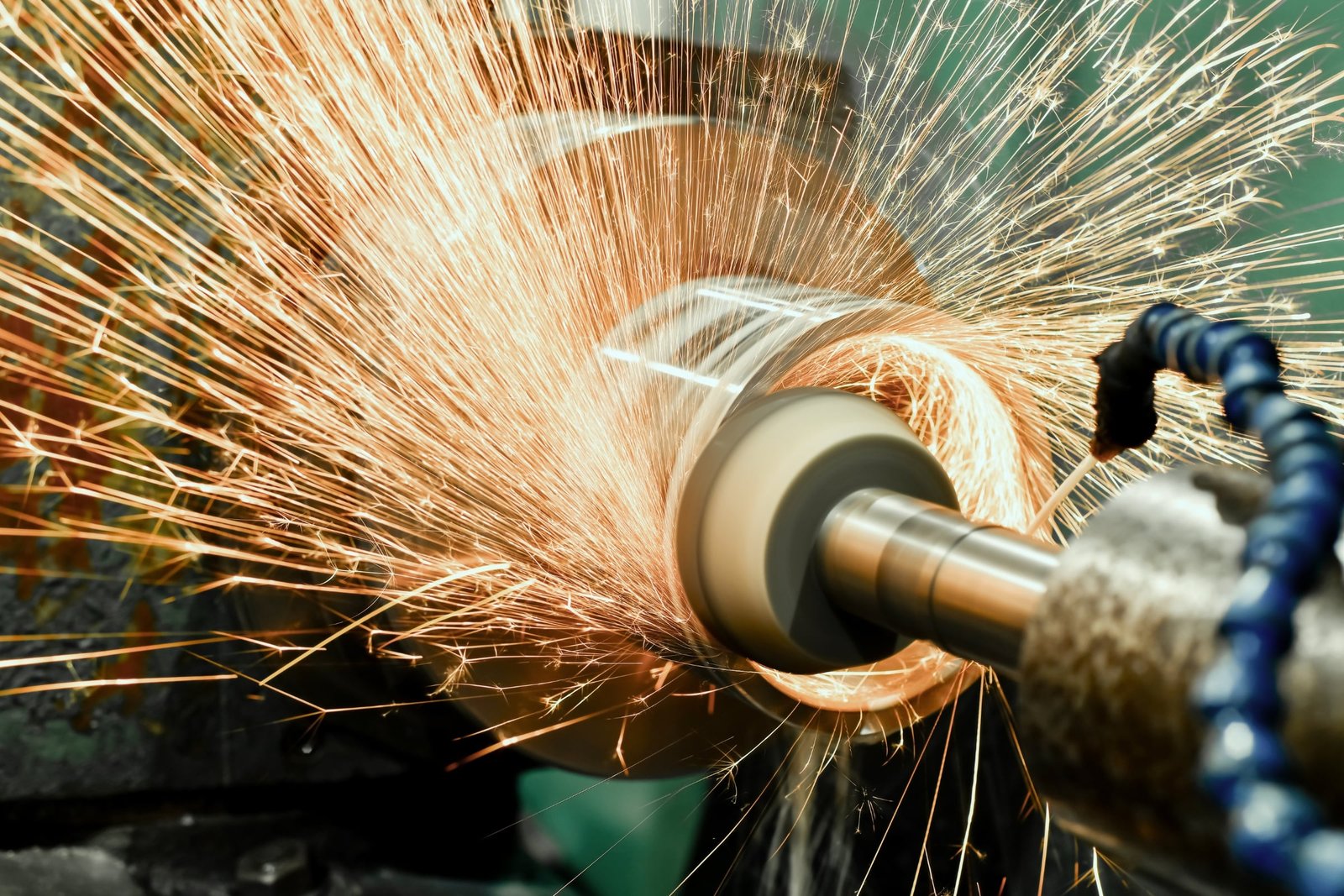

Surface Finish and Guide-Pin Fit

Mounting surfaces require Ra ≤0.8 µm to maintain vacuum seal integrity and uniform heat transfer. Guide pins demand H7/h6 or tighter fits; clearance beyond 0.01 mm accelerates wear and cavity misalignment.

XUXIANG’s slow-wire EDM (Sodick, Seibu) and mirror-grade finishing achieve Ra 0.1 µm on critical surfaces, verified by Nikon toolmaker’s microscopes (V-12B class) to ensure sub-micron repeatability across production runs.

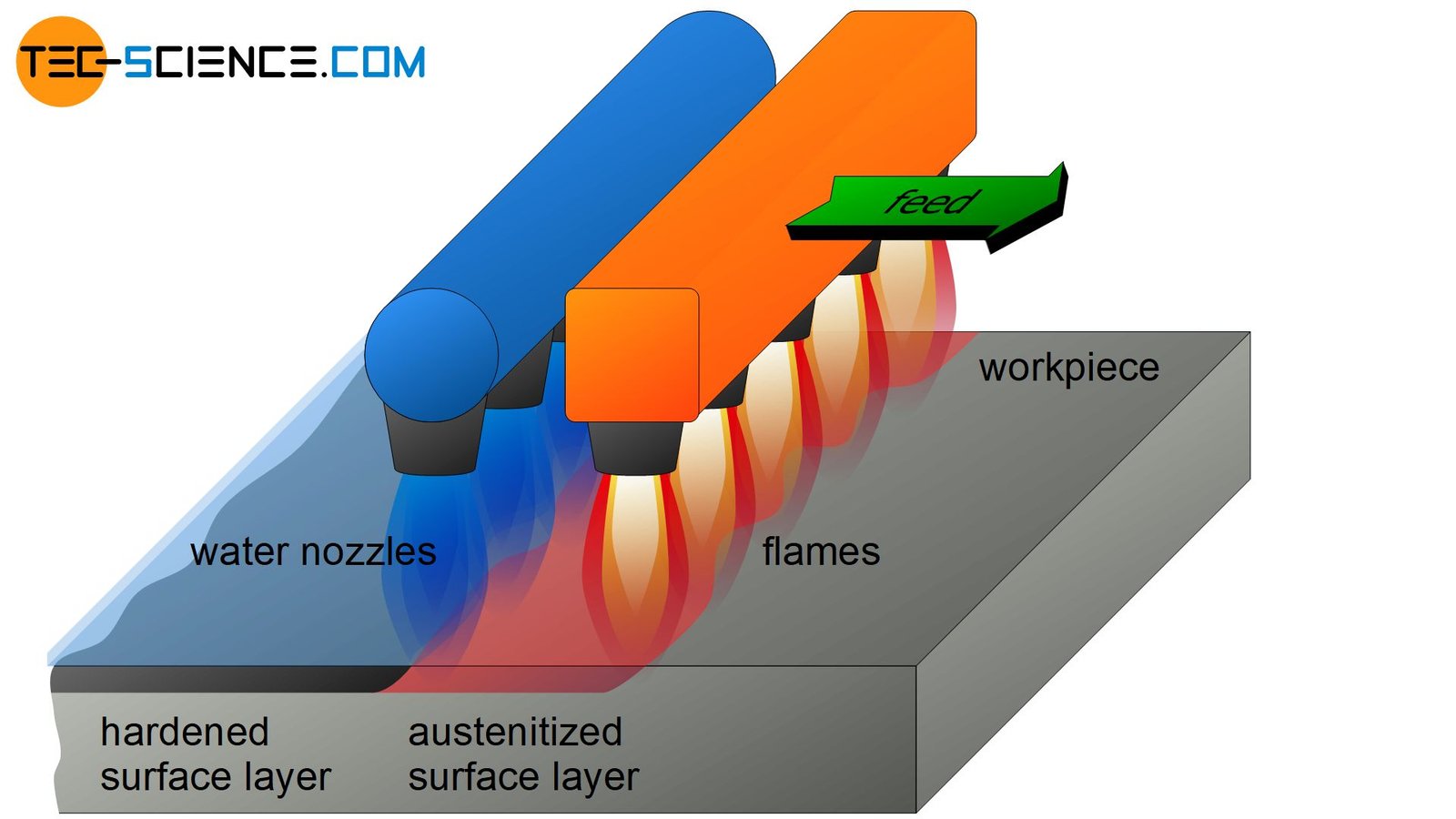

Heat Treatment and Certification

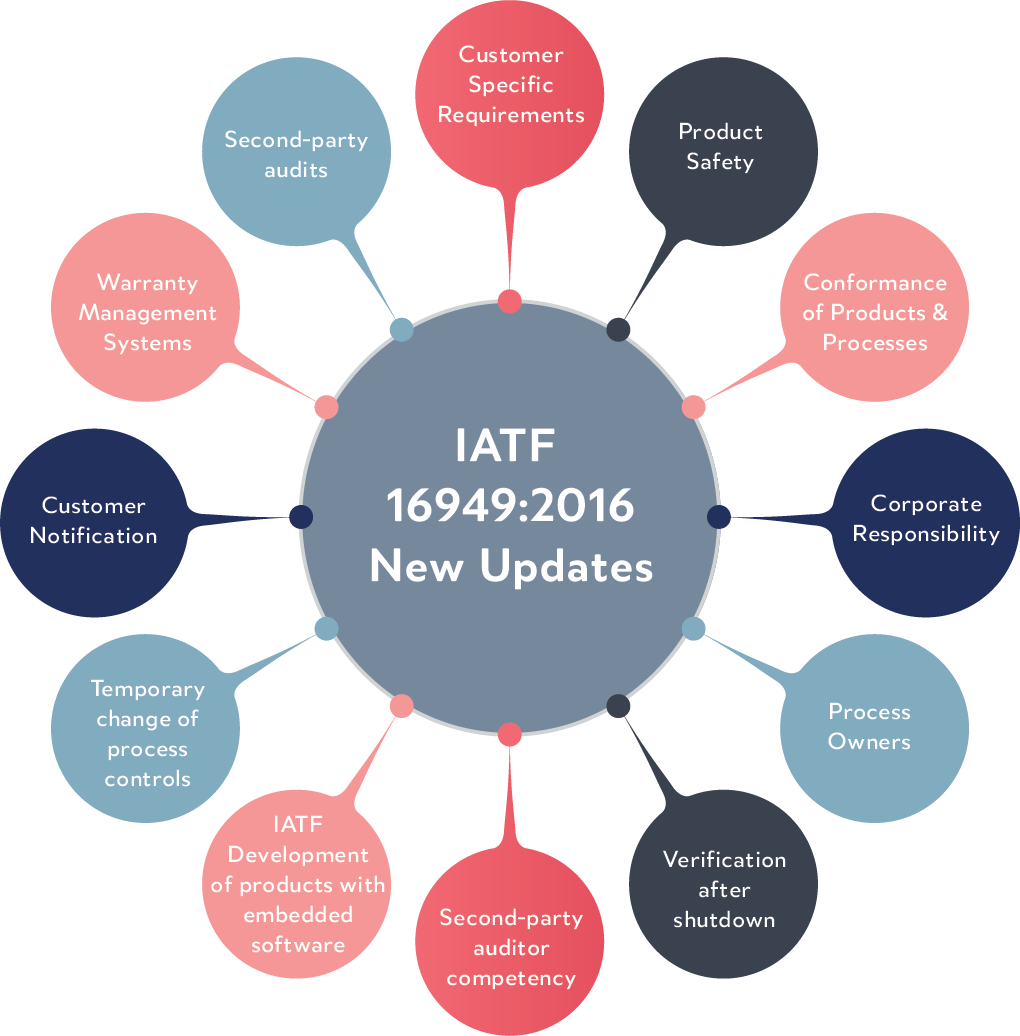

Uniform through-hardening stabilizes residual stress and minimizes post-machining warp. ISO 9001:2015 governs process control; IATF 16949 and ISO 13485 compliance is mandatory for automotive and medical-device supply chains, ensuring traceability, material certification and FAI documentation at every checkpoint.

Production Capacity and Lead-Time Guarantees

Verify that the manufacturer holds stock of common sizes and can ship standard mold base assemblies within 24–48 hours. XUXIANG’s dual-factory footprint — Dongguan plus the 2025 Quanzhou expansion — targets delivery roughly 30% faster than industry average, backed by over CNY 8 million in CNC, EDM and grinding assets.

Material Traceability and Heat Treatment

Request mill certificates for every steel grade and confirm in-house heat-treatment capability to ensure hardness uniformity. XUXIANG’s five-step QC flow includes spectral material analysis and CMM verification on a ZEISS MICURA (0.7 µm resolution), delivering full FAI documentation with every shipment.

Technical Support and Standards Compatibility

Assess whether the supplier offers DFM feedback and CAD files compatible with HASCO and DME footprints. XUXIANG assigns 10+ engineering experts to review designs before production, preventing costly rework and ensuring drop-in compatibility with global tooling ecosystems.

Red Flags to Avoid

Walk away from suppliers who provide vague material specifications, omit CMM inspection reports or show inconsistent delivery performance. Missing mill certs, absent metrology data and shifting lead times signal process instability that will cascade into your production schedule.

Specifying Oversized Bases

Buyers often default to the next-larger catalog size to ‘ensure clearance,’ inflating material cost by 20–35% and adding unnecessary machining time. Right-sizing the standard mold base through cavity-layout simulation cuts steel waste and reduces cycle time without compromising rigidity.

Ignoring Pre-Hardened Steel Options

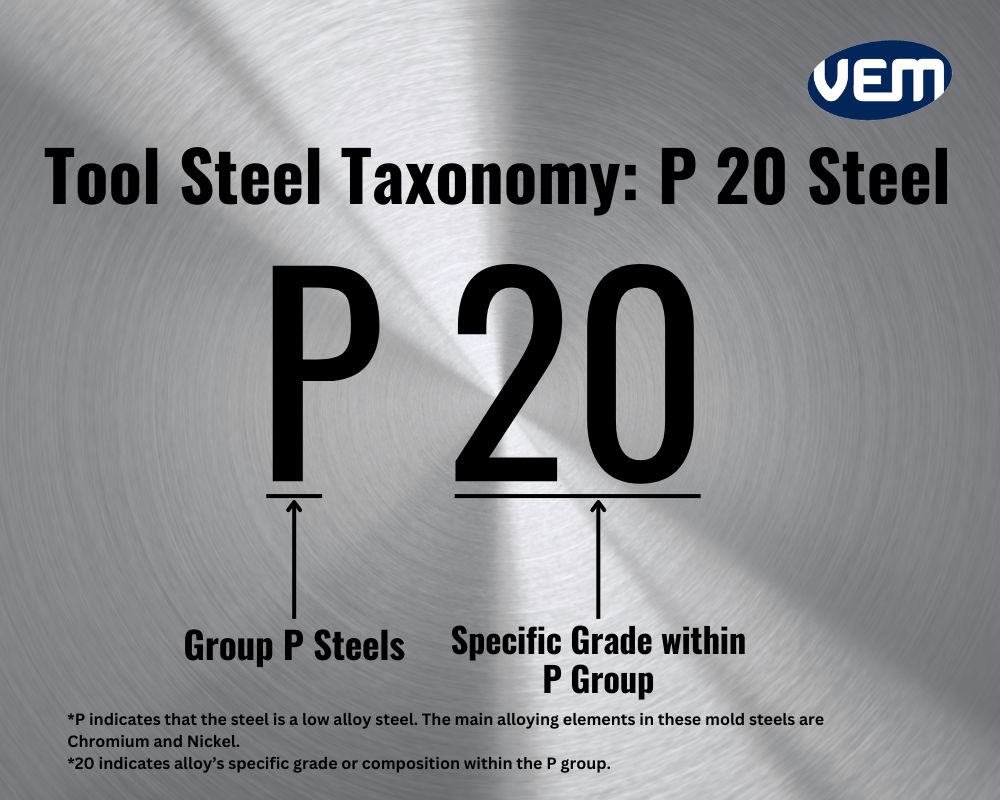

Ordering soft steel and scheduling post-delivery heat treatment adds 7–14 days and introduces distortion risk. Pre-hardened P20 or NAK80 standard mold base platforms ship ready for final machining, eliminating the heat-treat step and holding +/- 0.002 mm flatness out of the box.

Neglecting Cooling-Channel Design Early

Deferring cooling-circuit layout until after base procurement locks teams into drilled-hole patterns that compromise cycle efficiency. Specifying cooling requirements during base selection enables conformal or optimized straight-line channels, shortening cycle time by 10–18%.

Overlooking Standard-System Compatibility

Mixing HASCO and DME components creates interchangeability failures and rework loops. Verify that your standard mold base supplier stocks the same system your existing tool inventory uses, or commit to a single standard across all new projects to preserve spare-part fungibility.

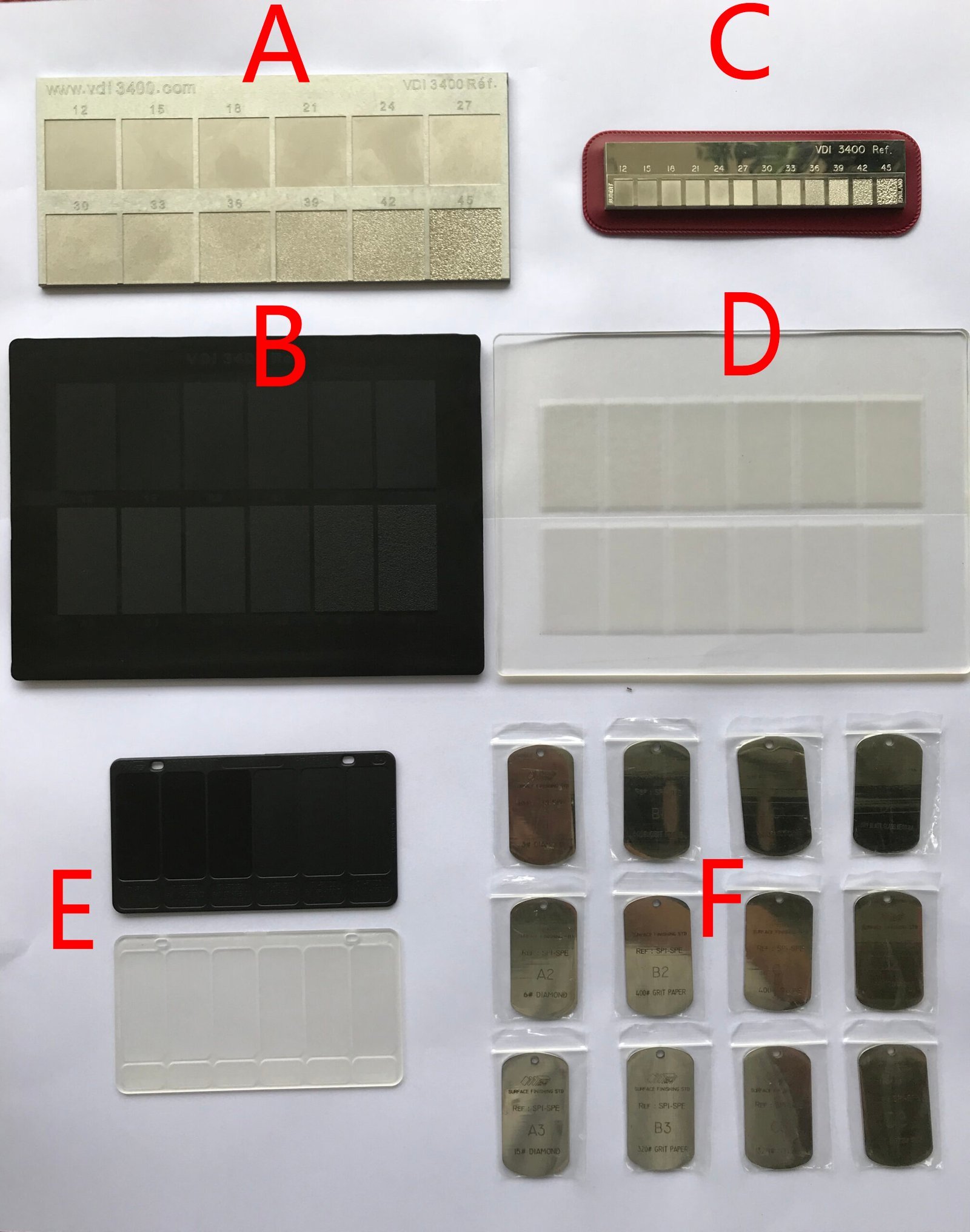

Underestimating Surface-Finish Impact

Accepting Ra 1.6 µm mill finish when the part requires Class-A cosmetics forces secondary polishing and delays validation. Specify mirror-grade EDM or ground surfaces (Ra ≤ 0.2 µm) on cavity-facing plates during base procurement to eliminate post-machining polish cycles.

Define Part Geometry and Production Volume

Begin with CAD part files, annual volume forecast and tolerance requirements. A 100,000-piece-per-year run justifies hardened steel and multi-cavity layouts; prototypes often use softer P20 bases with single cavities.

Share 3D models in STEP or IGES format, wall-thickness ranges and draft angles. XUXIANG’s engineering team reviews geometry for undercuts, ejection angles and cooling-channel feasibility before quoting.

Select Base Type and Material with DFM Input

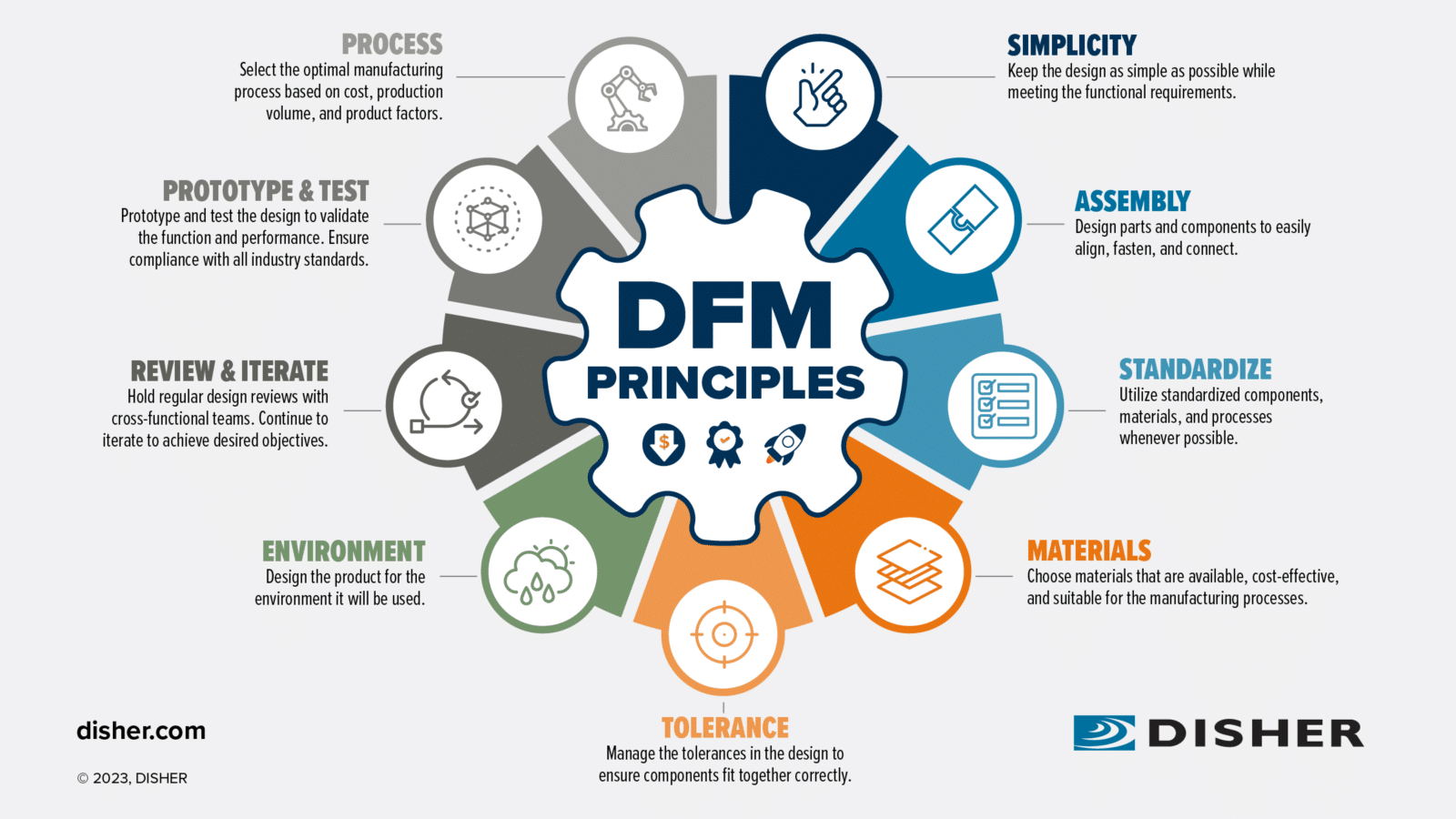

Request a design-for-manufacturing review covering base configuration, steel grade and heat-treatment path. Suppliers with 10+ DFM engineers—like XUXIANG—flag risky features and propose cost-neutral alternatives.

Typical lead time for DFM feedback is 24–48 hours. Confirm material certifications and hardness targets (e.g., HRC 28–32 for P20) in writing before purchase-order release.

Approve Samples and CMM Reports

Require first-article inspection with ZEISS or equivalent CMM data, showing measured versus nominal for critical dimensions. XUXIANG’s MICURA system delivers 0.7 µm resolution reports as PDF with color deviation maps.

Review surface finish (Ra values), corner radii and parting-line flatness. Approve only when all tolerances fall within +/- 0.002 mm on positioning features.

Establish Quality Gates and Delivery Milestones

Define in-process checkpoints: material receipt, rough machining, heat treatment, finish grinding and final EDM. Request photo or video updates at each gate to monitor progress.

XUXIANG’s five-step QC flow—spectral analysis, in-process monitoring, CMM verification, surface checks and FAI—ensures traceability. Lock delivery dates in the PO and tie payment milestones to gate completion.

Plan for Spare Components and Maintenance

Order 10–15 % spare ejector pins, core inserts and wear plates at project launch to avoid future MOQ penalties. Store CAD files and CMM baselines in a shared repository for re-orders.

Schedule preventive maintenance every 50,000–100,000 cycles. XUXIANG archives all tooling drawings and can reproduce components years later with identical tolerances.
