Mobile Connector Precision Mold Components for Multi-Cavity Insert Systems

What These Mobile Connector Precision Mold Components Are

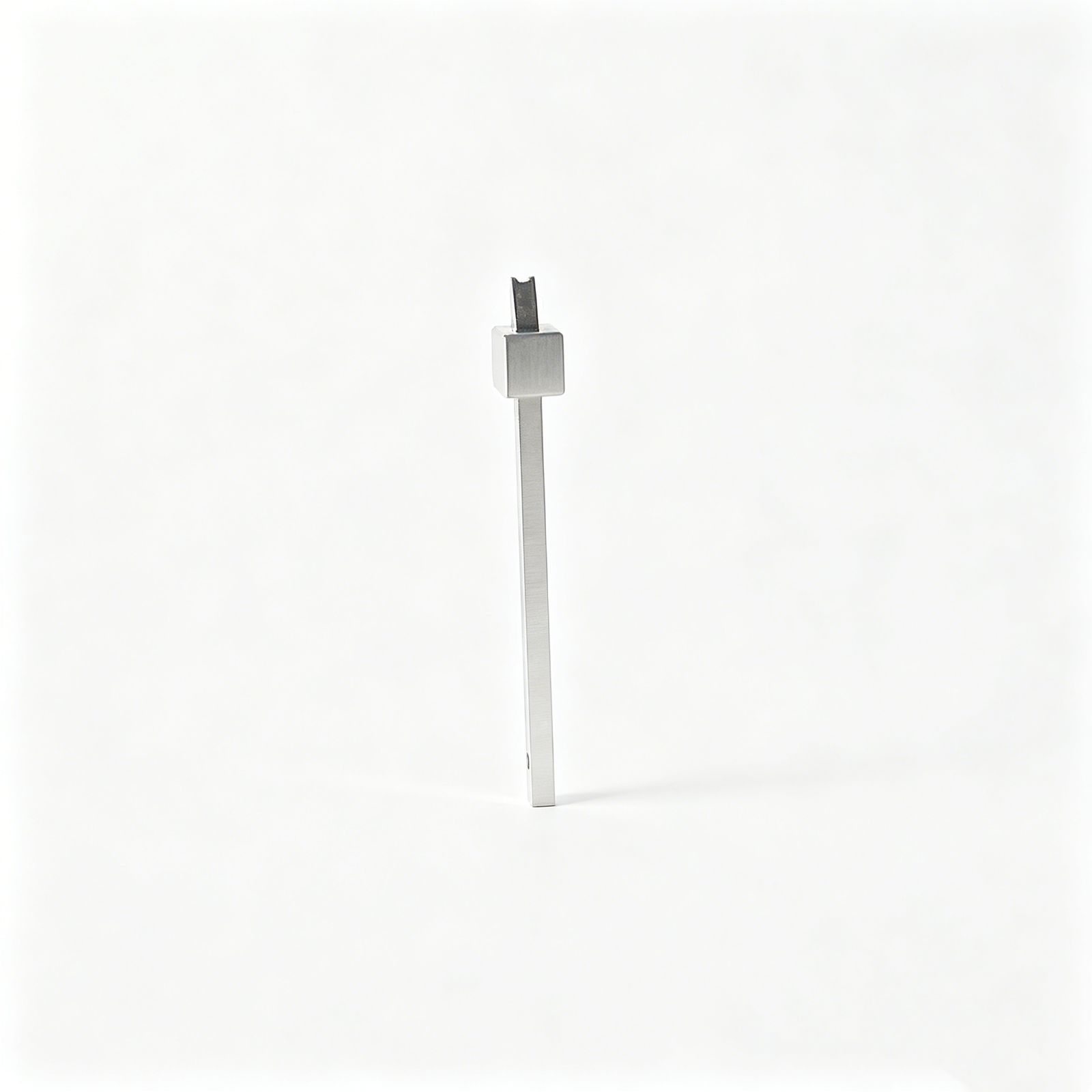

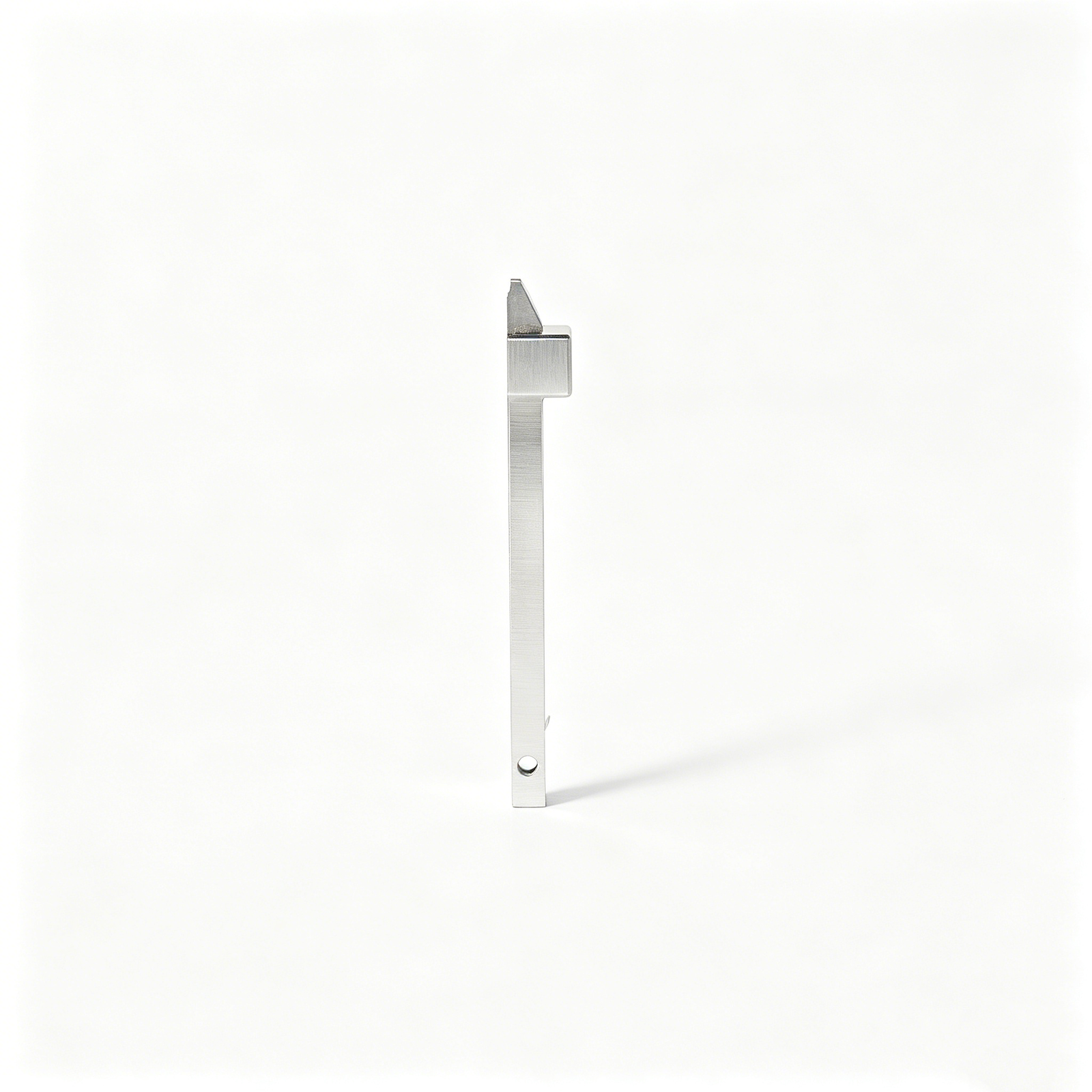

These Mobile Connector Precision Mold Components are specialized tooling elements used in injection molds for mobile device connectors and other compact interconnect housings. Designed for multi-cavity insert systems, they help form critical features such as pin pockets, terminal windows, locking latches, and thin-walled insulation barriers inside mobile and electronic connectors.

In a typical connector mold, multiple inserts, cores, and slides must work together with micron-level alignment to produce parts that assemble smoothly and meet tight fit requirements. These components are engineered to provide that precision, while still being robust enough for high-volume production and frequent mold changes.

Built for mold makers and OEMs in the mobile, automotive electronics, industrial controls, and consumer device sectors, the components are suitable for both new molds and retrofits where improved accuracy and serviceability are required.

Key Features & Benefits

Choosing the right mold components can dramatically improve tooling performance, reduce downtime, and minimize scrap. These Mobile Connector Precision Mold Components are designed with those outcomes in mind.

• Precision fit for connector geometries: Components are produced with tight tolerances and carefully controlled surface finishes to support thin walls, fine ribs, and micro features typical of mobile connectors.
• Stable multi-cavity performance: Consistent dimensions across matching inserts help keep all cavities running in balance, improving cavity-to-cavity repeatability and reducing sorting and rework.
• High-strength tooling materials: Manufactured from suitable tool steels chosen for hardness, wear resistance, and polishability, helping the mold withstand high injection pressures and long production runs.
• Optimized for smooth ejection: Functional surfaces are finished to aid part release, reduce sticking, and minimize gate blush or drag marks on delicate connector features.
• Serviceable, modular design: Many elements are conceived to be replaceable as individual inserts rather than as large mold blocks, simplifying maintenance and reducing the cost of repairs or engineering changes.
• Supports demanding plastics: Suitable for common connector materials such as engineering thermoplastics and flame-retardant grades, when paired with proper mold design and processing parameters.

Specifications & Typical Attributes

The table below summarizes representative characteristics and options often chosen for Mobile Connector Precision Mold Components. Exact values depend on your specific project, connector geometry, and material requirements.

Use Cases & Who These Components Are For

These Mobile Connector Precision Mold Components are aimed at professionals who must deliver reliable, high-density connectors where dimensional stability is critical. Typical customers include:

• Mold makers and tool shops building new connector molds for mobile devices, IoT products, and compact power modules.
• Connector manufacturers upgrading existing multi-cavity tools to improve yield, shorten cycle times, or add new product variants.
• OEMs and EMS providers who need tightly controlled connector housings to ensure proper mating, insertion force, and long-term reliability in the field.
• Engineering teams working on miniaturized connectors, where precise alignment of contacts and housings demands high-quality mold inserts.

Common scenarios where these components add value include:

• Introducing a new mobile or charging connector family that requires stable dimensions across large production runs.
• Converting from low-cavity to higher-cavity tooling and needing consistent performance in every new cavity.
• Improving flash control, reducing warpage around contact windows, or tightening positional tolerances on critical sealing features.
• Standardizing component designs across multiple molds to simplify spare parts management and maintenance routines.

Care, Maintenance & Buying Guidance

To get the best performance from these Mobile Connector Precision Mold Components, proper care and thoughtful selection are important.

• Installation and alignment: Ensure that pockets, backing plates, and locating features in the mold base are machined to match the component drawings. Accurate seating and alignment protect edges and maintain shutoff integrity.
• Regular cleaning: Establish a cleaning schedule to remove plastic residue, vent deposits, and any corrosion from cooling system condensate. Pay special attention to micro features and vent areas.
• Lubrication and corrosion protection: Use mold-safe lubricants and rust preventatives on moving or exposed surfaces during storage. Avoid products that may migrate onto molding surfaces and cause cosmetic defects.
• Inspection and wear tracking: Periodically inspect high-wear regions such as gates, edges of terminal slots, and core pins. Replace components showing wear before they create flash, short shots, or dimensional drift.
• Spare strategy: For high-volume tools, keep spare critical inserts and pins on hand. Matching components can help keep downtime to a minimum if unexpected damage occurs.

When specifying or purchasing, it is helpful to provide:

• Connector drawings or 3D models with key dimensions called out.
• Information on the plastic material, expected annual volume, and any special requirements such as high-temperature performance or specific cosmetic standards.
• Details on your mold base, number of cavities, and gating concept so components can be optimized for your tool layout.

With the right inputs, these Mobile Connector Precision Mold Components can be tailored to your application, helping you bring connector projects to market faster while protecting tooling investment and part quality over the life of the mold.
